product name

LG A-VMH18SB.AWHAHCI

Model: A-VMH18SB.AWHAHCI

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Sh Capacitor L-G-2A00986D
...
W6631
Harness,multi L-G-6631A20217F
...
W4986
Sound Proof L-G-3096A30010A
...
W49810
Supporter, Valve L-G-4980A20001B
...
135500
Cover L-G-MCK47976001
...
152503
Nipple,drain L-G-4H01010A
...
237202
Front Panel L-G-1A00196M
...
261704
Transformer,reactor L-G-EBJ36274402
...
263230A
Thermistor Assembly,ntc L-G-EBG61107024
...
263230B
Thermistor Assembly,ntc L-G-EBG61107109
...
268711F
Pcb Assembly,main L-G-EBR43127205
...
349480
Orifice L-G-4948A20005A
...
430410
Base Assembly,outdoor L-G-AAN73130007
...
435301
Grille,discharge L-G-MDX61844501
...
435511A
Cover Assembly L-G-3550AR2886C
...
435511B
Cover Assembly, Control (outdoor) L-G-3551A30162B
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437211
Panel Assembly,front(outdoor) L-G-AGL36687010
...
437212
Panel Assembly,rear(outdoor) L-G-AGL36636835
...
447910
Barrier Assembly,outdoor L-G-3H03307R
...
546810
Motor Assembly, Ac, Outdoo L-G-EAU43132901
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Tube Assembly, Condenser (out) L-G-AJR36479501
...
552116
Tube Assembly, Reverse L-G-AJR36524201
...
552200
Valve,expansion Body L-G-6140A90001K
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Service Valve L-G-5220A20006J
...
552203B
Service Valve L-G-2H02479J
...
554031
Condenser Assembly,bending L-G-5403A21012E
...
554160
Compressor L-G-5416A90015A
...
559010
Fan, Propeller L-G-MDG37706501
...
561410

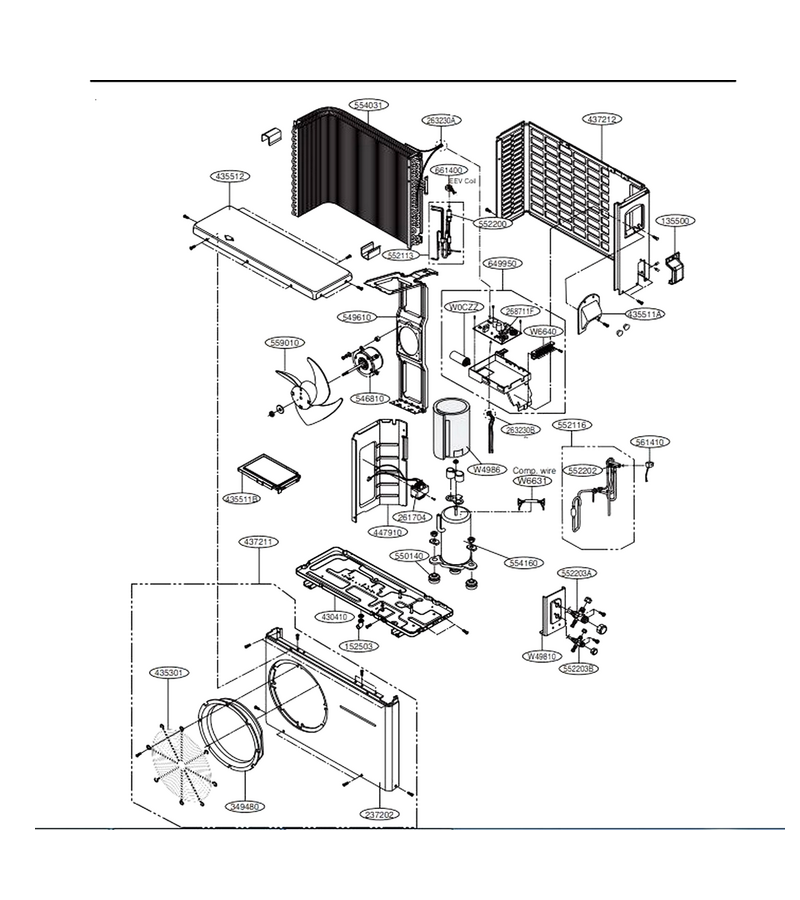

Drawing, Assembly L-G-6877A20052A
...
649950
Case Assembly,control(outdoor) L-G-ABQ36713103
...
661400
Drawing, Assembly L-G-6877A20050A
