product name

LG A-MMH36FA-1.AWGAHCI

Model: A-MMH36FA-1.AWGAHCI

Save Part Not Listed?

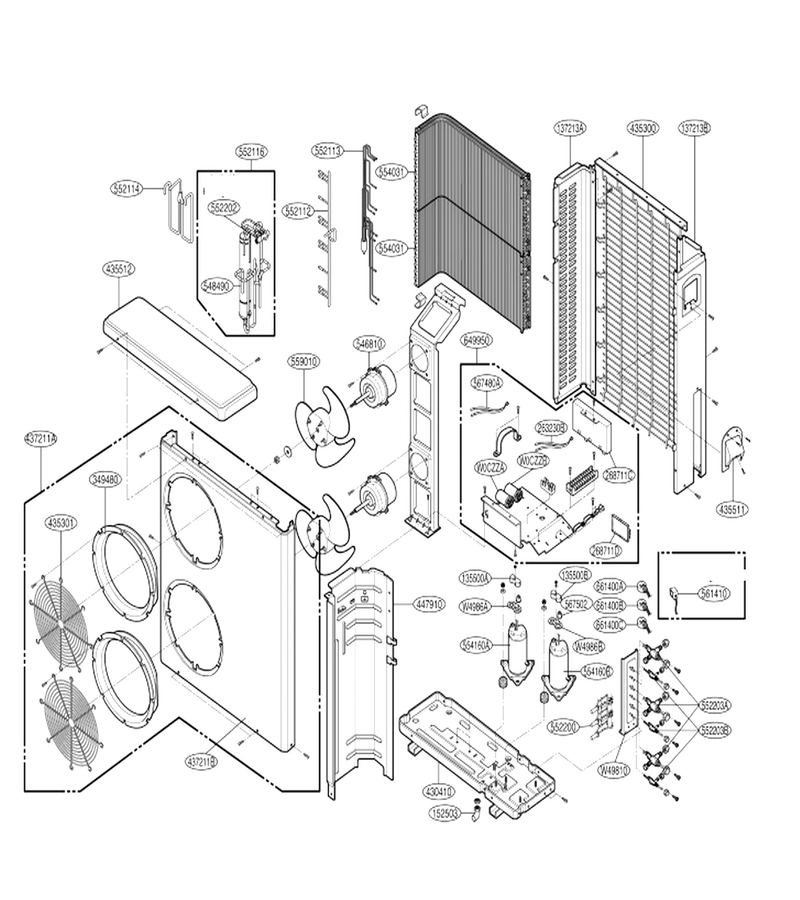

product name

Main (i)

...
...
W0CZZA
Capacitor,film,box L-G-0CZZA20007Q
...
W4986A
Gasket L-G-4986U-L004A
...
W0CZZB
Capacitor,film,box L-G-2H01451S
...
W49810
Supporter L-G-4908AR1016H
...
135500A
Cover L-G-3550U-L005A
...
135500B
Cover L-G-3550U-L006A
...
137213A
Panel Assembly,side L-G-3721A10110A
...
137213B
Panel Assembly,side L-G-3721A10111C
...
152503
Nipple,drain L-G-4H01010A
...
263230B
Thermistor Assembly,ntc L-G-EBG61186721
...
268711D
Pcb Assembly,main L-G-6871A20500B
...
268711C
Pcb Assembly,main L-G-6871A20479F
...
349480
Orifice L-G-4948A20001A
...
430410
Base Assembly,outdoor L-G-AAN73130002
...
435300
Grille,rear L-G-3530A10176B
...
435301
Grille,discharge L-G-MDX61846101
...
435511
Cover Assembly L-G-3550AR2886C
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019503
...
437211A
Panel Assembly,front(outdoor) L-G-3721A10109C
...
437211B
Panel Assembly,front(outdoor) L-G-3721A20147A
...
447910
Barrier Assembly,outdoor L-G-4791A10019B
...
546810
Motor Assembly,ac,outdoor L-G-4681AR1392X
...
548490
Accumulator L-G-4848A20006L
...
552112
Tube Assembly,condenser(in) L-G-5211A11010A
...
552113
Tube Assembly,condenser(out) L-G-5211A12001A
...
552114
Tube Assembly,discharge(outdoor) L-G-AJR30834101
...
552116
Tube Assembly,reverse L-G-AJR30839801
...
552200
Valve,expansion Body L-G-6140A90001K
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-MJX62472208
...
552203B
Service Valve L-G-5220A20005D
...
554031
Condenser Assembly,bending L-G-5403A20168A
...
554160A
Compressor Set,korea L-G-TBZ30111701
...
554160B
Compressor Set,korea L-G-TBZ35275301
...
559010
Fan Propeller L-G-5901A10033A
...
561410
Solenoid L-G-3A02028Z
...
567480A
Thermistor,ntc L-G-6323A20026A
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L048A
...
649950
Case Assembly,control(outdoor) L-G-4995A00002M
...
661400A
Coil Assembly L-G-EAD62437308
...
661400B
Drawing,assembly L-G-EAD62437301
...
661400C
Drawing,assembly L-G-EAD62437302
