LG A-MMH24FA-1.AWGAHCI

Model: A-MMH24FA-1.AWGAHCI

Save Part Not Listed?
product name

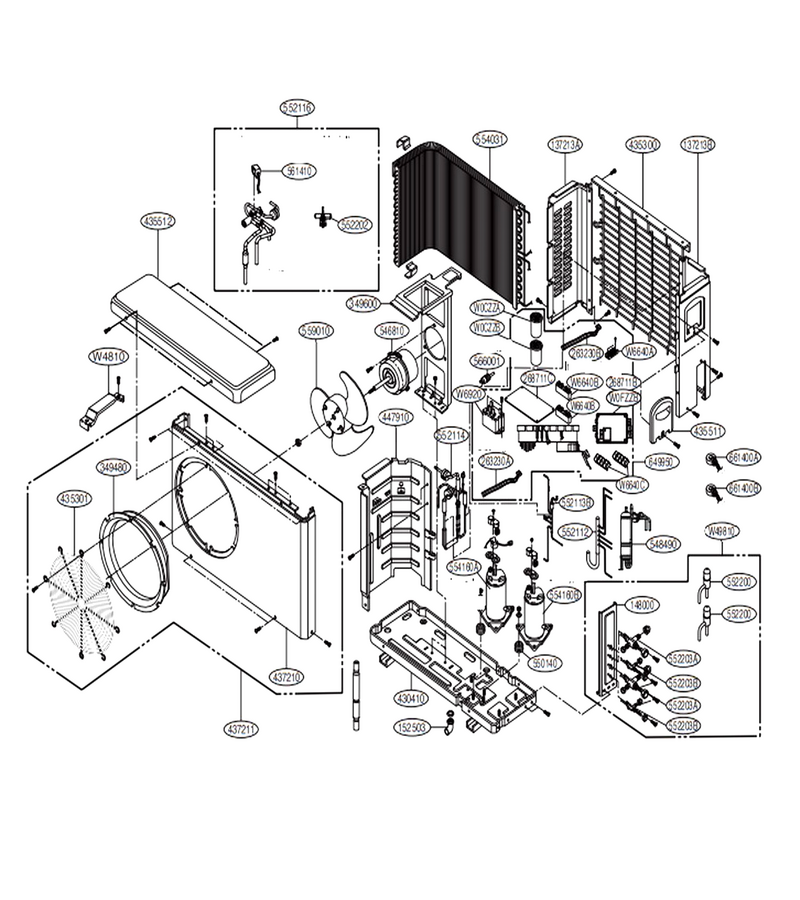

Main (i)

...
...
W0CZZA
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W6640C
Connector,terminal Block L-G-6640A90001U
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Connector, Terminal Block L-G-4G00103C
...
W4810
Bracket L-G-3A01934B
...
W0FZZB
Fuse,time Delay L-G-0FT5001B511
...
W0CZZB
Capacitor,film,box L-G-2A00986G
...
W49810
Supporter Assembly L-G-5211A20927F
...
137213A
Panel Assembly,side L-G-AGL70858101
...
137213B
Panel Assembly,side L-G-3A02284R
...
148000
Supporter L-G-4908AR1016G
...
152503
Nipple,drain L-G-4H01010A
...
263230B
Thermistor Assembly,ntc L-G-EBG61107013
...
263230A
Thermistor Assembly,ntc L-G-EBG61186719
...
268711B
Pcb Assembly,main L-G-6871A20500B
...
268711C
Pcb Assembly,main L-G-6871A20479D
...
349480
Orifice L-G-4948A20005A
...
349600
Motor Mount L-G-1A00206B
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX61844501
...
435511
Cover Assembly L-G-3550AR2886C
...
435512
Cover Assembly,top(outdoor) L-G-3551A30113G
...
437210
Panel Assy,f L-G-1A00197C
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105602
...
447910
Barrier Assembly, Outdoor L-G-4791A30004H
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20008E
...
548490
Accumulator Assembly L-G-4849A20084A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly,condenser(in) L-G-5211A16012A
...
552113B
Tube Assembly,condenser(out) L-G-5211A16013A
...
552114
Tube Assembly,discharge(outdoor) L-G-5211A22710A
...
552116
Tube Assembly,reverse L-G-5211A22711A
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-MJX62472208
...
552203B
Service Valve L-G-5220A20005D
...
554031
Condenser Assembly,bending L-G-5403A20257A
...
554160A
Compressor Set,korea L-G-TBZ35275301
...
554160B
Compressor Set, Korea L-G-2520UGJK2AA
...
559010
Fan Assembly L-G-1A00195B
...
561410
Solenoid L-G-3A02028Z
...
566001
Service Valve L-G-6600L000013
...
649950
Case Assembly,control(outdoor) L-G-4995A00002L
...
661400A
Coil Assembly L-G-EAD62437308
...
661400B
Drawing,assembly L-G-EAD62437301
