product name

LG 98842.ABWESEU

Model: 98842.ABWESEU

Save Part Not Listed?

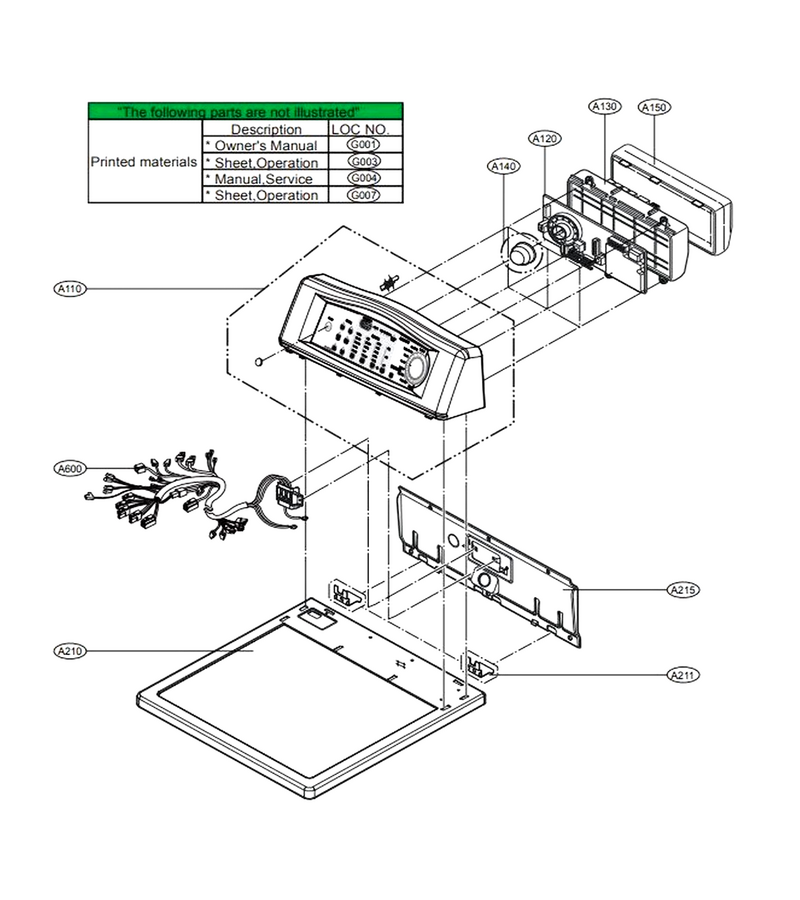

product name

Control Panel & Plate Assembly

...
...
A110
Panel Assembly,control L-G-AGL65885801
...
G007
Sheet,operation L-G-MHK32689201
...
G004
Manual,service L-G-3828EL3001D
...
G003
Sheet,operation L-G-3840EL3001C
...
G001
Manual,owners L-G-3828EL4001M
...
A600
Harness,multi L-G-6877EL1013C
...
A215
Panel L-G-3720EL1004B
...
A210
Plate L-G-3457ER1002H
...
A150
Protect Cover L-G-3550EL2003A
...
A140
Knob Assembly L-G-AEZ65893301
...
A130
Pcb Assembly,main L-G-EBR33640910
...
A120
Pcb Assembly,display L-G-6871EC2025U
...
A211
Plate Clip U L-G-3300EL4001A

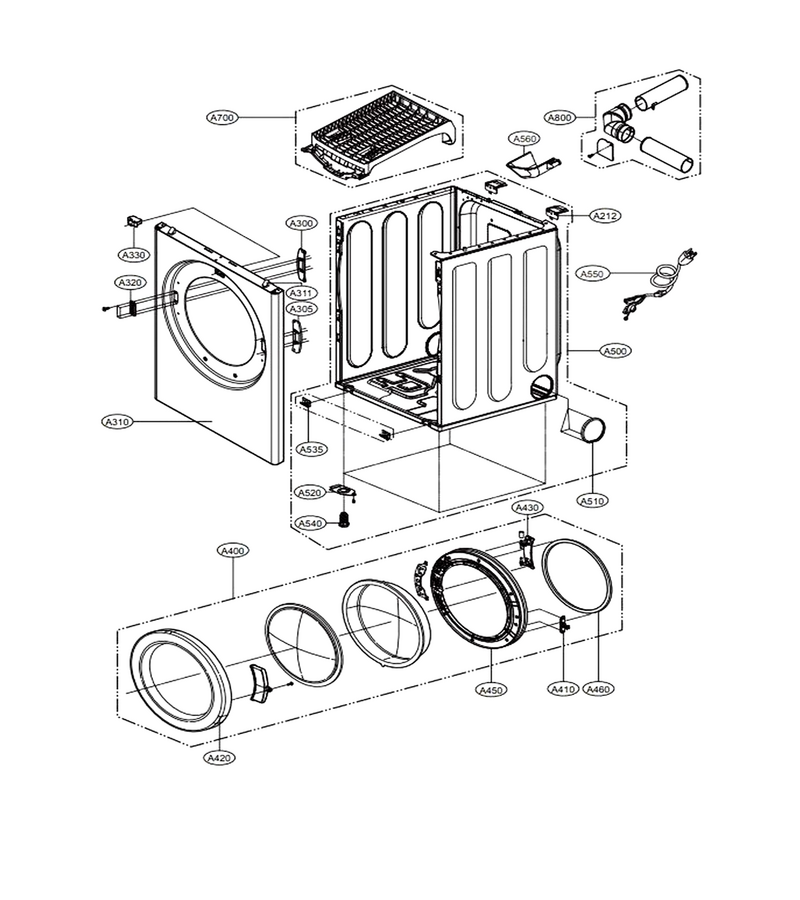

Cabinet & Door Assembly

...
...
A450
Door Frame L-G-3212EL1005A
...
A460
Dryer Door Seal L-G-4986EL2004A
...
A500
Cabinet L-G-3091EL0002B
...
A510
Dryer Side Vent Hole Cover (white) L-G-5006EL3001D
...
A535
Base Bracket L-G-4810EL3003A
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A550
Power Cord L-G-6411ER1004X
...
A560
Guide Cover L-G-3550EL3007D
...
A700
Dryer Drying Rack L-G-3750EL1001A
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B
...
A520
Dryer Leveling Leg Bracket L-G-4810EL3001A
...
A420
Outer Dr Fr L-G-3212EL1006A
...
A212
Lower Plate L-G-3300EL3001A
...
A300
Dryer Door Hinge Bracket L-G-4810EL3006A
...
A305
Bracket L-G-4810EL3006B
...
A310
Cover,cabinet L-G-3550EL0003D
...
A311
Dryer Cabinet Clip L-G-4930ER4003A
...
A320
Dryer Door Catch L-G-4027EL1001A
...
A430
Dryer Door Hinge L-G-4774EL2001A
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A400
Dryer Door Assembly L-G-3581EL0001B
...
A410
O Door Frame L-G-4026EL3007A

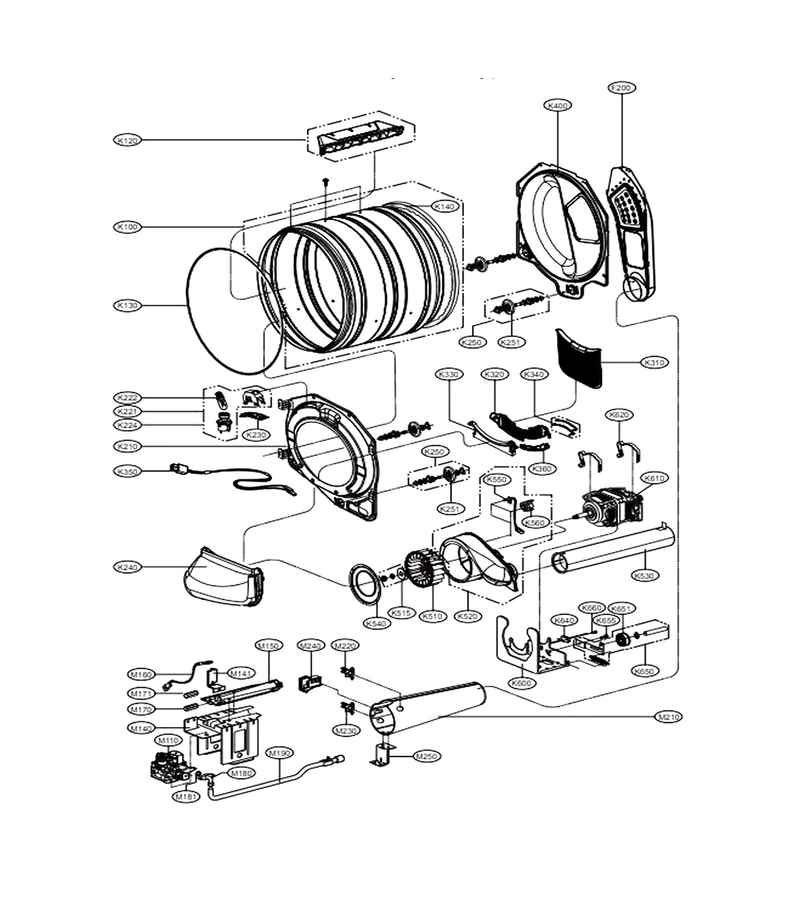

Drum & Motor Assembly Gas Type

...
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Dryer Motor Bracket L-G-4810EL1002A
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-3W40025D
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
M110
Dryer Gas Valve L-G-5221EL2002A
...
M140
Dryer Burner Bracket L-G-4974EL1001A
...
M141
Bracket L-G-4810EL3002A
...
M150
Dryer Burner L-G-5201EL3001A
...
M160
Dryer Burner Igniter L-G-5318EL3001A
...
M170
Dryer Natural Gas Orifice L-G-4948EL4001B
...
M171
Dryer Lp Conversion Kit L-G-383EEL3002A
...
M180
Connector L-G-4932EL4001A
...
M181
Dryer Gas Supply Pipe Connector Seal L-G-4036EL3002A
...
M190
Dryer Gas Manifold L-G-5201EL2001A
...
M210
Dryer Burner Duct Assembly L-G-3016EL1001A
...
M220
Dryer High-Limit Thermostat L-G-6931EL3004B
...
M230
Dryer High-Limit Thermostat L-G-6931EL3003C
...
M240
Dryer Radiant Sensor L-G-6501EL3001A
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
F200
Dryer Heat Duct L-G-5209EL1001E
...
K100
Dryer Drum L-G-3045EL1002N
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001A
...
K210
Tub Assembly,drum L-G-AJQ73594001
...
K221
Dryer Drum Light Assembly L-G-6913EL3002A
...
K222
Dryer Drum Light Bulb L-G-6913EL3001A
...
K224
Holder L-G-4930EL3008A
...
K230
Lamp Cover L-G-3550EL2001A
...
K240
Dryer Exhaust Duct L-G-5209EL1002A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K251
Dryer Drum Support Roller L-G-4581EL3001A
...
K310
Dryer Lint Screen L-G-5231EL1003E
...
K320
Dryer Lint Screen Cover L-G-3550EL1006D
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K360
Dryer Moisture Sensor Guide L-G-4930EL2004D
...
K400
Dryer Drum Rear Cover L-G-3044EL0002E
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
