LG 88512.AWHESEA

Model: 88512.AWHESEA

Save Part Not Listed?
product name

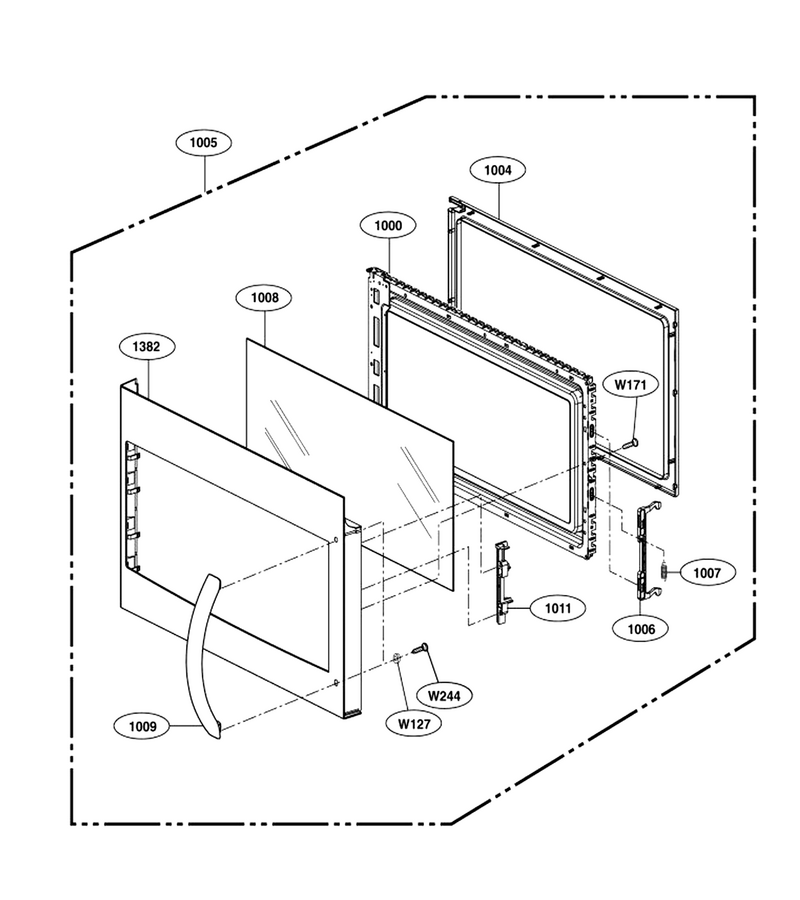

Door Parts 1

...
...
1000
Frame Assembly,door L-G-3213W0A003H
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-ADC67735704
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-MKC55260501
...
1009
Handle,door L-G-MEB51772803
...
1382
Parts Assembly L-G-383EW5A147J

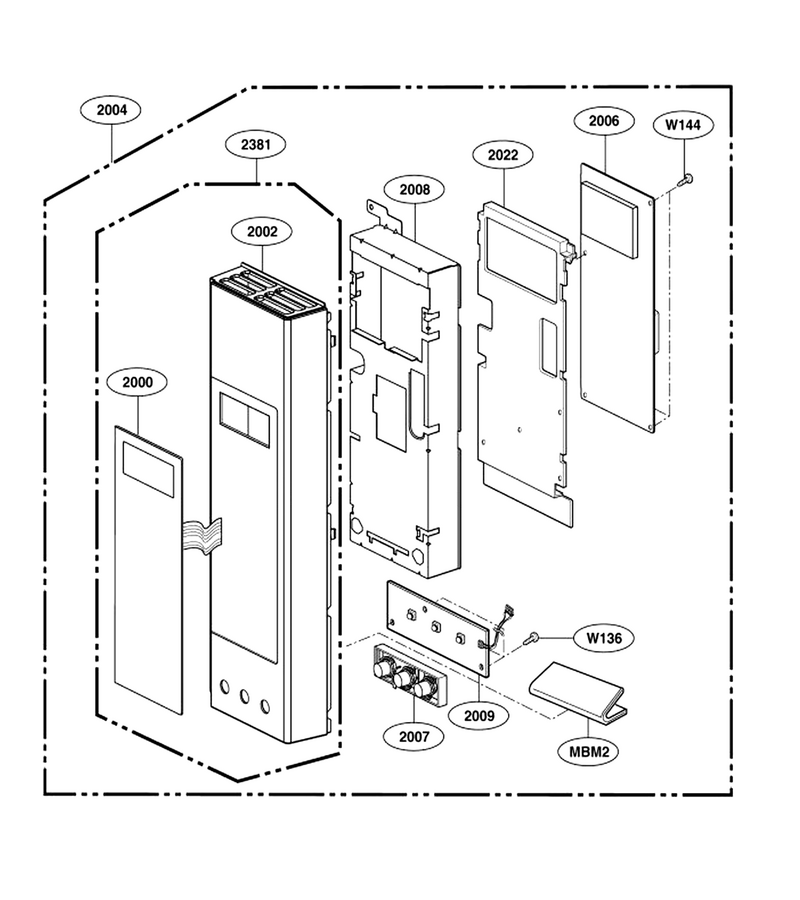

Controller Parts 1

...
...
MBM2
Card,technical L-G-3840W1T151B
...
W136
Screw L-G-1TPL0302418
...
2000
Membrane L-G-MFM61844201
...
2002
Panel,control L-G-MGC51772504
...
2004
Controller Assembly,keypad L-G-ACM67735804
...
2007
Button L-G-5020W1A139A
...
2009
Pcb Assembly,sub L-G-6871W1S187A
...
2381
Parts Assembly L-G-383EW1A123H

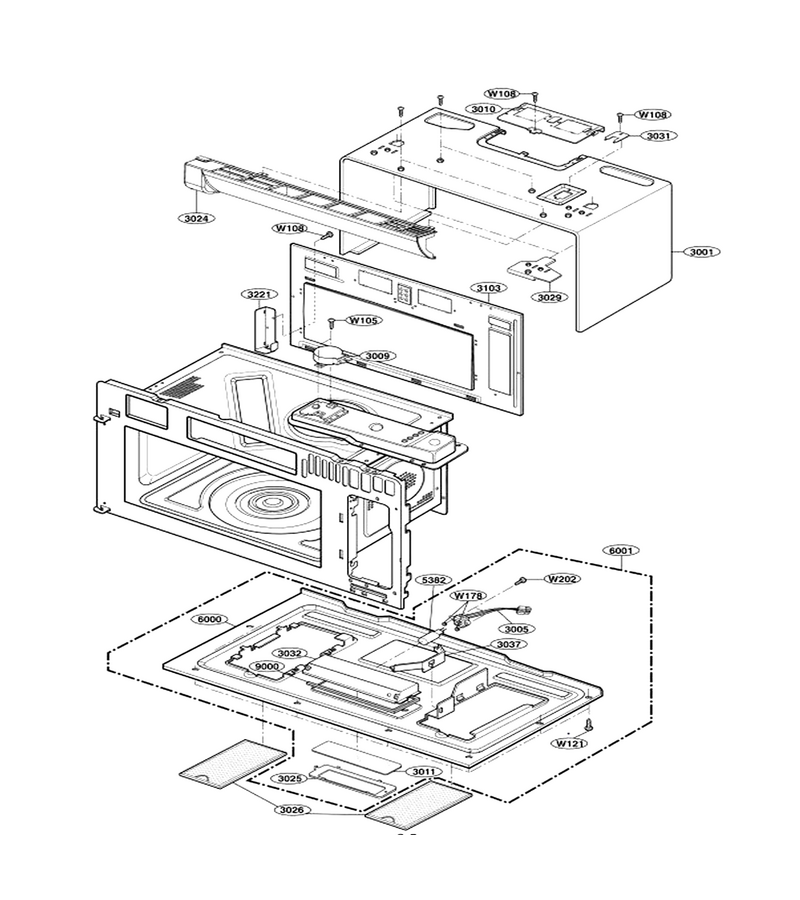

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W178
Hex Nut L-G-1NHA0300018
...
W202
Screw L-G-1MPC0303118
...
3001
Case,flat L-G-3112W0F013H
...
3005
Holder Assembly L-G-4931W1A009A
...
3009
Motor L-G-6549W1S002G
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3024
Grille,vent L-G-MDX61171701
...
3026
Filter,grease L-G-2B72705C
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3221
Bracket L-G-MAZ58934401
...
5382
Parts Assembly L-G-383EW1A077D
...
6000
Plate,base L-G-3302W0A028H
...
6001
Plate Assembly,base L-G-AGU30055504
...
9000
Damper L-G-3B72244M

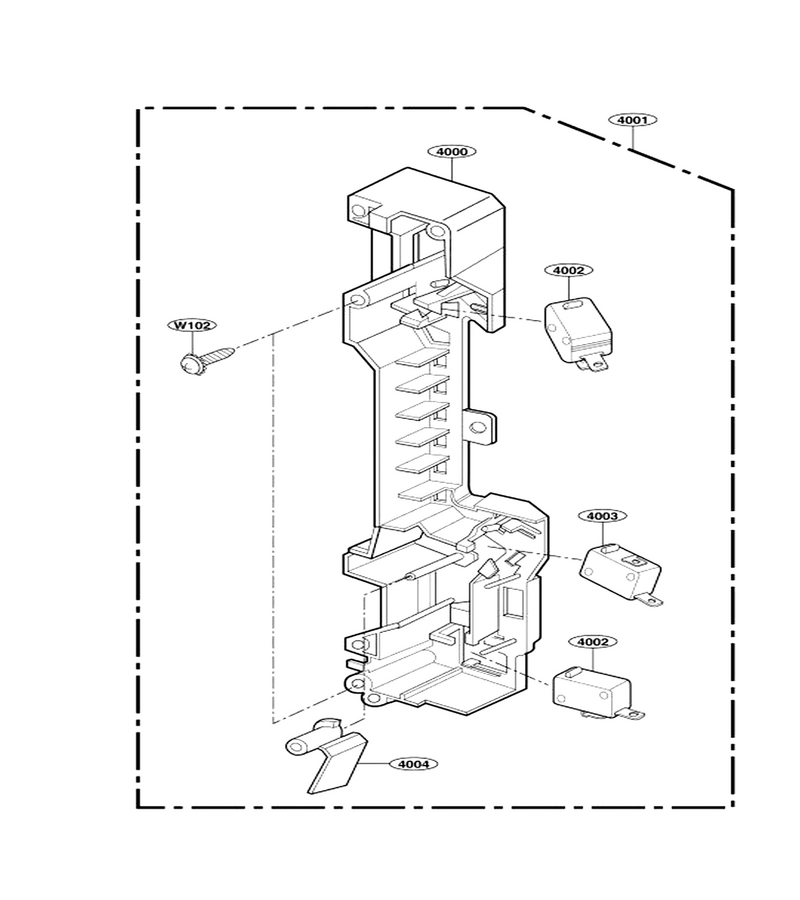

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

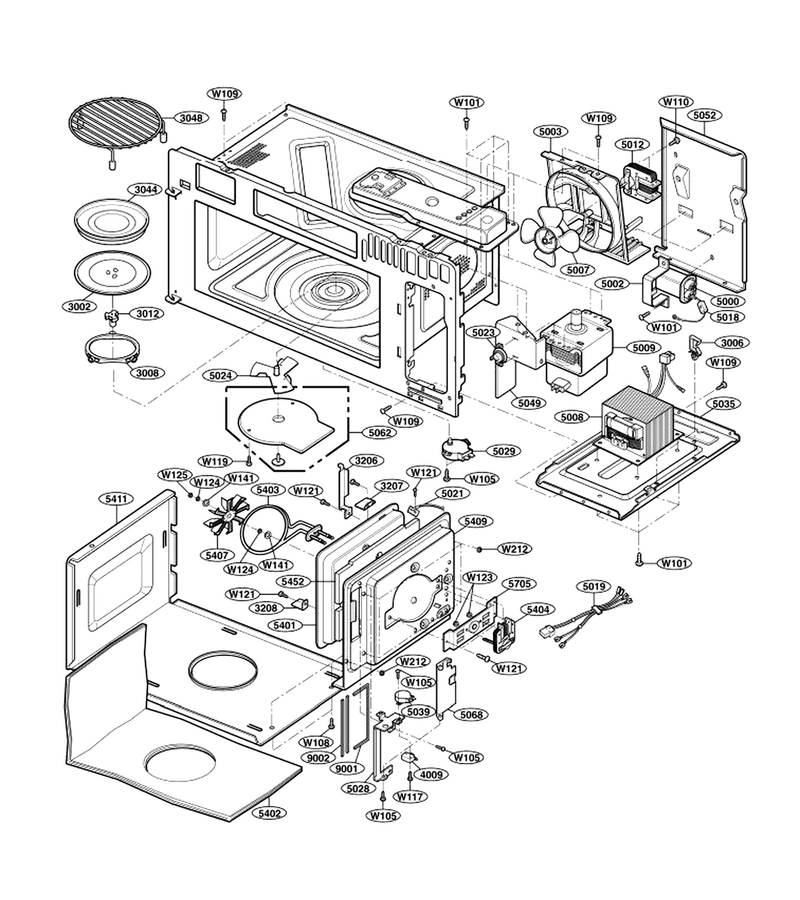

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
W119
Microwave Tapping Screw L-G-1TTG0402632
...
W121
Microwave Screw L-G-1TTL0402422
...
W123
Nut L-G-1NHA0400018
...
W124
Washer L-G-1WSD0400032
...
W141
Washer L-G-1WPL0500032
...
3002
Tray,glass L-G-3390W1A019B
...
3006
Holder L-G-4B72944B
...
3008
Microwave Turntable Tray Support L-G-5889W2A012D
...
3044
Microwave Turntable Tray L-G-3390W2P002F
...
4009
Switch Micro L-G-3B73361E
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810WRC002A
...
5003
Guide,suction L-G-4974W1A032A
...
5007
Blower Fan L-G-2B72279B
...
5008
Transformer,high Voltage L-G-6170W1D052W
...
5012
Motor,ac Fan L-G-6549W1F009F
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5029
Microwave Turntable Motor L-G-6549W1S013D
...
5039
Motor, Ac Synchronous L-G-EAU60783501
...
5407
Fan Blade L-G-5900W3A004B

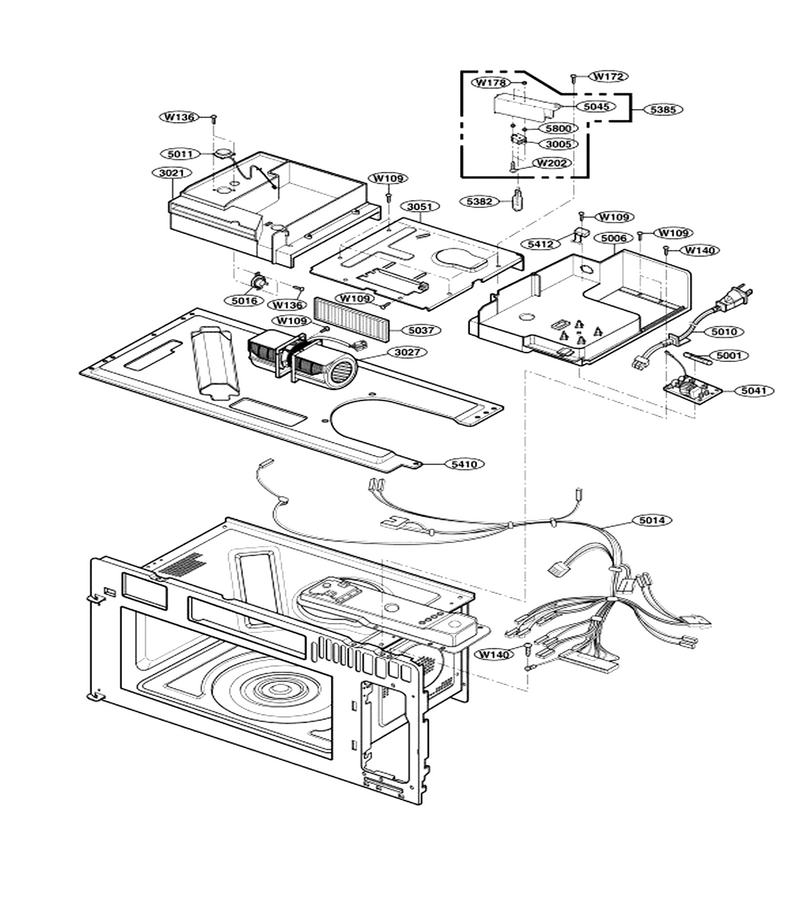

Interior Parts 2

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W172
4.0x16mm Tap L-G-1TTL0403118
...
W178
Hex Nut L-G-1NHA0300018
...
W202
Screw L-G-1MPC0303118
...
3005
Holder Assembly L-G-4931W1A009A
...
3027
Motor, Ac Ventilation L-G-6549W1V006H
...
5001
Fuse[all] L-G-3B74133K
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5016
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Cover,lamp L-G-MCK30584401
...
5382
Parts Assembly L-G-383EW1A077D
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

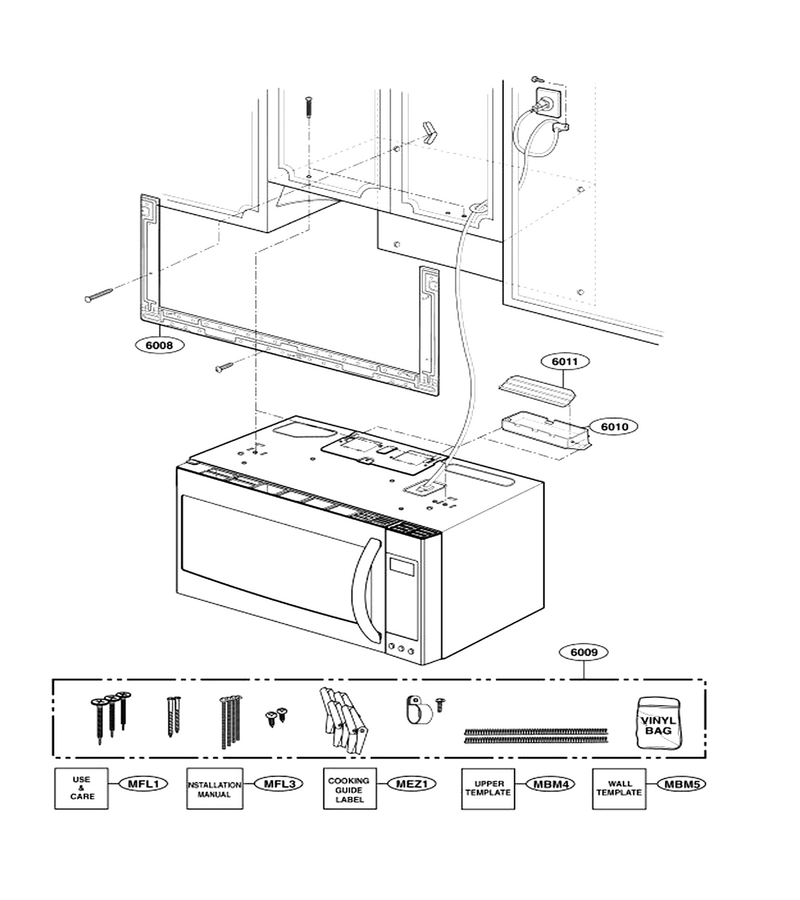

Installation Parts

...
...
MBM4
Card,template L-G-4922W5A061A
...
MBM5
Card,template L-G-4922W5A066A
...
MEZ1
Label,cooking Guide L-G-3850W1D130D
...
MFL1
Manual,owners L-G-MFL57601502
...
MFL3
Manual,installation L-G-3828W5U0463
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043C
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
