product name

LG 87790.MWESEC

Model: 87790.MWESEC

Save Part Not Listed?
product name

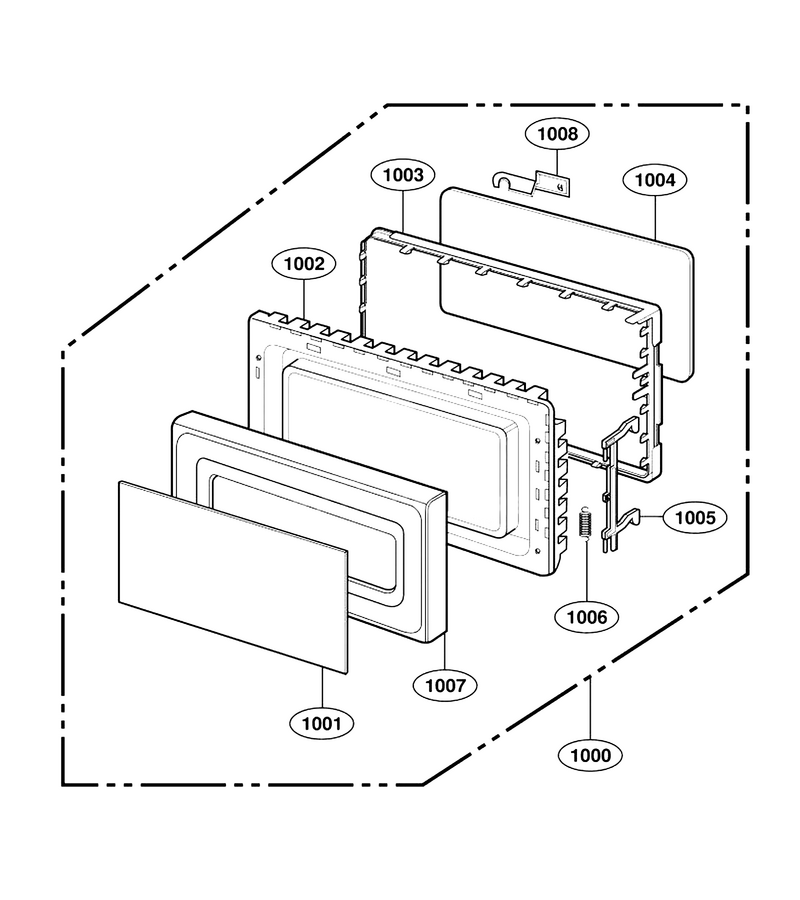

Door Parts

...
...
1000
Door Assembly L-G-3581W1A112K
...
1001
Window,screen L-G-3352W1A075C
...
1002
Frame Assembly,door L-G-3213W1A028H
...
1003
Cover,choke L-G-3552W1A026A
...
1004
Tape,sealing L-G-3536WRA001L
...
1005
Latch L-G-4026W2A012A
...
1006
Spring L-G-4970WRA001C
...
1007
Panel,door L-G-3720W0D078E
...
1008
Transformer L-G-5006W3A017A

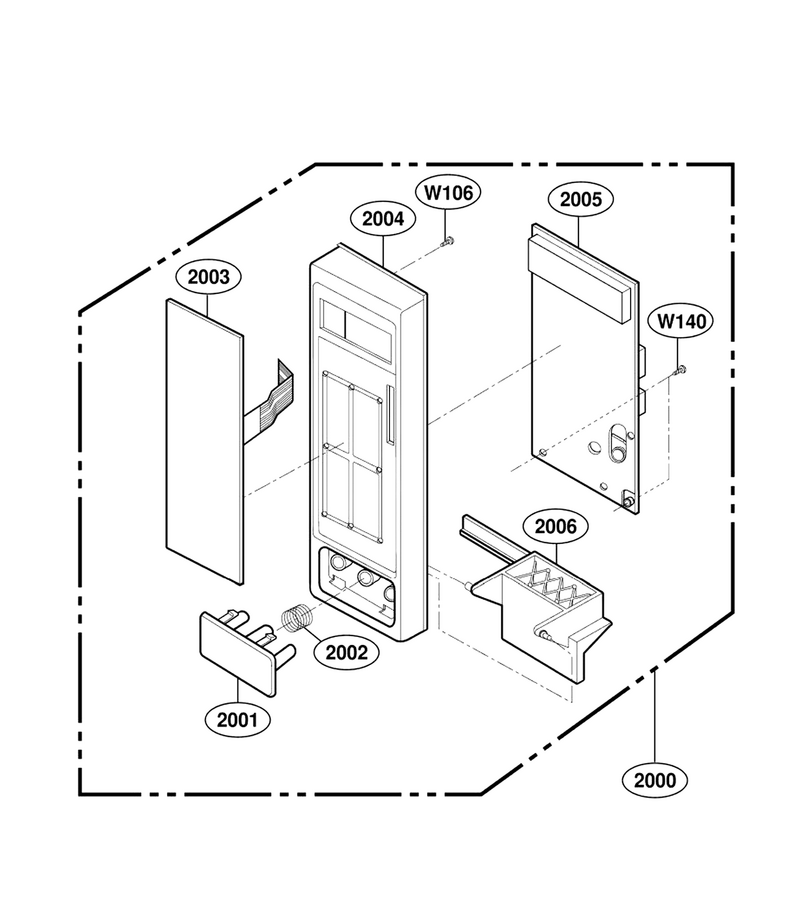

Controller Parts

...
...
W106
Microwave Screw L-G-1TTL0402818
...
W140
Screw L-G-1TPL0402818
...
2000
Controller Assembly,keypad L-G-4781W1M146B
...
2001
Button L-G-5020W3G102D
...
2002
Microwave Door Release Button Spring L-G-4B72023A
...
2003
Membrane L-G-6638W2A126A
...
2004
Panel,control L-G-3572W1A121E
...
2005
Pcb Assembly,sub L-G-6871W2S020B
...
2006
Lever L-G-4510W3L002A

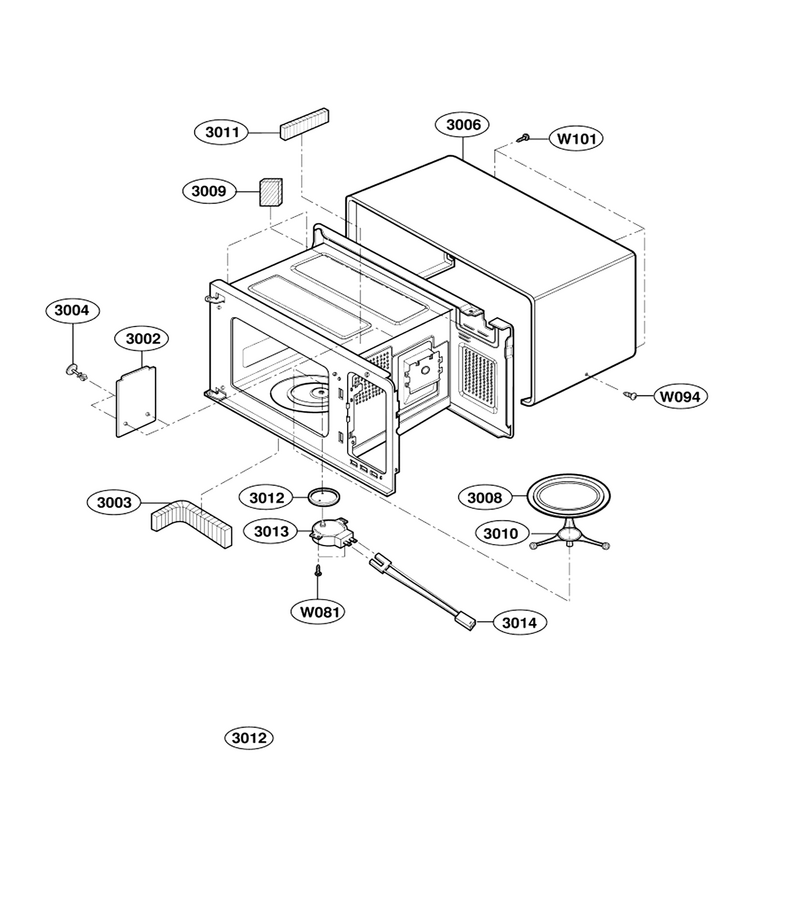

Oven Cavity Parts

...
...
W081
Microwave Screw L-G-1TPL0402418
...
W094
Microwave Screw L-G-1TTG0402422
...
W101
Microwave Screw L-G-1TTL0402418
...
3002
Cover,insulator L-G-3052W3M008A
...
3003
Damper L-G-3B72246J
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3006
Case,u Bending L-G-3112W1U015M
...
3008
Tray,glass L-G-3390W1G003E
...
3009
Cushion L-G-3B72244C
...
3010
Microwave Turntable Tray Support L-G-5889W2A011A
...
3011
Damper L-G-3B72246Y
...
3012
Plate L-G-4960W3G026A
...
3013
Microwave Turntable Motor L-G-2B72754K
...
3014
Harness,single L-G-6877WRT007D

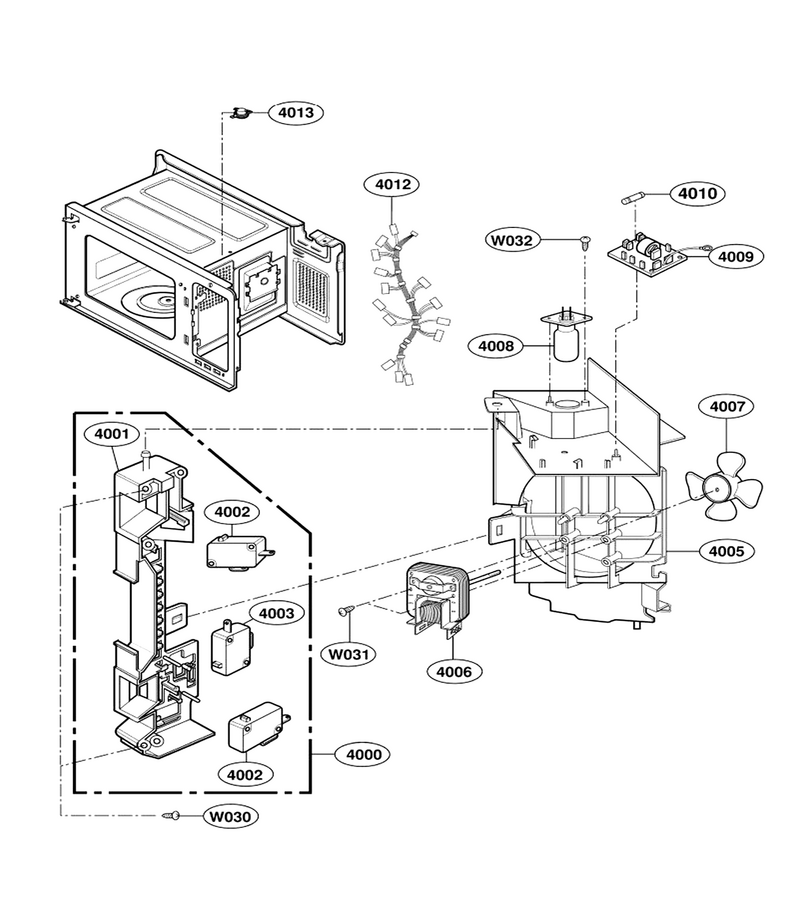

Suction Guide Parts

...
...
W030
Screw L-G-4B70188B
...
W031
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
4000
Holder Assembly,locker L-G-3501W1A003H
...
4001
Holder,locker L-G-3500W1A004A
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Switch Micro L-G-3B73361E
...
4005
Guide,suction L-G-4974W0S010A
...
4006
Motor,ac Fan L-G-6549W2F017B
...
4007
Blower Fan L-G-2B72279B
...
4008
Microwave Light Bulb L-G-6912W3B002G
...
4009
Microwave Noise Filter L-G-2B72130F
...
4010
Fuse[all] L-G-3B74133K
...
4012
Power Cord Assembly L-G-6411W2A002H
...
4013
Thermostat L-G-6930WRT001A

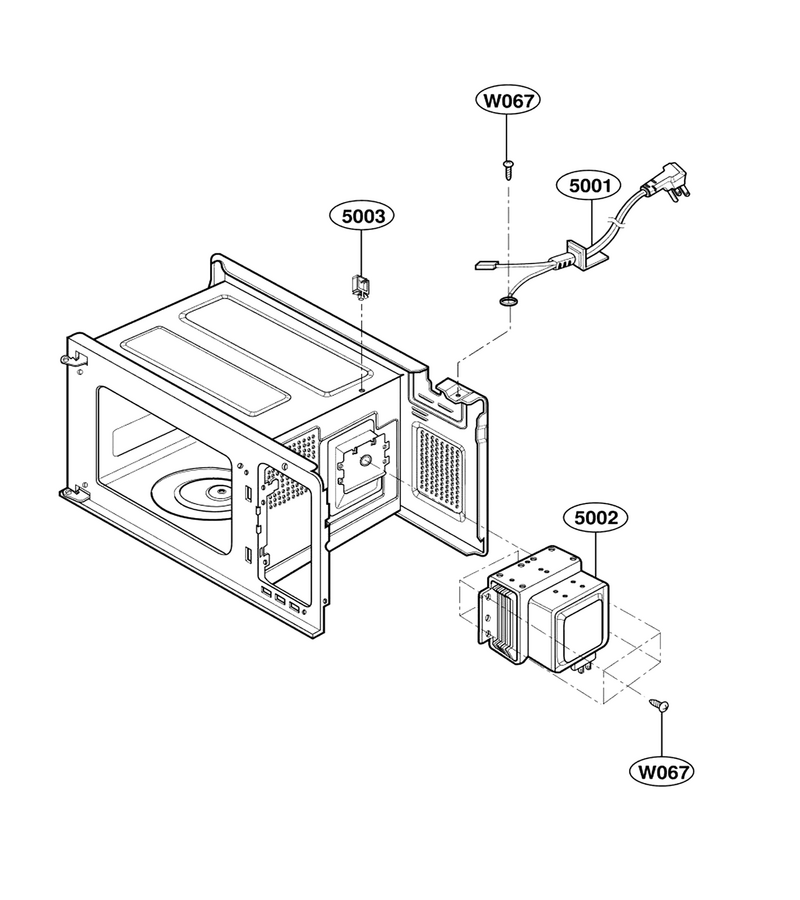

Interior Parts

...
...
W067
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5002
Microwave Magnetron L-G-6324W1A001A
...
5003
Holder L-G-4930W3B029A

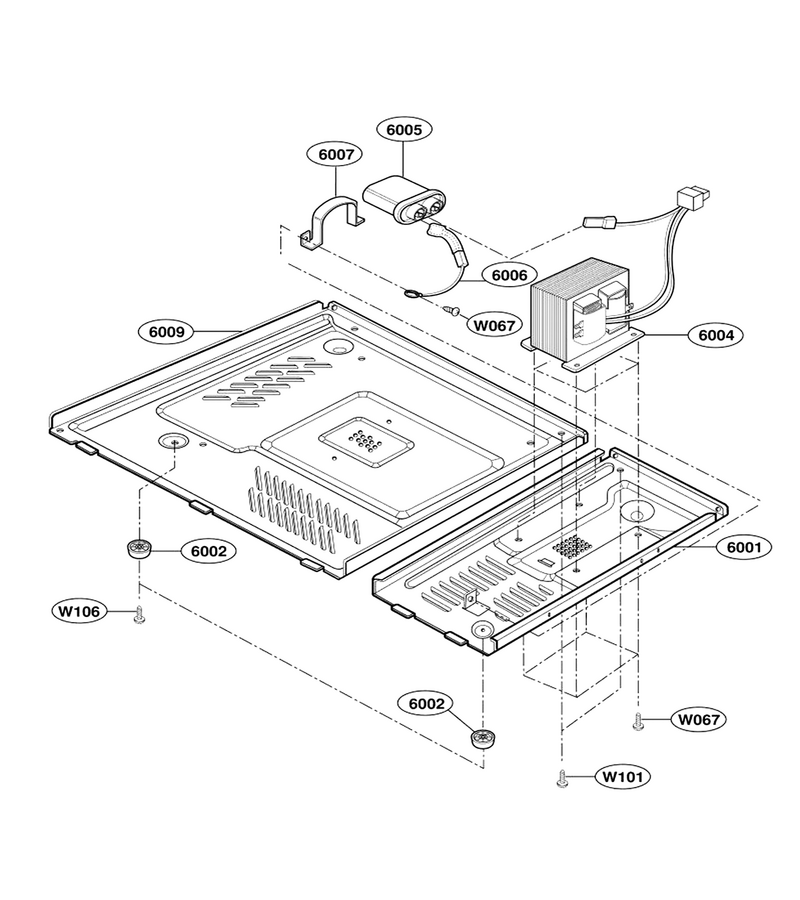

Base Plate Parts

...
...
W067
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W101
Microwave Screw L-G-1TTL0402418
...
W106
Microwave Screw L-G-1TTL0402818
...
6001
Plate,base L-G-3302W1A035A
...
6002
Foot L-G-4B73900A
...
6004
Transformer,high Voltage L-G-6170W1D007A
...
6005
Microwave High-Voltage Capacitor L-G-6120W3H003G
...
6006
Microwave High-Voltage Diode L-G-6021W3B001A
...
6007
Bracket,capacitor L-G-4810W3C001A
...
6009
Plate,base L-G-3302W1A036A
