product name

LG 85033.CS1ESEA

Model: 85033.CS1ESEA

Save Part Not Listed?
product name

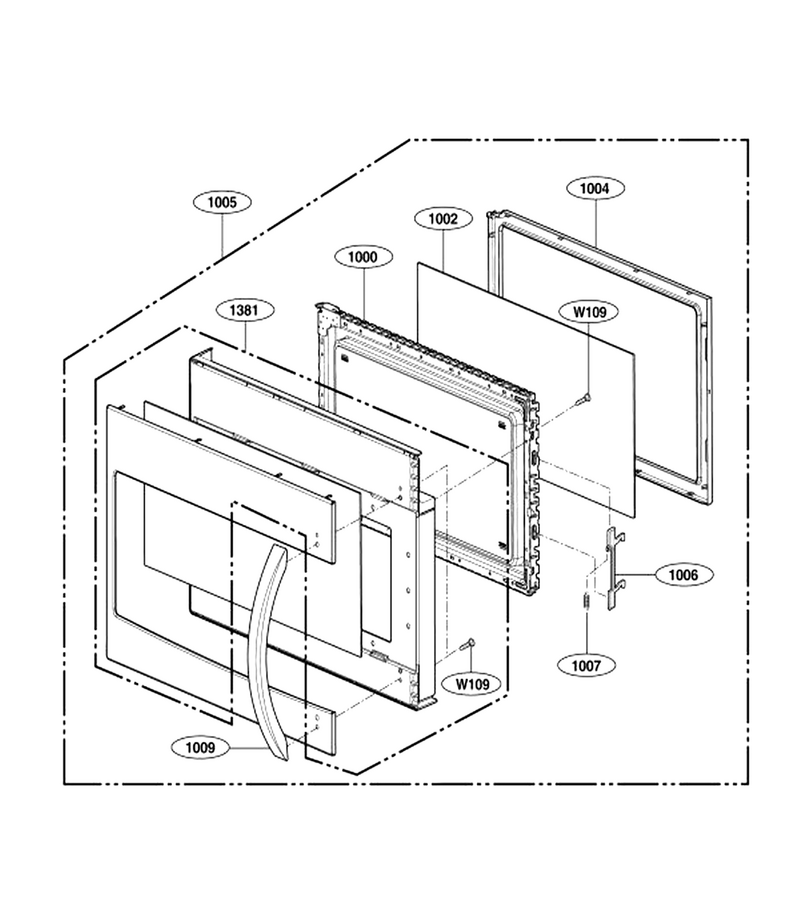

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Frame Assembly,door L-G-3213W1A049J
...
1002
Microwave Door Film L-G-3536W1A012B
...
1004
Cover,choke L-G-3552W1A032J
...
1005
Door Assembly L-G-ADC73146102
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1009
Handle,door L-G-MEB62055704
...
1381
Parts Assembly L-G-AGM73851201

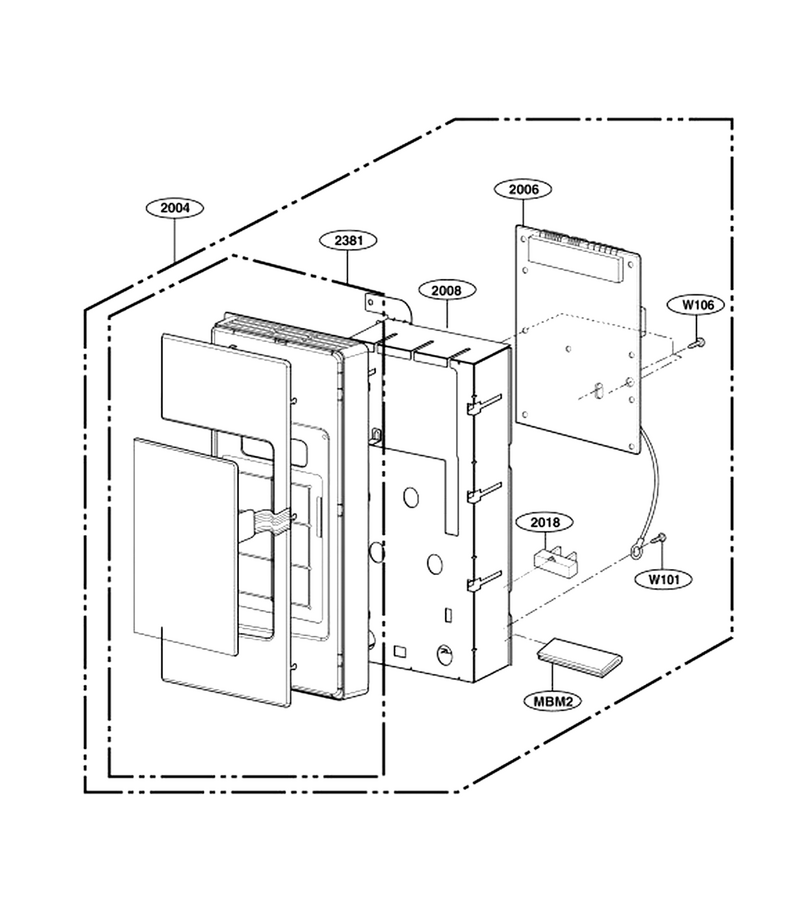

Controller Parts

...
...
MBM2
Card,technical L-G-MBM00607012
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W106
Screw L-G-1TPL0402818
...
2004
Controller Assembly,keypad L-G-ACM73119006
...
2006
Microwave Electronic Control Board L-G-EBR67471704
...
2008
Bracket,control Panel L-G-MAZ62332201
...
2018
Microwave High-Voltage Capacitor L-G-0CZZW1M001C
...
2381
Parts Assembly L-G-AGM70220815

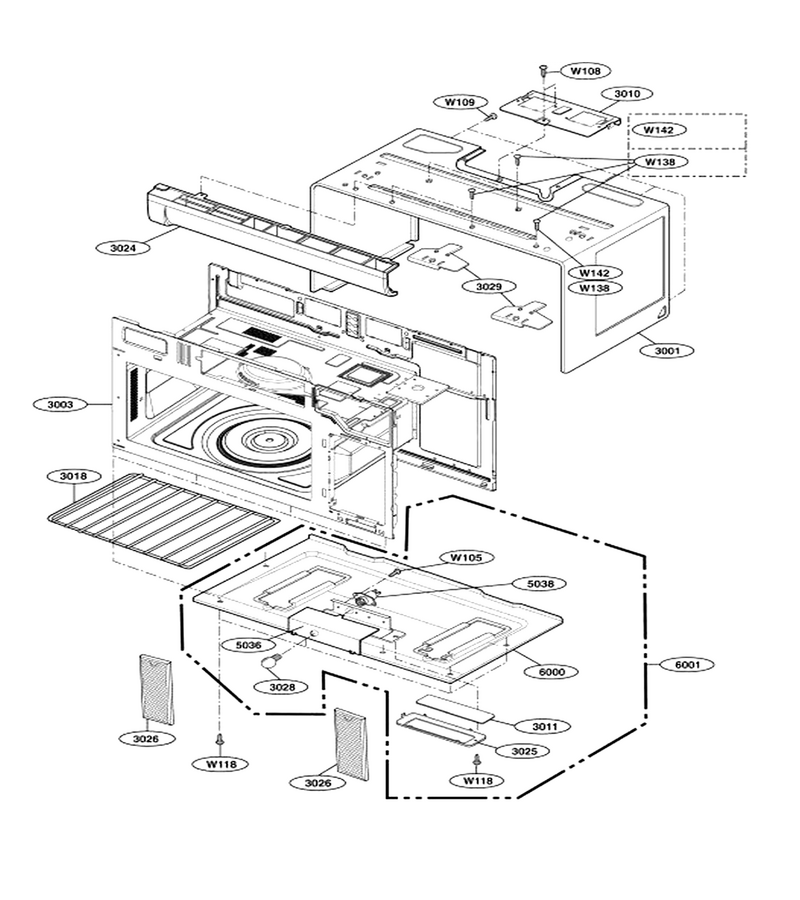

Oven Civity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Flat Case L-G-3112W0U052N
...
3003
Cavity Assembly,coating L-G-ABU33693603
...
3010
Plate L-G-4960W1A022C
...
3011
Window,glass L-G-4890W4A001G
...
3018
Microwave Metal Rack L-G-5026W1A048C
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Microwave Grease Filter L-G-5230W1A012C
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
5036
Oven Cover L-G-3550W1A190C
...
5038
Microwave Light Socket L-G-6620G00007A
...
6000
Base L-G-3302W0A047M
...
6001
Microwave Base Plate Assembly L-G-3303W1A072N

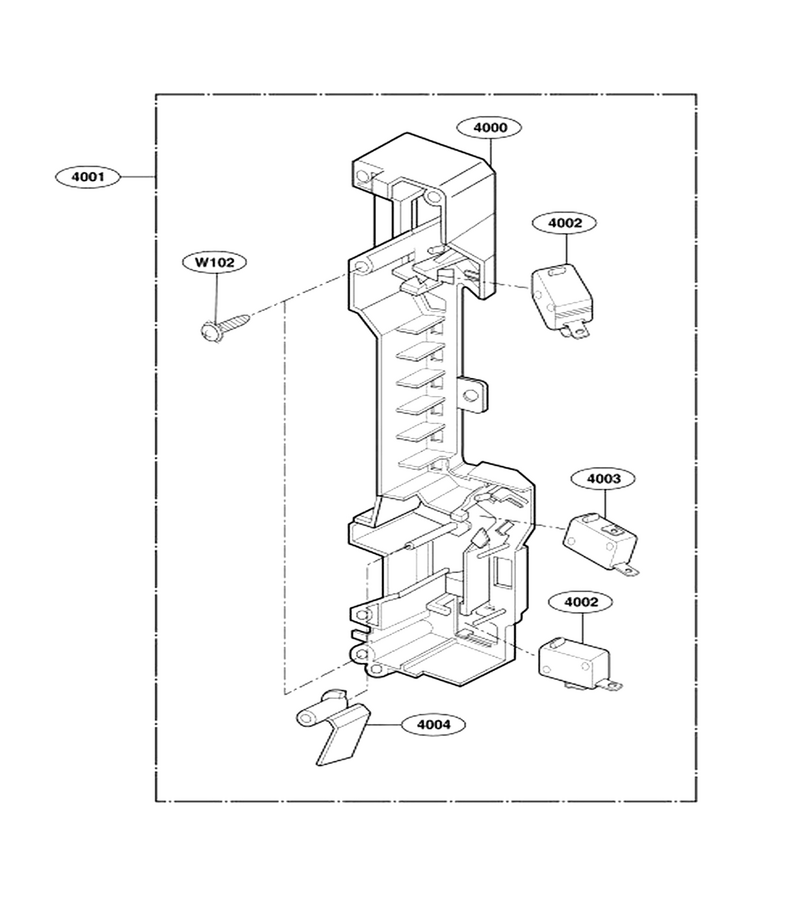

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Door Latch Housing And Interlock Swit.. L-G-3501W1A019D
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

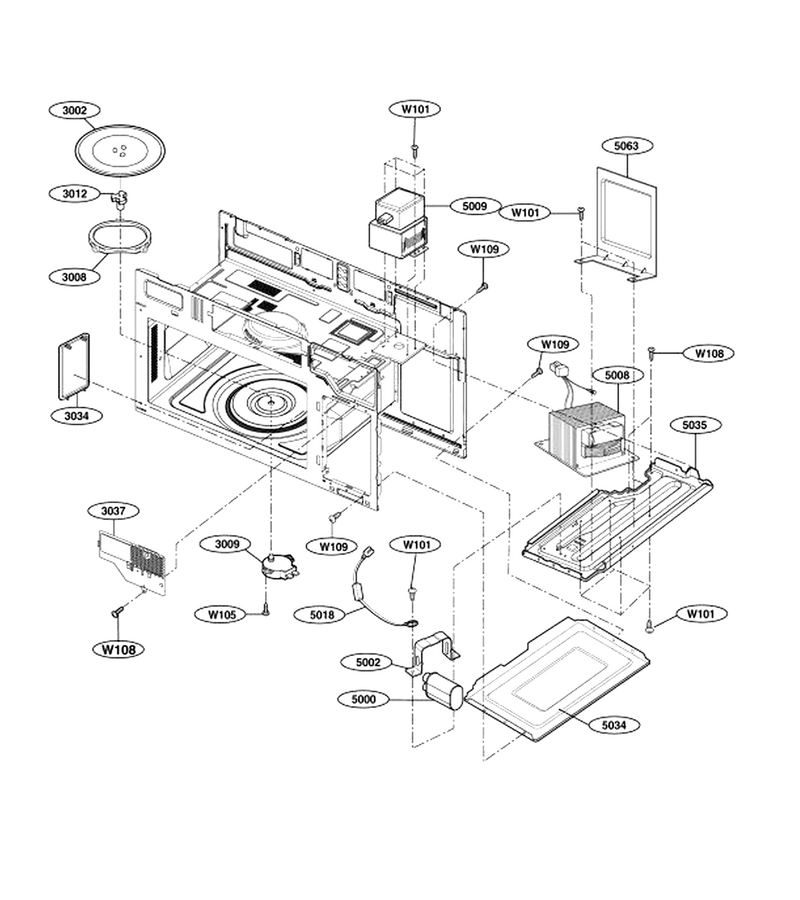

Interior Parts (1)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
3002
Microwave Glass Turntable Tray L-G-3390W1A027A
...
3008
Microwave Turntable Tray Support L-G-5889W2A012F
...
3009
Microwave Turntable Motor L-G-6549W1S013K
...
3012
Microwave Turntable Shaft L-G-MHJ62775401
...
3034
Canopy Resistor L-G-3052W1A002A
...
3037
Supporter L-G-MJH38925501
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004G
...
5002
Bracket L-G-4810W1A313A
...
5008
Transformer,high Voltage L-G-EBJ60664602
...
5009
Microwave Magnetron L-G-2B71165R
...
5018
Microwave High-Voltage Diode L-G-6851W1A002B
...
5034
Plate L-G-3300W1A046C
...
5035
Plate L-G-3300W1A045C
...
5063
Bracket Assembly L-G-ABA34926501

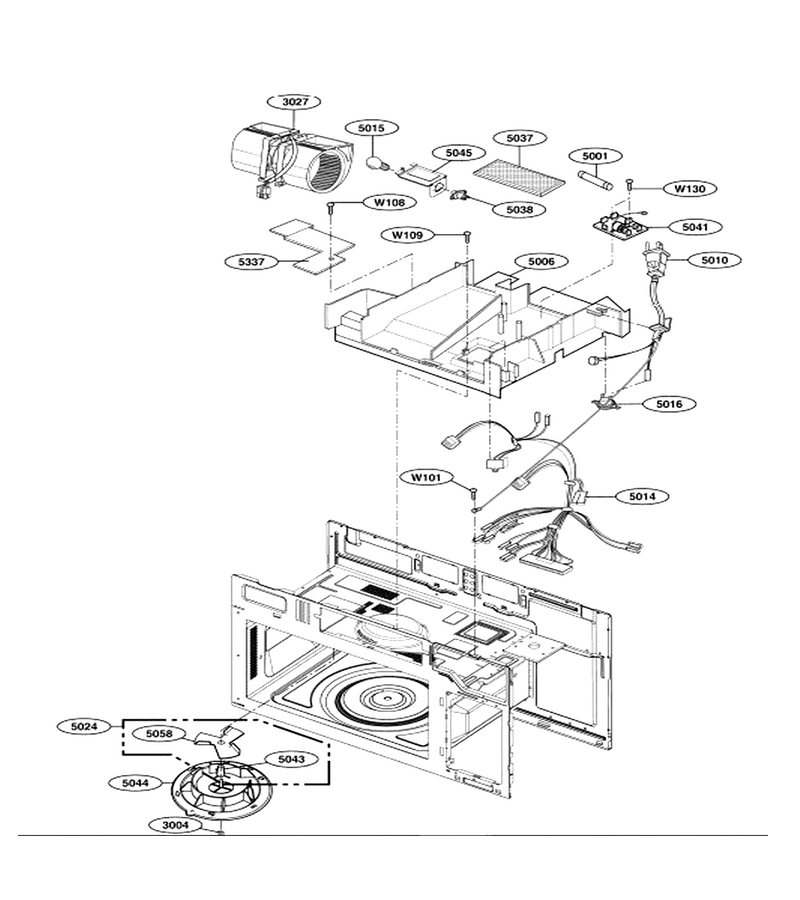

Interior Parts (2)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Microwave Vent Fan Motor Assembly L-G-6549W1V008K
...
5001
Fuse,time Delay L-G-EAF42072605
...
5006
Duct L-G-5208W0A006D
...
5010
Power Cord Assembly L-G-EAD59116215
...
5014
Harness,single L-G-EAD60756904
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Thermostat L-G-EBG33435103
...
5024
Microwave Stirrer Fan Blade L-G-5893W3A002D
...
5037
Microwave Charcoal Filter L-G-5230W1A011C
...
5038
Microwave Light Socket L-G-6620G00007A
...
5041
Filter,ac Line L-G-EAM35001875
...
5043
Holder L-G-4930W1A068A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126D
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5337
Protector L-G-3740W1A011B

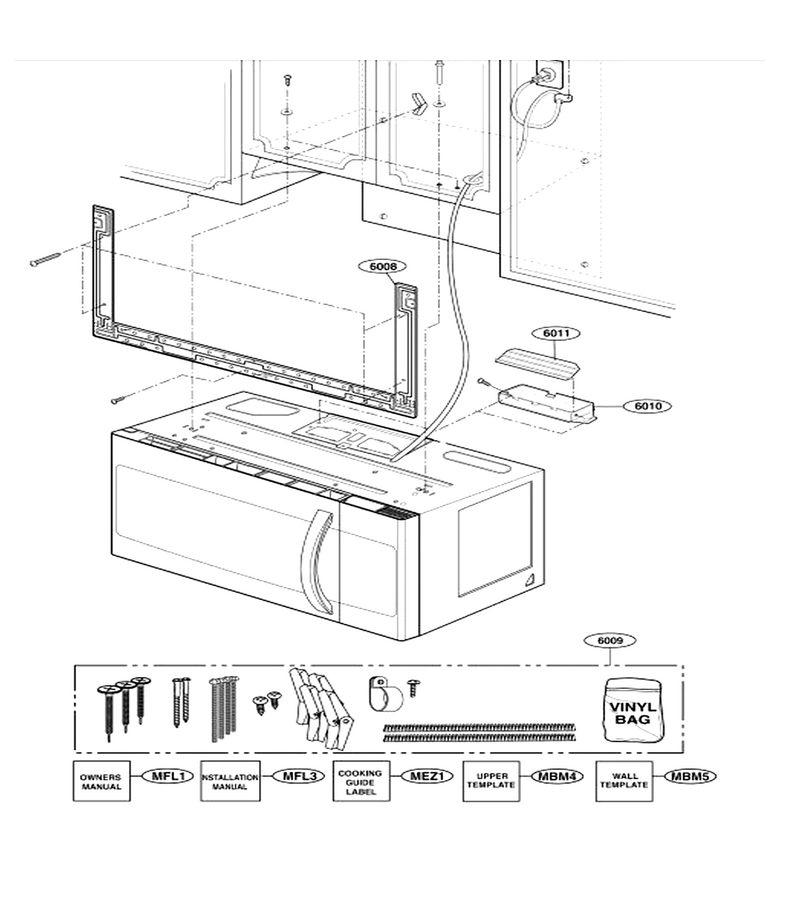

Installation Parts

...
...
MBM4
Card,template L-G-4922W1A021E
...
MBM5
Card,template L-G-4922W5A061B
...
MEZ1
Label,cooking Guide L-G-MEZ40037402
...
MFL1
Manual,owners L-G-MFL39431005
...
MFL3
Manual,installation L-G-MFL39433001
...
6008
Microwave Mounting Plate L-G-3300W0A030A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043A
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
