product name

LG 80822.AWHESEA

Model: 80822.AWHESEA

Save Part Not Listed?
product name

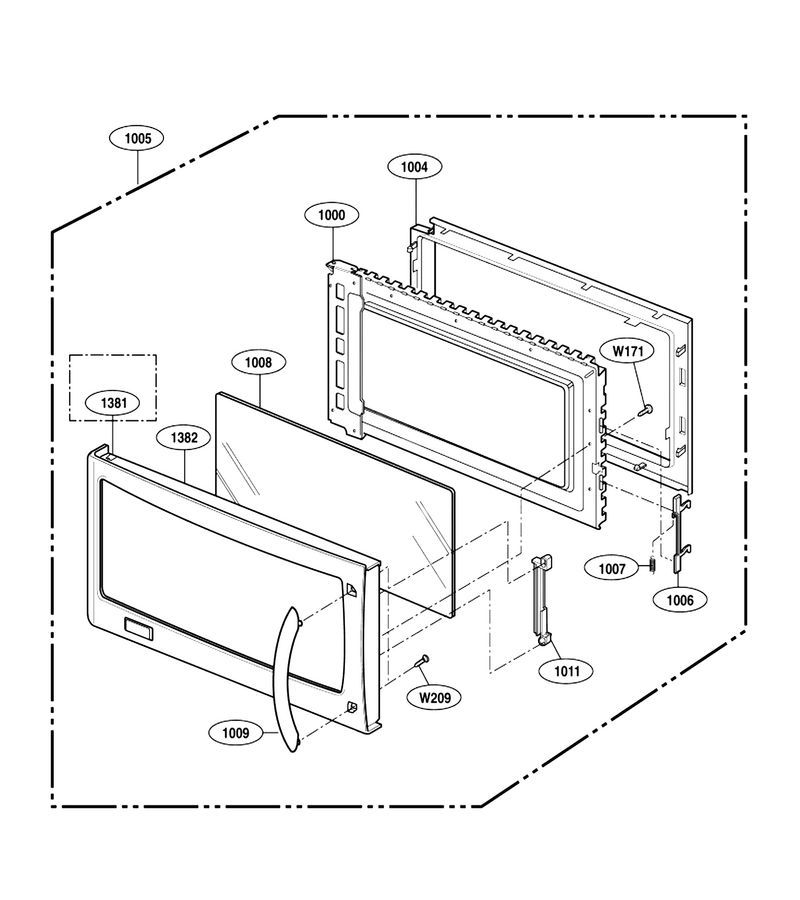

Door Parts

...
...
W171
Screw,tapping L-G-1TTL0302618
...
W209
Screw,machine L-G-1MTC0502618
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A377V
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A054C
...
1009
Handle,door L-G-3650W1A172B
...
1011
Microwave/hood Baffle L-G-4760W1A013A
...
1382
Parts Assembly L-G-383EW5A147C

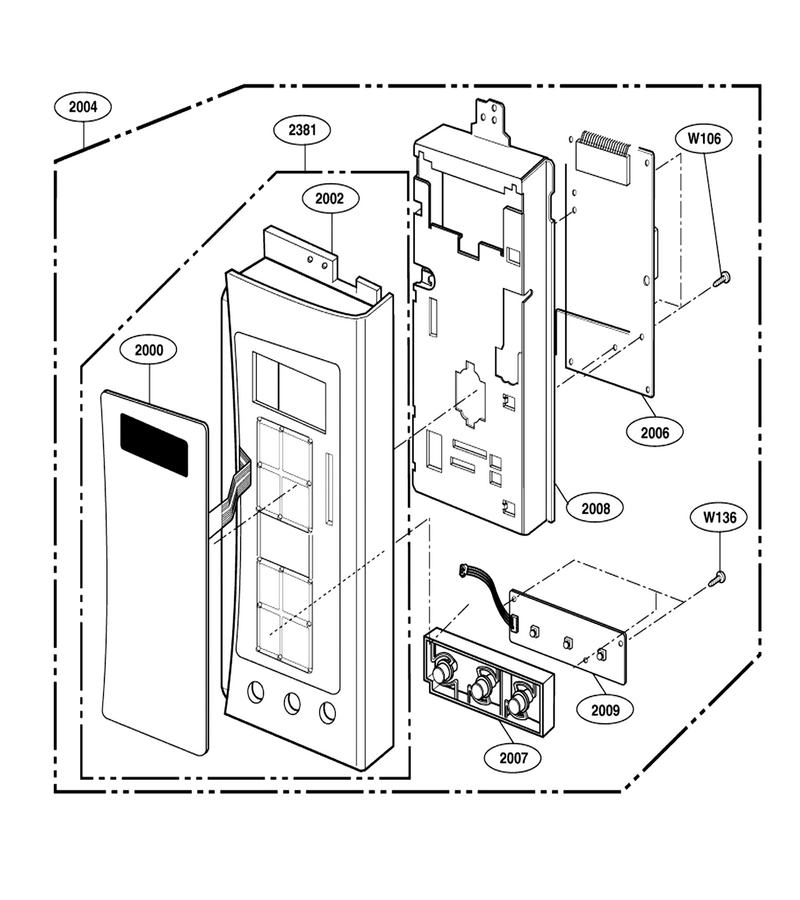

Control Parts

...
...
W106
Screw L-G-1TPL0402818
...
W136
Screw L-G-1TPL0302418
...
2000
Membrane L-G-3506W1A807B
...
2002
Panel,control L-G-3720W0C243B
...
2004
Controller Assembly,keypad L-G-4781W1M382N
...
2006
Pcb Assembly,sub L-G-6871W1S387B
...
2007
Button L-G-5020W1A139A
...
2008
Bracket,control Panel L-G-4810W1A318A
...
2009
Pcb Assembly,sub L-G-6871W1S187A
...
2381
Parts Assembly L-G-383EW1A123B

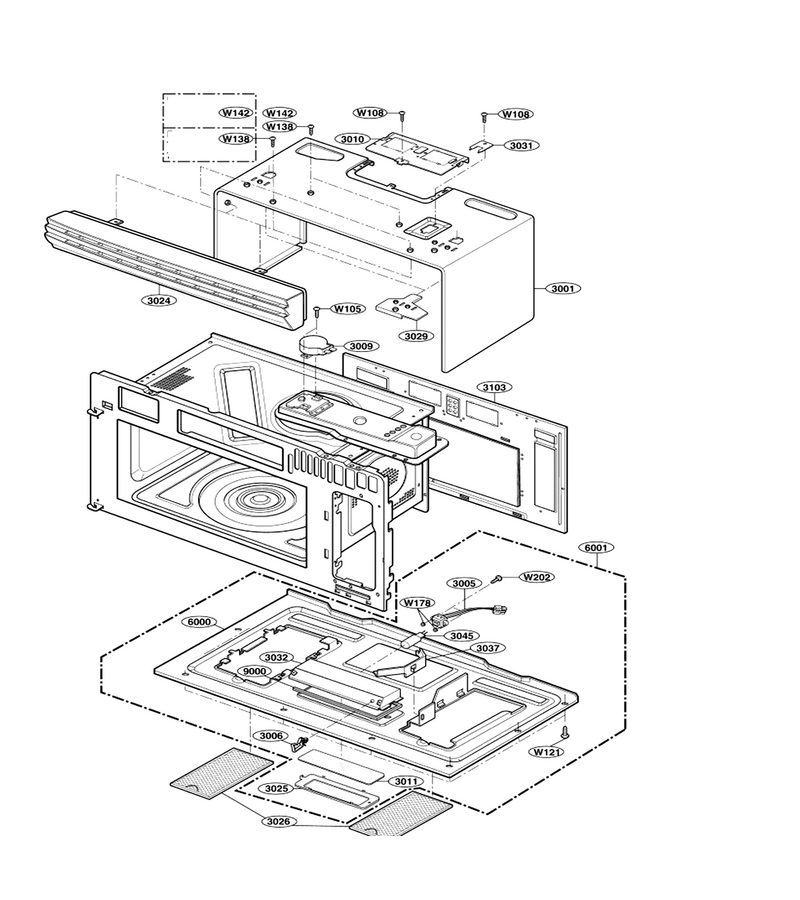

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
W142
Screw L-G-1TTL0402816
...
W178
Hex Nut L-G-1NHA0300018
...
W202
Screw L-G-1MPC0303118
...
3001
Black Case L-G-3112W0F013G
...
3005
Holder Assembly L-G-4931W1A009A
...
3006
Holder L-G-4B72944B
...
3009
Motor L-G-6549W1S002G
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3024
Grille,vent L-G-3530W0A050B
...
3026
Microwave Grease Filter L-G-2B72705B
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3045
Microwave Light Bulb L-G-6912A40002D
...
3103
Cover Assembly,rear L-G-3551W1A031A
...
6000
Plate,base L-G-3302W0A054B
...
6001
Plate Assembly,base L-G-3303W0A015T
...
9000
Damper L-G-3B72244M

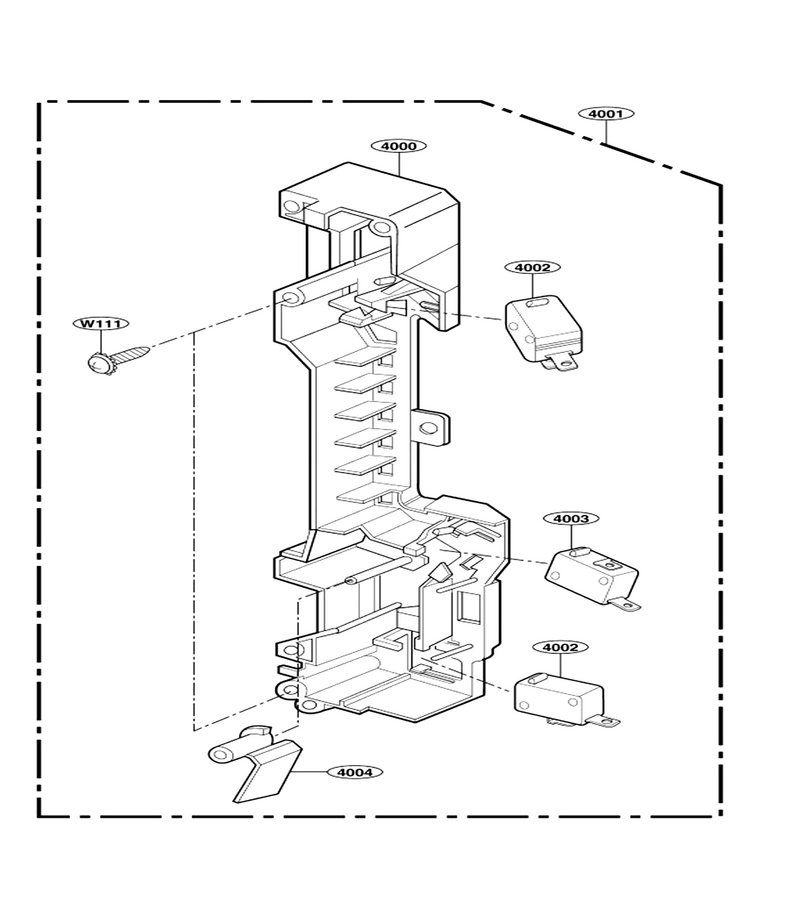

Latch Board Parts

...
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Latch Assembly L-G-3501W1A016M
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

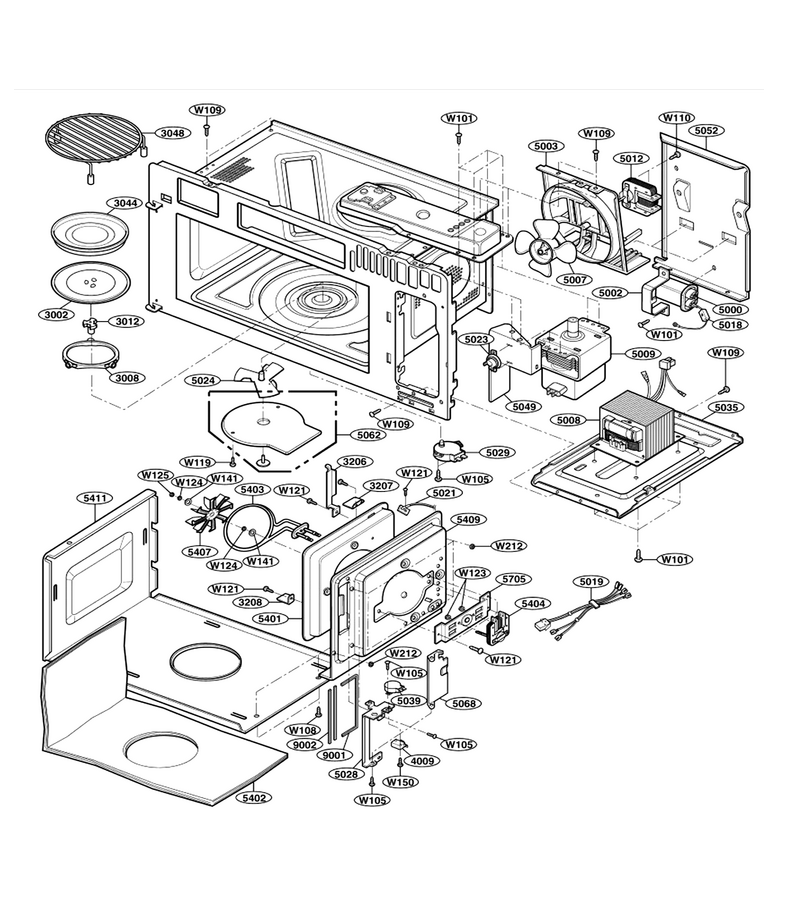

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W121
Microwave Screw L-G-1TTL0402422
...
W124
Washer L-G-1WSD0400032
...
W141
Washer L-G-1WPL0500032
...
3002
Microwave Glass Turntable Tray L-G-3390W1A033A
...
3008
Microwave Turntable Tray Support L-G-5889W2A012D
...
3044
Microwave Turntable Tray L-G-3390W2P002F
...
3048
Microwave Metal Rack L-G-3B71492A
...
4009
Switch Micro L-G-3B73361E
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5002
Bracket L-G-4810WRC002A
...
5003
Microwave/hood Guide L-G-4974W1A035A
...
5007
Fan L-G-5900W1A027B
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5012
Circulating Motor L-G-6549W1F009H
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5024
Fan Assembly L-G-5901W1A006A
...
5029
Microwave Turntable Motor L-G-6549W1S013D
...
5039
Circulating Motor L-G-6549WRS001P
...
5049
Guide L-G-4974W1A037A
...
5062
Cover Assembly,stirrer Fan L-G-3551W1A037A
...
5407
Fan Blade L-G-5900W3A004B

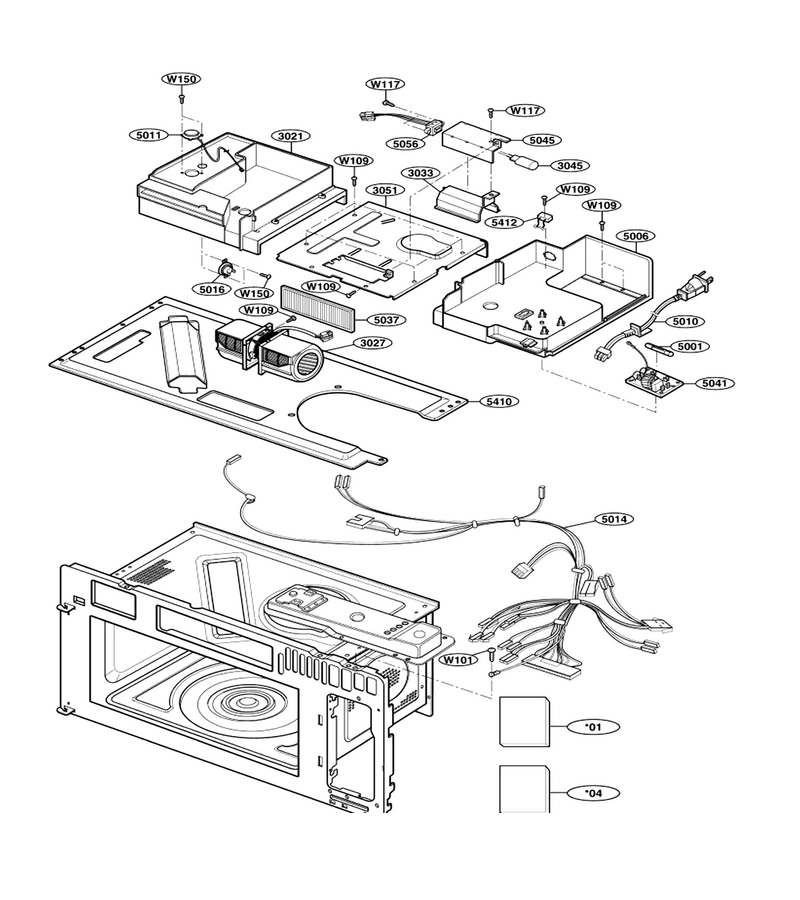

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor L-G-6549W1V006J
...
3033
Reflector L-G-3034W1A004A
...
3045
Microwave Light Bulb L-G-6912A40002D
...
5001
Microwave Fuse L-G-3B74133H
...
5006
Duct L-G-5208W0A021A
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A562D
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Cover,lamp L-G-3550W1A171C
...
5056
Holder Assembly L-G-4931W1A009A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

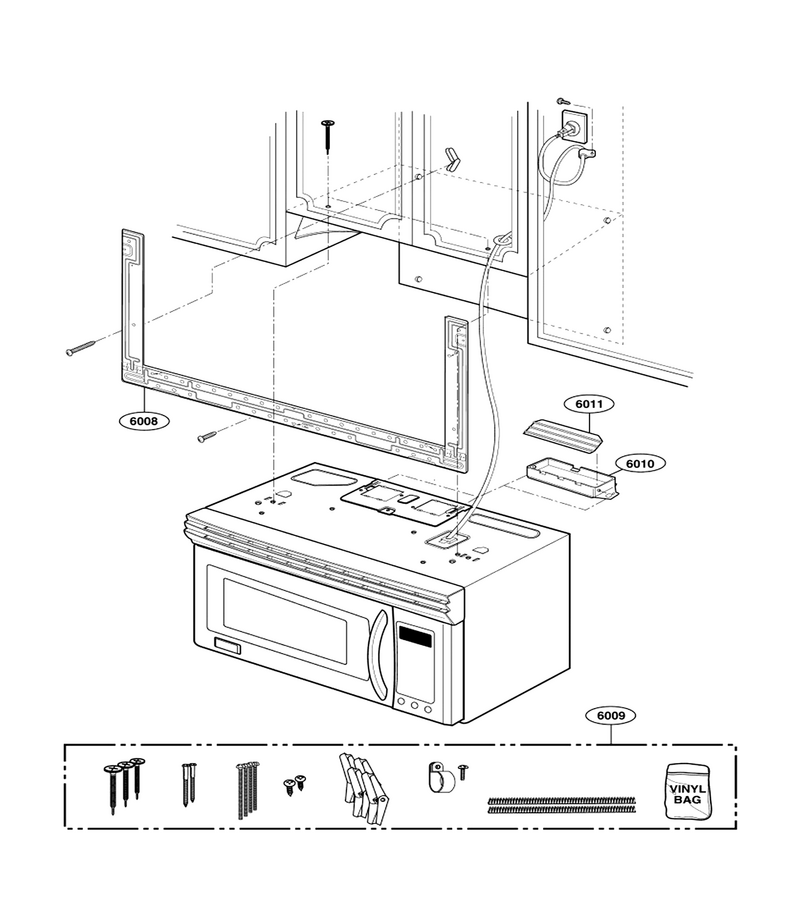

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771G
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
