LG 80804.ABSESEA

Model: 80804.ABSESEA

Save Part Not Listed?
product name

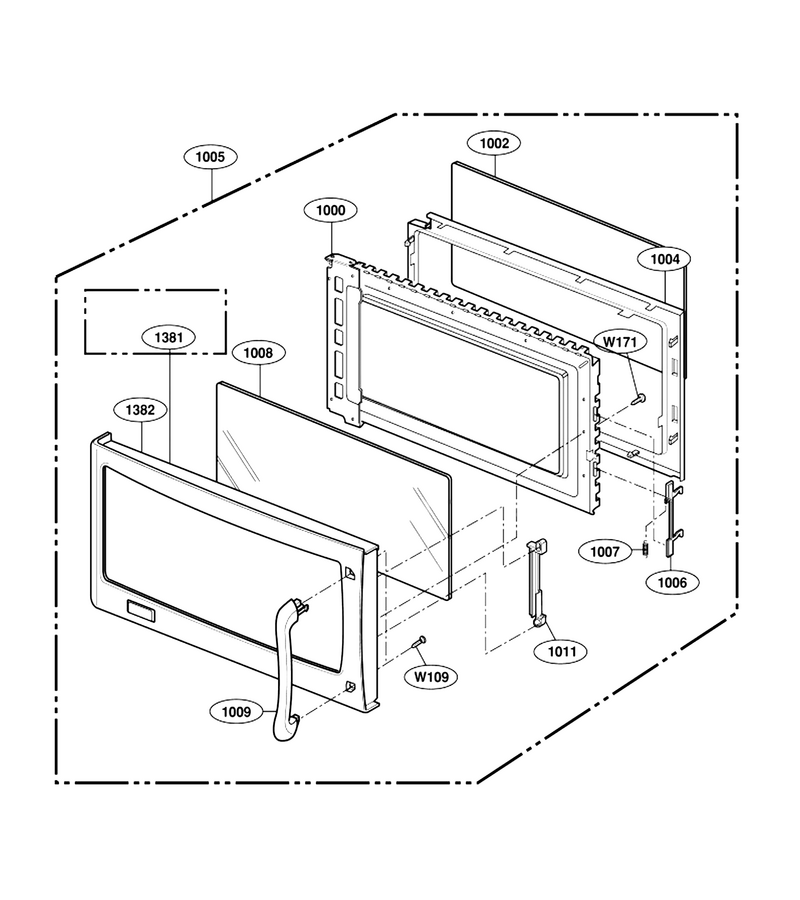

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W171
Screw,tapping L-G-1TTL0302618
...
1000
Frame Assembly,door L-G-3213W0A003F
...
1002
Seal Tape L-G-3536WRA001T
...
1004
Cover,choke L-G-3552W0A001C
...
1005
Door Assembly L-G-3581W1A377M
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A030L
...
1009
Handle,door L-G-3650W1A084G
...
1011
Microwave/hood Baffle L-G-4760W1A013A
...
1382
Parts Assembly L-G-383EW5A233F

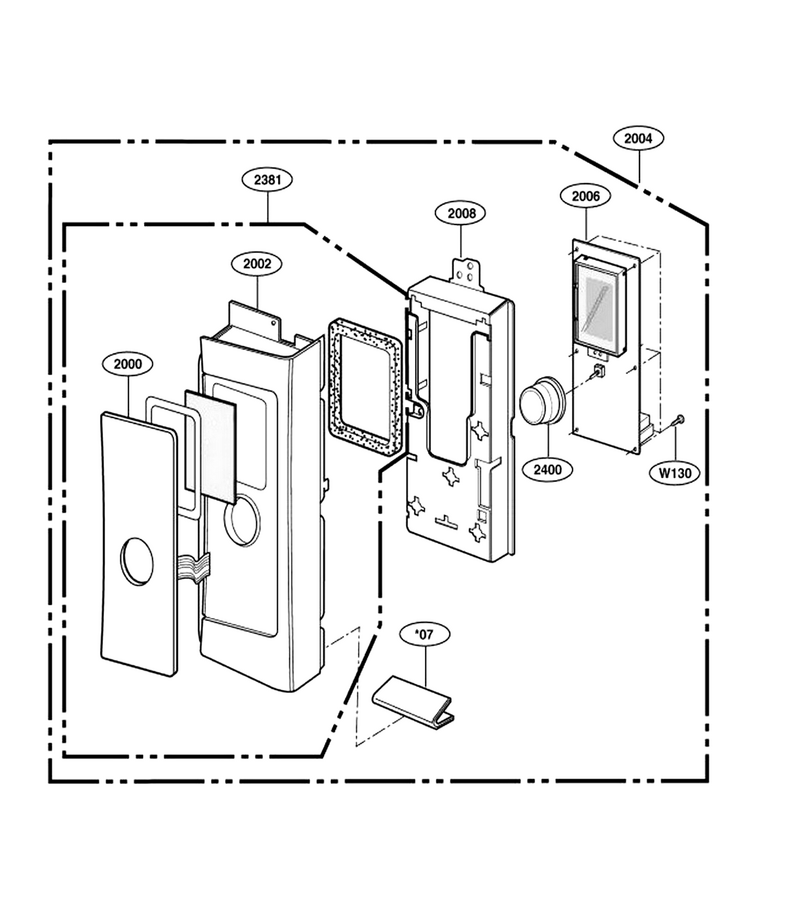

Controller Parts

...
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A627C
...
2002
Panel,control L-G-3720W0C243C
...
2004
Controller Assembly,keypad L-G-4781W1M382E
...
2006
Pcb Assembly,sub L-G-6871W1S387A
...
2008
Bracket,control Panel L-G-4810W1A318A
...
2381
Parts Assembly L-G-383EW5A233B
...
2400
Knob L-G-4940W1A010F

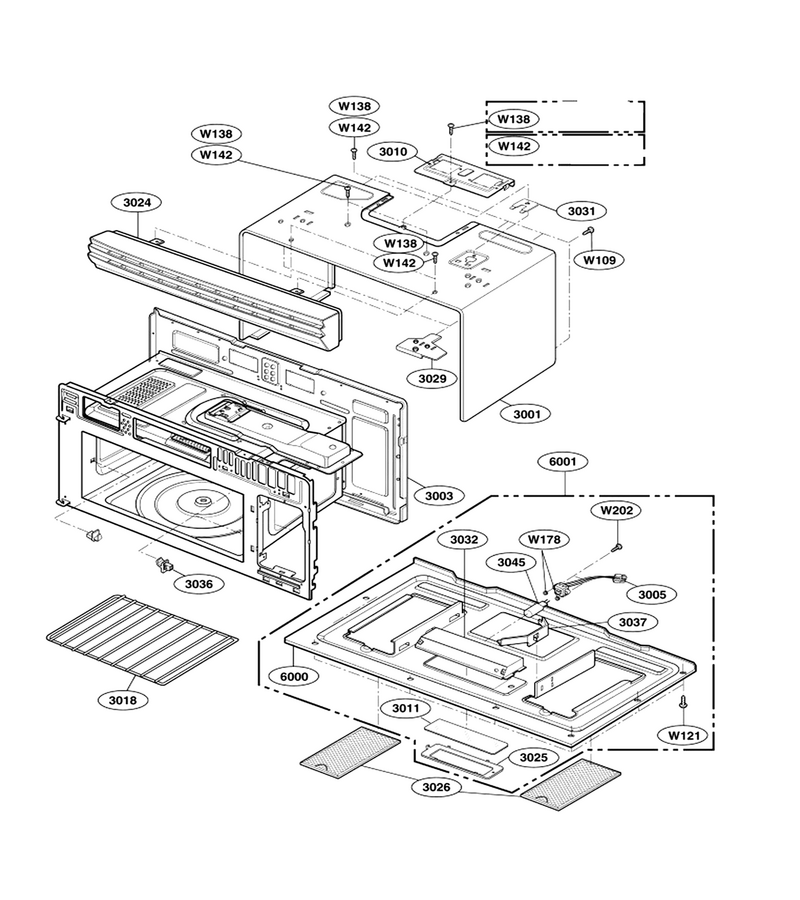

Oven Cavity Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
W178
Hex Nut L-G-1NHA0300018
...
3001
Flat Case L-G-3112W0F013E
...
3003
Cavity Assembly,coating L-G-3461W1A093C
...
3005
Holder Assembly L-G-4931W1A009A
...
3010
Microwave Vent Duct Cover L-G-4960W1A004A
...
3018
Microwave Cooking Rack L-G-5026W1A052B
...
3024
Grille,vent L-G-3530W0A034C
...
3026
Microwave Grease Filter L-G-2B72705B
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder L-G-4930W1A026A
...
6000
Plate,base L-G-3302W0A054B
...
6001
Plate Assembly,base L-G-3303W0A029D

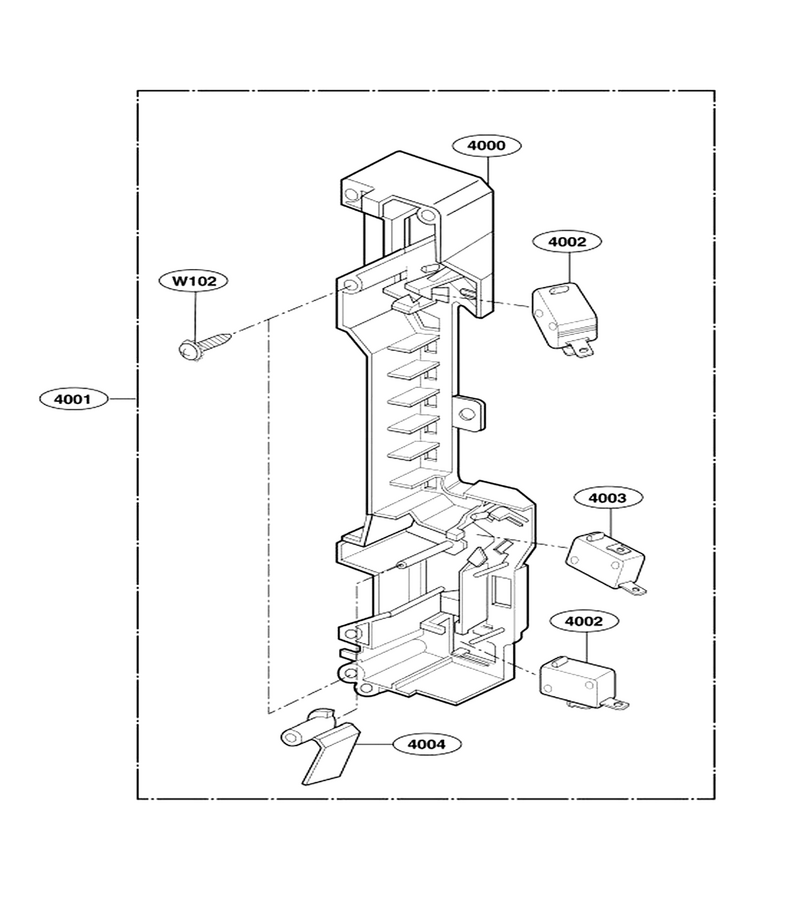

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Latch Assembly L-G-3501W1A016M
...
4002
Micro Switch L-G-3B73362E
...
4003
Microwave Door Interlock Switch L-G-3B73361D
...
4004
Lever L-G-4510W4A005A

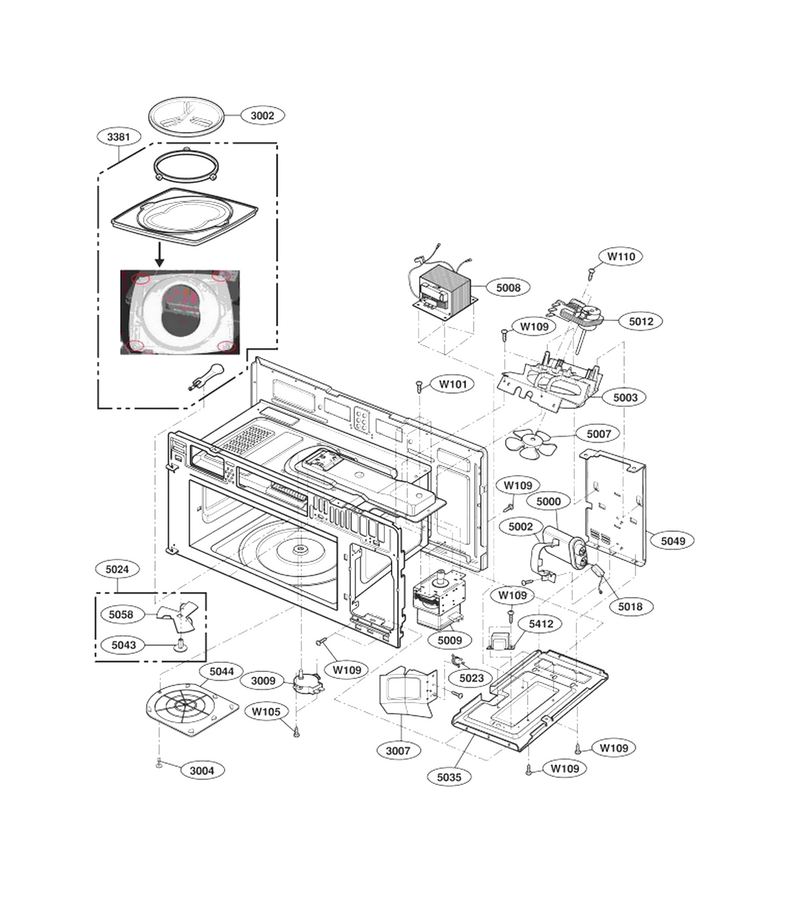

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3002
Microwave Glass Turntable Tray L-G-3390W1A033A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3007
Air Guide L-G-4974W1A043B
...
3009
Microwave Turntable Motor L-G-6549W1S018C
...
3381
Parts Assembly L-G-383EW1A132B
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5002
Bracket L-G-4810WRC002A
...
5003
Microwave/hood Guide L-G-4974W1A035A
...
5007
Fan L-G-5900W1A027B
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5012
Circulating Motor L-G-6549W1F009H
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5024
Fan Assembly L-G-5901W1A005A
...
5035
Plate,bottom L-G-3300W1A057C
...
5043
Holder L-G-4930W1A062A
...
5044
Fan Cover L-G-3550W1A292A
...
5049
Guide L-G-4974W1A037A
...
5058
Microwave Stirrer Fan Blade L-G-5900W1A026A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

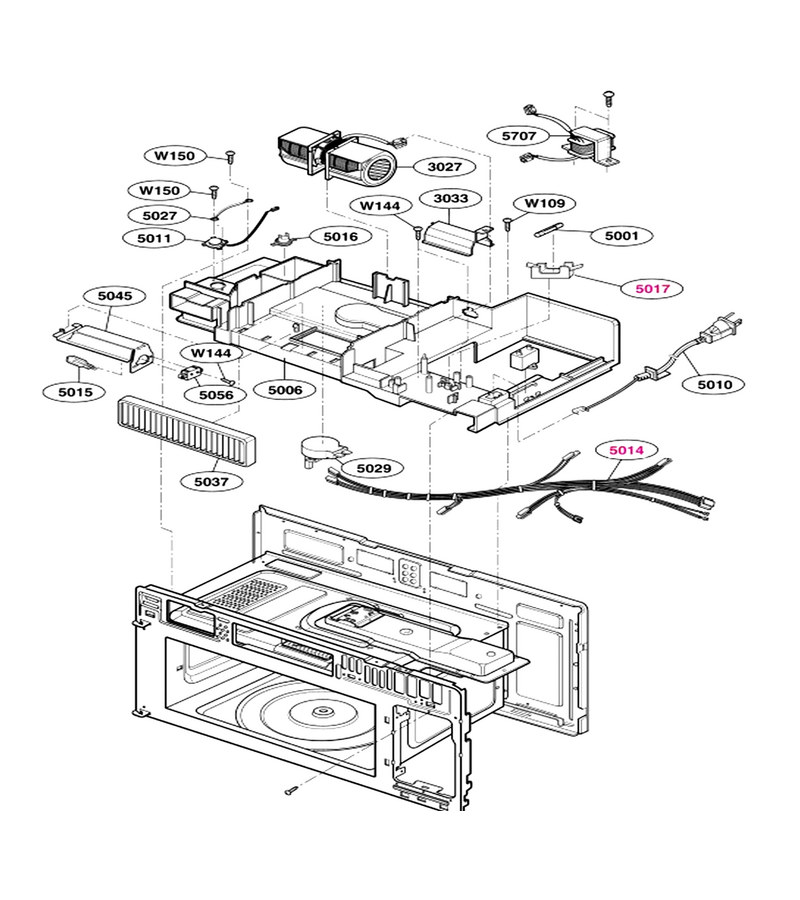

Interior Parts (ii-I)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor L-G-6549W1V006J
...
3033
Reflector L-G-3034W1A004A
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A021A
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A562C
...
5015
Microwave Light Bulb L-G-6912A40002D
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5027
Ground Wire L-G-3B72342Q
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5045
Microwave Light Lens Bracket L-G-3550W1A171B
...
5056
Holder L-G-4931W1A011D
...
5707
Transformer,power L-G-6170W1G031A

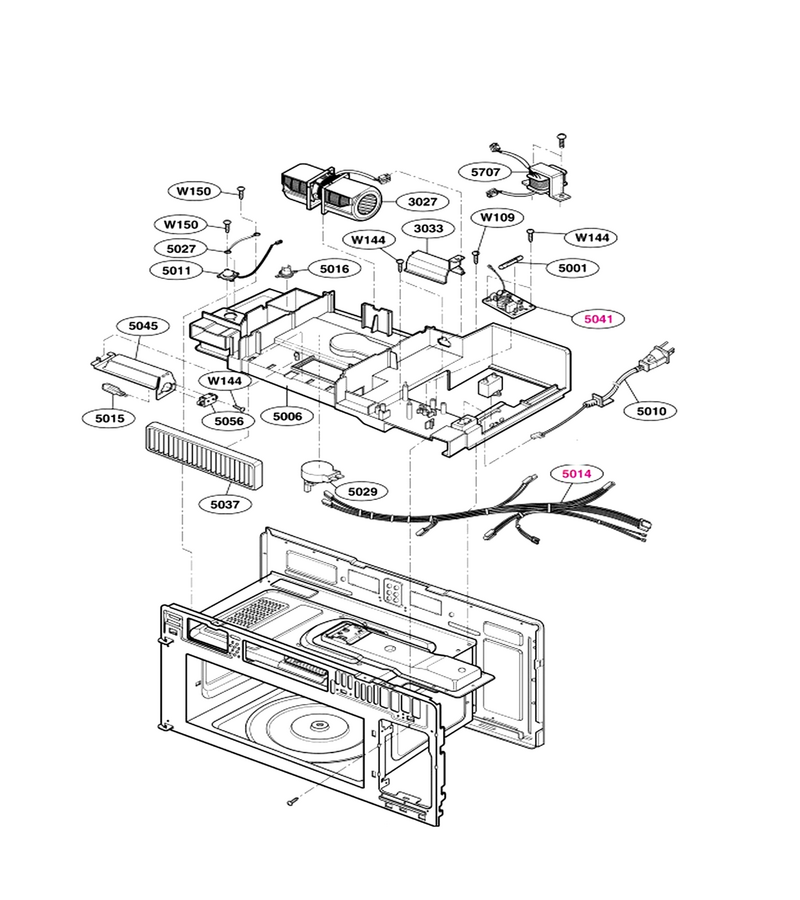

Interior Parts (ii-Ii)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor L-G-6549W1V006J
...
3033
Reflector L-G-3034W1A004A
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A021A
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A562C
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5027
Ground Wire L-G-3B72342Q
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5045
Microwave Light Lens Bracket L-G-3550W1A171B
...
5056
Holder L-G-4931W1A011D
...
5707
Transformer,power L-G-6170W1G031A

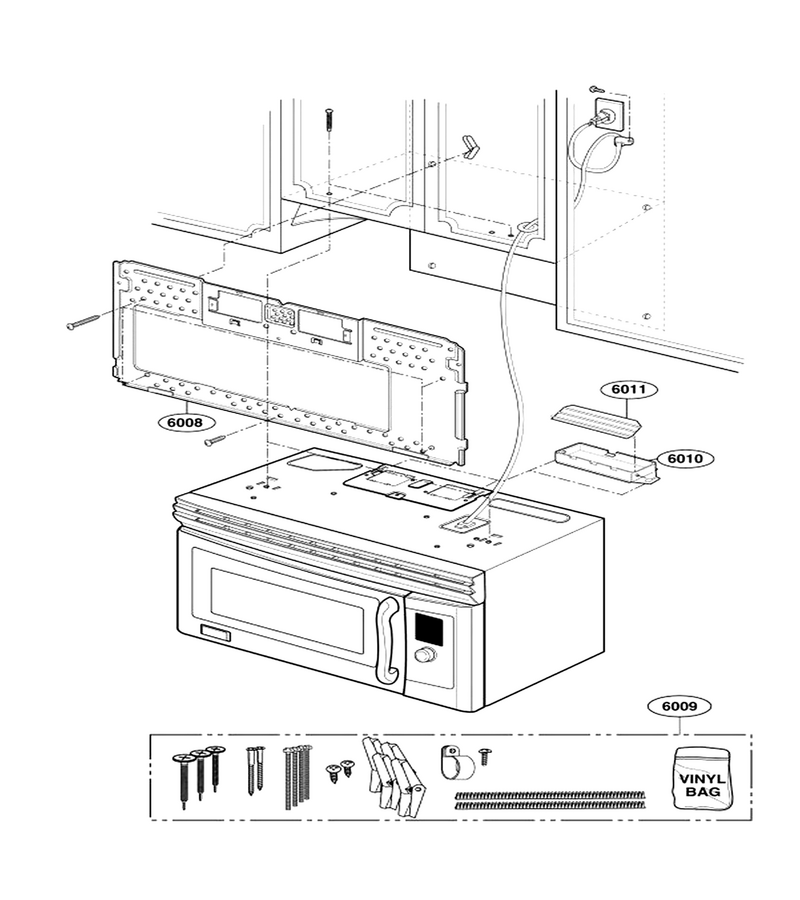

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043C
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
