LG 80602.AWHESEA

Model: 80602.AWHESEA

Save Part Not Listed?
product name

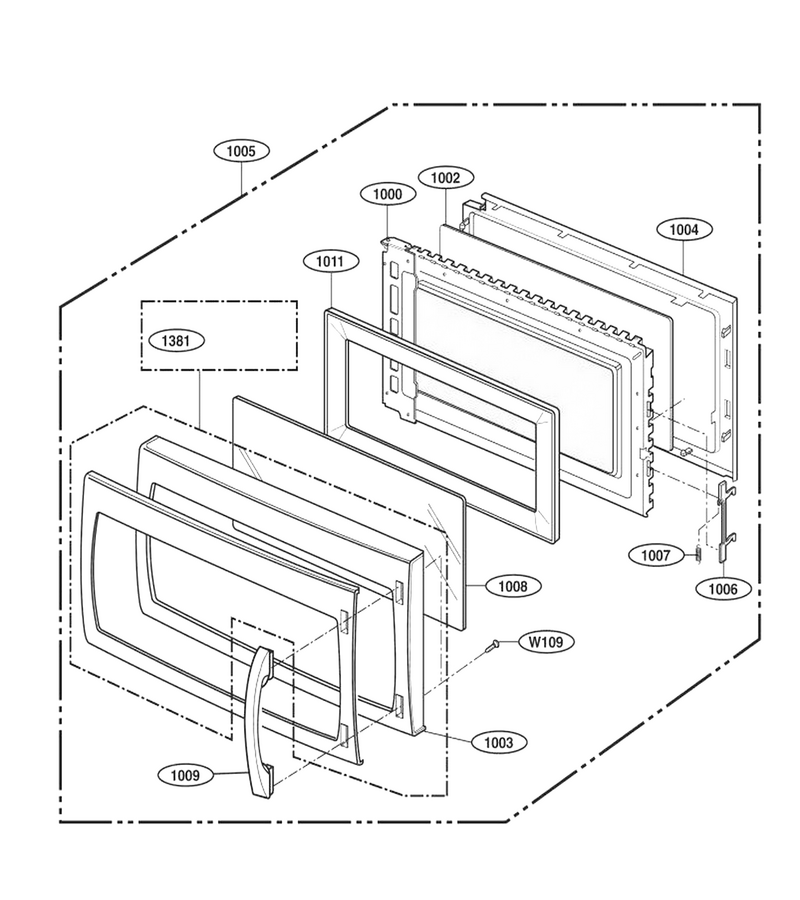

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Frame Assembly,door L-G-3213W0A003C
...
1002
Seal Tape L-G-3536WRA001T
...
1003
Panel,door L-G-3720W0D329A
...
1004
Cover,choke L-G-3552W0A001A
...
1005
Door Assembly L-G-3581W0A089A
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A030V
...
1009
Handle,door L-G-3650W1A075A
...
1011
Baffle L-G-4760W0A004A

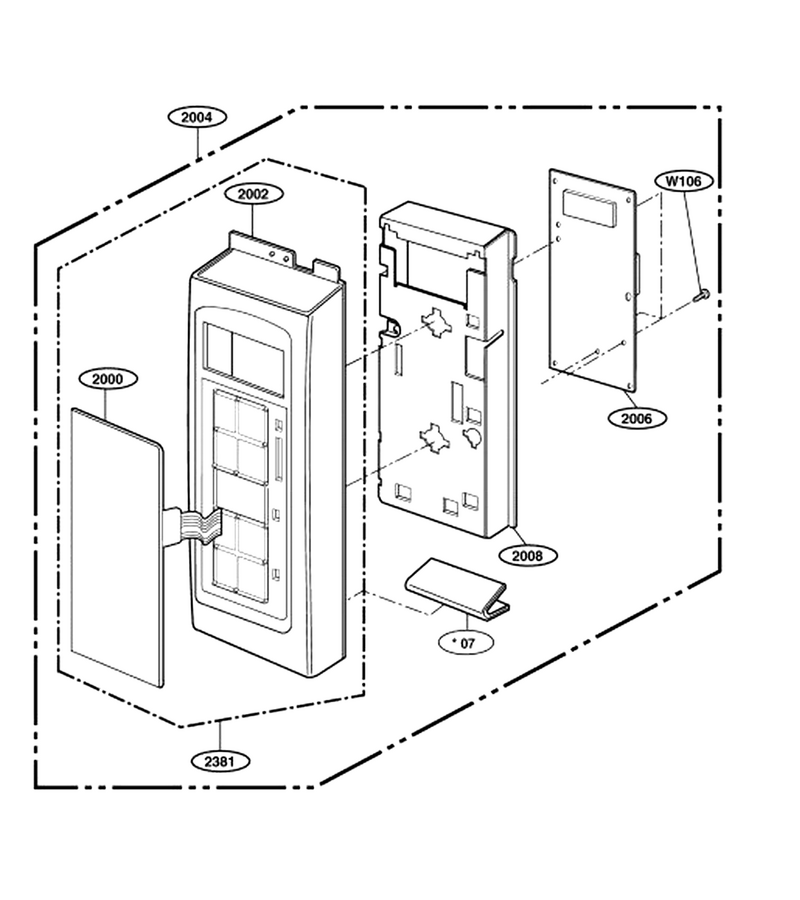

Controller Parts

...
...
*07
Card,technical L-G-MBM31262801
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A794A
...
2002
Panel,control L-G-3720W0C168A
...
2004
Controller Assembly,keypad L-G-ACM30102909
...
2006
Pcb Assembly,sub L-G-6871W1A419G
...
2008
Bracket, C L-G-4810W1P009A
...
2381
Parts Assembly L-G-383EW1A104A

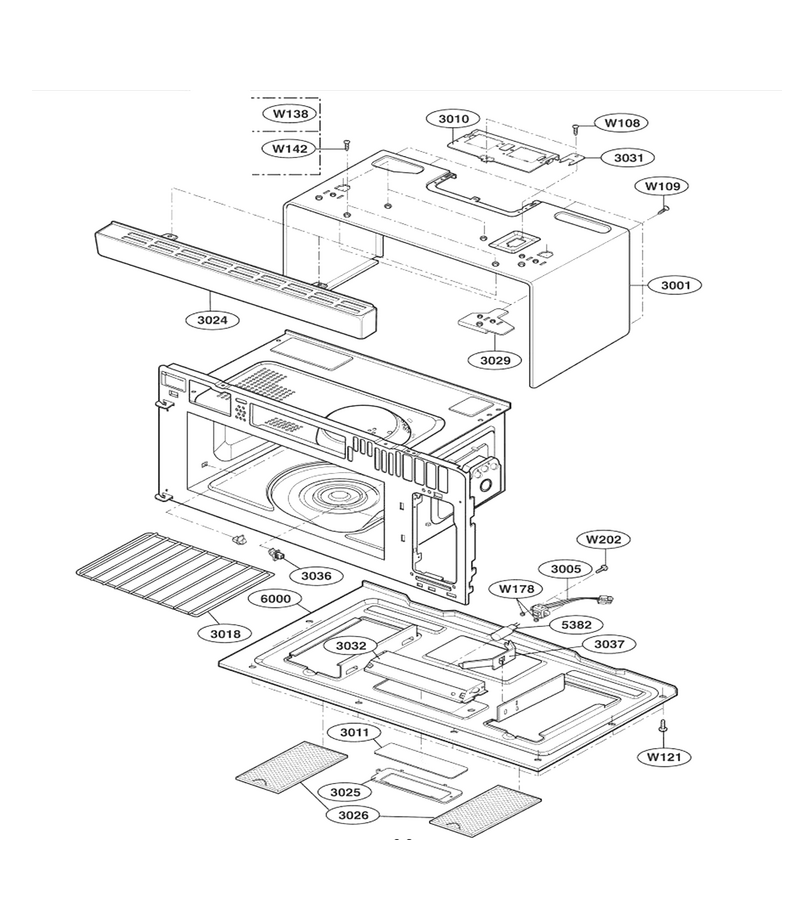

Oven Cavity Parts

...
...
W178
Hex Nut L-G-1NHA0300018
...
W142
Screw L-G-1TTL0402816
...
W121
Microwave Screw L-G-1TTL0402422
...
W108
Microwave Screw L-G-1TTL0402818
...
W109
Microwave Screw L-G-1TTL0402818
...
3001
Out Case L-G-3112W1U023F
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3011
Window,glass L-G-4890W4A001H
...
3018
Microwave Cooking Rack L-G-5026W1A052C
...
3024
Grille,vent L-G-3530W0A051A
...
3026
Filter,grease L-G-2B72705C
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder L-G-4930W1A026A
...
5382
Parts Assembly L-G-383EW1A077C
...
6000
Plate,base L-G-3302W0A054B

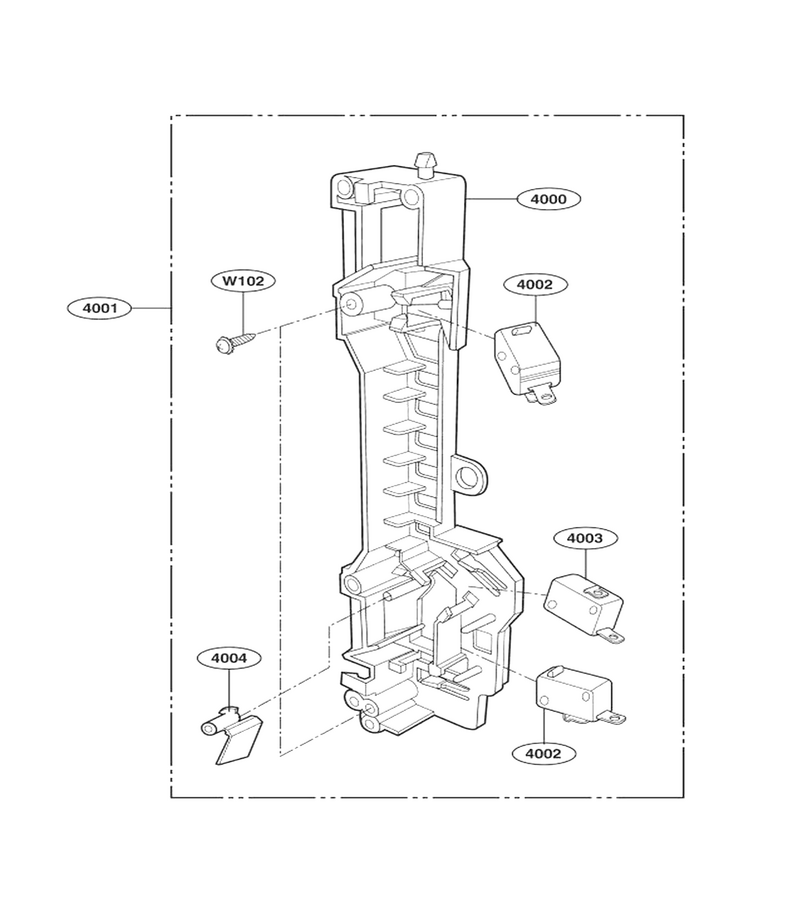

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Latch Assembly L-G-3501W1A016M
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

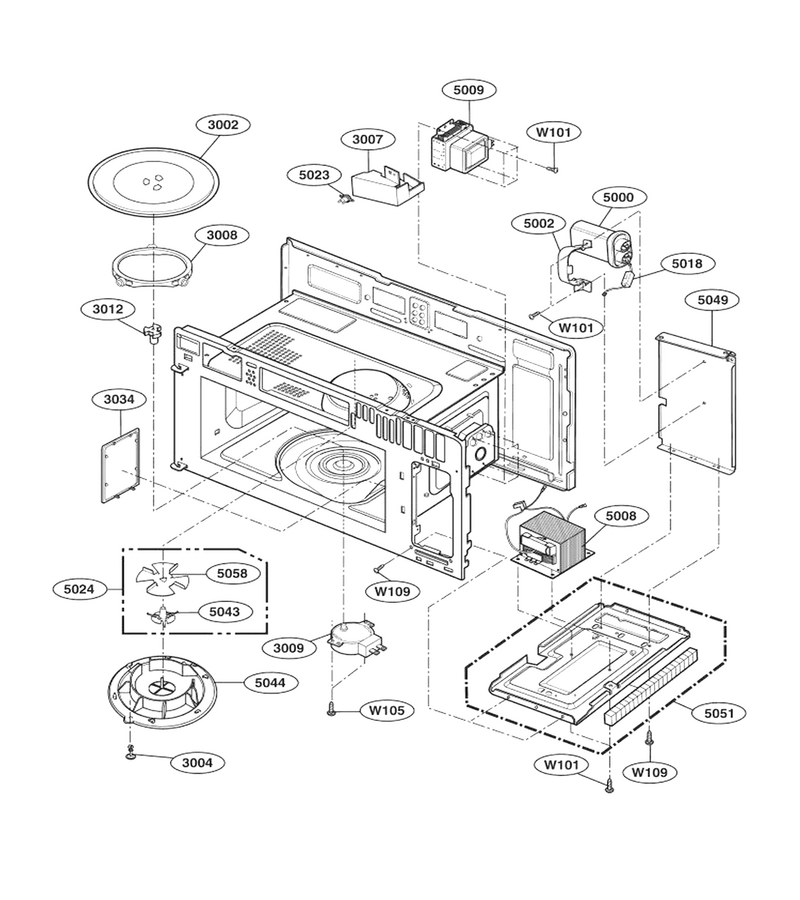

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3002
Microwave Glass Tray L-G-3390W1G014A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3007
Guide,air L-G-4974W1A039A
...
3008
Microwave Turntable Tray Support L-G-5889W2A005J
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3034
Canopy L-G-3052W3A015A
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
5002
Bracket L-G-4810WRC002A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5024
Fan Assembly L-G-5901W1A004A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave/hood Cover L-G-3550W1S001A
...
5049
Guide L-G-4974W1A037A
...
5051
Plate Assembly L-G-3301W1A045A
...
5058
Fan L-G-5900W1A024A

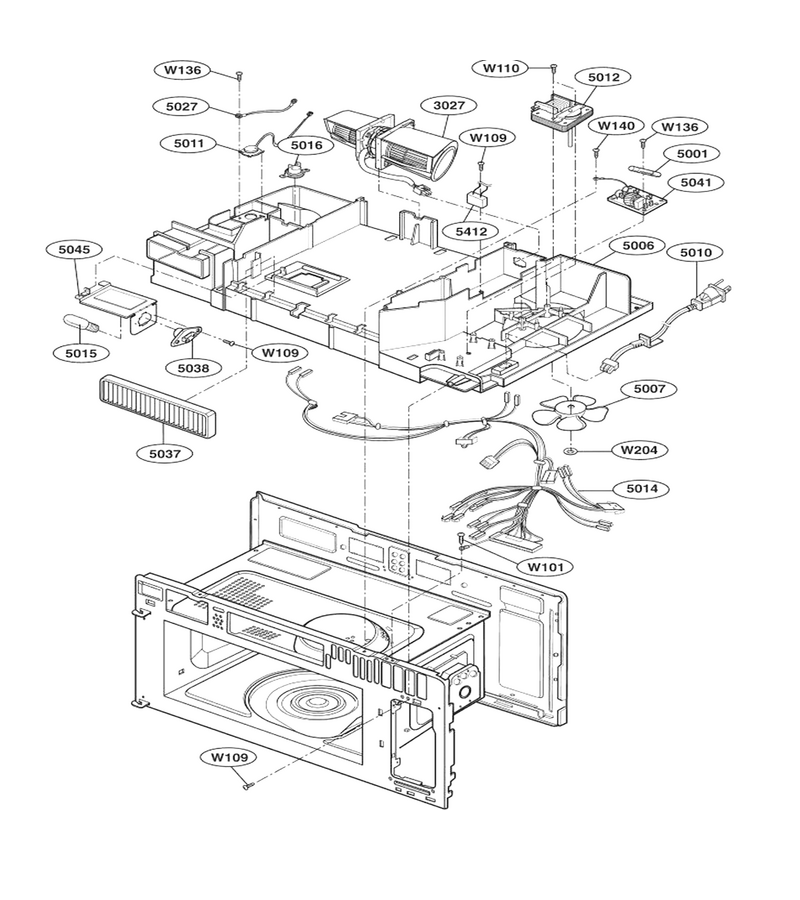

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W136
Screw L-G-1TPL0302418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
3027
Motor L-G-6549W1V006J
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A018A
...
5007
Fan L-G-5900W1A027B
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Circulating Motor L-G-6549W1F009H
...
5014
Harness,single L-G-6877W1A564B
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5027
Ground Wire L-G-3B72342Q
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

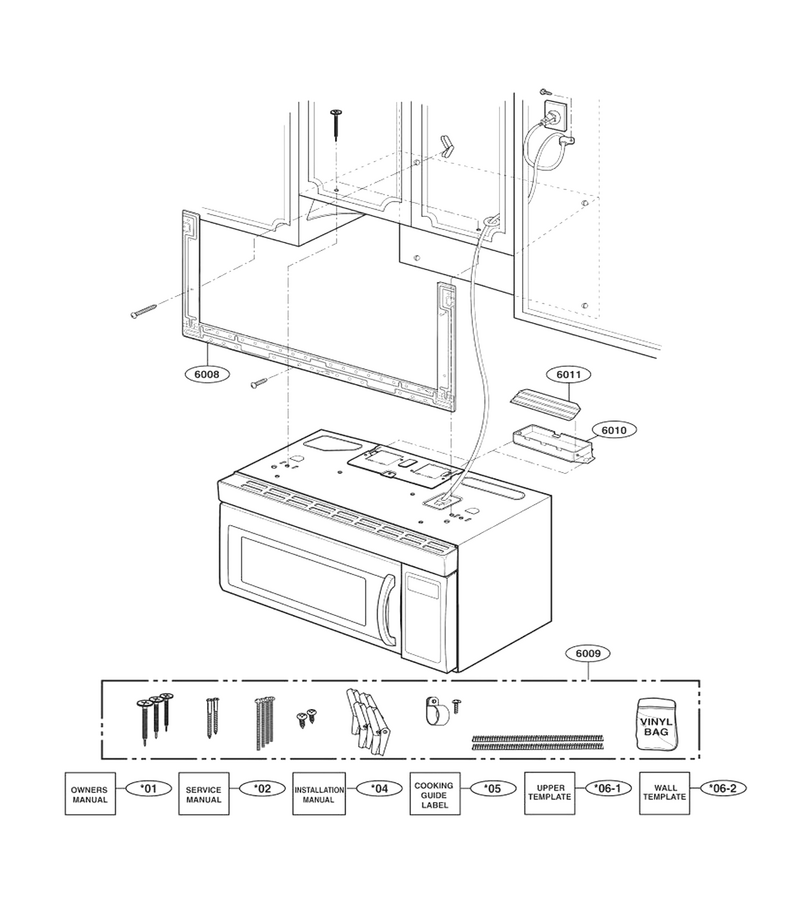

Installation Parts

...
...
*01
Manual,owners L-G-3828W5A8257
...
*02
Manual,service L-G-3828W5S6166
...
*04
Manual,installation L-G-3828W5U0463
...
*05
Label,cooking Guide L-G-3850W1D084C
...
*06
Card,template L-G-4922W5A066A
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771H
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
