product name

LG 80599.CB1ESEA

Model: 80599.CB1ESEA

Save Part Not Listed?
product name

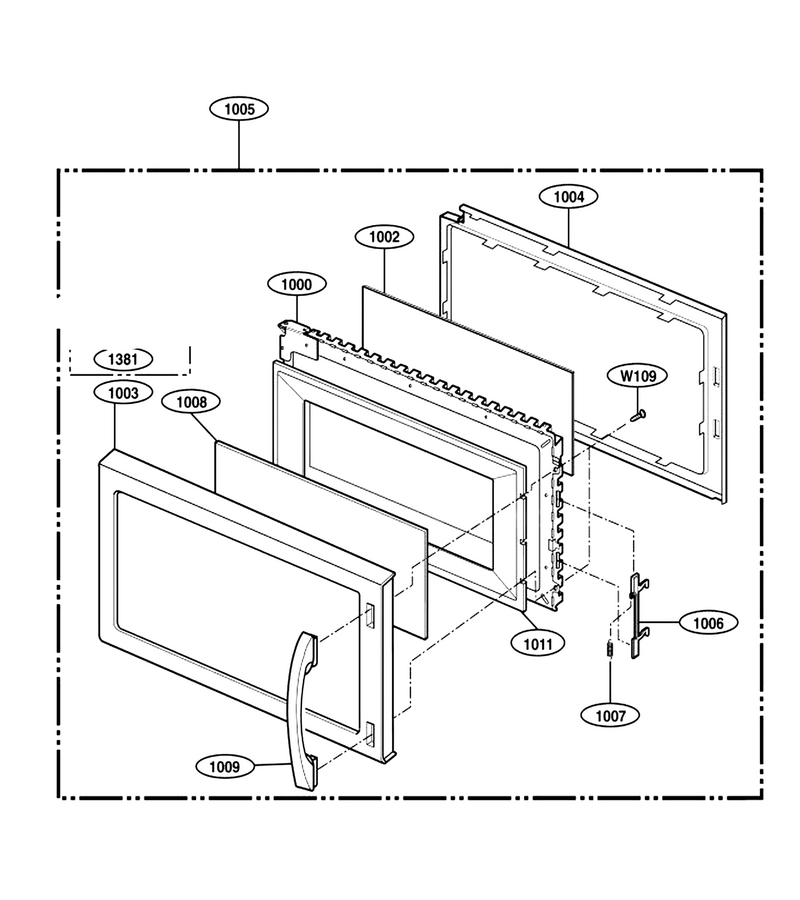

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536W1A012B
...
1003
Panel,door L-G-3720W0D259E
...
1004
Microwave/hood Cover L-G-3552W1A032E
...
1005
Door Assembly L-G-3581W1A352J
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A066D
...
1009
Handle,door L-G-3650W1A075F
...
1011
Baffle L-G-4760W0A002E

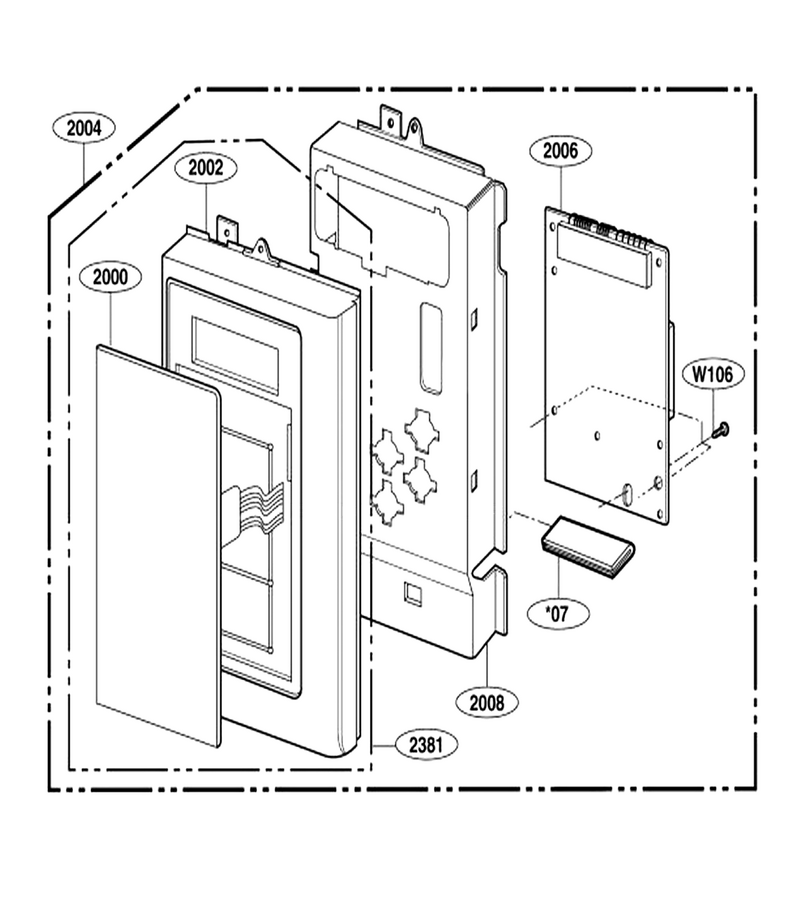

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A278B
...
2002
Panel,control L-G-3720W0C058E
...
2004
Controller Assembly,keypad L-G-4781W1M432B
...
2006
Pcb Assembly,sub L-G-6871W1S128C
...
2008
Bracket,control Panel L-G-4810W1G061E
...
2381
Parts Assembly L-G-383EW5A231R

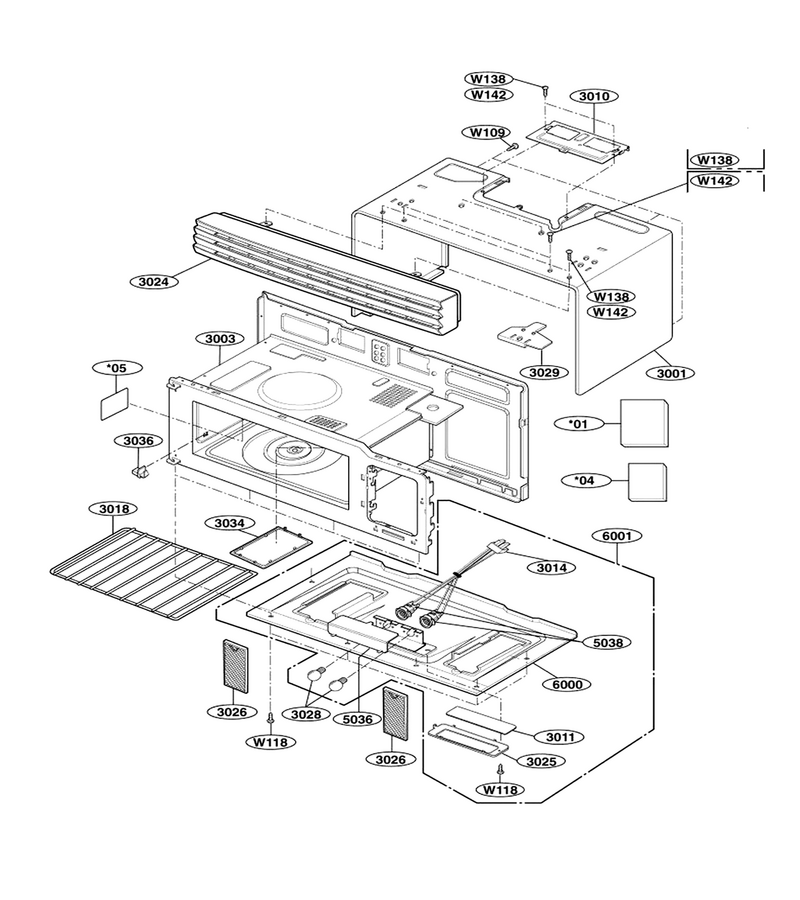

Oven Cavity Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Flat Case L-G-3112W0U052N
...
3003
Cavity Assembly,coating L-G-3461W0A048K
...
3010
Plate L-G-4960W1A021A
...
3011
Glass L-G-4890W1A045A
...
3014
Harness,single L-G-6877W1A002B
...
3018
Microwave Metal Rack L-G-5026W1A048C
...
3024
Grille,vent L-G-3530W0A030F
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Filter(mech),grease L-G-5230W1A012B
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
3034
Canopy Resistor L-G-3052W1A002A
...
3036
Microwave Cooking Rack Support L-G-4930W1A069A
...
5036
Oven Cover L-G-3550W1A190C
...
6000
Plate,base L-G-3302W0A047E
...
6001
Plate Assembly,base L-G-3303W1A072C

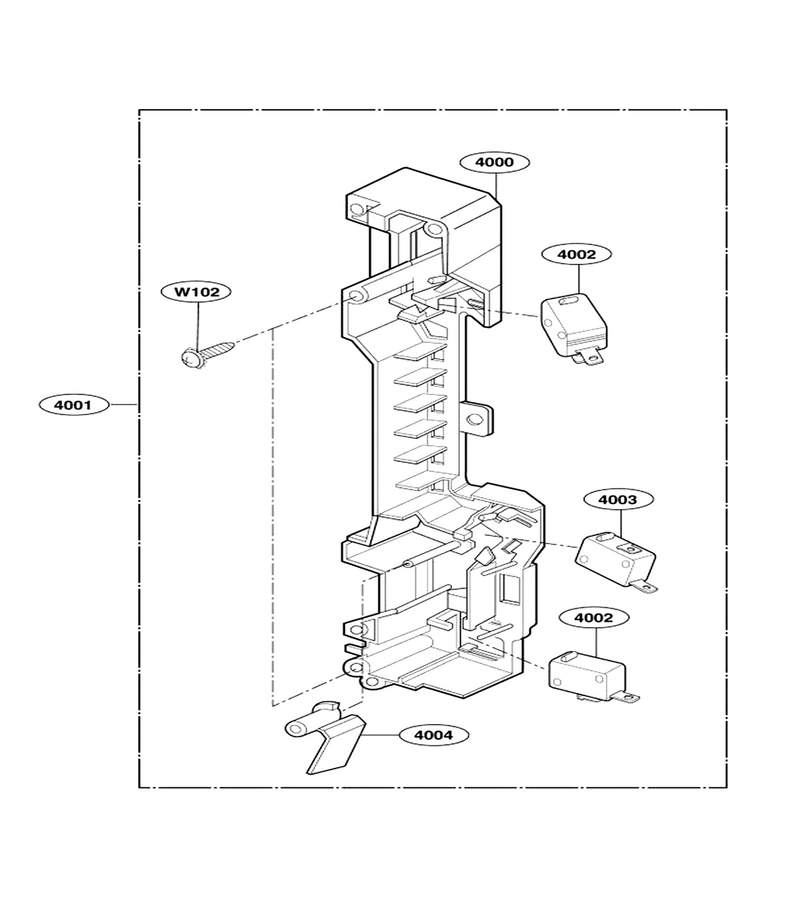

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Door Latch Housing And Interlock Swit.. L-G-3501W1A019D
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

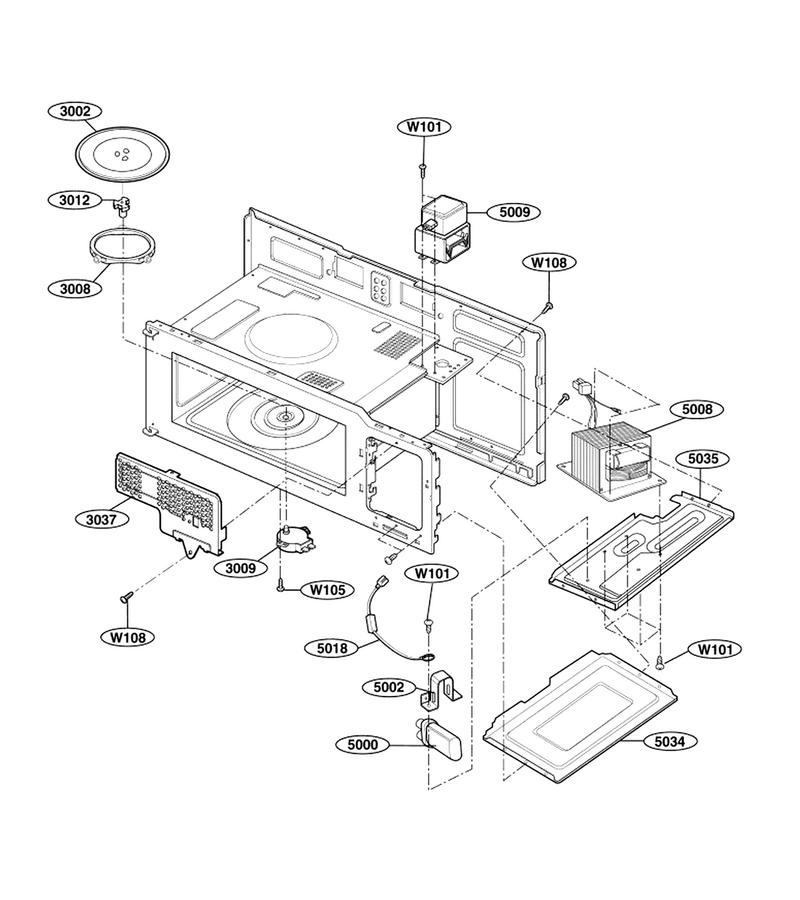

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961H
...
3008
Microwave Turntable Tray Support L-G-5889W2A012F
...
3009
Microwave Turntable Motor L-G-6549W1S011M
...
3012
Microwave Turntable Motor Couple L-G-4370W1A006B
...
3037
Supporter L-G-3740W1A005F
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket,capacitor L-G-4810W1A141A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D052R
...
5009
Microwave Magnetron L-G-2B71165R
...
5018
Microwave High-Voltage Diode L-G-6021W3B001V
...
5034
Plate L-G-3300W1A003D
...
5035
Plate L-G-3300W1A052B

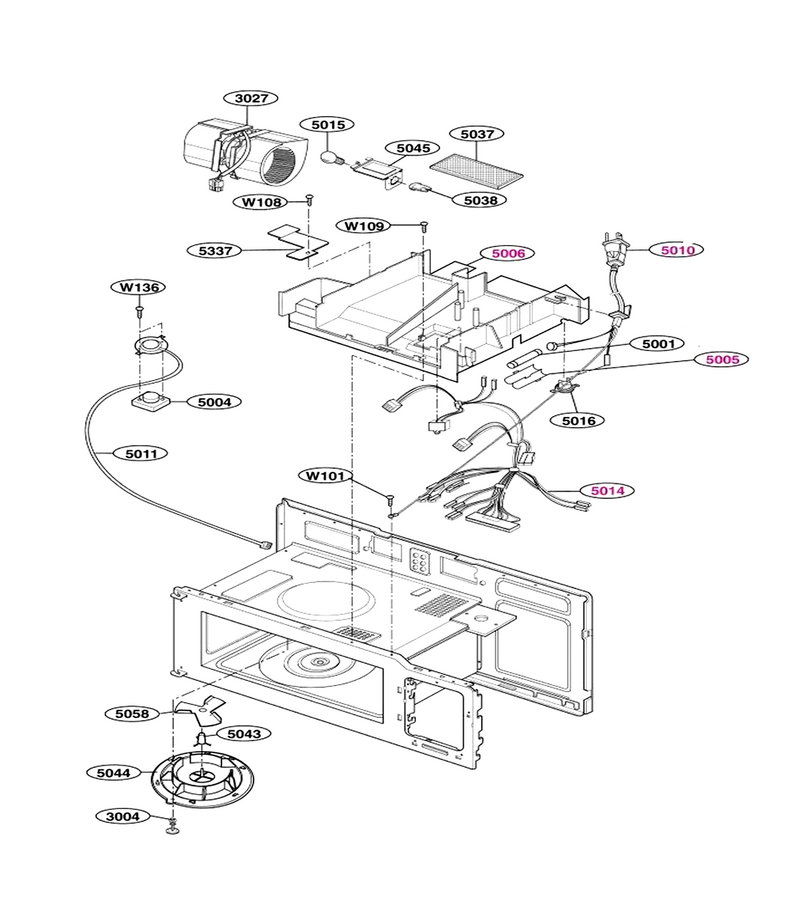

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor L-G-6549W1V008A
...
5001
Fuse,drawing L-G-3B74133Q
...
5004
Bracket,sensor L-G-4810W1A065B
...
5010
Microwave Power Cord L-G-6411W1A019M
...
5011
Humidity Sensor L-G-6501W1A004A
...
5014
Harness,single L-G-6877W1A597F
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A011B
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5043
Holder L-G-4930W1A068A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126B
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5337
Protector L-G-3740W1A011B

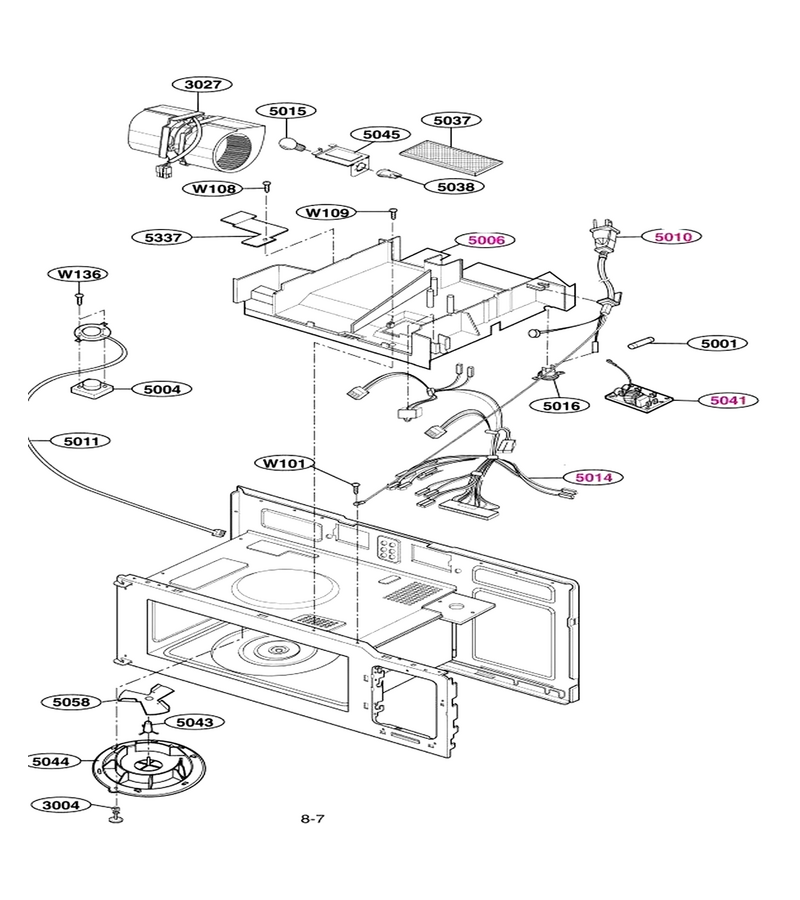

Interior Parts 3

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor L-G-6549W1V008A
...
5001
Fuse,drawing L-G-3B74133Q
...
5004
Bracket,sensor L-G-4810W1A065B
...
5006
Microwave Vent Duct Cover L-G-5208W0A006B
...
5010
Microwave Power Cord L-G-6411W1A019M
...
5011
Humidity Sensor L-G-6501W1A004A
...
5014
Harness,single L-G-6877W1A597F
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A011B
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5043
Holder L-G-4930W1A068A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126B
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5337
Protector L-G-3740W1A011B

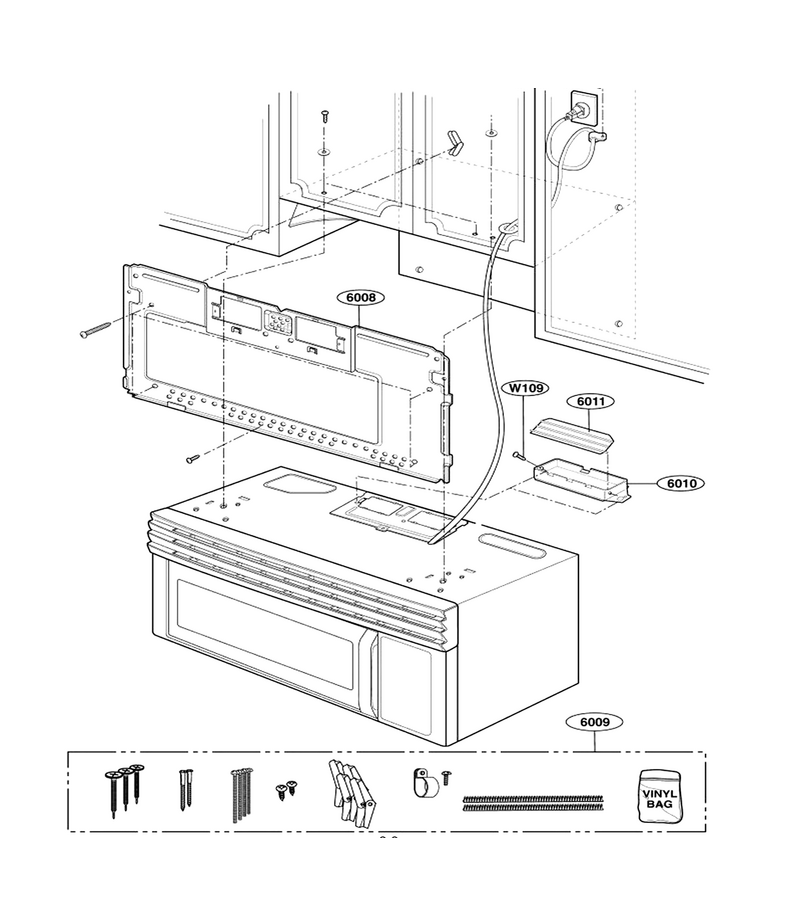

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Microwave Mounting Plate L-G-3300W0A018A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043C
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
