LG 80403.CS1ESEA

Model: 80403.CS1ESEA

Save Part Not Listed?
product name

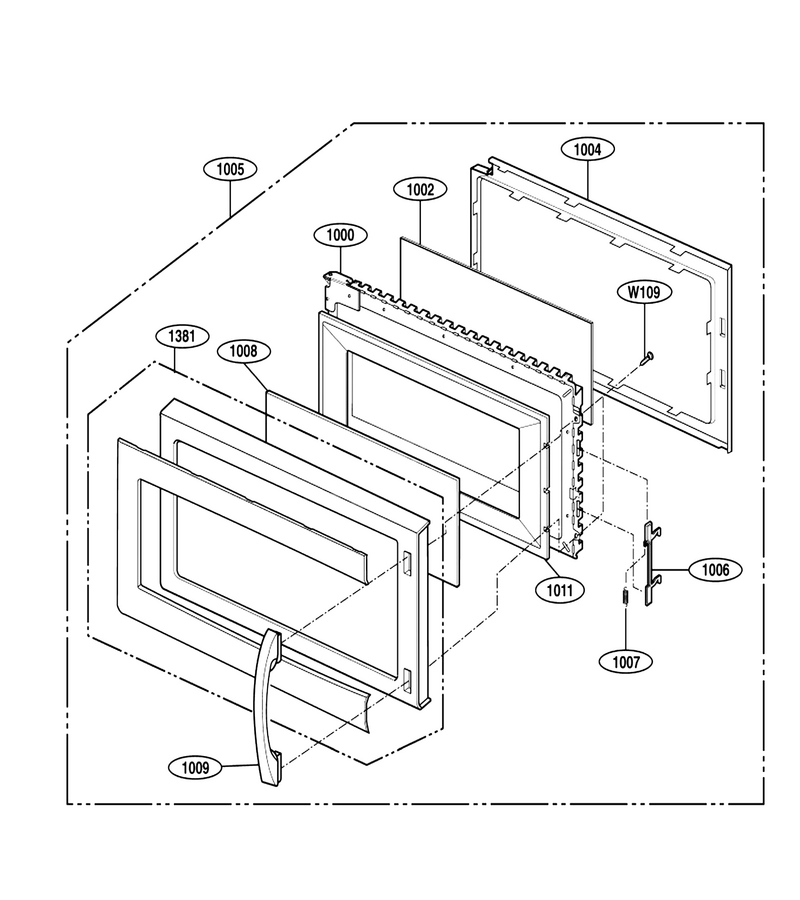

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A035D
...
1002
Microwave Door Film L-G-3536WRA001R
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A355B
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W1A021Y
...
1009
Handle,door L-G-3650W1A075B
...
1011
Baffle L-G-4760W0A002B
...
1381
Parts Assembly L-G-383EW5A233X

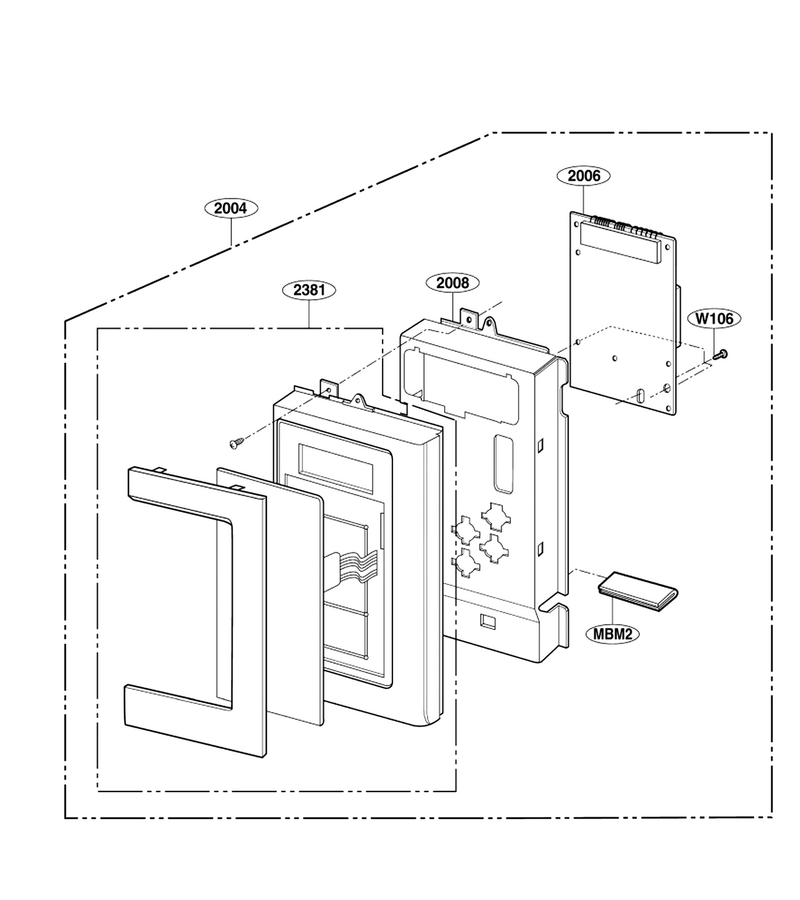

Control Parts

...
...
MBM2
Card,technical L-G-3840W1T0008
...
W106
Screw L-G-1TPL0402818
...
2004
Controller Assembly,key Pad L-G-4781W1M432E
...
2006
Pcb Assembly,sub L-G-6871W1A405B
...
2008
Bracket,control Panel L-G-4810W1G061B
...
2381
Service Parts L-G-383EW5A233Z

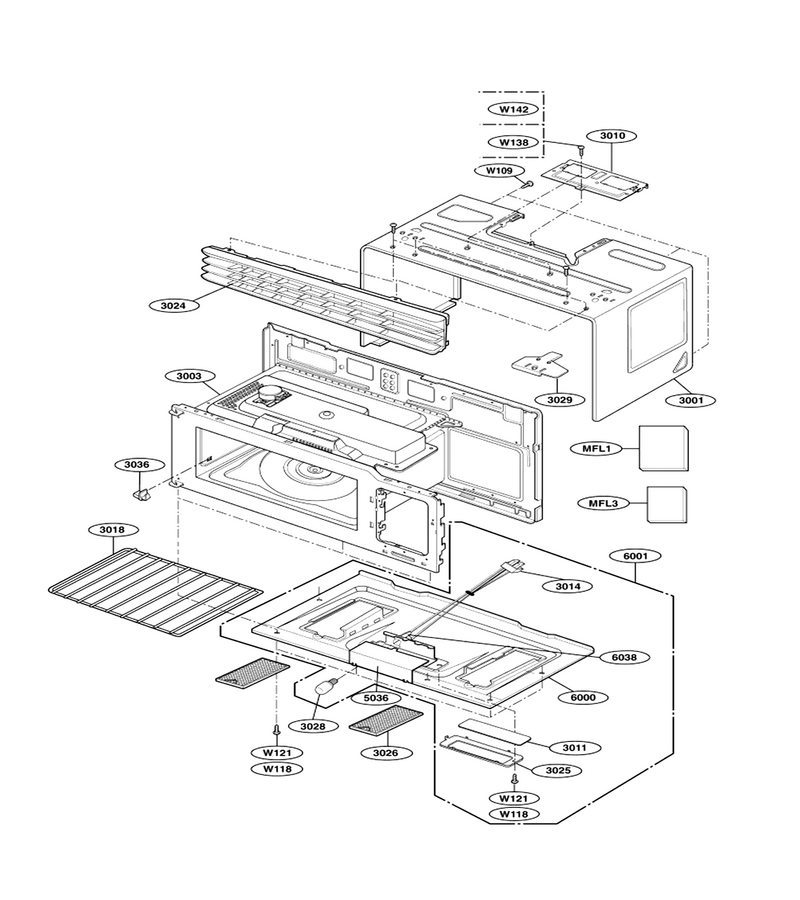

Oven Cavity Parts

...
...
MFL1
Manual,owners L-G-3828W5A8069
...
MFL3
Manual,installation L-G-3828W5U0397
...
W109
Microwave Screw L-G-1TTL0402818
...
W118
Microwave Screw L-G-1TTG0402422
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
W142
Screw L-G-1TTL0402816
...
3001
Flat Case L-G-3112W0U052N
...
3003
Cavity Assembly,coating L-G-3461W0A071B
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Microwave Wire Harness L-G-6877W1A340A
...
3018
Shelf L-G-5026W1A074B
...
3024
Grille,vent L-G-3530W0A030A
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-6912W3Q001A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3036
Holder L-G-4930W1A026A
...
5036
Cover L-G-3550W3A095A
...
6000
Plate,base L-G-3302W0A013P
...
6001
Plate Assembly,base L-G-3303W1A072B
...
6038
Microwave Light Socket L-G-6804W3A001A

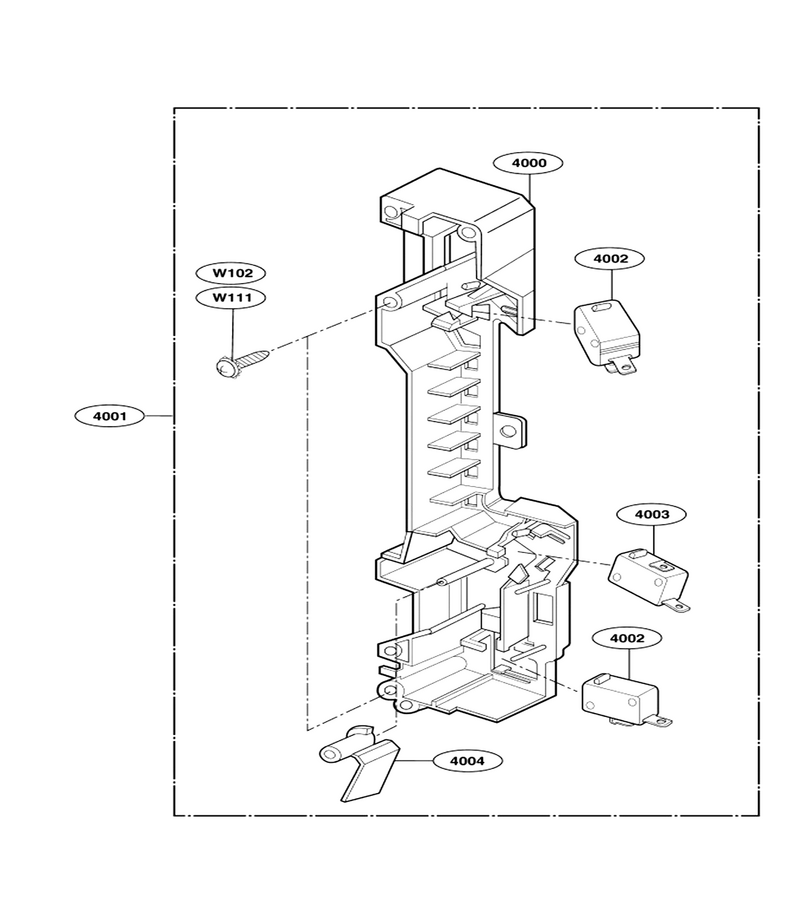

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W111
Screw L-G-4B70188B
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Door Latch Housing And Interlock Swit.. L-G-3501W1A019D
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

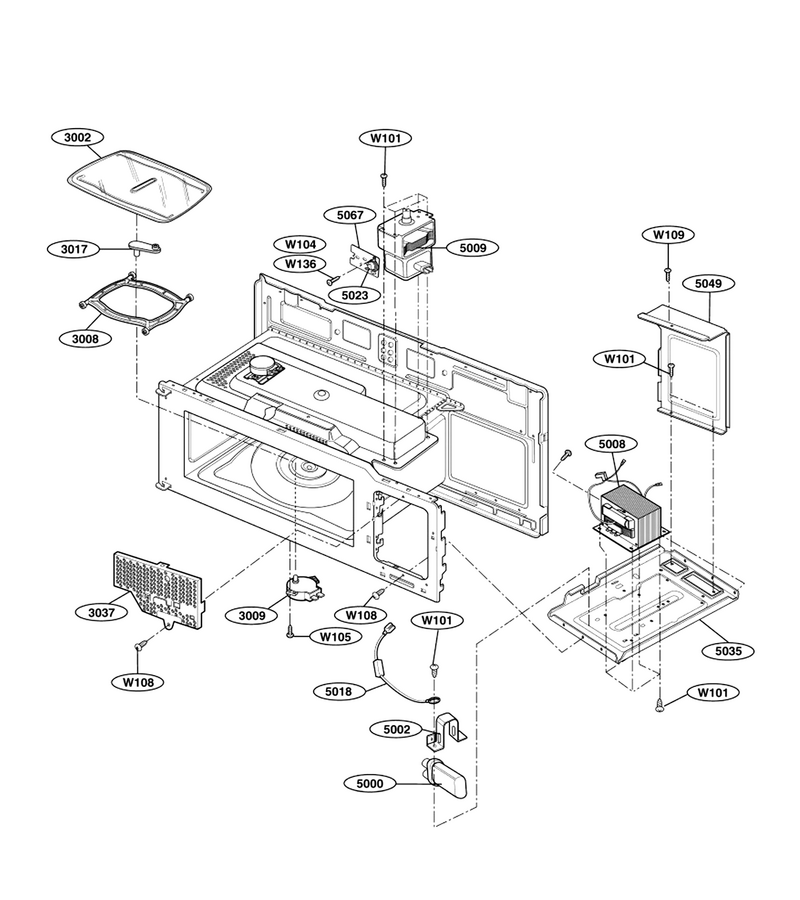

Interior Parts(i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3002
Glass Tray L-G-3390W0A001A
...
3008
Turntable Assembly L-G-5889W1A013A
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3017
Microwave Turntable Motor Coupler L-G-4351W1A002C
...
3037
Supporter L-G-3740W1A021A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C002A
...
5008
Transformer,high Voltage L-G-6170W1D023Y
...
5009
Magnetron L-G-6324W1A001J
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5035
Plate,bottom L-G-3300W1A035B
...
5049
Air Guide L-G-4974W1A036D
...
5067
Bracket,thermostat L-G-4B74584A

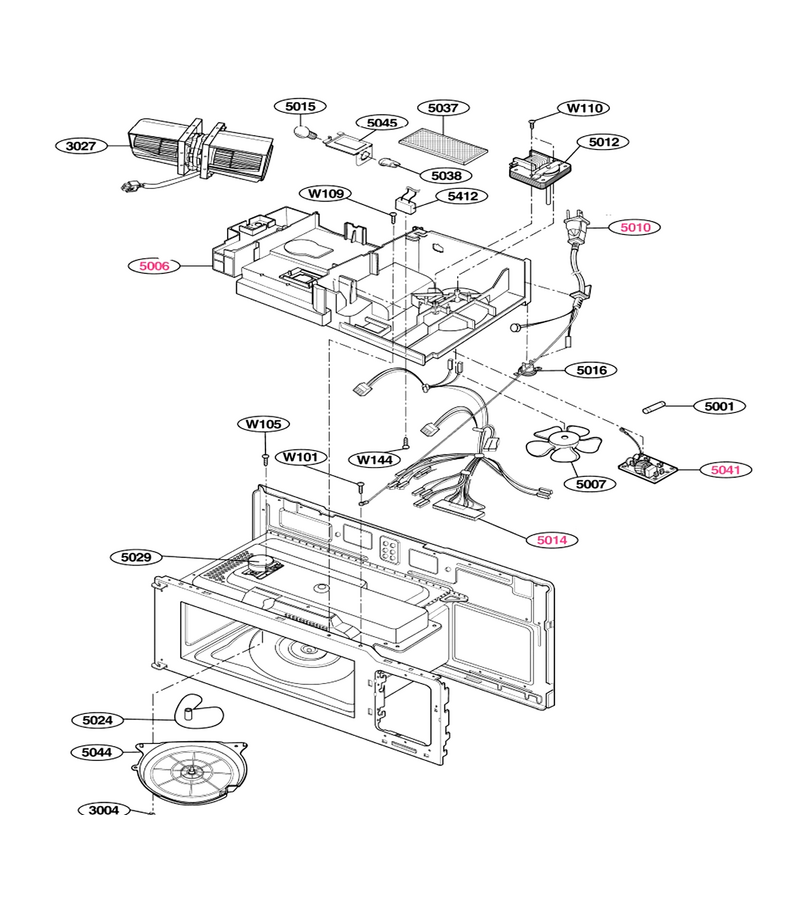

Interior Parts(ii I)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3004
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
3027
Motor, Ac Ventilation L-G-6549W1V006M
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A020A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5012
Motor,unclassified L-G-6549W1F001Y
...
5014
Harness,single L-G-6877W1A596A
...
5015
Microwave Light Bulb L-G-6912W3Q001A
...
5016
Thermostat L-G-6930W1A002D
...
5024
Fan Assembly L-G-5901W1A002D
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Microwave Light Socket L-G-6804W2A001A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5044
Cover,stirrer Fan L-G-3550W1A276A
...
5045
Oven Cover L-G-3550W3A082A
...
5412
Capacitor,film,box L-G-3B72440C

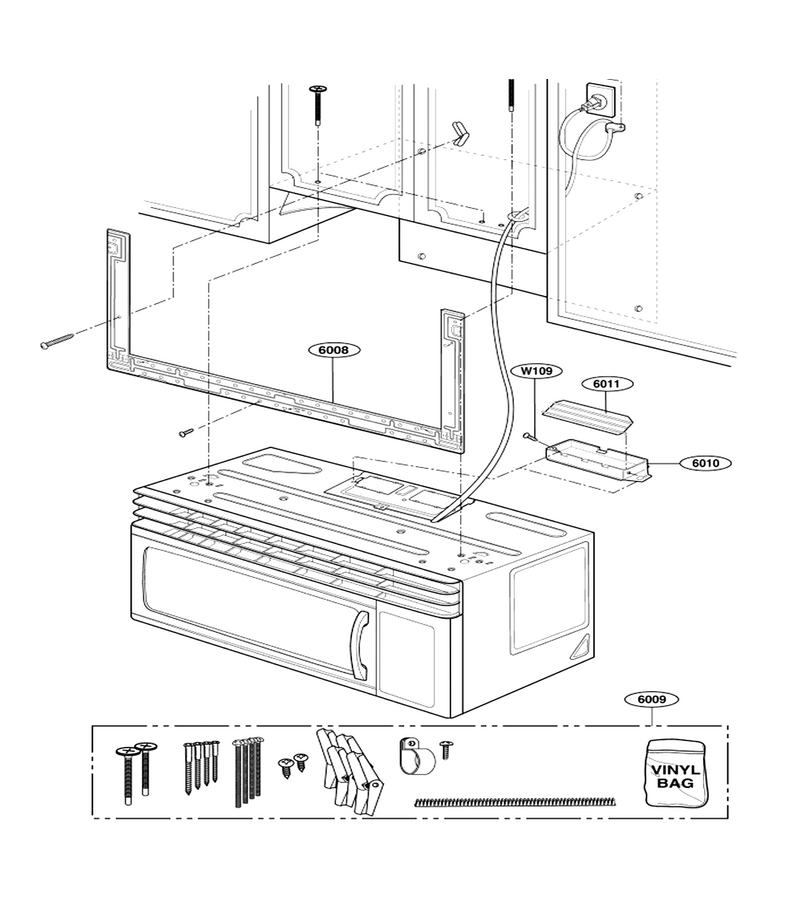

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771G
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
