product name

LG 80019.CBKESEA

Model: 80019.CBKESEA

Save Part Not Listed?
product name

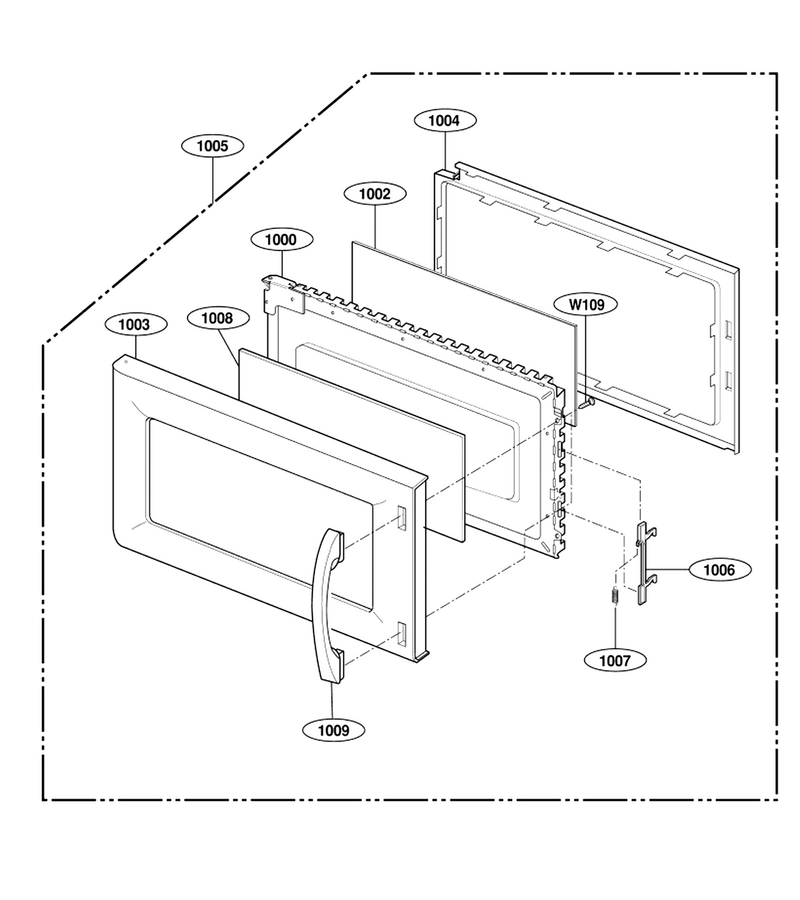

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536W1A012B
...
1003
Panel,door L-G-3720W0D295E
...
1004
Cover,choke L-G-3552W1A063A
...
1005
Door Assembly L-G-3581W1A464B
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Microwave Door Glass L-G-4890W1A044A

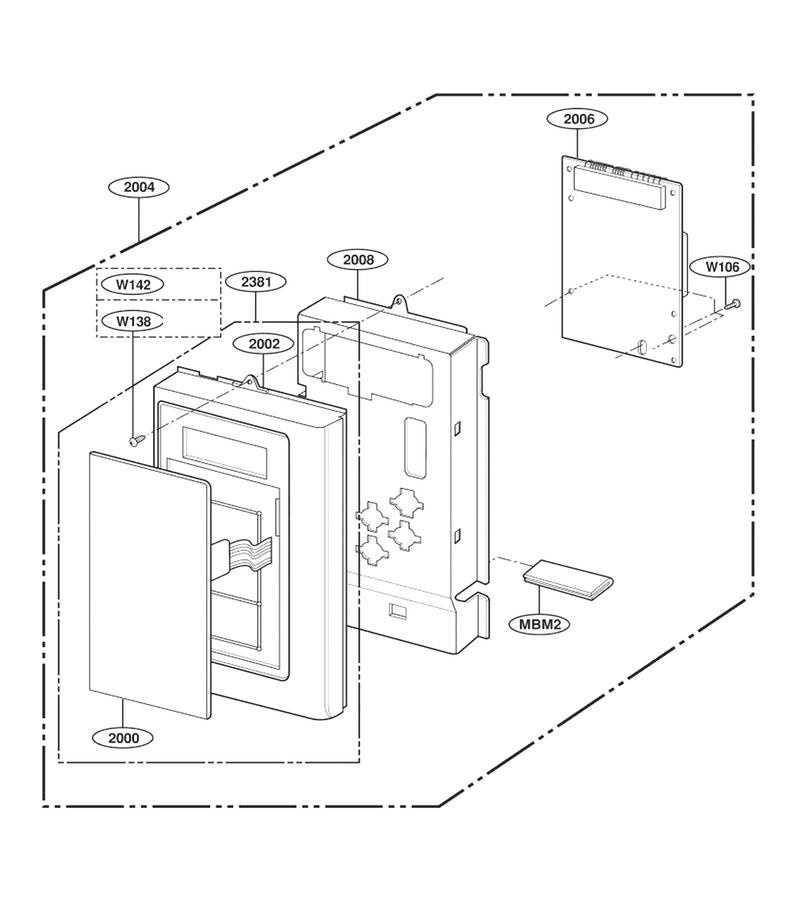

Controller Parts

...
...
MBM2
Card,technical L-G-3840W1T012K
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A596B
...
2002
Panel,control L-G-3720W1C016E
...
2004
Controller Assembly,keypad L-G-4781W1M427F
...
2006
Microwave Relay Control Board L-G-6871W1S354A
...
2008
Bracket L-G-4810W1A148C
...
2381
Parts Assembly L-G-383EW5A208F

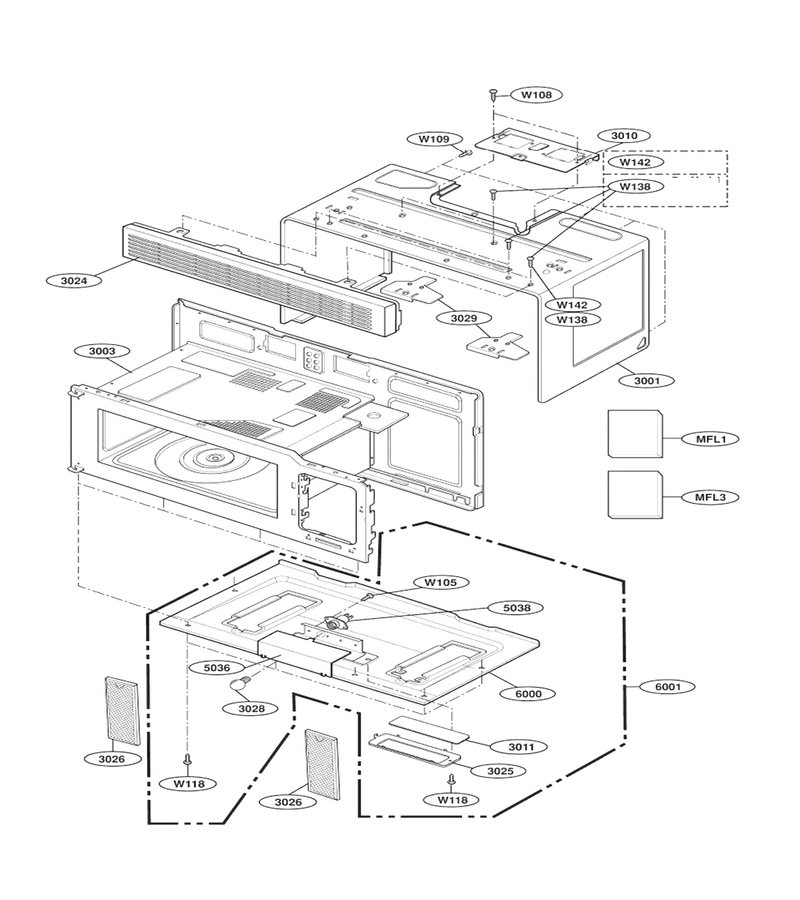

Oven Cavity Parts

...
...
W118
Filter(mech),grease L-G-5230W1A012B
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
MFL1
Manual,owners L-G-3828W5A8031
...
MFL3
Manual,installation L-G-3828W5U0368
...
3001
Flat Case L-G-3112W0U052N
...
3003
Cavity Assembly,coating L-G-3461W1A090B
...
3010
Mount L-G-4960W1A022A
...
3011
Microwave/hood Glass L-G-4890W1A045B
...
3024
Microwave Vent Grille L-G-3530W0A038E
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Filter(mech),grease L-G-5230W1A012B
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
5036
Oven Cover L-G-3550W1A190C
...
5038
Microwave Light Socket L-G-6620G00007A
...
6000
Base Plate L-G-3302W0A047D
...
6001
Base Plate L-G-3303W1A061F

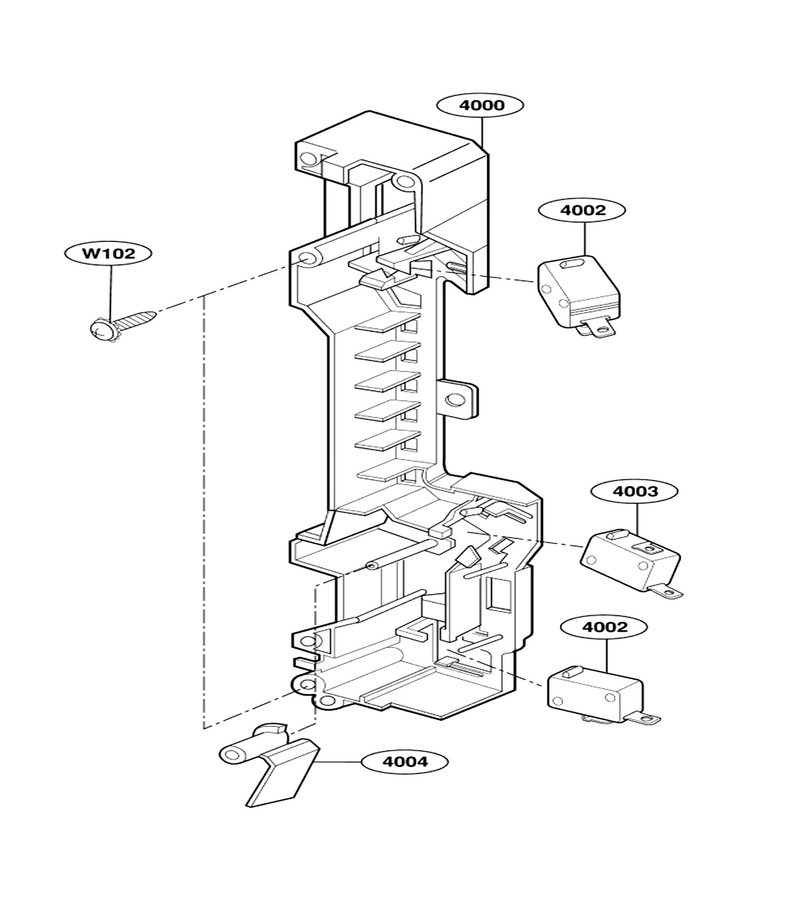

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012C

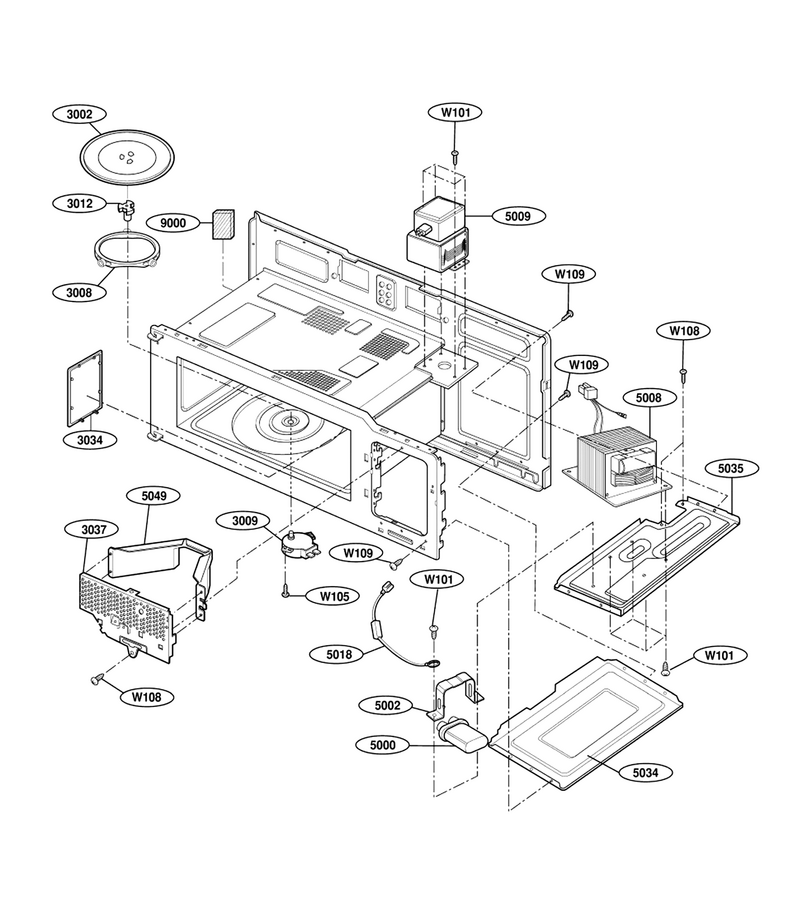

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3002
Microwave Glass Turntable Tray L-G-3390W1A027A
...
3008
Microwave Turntable Tray Support L-G-5889W2A012F
...
3009
Microwave Turntable Motor L-G-6549W1S011M
...
3012
Microwave Turntable Motor L-G-4370W1A011A
...
3034
Canopy L-G-3052W1A003A
...
3037
Protector L-G-3740W1A014B
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W1A313A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D052U
...
5009
Magnetron L-G-6324W1A001L
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5034
Plate L-G-3300W1A046C
...
5035
Plate L-G-3300W1A045C
...
5049
Air Guide L-G-4974W1A034A
...
9000
Damper L-G-3B72246U

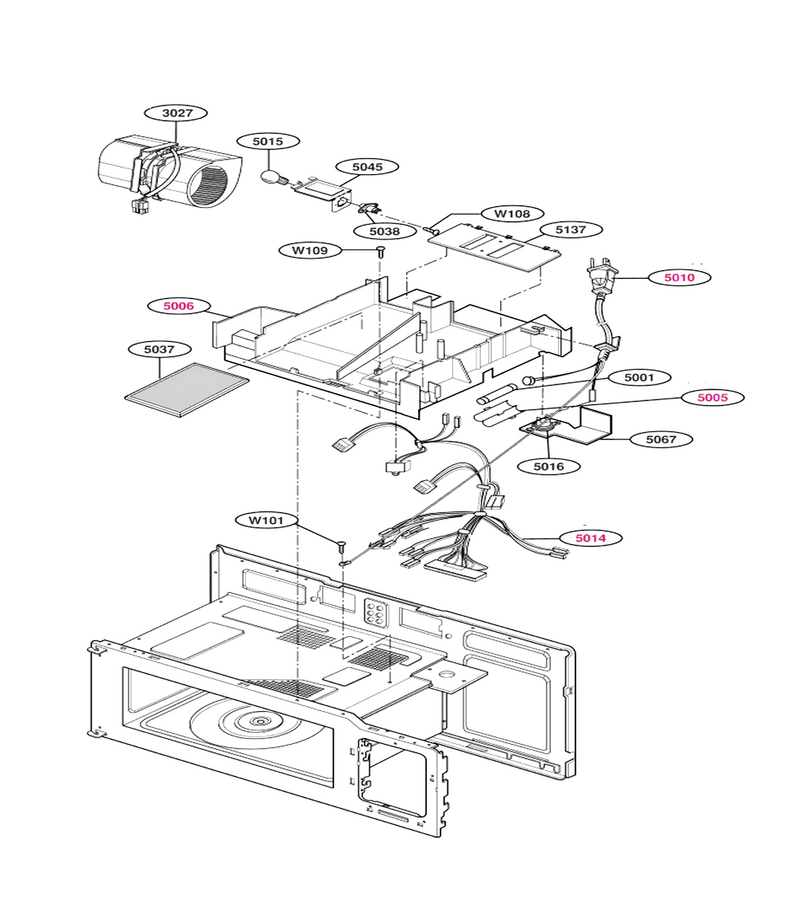

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3027
Motor L-G-6549W1V013A
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A017A
...
5010
Ac Cord Assembly L-G-6411W1A010Z
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A011B
...
5038
Microwave Light Socket L-G-6620G00007A
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5067
Bracket L-G-4810W1A305A
...
5137
Protector L-G-3740W1A020A

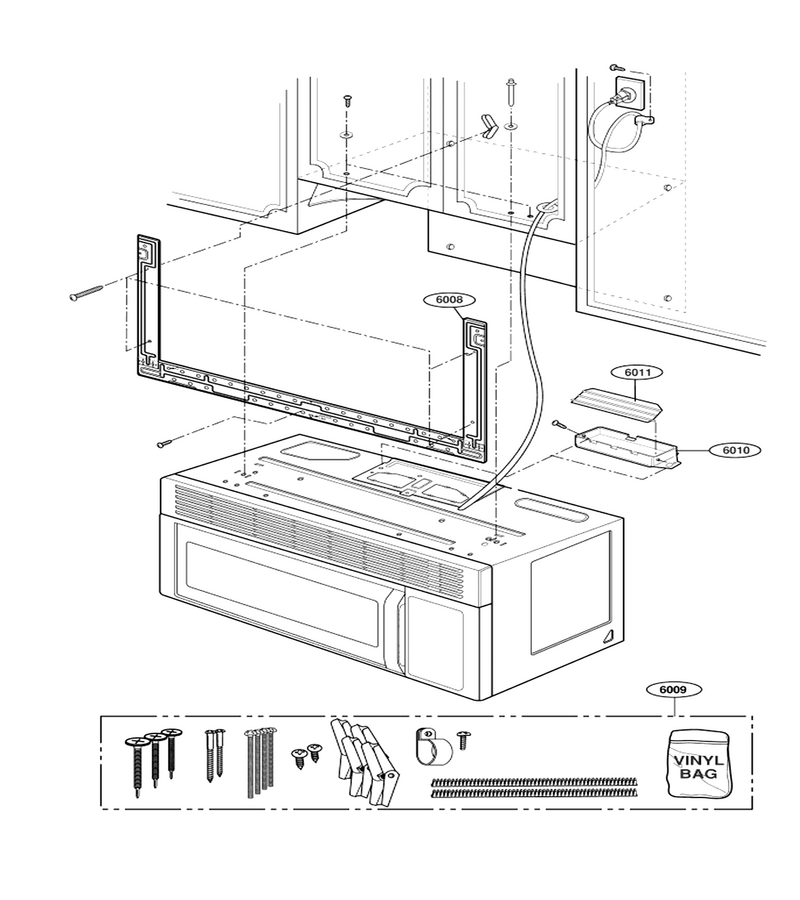

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3300W0A030A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043A
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
