LG 79737.ABS1SER

Model: 79737.ABS1SER

Save Part Not Listed?
product name

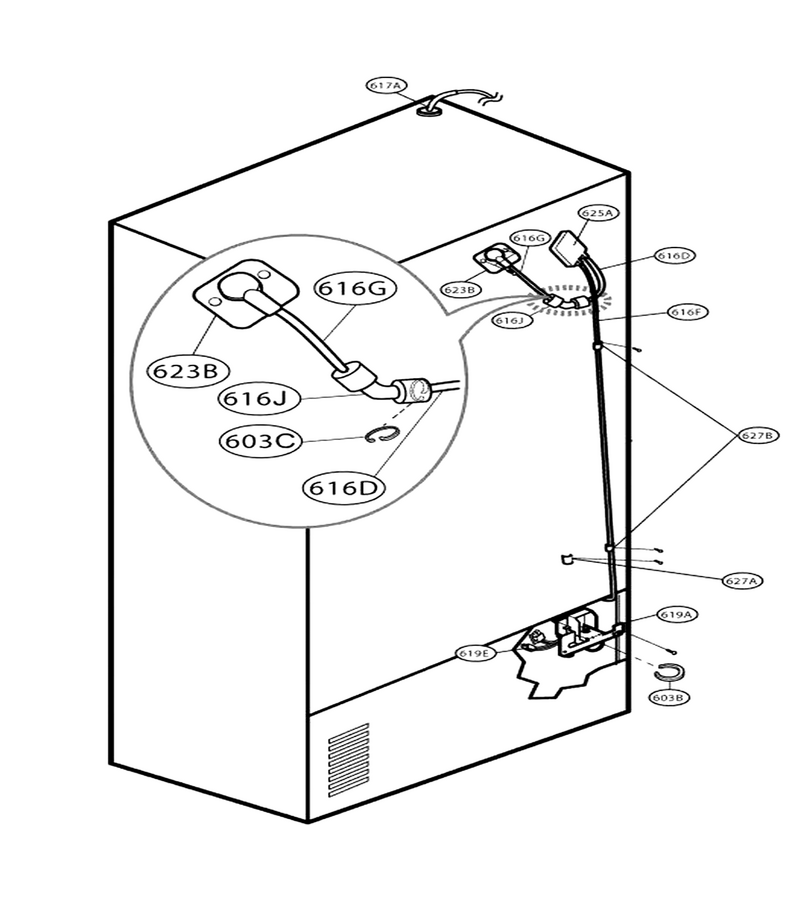

Valve & Water Tube Parts

...
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616D
Refrigerator Water Tubing L-G-5210JA3005L
...
616F
Refrigerator Water Tubing L-G-5210JA3004U
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR56656502
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3009A
...
617A
Refrigerator Spring L-G-4970JA3004N
...
619A
Refrigerator Water Inlet Valve L-G-5221JA2011J
...
619E
Refrigerator Water Inlet Valve Wire Harness L-G-6877JB3036V
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

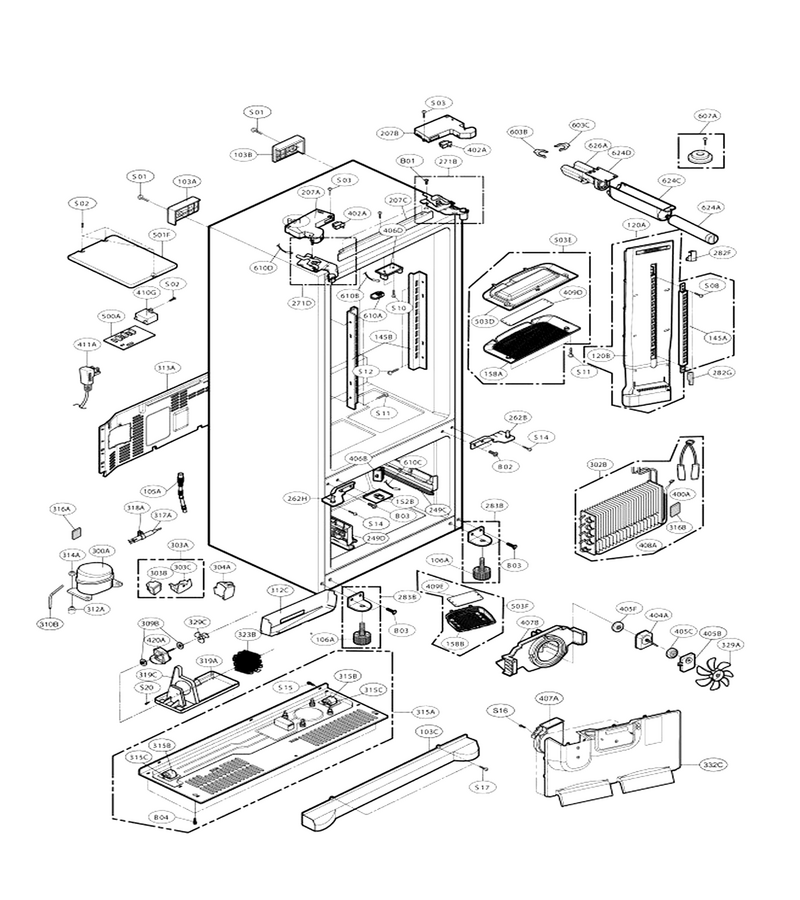

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Screw L-G-1STZJA3004D
...
B03
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S08
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S12
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010B
...
S16
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
S17
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Refrigerator Handle L-G-3650JA2113N
...
103B
Refrigerator Handle L-G-3650JA2113P
...
103C
Refrigerator Lower Cover L-G-ACQ55957503
...
105A
Refrigerator Drain Tube L-G-5251JA3003E
...
106A
Refrigerator Leg Assembly L-G-4779JJ2001B
...
120A
Duct Assembly,multi L-G-ADJ36702004
...
120B
Duct,multi L-G-MCZ47932702
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
152B
Refrigerator Temperature Sensor Cover L-G-MCK39131501
...
158A
Refrigerator Light Cover L-G-MCK38019301
...
158B
Cover,lamp L-G-MCK38015101
...
207A
Refrigerator Door Hinge Cover, Left L-G-3550JJ1097E
...
207B
Refrigerator Door Hinge Cover, Right L-G-3550JJ1097F
...
207C
Decor Assembly,case L-G-3806JA2146C
...
249C
Holder,rail L-G-MEG42682701
...
249D
Holder,rail L-G-MEG42682702
...
262B
Hinge Assembly,center L-G-AEH71135322
...
262H
Hinge Assembly,center L-G-AEH71135324
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Refrigerator Duct Cap L-G-MBL38019501
...
282G
Refrigerator Duct Cap L-G-5006JA3111A
...
283B
Hinge Assembly L-G-4775JJ2008B
...
300A
Refrigerator Compressor L-G-TCA34632301
...
302B
Refrigerator Evaporator L-G-5421JJ1003B
...
303A
Refrigerator Temperature Sensor L-G-EBG31940241
...
303B
Refrigerator Compressor Start Relay L-G-EBG60658602
...
303C
Refrigerator Compressor Overload Protector L-G-6750C-0004U
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550C-0042C
...
309B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
312C
Refrigerator Drain Tray Assembly L-G-3391JJ2013B
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001H
...
315B
Refrigerator Roller L-G-4580JJ3001A
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316B
Noise Damper L-G-5072JA3003G
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Tray Assembly,drip L-G-AJP73294701
...
319C
Tray Assembly,drip L-G-AJP73294701
...
323B
Refrigerator Wire Condenser Assembly L-G-ACG72915201
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB34270102
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
407A
Duct Assembly,connector L-G-5209JA1044A
...
407B
Refrigerator Bracket L-G-4810JJ0003B
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409D
Led Assembly L-G-EAV43060804
...
409E
Refrigerator Light Board L-G-EAV43060803
...
410G
Capacitor,electric Appliance Film,radial L-G-0CZZJB2012K
...
411A
Power Cord Assembly L-G-6411JB1042L
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly L-G-EBR41956418
...
501F
Refrigerator Power Control Board Cover L-G-3551JA2144C
...
503D
Refrigerator Light Housing L-G-MBN38018601
...
503E
Cover Assembly,lamp L-G-ACQ33676502
...
503F
Cover Assembly,lamp L-G-ACQ33751002
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610B
Sensor Module L-G-6500JB2002B
...
610C
Refrigerator Temperature Sensor L-G-6500JB2001C
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
624A
Refrigerator Water Filter L-G-5231JA2006A
...
624C
Cover,filter L-G-3550JD1128B
...
626A
Refrigerator Water Filter Cover L-G-3550JA2279A

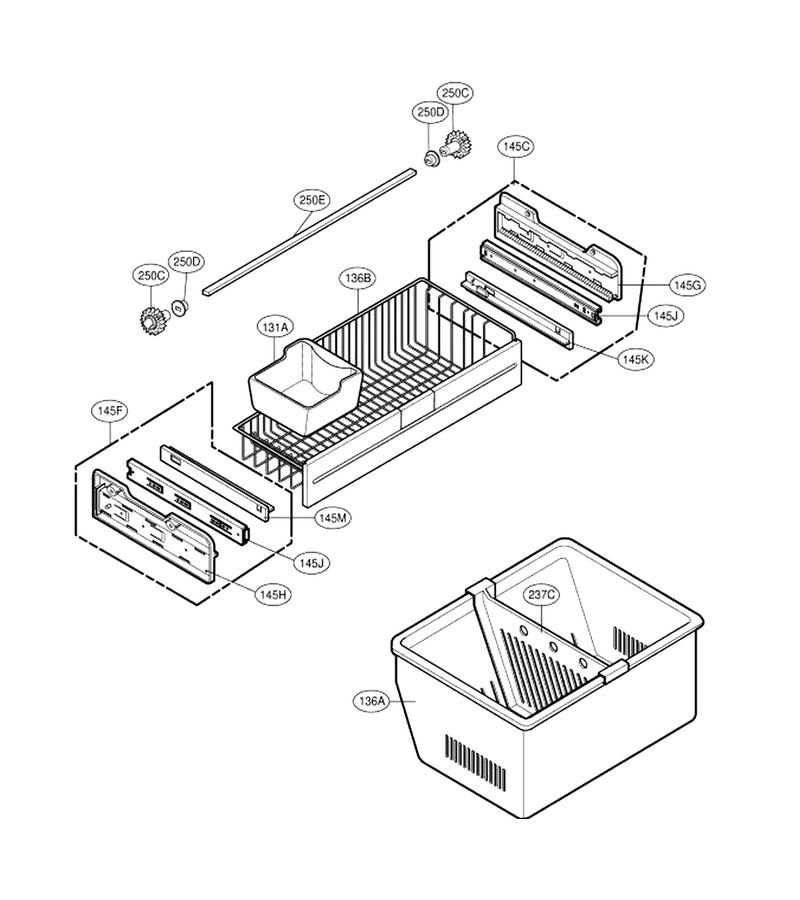

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JA2004A
...
136A
Refrigerator Drawer Tray L-G-3391JJ2011A
...
136B
Tray Assembly,drawer L-G-3391JA2054B
...
145C
Guide Assembly,rail L-G-4975JA1040D
...
145F
Guide Assembly,rail L-G-4975JA1040C
...
145G
Guide,rail L-G-4974JA1153B
...
145H
Guide,rail L-G-4974JA1153A
...
145J
Rail,slide L-G-5218JA1008B
...
145K
Connector,rail L-G-4932JA1009B
...
145M
Connector,rail L-G-4932JA1009A
...
237C
Refrigerator Dispenser Drip Tray L-G-4974JJ1032A
...
250C
Gear,ice L-G-4470JA2008A
...
250D
Cap,cover L-G-5006JA2069A
...
250E
Bar L-G-MAK36519001

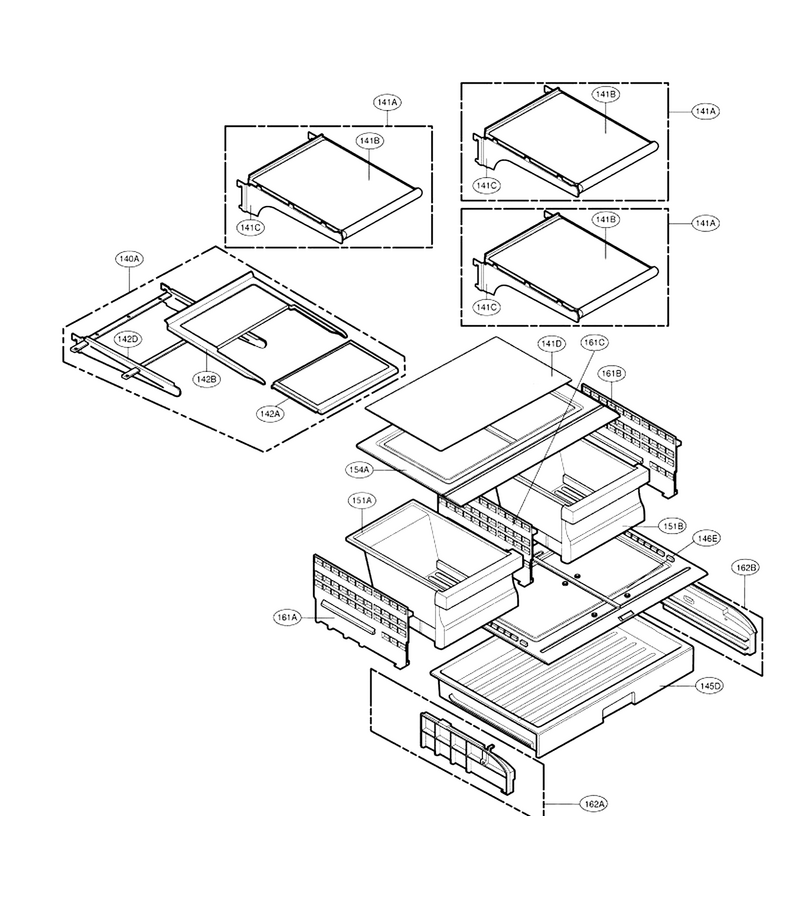

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT36706712
...
141A
Shelf Assembly,refrigerator L-G-AHT36764309
...
141B
Shelf Assembly,refrigerator L-G-AHT36968109
...
141C
Refrigerator Shelf Net L-G-5027JJ2012E
...
141D
Refrigerator Glass Shelf L-G-4890JJ1007Z
...
142A
Shelf Assembly,refrigerator L-G-AHT36963708
...
142B
Refrigerator Shelf Assembly L-G-AHT36963804
...
142D
Refrigerator Shelf Assembly L-G-5027JJ2012L
...
145D
Refrigerator Deli Drawer L-G-AJP36700902
...
146E
Cover Assembly,tray L-G-ACQ36701704
...
151A
Tray Assembly,vegetable L-G-AJP36702119
...
151B
Tray Assembly,vegetable L-G-AJP36702120
...
154A
Cover Assembly,tv L-G-ACQ36701109
...
161A
Guide Assembly,tv L-G-AEC36906403
...
161B
Guide Assembly,tv L-G-AEC36906404
...
161C
Guide Assembly,rail L-G-AEC36702204
...
162A
Refrigerator Guide Assembly L-G-AEC36702303
...
162B
Guide Assembly L-G-AEC36702304

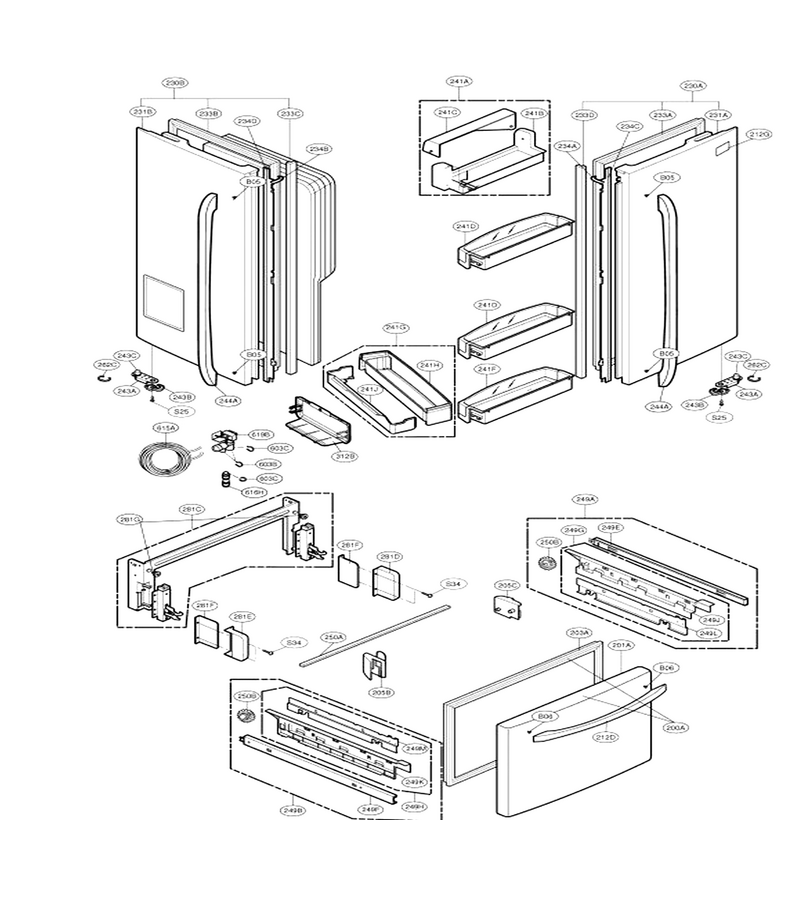

Door Parts

...
...
B05
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
B06
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
S25
Refrigerator Door Stop Bushing Screw L-G-1SZZJA3011D
...
200A
Door Assembly,freezer L-G-ADC57728012
...
201A
Door Foam Assembly,freezer L-G-ADD57728206
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201402
...
205B
Refrigerator Freezer Door Support End Cap, Right L-G-5006JJ2013A
...
205C
Refrigerator Freezer Door Support End Cap, Left L-G-5006JJ2013B
...
212D
Handle Assembly,freezer L-G-AED37133218
...
212G
Name Plate L-G-3846JD1019B
...
230A
Door Assembly,refrigerator(right) L-G-ADC57728315
...
230B
Door Assembly,refrigerator(left) L-G-ADC36697442
...
231A
Door Foam Assembly,refrigerator L-G-ADD57728508
...
231B
Door Foam Assembly,refrigerator L-G-ADD57728909
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2002Q
...
233B
Gasket Assembly,door L-G-4987JJ2002R
...
233C
Refrigerator Door Gasket, Left L-G-4987JJ2002D
...
233D
Refrigerator Flipper Seal Cover L-G-MCK59045801
...
234A
Refrigerator Flipper Seal Cover L-G-MCK59045802
...
234B
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234C
Refrigerator Flipper Seal Frame L-G-4931JJ2002C
...
234D
Refrigerator Flipper Seal Frame L-G-4931JJ2002F
...
241A
Basket Assembly,door L-G-AAP33686303
...
241B
Refrigerator Door Bin L-G-MAN38142901
...
241C
Basket,window L-G-MAN39723202
...
241D
Refrigerator Door Bin L-G-AAP36817401
...
241F
Refrigerator Door Bin L-G-AAP36817601
...
241G
Refrigerator Door Bin L-G-AAP33726606
...
241H
Refrigerator Door Bin L-G-AAP33726605
...
241J
Refrigerator Door Bin L-G-MAN38154501
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
243C
Refrigerator Hinge Bushing L-G-J326-00012A
...
244A
Handle Assembly,refrigerator L-G-AED37083014
...
249A
Connector Assembly L-G-ACJ55885304
...
249B
Connector Assembly L-G-ACJ55885303
...
249E
Rail,slide L-G-5218JA1009E
...
249F
Rail,slide L-G-5218JA1009F
...
249G
Connector Assembly L-G-5098JA2001F
...
249H
Connector Assembly L-G-5098JA2001E
...
249J
Cover,connector L-G-3550JA1456C
...
249K
Cover,connector L-G-3550JA1456D
...
249L
Connector,rail L-G-4932JA1007D
...
249M
Connector,rail L-G-4932JA1007C
...
250A
Refrigerator Freezer Drawer Gear Support Bar L-G-MAK39123901
...
250B
Connector Assembly L-G-4403JA3005A
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281C
Bracket Assembly,door L-G-4811JJ2015D
...
281D
Refrigerator Hinge Cover L-G-3550JA2267B
...
281E
Refrigerator Freezer Door Hinge Cover, Left L-G-3550JA2267A
...
281F
Refrigerator Freezer Door Hinge Cover L-G-3550JA2264A
...
281G
Damper,pipe L-G-MCQ42969201
...
312B
Refrigerator Water Reservoir Cover L-G-MCK42342101
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
615A
Refrigerator Water Tank L-G-4838JA2003B
...
616H
Refrigerator Water Tube Fitting L-G-MCD38280801
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G

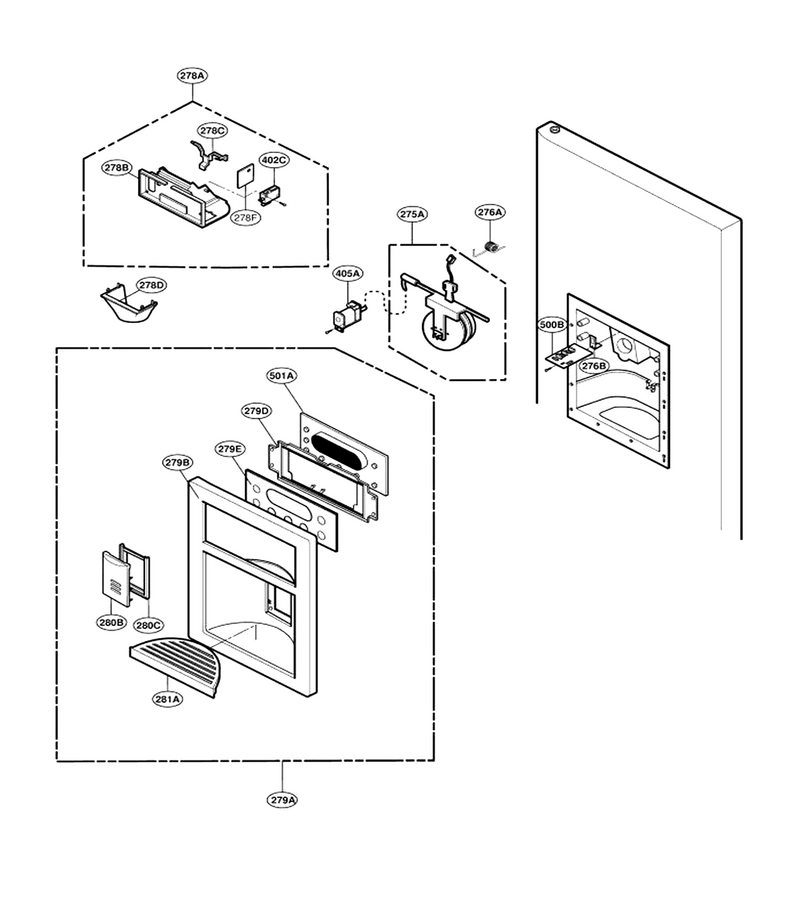

Dispenser Parts

...
...
275A
Cap Assembly,duct L-G-5007JA3006Z
...
276A
Refrigerator Spring L-G-4970JA3011C
...
276B
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
278A
Funnel Assembly L-G-3017JA2008J
...
278B
Frame,funnel L-G-MDQ42340403
...
278C
Refrigerator Dispenser Lever L-G-4510JA2022A
...
278D
Funnel L-G-MDR42340503
...
278F
Refrigerator Dispenser Display Control Board As... L-G-6871JB2074A
...
279A
Cover Assembly,dispenser L-G-ACQ36820510
...
279B
Cover,dispenser L-G-MCK42340105
...
279D
Cover,pcb L-G-MCK42494901
...
279E
Decor,glass Door L-G-4890JD1111A
...
280B
Refrigerator Holder L-G-4930JA2074B
...
280C
Refrigerator Dispenser Lever L-G-5020JA2040K
...
281A
Decor,drain L-G-MCR42338205
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001E
...
405A
Refrigerator Dispenser Ice Chute Door Solenoid L-G-6421JB2002L
...
500B
Pcb Assembly,sub L-G-6871JB2061B
...
501A
Pcb Assembly,display L-G-6871JB1451C

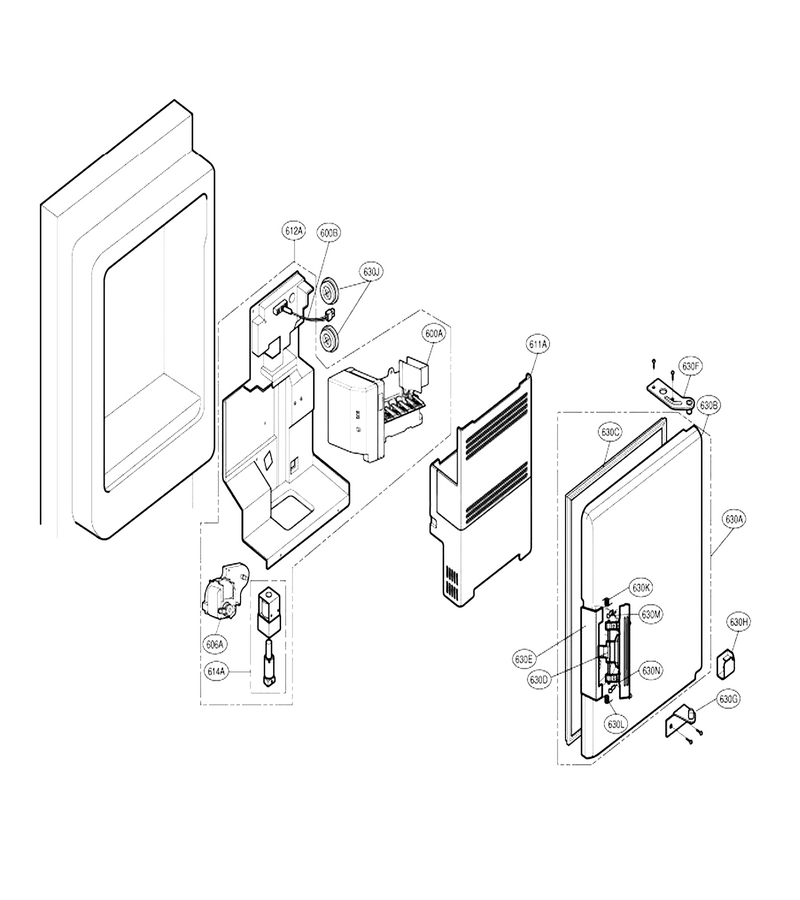

Ice Maker & Ice Bank Parts

...
...
600A
Refrigerator Ice Maker Kit L-G-AEQ36756901
...
600B
Refrigerator Temperature Sensor L-G-6500JB1008A
...
606A
Motor,ac L-G-4681JA1006D
...
611A
Bucket Assembly,ice L-G-5075JA1044E
...
612A
Motor,ac L-G-4681JA1006D
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001N
...
630A
Door Assembly,freeze Room L-G-ADC33751107
...
630B
Door Foam Assembly L-G-ADD33178702
...
630C
Refrigerator Ice Bank Door Gasket L-G-4987JA2012B
...
630D
Handle,home Bar L-G-MEB49049002
...
630E
Refrigerator Decorative Handle L-G-MCR42600501
...
630F
Refrigerator Hinge L-G-4775JA2101A
...
630G
Hinge Assembly, Lower L-G-4775JA2102A
...
630H
Refrigerator Cover Bar L-G-MCK38202501
...
630J
Gasket Assembly,door L-G-4987JA3025K
...
630K
Refrigerator Spring L-G-4970JA3044A
...
630L
Refrigerator Spring L-G-4970JA3045A
...
630M
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010B
...
630N
Refrigerator Ice Room Door Handle Clamp L-G-4860JA3010A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
