product name

LG 79024.ABICSE1

Model: 79024.ABICSE1

Save Part Not Listed?
product name

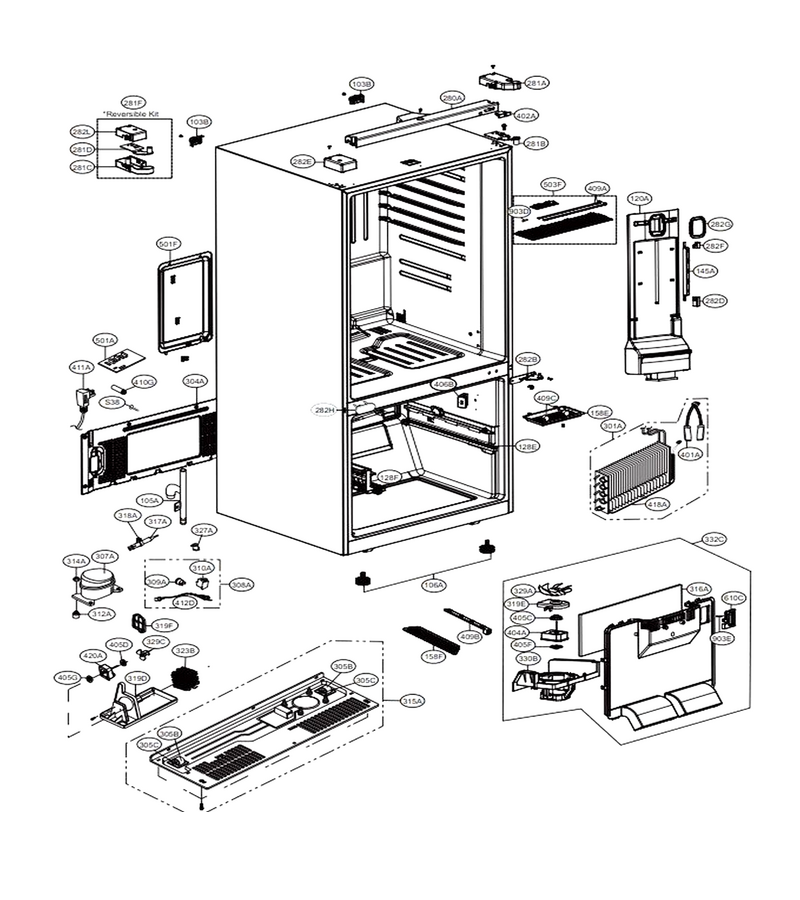

Case Parts

...
...
103B
Handle,rear L-G-MEB64014301
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
120A
Duct Assembly,multi L-G-ADJ73712910
...
158F
Cover,lamp L-G-MCK69348401
...
280A
Case Assembly,display L-G-ABQ74110416
...
281A
Cover,hinge L-G-MCK67400402
...
281C
Cover,hinge L-G-MCK67400401
...
281F
Kit Assembly L-G-AEY73632001
...
282E
Cap,hinge L-G-MBL65401502
...
282G
Decor,cover L-G-MCR65017201
...
282H
Cap,hinge L-G-MBL65405301
...
282L
Cap,hinge L-G-MBL65401501
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810802
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Condenser Assembly,wire L-G-ACG73946402
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
330B
Shroud,freezer L-G-MHN62322002
...
402A
Refrigerator Door Switch (white) L-G-6600JB3007L
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor L-G-5040JA2009A
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
409B
Refrigerator Led Light L-G-EAV61652805
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Refrigerator Power Cord L-G-EAD61445206
...
418A
Heater,sheath L-G-5300JB1100R
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Pcb Assembly,main L-G-EBR77042535
...
610C
Cover,sensor L-G-MCK66690301
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

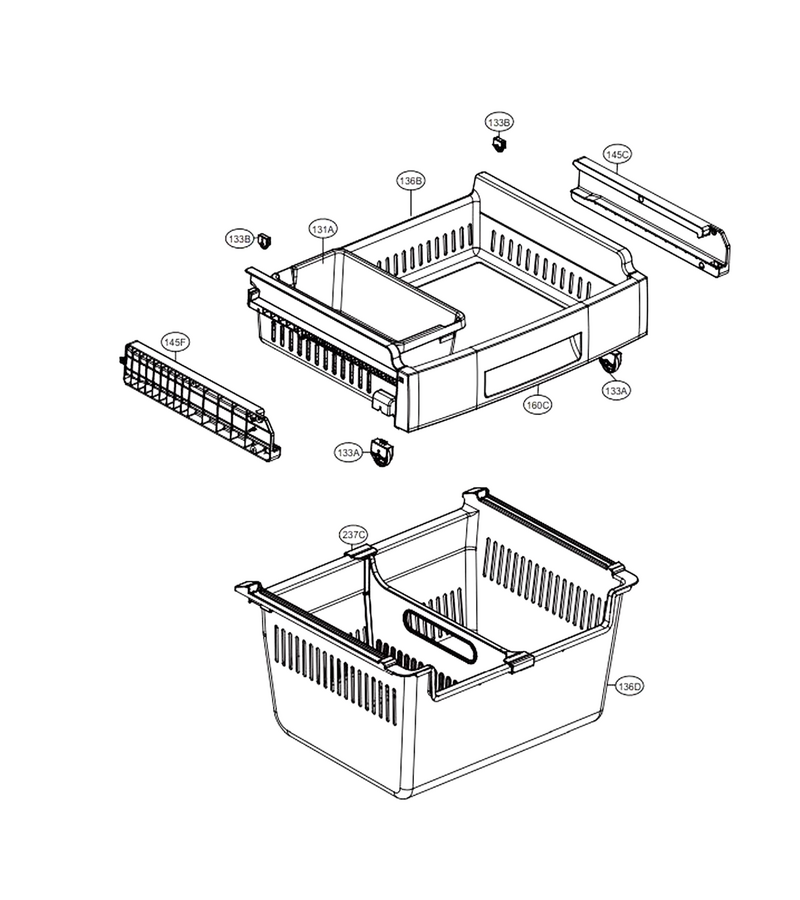

Freezer Parts

...
...
136D
Tray,drawer L-G-MJS62813501
...
160C
Decor,tray L-G-MCR65086401

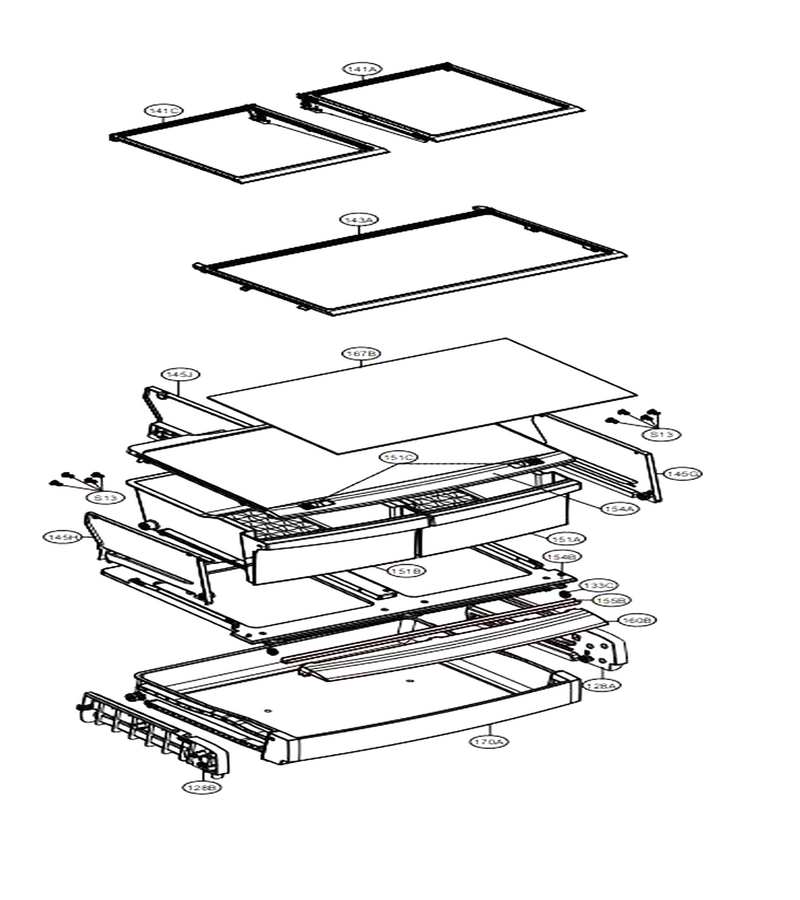

Refrigerator Parts

...
...
S13
Refrigerator Screw L-G-1SBZJA3004L
...
141A
Shelf Assembly,refrigerator L-G-AHT73595403
...
141C
Shelf Assembly,refrigerator L-G-AHT73595404
...
143A
Shelf,refrigerator L-G-MHL62792001
...
154A
Cover Assembly,tv L-G-ACQ86594202
...
170A
Tray Assembly,fresh Room L-G-AJP73816202

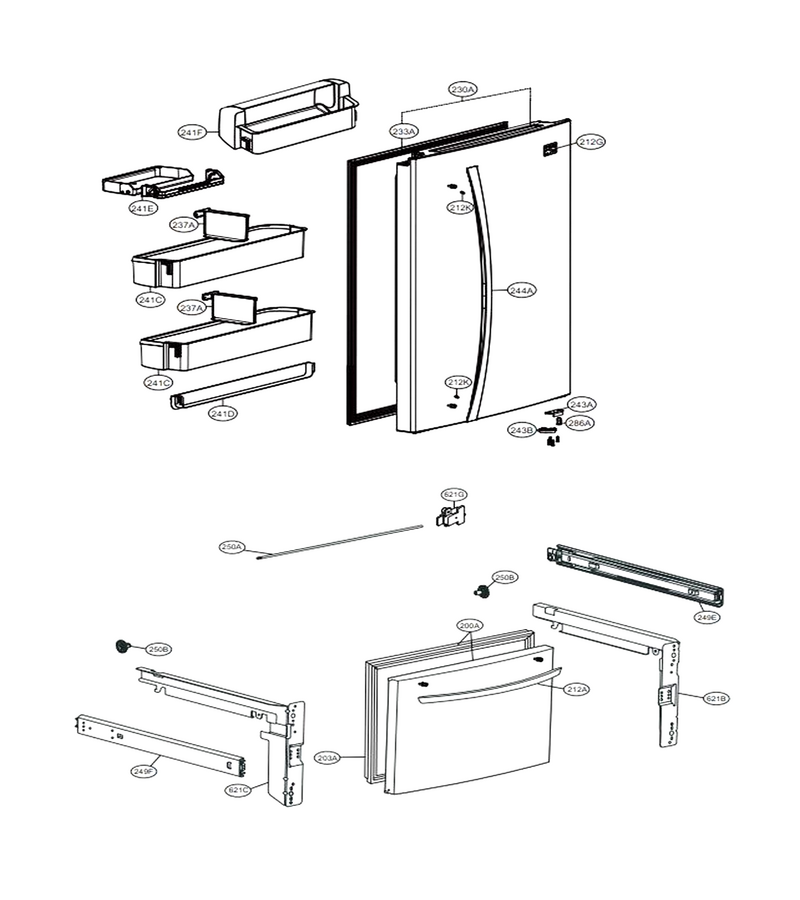

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC74207332
...
203A
Gasket Assembly,door L-G-ADX73350934
...
212A
Handle Assembly,freezer L-G-AED73593004
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
212G
Name Plate L-G-MFT61866216
...
230A
Door Assembly,refrigerator L-G-ADC74207242
...
233A
Gasket Assembly,door L-G-ADX73350940
...
241C
Basket,door L-G-MAN62750201
...
241D
Basket,door L-G-MAN62750101
...
241E
Basket Assembly,door L-G-AAP73792202
...
241F
Basket Assembly,door L-G-AAP73792102
...
243A
Stopper,door L-G-MJB63010703
...
244A
Handle Assembly,refrigerator L-G-AED73592904
...
250A
Bar L-G-4270JJ3001M
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621C
Connector,rail L-G-MCD61841107
...
621G
Cover,door Switch L-G-MCK67227902

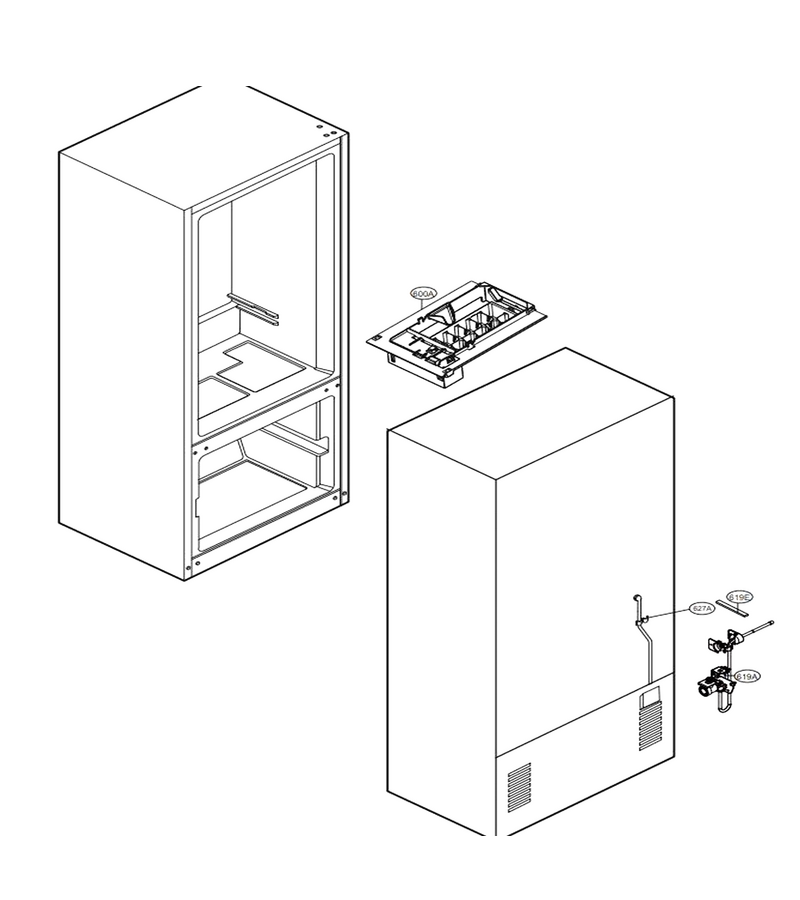

Ice Maker Parts

...
...
619E
Gasket,foam L-G-5400JJ2042S
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001A
