LG 78546.ATI3SER

Model: 78546.ATI3SER

Save Part Not Listed?
product name

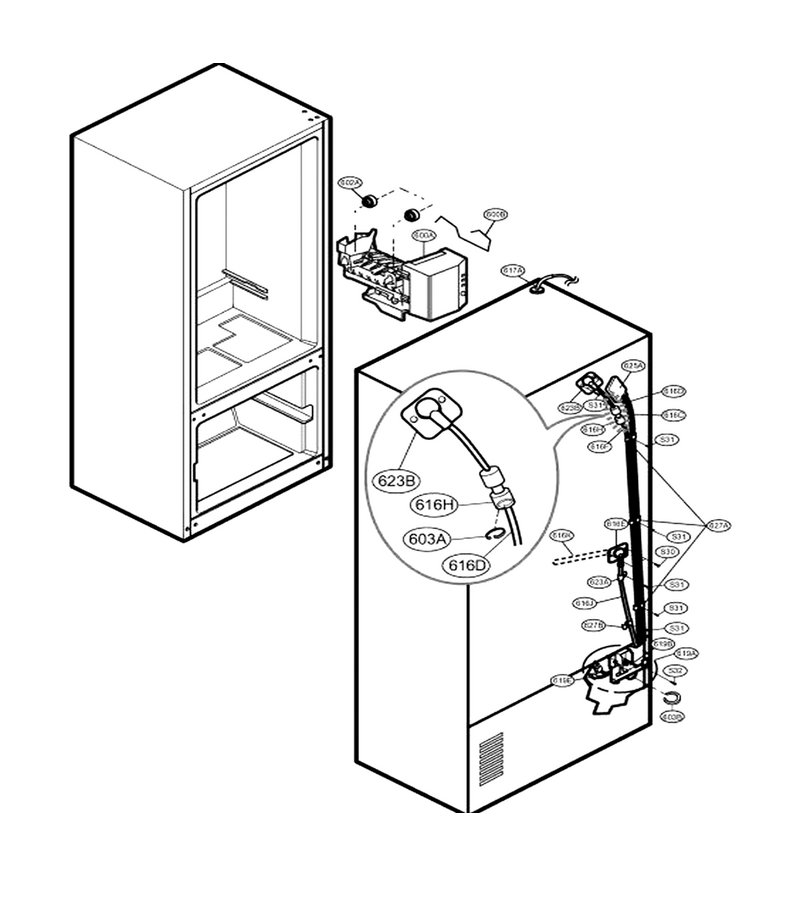

Ice Maker Parts

...
...
S30
Refrigerator Screw L-G-1SZZJA3009A
...
S31
Refrigerator Screw L-G-4J00415D
...
S32
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
600A
Ice Maker Assembly,kit L-G-AEQ57518202
...
600B
Lever,ice Maker L-G-MFC39371401
...
603A
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
616C
Refrigerator Water Tubing L-G-5210JA3004U
...
616E
Refrigerator Injection Tube L-G-5211JA3003E
...
616F
Refrigerator Water Tubing L-G-5210JA3004R
...
616H
Refrigerator Water Tube Fitting L-G-MCD38280804
...
617A
Refrigerator Spring L-G-4970JA3004J
...
619A
Valve Assembly,water L-G-AJU72909001
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2006K
...
619E
Refrigerator Joint L-G-6877JK2014B
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Water Tubing Clip L-G-4930JJ3018A
...
627B
Refrigerator Clamp L-G-4930JA3054A

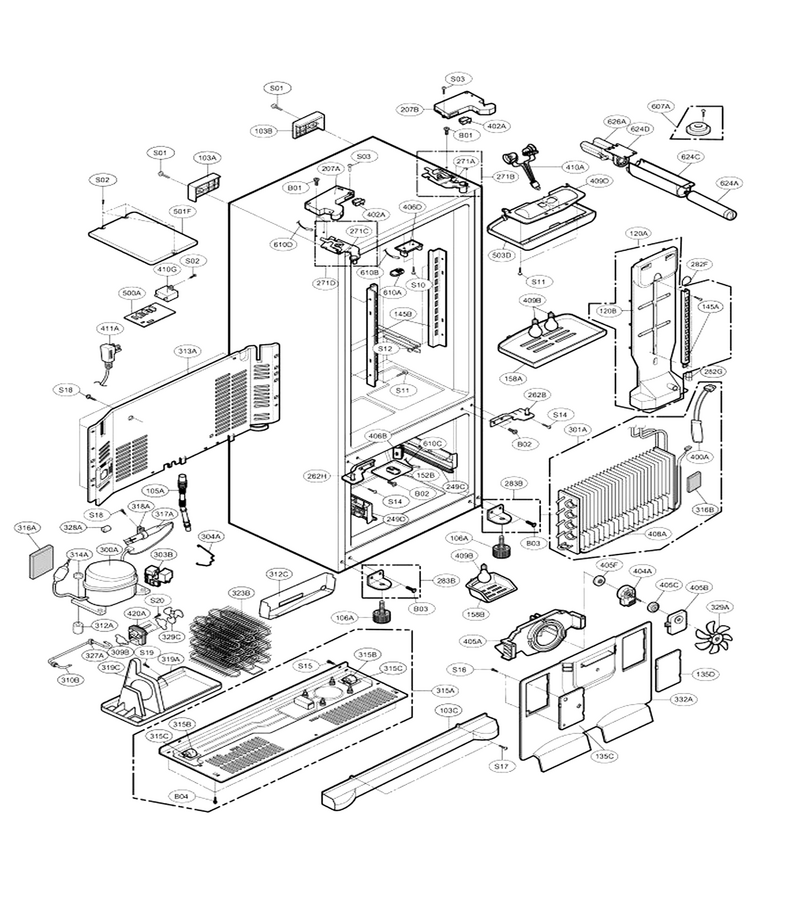

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004G
...
B03
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-1SZZJA3005K
...
S02
Refrigerator Screw L-G-4J00415D
...
S03
Refrigerator Door Hinge Cover Mounting Screw L-G-4J01424B
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S12
Refrigerator Screw L-G-4J01424A
...
S14
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010C
...
S15
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S16
Refrigerator Screw L-G-3J05696C
...
S17
Refrigerator Screw L-G-4J00415D
...
S18
Refrigerator Screw L-G-4J00415D
...
S19
Refrigerator Screw L-G-4J00415D
...
S20
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
103A
Handle,rear L-G-3650JA2061V
...
103B
Handle,rear L-G-3650JA2061U
...
103C
Cover Assembly,lower L-G-ACQ55957502
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Refrigerator Leg Assembly L-G-4779JJ2001B
...
120A
Duct Assembly,multi L-G-ADJ36702003
...
120B
Duct,multi L-G-MCZ47932701
...
135C
Refrigerator Cover L-G-3550JA2263A
...
135D
Refrigerator Cover Assembly L-G-3551JJ2028A
...
145A
Refrigerator Shelf Support L-G-4930JA2080C
...
145B
Refrigerator Shelf Holder L-G-4930JA2081C
...
152B
Refrigerator Temperature Sensor Cover L-G-MCK39131501
...
158A
Cover,lamp L-G-3550JJ1070B
...
158B
Refrigerator Light Cover L-G-3550JA1386B
...
207A
Cover,hinge L-G-3550JJ1097C
...
207B
Cover,hinge L-G-3550JJ1097D
...
271A
Refrigerator Door Hinge, Upper Left L-G-4775JJ2014B
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271C
Refrigerator Door Hinge, Upper Right L-G-4775JJ2014A
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282F
Refrigerator Duct Cap L-G-MBL38019501
...
282G
Refrigerator Duct Cap L-G-5006JA3111A
...
300A
Compressor,assembly L-G-2521JA1006L
...
301A
Refrigerator Evaporator L-G-5421JJ1003B
...
303B
Thermistor Assembly,ptc L-G-EBG44308701
...
304A
Clamp L-G-MBU42939602
...
309B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
313A
Refrigerator Shelf Support Rail L-G-3551JJ2018A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001H
...
315B
Refrigerator Roller L-G-4580JJ3001A
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003B
...
317A
Drier Assembly L-G-5851JA2008U
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Tray Assembly,drip L-G-AJP73294702
...
319C
Refrigerator Fan Guide L-G-MEA42257901
...
323B
Refrigerator Condenser Coil L-G-ACG36653801
...
327A
Refrigerator Damping L-G-5040JA3056A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1021A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332A
Refrigerator Evaporator Cover L-G-3530JJ0007A
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005H
...
402A
Refrigerator Door Switch L-G-6600JB3007A
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JK1004D
...
405A
Refrigerator Bracket L-G-4810JJ0003A
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
406D
Refrigerator Door Pivot Block L-G-4931JA3006A
...
408A
Refrigerator Defrost Heater L-G-5300JK1005D
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014G
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-6871JB1423M
...
501F
Refrigerator Pcb Cover L-G-3551JA2144D
...
503D
Refrigerator Light Housing L-G-3110JJ1014A
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610B
Refrigerator Temperature Sensor L-G-6500JB1001K
...
610C
Sensor Module L-G-6500JB2002B
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
624A
Refrigerator Water Filter L-G-5231JA2006A
...
624C
Cover,filter L-G-3550JD1128B
...
624D
Refrigerator Water Filter Head L-G-5230JA2003A
...
626A
Refrigerator Water Filter Cover L-G-3550JA2279A

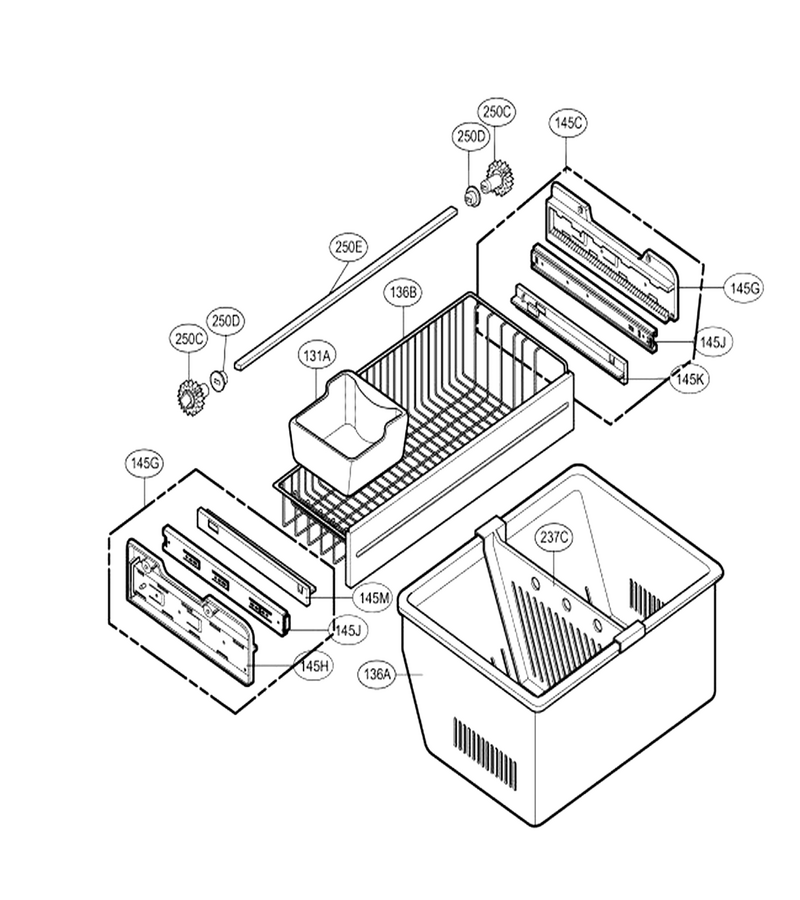

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JA2007A
...
136A
Refrigerator Freezer Drawer Assembly L-G-3391JJ2011M
...
136B
Tray Assembly,drawer L-G-3391JA1114A
...
145C
Guide Assembly,rail L-G-4975JA1040B
...
145G
Guide,rail L-G-4974JA1154B
...
145H
Guide,rail L-G-4974JA1154A
...
145J
Rail,slide L-G-5218JA1007B
...
145K
Refrigerator Freezer Basket Support Rail, Right L-G-4932JA1010B
...
145M
Refrigerator Freezer Basket Support Rail, Left L-G-4932JA1010A
...
237C
Refrigerator Freezer Drawer Divider L-G-4974JJ1031A
...
250C
Gear,ice L-G-4470JA2008A
...
250D
Cap,cover L-G-5006JA2069A
...
250E
Bar L-G-MAK36519001

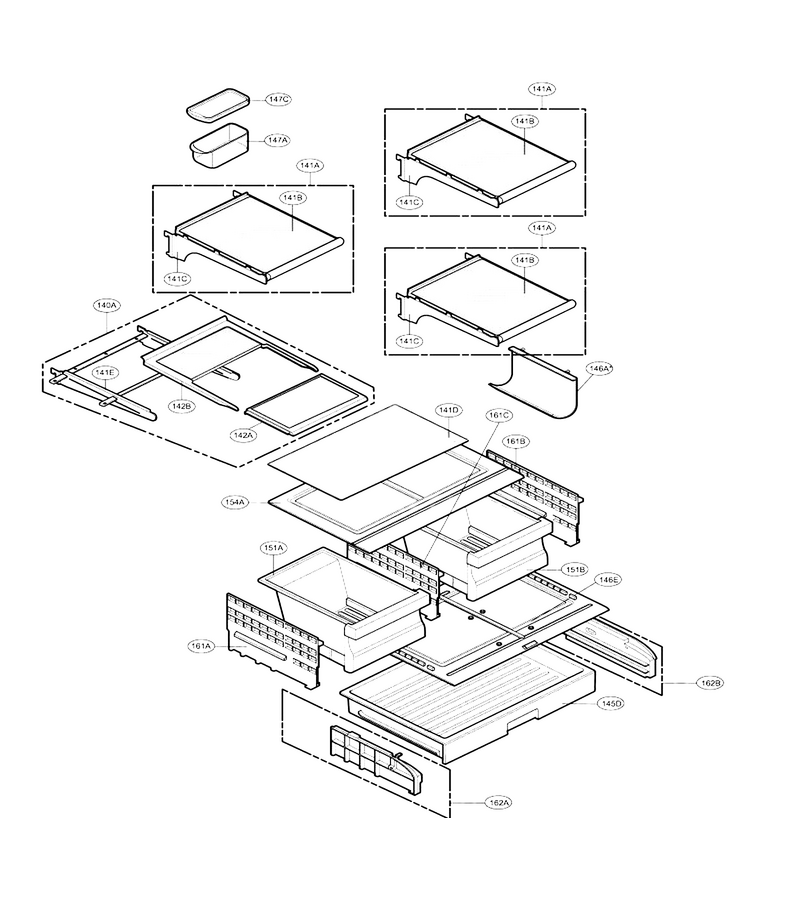

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT36706711
...
141A
Shelf Assembly,refrigerator L-G-AHT36764308
...
141B
Shelf,refrigerator L-G-MHL42265702
...
141C
Refrigerator Glass Shelf L-G-5027JJ2012F
...
141D
Refrigerator Glass Shelf L-G-4890JJ1007Y
...
141E
Shelf Assembly,refrigerator L-G-AHT36963707
...
142A
Shelf Assembly,refrigerator L-G-AHT36963803
...
142B
Shelf Assembly,net L-G-5027JJ2012K
...
145D
Refrigerator Deli Drawer L-G-AJP36700901
...
146E
Cover Assembly,tray L-G-ACQ36701703
...
147A
Refrigerator Dairy Bin L-G-5074JJ1016A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1084A
...
151A
Tray Assembly,vegetable L-G-AJP36702111
...
151B
Tray Assembly,vegetable L-G-AJP36702112
...
154A
Cover Assembly,tv L-G-ACQ36701107
...
161A
Guide Assembly,tv L-G-AEC36906401
...
161B
Guide Assembly,tv L-G-AEC36906402
...
161C
Guide Assembly,rail L-G-AEC36702202
...
162A
Refrigerator Drawer Slide Rail L-G-AEC36702301
...
162B
Refrigerator Pantry Drawer Guide L-G-AEC36702302

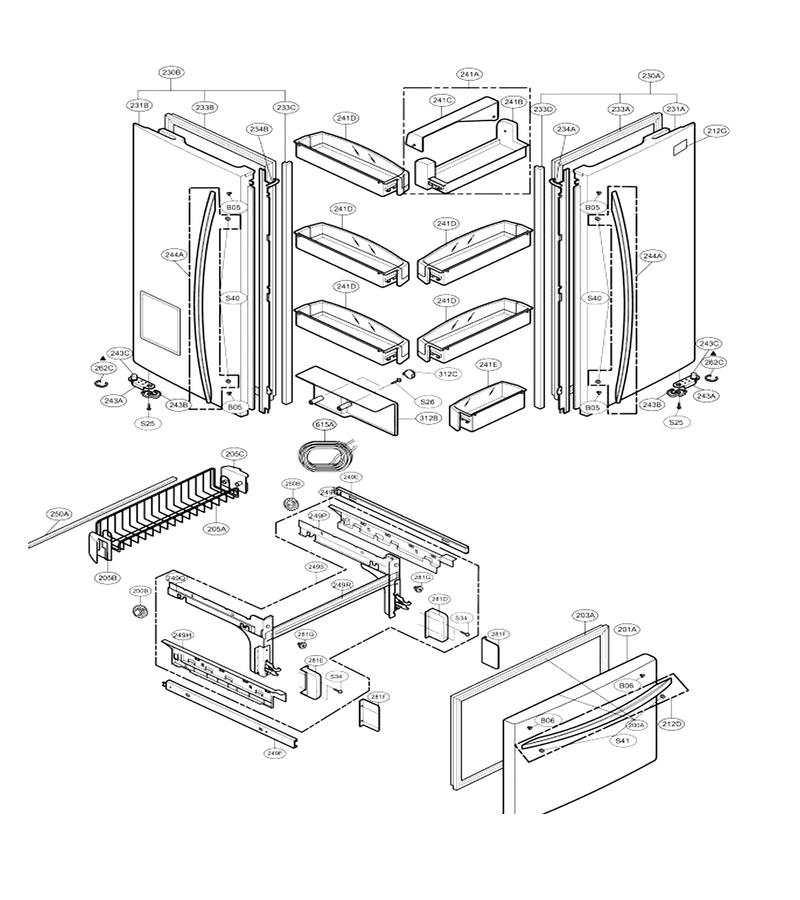

Door Parts

...
...
B05
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
B06
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
S25
Refrigerator Door Stop Bushing Screw L-G-1SZZJA3011D
...
S26
Refrigerator Screw L-G-J471-00001J
...
S34
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
200A
Door Assembly,freezer L-G-ADC55708202
...
201A
Door Foam Assembly,freezer L-G-ADD55709201
...
203A
Refrigerator Freezer Door Gasket L-G-MDS38201401
...
205A
Refrigerator Freezer Door Bin L-G-5004JJ1061B
...
205B
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JA2017A
...
205C
Refrigerator Door Hinge L-G-5004JA2017B
...
212D
Handle Assembly,freezer L-G-AED37133204
...
212G
Name Plate L-G-3846JD1019B
...
230A
Door Assembly,refrigerator(right) L-G-ADC55510509
...
230B
Door Assembly,refrigerator(left) L-G-ADC55709805
...
231A
Door Foam Assembly,refrigerator L-G-ADD55510609
...
231B
Door Foam Assembly,refrigerator L-G-ADD55644705
...
233A
Gasket Assembly,door L-G-4987JJ2002N
...
233B
Gasket Assembly,door L-G-4987JJ2002P
...
233C
Refrigerator Flipper Seal, Left L-G-3551JJ2030B
...
233D
Refrigerator Flipper Seal, Right L-G-3551JJ2030A
...
234A
Refrigerator Door Cam Latch, Right L-G-4430JJ2004A
...
234B
Refrigerator Door Cam Latch, Left L-G-4430JJ2004B
...
241A
Basket Assembly,door L-G-AAP33686303
...
241B
Refrigerator Door Bin L-G-MAN38142901
...
241C
Basket,window L-G-MAN39723202
...
241D
Refrigerator Door Bin L-G-AAP36817401
...
241E
Refrigerator Door Bin L-G-AAP36817601
...
243A
Refrigerator Door Stop L-G-4620JJ3006B
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
243C
Refrigerator Hinge Bushing L-G-J326-00012A
...
244A
Handle Assembly,refrigerator L-G-AED37083004
...
249G
Cover,connector L-G-3550JA1455C
...
249H
Cover,connector L-G-3550JA1455D
...
249P
Connector Assembly L-G-ACJ36625808
...
249Q
Connector Assembly L-G-ACJ36625807
...
249R
Refrigerator Freezer Drawer Frame L-G-4932JJ2009B
...
249S
Connector Assembly L-G-ACJ36695103
...
250A
Refrigerator Freezer Drawer Gear Support Bar L-G-MAK39123901
...
250B
Connector Assembly L-G-4403JA3005A
...
262C
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281D
Refrigerator Hinge Cover L-G-3550JA2267B
...
281E
Refrigerator Freezer Door Hinge Cover, Left L-G-3550JA2267A
...
281F
Refrigerator Freezer Door Hinge Cover L-G-3550JA2264A
...
281G
Damper,pipe L-G-MCQ42969201

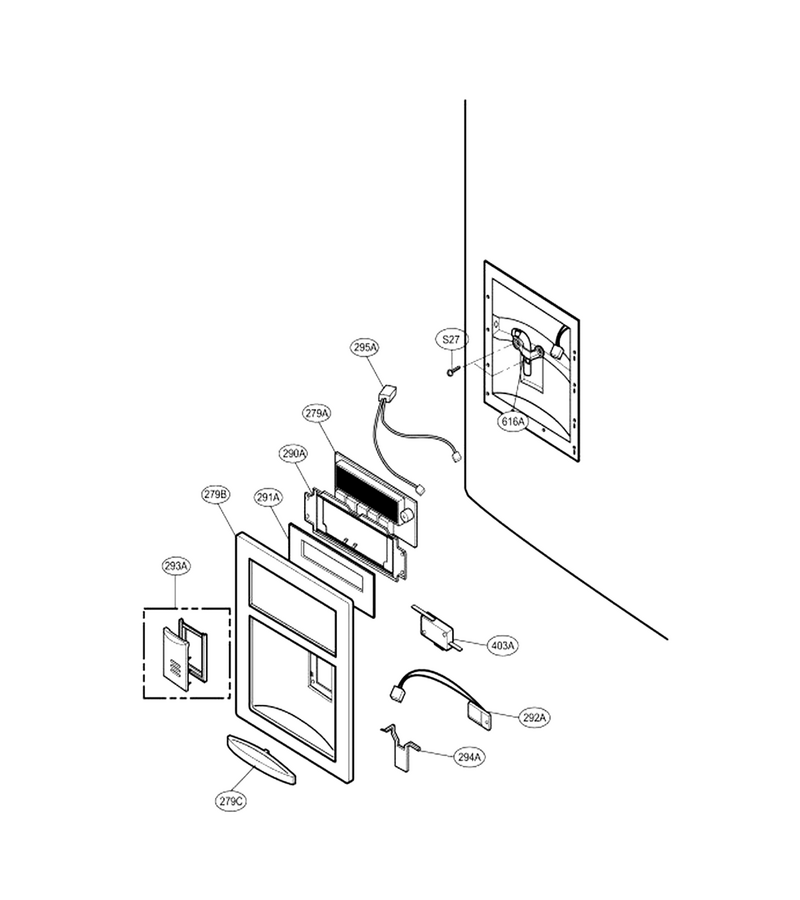

Dispenser Parts

...
...
S27
Refrigerator Screw L-G-4J00415D
...
279A
Pcb Assembly,display L-G-6871JB1439B
...
279B
Cover,dispenser L-G-3550JA1492E
...
279C
Decor,drain L-G-3806JJ2053E
...
290A
Cover,pcb L-G-3550JA2280A
...
291A
Decor,glass Door L-G-4890JD1110B
...
292A
Pcb Assembly,sub L-G-6871JB2074B
...
293A
Button Assembly L-G-5021JA3020E
...
294A
Lever,dispenser L-G-4510JA2028A
...
295A
Drawing,assembly L-G-6877JB2181A
...
403A
Refrigerator Dispenser Switch L-G-6600JB3001C
...
616A
Tube,inject L-G-5210JA2012F
