product name

LG 78346.ABI4SER

Model: 78346.ABI4SER

Save Part Not Listed?
product name

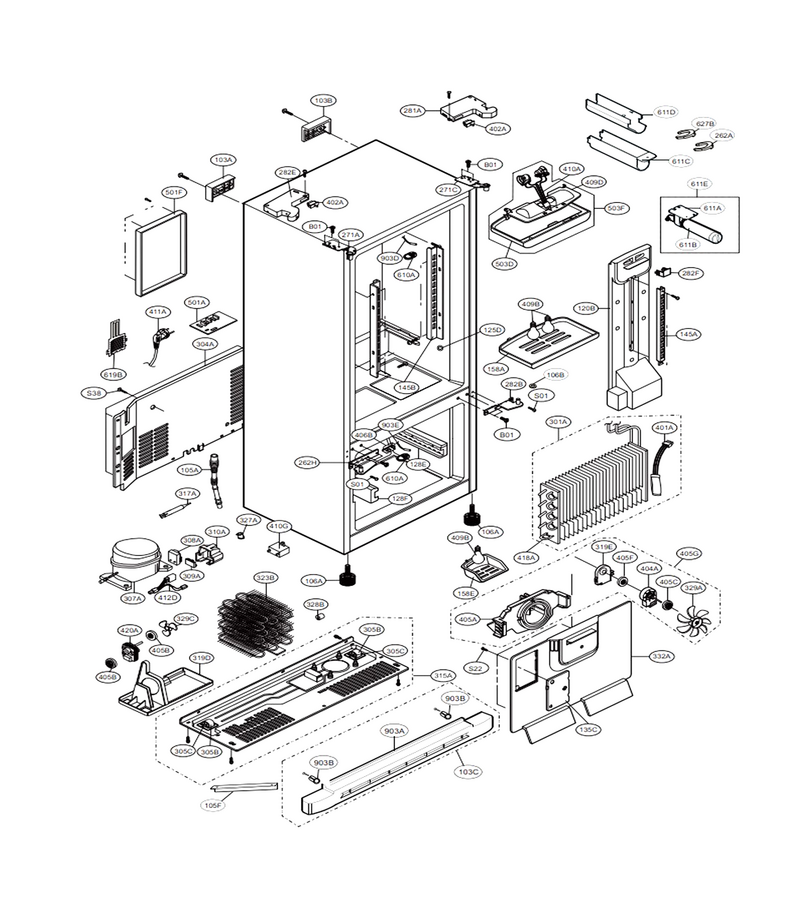

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Rear Handle L-G-3650JJ2003F
...
103B
Refrigerator Handle L-G-3650JJ2003B
...
103C
Refrigerator Toe Grille Clip L-G-3550JJ0006B
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Duct Assembly,multi L-G-ADJ65631801
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Holder,rail L-G-MEG54557902
...
128F
Holder,rail L-G-MEG54557901
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Light Cover L-G-3550JJ1104A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
262A
Refrigerator Holder Bracket L-G-4930JA3093A
...
262H
Hinge Assembly,center L-G-4775JJ2019H
...
271A
Hinge Assembly,upper L-G-AEH36437001
...
271C
Hinge Assembly,upper L-G-AEH36437002
...
281A
Cover Assembly,hinge L-G-ACQ36833806
...
282B
Hinge Assembly,center L-G-4775JJ2019G
...
282E
Cover Assembly,hinge L-G-ACQ36833805
...
282F
Cap,duct L-G-MBL55502801
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA33414101
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328B
Rubber, Damping L-G-4J04328A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Door Switch L-G-6600JB3007A
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002C
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2003B
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011D
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-6871JK1011G
...
501F
Cover Assembly,pcb L-G-ACQ75453701
...
503D
Refrigerator Light Housing L-G-3110JJ1021A
...
503F
Case Assembly,display L-G-ABQ33905306
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
611A
Refrigerator Water Filter Head L-G-5230JA2003A
...
611B
Filter Assembly,water L-G-5231JA2006E
...
611C
Cover,filter L-G-3550JL1008C
...
611D
Refrigerator Water Filter Cover L-G-3550JJ2028B
...
611E
Filter Assembly,head L-G-5231JA2005E
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
627B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006D
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

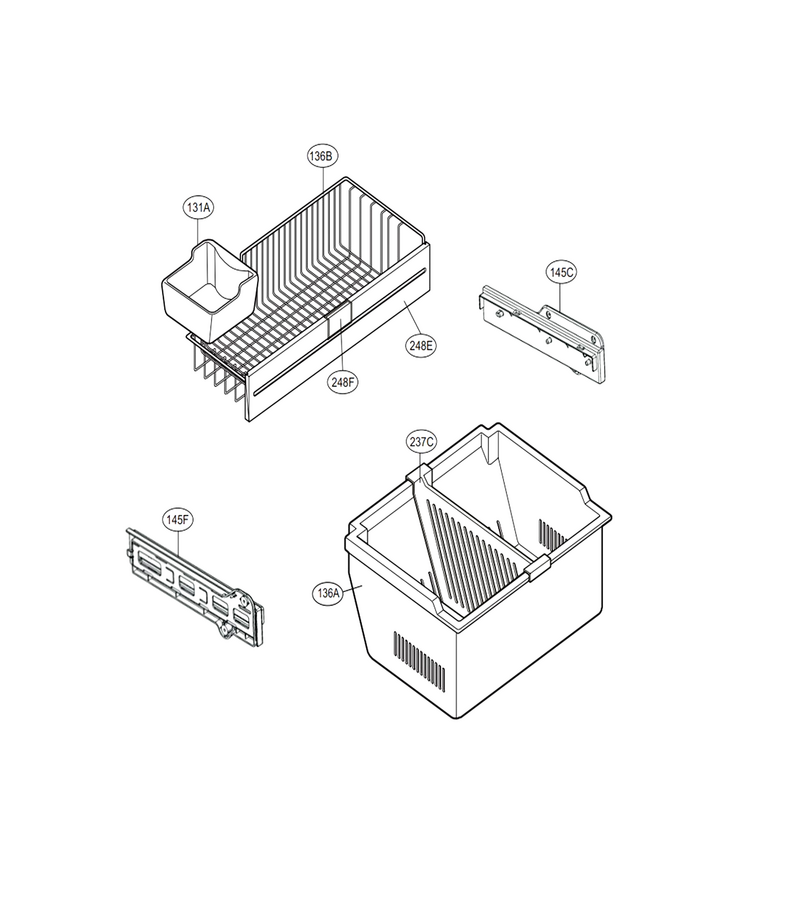

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JJ1055A
...
136A
Tray Assembly,drawer L-G-AJP72909002
...
136B
Tray,drawer L-G-3390JJ1090A
...
145C
Guide Assembly,rail L-G-4975JJ2028C
...
145F
Guide Assembly,rail L-G-4975JJ2028D
...
237C
Guide,drawer L-G-MEA62191701
...
248E
Decor,tray L-G-3806JJ1048A
...
248F
Decor,tray L-G-3806JL2011B

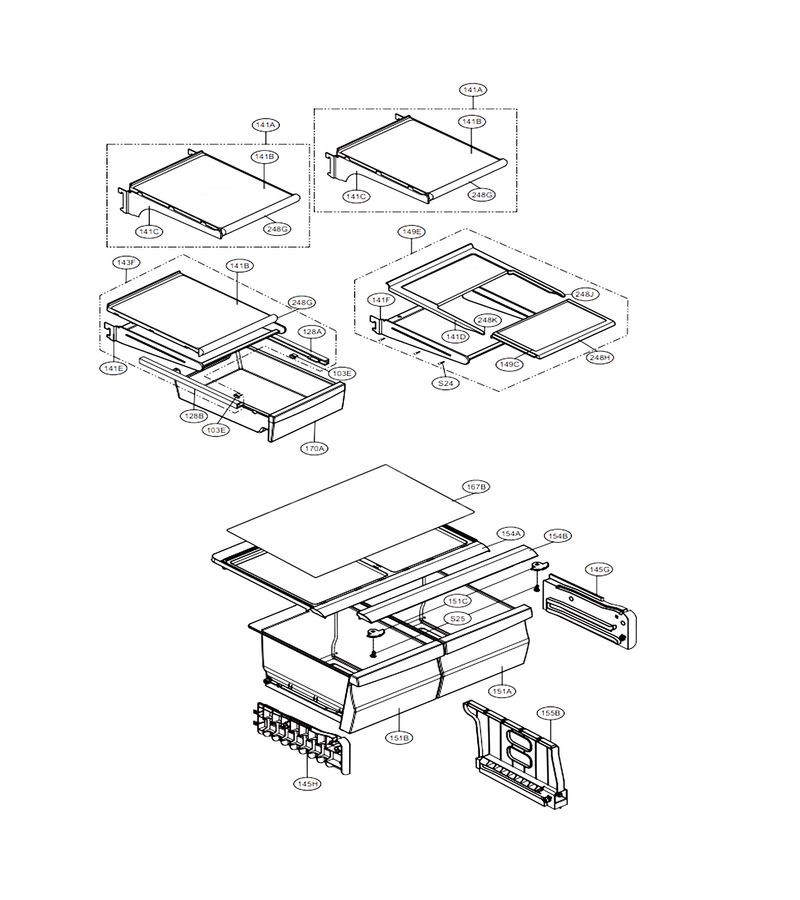

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
S25
Screw,customized L-G-1SBZJA3004K
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
141A
Shelf Assembly,refrigerator L-G-AHT65631201
...
141B
Shelf,refrigerator L-G-MHL53464801
...
141C
Refrigerator Shelf Assembly L-G-5027JJ2005C
...
141D
Shelf Assembly,refrigerator L-G-AHT67066001
...
141E
Refrigerator Shelf Assembly L-G-5027JJ2005F
...
141F
Refrigerator Shelf Net L-G-5027JJ2005D
...
143F
Shelf Assembly,refrigerator L-G-AHT65631202
...
145G
Guide Assembly,tv L-G-AEC65631002
...
145H
Guide Assembly,tv L-G-AEC65631001
...
149C
Shelf Assembly,refrigerator L-G-AHT67066101
...
149E
Shelf Assembly,refrigerator L-G-AHT65631301
...
151A
Tray Assembly,vegetable L-G-AJP65630802
...
151B
Tray Assembly,vegetable L-G-AJP65630801
...
151C
Knob,shutter L-G-MEY42240602
...
154A
Cover,tv L-G-MCK53463001
...
154B
Decor,cover Tv L-G-MCR55148401
...
155B
Guide Assembly,rail L-G-AEC65630901
...
167B
Shelf,glass L-G-MHL61952303
...
170A
Tray Assembly,meat L-G-AJP65631101
...
248G
Decor,shelf L-G-MCR53464901
...
248H
Decor,shelf L-G-MCR53466301
...
248J
Decor,shelf L-G-MCR55502702
...
248K
Decor,shelf L-G-MCR55502701

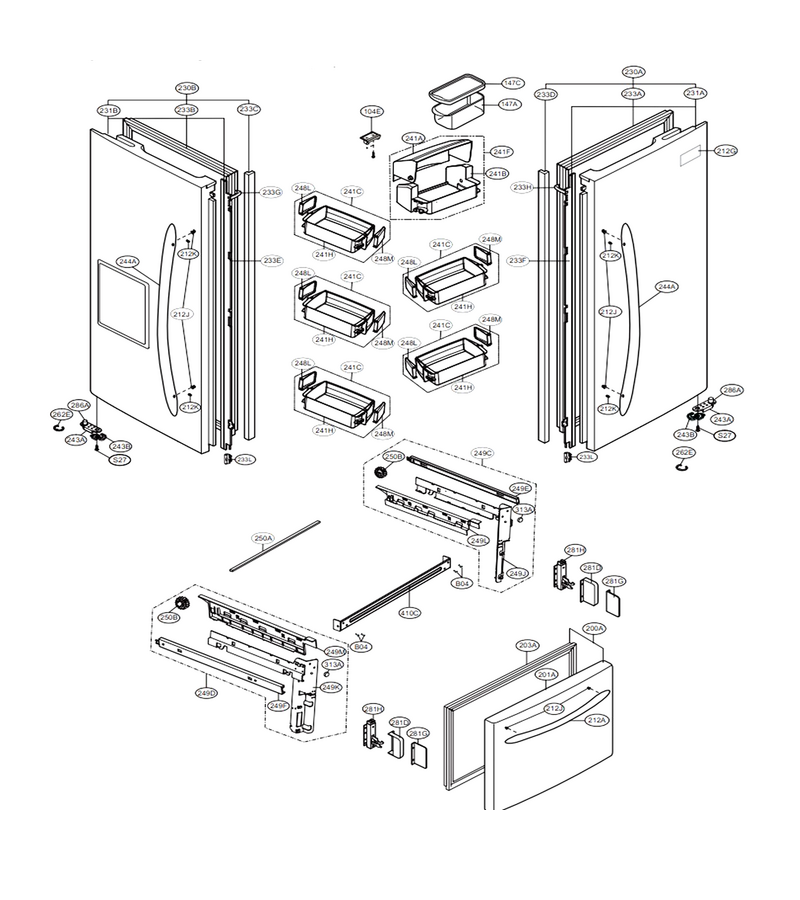

Door Parts

...
...
B04
Refrigerator Freezer Slide Rail Screw L-G-1STZJA3001B
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
104E
Refrigerator Door Gasket Retainer L-G-4931JJ3002A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1017A
...
200A
Door Assembly,freezer L-G-ADC65632102
...
201A
Door Foam Assembly,freezer L-G-ADD65632502
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752607
...
212A
Handle Assembly,freezer L-G-AED37133226
...
212G
Name Plate L-G-3846JD1019B
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator(right) L-G-ADC65631901
...
230B
Door Assembly,refrigerator(left) L-G-ADC65632004
...
231A
Door Foam Assembly,refrigerator L-G-ADD65632204
...
231B
Door Foam Assembly,refrigerator L-G-ADD65632404
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2003E
...
233B
Refrigerator Door Gasket, Left L-G-4987JJ2003G
...
233C
Cover Assembly,front L-G-ACQ67902601
...
233D
Cover Assembly,front L-G-ACQ67902602
...
233E
Holder,gasket L-G-4930JJ2028B
...
233F
Holder,gasket L-G-4930JJ2028A
...
233G
Cam,shaft L-G-4430JJ2005B
...
233H
Cam,shaft L-G-4430JJ2005A
...
233L
Supporter,holder L-G-4980JJ2019A
...
241A
Cover,bucket L-G-MCK55148701
...
241B
Bucket,dairy L-G-MKK53467401
...
241C
Basket Assembly,door L-G-AAP65631401
...
241F
Bucket Assembly,dairy L-G-AKC65631501
...
241H
Basket,door L-G-MAN53467001
...
243A
Refrigerator Door Stop L-G-4620JJ3006B
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Handle Assembly,refrigerator L-G-AED37083023
...
248L
Decor,basket L-G-MCR53467102
...
248M
Decor,basket L-G-MCR53467101
...
249C
Connector Assembly L-G-ACJ32471702
...
249D
Connector Assembly L-G-ACJ32471701
...
249J
Connector Assembly L-G-ACJ32308804
...
249K
Connector Assembly L-G-ACJ32308803
...
249L
Cover,connector L-G-MCK30136701
...
249M
Cover,connector L-G-MCK30136702
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281D
Refrigerator Hinge Cover L-G-3550JJ2043A
...
281G
Refrigerator Cover L-G-3550JJ2044A
...
281H
Refrigerator Door Hinge L-G-4775JJ2011B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
313A
Refrigerator Damper L-G-5040JJ3007A
...
410C
Connector,tilt L-G-4932JJ2006C

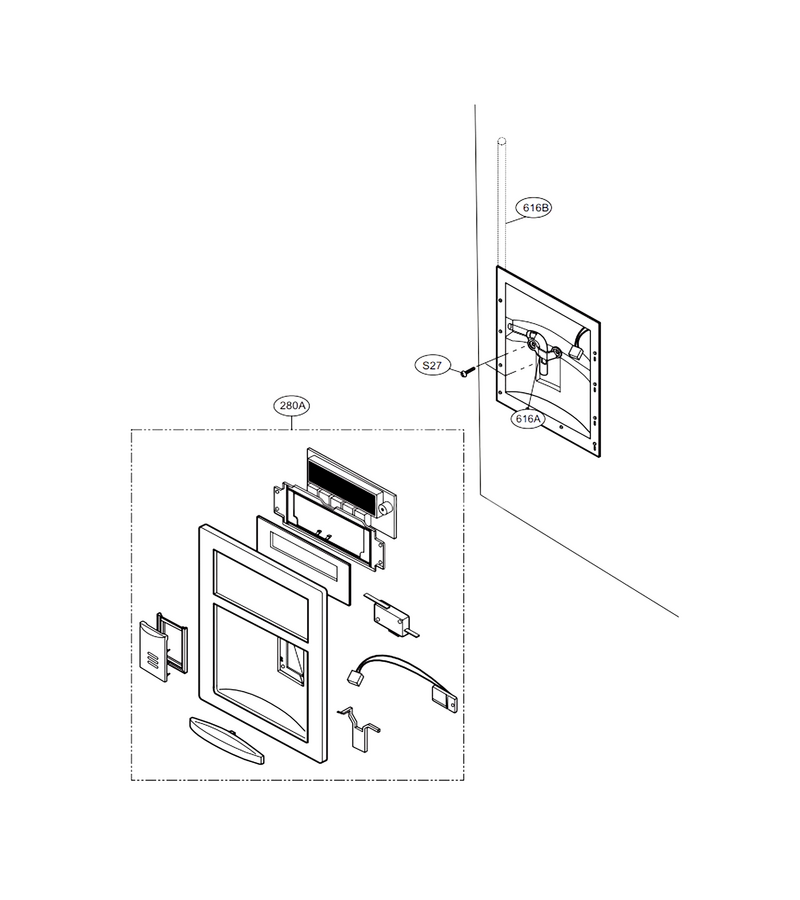

Dispenser Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
280A
Cover Assembly,dispenser L-G-ACQ54093306
...
616A
Tube,inject L-G-5210JA2012F
...
616B
Refrigerator Water Tubing L-G-5210JA3005U

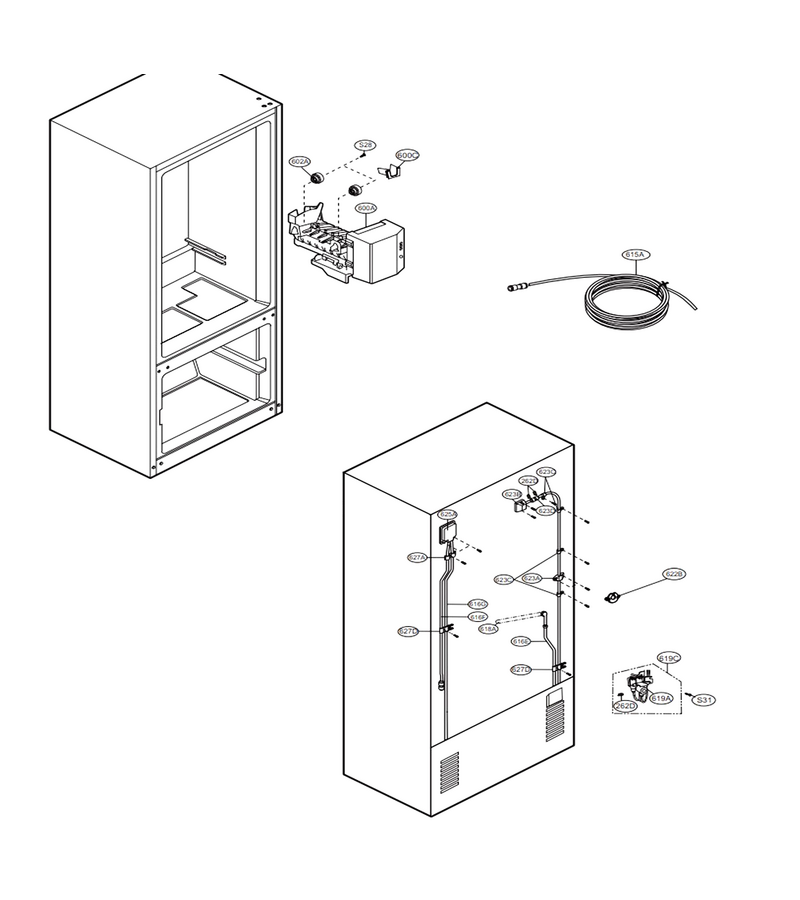

Water & Ice Maker Parts

...
...
S28
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Ice Maker Assembly,kit L-G-5989JA0002Q
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Holder Assembly L-G-AEJ73579702
...
615A
Tank Assembly,water L-G-4839JJ2002B
...
616E
Refrigerator Injection Tube L-G-5211JA2003B
...
616F
Tube Assembly,inject L-G-AJR72929602
...
616G
Refrigerator Water Tubing L-G-5210JA3005P
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3006B
...
619A
Refrigerator Water Valve L-G-5220JA2013A
...
619C
Valve Assembly,water L-G-AJU55759401
...
622B
Refrigerator Water Tubing Guide L-G-MJH36429401
...
623A
Refrigerator Cap Cover L-G-5006JJ2004A
...
623B
Cap,cover L-G-MBL67039201
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
623D
Refrigerator Water Tube Fitting L-G-4932JA3009C
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JJ2034A
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627D
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601
