product name

LG 77247.AWYASRS

Model: 77247.AWYASRS

Save Part Not Listed?
product name

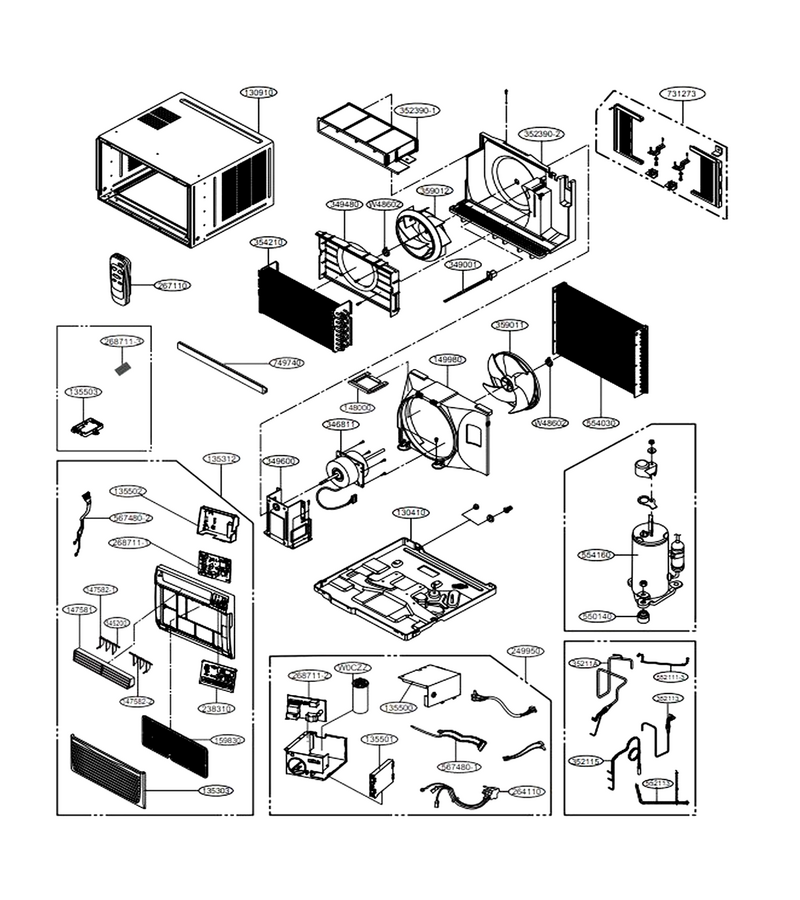

Main

...
...
W0CZZ
Fluid Capacitor L-G-0CZZA20001X
...
35211A
Tube Assembly,suction L-G-5211A12002R
...
130410
Base Assembly,single L-G-3041A10050X
...
130910
Cabinet Assembly L-G-3091A10063N
...
135303
Inlet Grille L-G-3530A10241C
...
135312
Grille Assembly,front L-G-AEB75245602
...
135500
Cover L-G-MCK69413201
...
135501
Cover Assembly,display L-G-ACQ31027902
...
135502
Cover L-G-MCK69433202
...
135503
Cover L-G-MCK69546402
...
145200
Link L-G-4520A30026B
...
147581
Vane L-G-4758A30047A
...
147582-2
Louver,vertical L-G-4758A30050D
...
147582-1
Louver,vertical L-G-4758A30050C
...
148000
Brace L-G-4800A20001A
...
149980
Shroud L-G-4998A10035A
...
159830
Room Air Conditioner Air Filter L-G-5231A20027A
...
238310
Escutcheon L-G-MDD62982203
...
249950
Case Assembly,control L-G-ABQ75823213
...
264110
Power Cord Assembly L-G-EAD63469508
...
267110
Remote Controller Assembly L-G-AKB73016017
...
268711-1
Pcb Assembly,display L-G-EBR83548612
...
268711-2
Pcb Assembly,main L-G-EBR83604001
...
268711-3
Pcb Assembly,rf L-G-EBR84053401
...
346811
Fan Motor L-G-4681A20043T
...
349001
Damper,vent L-G-4900A20016B
...
349480
Orifice L-G-MFX62901901
...
349600
Mount L-G-4960A20056A
...
352113
Dschrg Tube L-G-5211A12003K
...
352115
Tube Assembly,capillary L-G-AJR72923111
...
352390-1
Guide Assembly,air L-G-5239A20017D
...
352390-2
Air Guide L-G-5239A20020A
...
354210
Evaporator L-G-5421A20186K
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10011A
...
359012
Turbo Fan L-G-5901A20009A
...
550140
Damper,rubber L-G-4022UTL005A
...
552111-3
Tube Assembly, Condenser (out) L-G-AJR73067830
...
552113
Tube Assembly,capillary L-G-5211A12004C
...
554030
Condenser Assembly,first L-G-5403A20182L
...
554160
Compressor Set,china L-G-TBZ37258301
...
731273
Room Air Conditioner Accordion Filler Kit L-G-AET73691402
...
749740
Guide L-G-MEA61972803
