LG 76209.ABI1SER

Model: 76209.ABI1SER

Save Part Not Listed?
product name

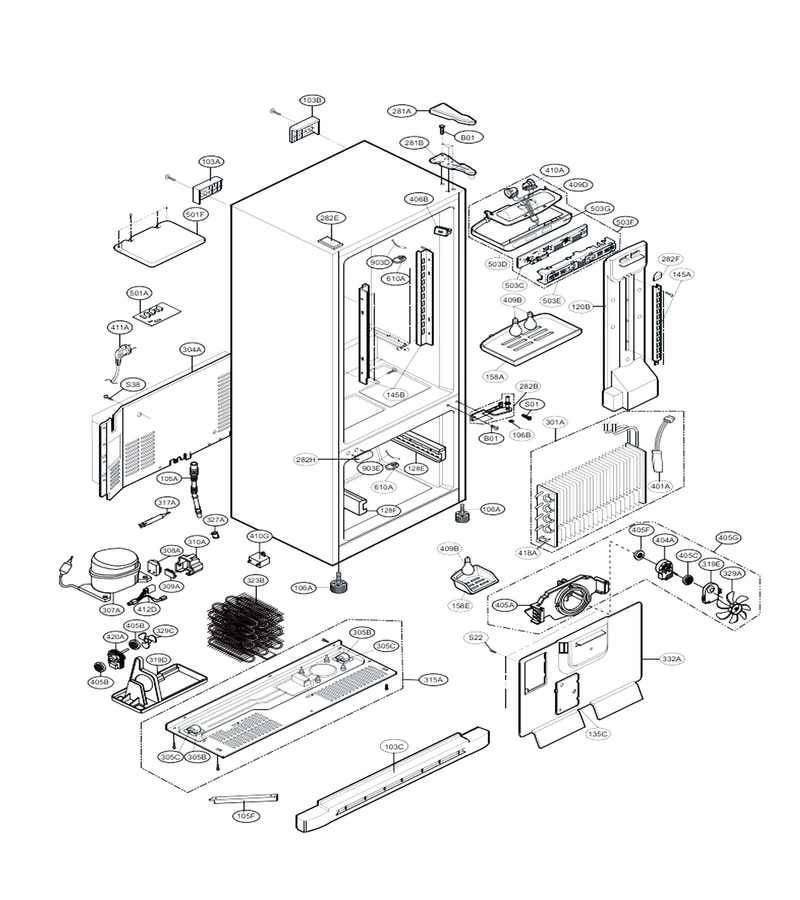

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
S38
Refrigerator Screw L-G-4J00415D
...
103A
Refrigerator Rear Handle L-G-3650JJ2003F
...
103B
Refrigerator Handle L-G-3650JJ2003B
...
103C
Refrigerator Toe Grille Clip L-G-3550JJ0006B
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Duct Assembly,multi L-G-ADJ72910602
...
128E
Holder,rail L-G-MEG54557902
...
128F
Holder,rail L-G-MEG54557901
...
135C
Cover,grille Fan L-G-3550JJ2046A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Cover,lamp L-G-MCK62661401
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013B
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ8002B
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001E
...
282F
Decor,duct L-G-3806JL2006L
...
282H
Refrigerator Hinge Cap L-G-5006JJ3004D
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Cover Assembly,machinery(rear) L-G-ACQ76219904
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Grille Assembly,fan L-G-3531JJ1004C
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Motor,dc L-G-4681JB1027N
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Bracket Assembly,motor L-G-4811JJ2002K
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JB2004K
...
410A
Refrigerator Light Socket L-G-6621JK2003B
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Motor,dc L-G-4681JB1027P
...
501A
Pcb Assembly,main L-G-EBR64110555
...
501F
Cover Assembly,pcb L-G-ACQ75453701
...
503C
Refrigerator Display Control Board L-G-6871JB2046B
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503F
Case Assembly,display L-G-ABQ33905317
...
503G
Decor,control L-G-MCR62352601
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

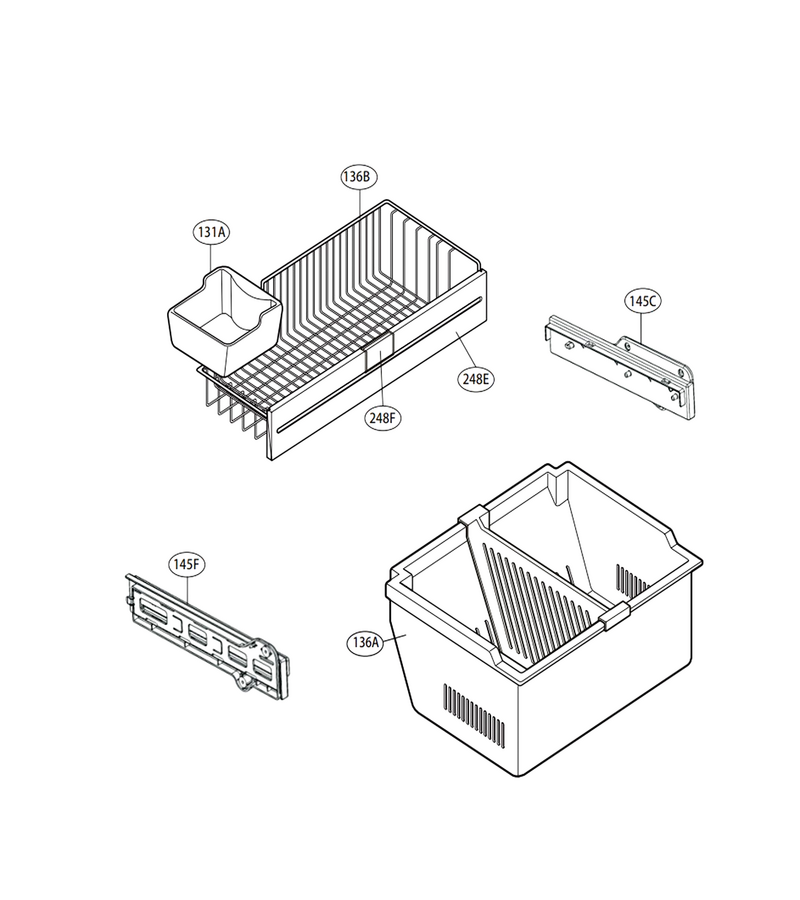

Freezer Parts

...
...
136A
Tray Assembly,drawer L-G-AJP73194902
...
136B
Tray,drawer L-G-3390JJ1090A
...
145C
Guide Assembly,rail L-G-4975JJ2028C
...
145F
Guide Assembly,rail L-G-4975JJ2028D
...
248E
Decor,tray L-G-3806JJ1048A
...
248F
Decor,tray L-G-3806JL2011F

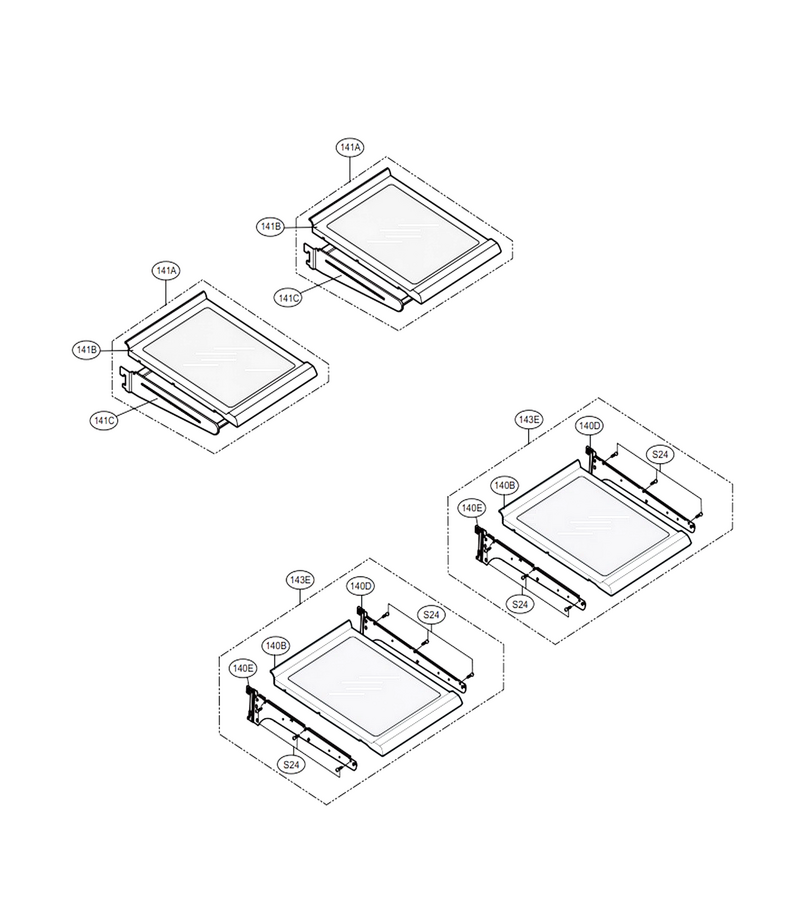

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
140B
Shelf Assembly,refrigerator L-G-5027JJ1039G
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
141A
Shelf Assembly,refrigerator L-G-AHT72975004
...
141B
Shelf Assembly,refrigerator L-G-5027JJ1038D
...
141C
Shelf Assembly,net L-G-5027JJ2005U
...
143E
Shelf Assembly,refrigerator L-G-AHT72974104

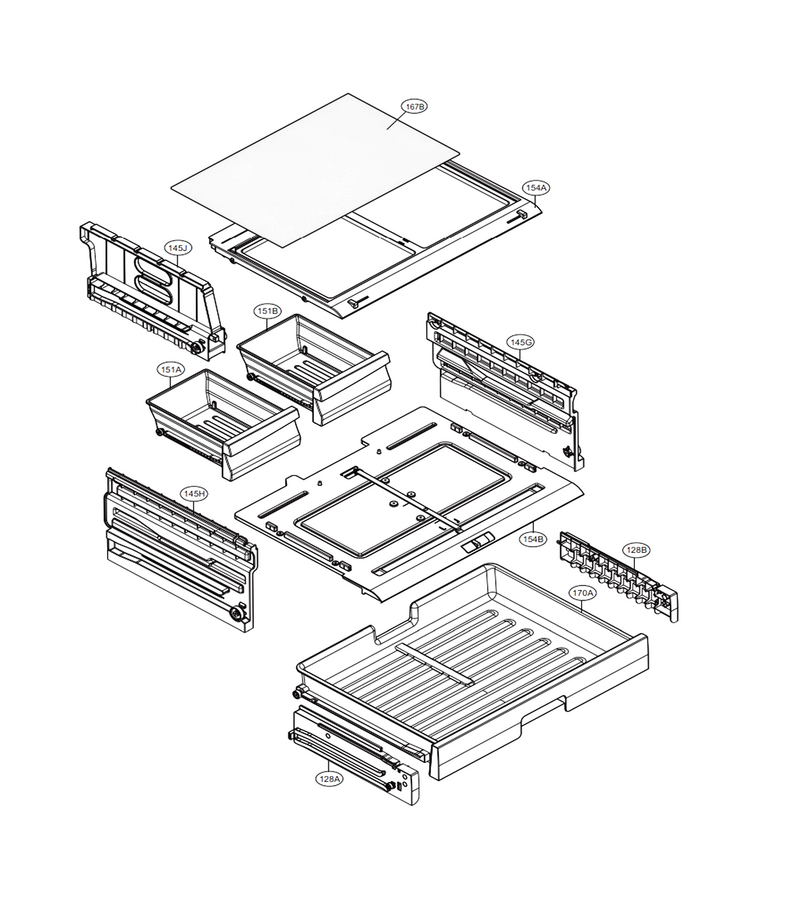

Refrigerator Parts (pantry)

...
...
128A
Guide Assembly,rail L-G-AEC72913202
...
128B
Guide Assembly,rail L-G-AEC72913201
...
145G
Guide Assembly,rail L-G-AEC72915302
...
145H
Guide Assembly,rail L-G-AEC72915301
...
145J
Guide Assembly,rail L-G-AEC72913401
...
151A
Tray Assembly,vegetable L-G-AJP72913804
...
151B
Tray Assembly,vegetable L-G-AJP72913803
...
154A
Cover Assembly,tv L-G-ACQ74914503
...
154B
Cover Assembly,tray L-G-ACQ74914603
...
167B
Shelf,glass L-G-4890JL1002R
...
170A
Tray Assembly,fresh Room L-G-AJP72914002

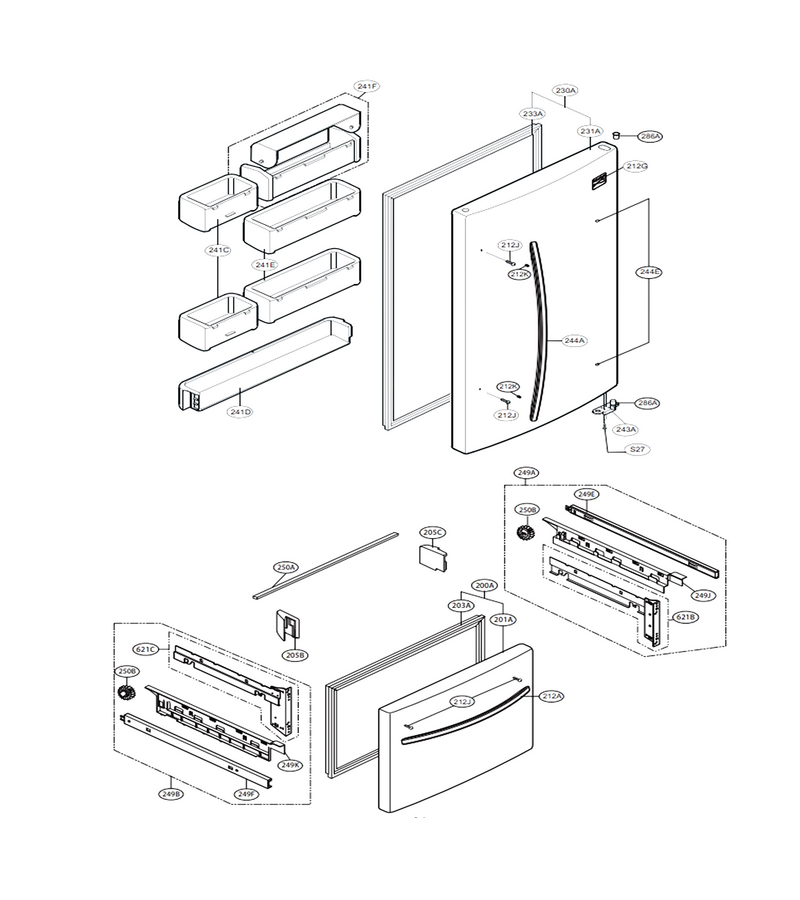

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Door Assembly,freezer L-G-ADC73046213
...
201A
Door Foam Assembly,freezer L-G-ADD72976413
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752607
...
205B
Cap,cover L-G-5006JJ2014B
...
205C
Cap,cover L-G-5006JJ2014A
...
212A
Handle Assembly,freezer L-G-AED37133222
...
212G
Name Plate L-G-MFT61866204
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator L-G-ADC73026013
...
231A
Door Foam Assembly,refrigerator L-G-ADD72977213
...
233A
Gasket Assembly,door L-G-ADX73350928
...
241C
Refrigerator Door Bin L-G-5005JJ2017A
...
241D
Basket Assembly,door L-G-AAP72911102
...
241E
Refrigerator Door Bin L-G-5005JJ2018A
...
241F
Basket Assembly,door L-G-5005JJ2010E
...
243A
Refrigerator Door Stop L-G-4620JJ3006B
...
244A
Handle Assembly,refrigerator L-G-AED37083009
...
244E
Refrigerator Door Hole Plug L-G-5006JJ3016B
...
249A
Connector Assembly L-G-5098JJ1002F
...
249B
Connector Assembly L-G-5098JJ1002E
...
249J
Cover,connector L-G-3550JJ1111A
...
249K
Cover,connector L-G-3550JJ1111B
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621B
Connector,rail L-G-MCD36888904
...
621C
Connector,rail L-G-MCD36888903

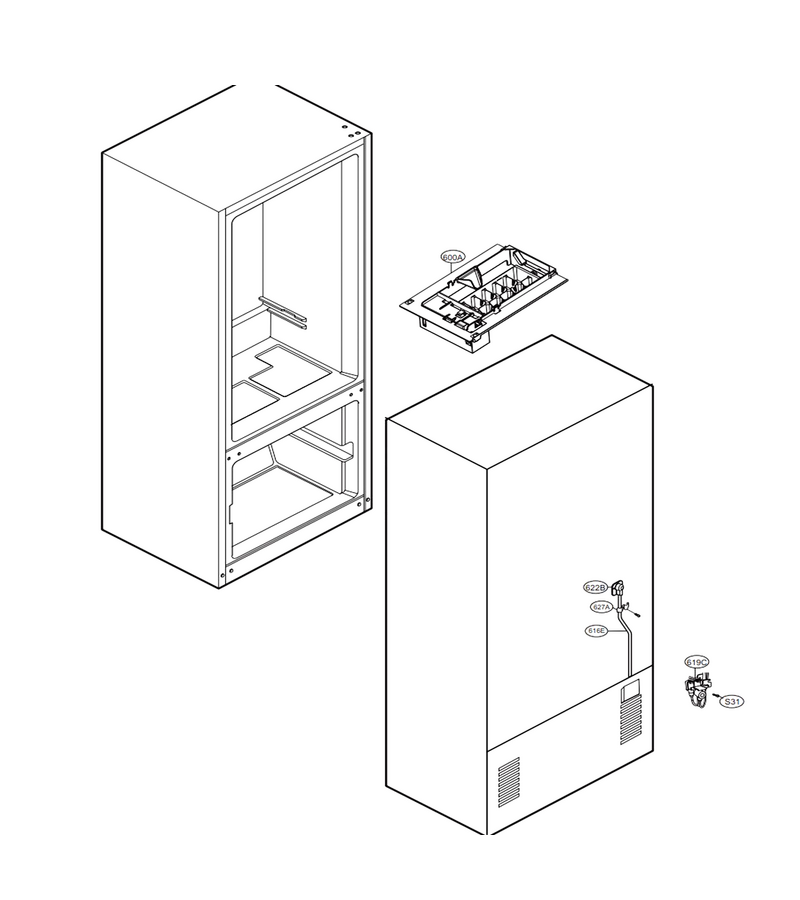

Water & Icemaker Parts

...
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
600A
Refrigerator Ice Maker Assembly L-G-AEQ72909601
...
616E
Tube Assembly,inject L-G-AJR73342301
...
619C
Valve Assembly,water L-G-AJU55759303
...
622B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
627A
Refrigerator Clamp L-G-4930JA3054A
