LG 76033.FSTESEA

Model: 76033.FSTESEA

Save Part Not Listed?
product name

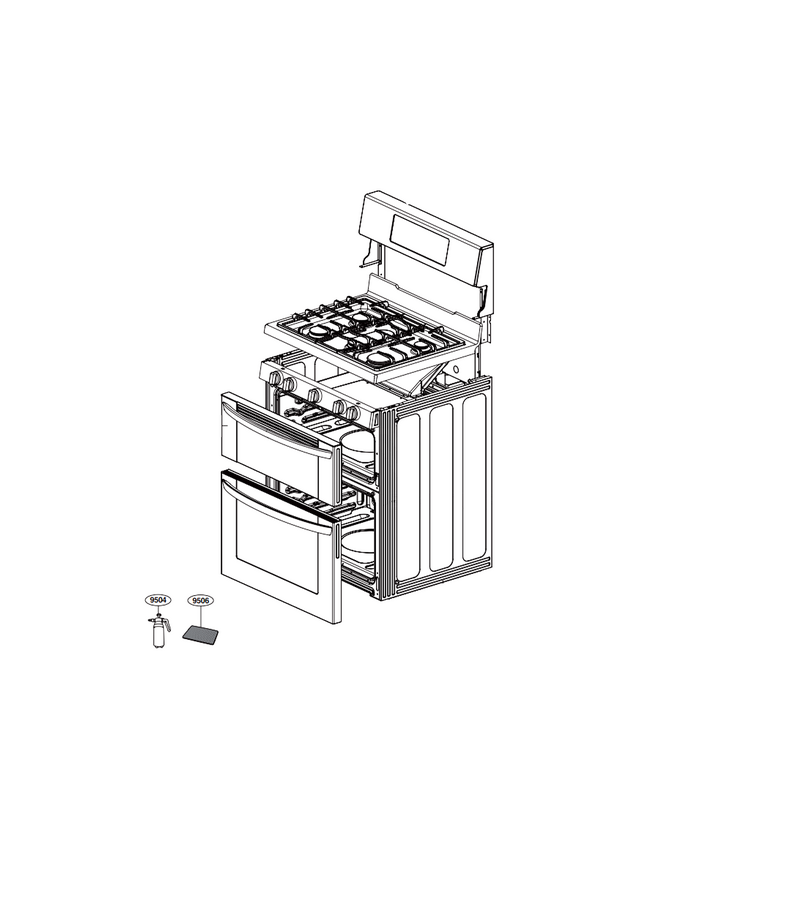

Main

...
...
9504
Accessory Assembly L-G-AAA77169701
...
9506
Assembly Accessory L-G-AAA74970601

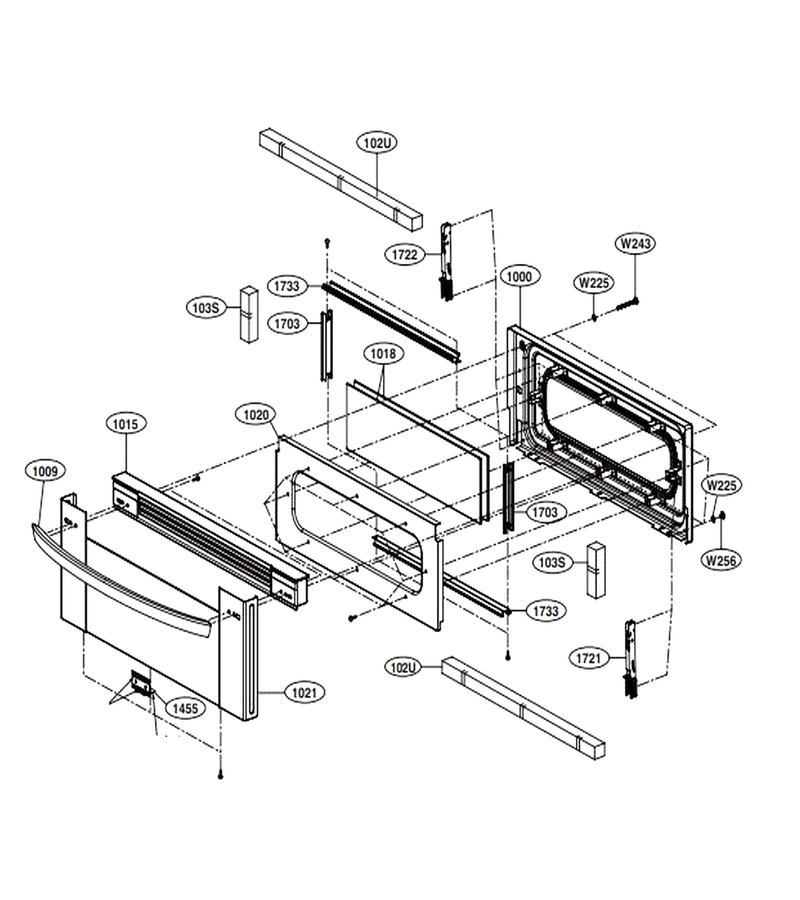

Upper Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
W256
Screw L-G-1SZZW5N001E
...
102U
Insulator L-G-MEV65052001
...
103S
Insulator L-G-MEV65052003
...
1000
Frame Assembly L-G-ADV73686104
...
1009
Handle,door L-G-MEB64155701
...
1015
Decorative Door L-G-MCR63866201
...
1018
Range Oven Door Inner Glass L-G-4890W1N005P
...
1020
Inner Cover L-G-MCK65825001
...
1021
Cover Assembly,poise L-G-ACQ83851106
...
1455
Drive Bracket Assembly L-G-AGM74152001
...
1703
Mounting Bracket L-G-MAZ62723701
...
1721
Hinge Bracket L-G-MAZ62563801
...
1722
Hinge Bracket L-G-MAZ62564001
...
1733
Mounting Bracket L-G-MAZ61672103

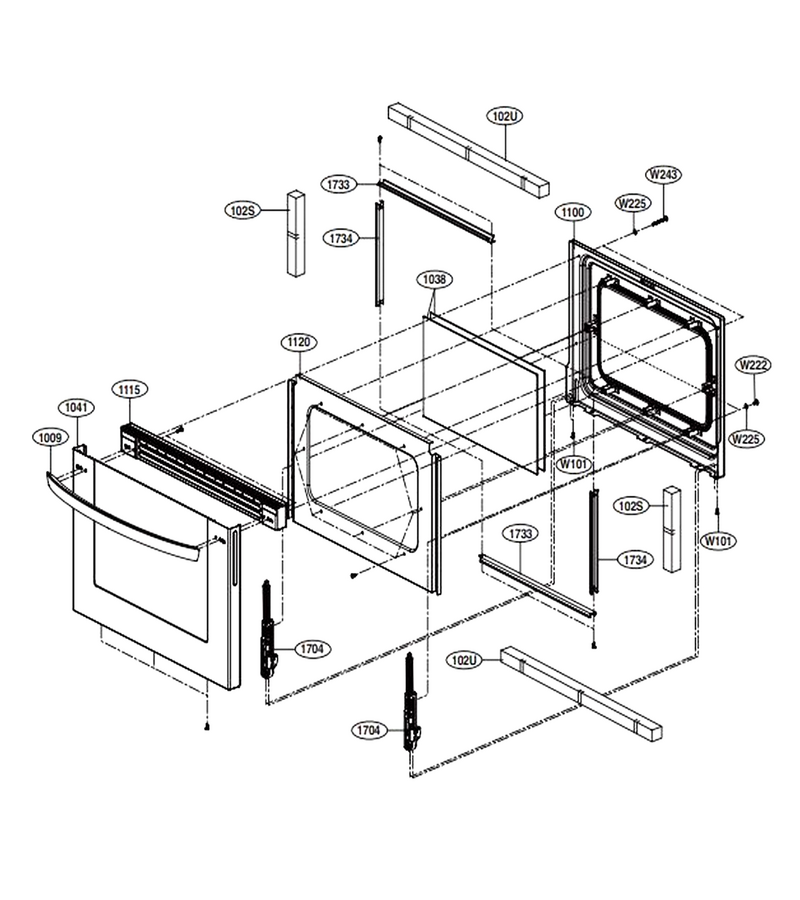

Lower Door Parts

...
...
W101
Screw,customized L-G-FAB31821701
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102S
Insulator L-G-MEV65052002
...
102U
Insulator L-G-MEV65052001
...
1009
Handle,door L-G-MEB64155701
...
1038
Window,glass L-G-4890W1N005Q
...
1041
Cover Assembly,poise L-G-ACQ83871206
...
1100
Door Frame Assembly L-G-ADV73686004
...
1115
Decorative Door L-G-MCR63866301
...
1120
Inner Cover L-G-MCK65825101
...
1704
Hinge Assembly L-G-AEH72957504
...
1733
Mounting Bracket L-G-MAZ61672103
...
1734
Mounting Bracket L-G-MAZ62724101

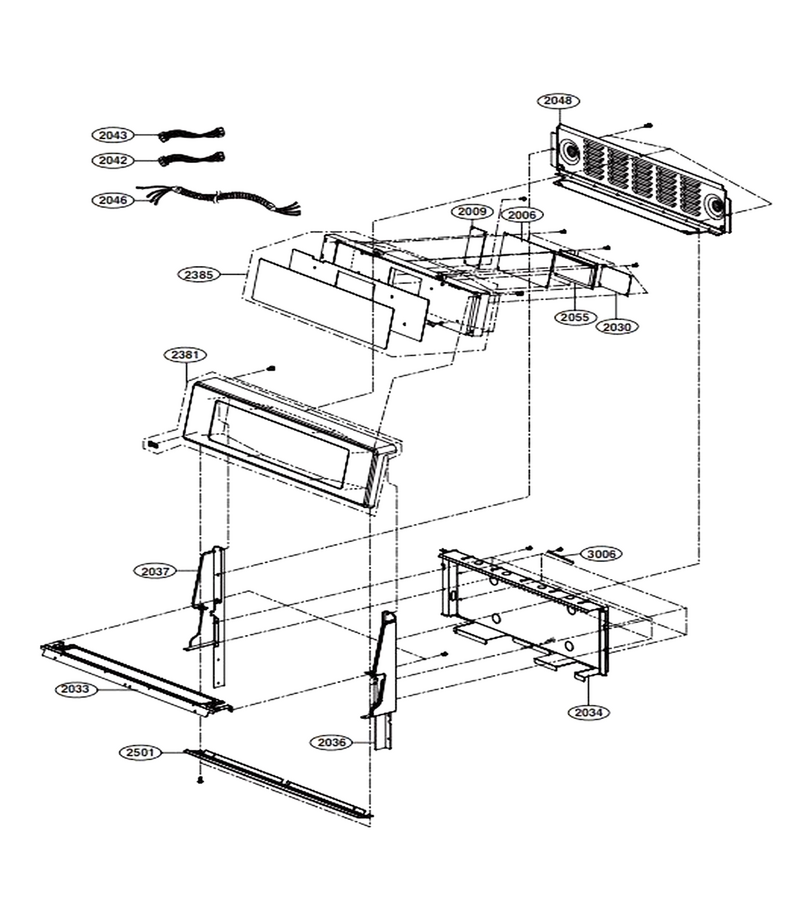

Controller Parts

...
...
2006
Pcb Assembly,system L-G-EBR78931709
...
2009
Pcb Assembly,power L-G-EBR64624704
...
2030
Pcb Assembly,main L-G-EBR71261601
...
2033
Barrier L-G-MAL61841101
...
2034
Barrier L-G-MAL62103901
...
2036
Supporter L-G-MJH32134509
...
2037
Supporter L-G-MJH32135309
...
2042
Range Wire Harness L-G-EAD34822909
...
2043
Harness,single L-G-EAD34822922
...
2046
Range Wire Harness L-G-EAD60833505
...
2048
Cover Assembly,rear L-G-ACQ85431402
...
2055
Vfd L-G-EAJ62608104
...
2381
Controller Assembly,sub L-G-ACM70891117
...
2385
Parts Assembly L-G-AGM73329016
...
2501
Bracket L-G-MAZ61858507

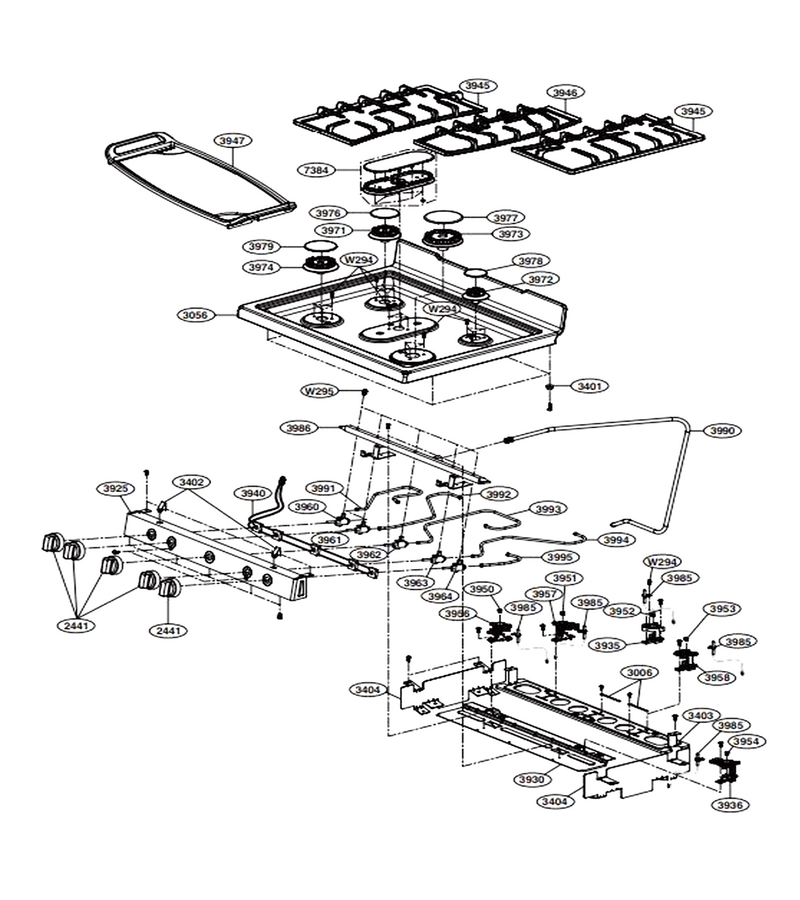

Cooktop Parts

...
...
W294
Drawing Screw L-G-4000W4A001E
...
W295
Screw,customize L-G-FAB30424502
...
2441
Knob Assembly L-G-AEZ74713301
...
3006
Lug (circ) L-G-4B72510F
...
3056
Plate,top L-G-MGJ62229828
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-MJH61847901
...
3403
Supporter L-G-MJH62758201
...
3404
Supporter L-G-MJH62837201
...
3925
Panel,front L-G-MGC61845613
...
3930
Case, Lower L-G-MBN62745301
...
3935
Tube,burner L-G-MJU61852903
...
3936
Tube,burner L-G-MJU61853905
...
3940
Switch Assembly L-G-EBF60662911
...
3945
Grille Assembly L-G-AEB72913403
...
3946
Grille Assembly L-G-AEB72913303
...
3947
Grille Assembly L-G-AEB72914204
...
3950
Nozzle L-G-MFV61841503
...
3951
Nozzle L-G-MFV61841504
...
3952
Nozzle L-G-MFV61841509
...
3953
Nozzle L-G-MFV61841507
...
3954
Nozzle L-G-MFV61841508
...
3956
Burner L-G-MBE61841506
...
3957
Burner L-G-MBE61841306
...
3958
Burner L-G-MBE61841405
...
3960
Range Surface Burner Valve L-G-MJX61842207
...
3961
Valve L-G-MJX61842208
...
3962
Range Surface Burner Valve L-G-MJX61842210
...
3963
Valve L-G-MJX61842206
...
3964
Range Surface Burner Valve L-G-MJX61842209
...
3971
Burner L-G-MBE61842008
...
3972
Burner L-G-MBE61842507
...
3973
Burner L-G-MBE61842705
...
3974
Burner L-G-MBE61842107
...
3976
Cap,burner L-G-MBL61908506
...
3977
Cap,burner L-G-MBL61909006
...
3978
Cap,burner L-G-MBL61908706
...
3979
Cap,burner L-G-MBL61908606
...
3985
Range Surface Burner Igniter L-G-EAD60700538
...
3986
Pipe Assembly L-G-AGR72909507
...
3990
Pipe L-G-MGE62131801
...
3991
Pipe L-G-MGE62690803
...
3992
Pipe L-G-MGE61842303
...
3993
Pipe L-G-MGE62691103
...
3994
Pipe L-G-MGE61842603
...
3995
Pipe L-G-MGE61842803
...
7384
Burner Assembly L-G-ABF73329702

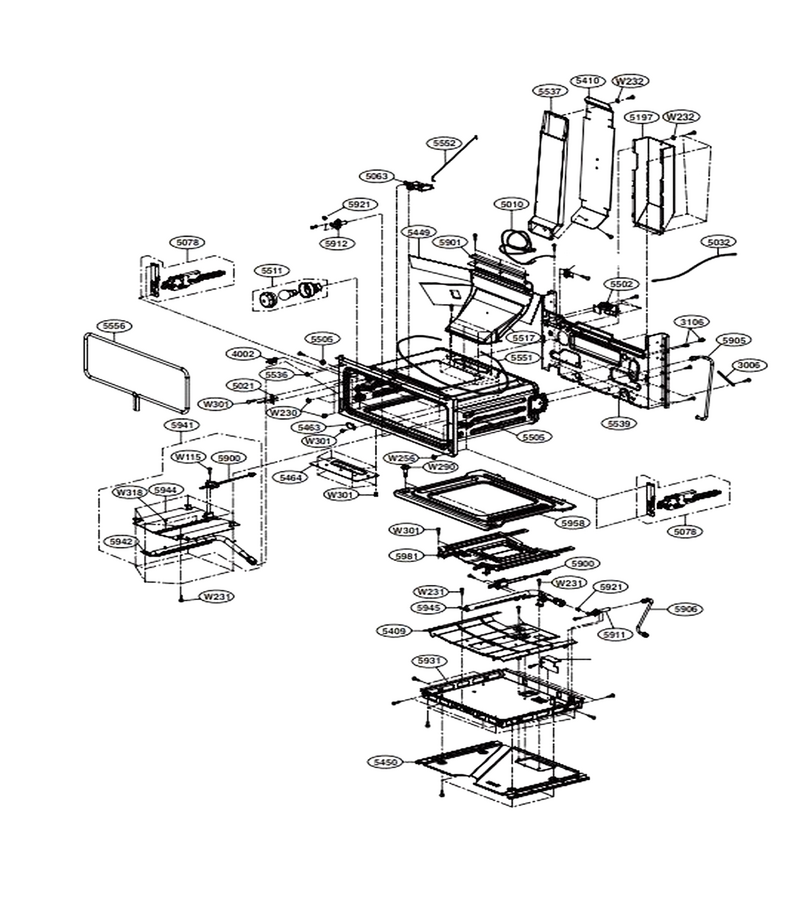

Upper Cavity Parts

...
...
W115
Screw L-G-4B73763A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W232
Washer L-G-1WZZ81N001A
...
W301
Screw L-G-1SZZW1N006D
...
W318
Nut,common L-G-FAD30672201
...
3106
Holder L-G-4B72944B
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord Assembly L-G-EAD60700408
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5078
Hinge Assembly L-G-AEH73256201
...
5197
Vent Cover L-G-MCK65825701
...
5409
Insulator L-G-MEV63311501
...
5410
Insulator L-G-MEV63451601
...
5449
Insulator L-G-MEV63451501
...
5450
Insulator L-G-MEV63311401
...
5463
Bracket L-G-MAZ61859501
...
5464
Bracket L-G-MAZ62372401
...
5502
Motor Assembly L-G-EAU60671902
...
5505
Supporter L-G-4980W1N013A
...
5511
Lamp,incandescent L-G-6913W1N002C
...
5517
Vent Assembly L-G-AJV72949501
...
5536
Packing Gasket L-G-MFZ54382601
...
5537
Vent Assembly L-G-AJV72949601
...
5539
Range Panel L-G-MGC62219002
...
5551
Bar L-G-MAK61842901
...
5552
Bar L-G-MAK62067201
...
5556
Range Oven Door Gasket L-G-MFZ62597301
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5901
Holder,burner L-G-MEG63462401
...
5905
Range Broil Burner Gas Supply Tube L-G-MGE62132301
...
5906
Pipe L-G-MGE62132101
...
5911
Nozzle Holder L-G-MEG62479803
...
5912
Nozzle Holder L-G-MEG61851202
...
5921
Nozzle L-G-MFV61841401
...
5931
Case L-G-MBN62203701
...
5941
Bracket Assembly L-G-ABF72989701
...
5942
Burner Assembly L-G-ABF72989809
...
5944
Range Broil Burner Flame Spreader L-G-ABF73009701
...
5945
Bracket Assembly L-G-ABF72989902
...
5958
Range Base L-G-MAM62948404
...
5981
Guide Assembly L-G-AEC73377501

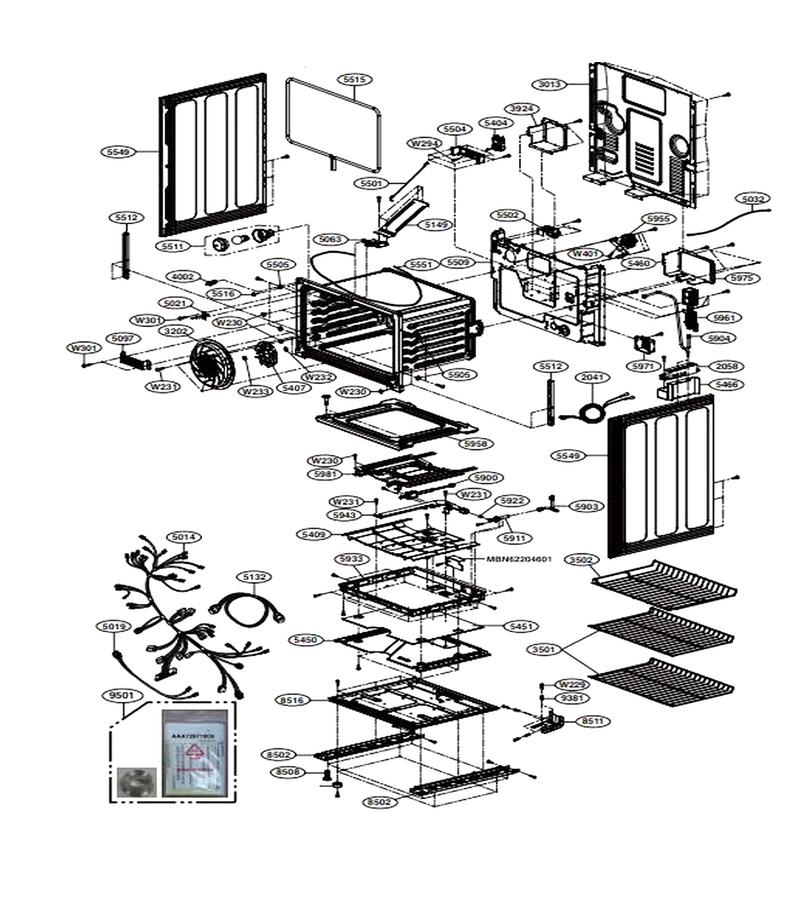

Lower Cavity Parts

...
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W294
Drawing Screw L-G-4000W4A001E
...
W301
Screw L-G-1SZZW1N006D
...
2041
Harness L-G-EAD60700211
...
2058
Transformer,power L-G-EBJ62730001
...
3013
Rear Cover L-G-MCK65804501
...
3202
Cover,heater L-G-MCK32134203
...
3501
Range Oven Rack L-G-MHL61952101
...
3502
Shelf L-G-MHL62131405
...
3924
Cover,motor L-G-MCK65825601
...
4002
Switch L-G-EBF60663403
...
5014
Harness,single L-G-EAD61509104
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5097
Vent Cover L-G-MCK65824403
...
5132
Power Cord L-G-EAD61508903
...
5149
Air Guide L-G-MEA62590301
...
5404
Motor,ac Fan L-G-EAU36206002
...
5407
Fan,convection L-G-MDG35948702
...
5409
Insulator L-G-MEV63311501
...
5450
Insulator L-G-MEV63311401
...
5451
Insulator L-G-MEV63451701
...
5460
Bracket L-G-MAZ62723301
...
5466
Bracket L-G-MAZ63408301
...
5501
Bar L-G-MAK62067202
...
5504
Supporter L-G-4980W1N009B
...
5509
Panel,rear L-G-MGC62219101
...
5511
Lamp,incandescent L-G-6913W1N002C
...
5512
Hinge Bracket L-G-4810W1N040B
...
5515
Gas Packing L-G-MFZ62597201
...
5516
Packing Seal L-G-3920W1N013A
...
5549
Panel Assembly,side L-G-AGL74456605
...
5551
Bar L-G-MAK61842901
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5903
Pipe L-G-MGE62132001
...
5904
Pipe L-G-MGE62131901
...
5922
Nozzle L-G-MFV61841407
...
5933
Case L-G-MBN62203701
...
5943
Burner Assembly L-G-ABF72989901
...
5955
Range Pressure Regulator L-G-AMP30000002
...
5958
Range Base L-G-MAM62948404
...
5961
Range Oven Gas Valve L-G-MJX62111701
...
5971
Cover,connec L-G-MCK66541601
...
5975
Cover L-G-MCK65826001
...
5981
Guide Assembly L-G-AEC73377501
...
8502
Plate,base L-G-3302W1N001F
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
8516
Plate L-G-4960W0N001C
...
9381
Anchor L-G-FAK30249601
...
9501
Parts Assembly L-G-AGM73069215
