LG 75UM6970PUB.BUSGLJR

Model: 75UM6970PUB.BUSGLJR

Save Part Not Listed?
product name

Main

...
...
A10
Screw Assembly L-G-FAB30016137
...
AR1
Package Assembly L-G-AGF76631076
...
HP1
Harness,single L-G-EAD64586005
...
HS1
Harness,multi L-G-EAD63727335
...
HW1
Cable,ffc L-G-EAD65387314
...
LV1
Cable,ffc L-G-EAD63787826
...
120
Speaker Assembly L-G-EAB64370905
...
200
Lcd,module-Tft L-G-EAJ65427801
...
200A
Parts Assembly,svc L-G-AGM76249102
...
200T
Time Control L-G-EAT64253301
...
400
Cover Assembly,rear L-G-ACQ90093368
...
411
Cover Assembly,rear L-G-ACQ90065202
...
500
Pcb Assembly,ir Key L-G-EBR83592301
...
521
Bracket L-G-MAZ65396437
...
530
Power Supply Assembly L-G-EAY64908601
...
540
Bpr Total Assembly L-G-EBU65803301
...
570
Module,wifi Bluetooth Module L-G-EAT64454802
...
700
Power Cord L-G-EAD64026802
...
710
Bracket L-G-MAZ62827622
...
820
Insulator L-G-MEV66512601
...
901
Base Assembly L-G-AAN76430627
...
902
Base Assembly L-G-AAN76430618
...
950
Bracket L-G-MAZ66063802

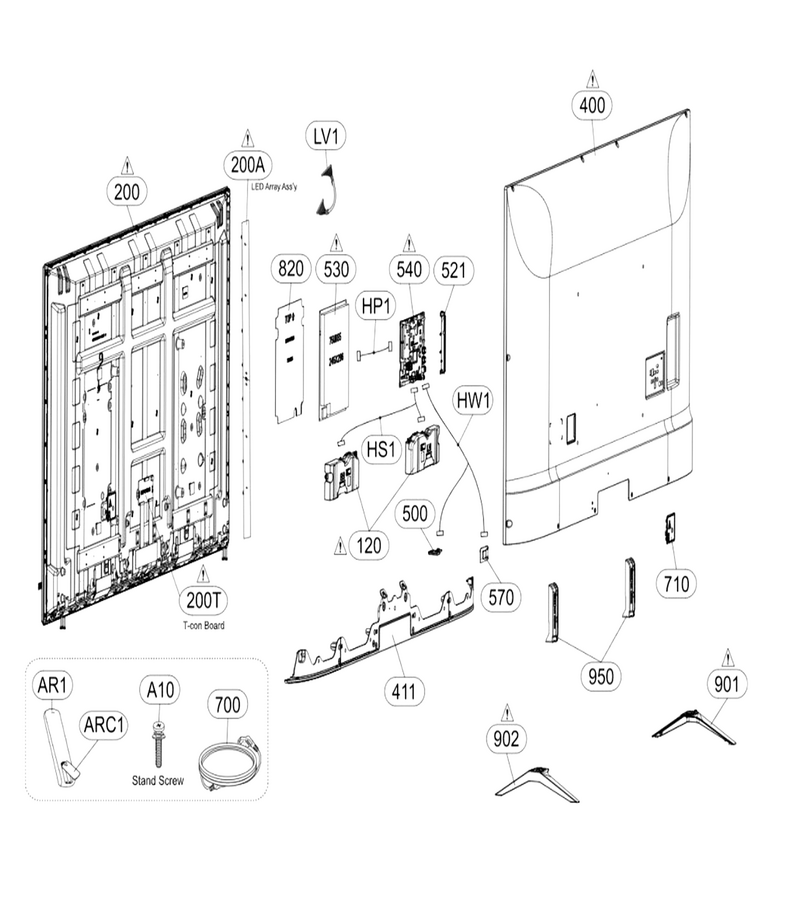

Schematic Image Zoomed
