product name

LG 75124.AWYASRU

Model: 75124.AWYASRU

Save Part Not Listed?
product name

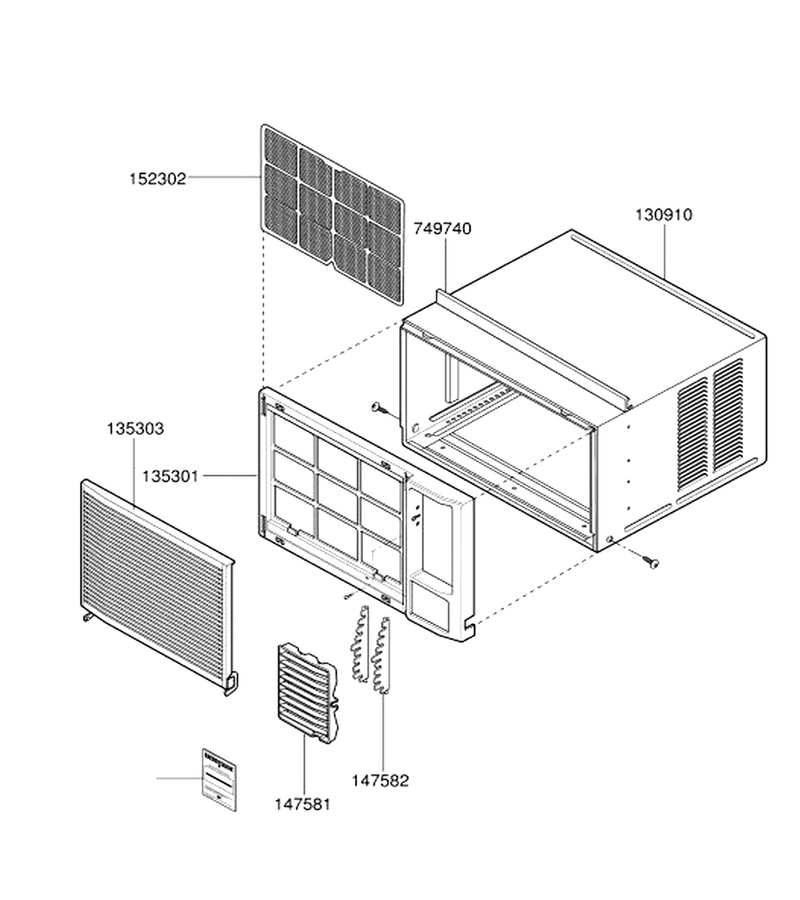

Cabinet & Front Grille Assembly

...
...
130910
Cabinet Assembly,single L-G-3091A10032Y
...
135301
Grille,front L-G-3530AR1278A
...
135303
Grille,inlet L-G-3530AR1535A
...
147581
Louver,horizontal L-G-5990AR2974C
...
147582
Louver,vertical L-G-4758AR7211A
...
152302
Room Air Conditioner Air Filter L-G-5231AR1152A
...
749740
Guide L-G-4974AR3262G

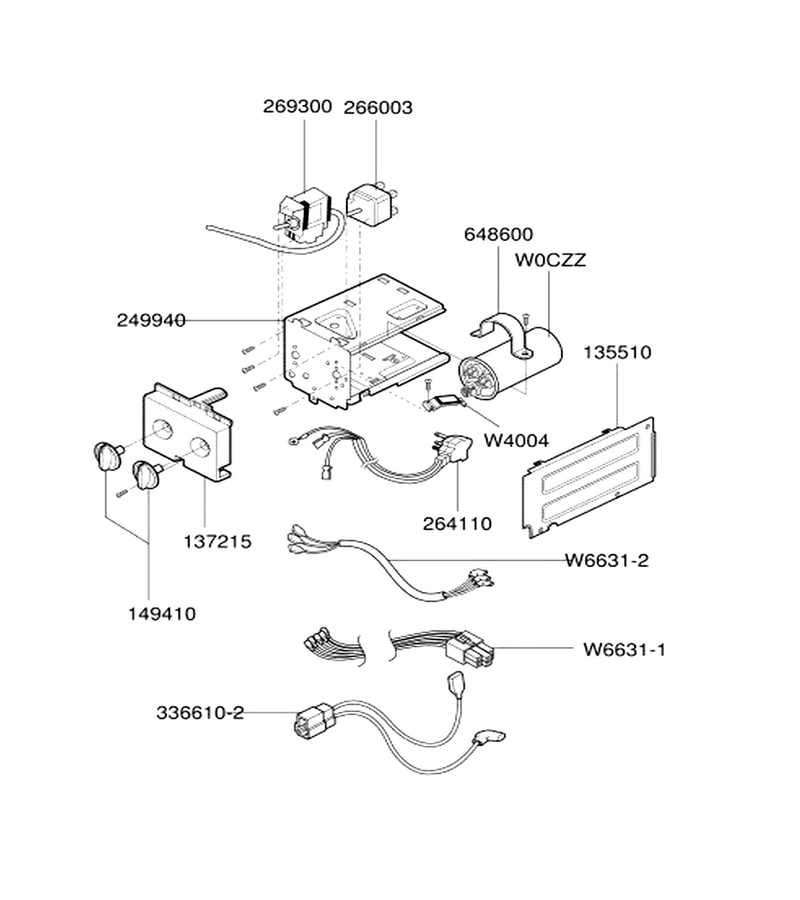

Control Box Assembly

...
...
W6631-1
Harness,multi L-G-6631AR2687L
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2359E
...
W4004
Clamp,cord L-G-4860AR4166A
...
135510
Cover L-G-3550AR7032A
...
137215
Panel Assembly,control L-G-3721A20045U
...
149410
Knob Assembly L-G-4941AR7134E
...
249940
Case,control L-G-4994AR1494A
...
264110
Room Air Conditioner Power Cord L-G-6411A20051G
...
266003
Room Air Conditioner Rotary Switch L-G-2H00598F
...
269300
Room Air Conditioner Thermostat L-G-2H01127B
...
336610-2
Harness,multi L-G-3661AR6149A
...
648600
Clamp L-G-4H00442F

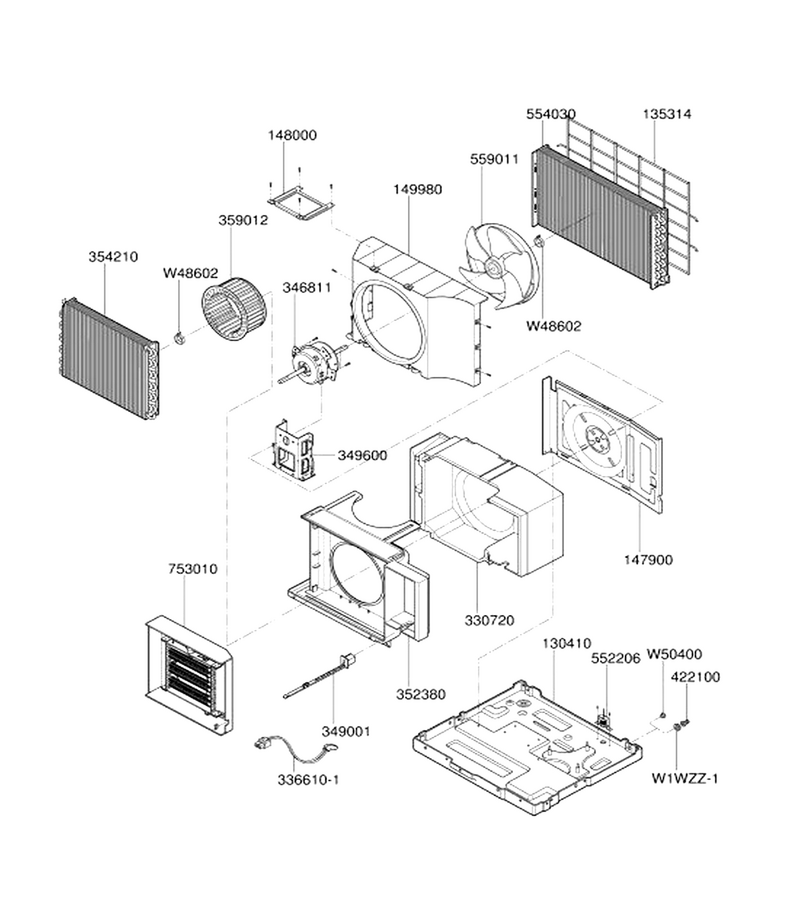

Air Handling & Cycle Parts

...
...
W1WZZ-1
Washer,common L-G-4H01029D
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
W50400
Rubber L-G-4H02023A
...
130410
Pan Base L-G-3041AR1524T
...
135314
Grille Assembly,rear L-G-3530AR2688P
...
147900
Barrier,single L-G-4790AR1493A
...
148000
Brace L-G-4810AR7029A
...
149980
Shroud L-G-4998AR1496A
...
330720
Scroll L-G-3072AR1498A
...
336610-1
Housing Assembly L-G-3661A20014C
...
346811
Room Air Conditioner Fan Motor L-G-4681A20009M
...
349001
Damper L-G-4900AR7024B
...
349600
Compressor L-G-4960AR6165A
...
352380
Guide,air L-G-5238AR1499B
...
354210
Evaporator L-G-5421AR2912C
...
359012
Room Air Conditioner Blower Wheel L-G-5834AR1495B
...
422100
Room Air Conditioner Drain Pipe L-G-3H02773A
...
552206
Valve L-G-5220A30006A
...
554030
Condenser L-G-5403AR2921A
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
753010
Room Air Conditioner Heater Assembly L-G-5301AR7267B

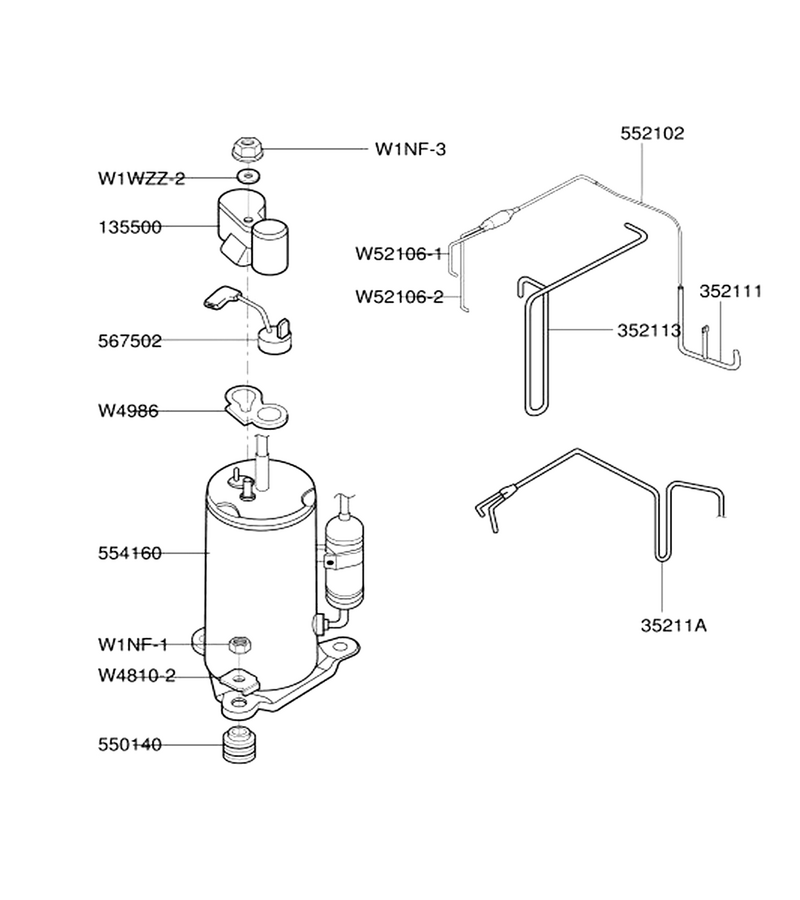

Compressor Parts

...
...
W4986
Gasket L-G-4986U-L001G
...
W1NF-3
Hex Nut L-G-1NHA0801206
...
W52106-2
Tube,form L-G-5210AR7090B
...
W4810-2
Bracket L-G-4H01811C
...
W52106-1
Tube L-G-5210AR4373B
...
W1NF-1
Nut L-G-4H00947A
...
W1WZZ-2
Gasket Nut L-G-4H01058A
...
35211A
Tube Assy,su L-G-5211AR6081K
...
135500
Cover L-G-3550U-L006A
...
352111
Tube L-G-5211AR7059A
...
352113
Tube L-G-5211AR2930A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552102
Tube,capillary Bending L-G-5425AR7133S
...
554160
Room Air Conditioner Compressor L-G-2520UCDK020
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L058A

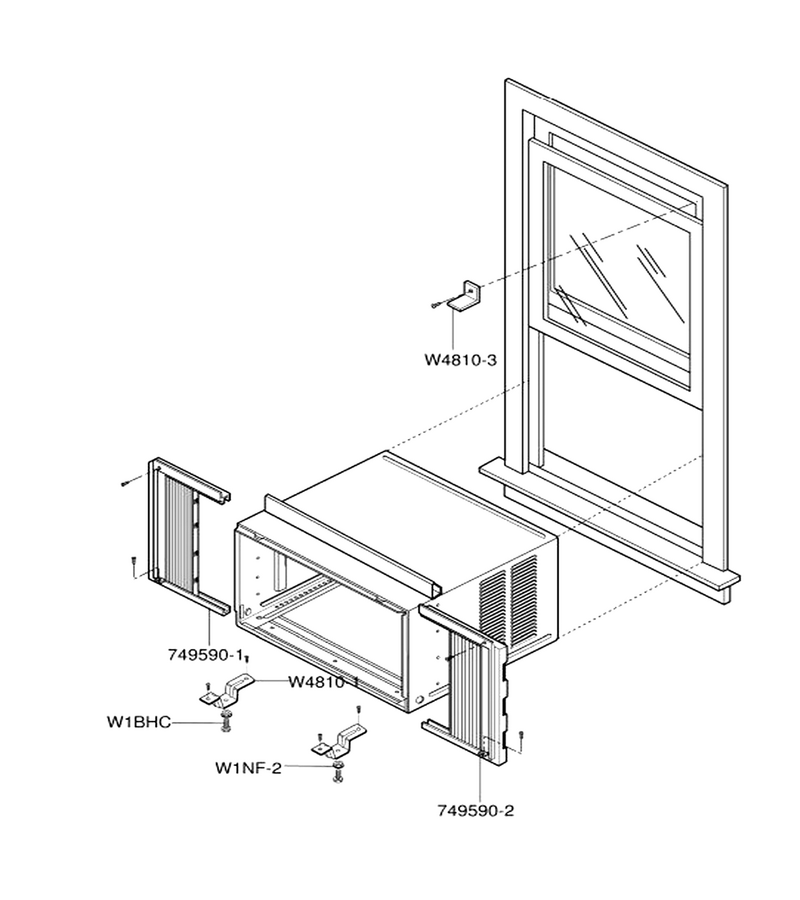

Installation Kit Assembly

...
...
W4810-1
Room Air Conditioner Window Support Bracket L-G-4810AR3240A
...
W1NF-2
Nut,common L-G-1NHC1000006
...
W4810-3
Room Air Conditioner Window Lock Bracket L-G-4H01785B
...
W1BHC
Bolt,common L-G-1BHD1004006
...
749590-1
Room Air Conditioner Accordion Filler, Left L-G-4959AR3402C
...
749590-2
Room Air Conditioner Accordion Filler, Right L-G-4959AR3402D
