LG 74099.AWBCSE1

Model: 74099.AWBCSE1

Save Part Not Listed?
product name

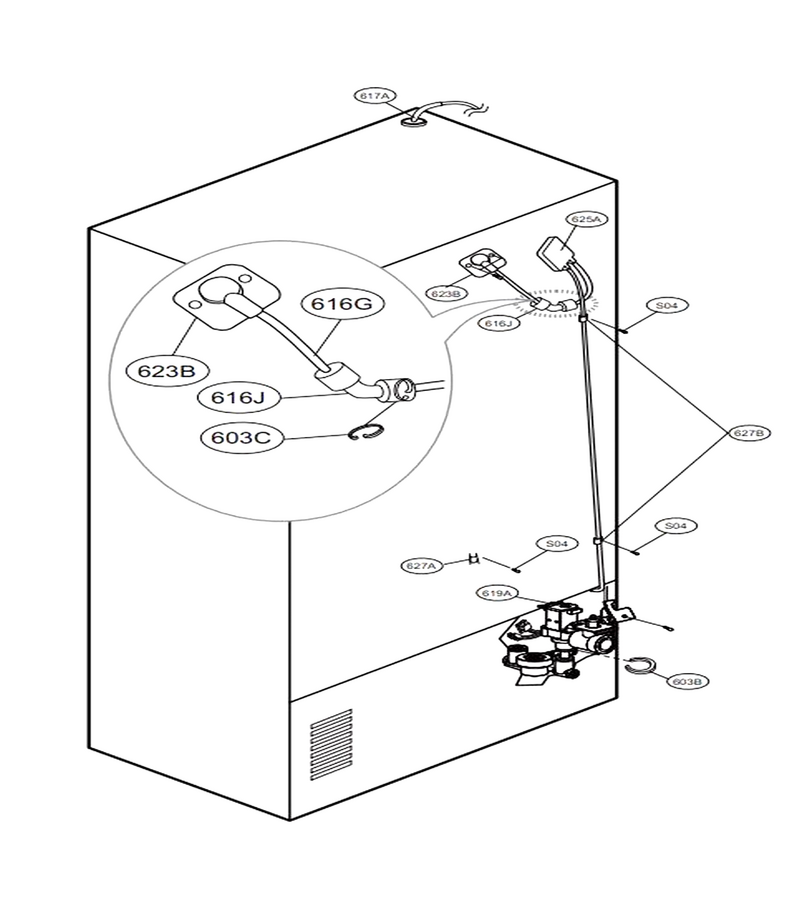

Valve & Water Tube Parts

...
...
S04
Refrigerator Screw L-G-1SBZJA3004L
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616G
Refrigerator Water Tubing L-G-AJR56656503
...
616J
Connector,tube L-G-MCD62426801
...
617A
Refrigerator Spring L-G-4970JA3004N
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

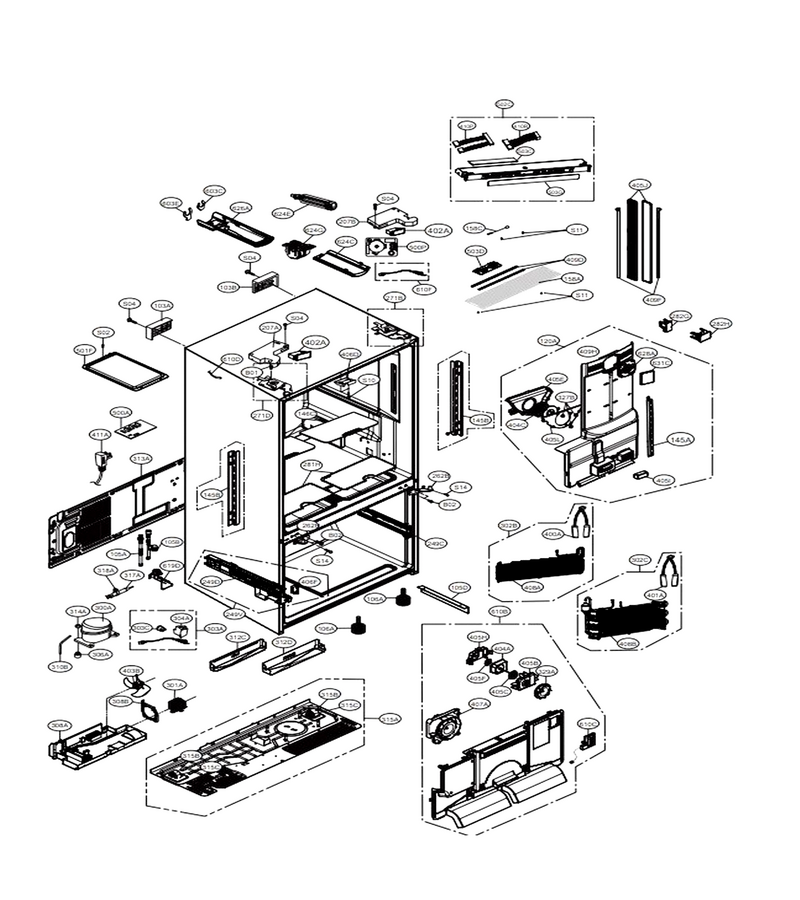

Case Parts

...
...
B02
Refrigerator Door Hinge Screw L-G-1STZJA3004Q
...
S02
Refrigerator Screw L-G-4J00415D
...
S04
Refrigerator Screw L-G-1SBZJA3004L
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
103A
Refrigerator Handle L-G-3650JA2113P
...
103B
Refrigerator Handle L-G-3650JA2113N
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105B
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105D
Refrigerator Lower Skirt L-G-5070JA3002S
...
106A
Duct Assembly,multi L-G-ADJ73252242
...
120A
Duct Assembly,multi L-G-ADJ73252242
...
145A
Refrigerator Shelf Holder L-G-MEG62685901
...
145B
Refrigerator Shelf Holder L-G-MEG62685801
...
146C
Guide Assembly,rail L-G-AEC73697602
...
158A
Refrigerator Lamp Cover L-G-MCK67195101
...
158C
Refrigerator Temperature Sensor L-G-EBD60925804
...
207A
Cover,hinge L-G-MCK68187606
...
207B
Cover,hinge L-G-MCK68187605
...
249C
Holder,rail L-G-MEG63148102
...
249D
Holder,rail L-G-MEG63148101
...
249V
Guide Assembly,rail L-G-AEC73697501
...
262B
Hinge Assembly,center L-G-AEH73577618
...
262H
Hinge Assembly,center L-G-AEH73577620
...
271B
Refrigerator Door Hinge L-G-AEH60614102
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282G
Refrigerator Duct Cap L-G-MBL65039901
...
282H
Refrigerator Duct Cap L-G-MBL65205601
...
300A
Compressor,set Assembly L-G-TCA36491302
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73980910
...
302C
Evaporator Assembly L-G-ADL73881001
...
303A
Thermistor Assembly,ptc L-G-EBG60663249
...
303C
Overload Protect L-G-6750CL0001F
...
304A
Cover,ptc L-G-MCK67292601
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Refrigerator Fan Guide L-G-MEA42772904
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312C
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
312D
Tray Assembly,drain L-G-3391JJ2013N
...
313A
Refrigerator Compressor Access Cover L-G-ACQ86284803
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly L-G-AAN37031304
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
317A
Refrigerator Filter Dryer L-G-5851JA2007U
...
318A
Drier Holder L-G-4930JA3034C
...
327B
Refrigerator Damper L-G-5040JA3063B
...
329A
Fan Assembly L-G-ADP73013901
...
400A
Controller Assembly L-G-ACM73919202
...
401A
Controller Assembly L-G-ACM73919201
...
402A
Refrigerator Door Switch L-G-EBF61314804
...
403B
Motor,dc L-G-EAU62863103
...
404A
Motor,dc L-G-EAU63103203
...
404C
Motor Assembly,dc L-G-EAU62863005
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ61845401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405E
Shroud,refrigerator L-G-MHN62542001
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-MCK61880502
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405J
Refrigerator Lamp Cover L-G-MCK67195001
...
405L
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ63010801
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
406F
Refrigerator Door Switch L-G-EBF61314803
...
407A
Bracket Assembly,motor L-G-ABA72913423
...
408A
Heater,sheath L-G-MEE62225112
...
408B
Heater,sheath L-G-MEE62105206
...
409D
Refrigerator Led Light Assembly L-G-EAV61916703
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
409H
Refrigerator Led Light L-G-EAV61572001
...
410P
Harness Assembly L-G-EAD54367502
...
410R
Harness Assembly L-G-EAD54367505
...
411A
Refrigerator Power Cord L-G-EAD62329115
...
500A
Pcb Assembly,main L-G-EBR78940621
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Refrigerator Electronic Control Board Cover L-G-3551JA2144M
...
502C
Case Assembly,display L-G-ABQ56655345
...
503C
Pcb Assembly,display L-G-EBR78723402
...
503D
Refrigerator Sensor Cover L-G-MCK67228501
...
503G
Decor,control L-G-MCR65687502
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610B
Grille Assembly,fan L-G-AEB72913939
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610F
Pcb Assembly L-G-EBR71326804
...
619D
Pcb Assembly L-G-AJU73872501
...
624C
Cover,filter L-G-MCK66849403
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673601
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901
...
628A
Refrigerator Led Cover L-G-MCK66592001
...
631C
Refrigerator Air Filter L-G-ADQ73214404

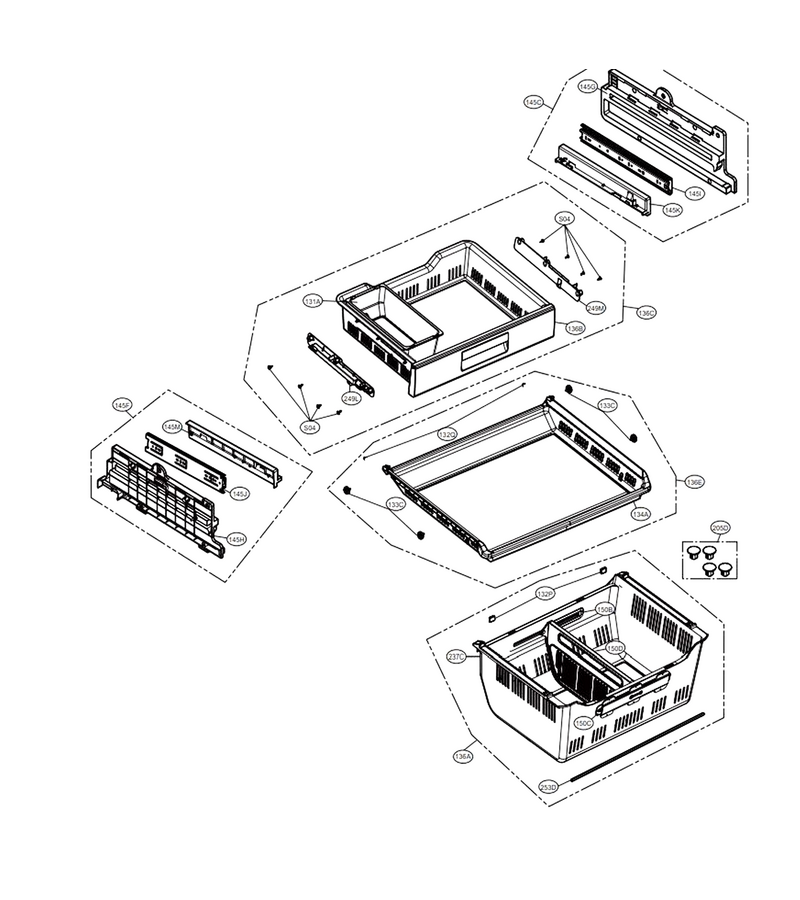

Freezer Parts

...
...
S04
Refrigerator Screw L-G-1SBZJA3004L
...
131A
Refrigerator Freezer Tray L-G-MJS42270802
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
132Q
Refrigerator Door Stopper L-G-MJB62650401
...
133C
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73070401
...
134A
Tray,drawer L-G-MJS62614601
...
136A
Tray Assembly,drawer L-G-AJP73714801
...
136B
Tray Assembly,drawer L-G-AJP73714502
...
136C
Tray Assembly,drawer L-G-AJP73714602
...
136E
Tray Assembly,drawer L-G-AJP73714701
...
145C
Guide Assembly,rail L-G-AEC73697602
...
145F
Guide Assembly,rail L-G-AEC73697601
...
145G
Holder,rail L-G-MEG63148002
...
145H
Holder,rail L-G-MEG63148001
...
145I
Refrigerator Slide Rail L-G-MGT61844303
...
145J
Refrigerator Slide Rail L-G-MGT61844304
...
145K
Refrigerator Freezer Basket Support Rail, Right L-G-4932JA1010B
...
145M
Refrigerator Freezer Basket Support Rail, Left L-G-4932JA1010A
...
150B
Refrigerator Drawer Cover L-G-MCK67228901
...
150C
Refrigerator Drawer Cover L-G-MCK67228902
...
150D
Refrigerator Drawer Guide L-G-MEA62993001
...
205D
Refrigerator Cap Cover L-G-MBL64822401
...
237C
Tray,drawer L-G-MJS62614701
...
249L
Refrigerator Drawer Track L-G-MEG62762301
...
249M
Refrigerator Drawer Track L-G-MEG62762302
...
253D
Refrigerator Supporter L-G-MJH62833618

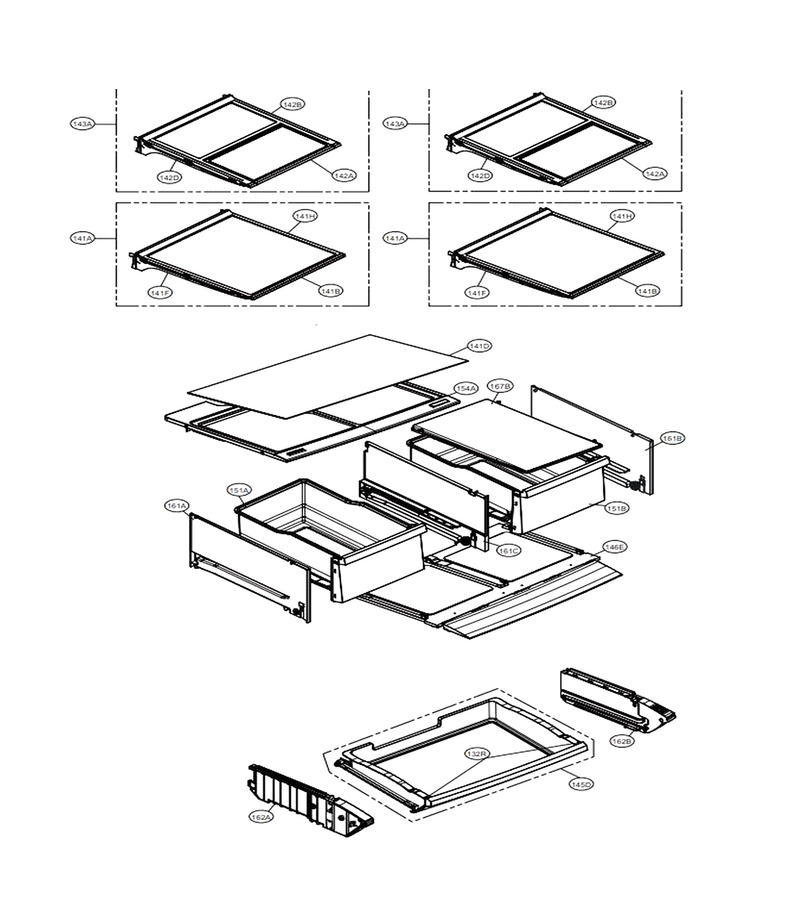

Refrigerator Parts

...
...
132R
Stopper,door L-G-4620JA3020G
...
141A
Shelf Assembly,refrigerator L-G-AHT73233935
...
141B
Shelf Assembly,refrigerator L-G-AHT73573821
...
141D
Shelf,glass L-G-MHL42613245
...
141F
Shelf,net L-G-MHL62733401
...
141H
Shelf,net L-G-MHL62733402
...
142A
Shelf Assembly,refrigerator L-G-AHT73574014
...
142B
Shelf Assembly,refrigerator L-G-AHT73573912
...
142D
Shelf Assembly,net L-G-AHT73554301
...
143A
Shelf Assembly,refrigerator L-G-AHT73234032
...
145D
Tray Assembly,fresh Room L-G-AJP73715003
...
146E
Cover Assembly,tray L-G-ACQ86124802
...
151A
Tray Assembly,vegetable L-G-AJP73596407
...
151B
Tray Assembly,vegetable L-G-AJP73596408
...
154A
Cover Assembly,tv L-G-ACQ86124702
...
161A
Guide Assembly,tv L-G-AEC73639101
...
161B
Guide Assembly,tv L-G-AEC73639102
...
161C
Guide Assembly,rail L-G-AEC73639201
...
162A
Guide Assembly,rail L-G-AEC73677701
...
162B
Guide Assembly,rail L-G-AEC73677705
...
167B
Case Assembly,magic Room L-G-ABQ72931404

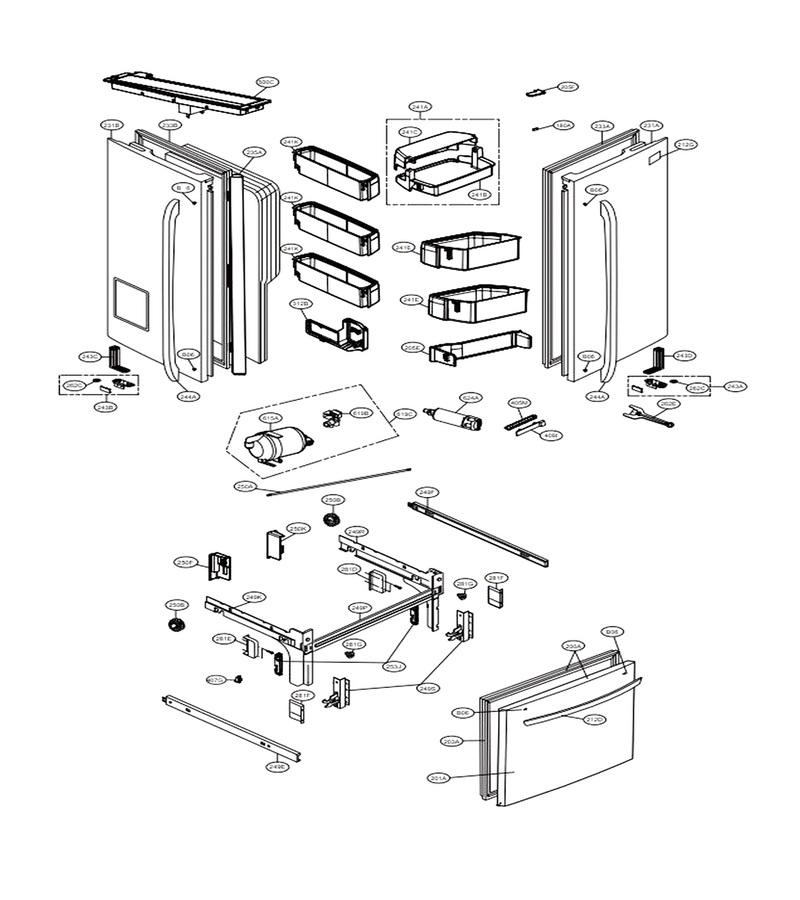

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
180A
Rt Side Uppr L-G-RAB32775604
...
200A
Door Assembly,freezer L-G-ADC73448218
...
201A
Door Foam Assembly,freezer L-G-ADD73358016
...
203A
Gasket,door L-G-MDS38201425
...
205E
Basket,door L-G-MAN62649301
...
212D
Handle Assembly,freezer L-G-AED72952702
...
212G
Name Plate L-G-MFT61866217
...
231A
Door Foam Assembly,refrigerator L-G-ADD73358320
...
231B
Door Foam Assembly,refrigerator L-G-ADD73358282
...
233A
Gasket Assembly,door L-G-ADX72930459
...
233B
Gasket Assembly,door L-G-ADX72930458
...
235A
Plate Assembly,front L-G-AGU74268133
...
241A
Refrigerator Door Bin L-G-AAP73351301
...
241B
Refrigerator Door Bin L-G-MAN62288201
...
241C
Refrigerator Dairy Bin Cover L-G-MAN62288301
...
241E
Basket Assembly,door L-G-AAP73252202
...
241K
Basket Assembly,door L-G-AAP73252302
...
243A
Stopper Assembly,door L-G-AJC68689636
...
243B
Refrigerator Stopper Assembly L-G-AJC68689635
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
244A
Handle Assembly,refrigerator L-G-AED72952802
...
249E
Rail,slide L-G-MGT61844012
...
249F
Rail,slide L-G-MGT61844011
...
249K
Connector,rail L-G-MCD62588002
...
249P
Connector L-G-MCD61841302
...
249R
Connector,rail L-G-MCD62588001
...
249S
Hinge Assembly,lower L-G-4775JJ2011D
...
250A
Bar L-G-4270JA3009Z
...
250B
Refrigerator Freezer Drawer Gear L-G-4470JA2007A
...
250F
Cover Assembly L-G-ACQ73657701
...
250K
Cover Assembly L-G-ACQ73657702
...
253J
Supporter,hinge L-G-4980JA3100B
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
281D
Refrigerator Freezer Door Hinge Cover, Left L-G-3550JA2267A
...
281E
Refrigerator Hinge Cover L-G-3550JA2267B
...
281F
Refrigerator Freezer Drawer Frame Bumper L-G-5040JA3075A
...
281G
Refrigerator Freezer Drawer Frame Bumper L-G-5040JA3075A
...
312B
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
407G
Cover Assembly L-G-ACQ86292601
...
409I
Refrigerator Led Light L-G-EAV61652805
...
500C
Case Assembly,pcb L-G-ABQ72940016
...
615A
Refrigerator Water Reservoir L-G-MJM61844101
...
619B
Valve,water L-G-MJX62751901
...
619C
Refrigerator Water Inlet Valve L-G-AJU73272501
...
624A
Filter Assembly,water L-G-ADQ36006102

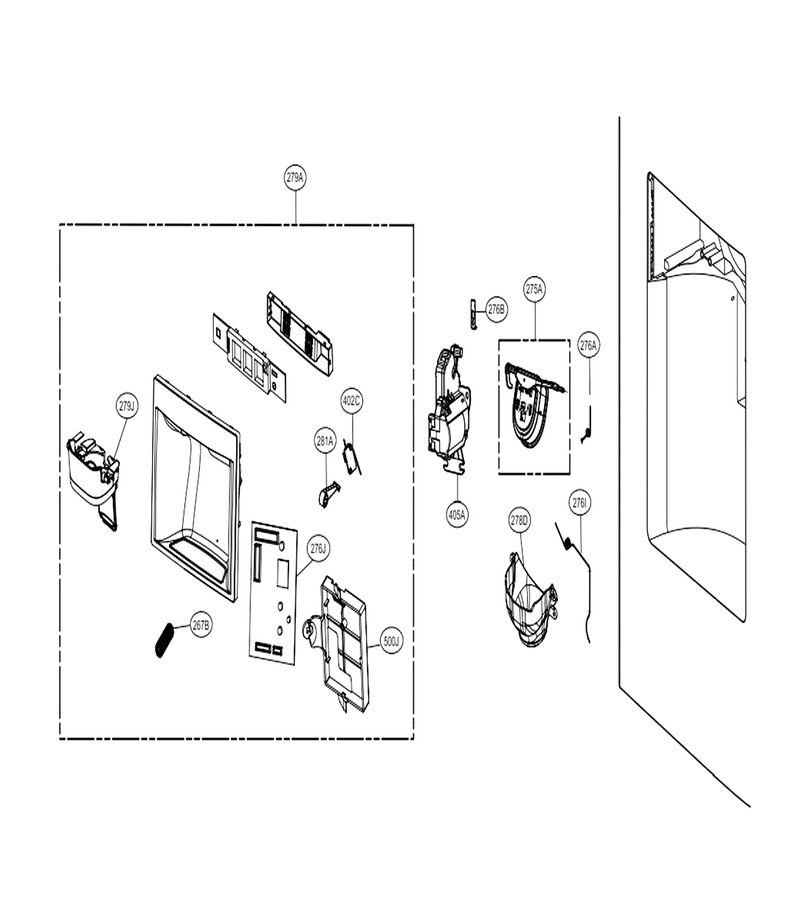

Dispenser Parts

...
...
267B
Spring L-G-MHY62784403
...
275A
Cap Assembly,duct L-G-ABN72938907
...
276A
Spring,lever L-G-MHY62603708
...
276B
Holder Lever L-G-MEG63262301
...
276I
Spring,lever L-G-MHY62603707
...
276J
Pcb Assembly,display L-G-EBR78988402
...
278D
Funnel L-G-MDR62522201
...
279A
Cover Assembly,display L-G-ACQ87466903
...
279J
Button Assembly L-G-ABH75139701
...
281A
Link L-G-MFF62763001
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500J
Case,pcb L-G-MBN63524401

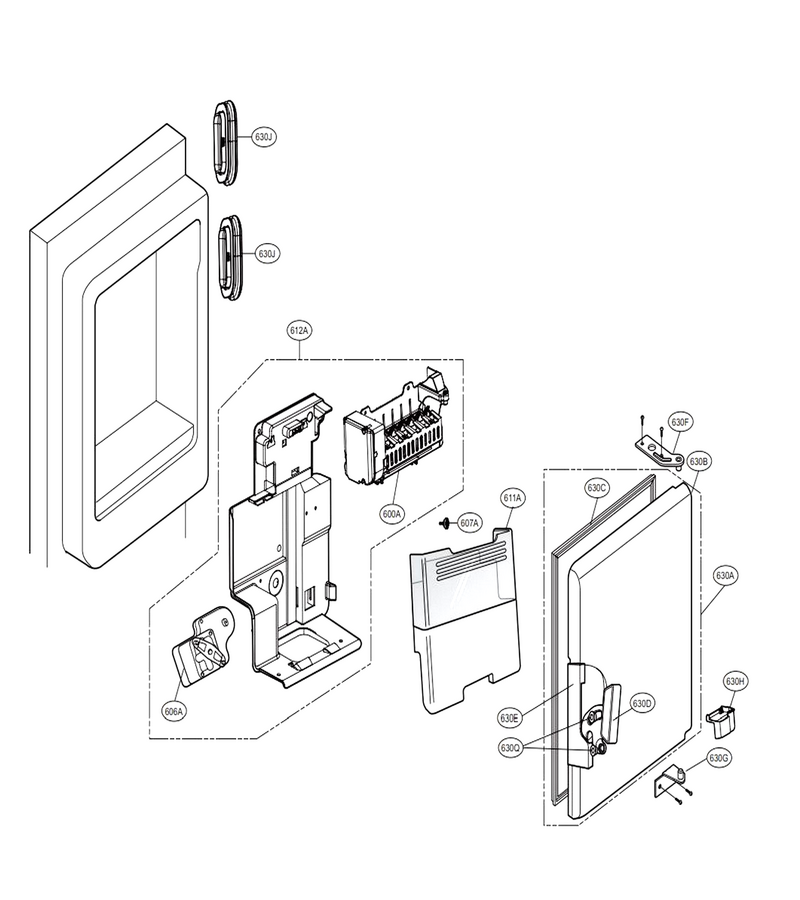

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73130004
...
606A
Refrigerator Auger Motor L-G-EAU60784228
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
612A
Motor,ac L-G-EAU62563503
...
630A
Door Assembly,freeze Room L-G-ADC72987126
...
630B
Door Foam Assembly L-G-ADD72915911
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111101
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Cover,lever L-G-MCK63734902
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73250601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
