LG 74039.AWBCSE0

Model: 74039.AWBCSE0

Save Part Not Listed?
product name

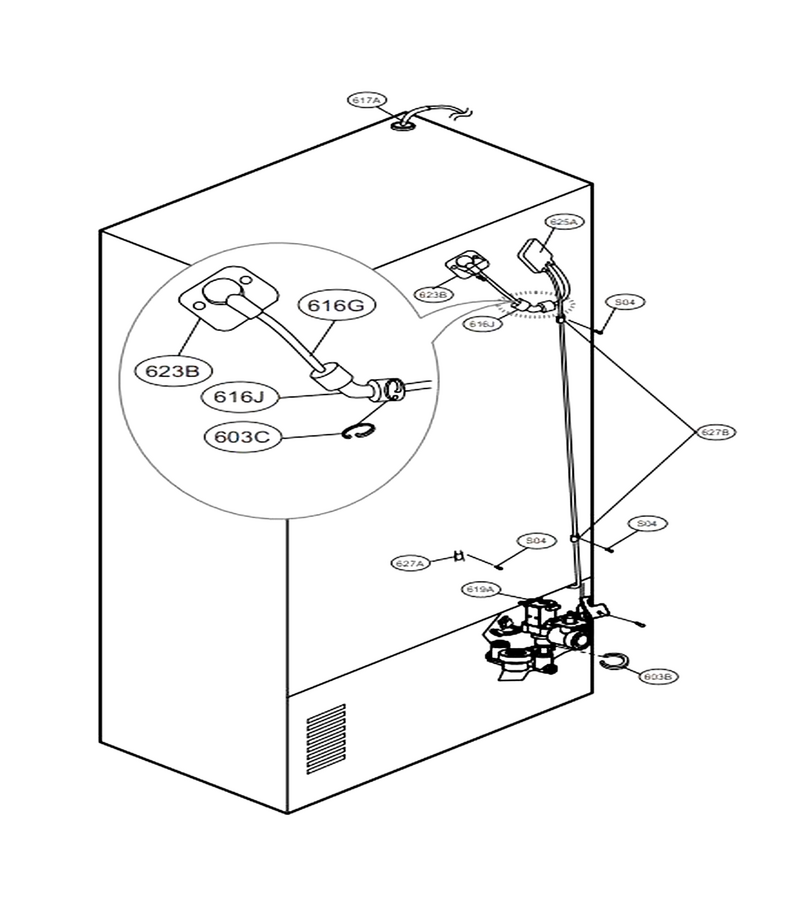

Valve & Water Tube Parts

...
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
603B
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
616G
Refrigerator Water Tubing L-G-AJR56656503
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184B

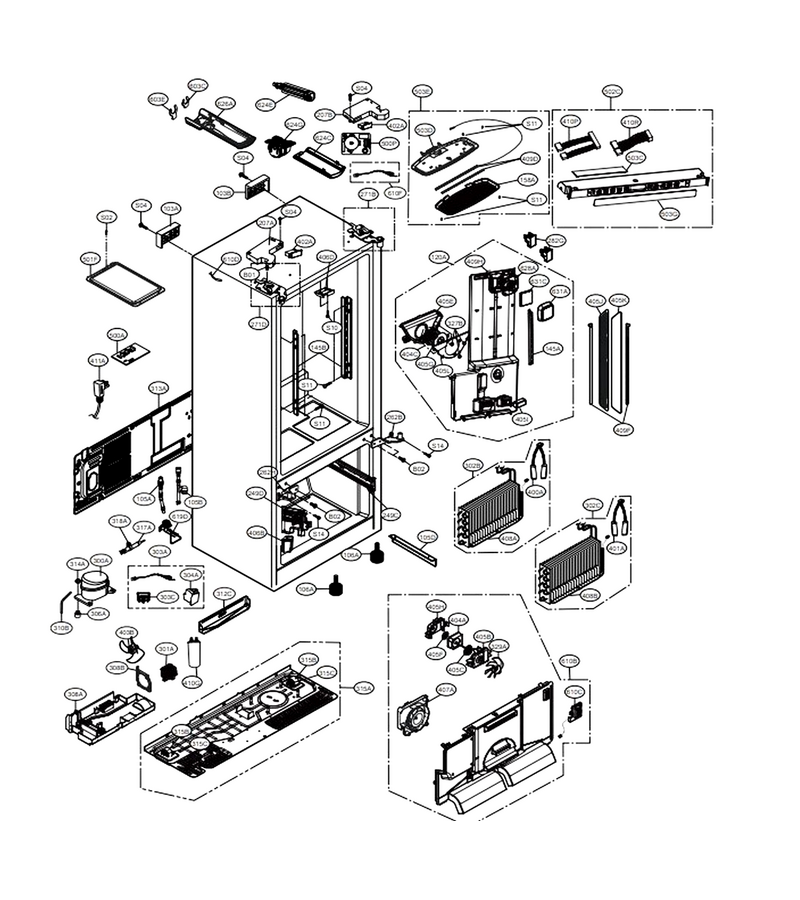

Case Parts

...
...
B01
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
S10
Refrigerator Screw L-G-1SBZJA3004L
...
S11
Refrigerator Shelf Holder Screw L-G-3J05696W
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105B
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105D
Refrigerator Lower Skirt L-G-5070JA3002S
...
106A
Refrigerator Leveling Leg L-G-AFC72909201
...
120A
Duct Assembly,multi L-G-ADJ73252235
...
145A
Refrigerator Shelf Holder L-G-MEG62685901
...
158A
Refrigerator Lamp Cover L-G-MCK66544101
...
207A
Cover,hinge L-G-MCK68187502
...
207B
Cover,hinge L-G-MCK68187501
...
249C
Holder,rail L-G-MEG63303501
...
249D
Holder,rail L-G-MEG63303502
...
262B
Refrigerator Hinge Center Assembly L-G-AEH73816902
...
262H
Hinge Assembly L-G-AEH73816904
...
271B
Refrigerator Door Hinge L-G-AEH60614106
...
271D
Refrigerator Door Hinge L-G-AEH60614101
...
282G
Refrigerator Duct Cap L-G-MBL65039901
...
301A
Refrigerator Condenser Coil L-G-ACG73645002
...
302B
Evaporator Assembly L-G-ADL73981017
...
302C
Evaporator Assembly L-G-ADL73341415
...
303A
Thermistor Assembly,ptc L-G-EBG63205831
...
303C
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
304A
Cover,ptc L-G-MCK70052506
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Guide,fan L-G-MEA42772903
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
312C
Refrigerator Evaporator Drip Pan L-G-3391JJ2013J
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN77088901
...
317A
Drier Assembly L-G-ADH73590304
...
318A
Drier Holder L-G-4930JA3034C
...
327B
Refrigerator Damper L-G-5040JA3063B
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1021A
...
400A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005S
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005R
...
403B
Refrigerator Condenser Fan Motor Assembly L-G-EAU62025701
...
404A
Refrigerator Evaporator Fan Motor L-G-EAU61524007
...
404C
Motor Assembly,dc L-G-EAU64824401
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ61845401
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-MCK61880502
...
405I
Refrigerator Lamp Cover L-G-MCK61881401
...
405J
Refrigerator Light Cover L-G-MCK66584301
...
405K
Refrigerator Light Cover L-G-MCK66584302
...
405L
Refrigerator Evaporator Fan Motor Bracket L-G-MAZ63010801
...
406B
Switch,magnet L-G-EBF61314816
...
406D
Refrigerator Door Holder L-G-MEG63261302
...
407A
Bracket Assembly,motor L-G-ABA72913415
...
408A
Heater,sheath L-G-MEE62225112
...
408B
Heater,sheath L-G-MEE62705114
...
409D
Led Assembly L-G-EAV62052301
...
409F
Refrigerator Freezer Light Board L-G-EAV61916704
...
409H
Refrigerator Led Light L-G-EAV61572001
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
410P
Harness Assembly L-G-EAD54367502
...
410R
Harness Assembly L-G-EAD54367505
...
411A
Power Cord Assembly L-G-EAD61445236
...
500A
Pcb Assembly,main L-G-EBR78940601
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
501F
Refrigerator Electronic Control Board Cover L-G-3551JA2144M
...
502C
Case Assembly,display L-G-ABQ56655343
...
503C
Pcb Assembly,display L-G-EBR78723402
...
503D
Refrigerator Lamp Case L-G-MBN62347601
...
503E
Refrigerator Led Light And Cover Assembly L-G-ACQ85449501
...
503G
Decor,control L-G-MCR65687501
...
603C
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
603E
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
610B
Grille Assembly,fan L-G-AEB72913929
...
610C
Refrigerator Temperature Sensor And Cover L-G-ACQ73244001
...
610D
Refrigerator Temperature Sensor L-G-6500JB2001B
...
610F
Pcb Assembly L-G-EBR71326804
...
619D
Pcb Assembly L-G-AJU73872501
...
624C
Cover,filter L-G-MCK66849403
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673601
...
626A
Refrigerator Water Filter Outer Cover L-G-MCK66584901
...
628A
Refrigerator Led Cover L-G-MCK66592001
...
631A
Decor,cover L-G-MCR64742922

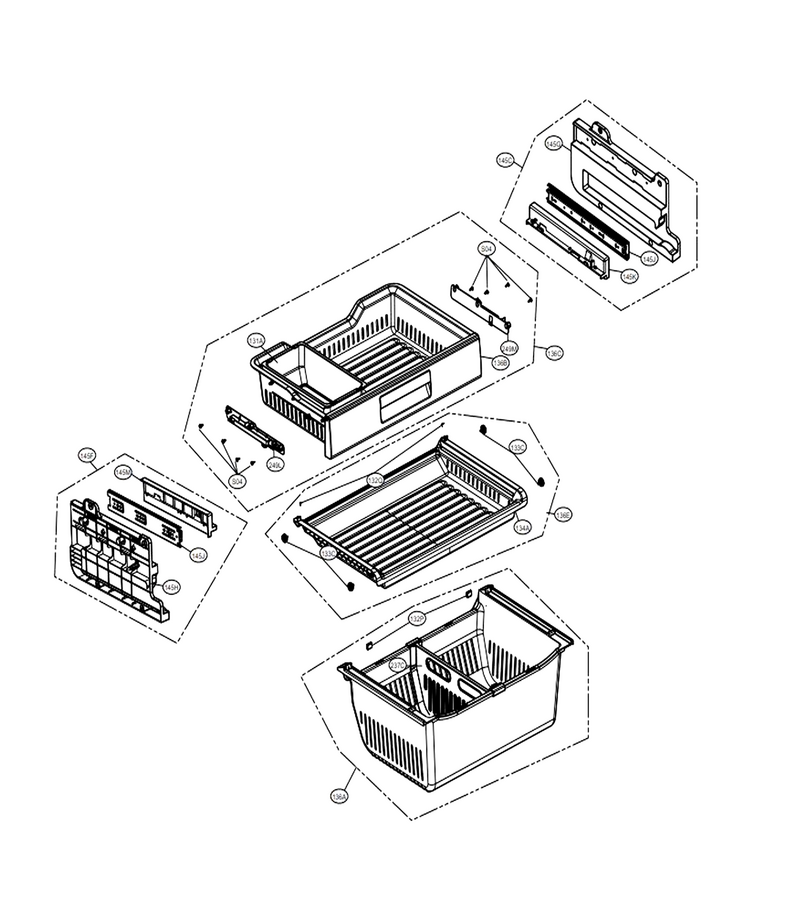

Freezer Parts

...
...
S04
Refrigerator Hose Clamp Mounting Screw L-G-4J00415H
...
131A
Tray,freezer L-G-MJS42270803
...
132P
Refrigerator Crisper Drawer Bumper L-G-MBL62065801
...
132Q
Stopper,door L-G-MJB62650404
...
133C
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73070401
...
134A
Refrigerator Freezer Drawer L-G-MJS62232901
...
136A
Refrigerator Crisper Drawer L-G-AJP72909903
...
136B
Tray Assembly,drawer L-G-AJP73334702
...
136C
Tray Assembly,drawer L-G-AJP73334602
...
136E
Refrigerator Freezer Drawer Assembly L-G-AJP73334501
...
145C
Refrigerator Freezer Drawer Slide Rail, Right L-G-AEC73337402
...
145F
Refrigerator Drawer Track L-G-AEC73337401
...
145G
Refrigerator Holder Rail L-G-MEG62704702
...
145H
Refrigerator Holder Rail L-G-MEG62704701
...
145J
Refrigerator Freezer Drawer Slide Rail L-G-MGT61844301
...
145K
Refrigerator Freezer Basket Support Rail, Right L-G-4932JA1010B
...
145M
Refrigerator Freezer Basket Support Rail, Left L-G-4932JA1010A
...
237C
Refrigerator Freezer Drawer Divider L-G-MEA62573201
...
249L
Refrigerator Drawer Track L-G-MEG62762301
...
249M
Refrigerator Drawer Track L-G-MEG62762302

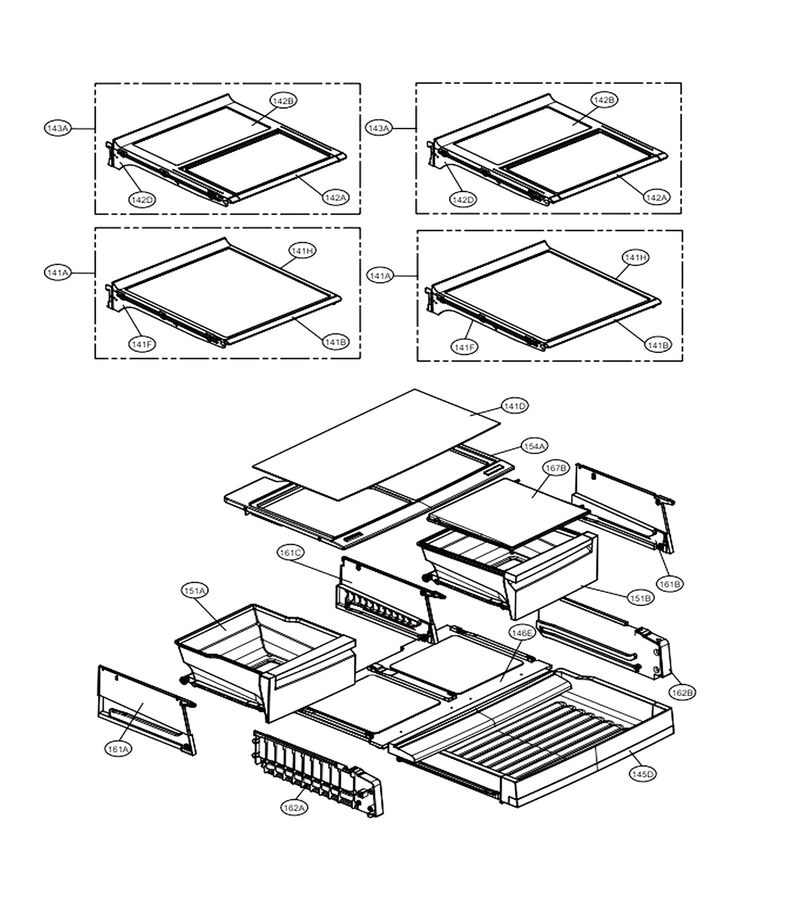

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73233932
...
141B
Shelf Assembly,refrigerator L-G-AHT73253813
...
141D
Refrigerator Glass Shelf L-G-MHL42613220
...
141F
Refrigerator Shelf Net L-G-MHL62412601
...
141H
Refrigerator Shelf Net L-G-MHL62412602
...
142A
Shelf Assembly,refrigerator L-G-AHT73234113
...
142B
Shelf Assembly,refrigerator L-G-AHT73234210
...
142D
Refrigerator Shelf Assembly L-G-5027JJ2012Z
...
143A
Shelf Assembly,refrigerator L-G-AHT73234029
...
145D
Tray Assembly,fresh Room L-G-AJP73314423
...
146E
Cover Assembly,tray L-G-ACQ85448409
...
151A
Tray Assembly,vegetable L-G-AJP73374607
...
151B
Tray Assembly,vegetable L-G-AJP73374608
...
154A
Cover Assembly,tv L-G-ACQ85428622
...
161A
Guide Assembly,tv L-G-AEC73317605
...
161B
Guide Assembly,tv L-G-AEC73317606
...
161C
Guide Assembly,rail L-G-AEC73317503
...
162A
Guide Assembly,rail L-G-AEC73317703
...
162B
Guide Assembly,rail L-G-AEC73317724
...
167B
Case Assembly,magic Room L-G-ABQ72931402

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
S08
Refrigerator Screw L-G-1SZZJA3016C
...
146F
Holder Assembly L-G-AEJ72914501
...
200A
Door Assembly,freezer L-G-ADC73448233
...
201A
Door Foam Assembly,freezer L-G-ADD73358004
...
203A
Gasket,door L-G-MDS38201423
...
207C
Refrigerator Door Hinge Cover L-G-MBL65046501
...
207D
Refrigerator Door Hinge Cover L-G-MBL65077501
...
212D
Handle Assembly,freezer L-G-AED72952701
...
212G
Name Plate L-G-MFT61866214
...
231A
Door Foam Assembly,home Bar L-G-ADD73516617
...
231B
Door Foam Assembly,refrigerator L-G-ADD73358272
...
231C
Door Foam Assembly,refrigerator L-G-ADD73536419
...
232A
Refrigerator Door Shelf Assembly L-G-MBN62547401
...
232D
Cap,cover L-G-MBL65698202
...
233A
Gasket Assembly,door L-G-ADX72930455
...
233B
Gasket Assembly,door L-G-ADX72930454
...
233C
Gasket Home L-G-MDS62152412
...
235A
Plate Assembly,front L-G-AGU74268133
...
241A
Refrigerator Door Bin L-G-MAN62429901
...
241B
Refrigerator Door Bin L-G-MAN62429801
...
241C
Basket,door L-G-MAN62629901
...
241D
Refrigerator Door Basket L-G-MAN62430001
...
241E
Refrigerator Lower Door Cover L-G-MCK66908001
...
241J
Cap,decor Refrigerator L-G-MBL65042004
...
241K
Basket Assembly,door L-G-AAP73252302
...
241L
Basket Assembly,door L-G-AAP73371803
...
241N
Basket,door L-G-MAN62629801
...
243A
Refrigerator Door Hinge, Lower L-G-AEH73856401
...
243B
Refrigerator Door Stop L-G-AJC68689632
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243P
Refrigerator Door Closer L-G-MJB62830601
...
244A
Handle Assembly,refrigerator L-G-AED72952823
...
244F
Handle Assembly,refrigerator L-G-AED72952810
...
249E
Rail,slide L-G-MGT61844016
...
249F
Rail,slide L-G-MGT61844015
...
249J
Connector,rail L-G-MCD61841203
...
249K
Connector,rail L-G-MCD61841204
...
249P
Connector L-G-MCD61841302
...
249S
Hinge Assembly,lower L-G-4775JJ2011D
...
250A
Bar L-G-MAK64727001
...
250B
Refrigerator Freezer Drawer Gear L-G-MDT62447301
...
250C
Refrigerator Bar L-G-MAK62287201
...
250D
Refrigerator Door Bin Retainer Bar L-G-MAK62267501
...
250E
Refrigerator Bar L-G-MAK62267601
...
250W
Refrigerator Door Bin Front Cover Bar L-G-MAK62347401
...
253J
Supporter,hinge L-G-4980JA3100B
...
262C
Refrigerator Door Hinge Pin Retainer Ring L-G-MGZ42997101
...
262E
Refrigerator Spanner Wrench L-G-MHU38218908
...
271E
Refrigerator Door Hinge L-G-AEH73816801
...
276D
Refrigerator Spring L-G-MHY62645401
...
281B
Refrigerator Decorative Handle L-G-MEB62455901
...
281D
Refrigerator Hinge Cover L-G-3550JA2267B
...
281E
Refrigerator Freezer Door Hinge Cover, Left L-G-3550JA2267A
...
281F
Refrigerator Freezer Door Hinge Cover L-G-3550JA2264A
...
281G
Refrigerator Freezer Drawer Frame Bumper L-G-5040JA3075A
...
281K
Refrigerator Door Bin Cover Bumper L-G-5040JA3033B
...
312B
Refrigerator Water Reservoir Cover L-G-ACQ85432701
...
312E
Refrigerator Door Panel Cover L-G-MCK66932401
...
312F
Cover Assembly,front L-G-ACQ85723609
...
312G
Refrigerator Door Panel Cover L-G-MCK66932201
...
405M
Refrigerator Light Cover L-G-MCK66769001
...
406H
Refrigerator Handle Cap L-G-MEG62999601
...
406I
Refrigerator Handle Cap L-G-MBL37761901
...
406J
Refrigerator Button Holder L-G-MEG62781701
...
407G
Cover,door Switch L-G-MCK67539802
...
409I
Refrigerator Led Light L-G-EAV61652805
...
500C
Case Assembly,pcb L-G-ABQ72940031
...
619C
Valve Assembly,water L-G-AJU74532701
...
624A
Filter Assembly,water L-G-ADQ36006114

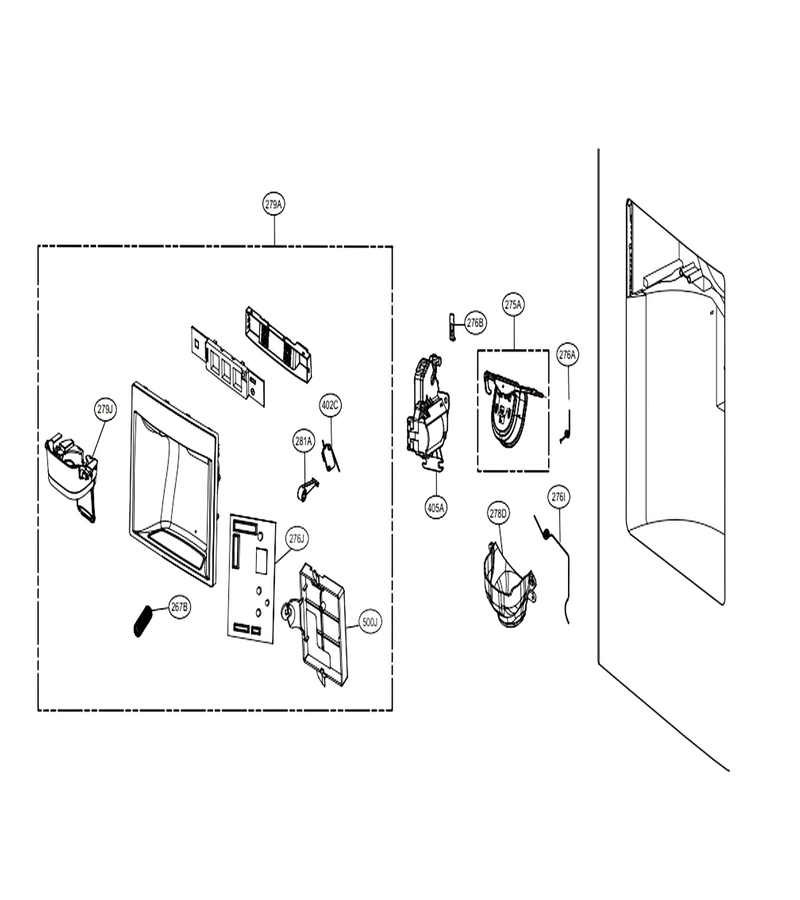

Dispenser Parts

...
...
267B
Spring L-G-MHY62784403
...
275A
Cap Assembly,duct L-G-ABN72938907
...
276A
Spring,lever L-G-MHY62603708
...
276B
Holder Lever L-G-MEG63262301
...
276I
Spring,lever L-G-MHY62603707
...
276J
Pcb Assembly,display L-G-EBR78988402
...
278D
Funnel L-G-MDR62522201
...
279A
Cover Assembly,display L-G-ACQ87466901
...
279J
Button Assembly L-G-ABH75139701
...
281A
Link L-G-MFF62763001
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500J
Case,pcb L-G-MBN63524401

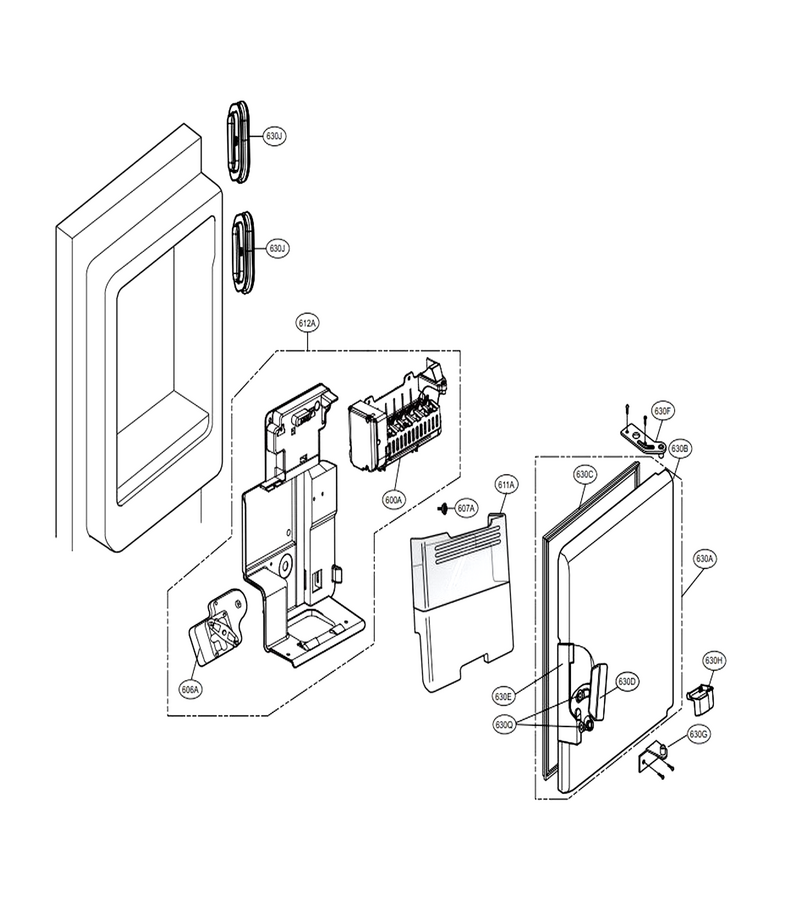

Ice Maker & Ice Bin Parts

...
...
600A
Ice Maker Assembly,kit L-G-AEQ73130004
...
606A
Motor, Ac Indoor L-G-EAU60784231
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
612A
Motor,ac L-G-EAU62563503
...
630A
Door Assembly,freeze Room L-G-ADC72987148
...
630B
Door Foam Assembly L-G-ADD72915917
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111103
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Cover,lever L-G-MCK63734902
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73250601
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
