LG 73966.ATICSEA

Model: 73966.ATICSEA

Save Part Not Listed?
product name

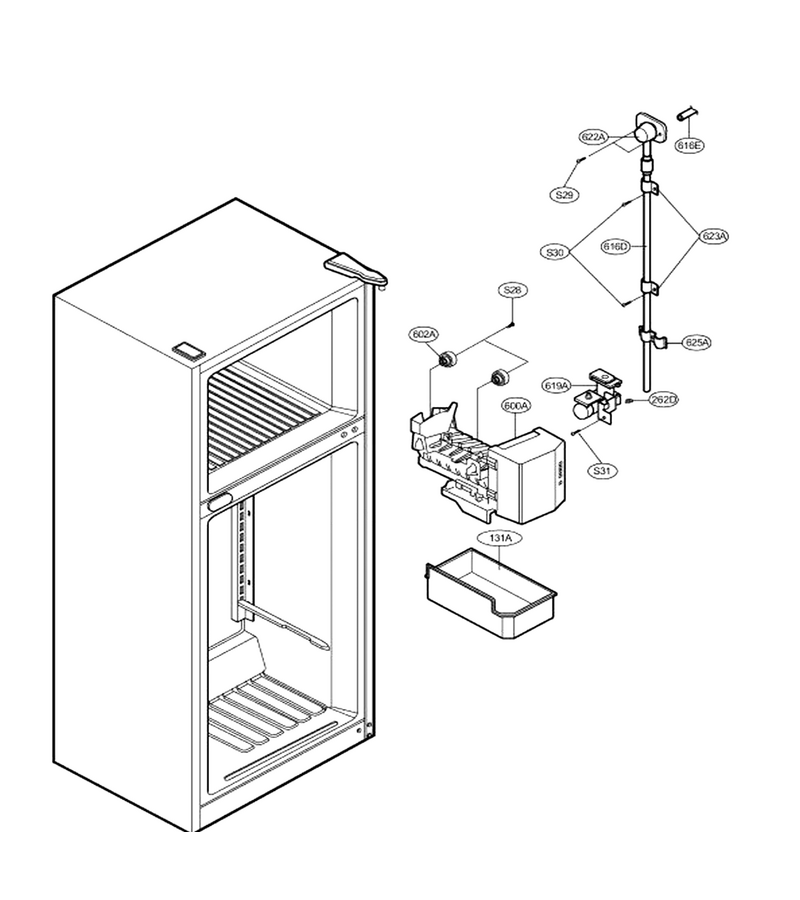

Ice Maker Parts (i)

...
...
S28
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S30
Refrigerator Screw L-G-4J00415D
...
131A
Refrigerator Ice Container L-G-5074JJ1007A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Ice Maker Assembly,kit L-G-5989JA0002E
...
602A
Refrigerator Holder L-G-4930JA3037A
...
616D
Refrigerator Water Tubing L-G-5210JA3005J
...
616E
Refrigerator Ice Maker Fill Tube L-G-5210JJ3003B
...
619A
Refrigerator Water Inlet Valve L-G-5220JA2009D
...
622A
Refrigerator Water Tube Fitting L-G-5210JJ3002A
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Refrigerator Clamp L-G-4930JA3054A

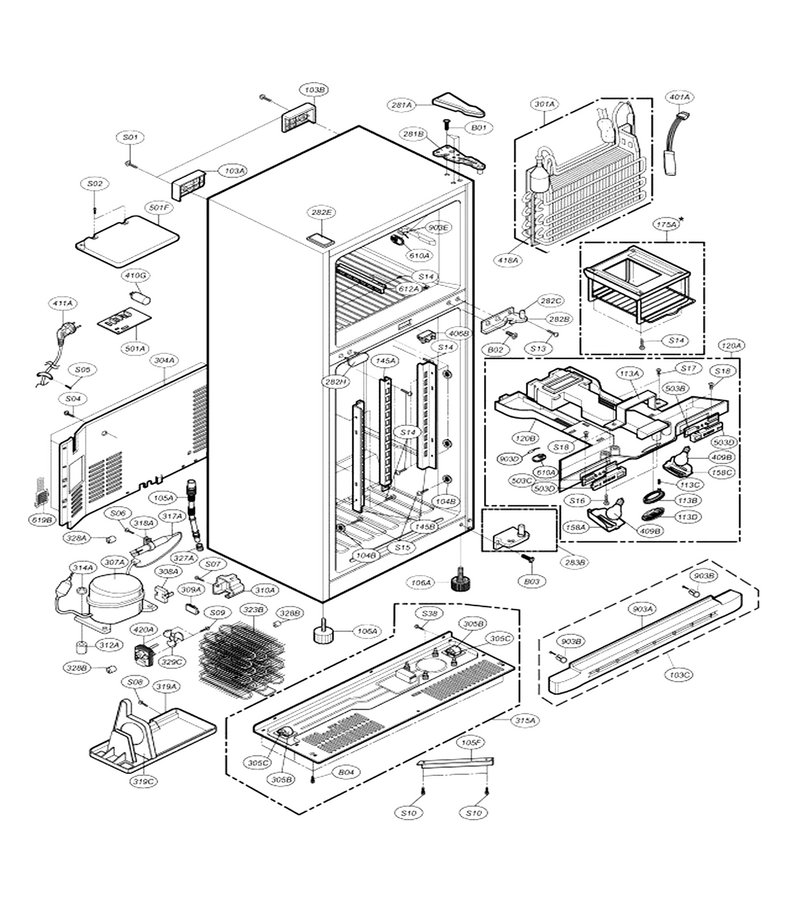

Case Parts

...
...
B01
Refrigerator Screw L-G-J351-00004L
...
B02
Refrigerator Screw L-G-J351-00004R
...
B03
Refrigerator Screw L-G-J351-00004P
...
B04
Refrigerator Bolt L-G-1BZZJA2002A
...
S01
Refrigerator Screw L-G-4J00415D
...
S02
Refrigerator Screw L-G-4J00415D
...
S04
Refrigerator Screw L-G-4J00415D
...
S05
Refrigerator Screw L-G-4J01425B
...
S06
Refrigerator Screw L-G-4J00415D
...
S07
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
S09
Refrigerator Condenser Fan Mounting Screw L-G-1SZZJA3016A
...
S10
Refrigerator Screw L-G-4J00415D
...
S13
Refrigerator Screw L-G-1SZZJJ3010A
...
S14
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S15
Refrigerator Screw L-G-4J00415D
...
S16
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
S17
Refrigerator Screw L-G-4J00415D
...
S18
Refrigerator Tapping Screw L-G-1TCL0302818
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Toe Grille L-G-3551JJ1015E
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
113A
Refrigerator Holder Bracket L-G-4930JJ2008A
...
113B
Refrigerator Holder L-G-4930JJ2005A
...
113C
Refrigerator Spring L-G-4970JA3016A
...
113D
Refrigerator Gasket L-G-4986JJ2003A
...
120A
Case Assembly,control Refrigerator L-G-4995JJ1003G
...
120B
Refrigerator Control Box L-G-4994JJ0002A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Light Cover, Left L-G-3550JJ2019B
...
158C
Refrigerator Light Cover, Right L-G-3550JJ2019A
...
175A
Tray Assembly,pizza L-G-3391JJ2005A
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013C
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ2002A
...
282C
Refrigerator Door Hinge Pin L-G-1PZZJJ3002F
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
282H
Refrigerator Center Hinge Hole Plug L-G-5006JJ3004E
...
283B
Refrigerator Door Hinge L-G-AEH72915201
...
301A
Refrigerator Evaporator Assembly L-G-5421JJ0003A
...
304A
Refrigerator Cover Assembly, Rear L-G-3551JJ2008A
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-2521JJ8004A
...
308A
Refrigerator Ptc Relay L-G-6748JJ8002A
...
309A
Refrigerator Compressor Overload Protector L-G-6750JJ8002A
...
310A
Refrigerator Cover L-G-3550JJ8003A
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Refrigerator Complete Base L-G-3103JJ1001K
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002B
...
318A
Refrigerator Holder L-G-4930JJ3002A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
323B
Condenser Assembly, Wire L-G-5403JJ1010A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
401A
Refrigerator Defrost Sensor Assembly L-G-4781JK2001A
...
406B
Refrigerator Light Switch (black) L-G-6600JB2004B
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2003H
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
418A
Refrigerator Heater L-G-5300JK1003D
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
501A
Pcb Assembly,main L-G-6871JB1185A
...
501F
Refrigerator Pcb Cover L-G-3550JJ2069A
...
503B
Pcb Assembly,display L-G-6871JB2043A
...
503C
Pcb Assembly,display L-G-6871JB2043B
...
503D
Case,display L-G-3110JJ2001A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
612A
Refrigerator Guide L-G-4974JJ2006A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
903A
Refrigerator Toe Grille L-G-3550JJ0005C
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

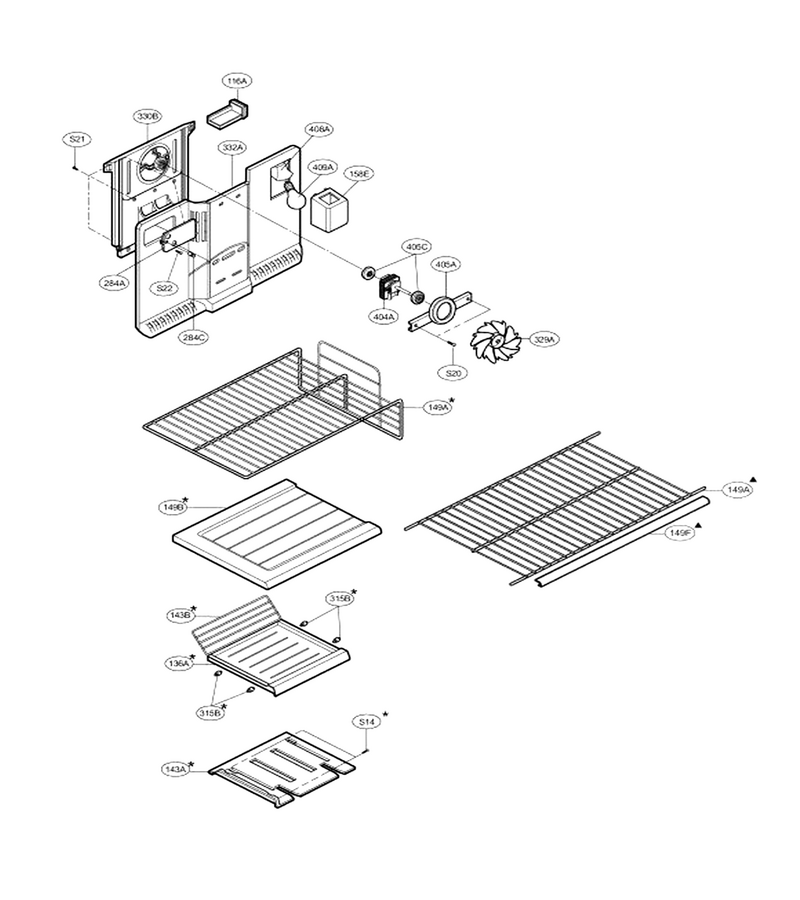

Freezer Parts

...
...
S14
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S20
Refrigerator Screw Assembly L-G-4001JA3001A
...
S21
Refrigerator Screw L-G-4J00415D
...
S22
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
116A
Refrigerator Damper And Motor Assembly L-G-4901JK1001A
...
136A
Tray,freezer L-G-3390JJ1022A
...
143A
Stopper,shelf L-G-4620JJ1001A
...
143B
Guide,stopper L-G-4974JJ2018A
...
149A
Refrigerator Shelf L-G-5026JJ1018A
...
149B
Shelf,freezer L-G-5026JJ1017A
...
158E
Refrigerator Light Cover L-G-3550JJ2017B
...
284A
Refrigerator Evaporator Cover Fan Grille L-G-3550JJ2023A
...
284C
Refrigerator Freezer Panel Hole Cover Screw L-G-5006JA3080A
...
315B
Roller L-G-4580JJ3004A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
330B
Refrigerator Shroud L-G-4998JJ1004A
...
332A
Refrigerator Fan Grille Assembly L-G-3531JJ1002A
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1016J
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ3003A
...
405C
Refrigerator Motor Support Damper L-G-5040JA3049A
...
408A
Refrigerator Socket L-G-6621JK2001A
...
409A
Refrigerator Light Bulb L-G-6912JK2002C

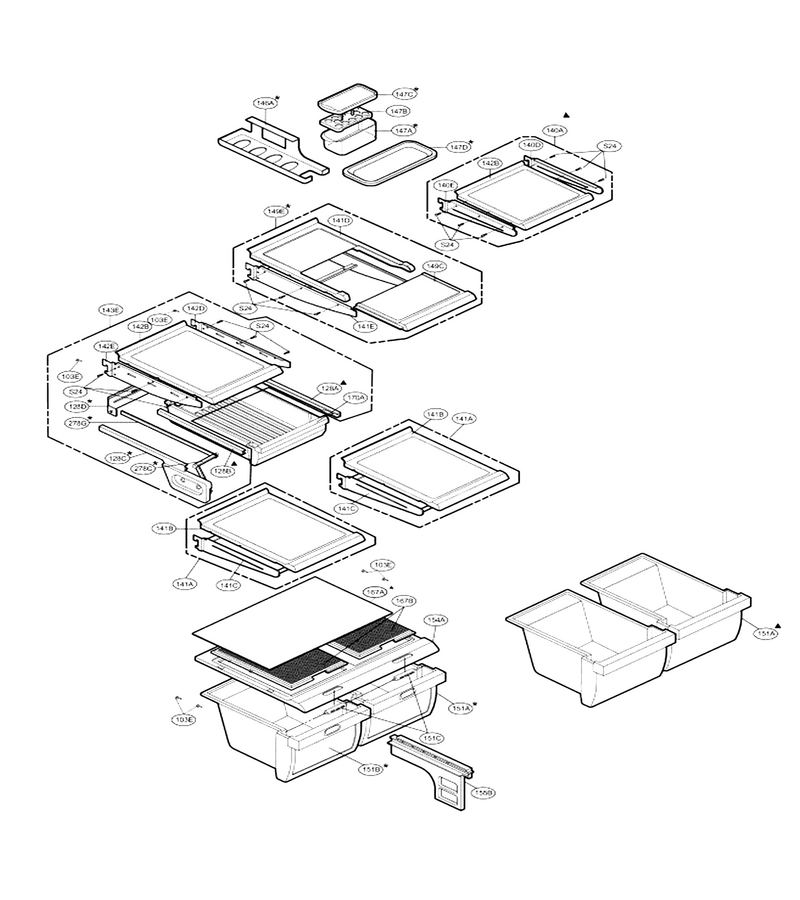

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128C
Guide Assembly,rail L-G-4975JJ2003A
...
141A
Shelf Assembly,refrigerator L-G-5027JJ1014N
...
141B
Shelf Assembly,refrigerator L-G-5027JJ1036A
...
141C
Refrigerator Shelf Assembly L-G-5027JJ2005A
...
141D
Shelf Assembly,refrigerator L-G-5027JJ2011A
...
141E
Shelf Assembly,net L-G-5027JJ2005B
...
142B
Shelf Assembly,refrigerator L-G-5027JJ1037A
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Shelf Assembly,refrigerator L-G-5027JJ1013Q
...
146A
Refrigerator Storage L-G-5047JJ1001A
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
147B
Refrigerator Egg Bin L-G-3390JJ1014A
...
147C
Refrigerator Dairy Bin Cover L-G-3550JJ1017A
...
147D
Refrigerator Tray L-G-3390JJ2003A
...
149C
Shelf Assembly,refrigerator L-G-5027JJ2010A
...
149E
Shelf Assembly,refrigerator L-G-5027JJ2009A
...
151A
Tray Assembly,vegetable L-G-3391JJ1018A
...
151B
Tray Assembly,vegetable L-G-3391JJ1018B
...
151C
Knob,shutter L-G-4940JJ2003A
...
154A
Cover,tv L-G-3550JL2001A
...
155B
Refrigerator Crisper Drawer Cover Support Post L-G-4980JJ1010A
...
167A
Refrigerator Glass Shelf L-G-4890JL1002U
...
167B
Cover,magic Room L-G-3550JJ1011A
...
170A
Tray Assembly,meat L-G-3391JJ2004A
...
278C
Lever,shutter L-G-4510JJ2001A
...
278G
Refrigerator Link L-G-4520JJ2001A

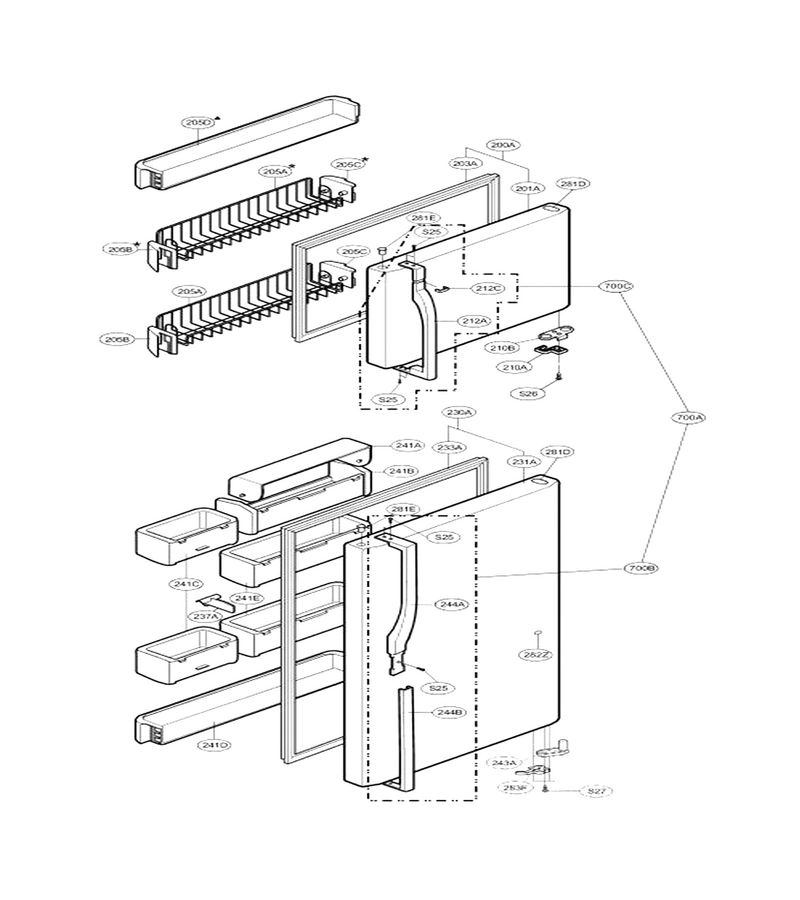

Door Parts

...
...
S25
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010D
...
S26
Refrigerator Screw L-G-1SZZJJ3003D
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Door Assembly,freezer L-G-3581JJ8012D
...
201A
Door Foam Assembly,freezer L-G-5433JJ1003D
...
203A
Refrigerator Door Gasket L-G-ADX52752637
...
205A
Refrigerator Basket L-G-5004JJ1017A
...
205B
Refrigerator Freezer Door Tilt Basket End Cap, ... L-G-5004JJ2002A
...
205C
Refrigerator Freezer Door Tilt Basket End Cap, ... L-G-5004JJ2003A
...
210A
Refrigerator Door Stopper L-G-4620JJ2006B
...
210B
Refrigerator Guide L-G-4974JA3031B
...
212A
Handle,freezer L-G-3650JJ1013B
...
212C
Handle,base L-G-3650JJ2007C
...
230A
Door Assembly,refrigerator L-G-3581JJ8013P
...
231A
Door Foam Assembly,refrigerator L-G-5433JJ0020P
...
233A
Refrigerator Freezer Door Gasket L-G-ADX52752636
...
237A
Refrigerator Guide L-G-4974JJ2012A
...
241A
Cover,tray L-G-3550JL2003A
...
241B
Refrigerator Door Bin L-G-5004JJ1035A
...
241C
Refrigerator Door Bin L-G-5005JJ2017B
...
241D
Basket Assembly,door L-G-5005JJ2019B
...
241E
Refrigerator Door Bin L-G-5005JJ2018B
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
244A
Handle,refrigerator L-G-3650JJ1014B
...
244B
Handle,decor L-G-3650JJ1016B
...
281D
Refrigerator Handle Cap L-G-5006JJ3007C
...
281E
Refrigerator Hinge Cap L-G-5006JJ3003E
...
283F
Refrigerator Door Stopper L-G-4620JJ2007B

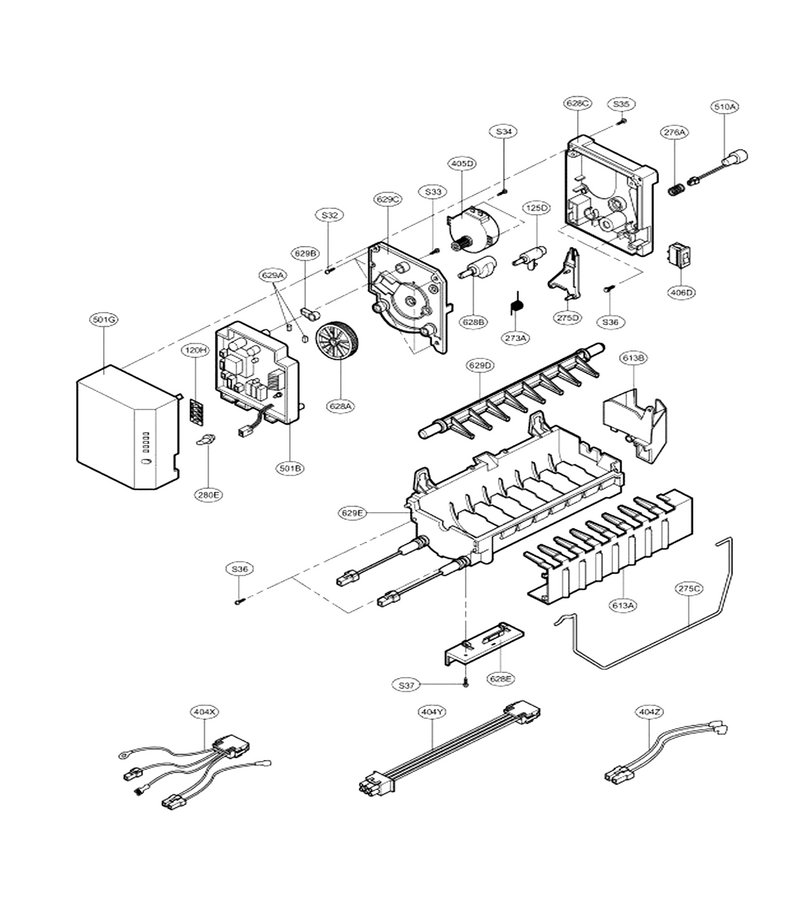

Ice Maker Parts (ii)

...
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
404Z
Refrigerator Wiring Harness L-G-6877JB1223F
