LG 73065.ANSCSE0

Model: 73065.ANSCSE0

Save Part Not Listed?
product name

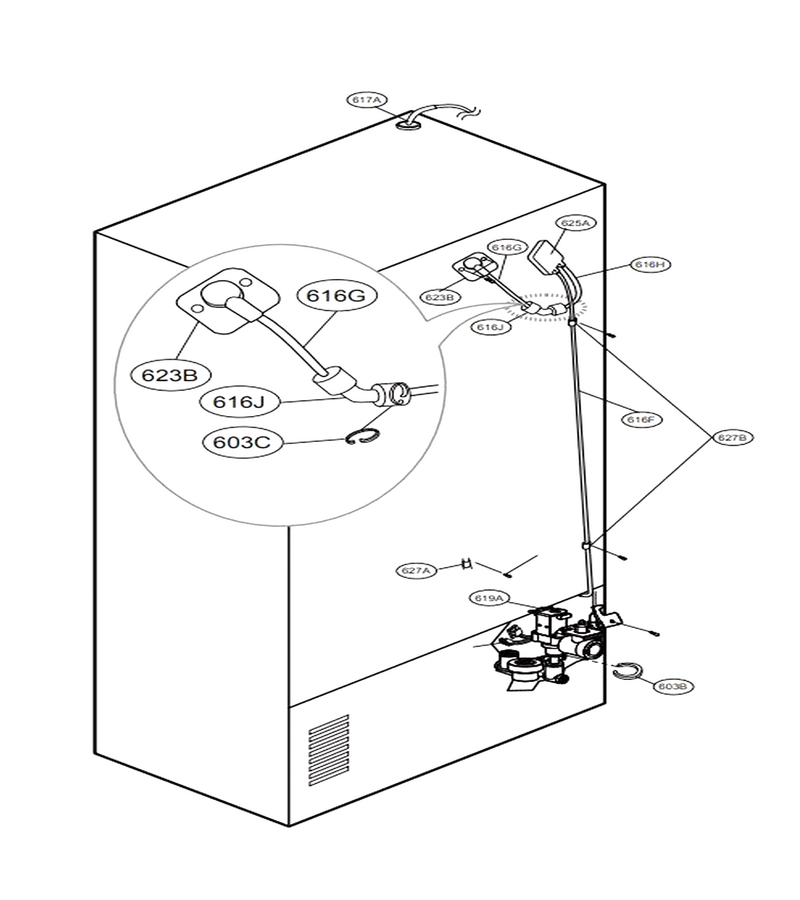

Valve & Water Tube Parts

...
...
616F
Refrigerator Water Tubing L-G-MJU62711401
...
616G
Refrigerator Ice Maker Fill Tube L-G-AJR73964201
...
616J
Connector,tube L-G-MCD62426801
...
617A
Refrigerator Spring L-G-4970JQ3016J
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992601
...
623B
Refrigerator Cap Cover L-G-MBL65442401
...
625A
Tube Cover L-G-MCK67502201
...
627A
Holder Pipe L-G-MEG63263001
...
627B
Holder Pipe L-G-MEG63342201

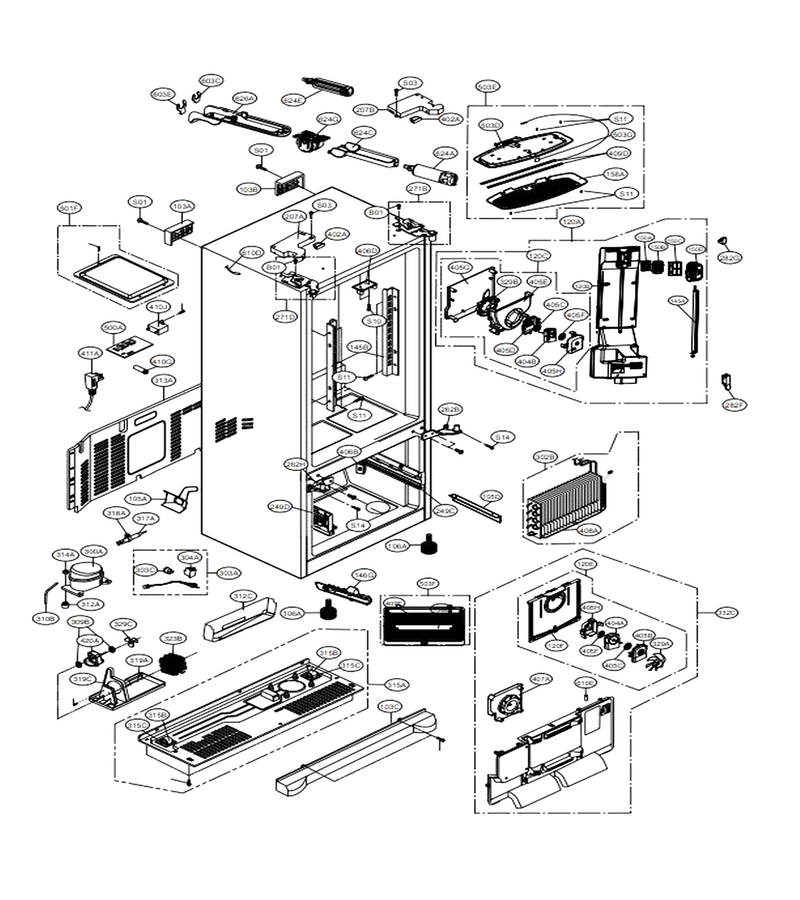

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
S01
Refrigerator Screw L-G-1SZZJQ2015B
...
S03
Refrigerator Screw L-G-1SZZJQ2002B
...
S10
Screw,customize L-G-1SZZJQ3023B
...
S11
Screw,customized L-G-1SZZJQ2010C
...
S14
Screw,customized L-G-1SZZJQ2014B
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Cover Assembly,lower L-G-ACQ85891302
...
105A
Tube Assembly L-G-AJR74125001
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Duct Assembly,multi L-G-ADJ74132101
...
120B
Duct,multi L-G-MCZ63511701
...
120C
Bracket Assembly,motor L-G-ABA74268301
...
145A
Refrigerator Shelf Holder L-G-MEG64000201
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
150A
Motor,dc L-G-EAU62145211
...
150C
Refrigerator Air Filter L-G-ADQ73214404
...
158A
Cover,lamp L-G-MCK67125501
...
158B
Cover,lamp L-G-EBR77033103
...
207A
Cover,hinge L-G-MCK68187602
...
207B
Cover,hinge L-G-MCK68412508
...
249C
Refrigerator Freezer Drawer Slide Rail, Right L-G-MEG63342502
...
249D
Refrigerator Holder Rail L-G-MEG63342501
...
262B
Hinge Assembly,center L-G-AEH71135371
...
262H
Hinge Assembly,center L-G-AEH71135372
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Holder Rail L-G-MEG63342501
...
282F
Refrigerator Duct Cap L-G-MBL61865401
...
282G
Refrigerator Duct Cap L-G-MBL61865301
...
300A
Compressor,set Assembly L-G-TCA35893202
...
302B
Evaporator Assembly L-G-ADL73762004
...
303A
Thermistor Assembly,ptc L-G-EBG61486613
...
303C
Refrigerator Overload Protector L-G-6750CL0001C
...
304A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
312C
Drain Tray Assembly L-G-AJP73574401
...
313A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN74109205
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Pin L-G-1PZZJQ3018D
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Drier Holder L-G-4930JQ3020F
...
319A
Refrigerator Defrost Drain Pan L-G-MJS62591901
...
319C
Refrigerator Fan Guide L-G-MEA63170401
...
323B
Condenser Assembly,wire L-G-ACG73749402
...
329A
Fan Assembly L-G-ADP73694301
...
329B
Fan Assembly L-G-ADP73773801
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332C
Grille Assembly,fan L-G-AEB73764501
...
402A
Switch,magnet L-G-EBF62234501
...
404A
Motor,dc L-G-EAU61524001
...
404B
Refrigerator Evaporator Fan Motor L-G-4681JB1027J
...
405B
Bracket,motor L-G-MAZ63664701
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
405D
Bracket,motor L-G-MAZ63664701
...
405E
Shroud Assembly,fan L-G-AHV73289801
...
405F
Refrigerator Damper Motor L-G-5040JQ2003B
...
405G
Bracket,motor L-G-MAZ63463501
...
405H
Refrigerator Evaporator Fan Motor Cover L-G-3550JA2273A
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407A
Bracket Assembly,motor L-G-ABA74248401
...
408A
Heater,sheath L-G-5300JK1005Z
...
409D
Refrigerator Led Assembly L-G-EAV61873612
...
409E
Cover,lamp L-G-MCK68069401
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
410J
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
420A
Refrigerator Condenser Fan Motor Assembly L-G-4681JB1029D
...
500A
Pcb Assembly,main L-G-EBR74796449
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
503D
Case,lamp L-G-MBN62802601
...
503E
Cover Assembly,lamp L-G-ACQ85930607
...
503F
Cover Assembly,lamp L-G-ACQ87128801
...
610D
Sensor L-G-EBD60664501
...
610E
Refrigerator Temperature Sensor L-G-6500JB2002X
...
624A
Filter Assembly,water L-G-ADQ36011708
...
624C
Refrigerator Filter Cover L-G-MCK67447801
...
624E
Refrigerator Water Filter Bypass L-G-ABN73019101
...
624G
Filter Assembly,head L-G-ADQ73673604
...
626A
Refrigerator Water Reservoir Cover L-G-MCK42264401

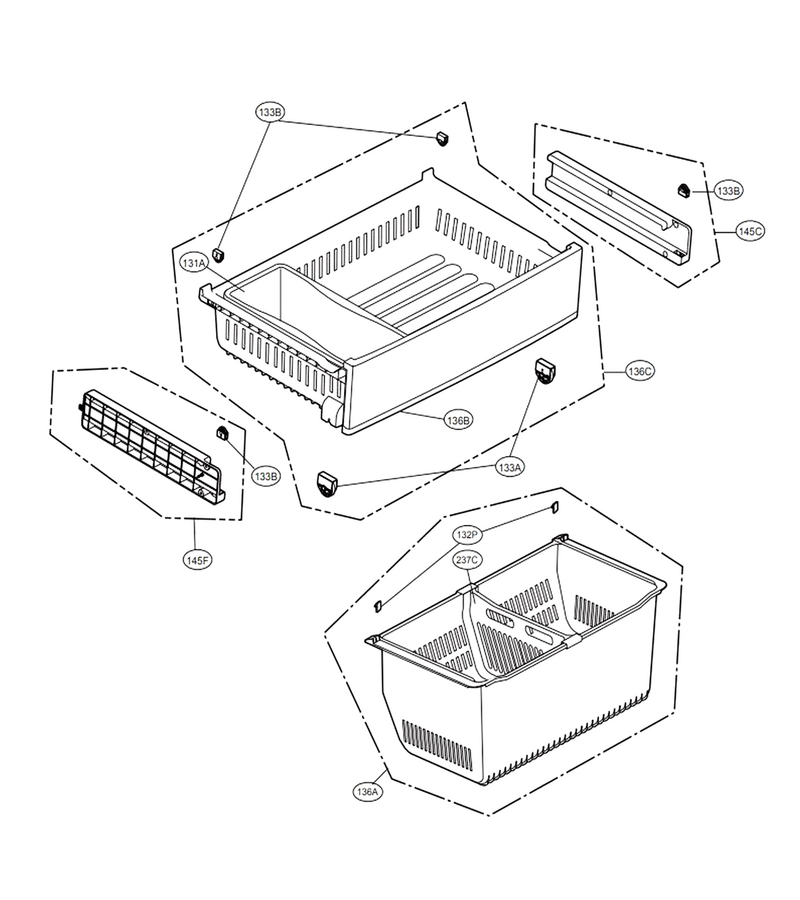

Freezer Parts

...
...
131A
Tray,freezer L-G-MJS62773301
...
132P
Refrigerator Cap L-G-MBL65277501
...
133A
Refrigerator Freezer Tray Roller Wheel L-G-AHJ73329901
...
133B
Home Electronics Roller Assembly L-G-AHJ73349901
...
136A
Refrigerator Freezer Drawer Assembly L-G-AJP73594401
...
136B
Tray Assembly,drawer L-G-AJP73574503
...
136C
Tray Assembly,drawer L-G-AJP73594505
...
145C
Refrigerator Freezer Basket Slide Rail, Right L-G-AEC73617602
...
145F
Refrigerator Freezer Drawer Slide Rail, Left L-G-AEC73617601
...
237C
Refrigerator Pantry Drawer Divider L-G-MEA61842101

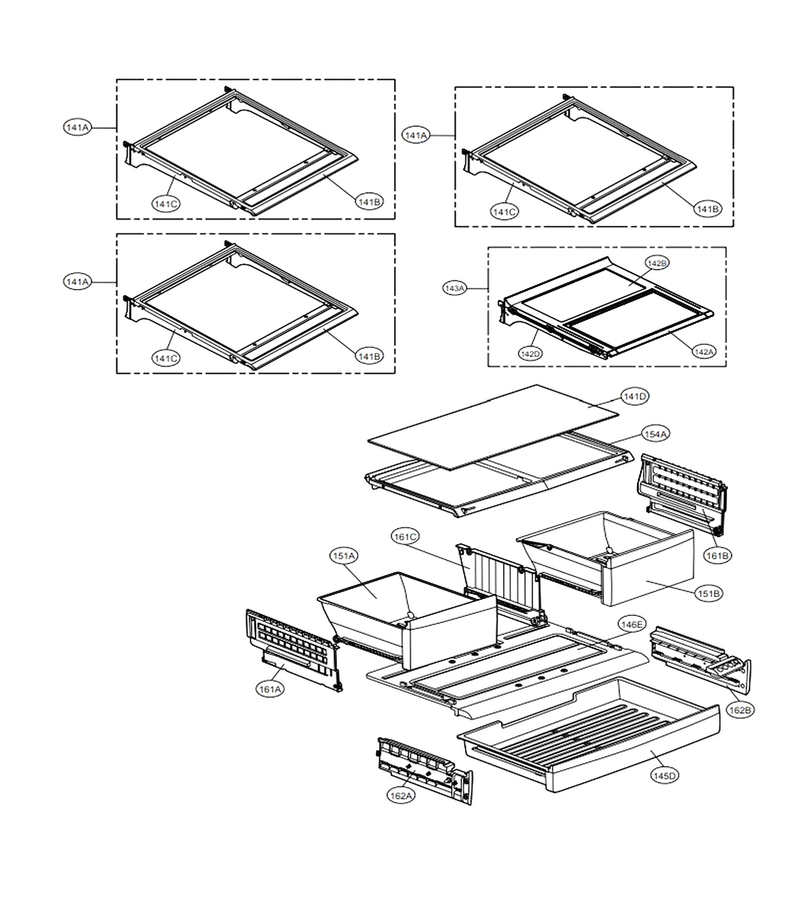

Refrigerator Parts

...
...
141A
Shelf Assembly,refrigerator L-G-AHT73554103
...
141B
Shelf,refrigerator L-G-MHL62551802
...
141C
Shelf,net L-G-MHL62832902
...
141D
Refrigerator Glass Shelf L-G-MHL62691504
...
142A
Refrigerator Shelf Assembly L-G-AHT73454404
...
142B
Refrigerator Shelf Assembly L-G-AHT73454202
...
142D
Shelf Assembly,net L-G-AHT73633802
...
143A
Refrigerator Shelf L-G-AHT73454104
...
145D
Tray Assembly,fresh Room L-G-AJP73574802
...
146E
Cover,tray L-G-MCK67107401
...
151A
Refrigerator Crisper Drawer, Left L-G-AJP73694502
...
151B
Refrigerator Crisper Drawer, Right L-G-AJP73694501
...
154A
Cover Assembly,tv L-G-ACQ85891603
...
161A
Refrigerator Crisper Drawer Track, Left L-G-AEC73637501
...
161B
Refrigerator Drawer Slide Rail L-G-AEC73637502
...
161C
Refrigerator Rail Guide Assembly L-G-AEC73637401
...
162A
Refrigerator Drawer Slide Rail L-G-AEC73597502
...
162B
Guide Assembly,rail L-G-AEC73597504

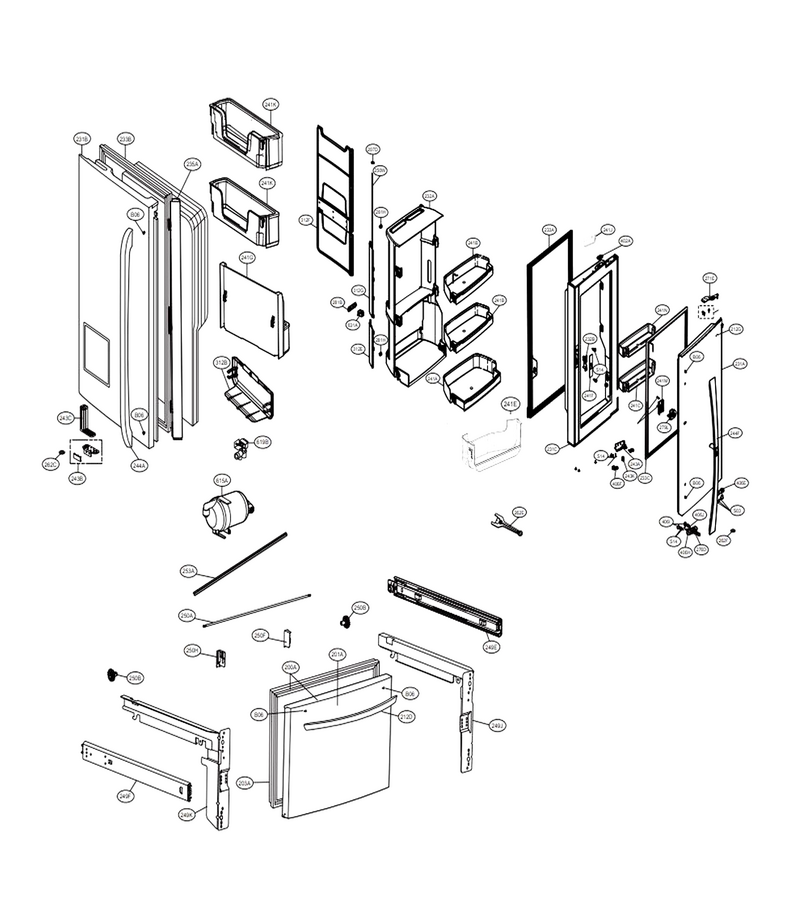

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
S14
Screw,customized L-G-1SZZJQ2014B
...
200A
Door Assembly,freezer L-G-ADC73905518
...
201A
Door Foam Assembly,freezer L-G-ADD73655917
...
203A
Gasket,door L-G-MDS64172919
...
207D
Refrigerator Door Hinge Cover L-G-MBL65077501
...
212D
Name Plate L-G-MFT61866216
...
212G
Name Plate L-G-ADD74296803
...
231A
Door Foam Assembly,refrigerator L-G-ADD73876332
...
231B
Door Foam Assembly,refrigerator L-G-ADD73876324
...
231C
Door Foam Assembly,refrigerator L-G-ADD74296905
...
232A
Case,home Bar L-G-MBN63442501
...
232B
Refrigerator Convenience Door Latch L-G-AEJ73440301
...
233A
Gasket Assembly,door L-G-ADX73550624
...
233B
Gasket Assembly,door L-G-ADX73550621
...
233C
Gasket,home Bar L-G-MDS62152432
...
235A
Plate Assembly,front L-G-AGU74110901
...
241A
Basket,door L-G-MAN63048801
...
241B
Basket,door L-G-MAN63048701
...
241C
Basket,door L-G-MAN63048901
...
241E
Basket,door L-G-MAN63049001
...
241F
Refrigerator Door Lever Cover L-G-MCK67046601
...
241G
Basket Assembly,door L-G-AAP73631807
...
241K
Refrigerator Door Bin L-G-AAP73631702
...
241M
Cover,front L-G-MCK69570701
...
241N
Basket,door L-G-MAN63328201
...
243A
Hinge Assembly,lower L-G-AEH74576201
...
243B
Stopper Assembly,door L-G-AJC73112302
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243K
Bush L-G-MBF62424301
...
244A
Handle Assembly,refrigerator L-G-AED74053001
...
244F
Handle Assembly,refrigerator L-G-AED74053005
...
249E
Refrigerator Freezer Drawer Slide Rail, Right L-G-MGT61844003
...
249F
Refrigerator Freezer Drawer Slide Rail, Left L-G-MGT61844004
...
249J
Connector,rail L-G-MCD62466801
...
249K
Connector,rail L-G-MCD62466802
...
250A
Refrigerator Bar L-G-MAK62627101
...
250B
Refrigerator Ice Gear L-G-MDT62627101
...
250F
Cover Assembly,tray L-G-ACQ85839103
...
250H
Cover Assembly,tray L-G-ACQ85839104
...
250W
Bar L-G-MAK63227001
...
253A
Support Cover L-G-MJH62755901
...
262C
Refrigerator Ring L-G-MGZ62766901
...
262E
Refrigerator Spanner L-G-MHU61981201
...
276D
Spring L-G-MHY63783701
...
279L
Refrigerator Convenience Door Push Button L-G-ABH74399601
...
281B
Refrigerator Decorative Handle L-G-MEB62455901
...
281H
Refrigerator Door Bin Cover Bumper L-G-5040JA3033B
...
312B
Refrigerator Water Reservoir Cover L-G-MCK67107201
...
312E
Cover,home Bar L-G-MCK67979701
...
312F
Cover Assembly,front L-G-ACQ87548802
...
312G
Cover,home Bar L-G-MCK67979601
...
402A
Switch,magnet L-G-EBF62234501
...
406E
Stopper,door L-G-MJB63649801
...
406F
Supporter,door L-G-MJB62890201
...
406H
Holder,button L-G-MEG63660701
...
406I
Cap,handle L-G-MBL65278201
...
406J
Refrigerator Handle Cap L-G-MEG62999601
...
615A
Refrigerator Water Reservoir L-G-AJL72911502
...
619B
Refrigerator Water Inlet Valve L-G-5221JB2010G
...
631A
Holder Assembly L-G-AEJ72914501

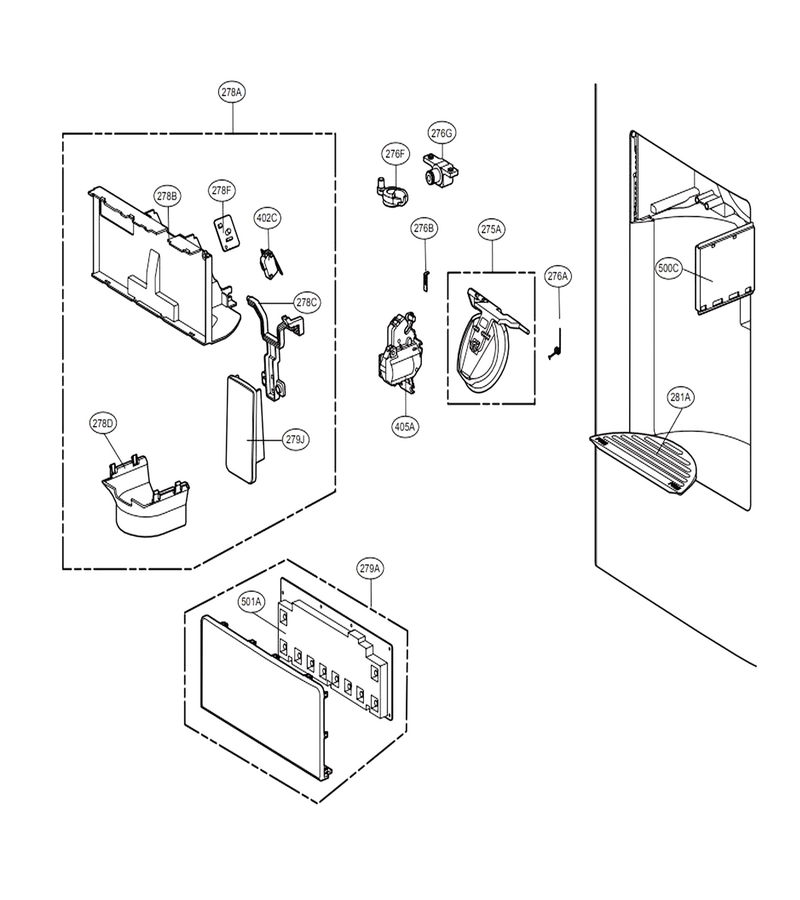

Dispenser Parts

...
...
275A
Cap Assembly,duct L-G-ABN73678305
...
276A
Refrigerator Spring L-G-4970JA3011K
...
276B
Holder Lever L-G-MEG63262301
...
276F
Refrigerator Link L-G-MFF62463201
...
276G
Holder,bracket L-G-MEG63342401
...
278A
Funnel Assembly L-G-ADW73149906
...
278B
Frame,funnel L-G-MDQ62016701
...
278C
Lever,dispenser L-G-MFC62829801
...
278D
Funnel Assembly L-G-ADW73229901
...
278F
Pcb Assembly,display L-G-6871JB2074Q
...
279A
Cover Assembly,display L-G-ACQ86409709
...
279J
Button Assembly L-G-ABH74721001
...
281A
Decor,drain L-G-MCR62346901
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500C
Case Assembly,pcb L-G-ABQ74270602
...
501A
Pcb Assembly,display L-G-EBR60221911

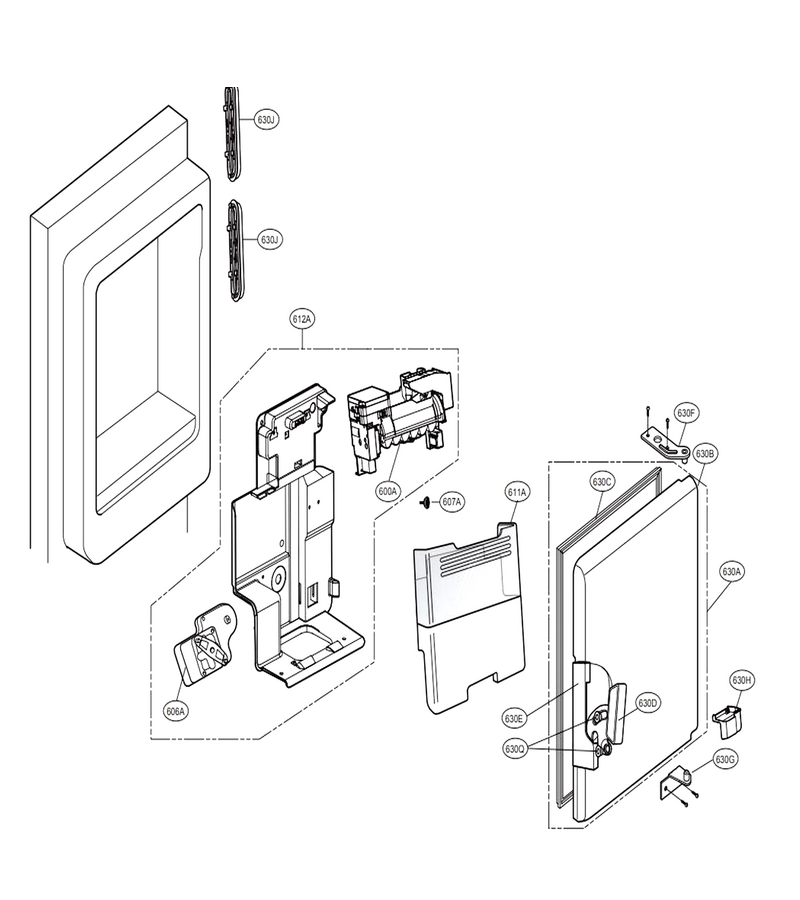

Ice Maker & Ice Bin Parts

...
...
600A
Refrigerator Ice Maker L-G-AEQ73110210
...
606A
Motor, Ac Indoor L-G-EAU61083522
...
607A
Holder Assembly,bracket L-G-4931JA3005A
...
611A
Refrigerator Ice Container Assembly L-G-AKC73249303
...
612A
Motor,ac L-G-EAU61843018
...
630A
Door Assembly,freeze Room L-G-ADC74207901
...
630B
Door Foam Assembly L-G-ADD74016101
...
630C
Gasket,door L-G-MDS64239202
...
630D
Handle L-G-MEB62915403
...
630E
Cover,lever L-G-MCK67584401
...
630F
Refrigerator Hinge Assembly, Upper L-G-AEH74136301
...
630G
Hinge Assembly, Lower L-G-AEH74156201
...
630H
Refrigerator Convenience Door Hinge Cover L-G-MCK67480101
...
630J
Refrigerator Ice Bank Dispenser Seal L-G-ADX73571201
...
630Q
Refrigerator Roller L-G-MHA62652801
