LG 721.SGESEA

Model: 721.SGESEA

Save Part Not Listed?
product name

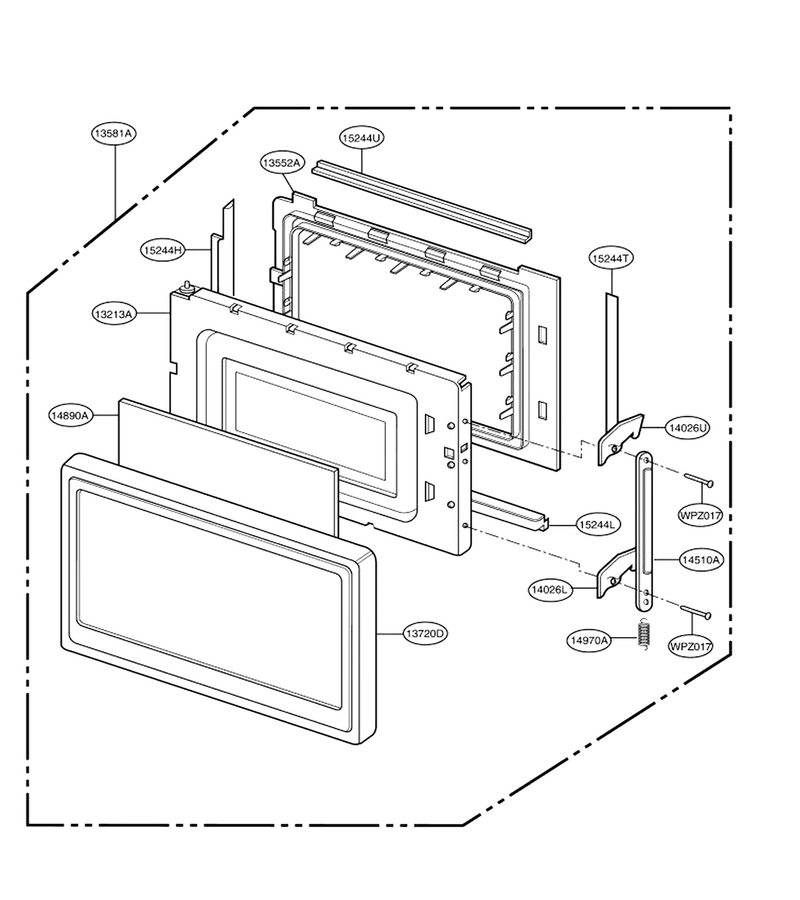

Door Parts

...
...
WPZ017
Pin,customized L-G-4B70898A
...
13213A
Frame Assembly,door L-G-1B71582C
...
13552A
Cover,choke L-G-1B71371A
...
13581A
Door Assembly L-G-3581W1A147A
...
13720D
Panel,door L-G-3720W1D025B
...
14026L
Locker L-G-3B71930A
...
14026U
Locker L-G-3B71929A
...
14510A
Lever L-G-3B72692A
...
14890A
Window,glass L-G-4890W2D010T
...
14970A
Spring L-G-4B73100A
...
15244H
Gasket L-G-4B74139B
...
15244L
Gasket L-G-4B74141B
...
15244T
Gasket L-G-4B74140B
...
15244U
Gasket L-G-4B74142B

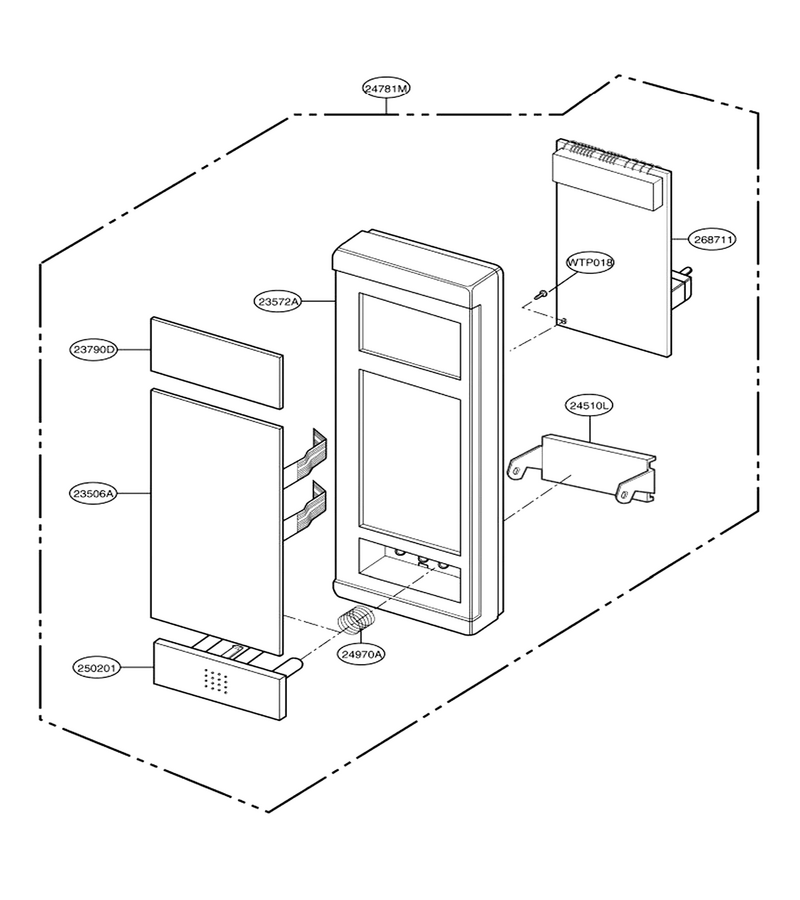

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-6638W2A134A
...
23572A
Panel,control L-G-3572W1A043B
...
23790D
Window,display L-G-3790W3D009B
...
24510L
Lever L-G-3B73251A
...
24781M
Controller Assembly,keypad L-G-4781W1M160H
...
24970A
Spring L-G-4B72388A
...
250201
Button L-G-5020W3G044E
...
268711
Pcb Assembly,sub L-G-5247W2YS76A

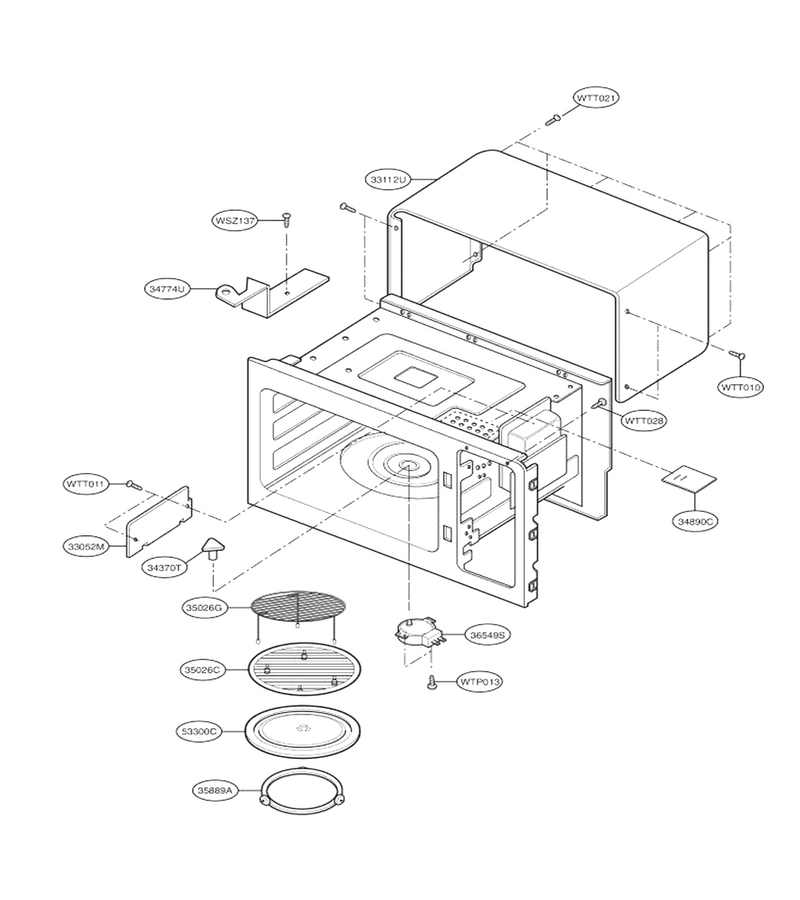

Oven Cavity Parts

...
...
WSZ137
Screw L-G-4B73763A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT011
Microwave Tapping Screw L-G-1TTG0402632
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
33052M
Cover,insulator L-G-4B73904A
...
33112U
Case,u Bending L-G-0B71047G
...
34370T
Shaft,turntable L-G-4B75372A
...
34774U
Bracket,hinge L-G-4B73896A
...
34890C
Window,glass L-G-4B72492A
...
35026C
Shelf L-G-1B72025B
...
35026G
Shelf L-G-5026W1A035B
...
35889A
Cover,insulator L-G-4B73904A
...
36549S
Motor, Ac Synchronous L-G-2B71932D
...
53300C
Tray,ceramic L-G-1B72060A

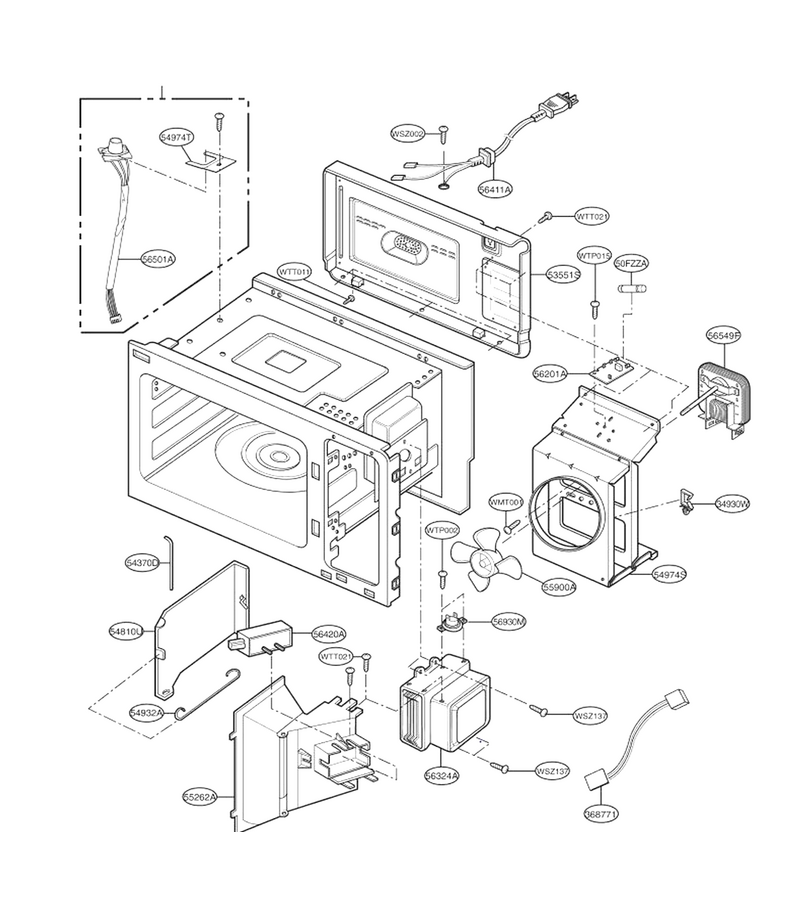

Oven Interior Parts (1)

...
...
WMT001
Screw,machine L-G-1MTC0402418
...
WSZ002
Screw L-G-1MTC0402432
...
WSZ137
Screw L-G-4B73763A
...
WTP002
Screw L-G-1TPL0302018
...
WTP015
Microwave Screw L-G-1TPL0402618
...
WTT011
Microwave Tapping Screw L-G-1TTG0402632
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4B72944B
...
53551S
Cover Assembly,heater L-G-1B71586C
...
54370D
Shaft,damper L-G-4B74088B
...
54810U
Bracket,damper L-G-4B75026A
...
54932A
Bar L-G-4B74087A
...
54974S
Guide,suction L-G-4974W2S015A
...
54974T
Bracket,idle L-G-4810W4G063A
...
55262A
Duct L-G-1B72015A
...
55900A
Blower Fan L-G-2B72279B
...
56324A
Magnetron L-G-2B71165E
...
56411A
Power Cord Assembly L-G-2B72325E
...
56420A
Solenoid L-G-6420W3S001C
...
56501A
Sensor Assembly L-G-6501W2A006A
...
56549F
Motor,ac Fan L-G-2B72294A
...
56930M
Thermostat L-G-6930WRT003A
...
368771
Single Harness L-G-4B73008D

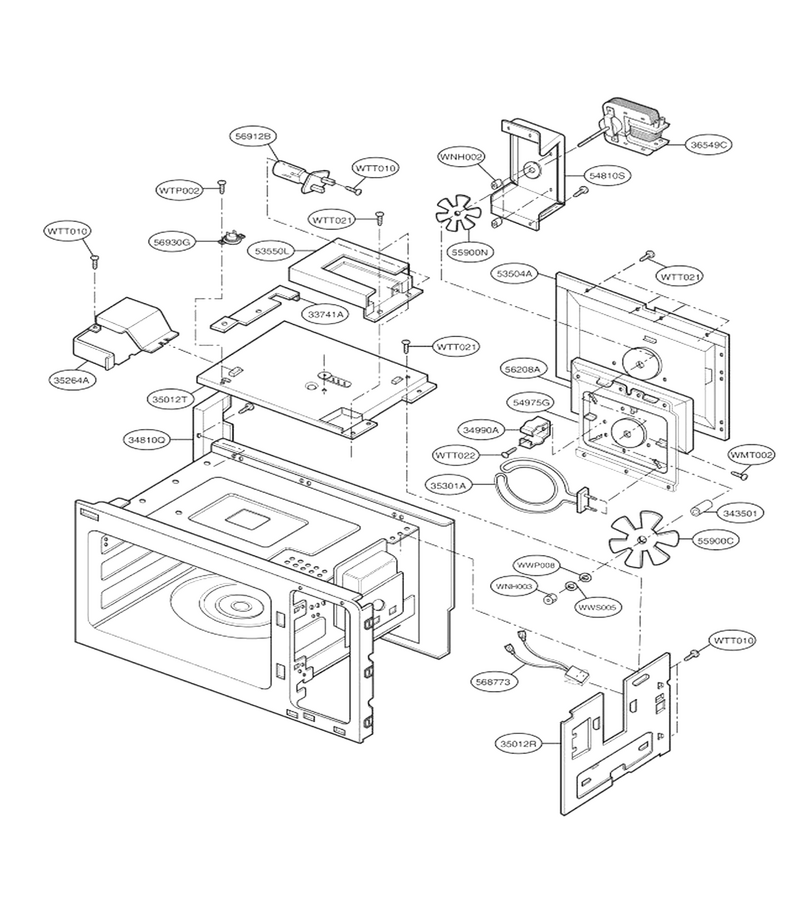

Oven Interior Parts (2)

...
...
WMT002
Screw L-G-1MTC0402432
...
WNH002
Nut L-G-1NHA0400018
...
WTP002
Screw L-G-1TPL0302018
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
WWP008
Washer L-G-1WPL0500032
...
WWS005
Washer L-G-1WSD0400032
...
33741A
Supporter Assembly L-G-3B73691A
...
34810Q
Bracket,mount L-G-2B72369A
...
34990A
Supporter L-G-4B73754A
...
35012R
Insulator Assembly L-G-1B72119B
...
35012T
Insulator Assembly L-G-1B71367C
...
35264A
Guide,air L-G-2B72122B
...
35301A
Guide,air L-G-2B72122B
...
36549C
Motor,ac L-G-2B72066F
...
53504A
Chamber L-G-1B71278A
...
53550L
Cover,lamp L-G-3B73601A
...
54810S
Cover Assembly,heater L-G-1B71586C
...
54975G
Chamber Assembly L-G-1B71513A
...
55900C
Fan Blade L-G-3B72561A
...
55900N
Fan Blade L-G-3B72559A
...
56208A
Insulator L-G-2B72302A
...
56912B
Lamp,incandescent L-G-3B71543J
...
56930G
Thermostat L-G-6930W3A001B
...
343501
Ring Shaft L-G-4B73725A
...
568773
Harness,single L-G-6877W3T080A

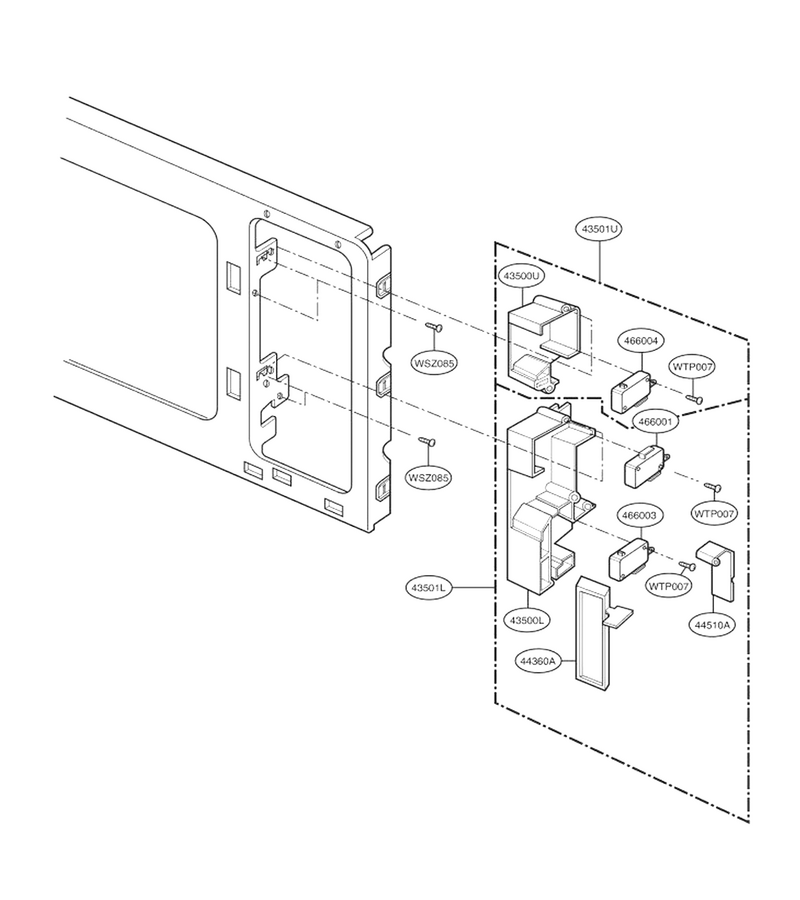

Switches Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTP007
3.0x16mm Tap L-G-1TPL0303118
...
43500L
Holder,locker L-G-3B72853A
...
43500U
Holder,locker L-G-3B71933A
...
43501L
Holder Assembly,locker L-G-3B72938B
...
43501U
Holder Assembly,locker L-G-3B72277G
...
44360A
Bar L-G-4B74858A
...
44510A
Lever L-G-4B70698A
...
466001
Microwave Door Interlock Switch L-G-3B73361D
...
466003
Switch,micro L-G-3B73362A
...
466004
Microwave Micro Switch L-G-3B73362F

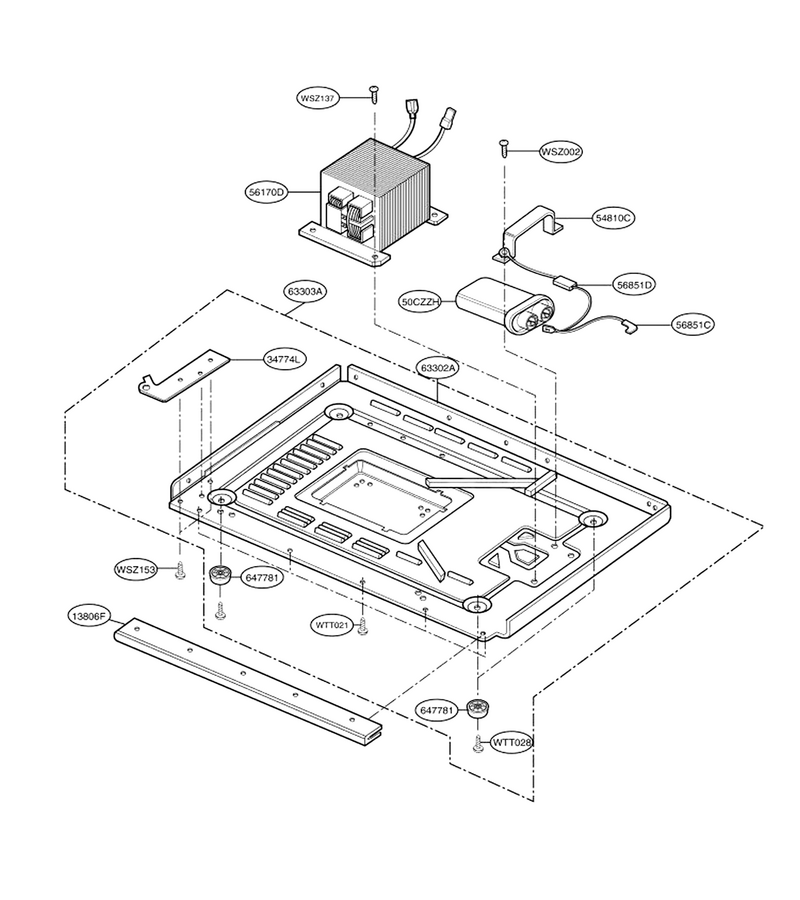

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ137
Screw L-G-4B73763A
...
WSZ153
Screw,customized L-G-4B75265A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Capacitor,high Voltage L-G-6120W3H003F
...
13806F
Decor,front L-G-3B70060D
...
34774L
Bracket,hinge L-G-4B73895A
...
54810C
Bracket,capacitor L-G-4B75031A
...
56170D
Transformer,high Voltage L-G-6010W2H070B
...
56851C
Harness,single L-G-6861W3A001B
...
56851D
Cable,assembly L-G-6021W3B001C
...
63302A
Plate,base L-G-0B70792A
...
63303A
Plate Assembly,base L-G-0B70876A
...
647781
Foot L-G-4B73900A

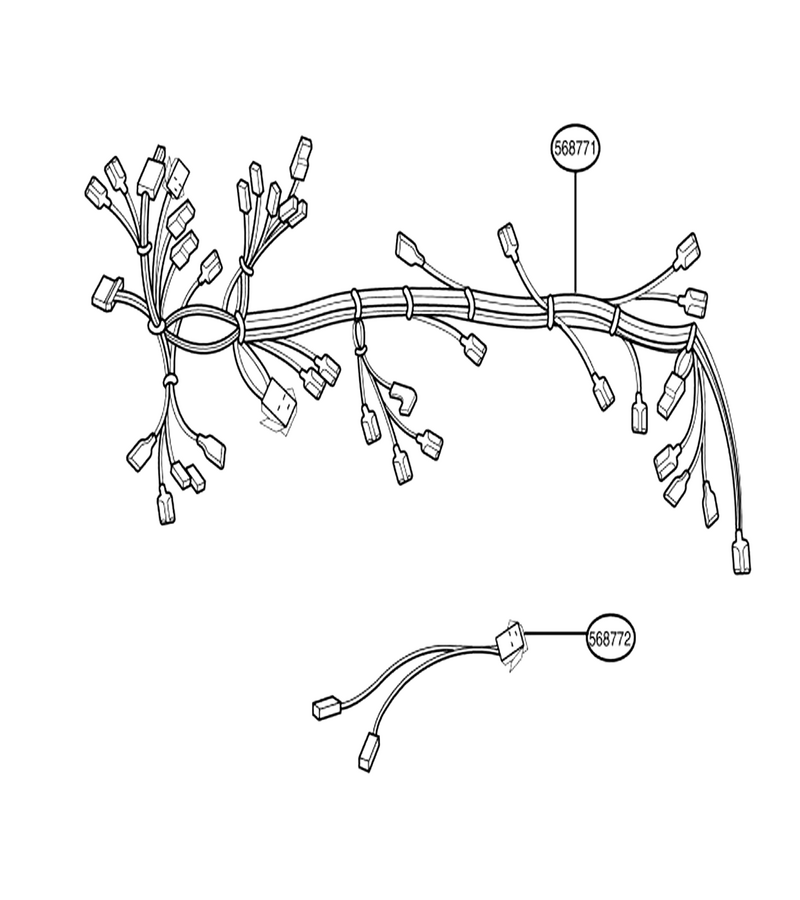

Wiring Harness Parts

...
...
568771
Single Harness L-G-6877W1A014A
