LG 721.SBESEA

Model: 721.SBESEA

Save Part Not Listed?
product name

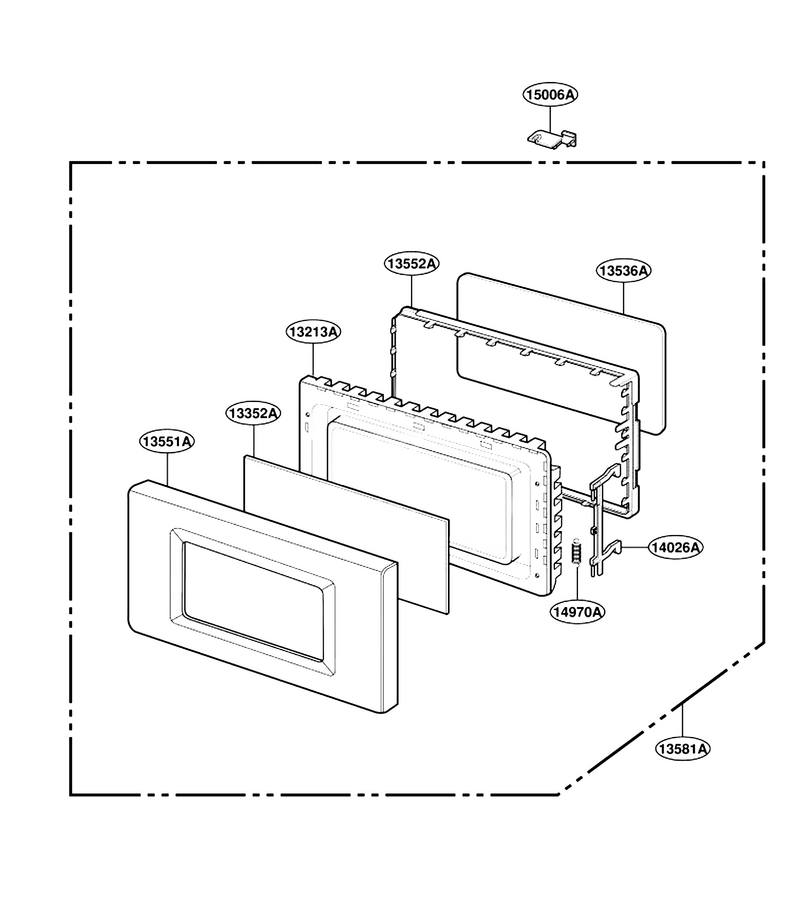

Door Parts

...
...
13213A
Microwave Door Frame L-G-3213W0A001G
...
13352A
Window,screen L-G-3352W1A092L
...
13536A
Seal Tape L-G-3536WRA001Q
...
13551A
Cover L-G-3581W1A194M
...
13552A
Microwave Choke Cover L-G-3552W1A035A
...
13581A
Door Assembly L-G-3581W1A194Z
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001B

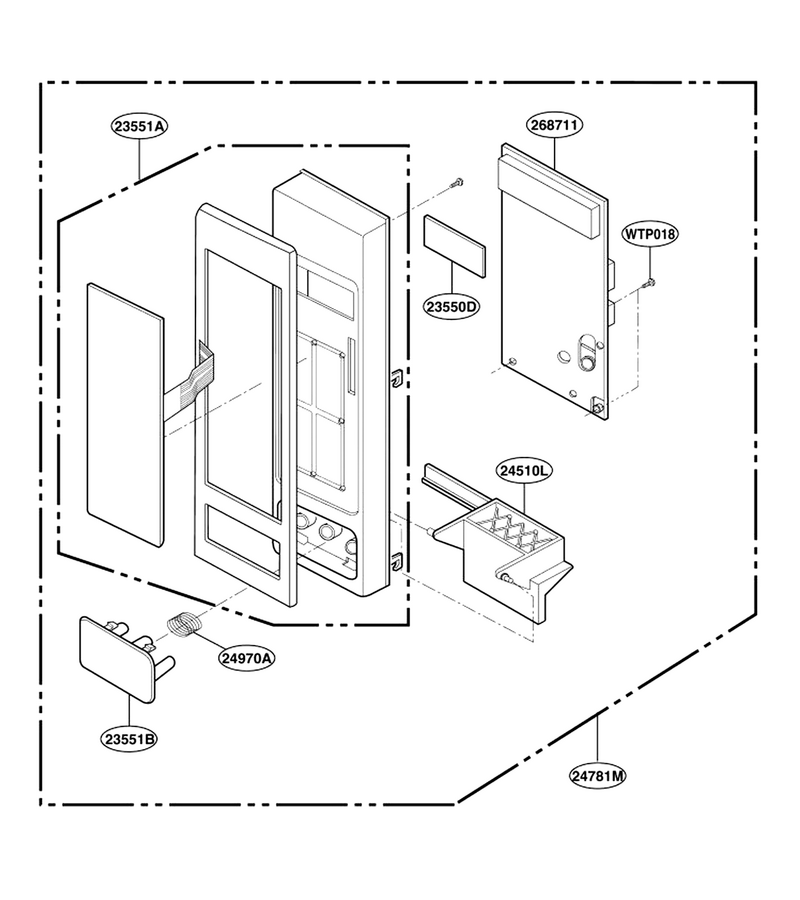

Controller Parts

...
...
23550D
Microwave Cover L-G-3550W4A029B
...
23551A
Parts Assembly L-G-383EW5A023A
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,keypad L-G-4781W1M229H
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
268711
Pcb Assembly,sub L-G-6871W2S125Z

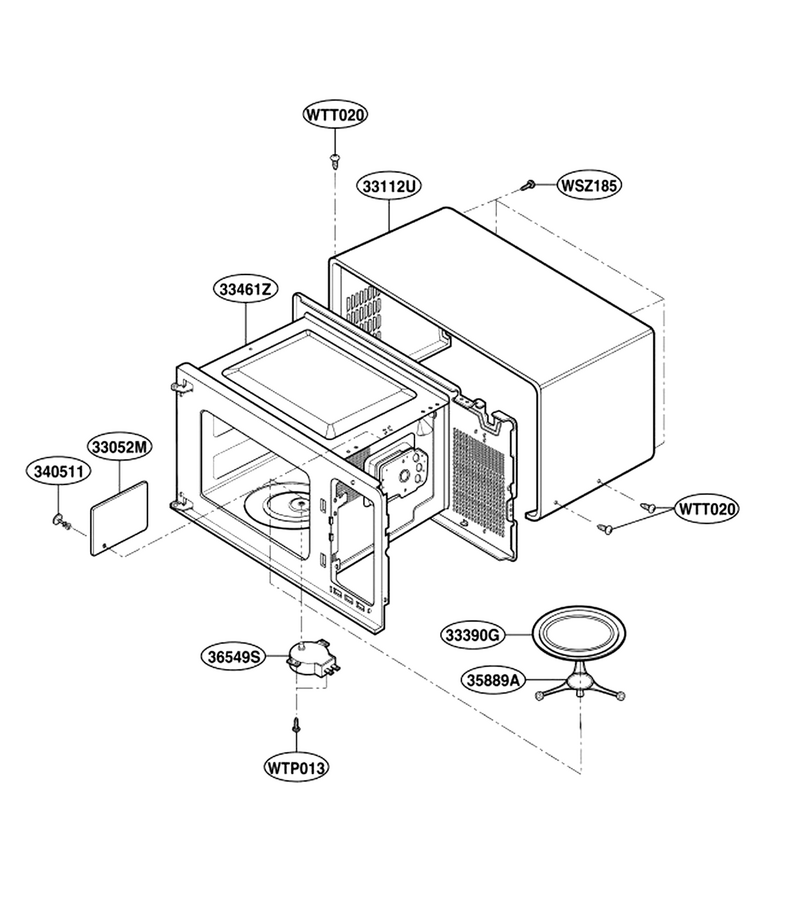

Oven Cavity Parts

...
...
33052M
Cover,insulator L-G-3052W3M011C
...
33112U
Case,u Bending L-G-3112W0U028K
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G009C
...
33461Z
Cavity Assembly,coating L-G-3461W1A052C
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011B
...
36549S
Microwave Turntable Motor L-G-6549W1S011A
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

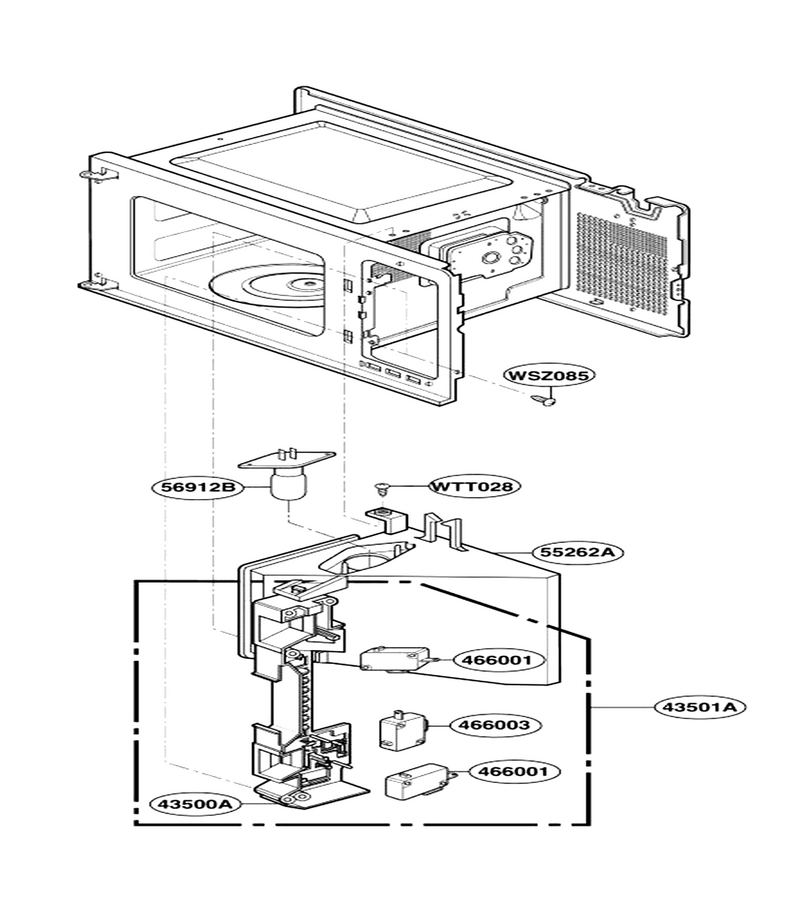

Latch Board Parts

...
...
43500A
Holder,locker L-G-3500W1A004A
...
43501A
Holder Assembly,locker L-G-3501W1A003H
...
55262A
Duct L-G-5262W2A043B
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

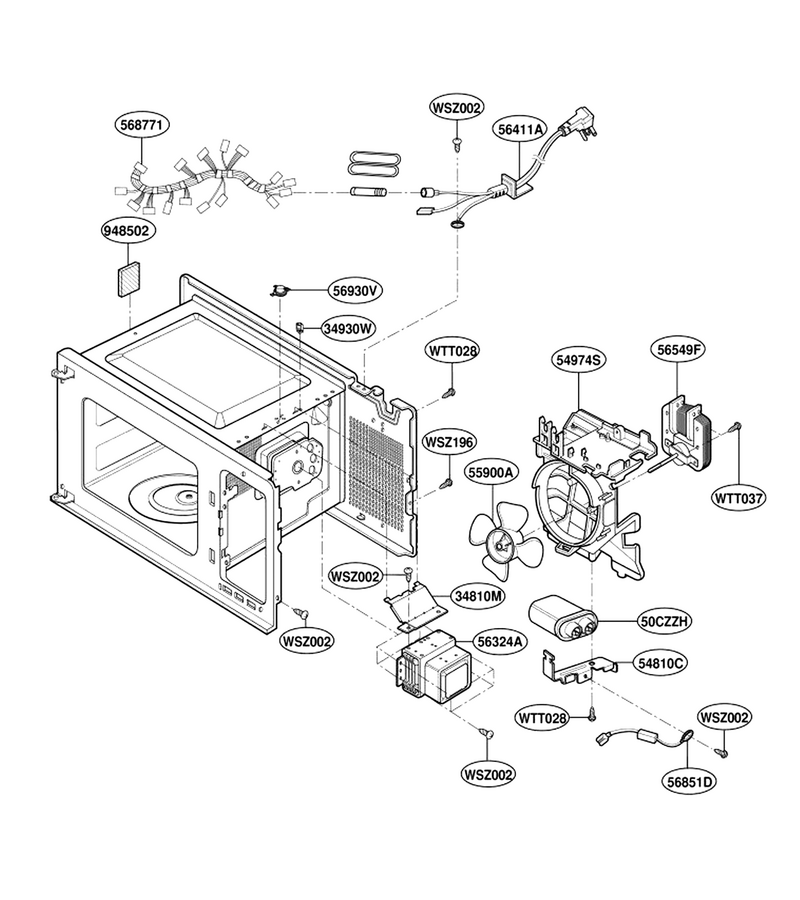

Oven Interior Parts

...
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
34810M
Bracket L-G-4810W2G052A
...
34930W
Holder L-G-4930W3B029A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-2B72667H
...
56549F
Motor L-G-6549W1F001E
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Lead Wire L-G-6877W1A187D
...
948502
Damper L-G-4B73438K

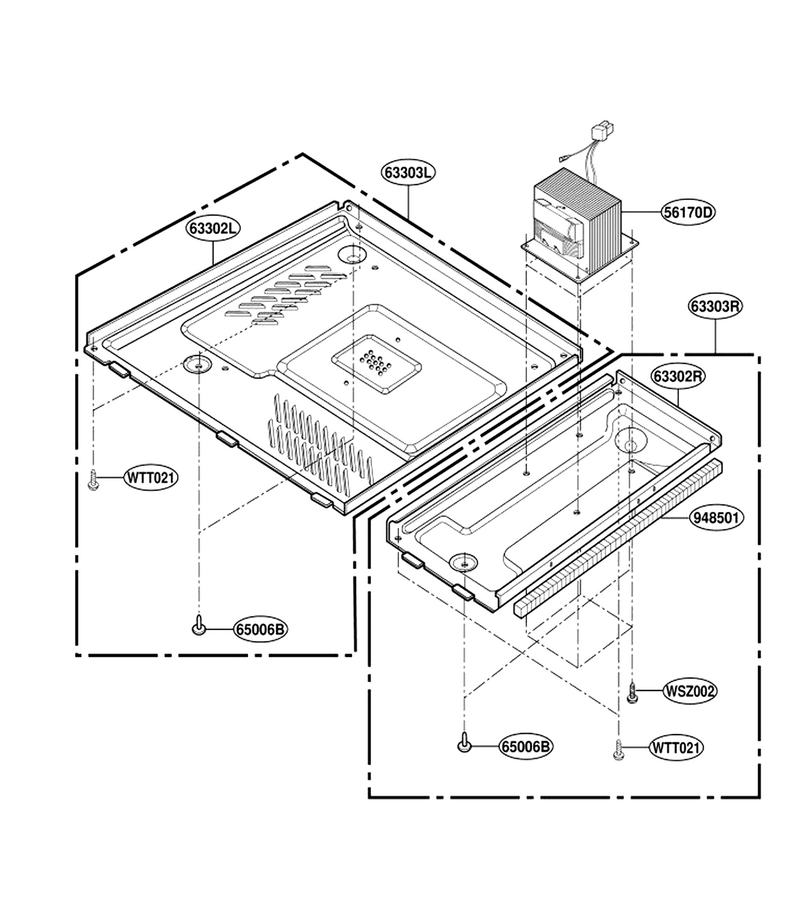

Base Plate Parts

...
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023B
...
63302L
Plate L-G-3302W0A014A
...
63302R
Base Plate L-G-3302W1A046B
...
63303L
Plate Assembly L-G-3303W0A010A
...
63303R
Base Plate L-G-3303W1A040B
...
65006B
Cap L-G-5006W3A016B
...
948501
Cushion L-G-3B72245D

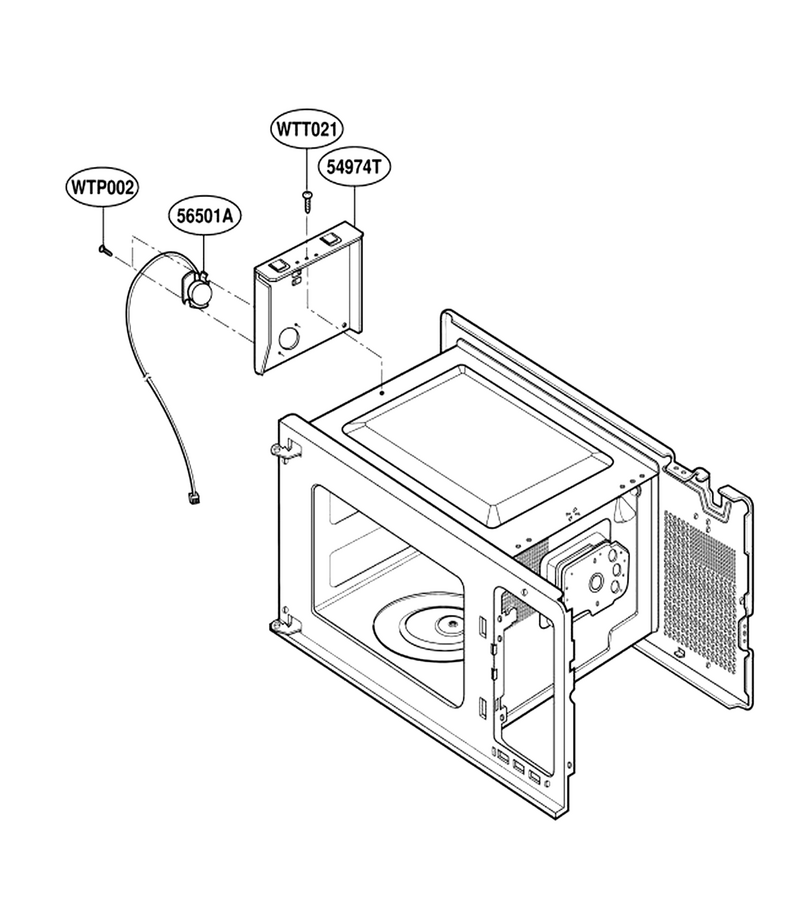

Sensor Parts

...
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
