LG 721.APOESRS

Model: 721.APOESRS

Save Part Not Listed?
product name

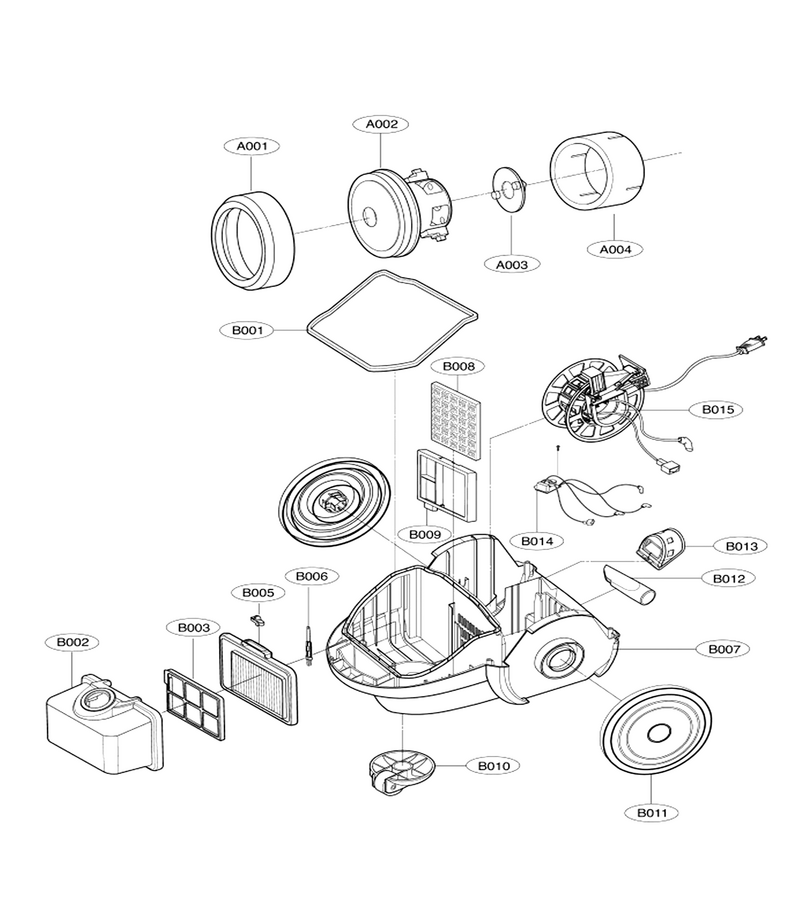

Main

...
...
A001
Damper,motor Mount L-G-3920FI3794A
...
B015
Reel Assembly L-G-4687FI3002A
...
B014
Pcb Assembly,main L-G-6871FX2168G
...
B013
Holder,cord L-G-4930FI3823D
...
B012
Nozzle,crevice L-G-3I21007T
...
B011
Wheel L-G-4660FI2428D
...
B010
Roller Assembly L-G-4441FI3605Y
...
B009
Supporter,filter L-G-4980FI3805B
...
B008
Filter,motor Safety L-G-5230FI3770B
...
B006
Brush Assembly,filter L-G-5203FI3766A
...
A002
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2373G
...
A003
Gasket L-G-3920FI4653B
...
A004
Damper,absorbing L-G-4I23008B
...
B001
Gasket L-G-3920FI4718W
...
B002
Tank,dust L-G-4838FI1430A
...
B003
Supporter,filter L-G-4980FI1447B
...
B005
Filter Assembly,clean L-G-5231FI2516A
...
B007
Base,body L-G-3040FI1523D

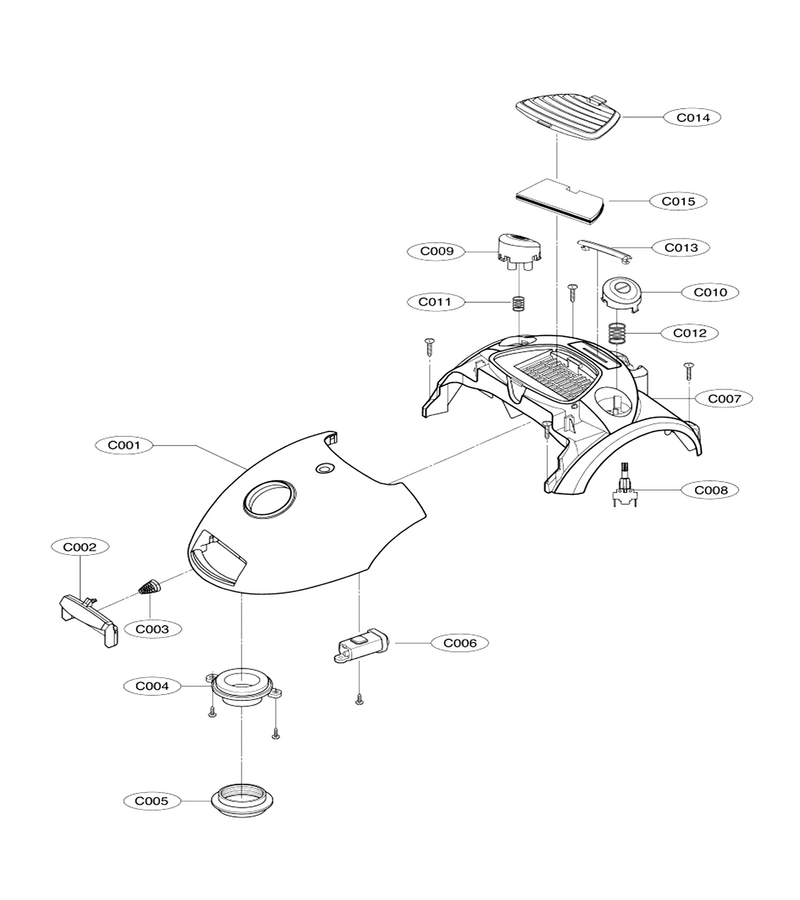

Cover Assembly Body 1

...
...
C015
Filter,exhaust L-G-5230FI3783A
...
C001
Cover,filter L-G-3550FI1754Q
...
C014
Cover,exhaust Filter L-G-3550FI2596D
...
C013
Cover,hole L-G-3550FI4674A
...
C012
Spring,coil L-G-4I70024A
...
C011
Spring,coil L-G-4970FI4482S
...
C010
Button,control L-G-5020FI2358F
...
C009
Button,cord Reel L-G-MBG30132403
...
C008
Switch,push Button L-G-6601FI3149C
...
C007
Cover,body L-G-3550FI1753E
...
C006
Indicator Assembly L-G-3521FI3703X
...
C005
Gasket L-G-3920FI3734A
...
C004
Ring,connector L-G-4350FI3778L
...
C003
Spring,coil L-G-4970FI4570A
...
C002
Locker L-G-4026FI3689P

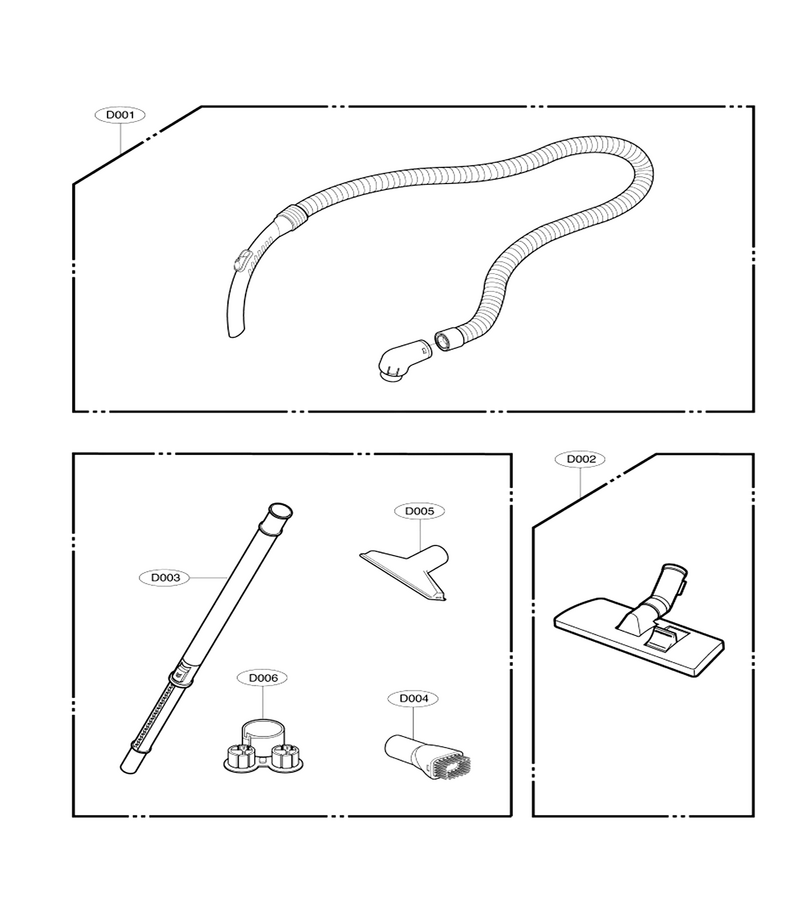

Cover Assembly Body 2

...
...
D002
Nozzle Assembly,floor L-G-5249FI2449R
...
D003
Pipe Assembly L-G-5063FI2350C
...
D004
Brush Assembly,dust L-G-5202FI3474B
...
D005
Nozzle Assembly,upholstery L-G-5248FI2259C
...
D006
Holder,accessory L-G-4930FI2457B
