product name

LG 71329.AWBCSE0

Model: 71329.AWBCSE0

Save Part Not Listed?
product name

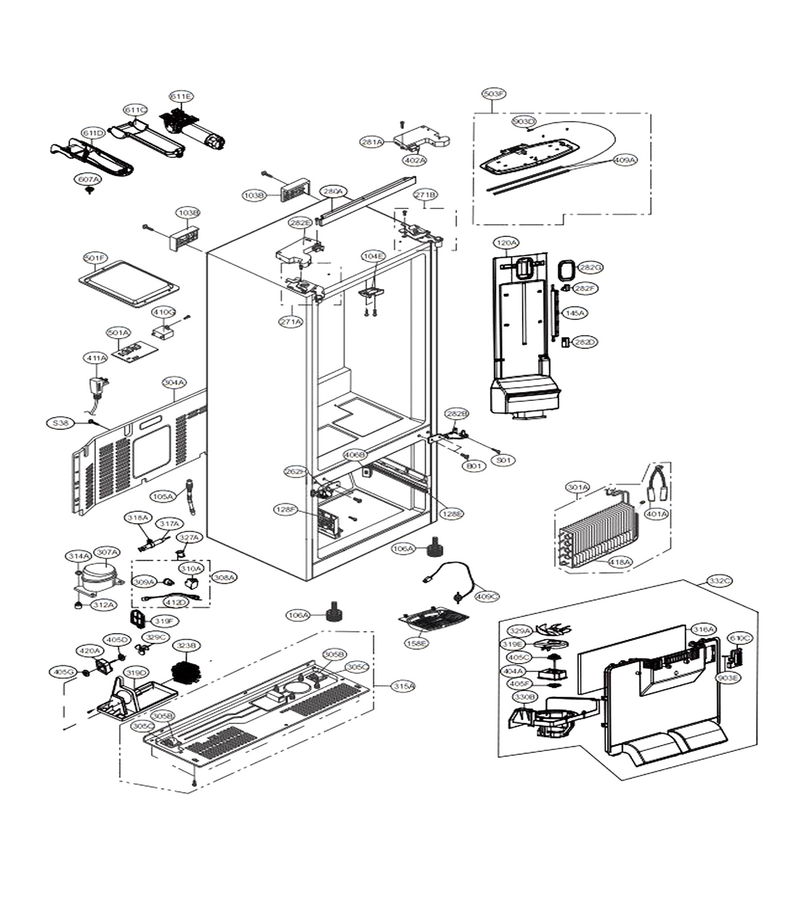

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
120A
Duct Assembly,multi L-G-ADJ73712910
...
262H
Hinge Assembly,center L-G-AEH73856223
...
280A
Cover Assembly,display L-G-ACQ86045311
...
281A
Cover Assembly,hinge L-G-ACQ87133812
...
282B
Hinge Assembly,center L-G-AEH73856224
...
282E
Cover Assembly,hinge L-G-ACQ87133805
...
282G
Decor,cover L-G-MCR65017201
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA35271201
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810802
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Condenser Assembly,wire L-G-ACG73766708
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
330B
Shroud,freezer L-G-MHN62322002
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Motor L-G-5040JA2009A
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Power Cord Assembly L-G-EAD61445228
...
418A
Heater,sheath L-G-5300JB1100R
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Pcb Assembly,main L-G-EBR77042513
...
607A
Refrigerator Holder Assembly L-G-AEJ73579702
...
611C
Cover,filter L-G-MCK66668501
...
611E
Filter Assembly,water L-G-ADQ36763415
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804

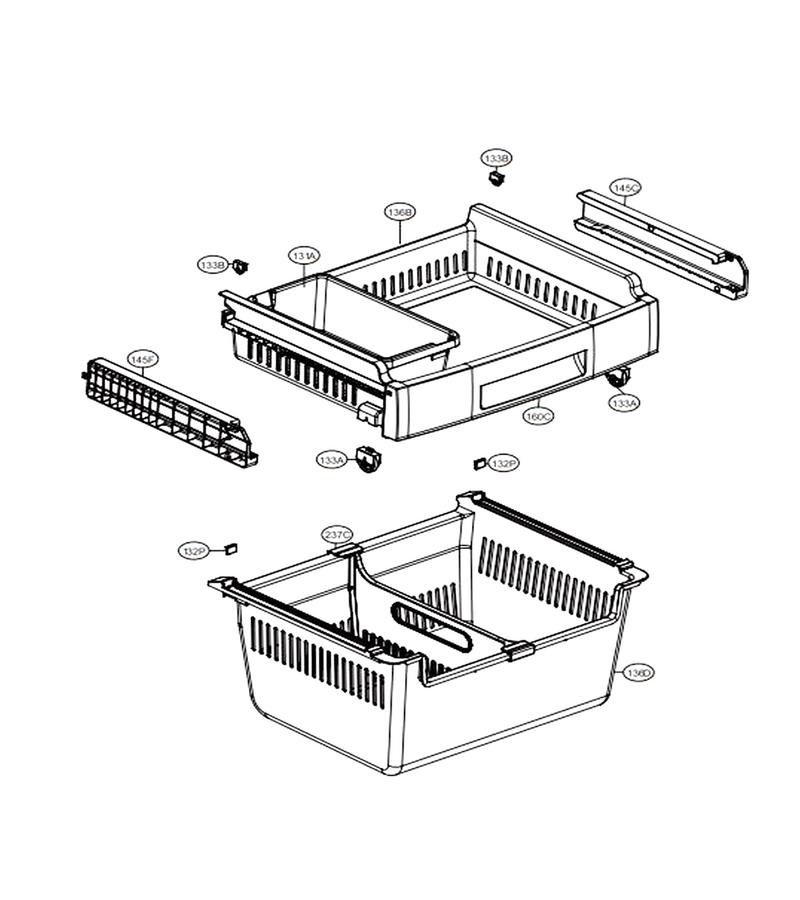

Freezer Parts

...
...
136D
Tray,drawer L-G-MJS62813501
...
160C
Decor,tray L-G-MCR65086401

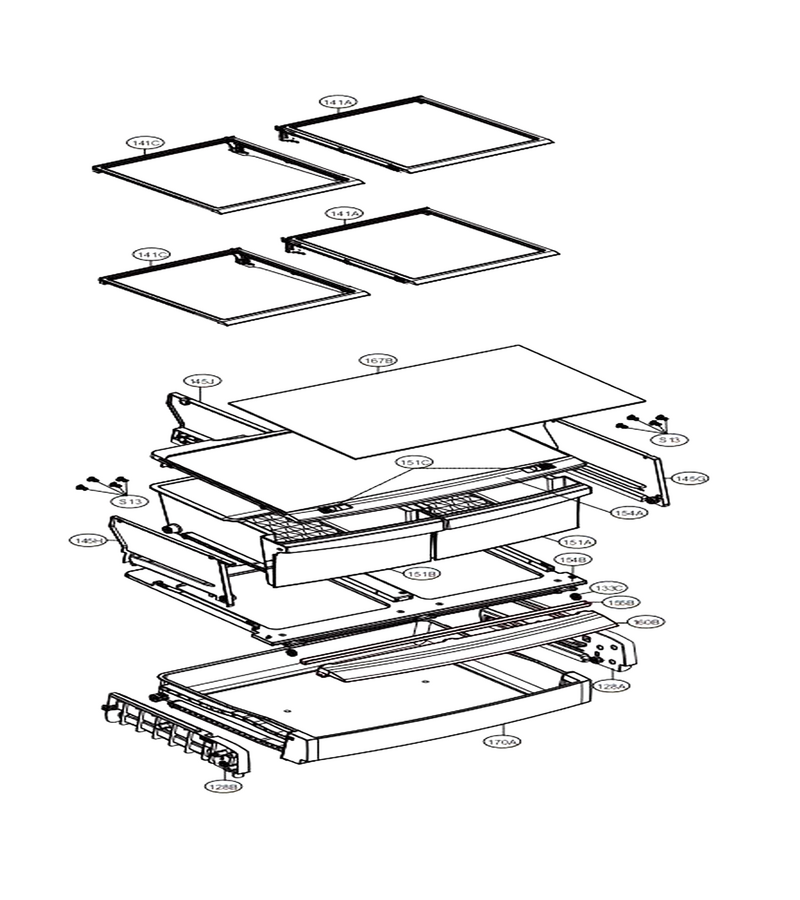

Refrigerator Parts

...
...
S13
Refrigerator Screw L-G-1SBZJA3004L
...
141C
Shelf Assembly,refrigerator L-G-AHT73595404
...
141A
Shelf Assembly,refrigerator L-G-AHT73595403
...
154A
Cover Assembly,tv L-G-ACQ86594202
...
170A
Tray Assembly,fresh Room L-G-AJP73816202

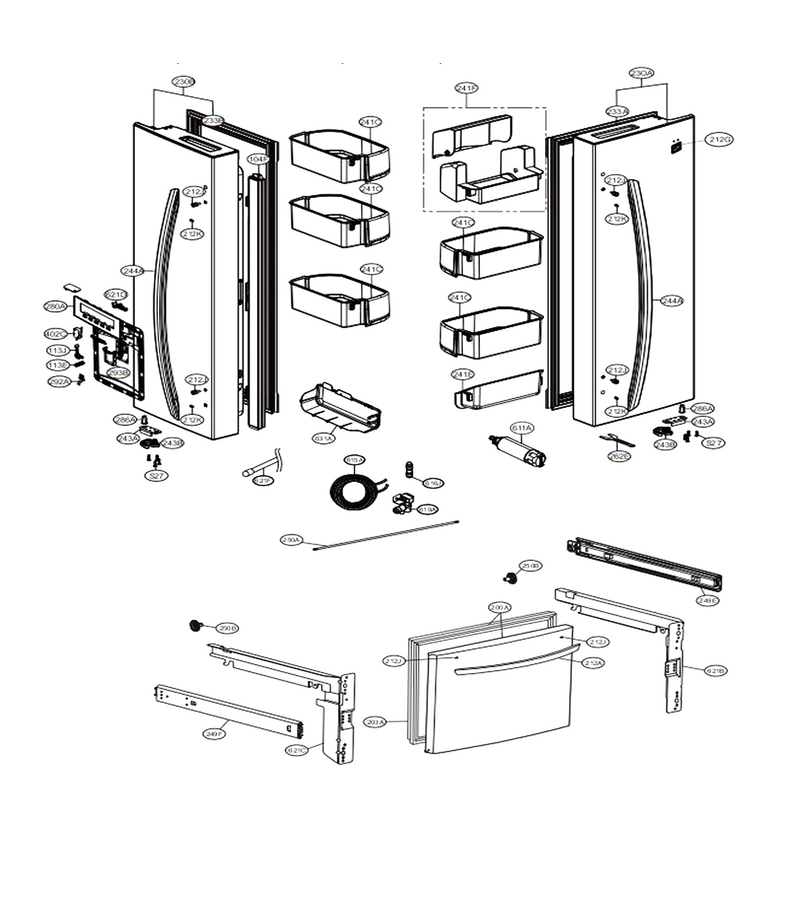

Door Parts

...
...
S27
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
104F
Plate Assembly,front L-G-AGU73767914
...
113E
Spring L-G-MHY62644402
...
200A
Door Assembly,freezer L-G-ADC74207342
...
203A
Gasket Assembly,door L-G-ADX73350935
...
212A
Handle Assembly,freezer L-G-AED73593002
...
212K
Screw,set L-G-FAB30138104
...
212G
Name Plate L-G-MFT61866217
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734343
...
230B
Door Assembly,refrigerator(left) L-G-ADC73746424
...
233A
Gasket Assembly,door L-G-ADX73350623
...
233B
Gasket Assembly,door L-G-ADX73350624
...
243A
Stopper,door L-G-MJB63010703
...
244A
Handle Assembly,refrigerator L-G-AED73592902
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
280A
Cover Assembly,display L-G-ACQ86045311
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
292A
Harness Assembly L-G-6877JB2181F
...
293B
Button,frame L-G-MBG64642701
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
611A
Filter Assembly,water L-G-ADQ36006114
...
615A
Refrigerator Water Tank L-G-4838JA2003E
...
616J
Connector,tube L-G-4932JA3009H
...
619A
Valve,water L-G-MJX57597703
...
621D
Tube,inject L-G-MJU63226401
...
621F
Tube Assembly,ice Water L-G-AJR74082504
...
621C
Connector,rail L-G-MCD61841107
...
631A
Cover,front L-G-MCK67966501

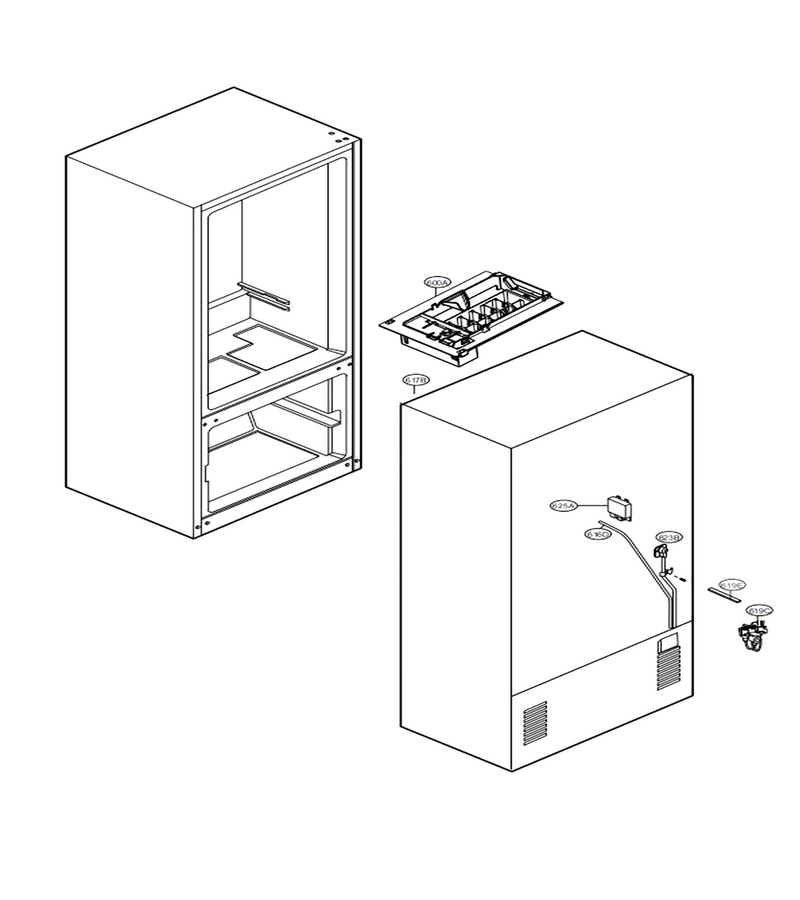

Ice Maker Parts

...
...
616D
Tube Assembly,ice Water L-G-AJR74082503
...
617B
Spring L-G-4970JA3004P
...
619C
Valve Assembly,water L-G-AJU73672505
...
619E
Refrigerator Gasket L-G-5400JJ2042P
...
623B
Cap,cover L-G-MBL67039201
...
625A
Cover,tube L-G-MCK69290701
