product name

LG 71314.ABICSE4

Model: 71314.ABICSE4

Save Part Not Listed?
product name

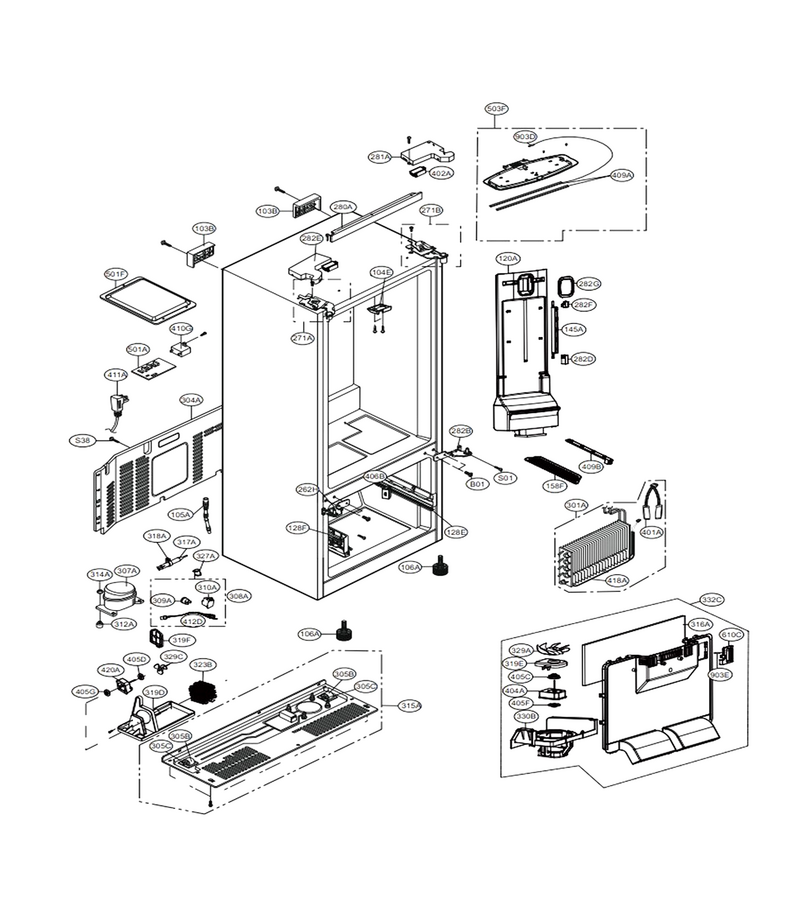

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
103B
Handle,rear L-G-MEB64014301
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
120A
Duct Assembly,multi L-G-ADJ73712909
...
128E
Holder Assembly L-G-AEJ74940602
...
128F
Holder,rail L-G-MEG64760002
...
158F
Cover,lamp L-G-MCK69348401
...
262H
Refrigerator Door Hinge L-G-AEH71135340
...
280A
Case Assembly,display L-G-ABQ75822420
...
281A
Cover,hinge L-G-MCK67400407
...
282G
Decor,cover L-G-MCR65017201
...
282E
Cover,hinge L-G-MCK67400408
...
282B
Refrigerator Door Hinge, Center L-G-AEH71135338
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA36691603
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810801
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
330B
Shroud,freezer L-G-MHN62322002
...
332C
Grille Assembly,fan L-G-AEB73865905
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
404A
Motor,dc L-G-EAU63103209
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405G
Refrigerator Motor L-G-5040JA2009A
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
409B
Refrigerator Led Light L-G-EAV61652805
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
411A
Power Cord Assembly L-G-EAD61445253
...
420A
Motor,dc L-G-EAU63103202
...
501A
Pcb Assembly,main L-G-EBR81182783
...
610C
Cover,sensor L-G-MCK66690301
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

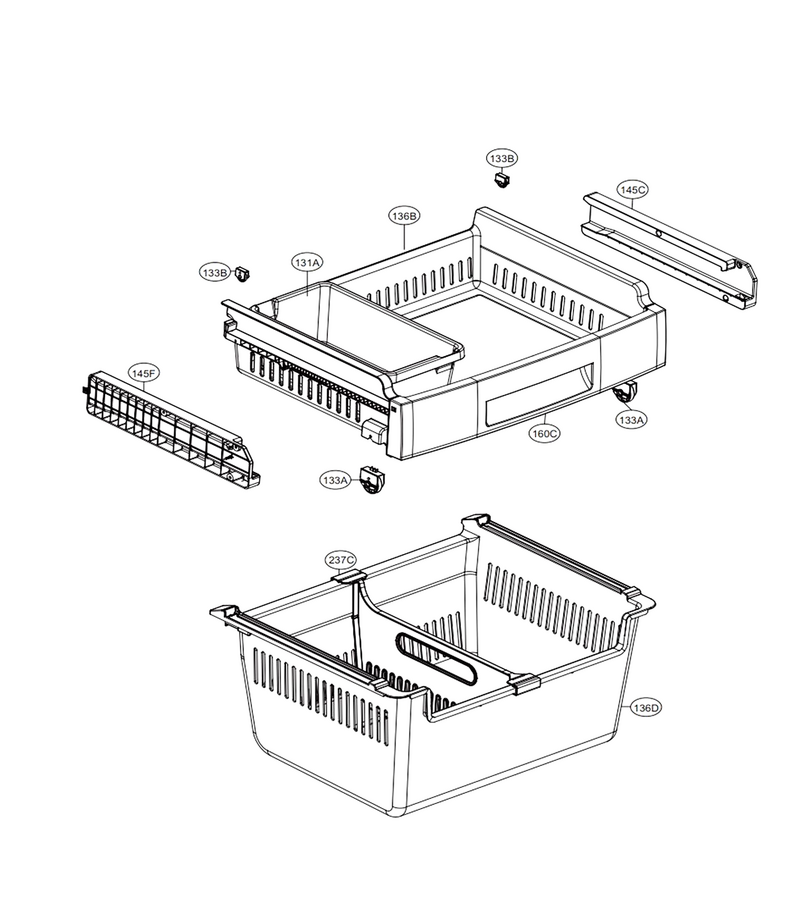

Freezer Parts

...
...
136D
Tray,drawer L-G-MJS62773501
...
160C
Decor,tray L-G-MCR65086405

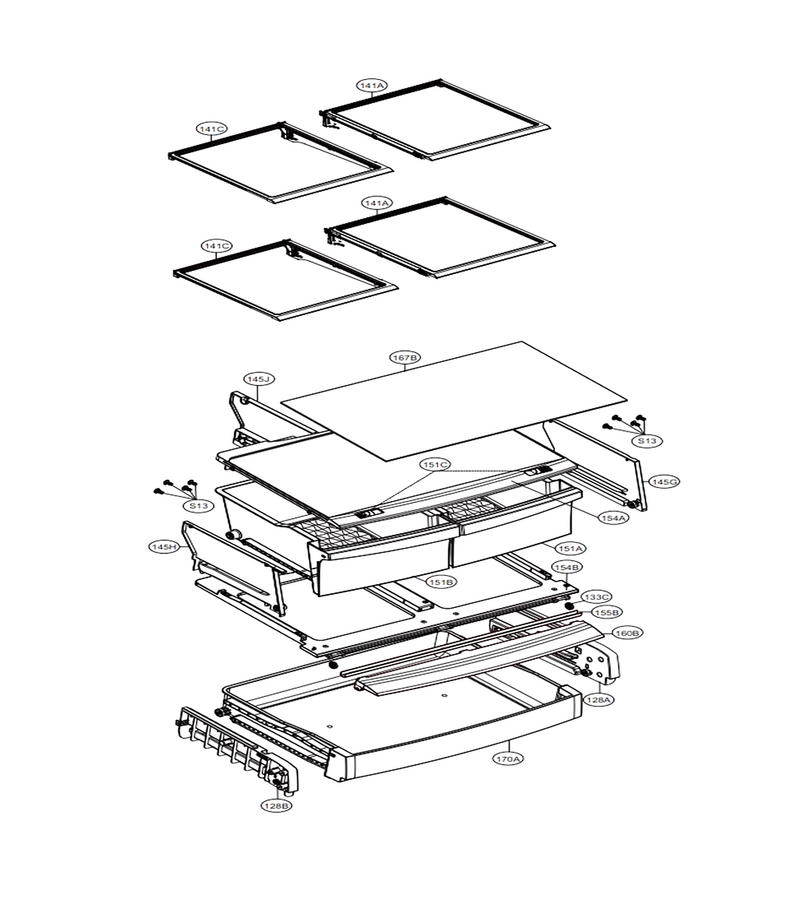

Refrigerator Parts

...
...
S13
Refrigerator Screw L-G-1SBZJA3004L
...
141A
Shelf Assembly,refrigerator L-G-AHT73595401
...
141C
Shelf Assembly,refrigerator L-G-AHT73595402
...
154A
Cover Assembly,tv L-G-ACQ86594201
...
160B
Cover,lamp L-G-MCK69348401
...
167B
Decor,cover L-G-MCR64973001
...
170A
Tray Assembly,fresh Room L-G-AJP73816201

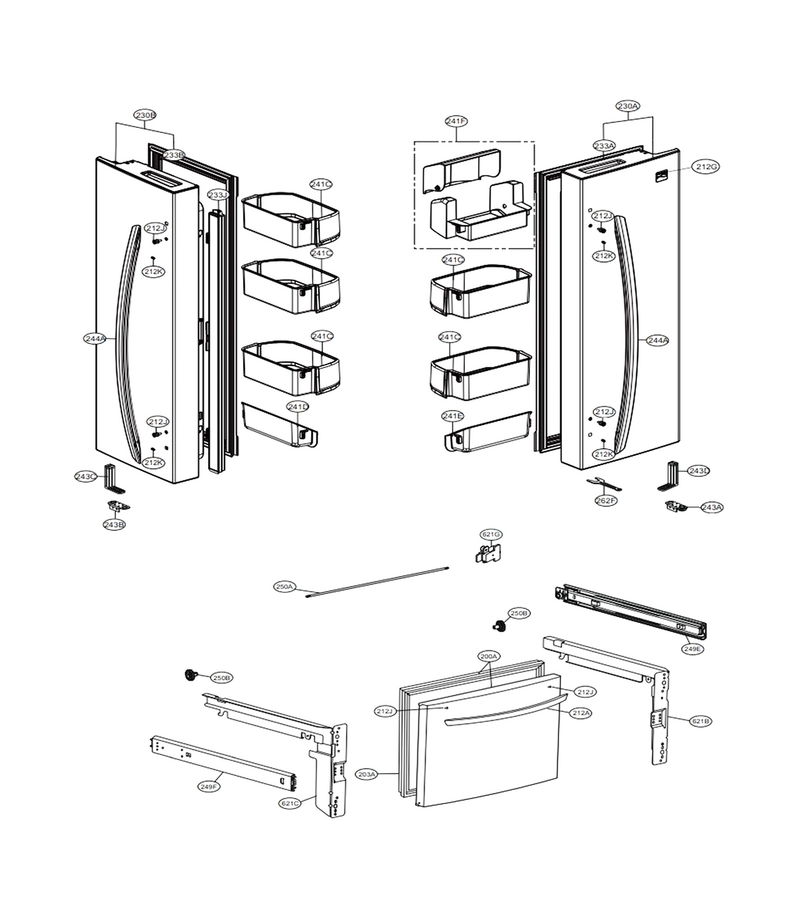

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC74207340
...
203A
Gasket Assembly,door L-G-ADX73350960
...
212A
Handle Assembly,freezer L-G-AED37133226
...
212G
Name Plate L-G-MFT61866216
...
212J
Stopper,handle L-G-MJB63190002
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230B
Door Assembly,refrigerator(left) L-G-ADC73746442
...
230A
Door Assembly,refrigerator(right) L-G-ADC52734361
...
233A
Gasket Assembly,door L-G-ADX73350629
...
233B
Gasket Assembly,door L-G-ADX73350630
...
233J
Plate Assembly,front L-G-AGU74429104
...
241C
Basket Assembly,door L-G-AAP73051304
...
241D
Basket,door L-G-MAN62849801
...
241E
Basket,door L-G-MAN62849802
...
241F
Refrigerator Door Basket Assembly L-G-AAP73051402
...
243C
Refrigerator Door Hinge, Center L-G-AEH36821908
...
243D
Refrigerator Door Hinge, Center L-G-AEH36821910
...
243B
Stopper Assembly,door L-G-AJC73112302
...
243A
Refrigerator Door Stop L-G-AJC73112301
...
244A
Handle Assembly,refrigerator L-G-AED37083009
...
250A
Bar L-G-4270JJ3001A
...
262F
Spanner L-G-MHU62101101
...
621C
Connector,rail L-G-MCD61841107
...
621G
Cover,door Switch L-G-MCK67227902

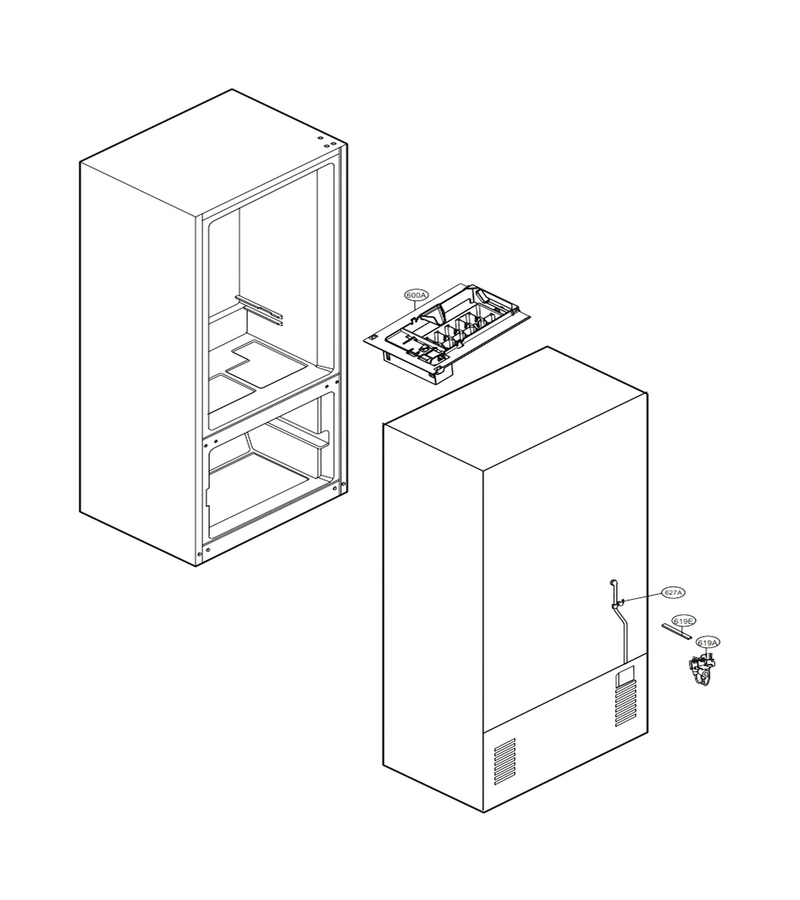

Ice Maker Parts

...
...
619E
Gasket,foam L-G-5400JJ2042S
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001A
