LG 69974.ABI1SER

Model: 69974.ABI1SER

Save Part Not Listed?
product name

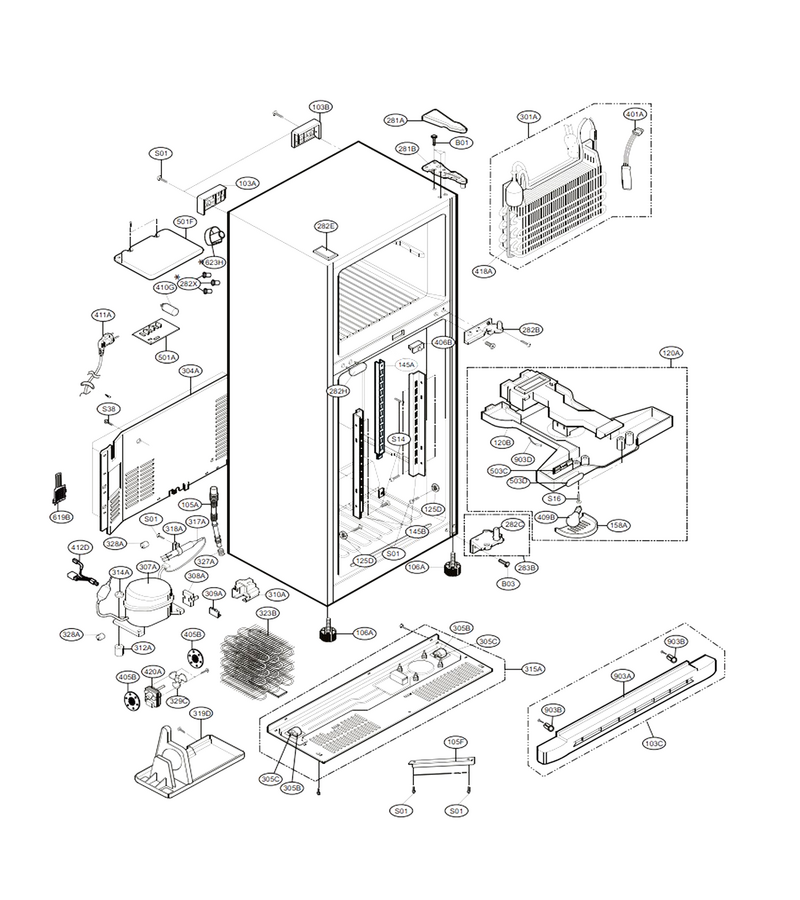

Case Parts

...
...
B01
Refrigerator Screw L-G-J351-00004L
...
B03
Refrigerator Screw L-G-J351-00004P
...
S14
Refrigerator Shelf Holder Screw L-G-3J05696W
...
S16
Refrigerator Tapping Screw L-G-1TCL0302818
...
103A
Refrigerator Rear Handle L-G-3650JJ2003F
...
103B
Refrigerator Handle L-G-3650JJ2003B
...
103C
Refrigerator Toe Grille L-G-3551JJ1015C
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
120A
Case Assembly,control Refrigerator L-G-4995JJ1004F
...
120B
Case,control Refrigerator L-G-4994JJ0003B
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ2027A
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013B
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ2002A
...
282C
Refrigerator Door Hinge Pin L-G-1PZZJJ3002F
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001E
...
282H
Refrigerator Hinge Cap L-G-5006JJ3004D
...
282X
Refrigerator Door Hole Plug L-G-5006JJ3010A
...
283B
Refrigerator Door Hinge,lower L-G-4775JJ2013B
...
301A
Refrigerator Evaporator Assembly L-G-5421JJ0003A
...
304A
Refrigerator Cover Assembly, Rear L-G-3551JJ2008A
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA33414101
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Stopper,compressor L-G-4620JA3009B
...
315A
Refrigerator Complete Base L-G-3103JJ1001K
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
318A
Refrigerator Holder L-G-4930JA3034A
...
323B
Refrigerator Condenser Wire L-G-5403JJ1008A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
401A
Refrigerator Defrost Sensor Assembly L-G-4781JK2001A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
406B
Switch,push Button L-G-6600JB2004E
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2012J
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011D
...
418A
Refrigerator Heater L-G-5300JK1003D
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Refrigerator Electronic Control Board L-G-EBR41531306
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Refrigerator User Interface L-G-6871JB2036D
...
503D
Refrigerator Display Case L-G-3110JJ2003A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
623H
Refrigerator Cap Cover L-G-5006JA3085A
...
903A
Refrigerator Toe Grille L-G-3550JJ0005B
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A

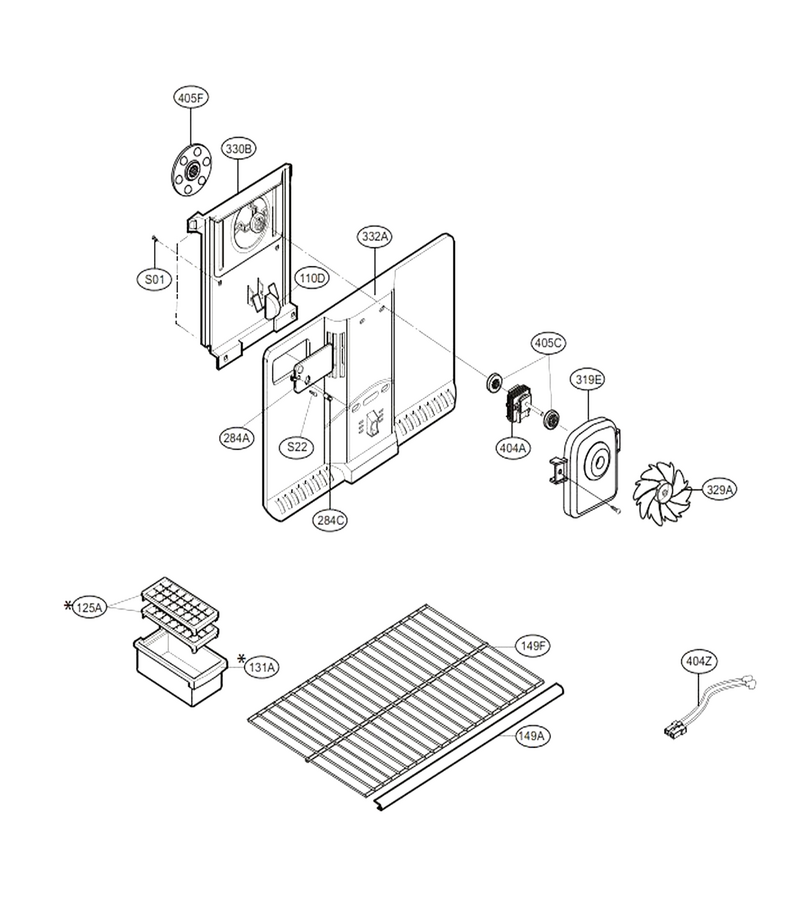

Freezer Parts

...
...
S01
Refrigerator Screw L-G-4J00415D
...
S22
Refrigerator Evaporator Cover Screw L-G-4J01425A
...
110D
Knob,shutter L-G-4940JL2001C
...
125A
Refrigerator Ice Cube Tray L-G-3390JJ1023A
...
131A
Refrigerator Ice Container L-G-5074JJ1006A
...
149A
Decorative Shelf L-G-3806JJ3001A
...
149F
Shelf, F L-G-5026JJ1196A
...
284A
Refrigerator Evaporator Cover Fan Grille L-G-3550JJ2023A
...
284C
Refrigerator Freezer Panel Hole Cover Screw L-G-5006JA3080A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1003A
...
330B
Refrigerator Grille Assembly L-G-MHN58555001
...
332A
Grille Assembly,fan L-G-3531JJ1006F
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
404Z
Refrigerator Wiring Harness L-G-6877JB1223F
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B

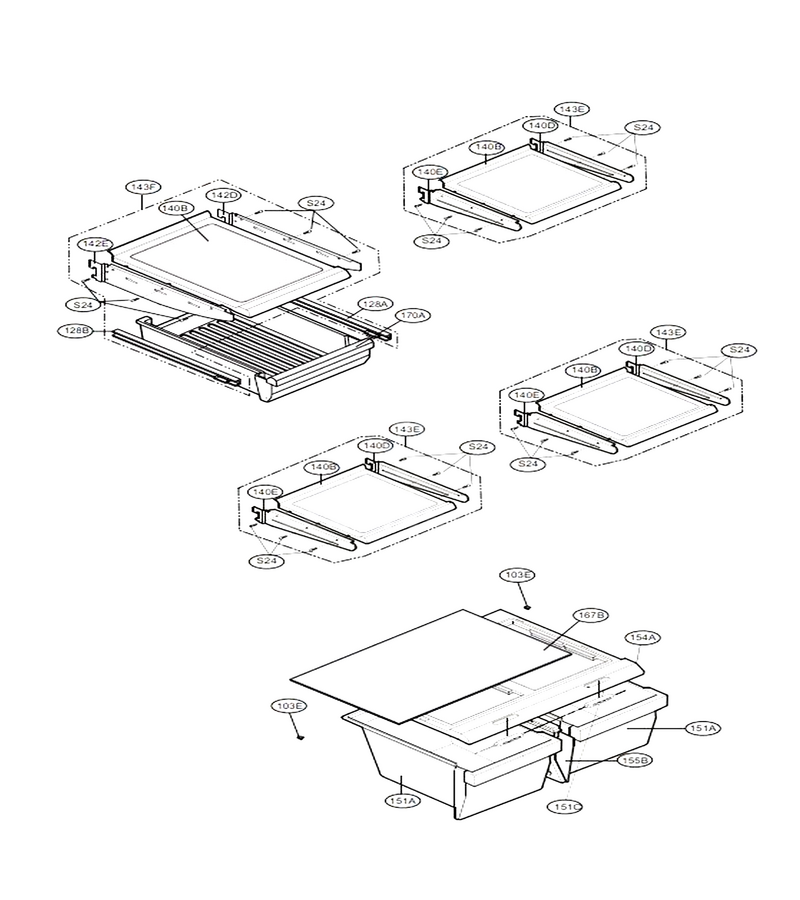

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Shelf Assembly,refrigerator L-G-5027JJ1037A
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143F
Shelf Assembly,refrigerator L-G-5027JJ1013P
...
151A
Refrigerator Vegetable Drawer L-G-3391JJ1020A
...
151C
Refrigerator Crisper Drawer Humidity Control Knob L-G-4940JJ2003C
...
154A
Cover,tv L-G-MCK61620301
...
155B
Refrigerator Crisper Drawer Cover Support Post L-G-4980JJ1010A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002U
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004G

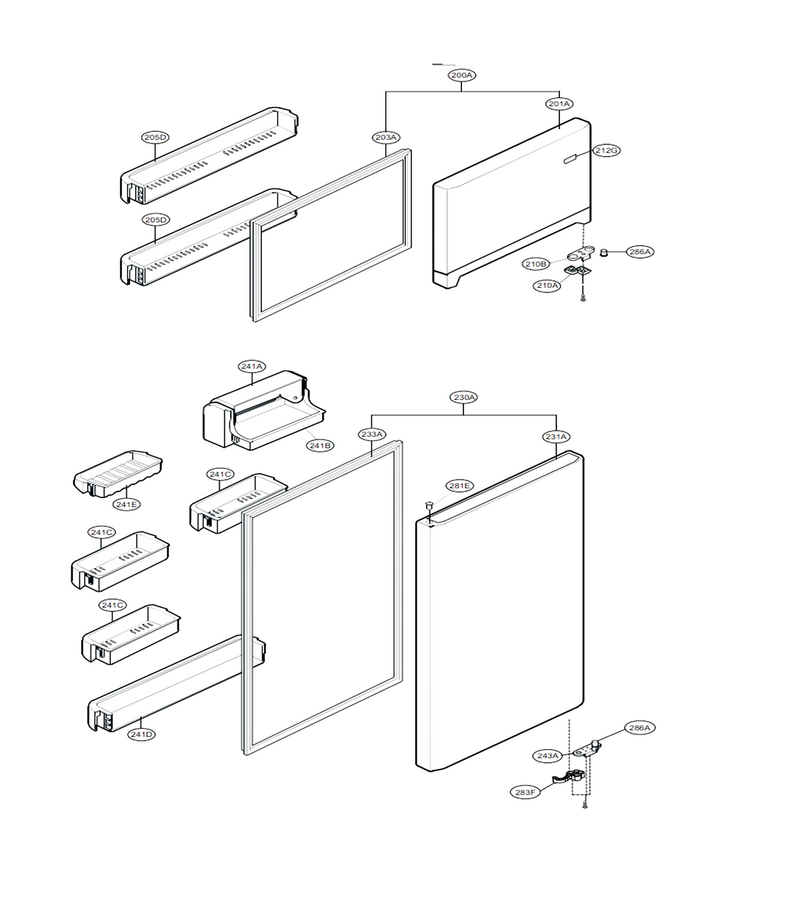

Door Parts

...
...
200A
Door Assembly,freezer L-G-ADC71006703
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1004R
...
205D
Refrigerator Door Bin L-G-5004JJ1015A
...
210A
Refrigerator Door Stop L-G-4620JJ2009A
...
210B
Refrigerator Guide L-G-4974JA3031B
...
212G
Name Plate L-G-4140JD1031A
...
230A
Door Assembly,refrigerator L-G-ADC71006908
...
231A
Door Foam Assembly,refrigerator L-G-ADD71007008
...
233A
Refrigerator Door Gasket L-G-4987JJ1004S
...
241A
Refrigerator Dairy Bin Cover L-G-3550JJ1030A
...
241B
Refrigerator Door Basket L-G-5004JJ1037A
...
241C
Refrigerator Door Bin L-G-5004JJ1014A
...
241D
Refrigerator Door Bin L-G-5004JJ1016A
...
241E
Refrigerator Door Basket L-G-5004JJ1039A
...
243A
Refrigerator Door Stop L-G-4620JJ3006B
...
283F
Refrigerator Door Stop L-G-4620JJ2007A
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
