LG 69252.MWESEA

Model: 69252.MWESEA

Save Part Not Listed?
product name

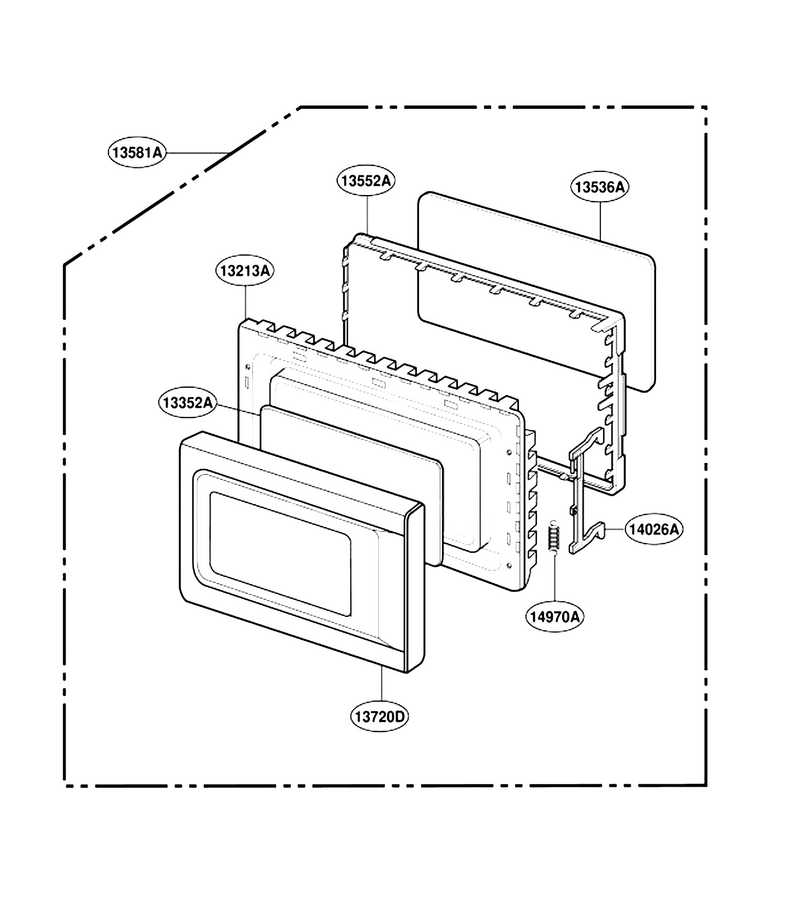

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A028H
...
13352A
Window,screen L-G-3352W1A087F
...
13536A
Tape,sealing L-G-3536WRA001L
...
13552A
Cover,choke L-G-3552W1A026A
...
13581A
Door Assembly L-G-3581W1A175Q
...
13720D
Panel,door L-G-3720W2D025K
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C

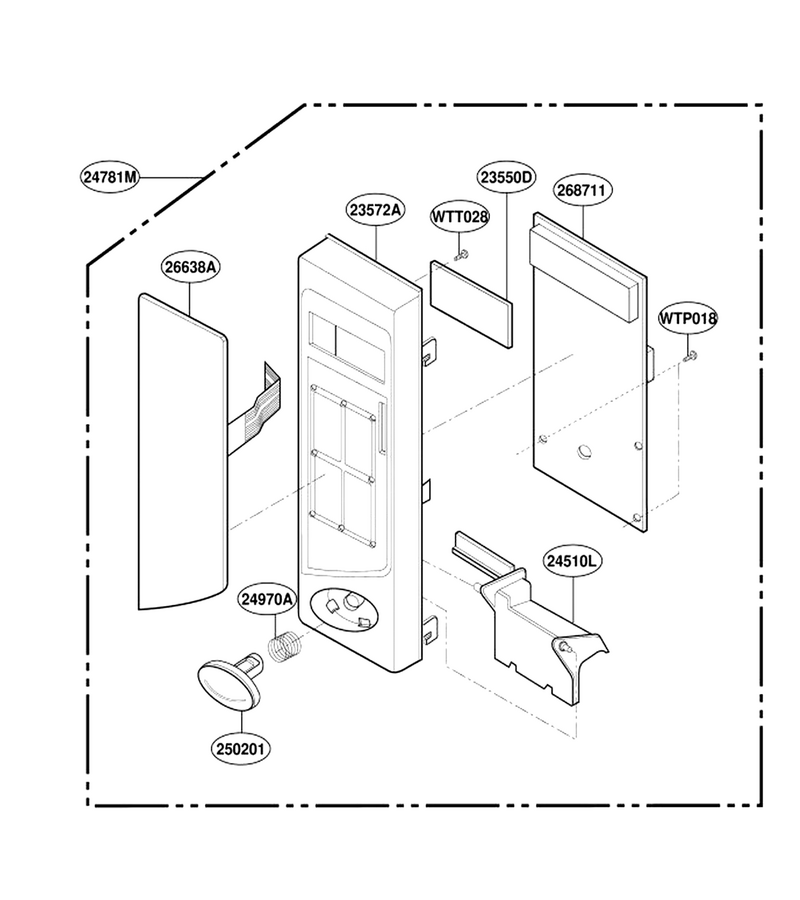

Controller Parts

...
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W2A002D
...
24510L
Lever L-G-4510W3L004A
...
24781M
Controller Assy,[micom] L-G-4781W1M157G
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
26638A
Membrane L-G-6638W2A276B
...
250201
Button L-G-5020W2G096F
...
268711
Pcb Assembly,sub L-G-6871W2S125E

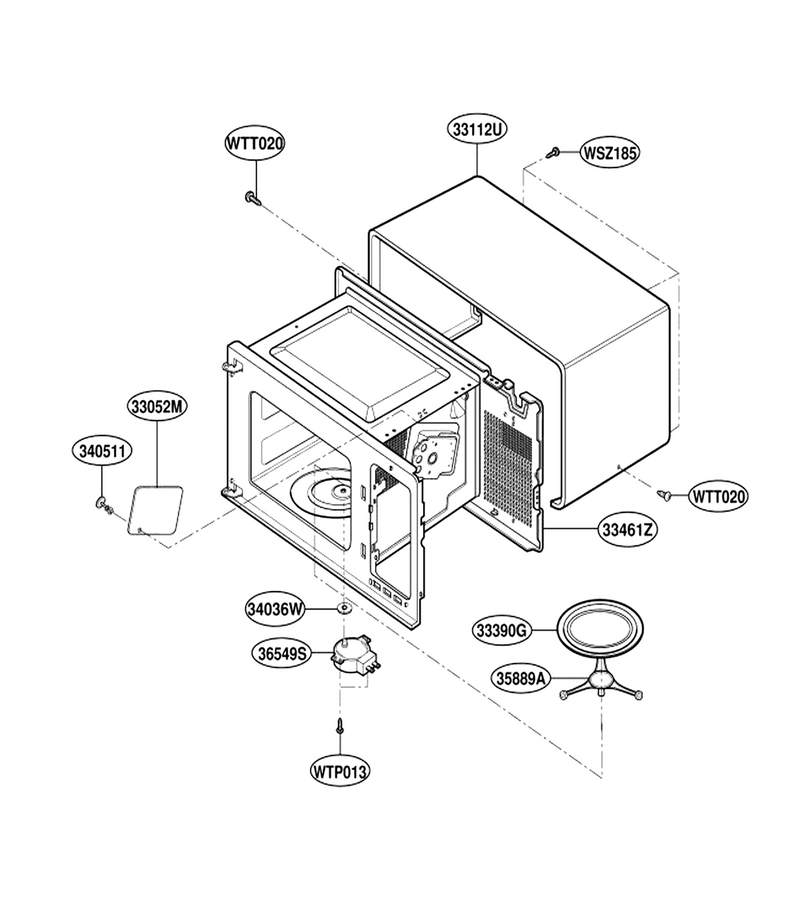

Oven Cavity Parts

...
...
33052M
Cover,insulator L-G-3052W3M011C
...
33112U
Case,u Bending L-G-3112W1U019H
...
33390G
Tray,glass L-G-3390W1G003A
...
33461Z
Cavity Assembly,coating L-G-3461W0A024E
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011B
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

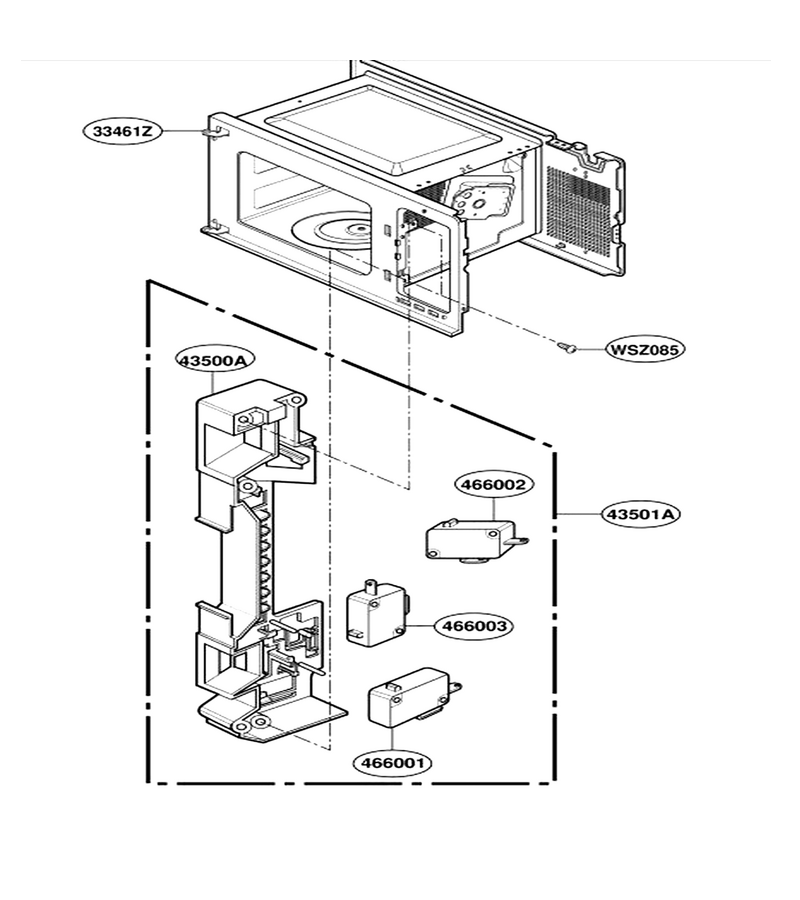

Latch Board Parts

...
...
33461Z
Cavity Assembly,coating L-G-3461W0A024E
...
43500A
Holder,locker L-G-3500W1A004A
...
43501A
Holder Assembly,locker L-G-3501W1A003H
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

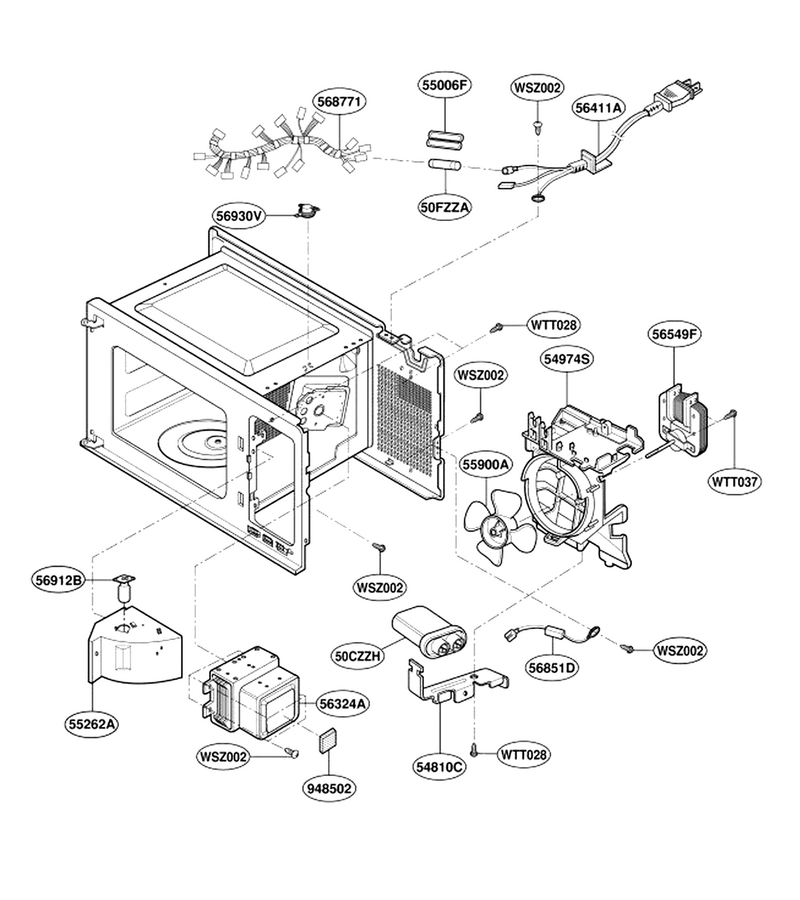

Oven Interior Parts

...
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002H
...
50FZZA
Fuse[all] L-G-3B74133K
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55262A
Duct L-G-5262W2A041C
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord L-G-2B72325H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Thermostat L-G-6930WRT002C
...
568771
Single Harness L-G-6877W1A182A
...
948502
Damper L-G-4B73438A

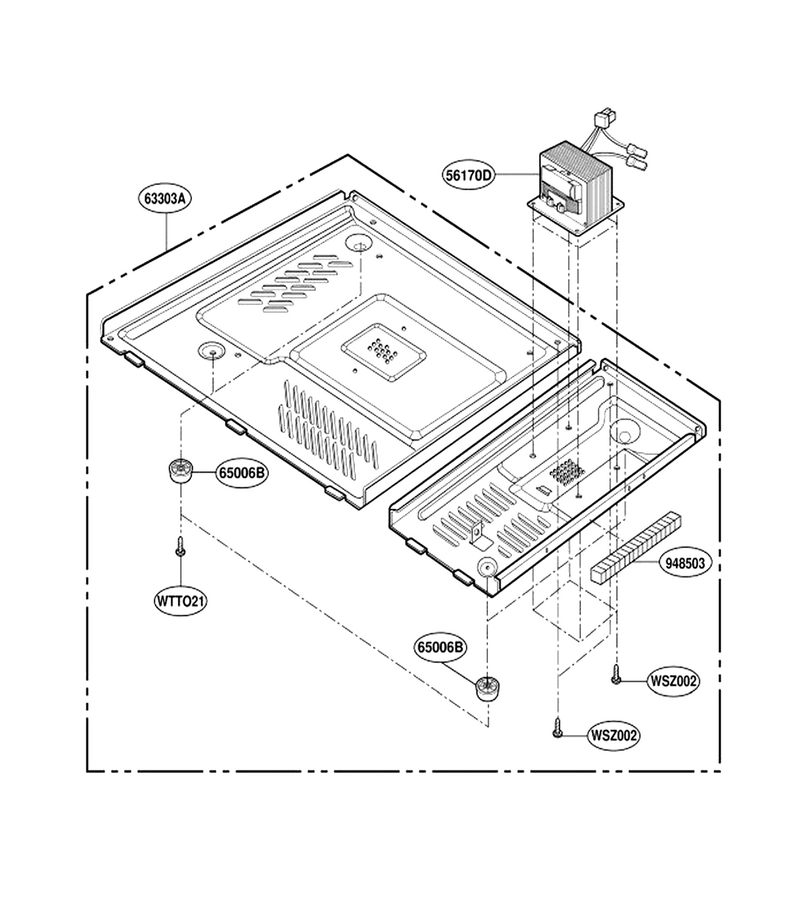

Base Plate Parts

...
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D012G
...
948503
Cushion L-G-3B72244G
