LG 66299.CBKESEA

Model: 66299.CBKESEA

Save Part Not Listed?
product name

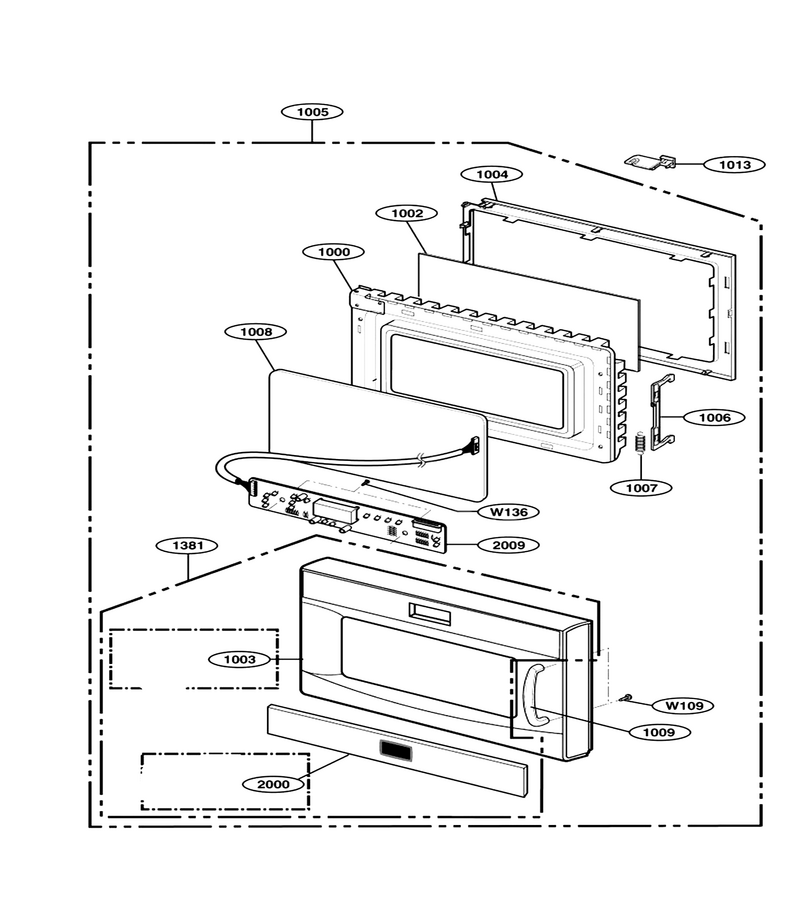

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
1000
Out Drive Frame L-G-3213W1A031P
...
1002
Seal Tape L-G-3536W1A004A
...
1003
Panel,door L-G-3720W0D332E
...
1004
Microwave Cover L-G-3552W0A012A
...
1005
Door Assembly L-G-3581W0A148B
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W2A006Z
...
1009
Handle,door L-G-3650W1A119E
...
1013
Transformer L-G-5006W3A012A
...
1381
Service Parts L-G-383EW5A300D
...
2000
Membrane L-G-3506W1A800B
...
2009
Pcb Assembly,sub L-G-6871W1A466A

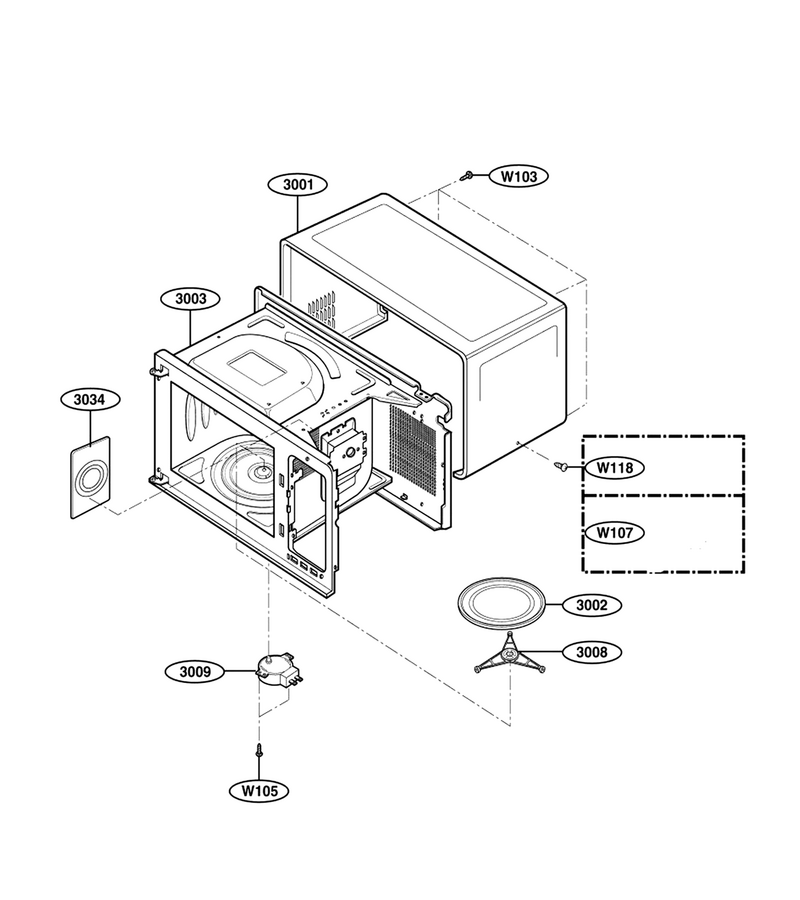

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W107
Screw L-G-1TTL0402416
...
3001
Outer Case L-G-3112W0U053H
...
3002
Microwave Glass Tray L-G-3390W1A012D
...
3003
Cavity Assembly,coating L-G-3461W1A084H
...
3008
Microwave Turntable Tray Support L-G-5889W1A003B
...
3009
Microwave Turntable Motor L-G-2B72754T
...
3034
Cover,resin L-G-3052W1A005B

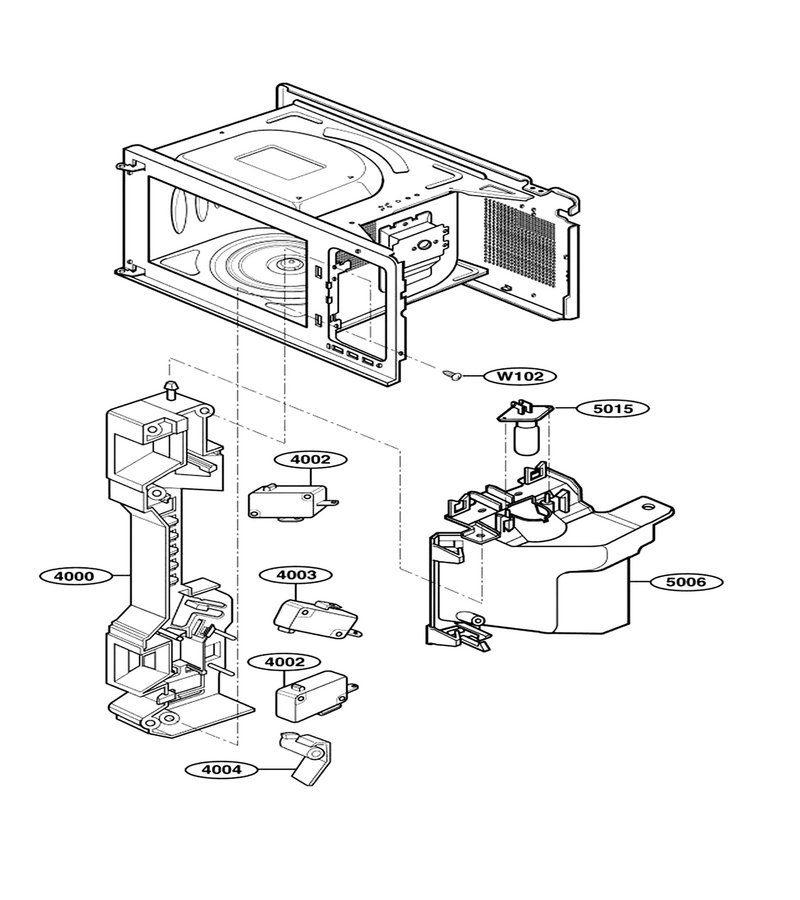

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4002
Switch,micro L-G-6600W1K003D
...
4003
Switch,micro L-G-6600W1K003C
...
4004
Lever L-G-4510W3A012B
...
5006
Duct L-G-5208W1A027C
...
5015
Microwave Light Bulb L-G-6912W3B002L

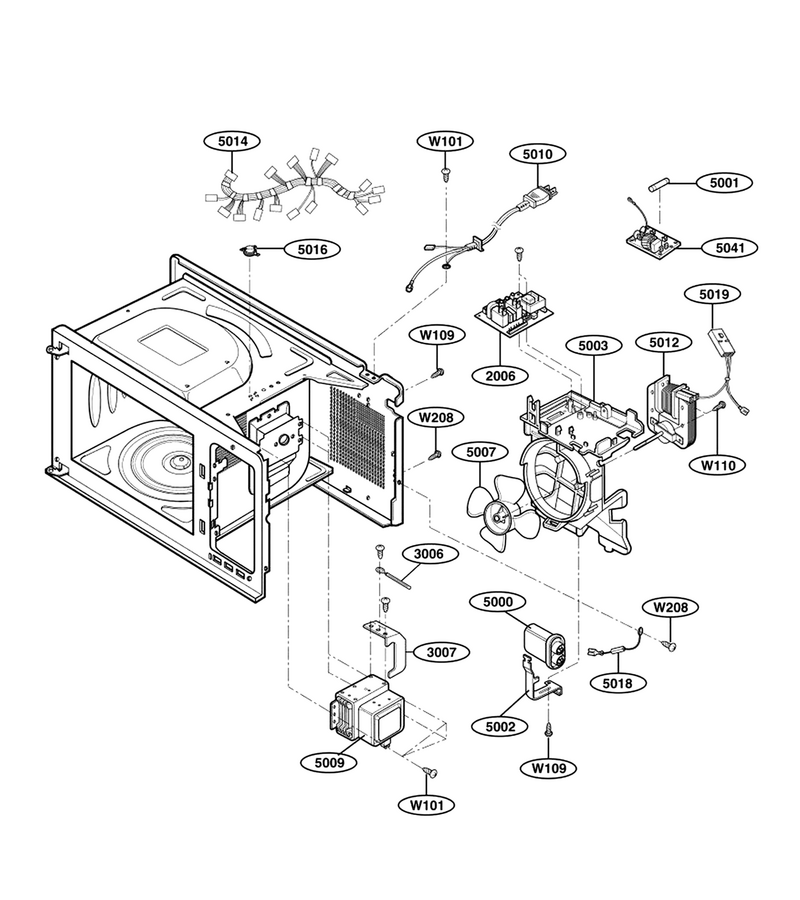

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
2006
Pcb Assembly,sub L-G-6871W1A465A
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Suction Guide L-G-4974W0A011B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord L-G-6411W1A019S
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness L-G-6877W1A583E
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5019
Harness L-G-6877W1A583B
...
5041
Filter Assembly L-G-2B72130M

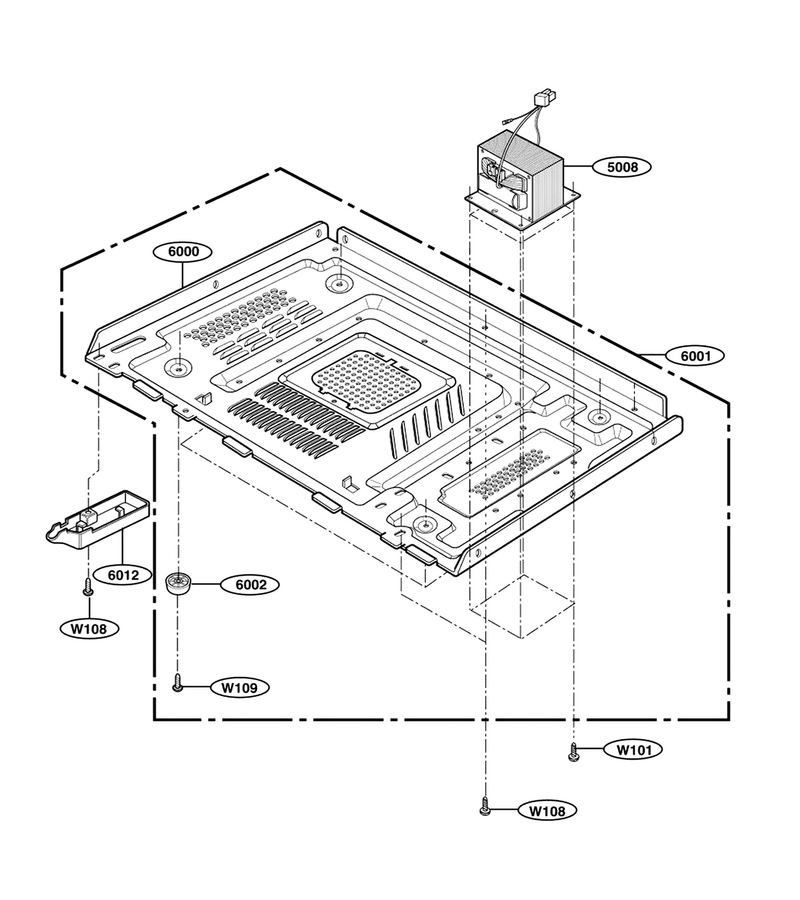

Base Plate Part

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Microwave High-Voltage Transformer L-G-6170W1D050M
...
6000
Base Plate L-G-3302W0A049D
...
6001
Base Plate L-G-3303W0A027D
...
6002
Leg L-G-4778W3A002A
...
6012
Protector L-G-5006W1A012A

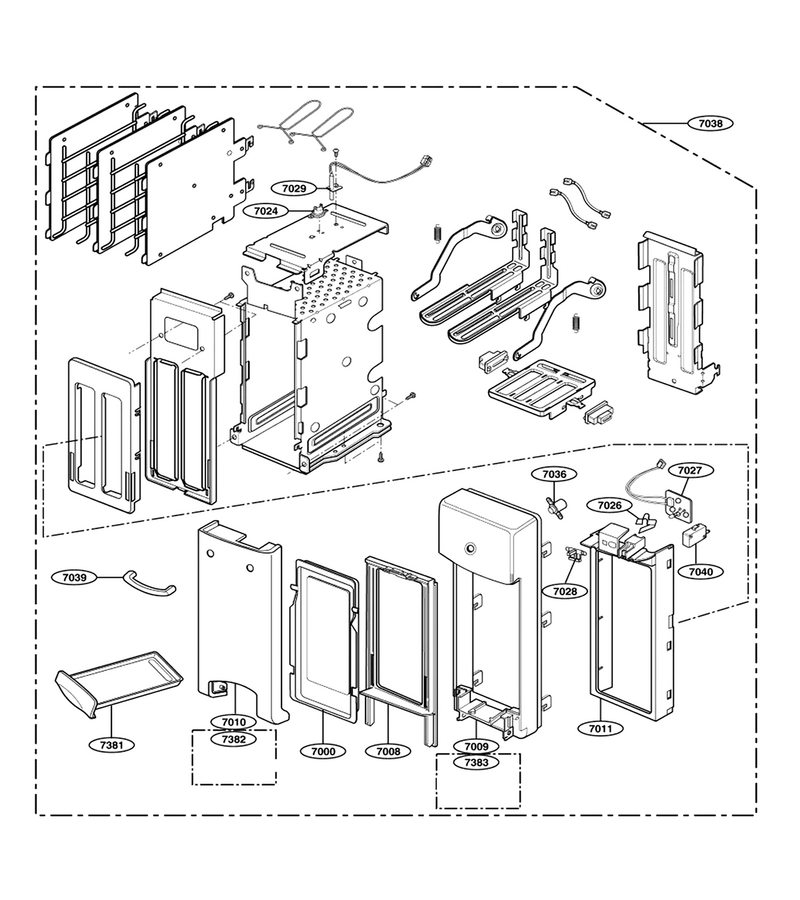

Toaster Parts

...
...
7000
Heater Cover L-G-3212W1A042A
...
7008
Cover L-G-3552W1A066A
...
7009
Panel,toaster L-G-3720W0C172E
...
7010
Cover,toaster L-G-3720W0D333E
...
7011
Protector L-G-3740W1A022A
...
7024
Dishwasher Thermostat L-G-6930W1A003K
...
7026
Spring L-G-4970W1A018A
...
7027
Sub Pcb L-G-6871W1S238C
...
7028
Lever L-G-4510W1A020A
...
7036
Lamp Cover L-G-3550W1A297A
...
7038
Toaster Assembly,main L-G-5993W1M007H
...
7039
Handle,door L-G-3650W1A120E
...
7040
Switch,micro L-G-6600W1K001D
...
7381
Service Parts L-G-383EW5A203U
