LG 66222.CW1ESEA

Model: 66222.CW1ESEA

Save Part Not Listed?

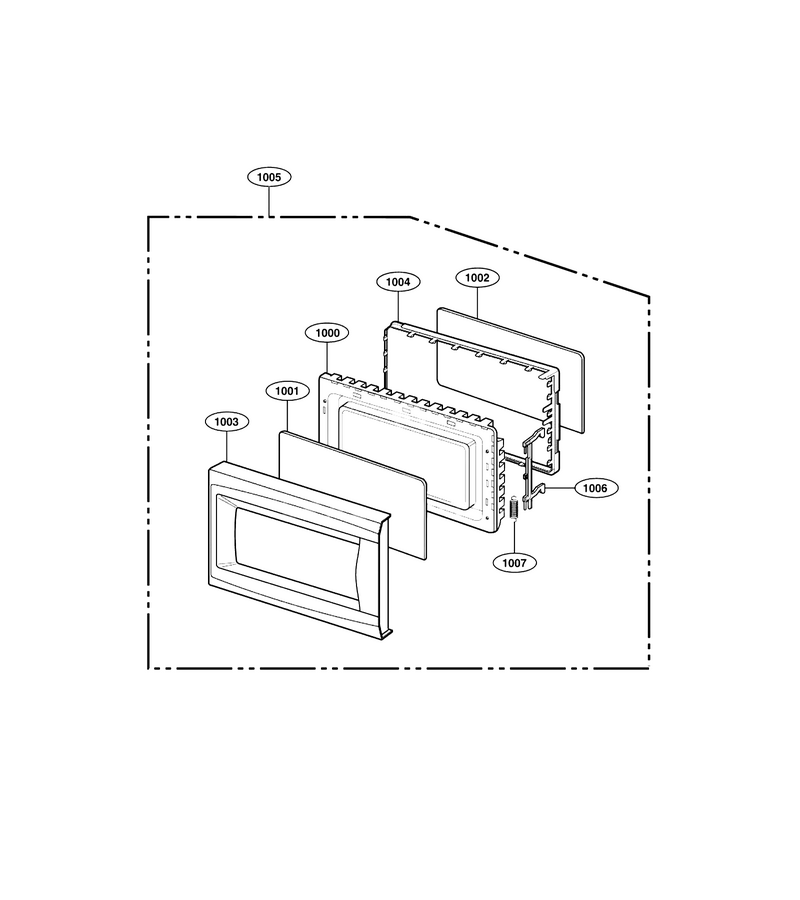

product name

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W0A012H
...
1001
Window,screen L-G-3352W1A156B
...
1002
Seal Tape L-G-3536W1A003E
...
1003
Panel,door L-G-3720W0D392D
...
1004
Chokecover L-G-3552W0A017B
...
1005
Door Assembly L-G-3581W0A133B
...
1006
Latch L-G-4026W1A036A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E

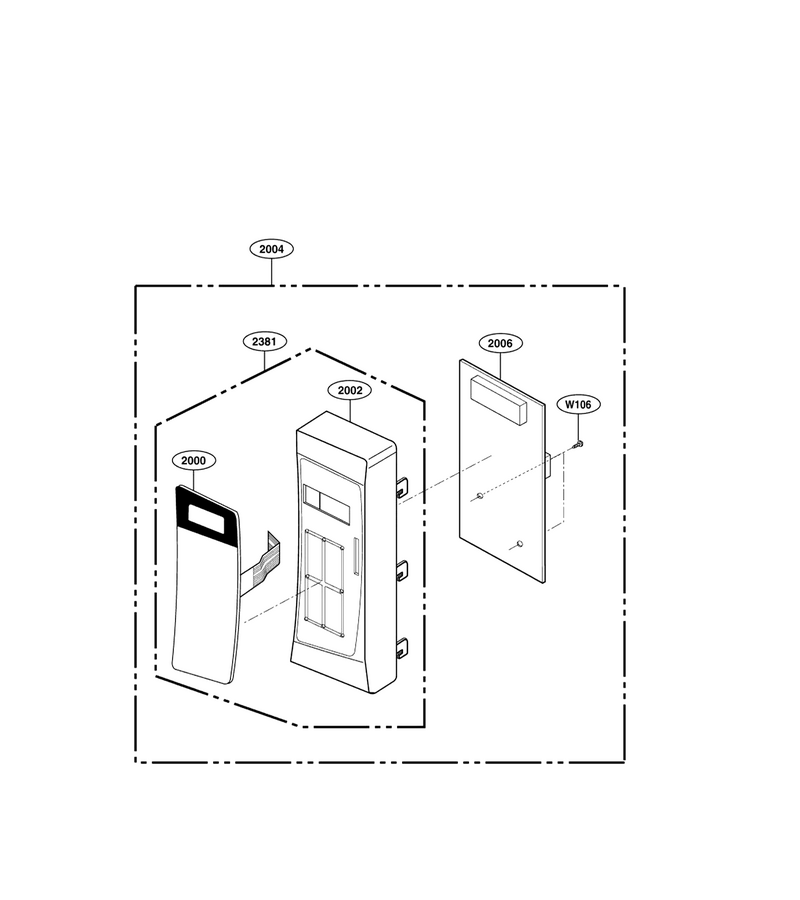

Control Panel Parts

...
...
W106
Microwave Screw L-G-1TTL0402818
...
2000
Key Membrane L-G-3506W1A786A
...
2002
Panel,control L-G-3720W0C272A
...
2004
Controller Assembly,key Pad L-G-4781W0M067E
...
2006
Pcb Assembly L-G-EBR37407304
...
2381
Service Parts L-G-383EW5A327C

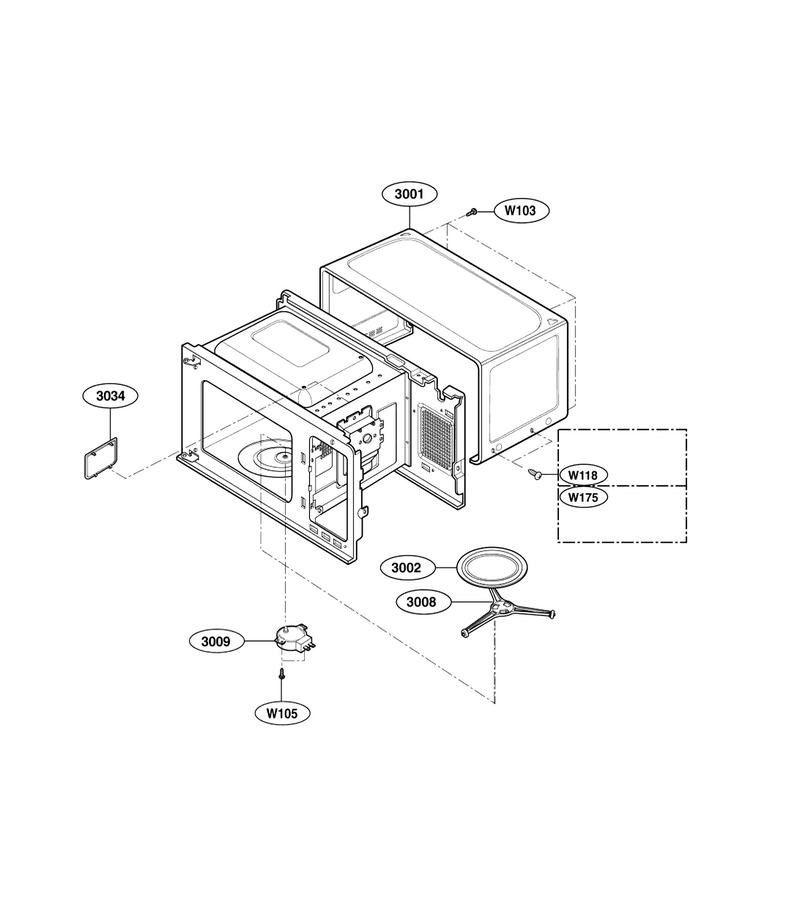

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Case,u Bending L-G-3112W0U082B
...
3002
Microwave Glass Turntable Tray L-G-3390W1A044B
...
3008
Microwave Turntable Support L-G-5889W0A001A
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3034
Canopy L-G-3052W1A007A

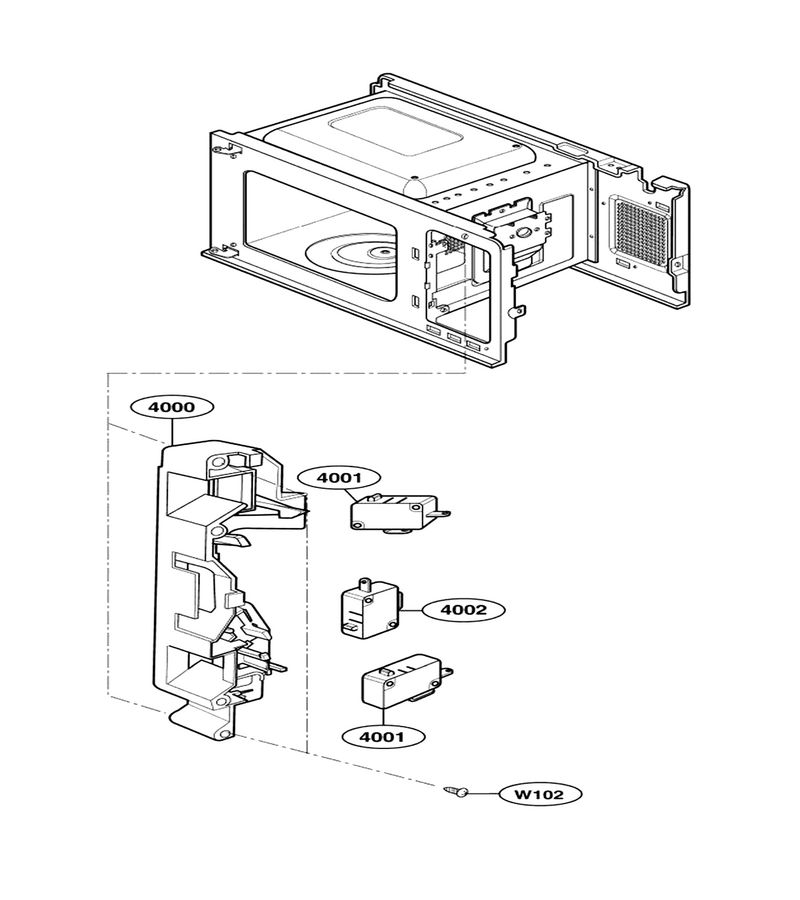

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Board L-G-3500W1A034B
...
4001
Holder Assembly,locker L-G-3501W1A042B
...
4002
Switch,micro L-G-6600W1K001D

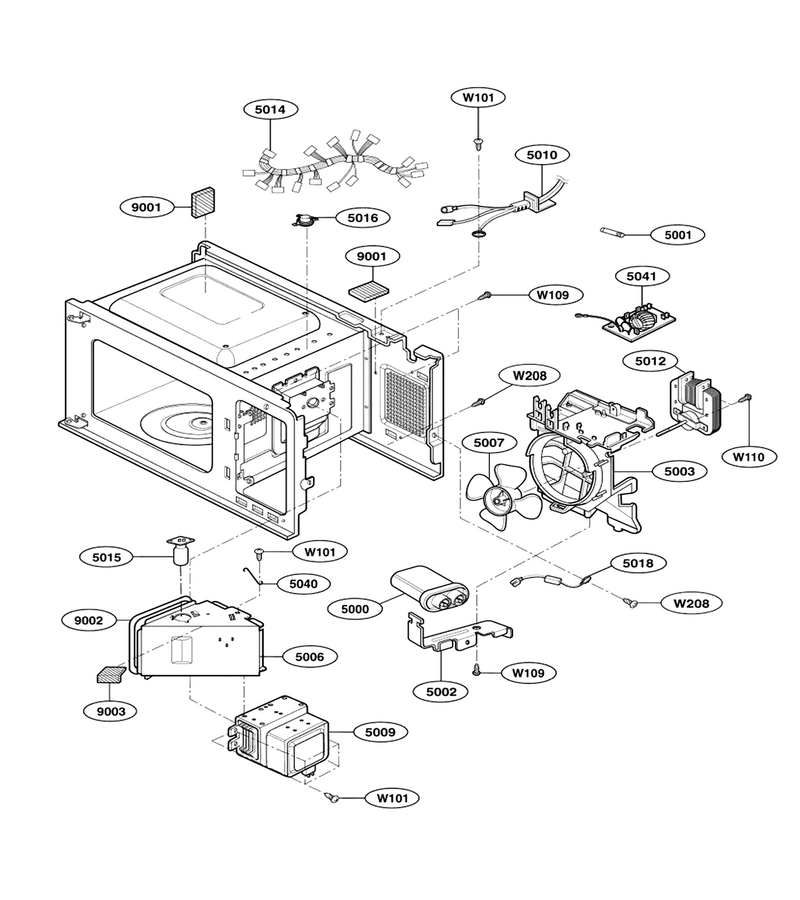

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H001Q
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide,suction L-G-4974W1S052B
...
5006
Fan Bracket L-G-5262W2A037C
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Microwave Magnetron L-G-6324W1A001A
...
5010
Power Cord Assembly L-G-EAD59116204
...
5012
Motor L-G-EAU42744404
...
5014
Harness,multi L-G-EAD60744701
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001V
...
5040
Supporter L-G-4980W3A038A
...
5041
Microwave Noise Filter L-G-EAM35001864
...
9001
Cushion L-G-3B72244C
...
9002
Cushion L-G-3B72244T
...
9003
Cushion L-G-3B72245R

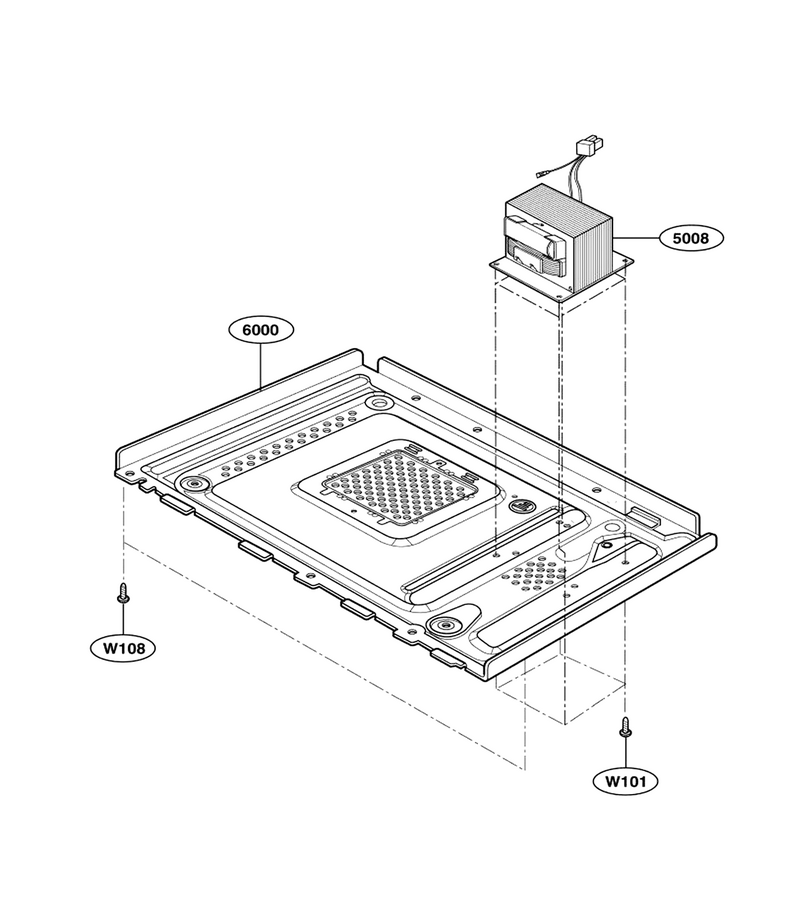

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer,high Voltage L-G-EBJ60663805
...
6000
Plate,base L-G-3302W0A059B
