LG 65209.AWBCSEA

Model: 65209.AWBCSEA

Save Part Not Listed?
product name

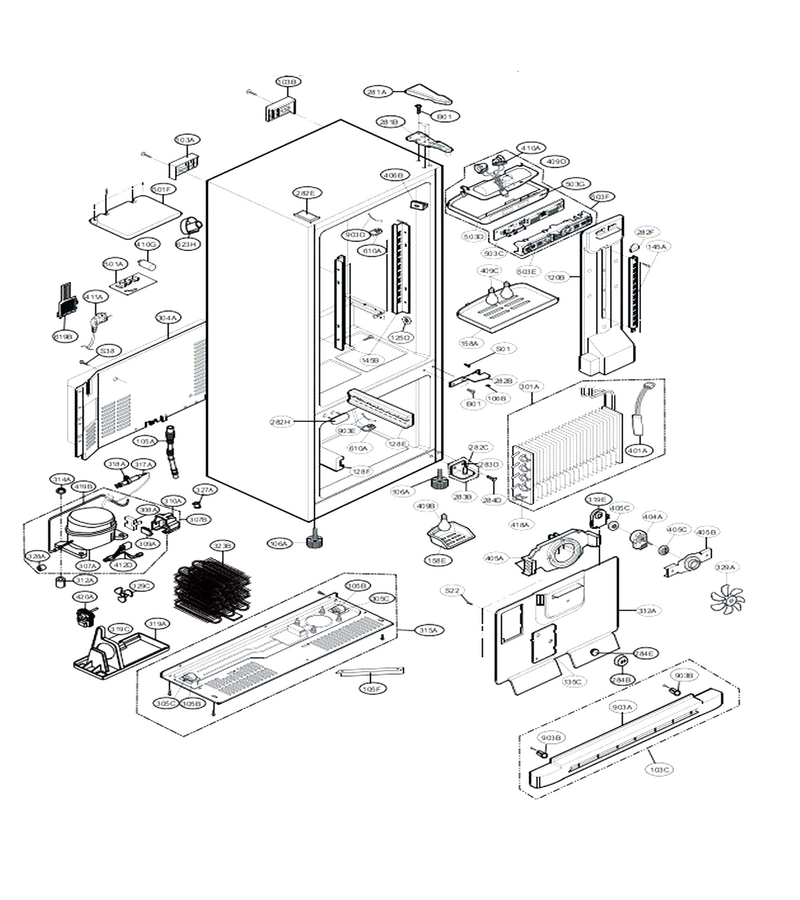

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Lower Cover L-G-3551JJ1015F
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Refrigerator Freezer Door Slide Rail, Inner L-G-4975JJ2009A
...
128F
Refrigerator Freezer Door Slide Rail, Outer L-G-4975JJ2009B
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
281A
Refrigerator Door Hinge Cover L-G-3550JJ2013C
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge L-G-4775JJ8002E
...
282C
Refrigerator Door Hinge Pin L-G-1PZZJJ3002F
...
282E
Refrigerator Top Door Hinge Hole Cover L-G-5006JJ2001F
...
282F
Decor,duct L-G-3806JL2006D
...
282H
Refrigerator Center Hinge Hole Plug L-G-5006JJ3004E
...
283B
Refrigerator Door Hinge, Lower L-G-4775JJ2007B
...
283D
Hinge Left L-G-4774JJ2002A
...
284B
Connection Cover L-G-3550JA3120A
...
284D
Refrigerator Door Hinge Screw L-G-1STZJA3004K
...
284E
Refrigerator Glide L-G-3550JJ3001A
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
307B
Refrigerator Compressor L-G-ACF67062306
...
308A
Refrigerator Condenser Wire L-G-EBG32606502
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-MJB61877901
...
315A
Compressor Base Assembly L-G-3103JJ1001Z
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ0002A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Evaporator Fan Motor L-G-4680JK1002B
...
405A
Refrigerator Motor Bracket Assembly L-G-4811JJ2002B
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA3007A
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409C
Refrigerator Light Bulb L-G-6912JK2002C
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2003B
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011D
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
419B
Pipe Joint L-G-5200JJ3003E
...
420A
Refrigerator Condenser Fan L-G-4680JK1001B
...
501A
Refrigerator Electronic Control Board L-G-6871JB1215J
...
501F
Cover Assembly,pcb L-G-3551JJ1020D
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Case Assembly,display L-G-ABQ33905307
...
503G
Decor,control L-G-3806JL1051A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
623H
Refrigerator Water Supply Tube Cover L-G-3550JJ2036A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006C
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

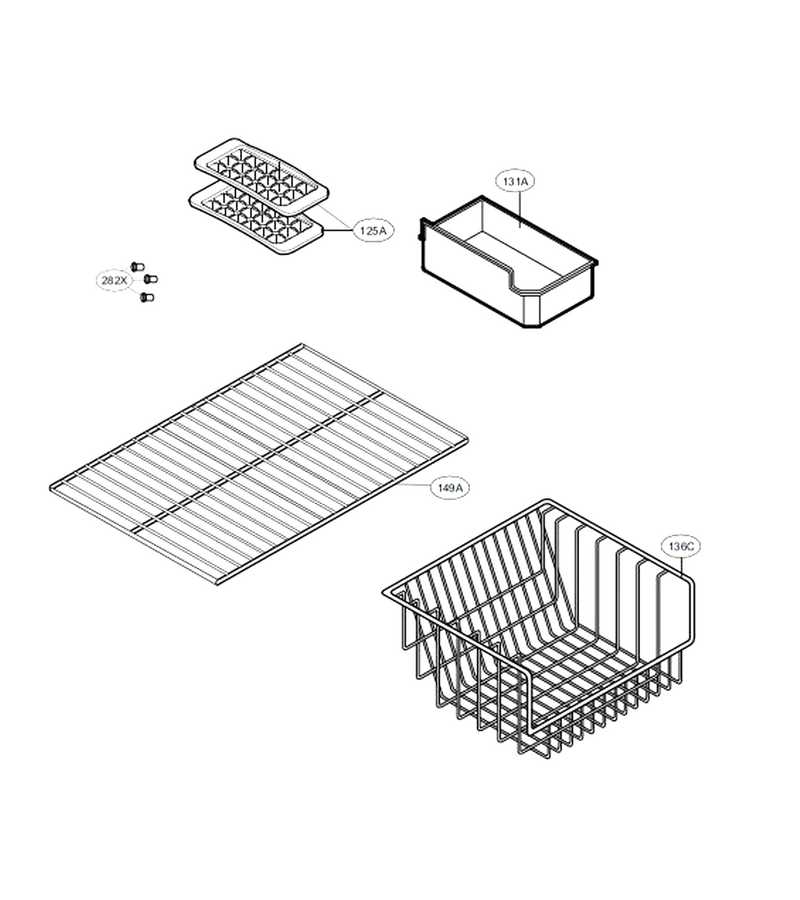

Freezer Parts

...
...
125A
Refrigerator Ice Cube Tray L-G-3390JJ1023A
...
131A
Refrigerator Ice Bin L-G-5074JJ1017A
...
136C
Tray,drawer L-G-3390JJ1057A
...
149A
Shelf,freezer L-G-5026JJ1026A
...
282X
Refrigerator Door Hole Plug L-G-5006JJ3010A

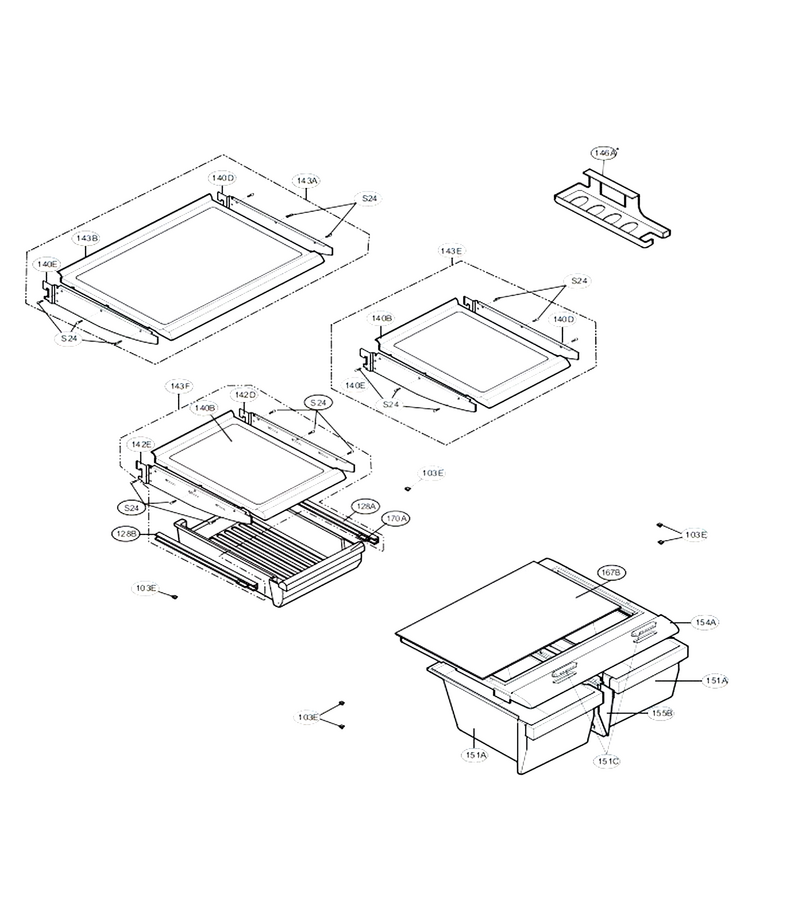

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Refrigerator Shelf L-G-5027JJ2007B
...
140D
Refrigerator Shelf Support, Left L-G-5026JJ2001G
...
140E
Refrigerator Shelf Support, Right L-G-5026JJ2001H
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143A
Refrigerator Shelf L-G-5027JJ1028B
...
143B
Refrigerator Shelf L-G-5027JJ1015B
...
143E
Refrigerator Shelf L-G-5027JJ1008B
...
143F
Refrigerator Shelf L-G-5027JJ1008D
...
151A
Refrigerator Crisper Drawer L-G-3391JJ1020C
...
151C
Knob,shutter L-G-4940JJ2003A
...
154A
Cover,tv L-G-3550JL2001H
...
155B
Refrigerator Crisper Drawer Cover Support L-G-4981JJ2001B
...
167B
Shelf,glass L-G-MHL61952303
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004H

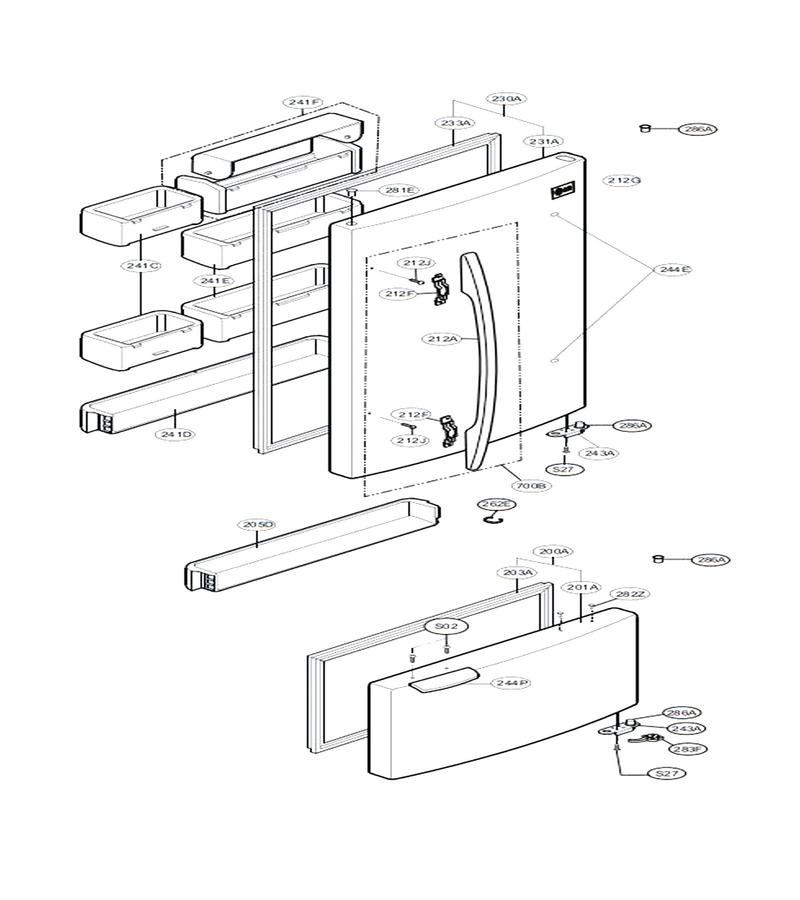

Door Parts

...
...
S02
Refrigerator Freezer Slide Rail Screw L-G-1SZZJJ3010D
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Door Assembly,freezer L-G-3581JJ8020F
...
201A
Door Foam Assembly,freezer L-G-5433JJ0018P
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1004E
...
205D
Refrigerator Freezer Door Shelf L-G-5004JJ1040A
...
212A
Handle,refrigerator L-G-3650JJ1031B
...
212F
Refrigerator Door Handle Bracket, Right L-G-4810JJ3015A
...
212G
Name Plate L-G-4140JL2001C
...
212J
Refrigerator Door Handle Mounting Screw L-G-4620JJ3007E
...
230A
Door Assembly,refrigerator L-G-3581JJ8047E
...
231A
Door Foam Assembly,refrigerator L-G-5433JJ0019R
...
233A
Refrigerator Door Gasket L-G-4987JJ1004F
...
241C
Refrigerator Door Bin L-G-5004JJ1031A
...
241D
Refrigerator Door Bin L-G-5004JJ0001A
...
241E
Refrigerator Door Bin L-G-5004JJ1029A
...
241F
Basket Assembly,door L-G-5005JJ2010E
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
244E
Cap,handle L-G-5006JJ3016C
...
244P
Handle,freezer L-G-3650JJ2012B
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
281E
Refrigerator Hinge Cap L-G-5006JJ3014C
...
282Z
Cap,handle L-G-5006JJ3010C
...
283F
Refrigerator Door Stopper L-G-4620JJ2007B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
700B
Handle Assembly,refrigerator L-G-3651JJ2015B
