LG 65002 401.CW1ESEA

Model: 65002 401.CW1ESEA

Save Part Not Listed?
product name

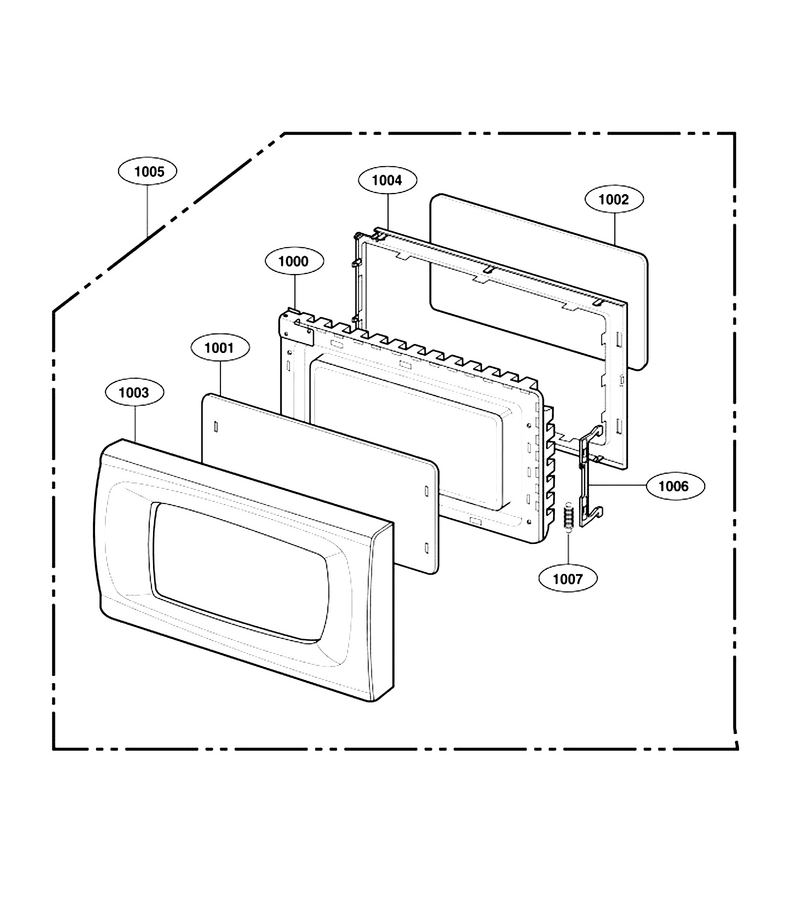

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W1A031Q
...
1001
Window,screen L-G-3352W1A098B
...
1002
Seal Tape L-G-3536W1A004A
...
1003
Panel,door L-G-3720W0D116R
...
1004
Cover,choke L-G-3552W1A062A
...
1005
Door Assembly L-G-3581W1A165X
...
1006
Latch L-G-4026W2A016A
...
1007
Spring L-G-4970WRA001B

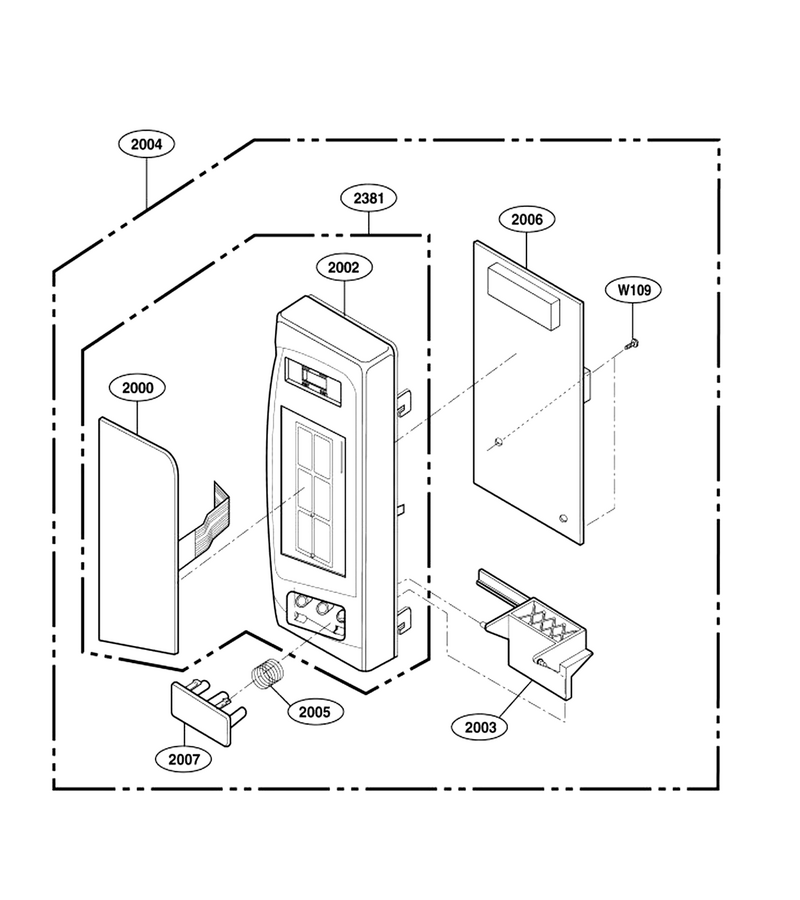

Controller Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
2000
Membrane L-G-3506W1A520A
...
2002
Panel,control L-G-3572W1A150E
...
2003
Lever L-G-4510W3L003A
...
2004
Controller Assembly,keypad L-G-4781W1M150S
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Power Control Board Assembly L-G-6871W1S115N
...
2007
Button L-G-5020W2A092E
...
2381
Service Parts L-G-383EW5A301A

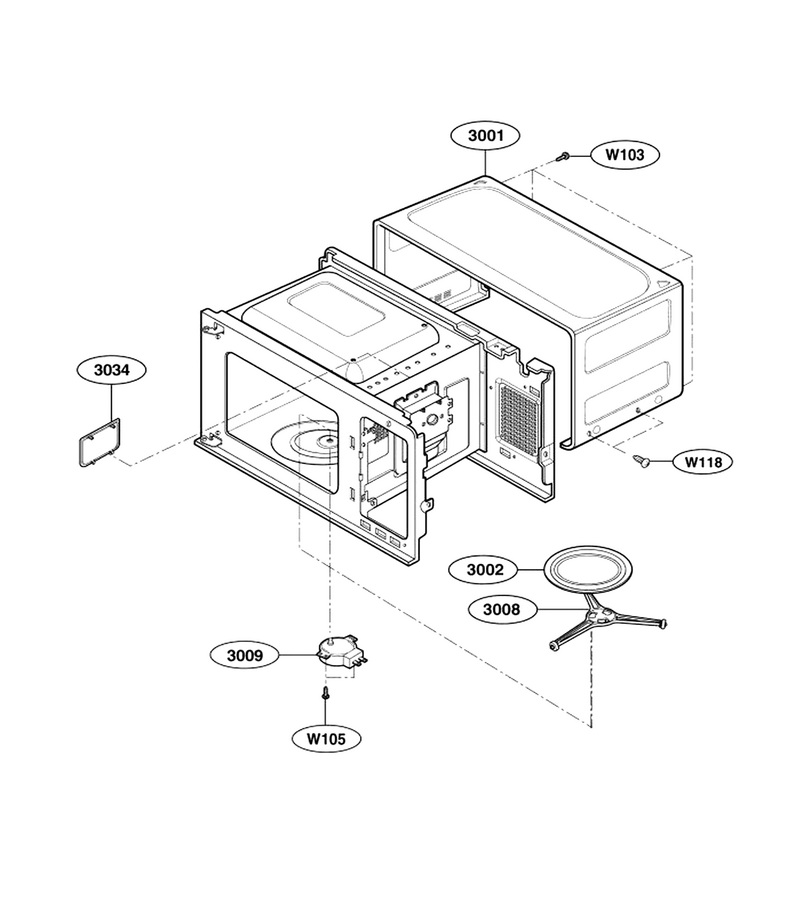

Oven Cavity Parts

...
...
W118
Microwave Screw L-G-1TTG0402422
...
W105
Microwave Screw L-G-1TPL0402418
...
W103
Screw L-G-1SZZW2A002A
...
3001
Cabinet L-G-3112W1U037B
...
3002
Microwave Glass Turntable Tray L-G-3390W1G004E
...
3008
Microwave Turntable Tray Support L-G-5889W1A005B
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3034
Canopy L-G-3052W2A021A

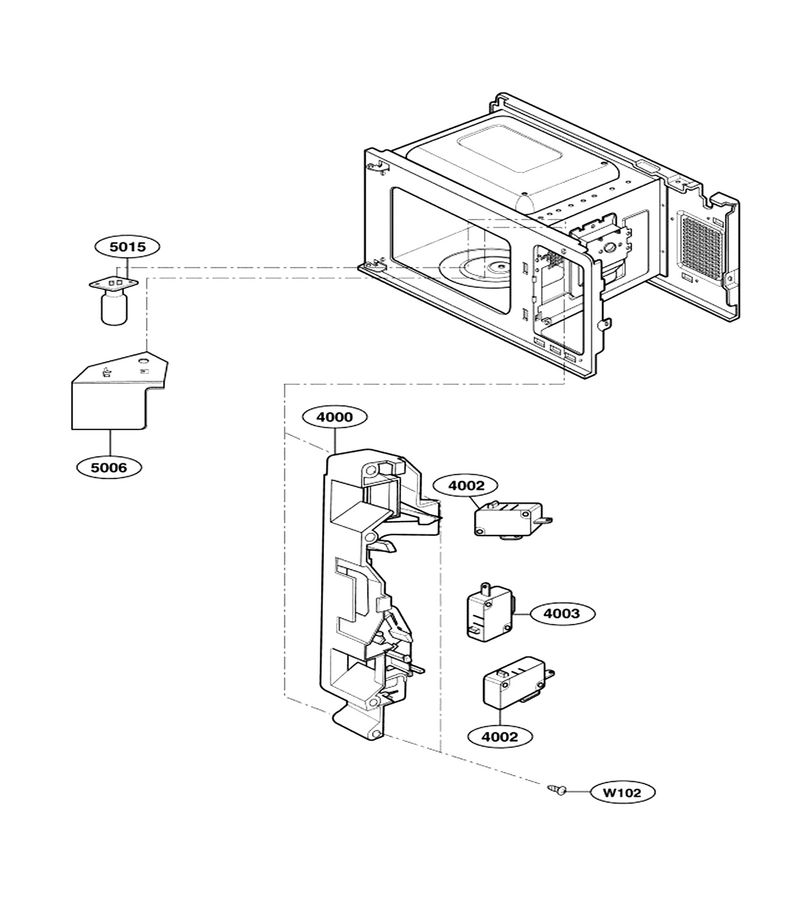

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W1A004B
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
5006
Duct L-G-5208W1A017A
...
5015
Microwave Light Bulb L-G-6912W3B002L

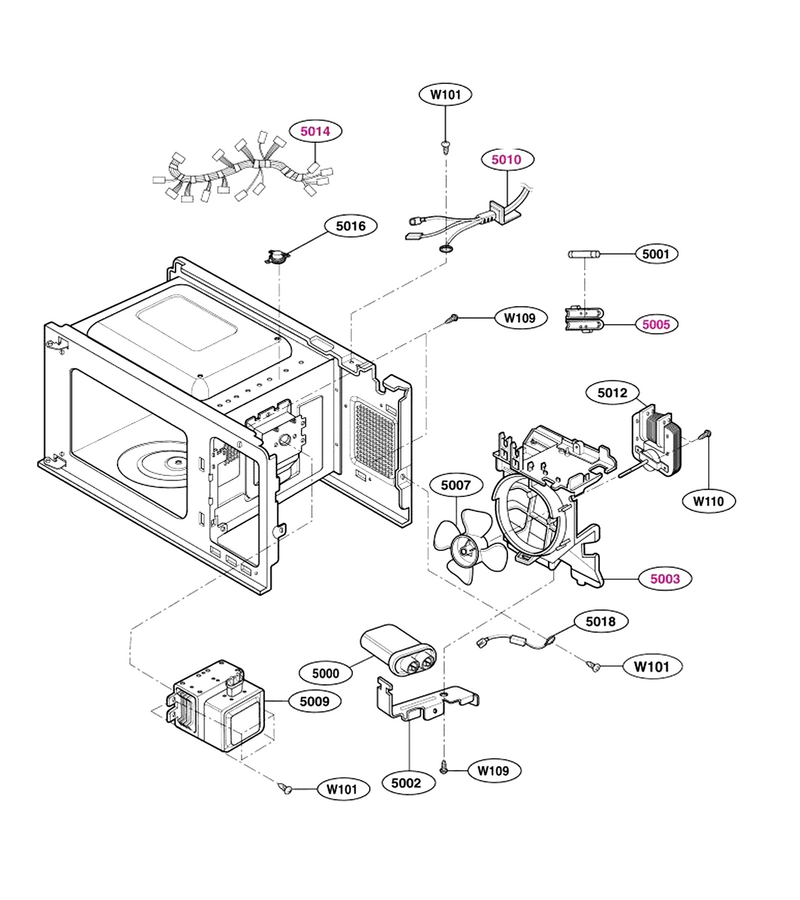

Interior Parts (i)

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
5000
Capacitor,high Voltage L-G-0CZZW1H001P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide L-G-4974W0A003B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A007B
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-6411W1A031M
...
5012
Motor,ac Fan L-G-6549W1F009C
...
5014
Harness L-G-6877W1A506D
...
5016
Microwave Thermostat L-G-6930WRT002F
...
5018
Microwave Diode L-G-6851W1A002A

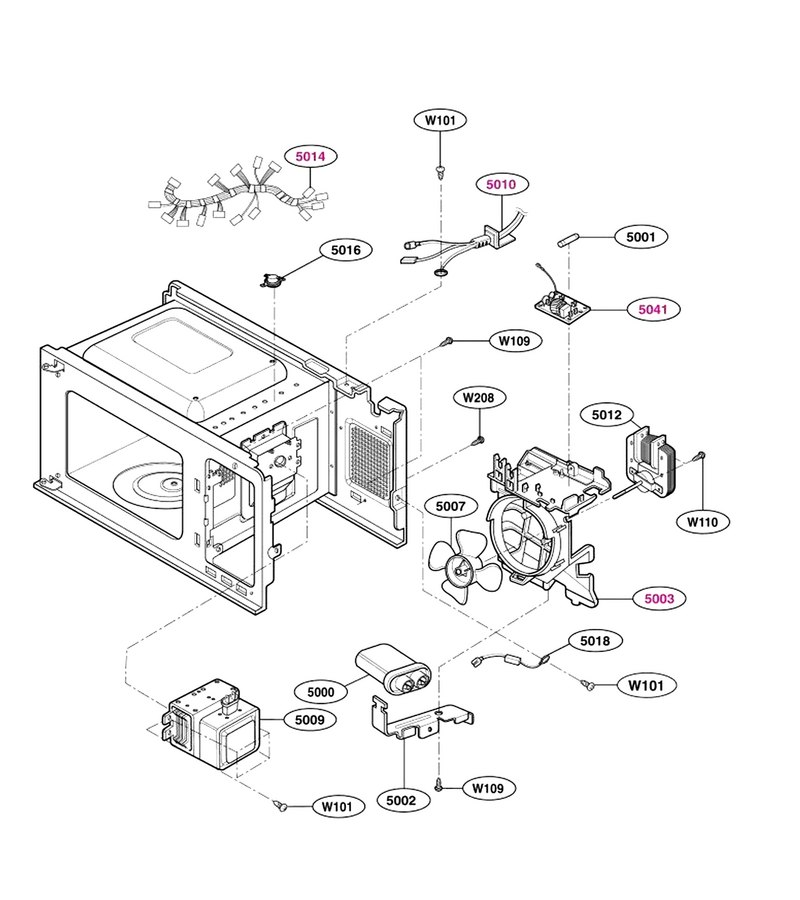

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
5000
Capacitor,high Voltage L-G-0CZZW1H001L
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide L-G-4974W0A003B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A007B
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-6411W1A031M
...
5012
Motor,ac Fan L-G-6549W1F009C
...
5014
Harness L-G-6877W1A506D
...
5016
Microwave Thermostat L-G-6930WRT002F
...
5018
Microwave Diode L-G-6851W1A002A
...
5041
Filter Assembly,noise L-G-6201W1A014A

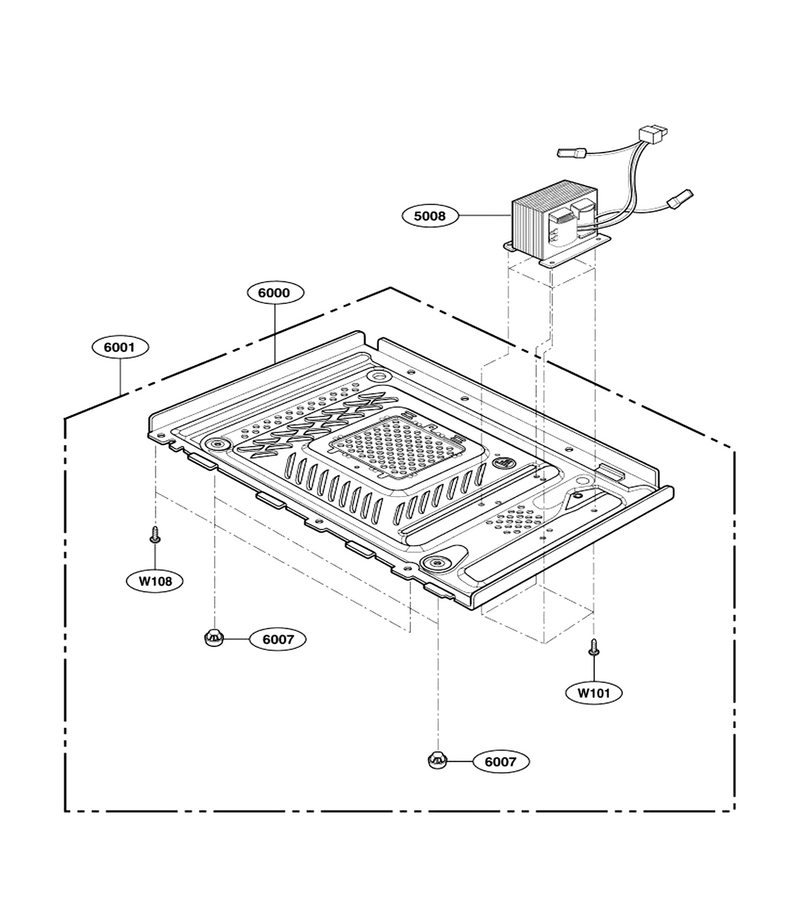

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer L-G-6170W1D023L
...
6000
Microwave Base Plate Assembly L-G-3302W0A036B
...
6001
Microwave Base Plate Assembly L-G-3303W0A019B
...
6007
Microwave Foot (white) L-G-5006W3A019A
