Models

Parts

product name

LG 64669.AB1ESEA

Model: 64669.AB1ESEA

Save Part Not Listed?
product name

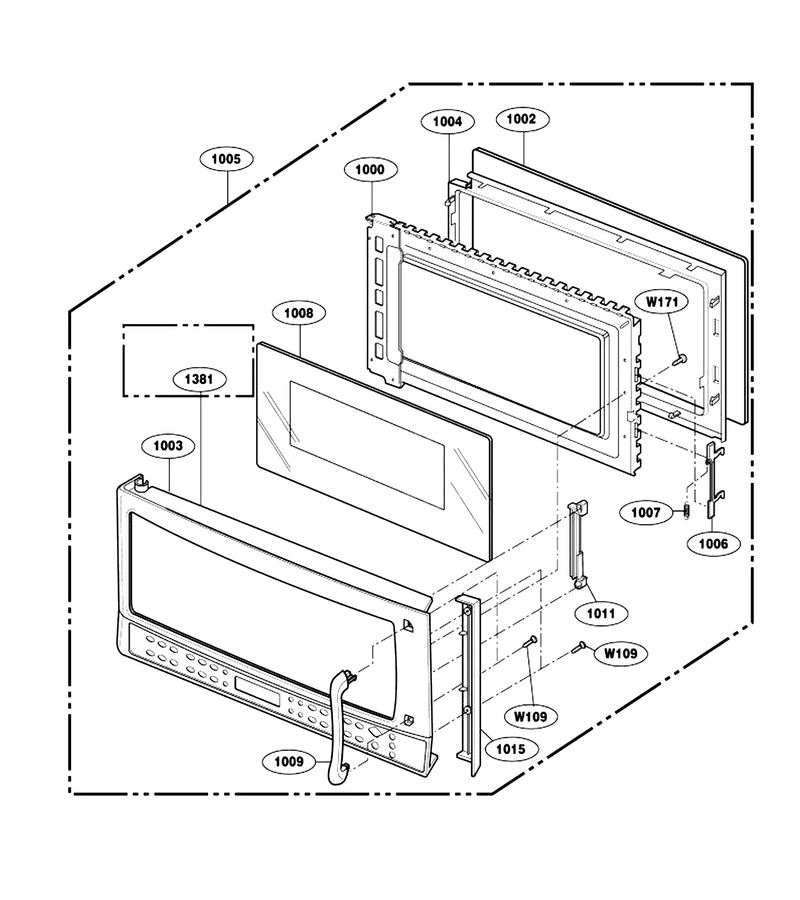

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W171
Screw,tapping L-G-1TTL0302618
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1002
Seal Tape L-G-3536WRA001T
...
1003
Panel,door L-G-3720W0D287B
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A370B
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A030N
...
1009
Handle,door L-G-3650W1A091B
...
1011
Baffle L-G-4760W1A015A
...
1015
Decor,door L-G-3806W1A069B

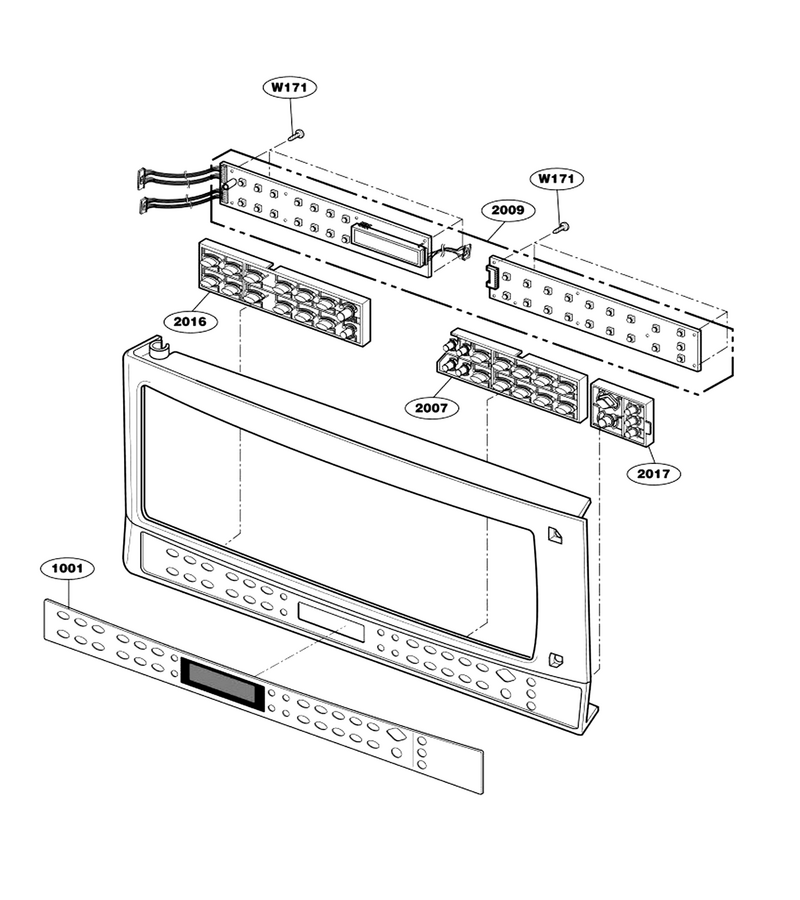

Controller Parts 1

...
...
W171
Screw,tapping L-G-1TTL0302618
...
1001
Window,screen L-G-3352W0A004B
...
2007
Button L-G-5020W1A137B
...
2009
Pcb Assembly,sub L-G-6871W0S001A
...
2016
Button L-G-5020W1A136B
...
2017
Button L-G-5020W1A138B

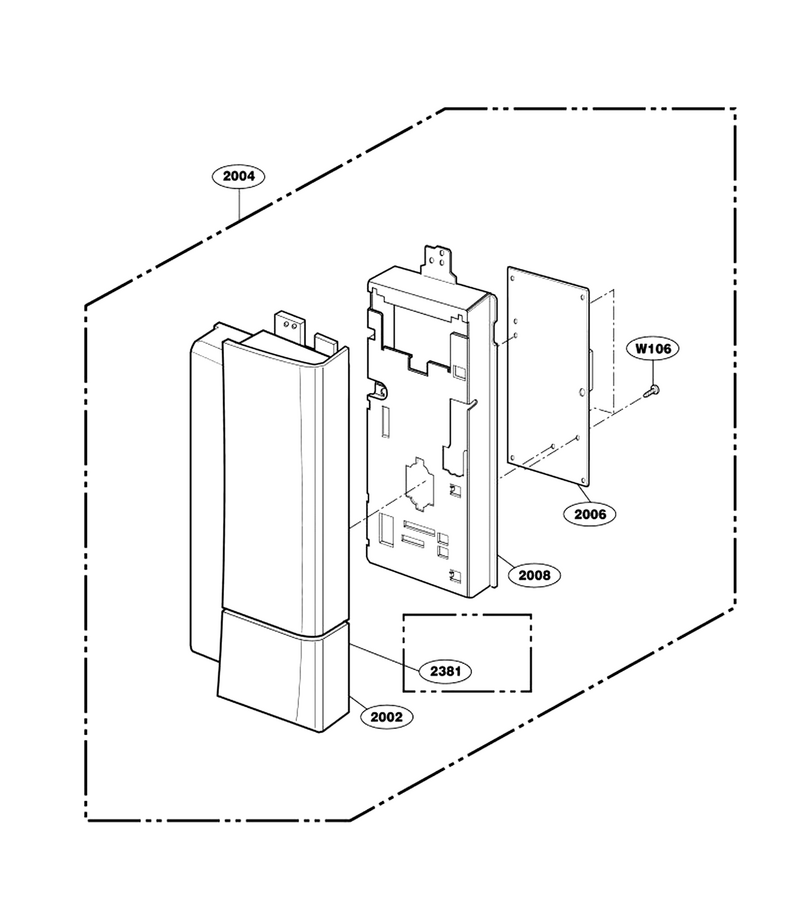

Controller Parts 2

...
...
W106
Screw L-G-1TPL0402818
...
2002
Panel,control L-G-3720W0C097B
...
2004
Controller Assembly,keypad L-G-4781W1M316B
...
2006
Pcb Assembly,sub L-G-6871W1S149A
...
2008
Bracket, C L-G-4810W1P009A

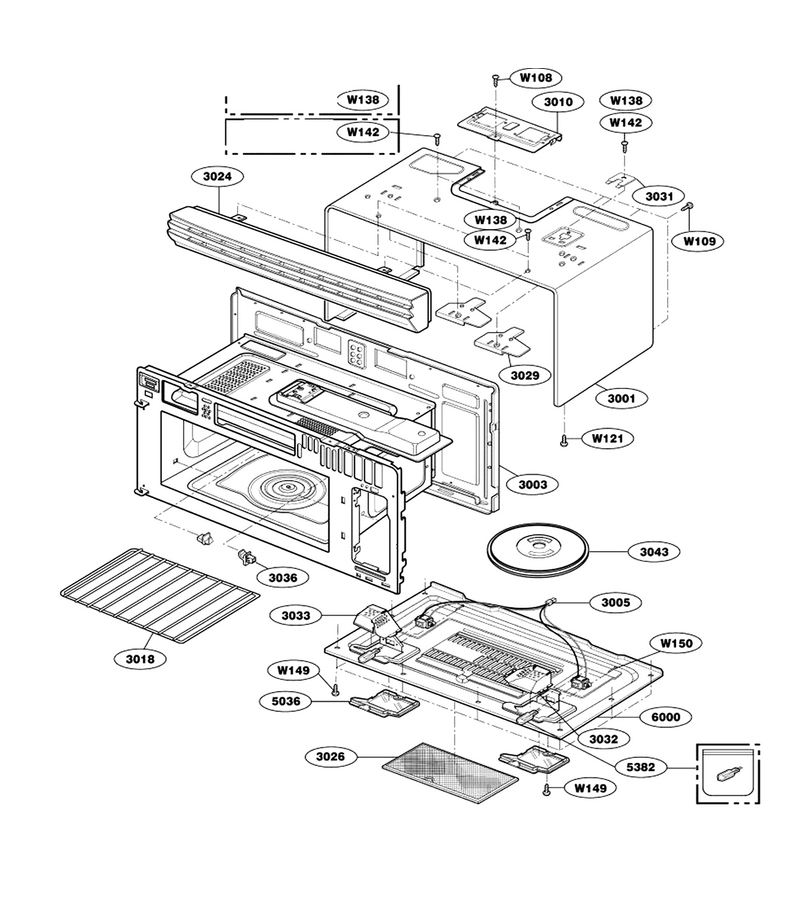

Oven Cavity Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W142
Screw L-G-1TTL0402816
...
W149
Screw L-G-1TTL0402622
...
3001
Cabinet L-G-3112W1U023B
...
3003
Cavity Assembly,coating L-G-3461W0A058C
...
3005
Holder Assembly L-G-4931W1A011E
...
3010
Microwave Vent Duct Cover L-G-4960W1A004A
...
3018
Microwave Cooking Rack L-G-5026W1A052C
...
3024
Grille,vent L-G-3530W0A033B
...
3026
Microwave Grease Filter L-G-5230W2A004A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3032
Reflector L-G-3034W2A002B
...
3033
Reflector L-G-3034W2A003B
...
3036
Holder L-G-4930W1A026A
...
3043
Tray L-G-3390W1A023B
...
5036
Microwave Surface Light Lens L-G-3550W2L001A
...
5382
Parts Assembly L-G-383EW1A077C
...
6000
Base Plate L-G-3302W0A038B

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

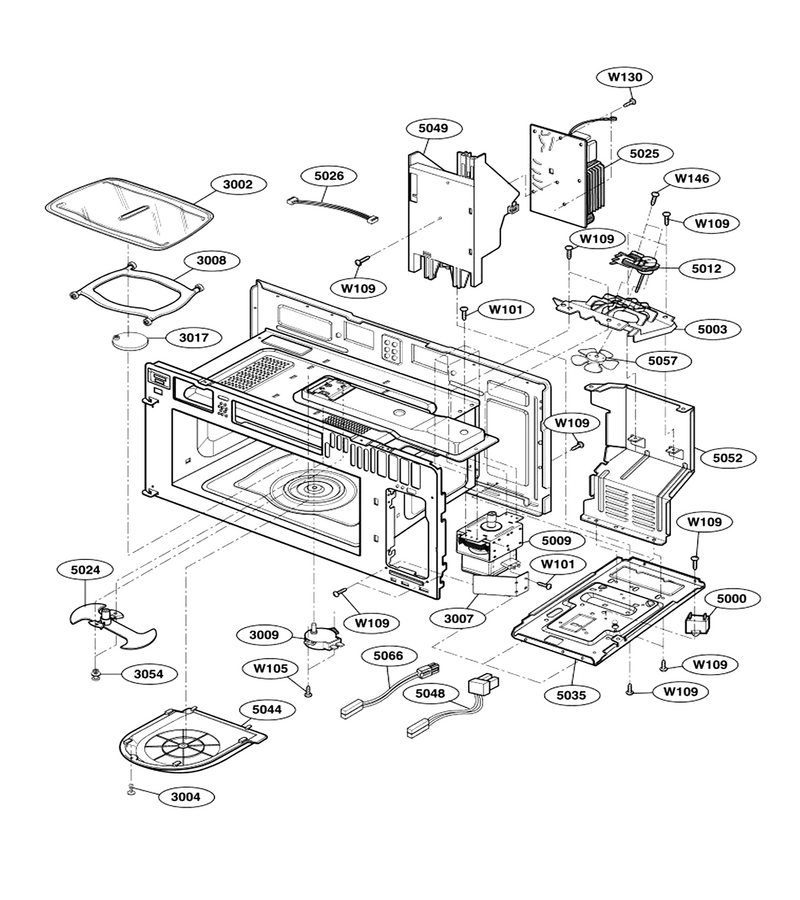

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
W146
Screw L-G-1TTL0403418
...
3002
Glass Tray L-G-3390W0A001A
...
3007
Air Guide L-G-4974W1A021A
...
3008
Microwave Turntable Ring L-G-5889W1A007A
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3017
Ring Assembly L-G-4351W1A001C
...
3054
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1M001A
...
5003
Guide L-G-4974W1A019A
...
5009
Microwave Magnetron L-G-6324W1A002C
...
5012
Fan Motor L-G-6549W1F001W
...
5024
Microwave Stirrer Fan Blade L-G-5901W1A002A
...
5025
Part L-G-6871W1S019A
...
5026
Microwave Wire Harness L-G-6631W3A003S
...
5035
Plate L-G-3300W1B001A
...
5044
Microwave/hood Cover L-G-3550W1A169A
...
5048
Cable, H-V L-G-6850W1A001A
...
5049
Air Guide L-G-4974W0A007A
...
5052
Air Guide L-G-4974W1A020A
...
5057
Microwave Cooling Fan Blade L-G-2B72125A
...
5066
Microwave Wire Harness L-G-6877W1A452A

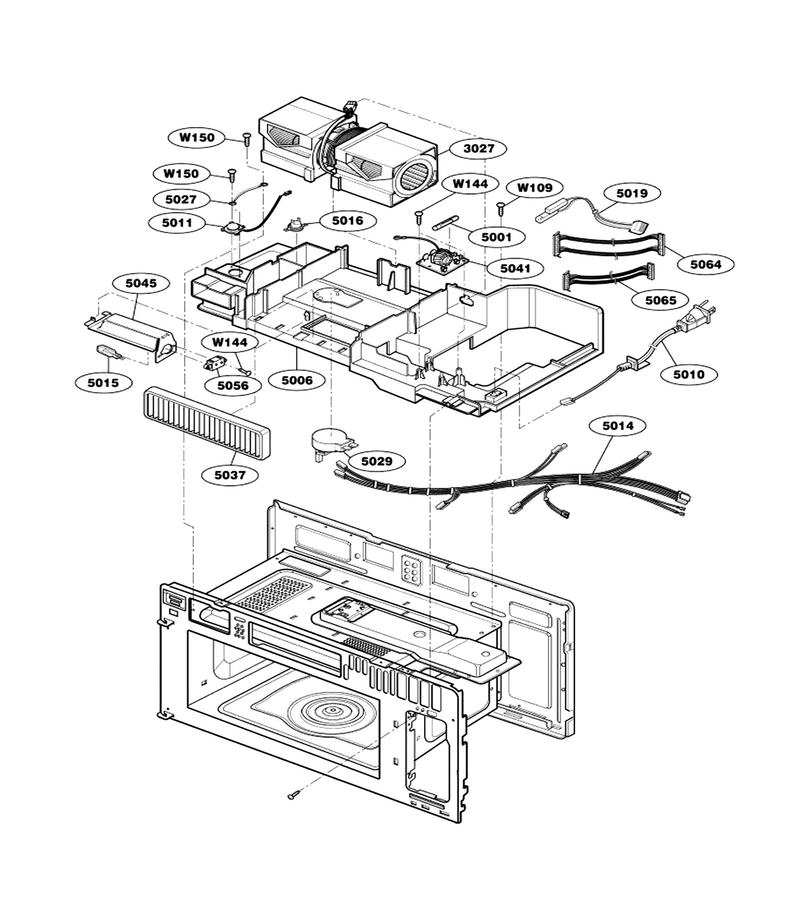

Interior Parts 2

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Microwave/hood Blower Motor L-G-6549W1V011A
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A009A
...
5010
Power Cord L-G-6411W2A002E
...
5011
Humidity Sensor L-G-6501W1A004A
...
5014
Harness,single L-G-6877W1A450C
...
5015
Microwave Light Bulb L-G-6912A40002D
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5019
Microwave Wire Harness L-G-6877W2S002F
...
5027
Harness L-G-3B72342U
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Microwave Light Lens Bracket L-G-3550W1A171B
...
5056
Holder L-G-4931W1A011D
...
5064
Harness,single L-G-6877W1A453B
...
5065
Harness,single L-G-6877W1A453A

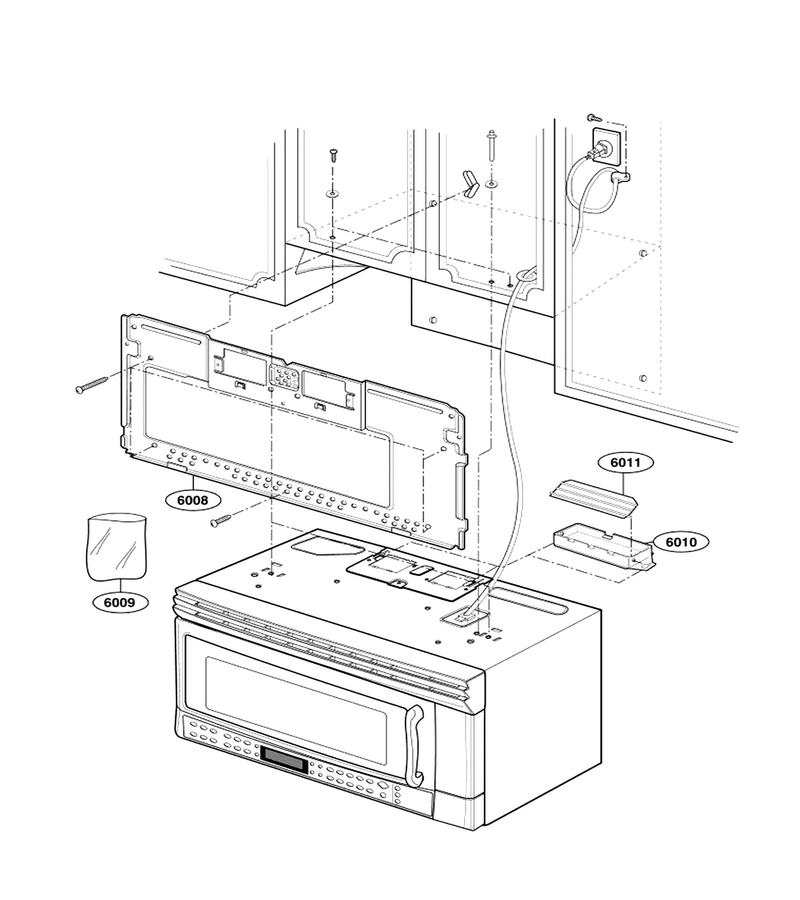

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771H
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
