product name

LG 64289.AB1ESEA

Model: 64289.AB1ESEA

Save Part Not Listed?
product name

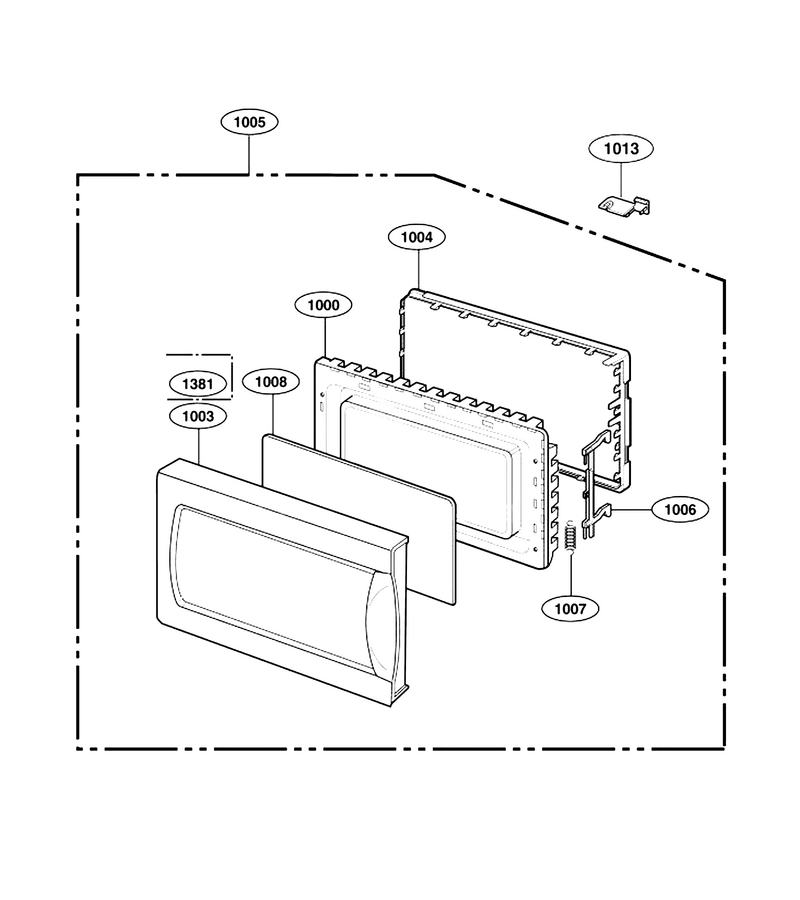

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W1A032L
...
1003
Panel,door L-G-3720W0D342C
...
1004
Cover L-G-3552W1A042A
...
1005
Door Assembly L-G-3581W1A426E
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Spring L-G-4970WRA001B
...
1008
Microwave Glass L-G-4890W1A010M
...
1013
Transformer L-G-5006W3A017A

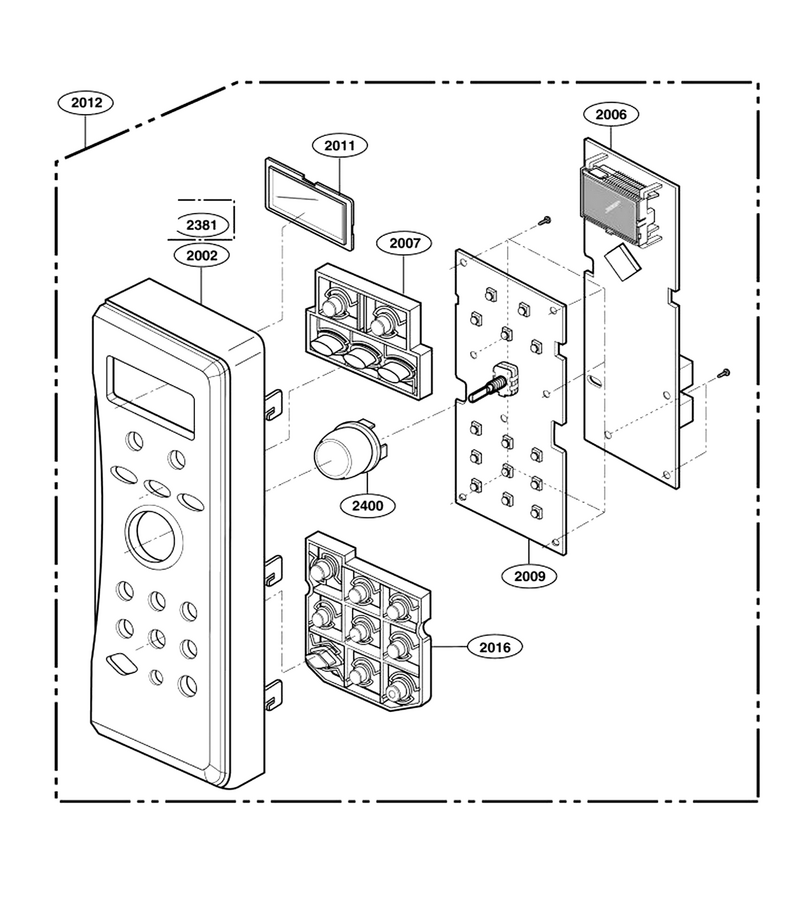

Controller Parts

...
...
2002
Panel,control L-G-3720W0C191B
...
2006
Pcb Assembly,sub L-G-6871W1S290A
...
2007
Button L-G-5020W1A227B
...
2009
Pcb Assembly,sub L-G-6871W1S291A
...
2011
Window,display L-G-3790W1A066A
...
2012
Controller Assembly,tact Dial L-G-4781W1S130B
...
2016
Button L-G-5020W1A228B
...
2400
Knob L-G-4940W1A123B

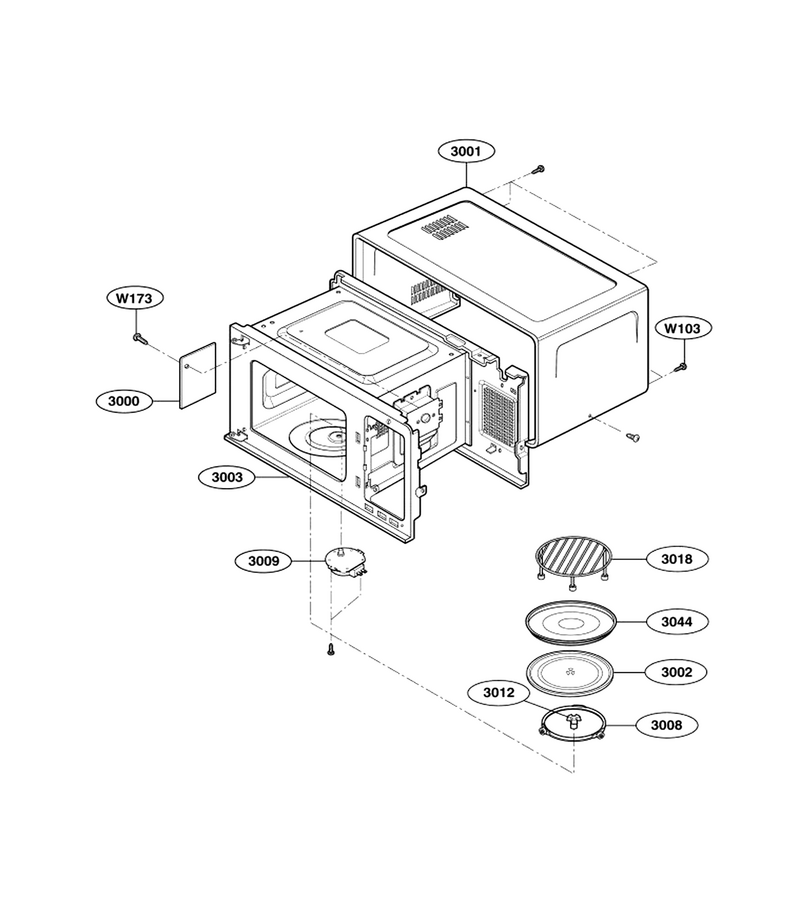

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
3000
Canopy L-G-3052W3M011E
...
3001
Case,flat L-G-3112W1F061C
...
3002
Glass Tray L-G-1B71018H
...
3003
Cavity Assembly,welding L-G-3461W1A087B
...
3008
Microwave Turntable Tray Support L-G-5889W2A015K
...
3009
Microwave Turntable Motor L-G-6549W1S013A
...
3012
Shaft L-G-4370W1A009A
...
3018
Microwave Metal Rack L-G-3B71492A
...
3044
Microwave Turntable Tray L-G-3390W2P002F

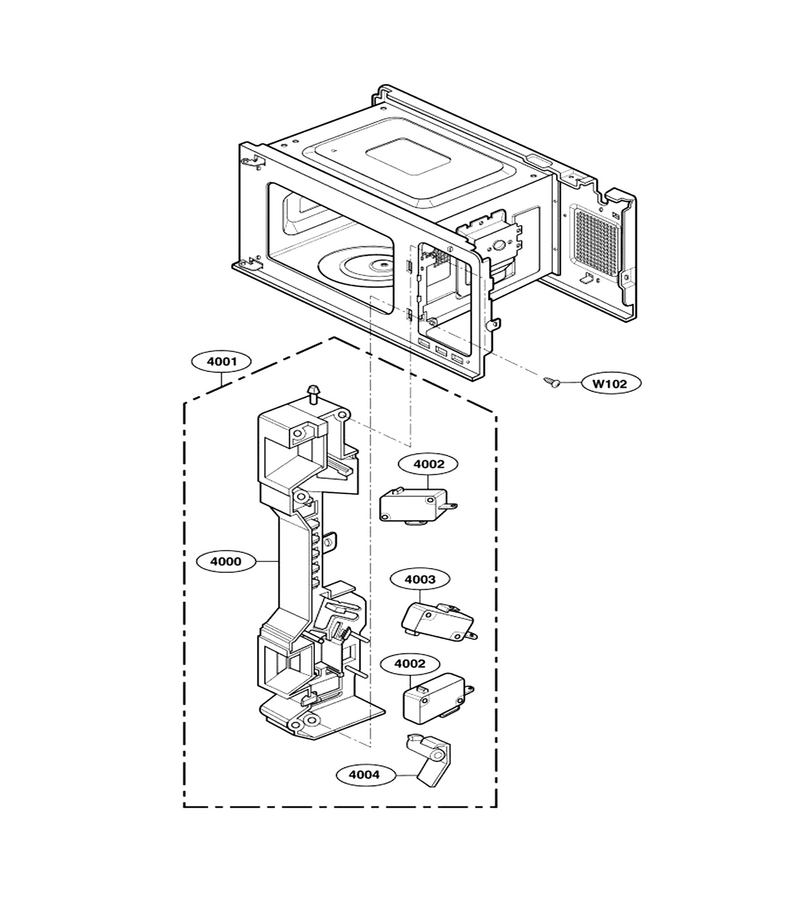

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Holder Assembly,locker L-G-3501W1A016V
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

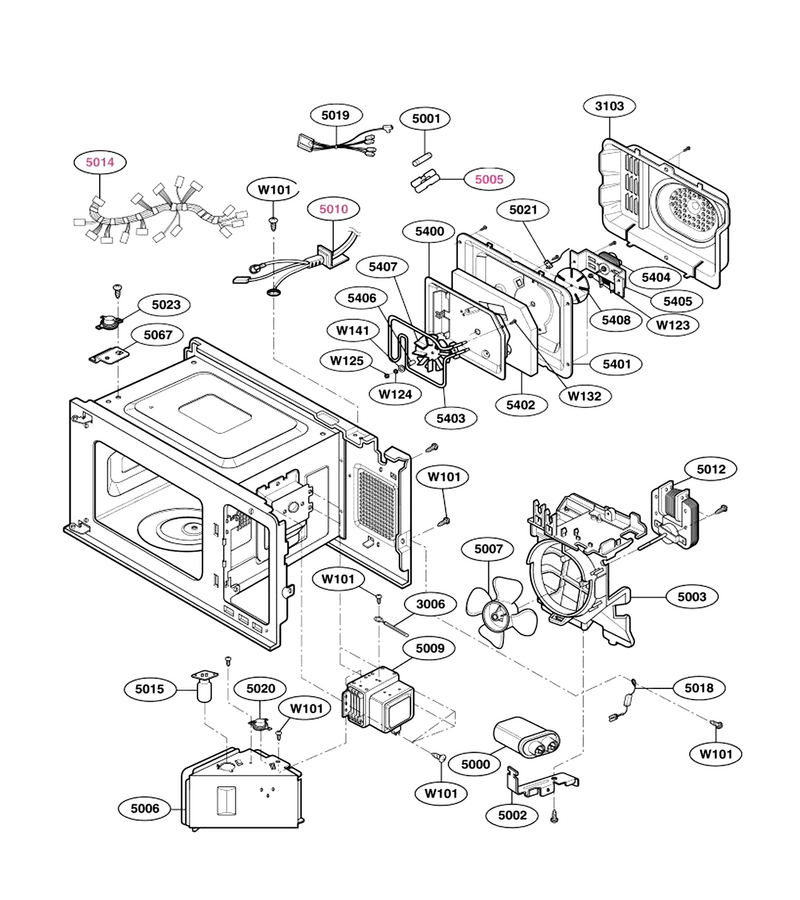

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W123
Nut L-G-1NHA0400018
...
W124
Washer L-G-1WSD0400032
...
W132
Screw L-G-1MTC0402432
...
W141
Washer L-G-1WPL0500032
...
3006
Lug (circ) L-G-4B72510F
...
3103
Cover Assembly,rear L-G-3809W1A001A
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004G
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S016C
...
5006
Air Duct L-G-5262W2A020A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5010
Power Cord Assembly L-G-6411W1A018L
...
5012
Fan Motor L-G-6549W1F015B
...
5014
Harness,single L-G-6877W1A516B
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5019
Harness,single L-G-6877W3A009A
...
5020
Thermostat L-G-6930W1A003V
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5023
Microwave Thermal Cut-Off L-G-6930W1A003C
...
5067
Thermostat Bracket L-G-4810W1A224A
...
5400
Microwave Guide Assembly L-G-4975W1G002C
...
5401
Chamber L-G-3300W1G057A
...
5402
Glass L-G-6208W2A005D
...
5403
Heater L-G-5300W2S018E
...
5404
Motor L-G-2B72066P
...
5405
Bracket L-G-3B72717A
...
5406
Ring Shaft L-G-4B73725A
...
5407
Fan Blade L-G-3B72561A
...
5408
Fan Blade L-G-3B72559A

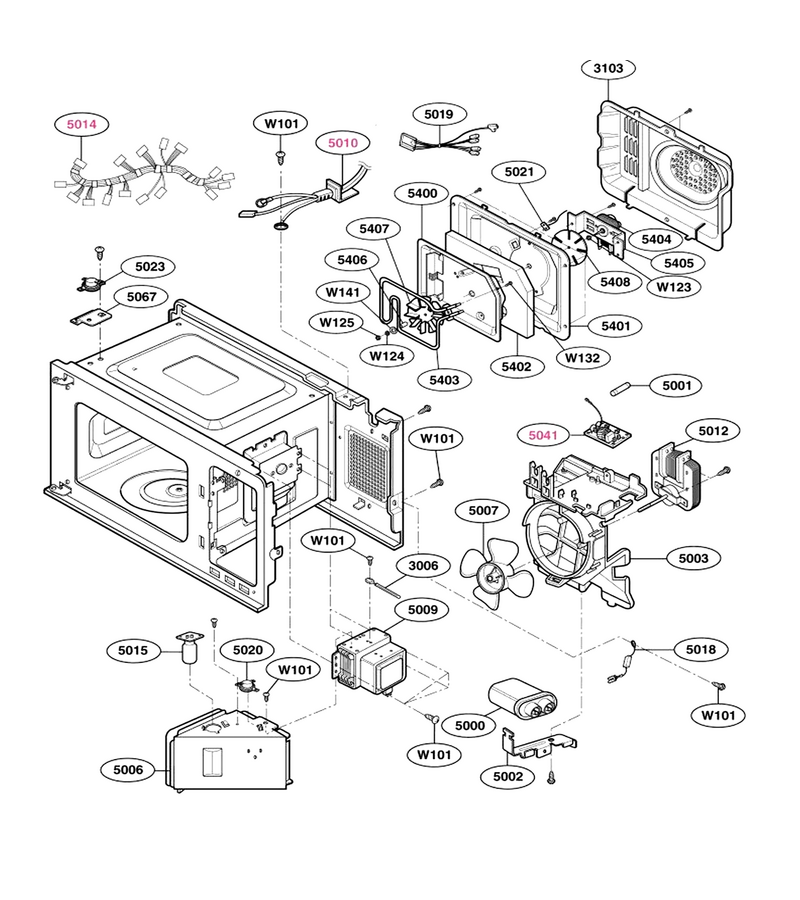

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W123
Nut L-G-1NHA0400018
...
W124
Washer L-G-1WSD0400032
...
W132
Screw L-G-1MTC0402432
...
W141
Washer L-G-1WPL0500032
...
3006
Lug (circ) L-G-4B72510F
...
3103
Cover Assembly,rear L-G-3809W1A001A
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004G
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S016C
...
5006
Air Duct L-G-5262W2A020A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5010
Power Cord Assembly L-G-6411W1A018L
...
5012
Fan Motor L-G-6549W1F015B
...
5014
Harness,single L-G-6877W1A516B
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5019
Harness,single L-G-6877W3A009A
...
5020
Thermostat L-G-6930W1A003V
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5023
Microwave Thermal Cut-Off L-G-6930W1A003C
...
5041
Microwave Filter L-G-6201W2A018A
...
5067
Thermostat Bracket L-G-4810W1A224A
...
5400
Microwave Guide Assembly L-G-4975W1G002C
...
5401
Chamber L-G-3300W1G057A
...
5402
Glass L-G-6208W2A005D
...
5403
Heater L-G-5300W2S018E
...
5404
Motor L-G-2B72066P
...
5405
Bracket L-G-3B72717A
...
5406
Ring Shaft L-G-4B73725A
...
5407
Fan Blade L-G-3B72561A
...
5408
Fan Blade L-G-3B72559A

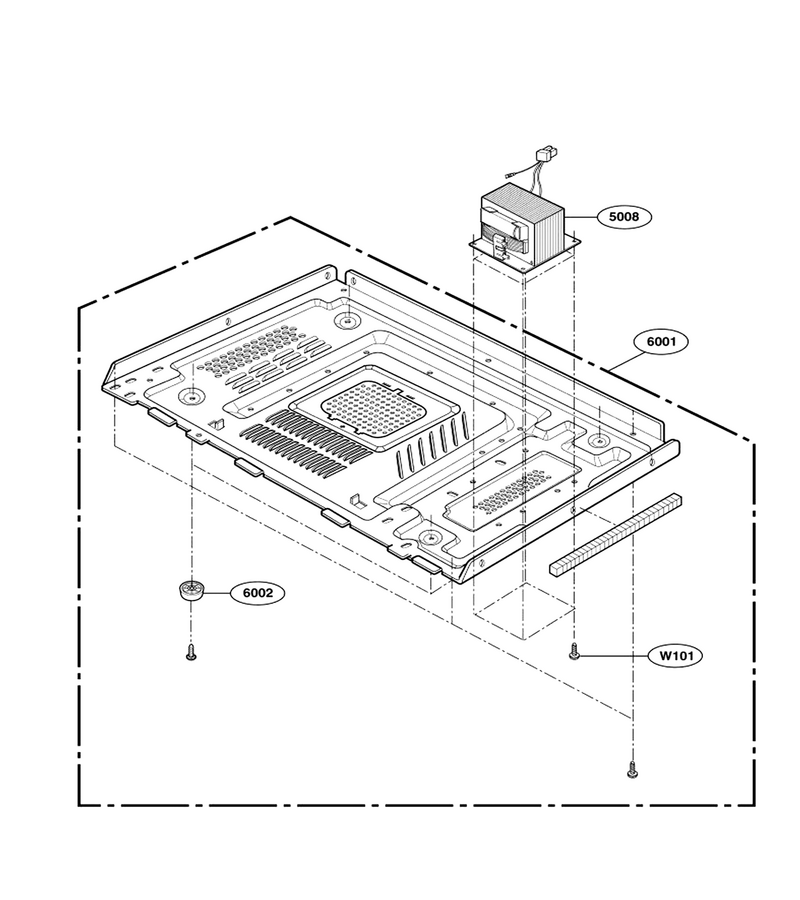

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Transformer L-G-6170W1D050J
...
6001
Base Plate L-G-3303W1A064A
...
6002
Foot L-G-4B75290A

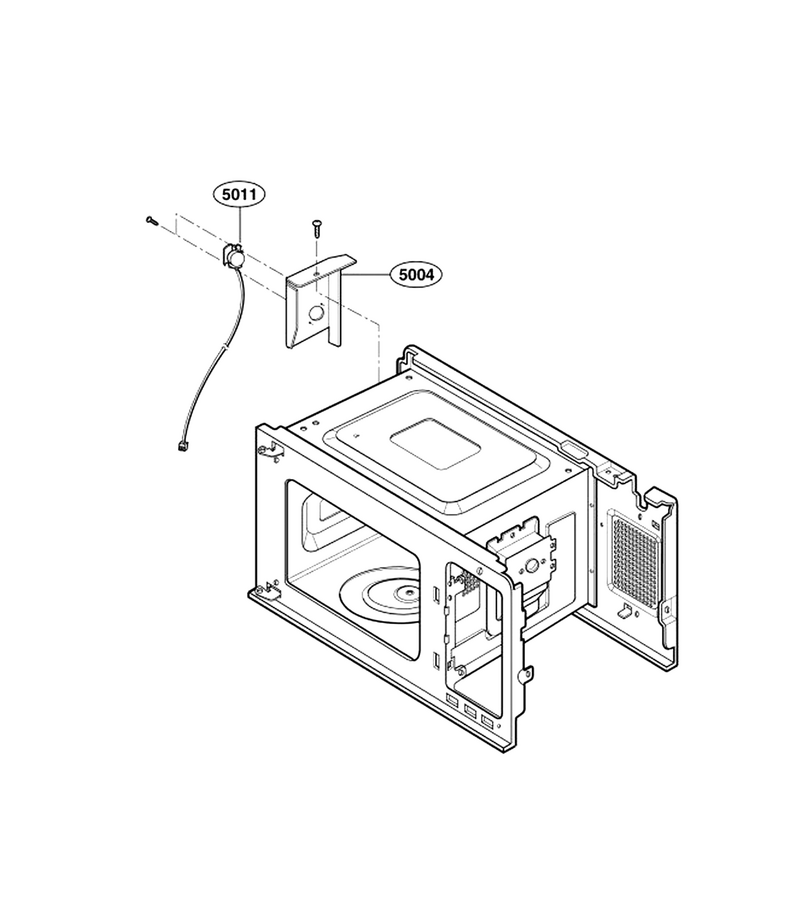

Sensor Parts

...
...
5004
Sensor Bracket L-G-5208W1A026B
...
5011
Sensor Assembly L-G-6501W1A013A
