product name

LG 63992.AW1ESEA

Model: 63992.AW1ESEA

Save Part Not Listed?
product name

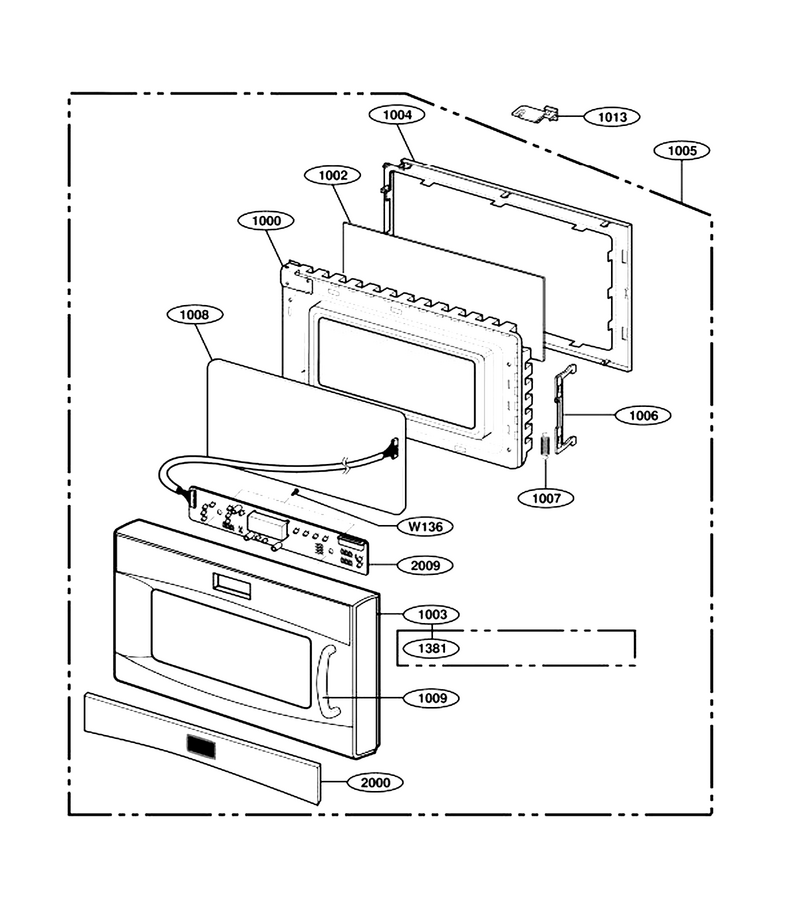

Door And Controller Parts

...
...
W136
Screw L-G-1TPL0302418
...
1000
Frame Assembly,door L-G-3213W1A031U
...
1002
Seal Tape L-G-3536WRA001M
...
1003
Panel,door L-G-3720W0D332A
...
1004
Cover,choke L-G-3552W0A003A
...
1005
Door Assembly L-G-3581W0A094D
...
1006
Microwave Door Latch Lever L-G-4026W1A025A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W1A001R
...
1009
Handle,door L-G-3650W1A119A
...
1013
Transformer L-G-5006W3A017A
...
2000
Membrane L-G-3506W1A521C
...
2009
Pcb Assembly,sub L-G-6871W1S258B

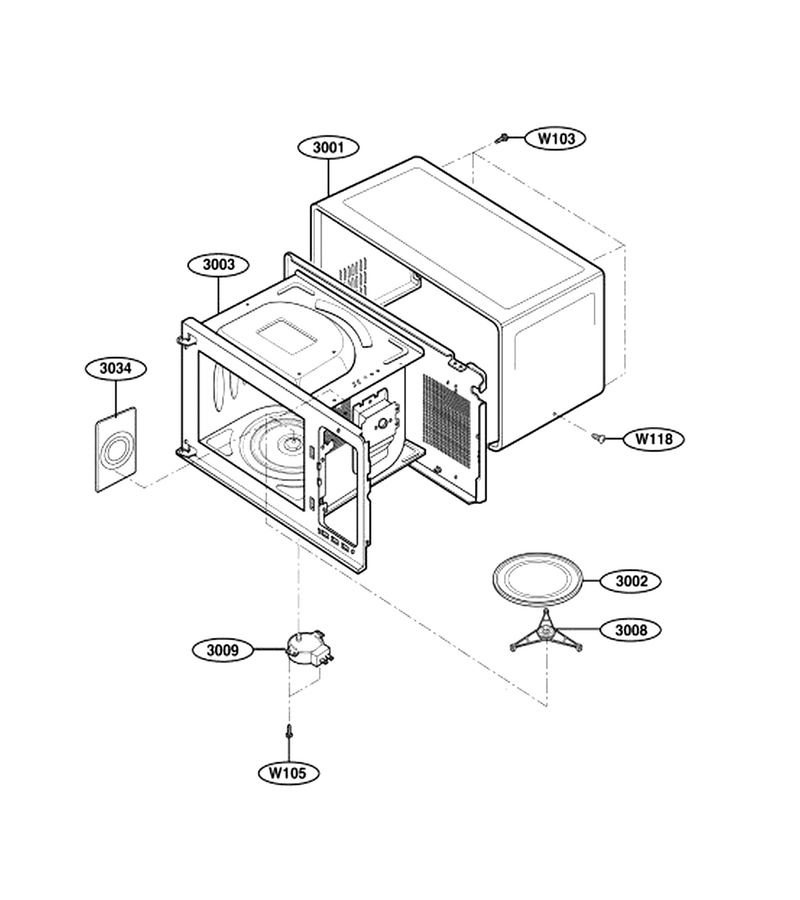

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Case,u Bending L-G-3112W0U053C
...
3002
Microwave Glass Turntable Tray L-G-3390W1A012B
...
3003
Cavity Assembly L-G-3461W1A084F
...
3008
Microwave Turntable Tray Support L-G-5889W1A003A
...
3009
Motor, Ac Synchronous L-G-6549W1S011C
...
3034
Cover,resin L-G-3052W1A005A

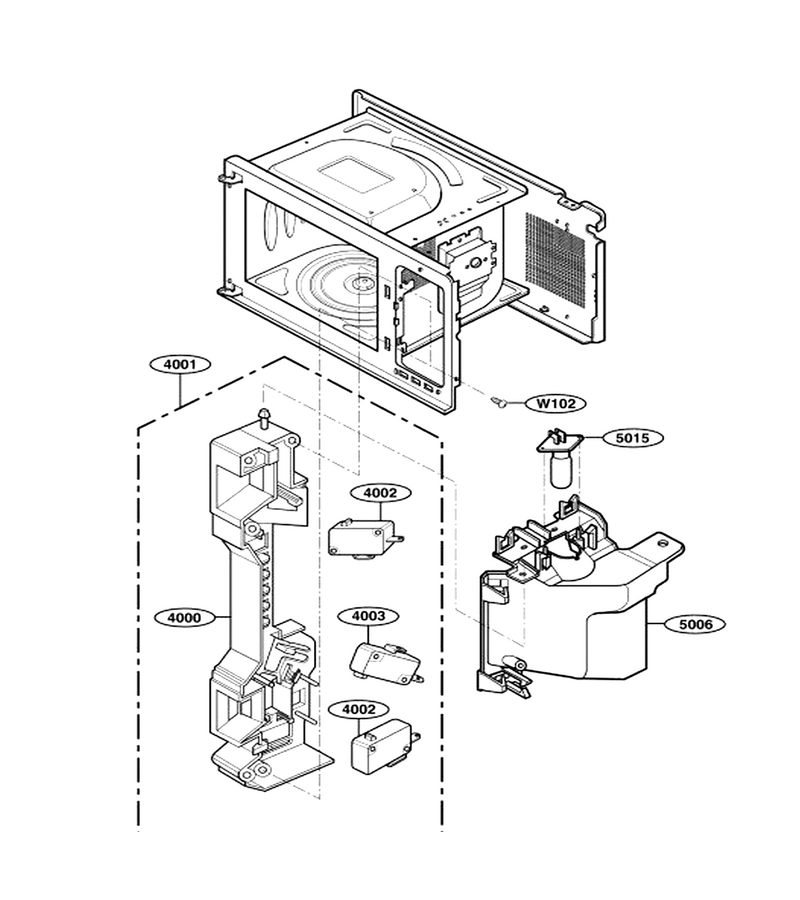

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W0A005A
...
4001
Holder Assembly,locker L-G-3501W1A016R
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
5006
Duct L-G-5208W1A027A
...
5015
Microwave Light Bulb L-G-6912W3B002L

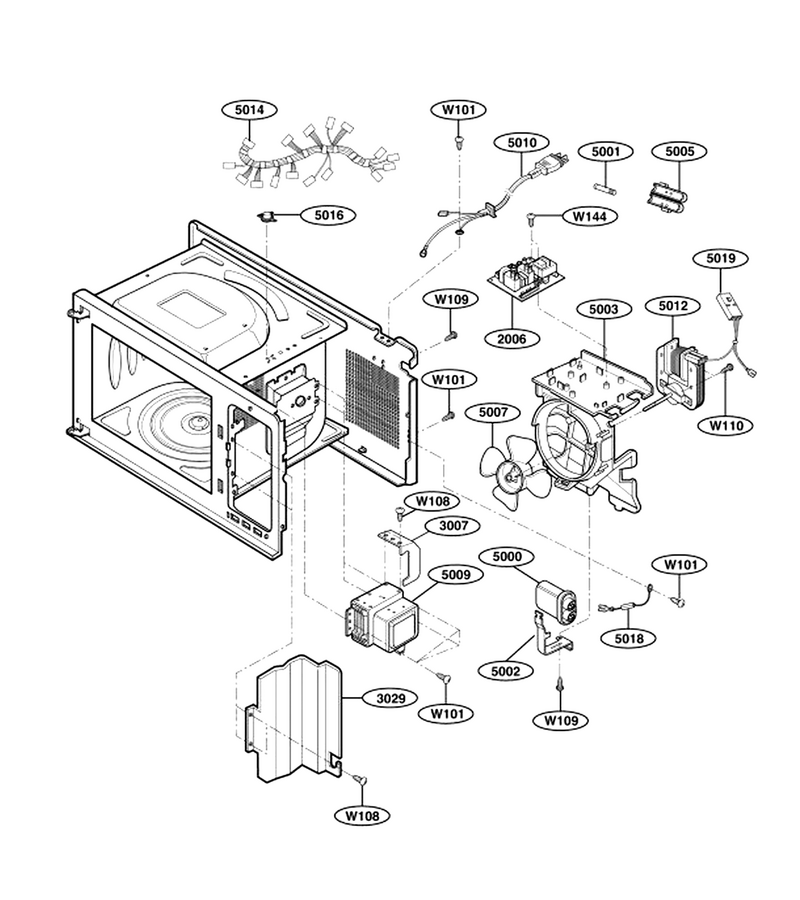

Oven Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
2006
Pcb Assembly,sub L-G-6871W1S313A
...
3007
Insulator L-G-5012W3A020A
...
3029
Bracket,mount L-G-4810W1A212B
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
5001
Microwave Fuse L-G-3B74133H
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide,suction L-G-4974W0A011A
...
5005
Fuse Cap L-G-5006WRA002A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5010
Ac Power Cord Assembly L-G-6411W1A002L
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A494E
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5019
Harness,single L-G-6877W1A494B

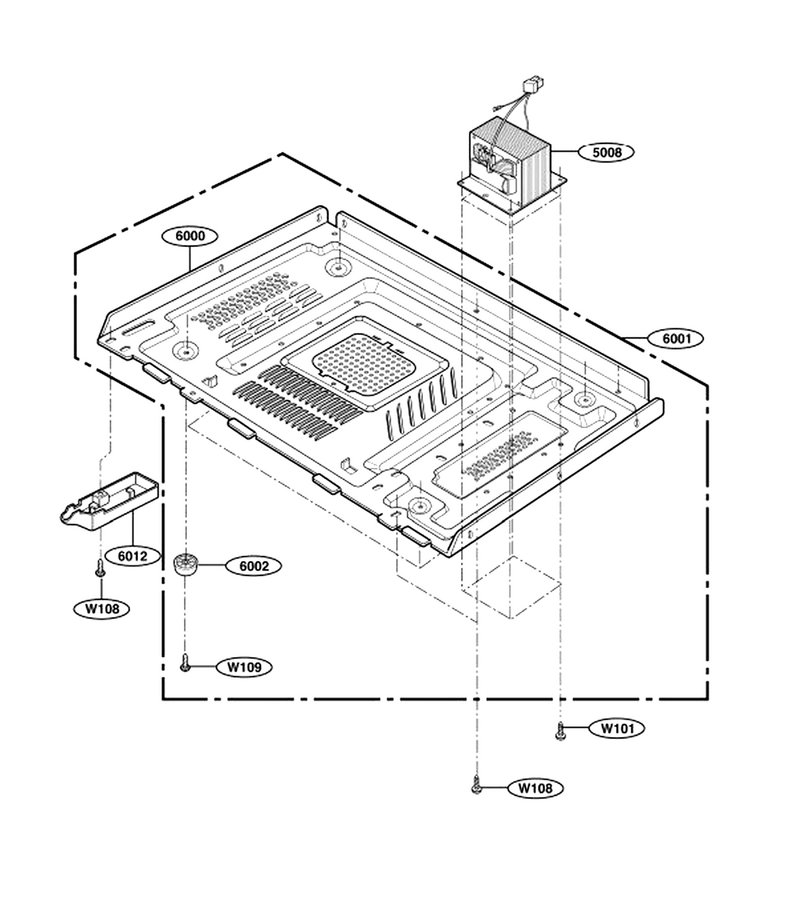

Base Plate Part

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
5008
Transformer,high Voltage L-G-6170W1D023U
...
6000
Plate,base L-G-3302W0A049B
...
6001
Plate Assembly,base L-G-3303W0A027B
...
6002
Foot L-G-4B73900A
...
6012
Cap Protector L-G-5006W1A003B

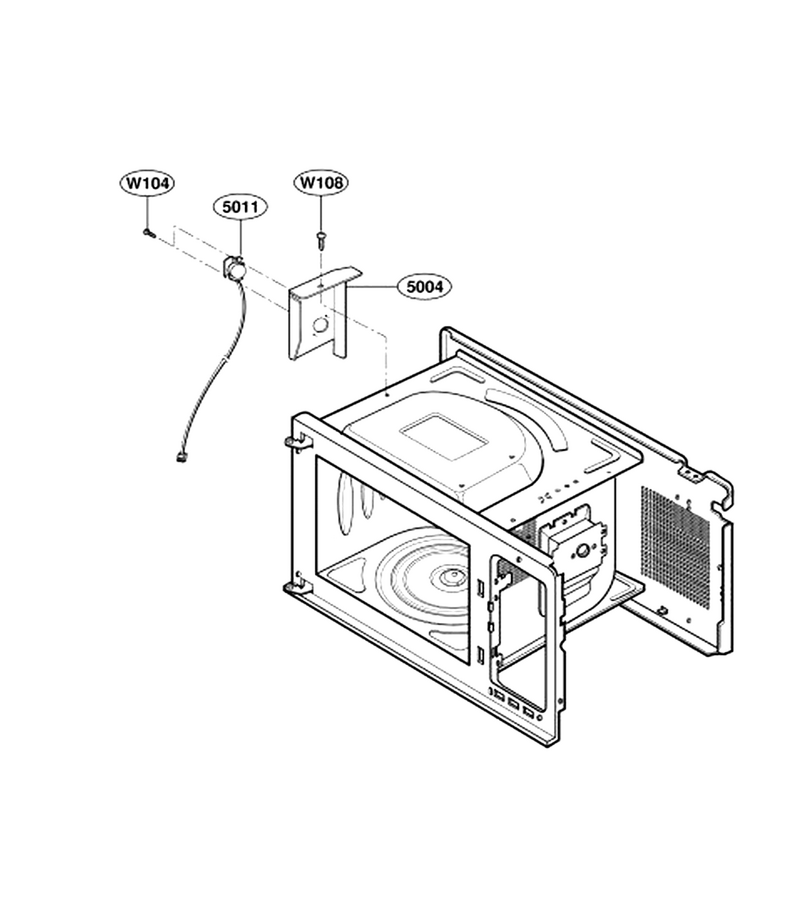

Sensor Parts

...
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
5004
Bracket,sensor L-G-5208W1A026A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A

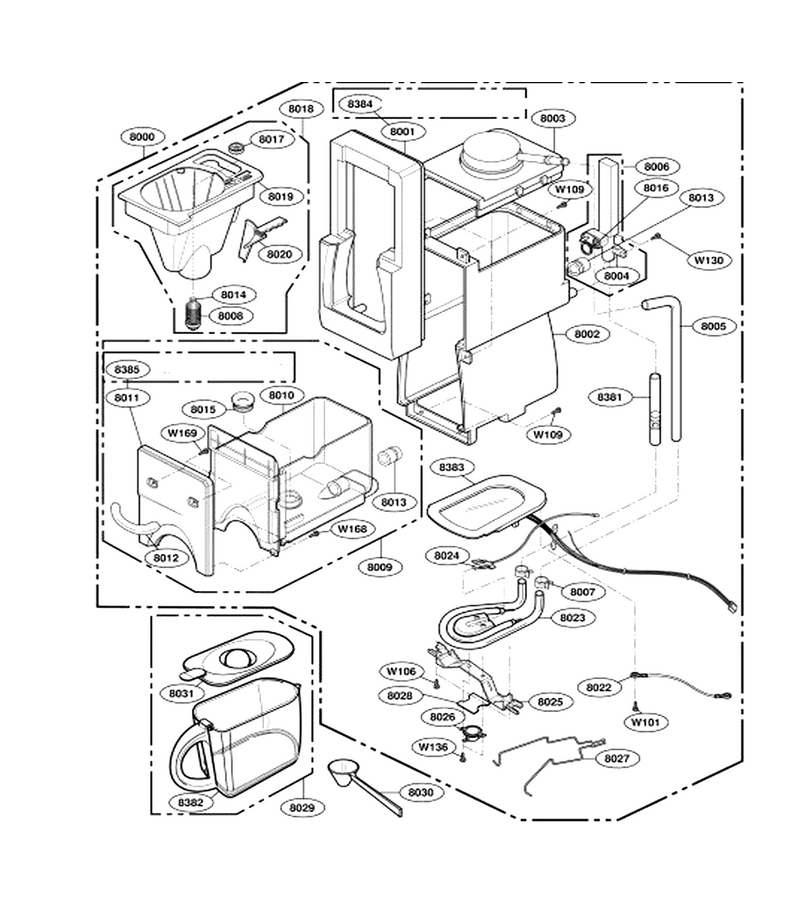

Coffee Maker Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W106
Screw L-G-1TPL0402818
...
W109
Microwave Screw L-G-1TTL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
W136
Screw L-G-1TPL0302418
...
W168
Screw,tapping L-G-1TPL0402432
...
W169
Screw,tapping L-G-1TCL0402416
...
8000
Coffee Maker Assembly L-G-3496W0A001E
...
8002
Case,lower L-G-3110W0A012A
...
8003
Case Assembly L-G-3111W1A027A
...
8004
Pipe L-G-5200W1A004A
...
8005
Pipe L-G-5200W1A005A
...
8006
Pipe Assembly L-G-5201W1A001A
...
8007
Spring L-G-4970W1A016A
...
8008
Spring L-G-4970W1A017A
...
8009
Tank Assembly,water L-G-4839W1A001A
...
8010
Tank,water L-G-4838W1A001A
...
8011
Panel L-G-3720W1E035A
...
8012
Handle,door L-G-3650W1A128A
...
8013
Valve L-G-5220W1A003A
...
8014
Valve L-G-5220W1A001A
...
8015
Packing,gasket L-G-3920W1A012A
...
8016
Packing,gasket L-G-3920W1A011A
...
8017
Packing,gasket L-G-3920W1A013A
...
8018
Cover Assembly,top L-G-3551W1A029A
...
8019
Cover,inner L-G-3550W0A100A
...
8020
Lever L-G-4510W1A014A
...
8022
Harness,single L-G-3B72342Z
...
8023
Heater Sheath L-G-5300W1S018B
...
8024
Thermistor L-G-6322A00010B
...
8025
Bracket,mount L-G-4810W1A211A
...
8026
Microwave Thermostat L-G-6930W1A001N
...
8027
Supporter L-G-4980W1A082A
...
8028
Cover,insulator L-G-3052W1M010A
...
8029
Pitcher Assembly L-G-3495W1A001A
...
8030
Scoop L-G-5024W1A001B
...
8031
Cover,top L-G-3550W1A231A
...
8381
Parts Assembly L-G-383EW5A160A
...
8382
Parts Assembly L-G-383EW5A162A
...
8383
Parts Assembly L-G-383EW5A161A
