LG 63263.CSTESEA

Model: 63263.CSTESEA

Save Part Not Listed?
product name

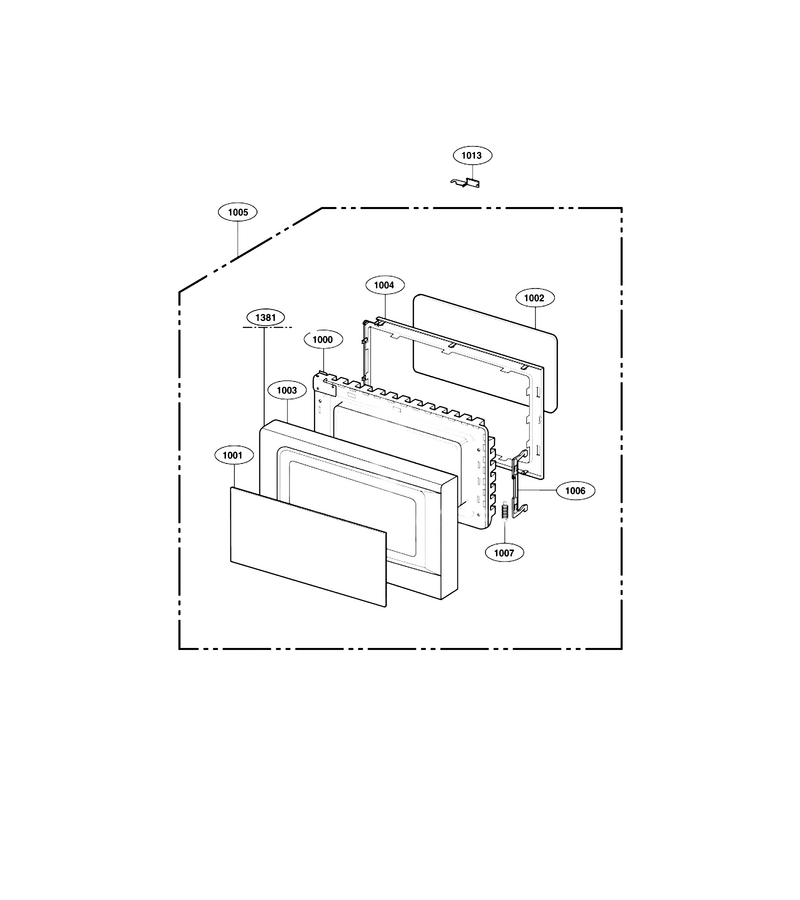

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W1A034Q
...
1001
Window,screen L-G-3352W2A046K
...
1002
Seal Tape L-G-3536WRA001W
...
1004
Chok Cover L-G-3552W1A038A
...
1005
Door Assembly L-G-3581W1A348D
...
1006
Latch L-G-4026W2A016A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1013
Transformer L-G-5006W3A012A
...
1381
Parts Assembly L-G-383EW5A242A

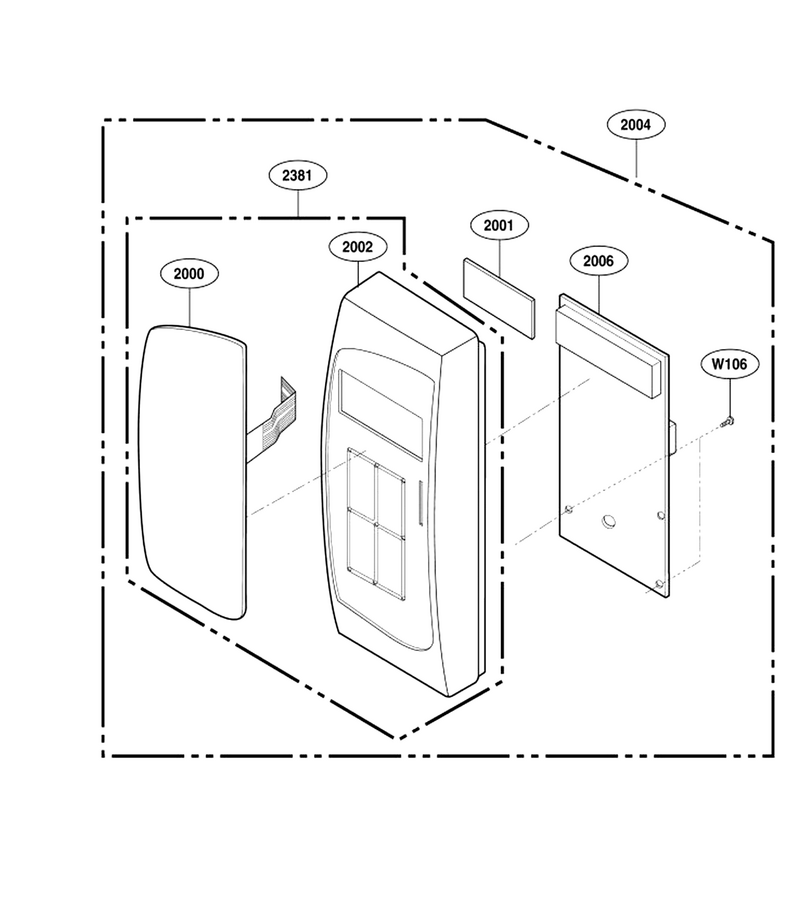

Control Panel Parts (i)

...
...
W106
Screw L-G-1TPL0402818
...
2001
Cover L-G-3550W4A029L
...
2004
Controller Assembly,keypad L-G-4781W1M304C
...
2006
Pcb Assembly,sub L-G-6871W1S115M
...
2381
Parts Assembly L-G-383EW5A242B

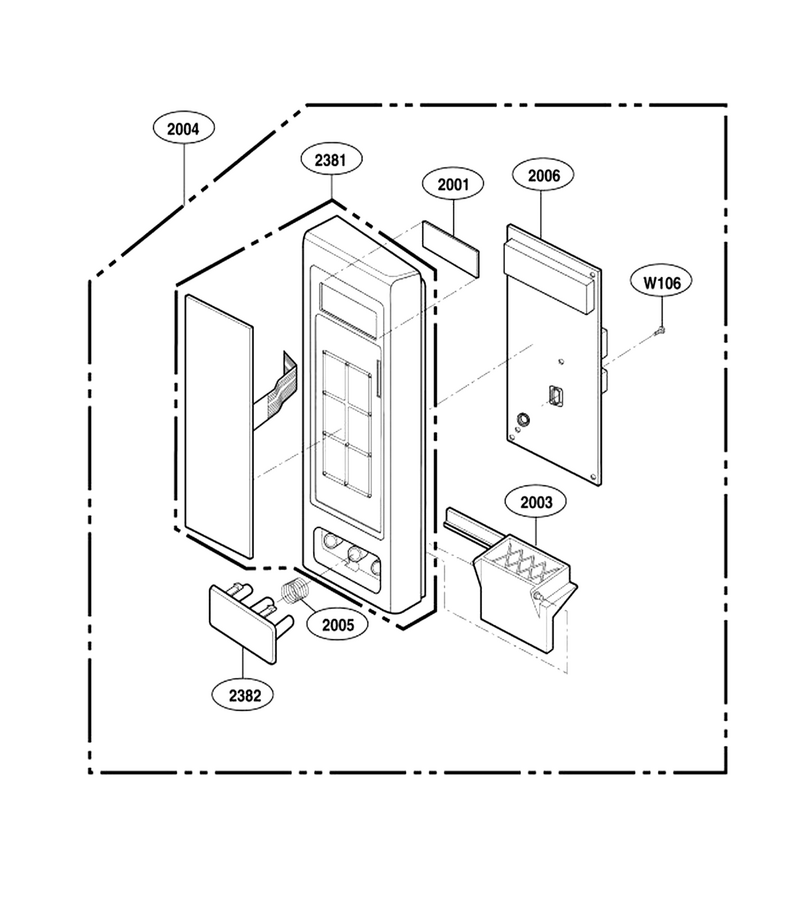

Control Panel Parts (ii)

...
...
W106
Screw L-G-1TPL0402818
...
2001
Cover L-G-3550W4A029L
...
2003
Lever L-G-4510W3L003A
...
2004
Controller Assembly,keypad L-G-4781W1M304C
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly,sub L-G-6871W1S115M
...
2381
Parts Assembly L-G-383EW5A242B
...
2382
Parts Assembly L-G-383EW5A242C

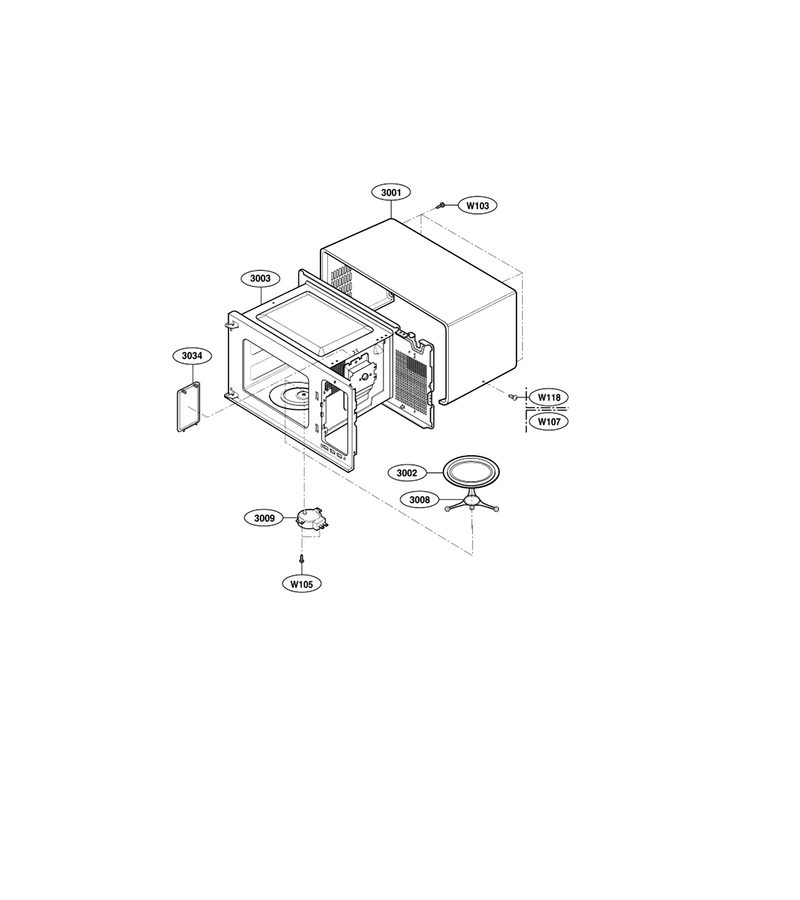

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Case,u Bending L-G-3112W0U029G
...
3002
Microwave Glass Turntable Tray L-G-3390W1G004E
...
3003
Cavity Assembly,coating L-G-3461W1A066D
...
3008
Microwave Turntable Tray Support L-G-5889W2A014D
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3034
Canopy L-G-3052W2A021A

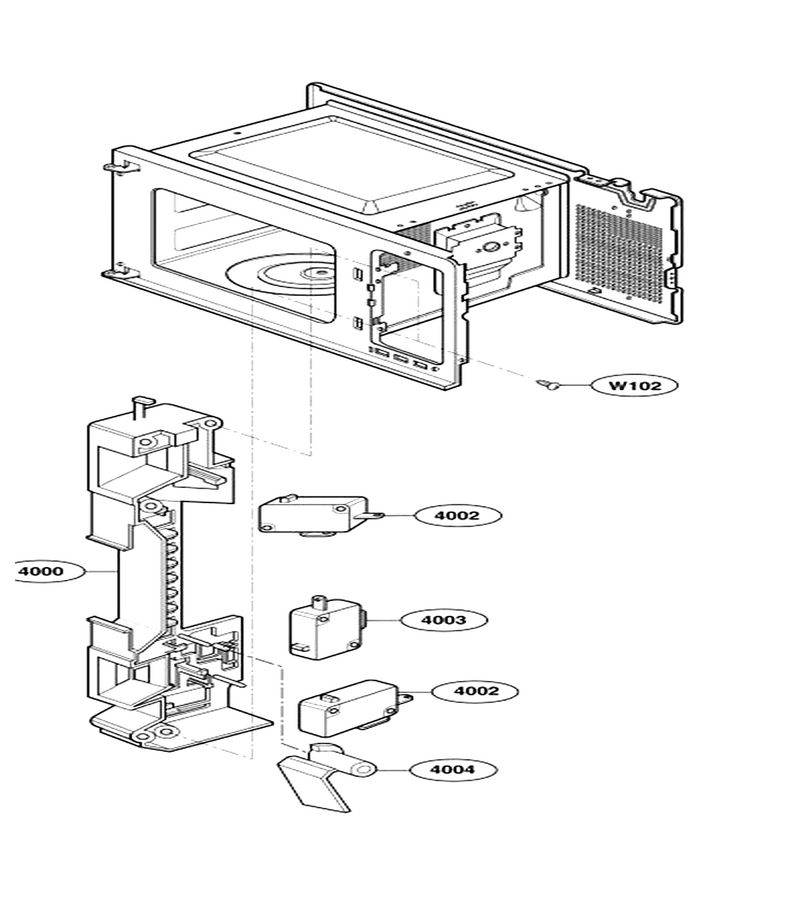

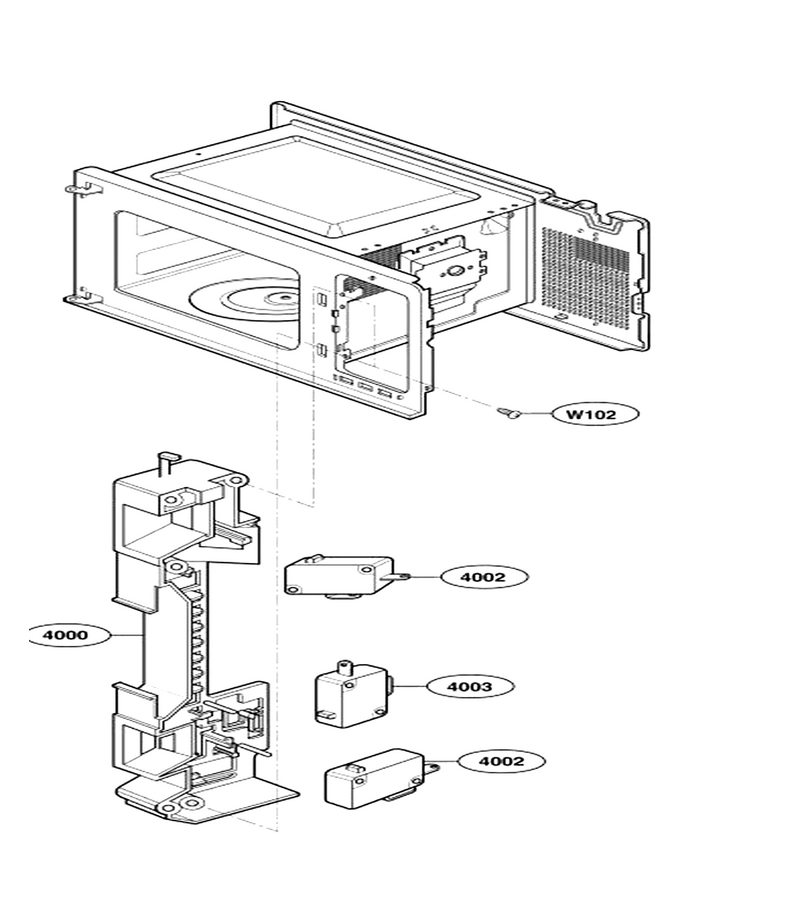

Latch Board Parts (i)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W1A004B
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C

Latch Board Parts (ii)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W1A004B
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C

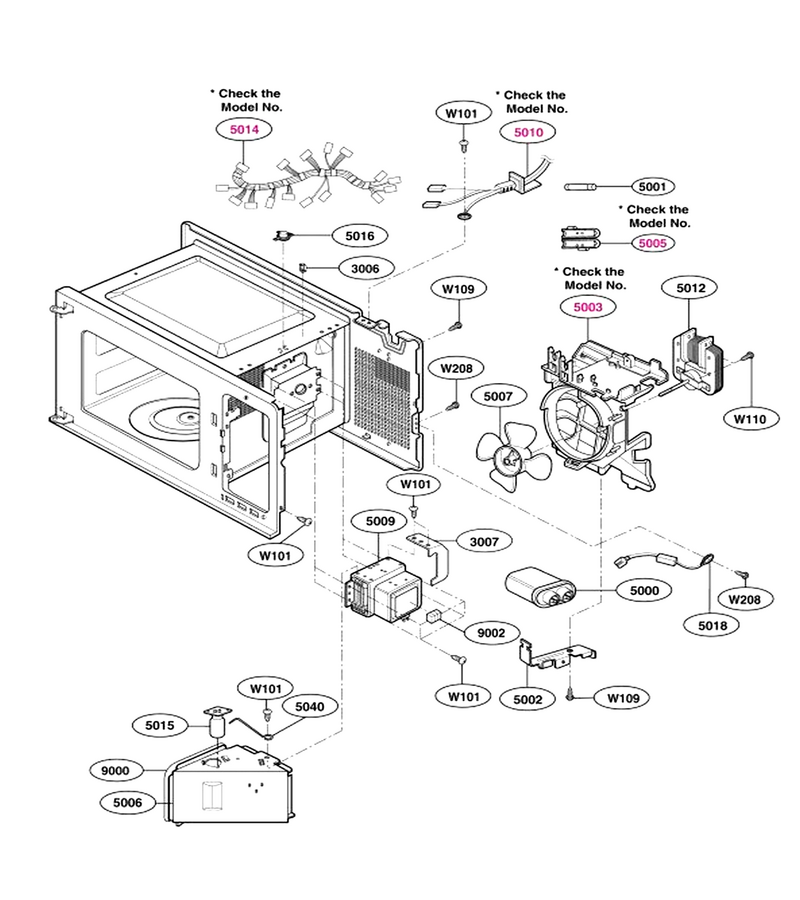

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W208
Screw L-G-1EBF0402494
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020C
...
5000
Capacitor,high Voltage L-G-0CZZW1H001P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5005
Cap Fuse L-G-5006WRA002D
...
5006
Fan Bracket L-G-5262W2A037C
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Ac Power Cord Assembly L-G-6411W1A031A
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness L-G-6877W1A359B
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5016
Microwave Thermostat L-G-6930WRT002F
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5040
Supporter L-G-4980W3A038A
...
9000
Cushion L-G-3B72244T
...
9002
Cushion L-G-3B72244C

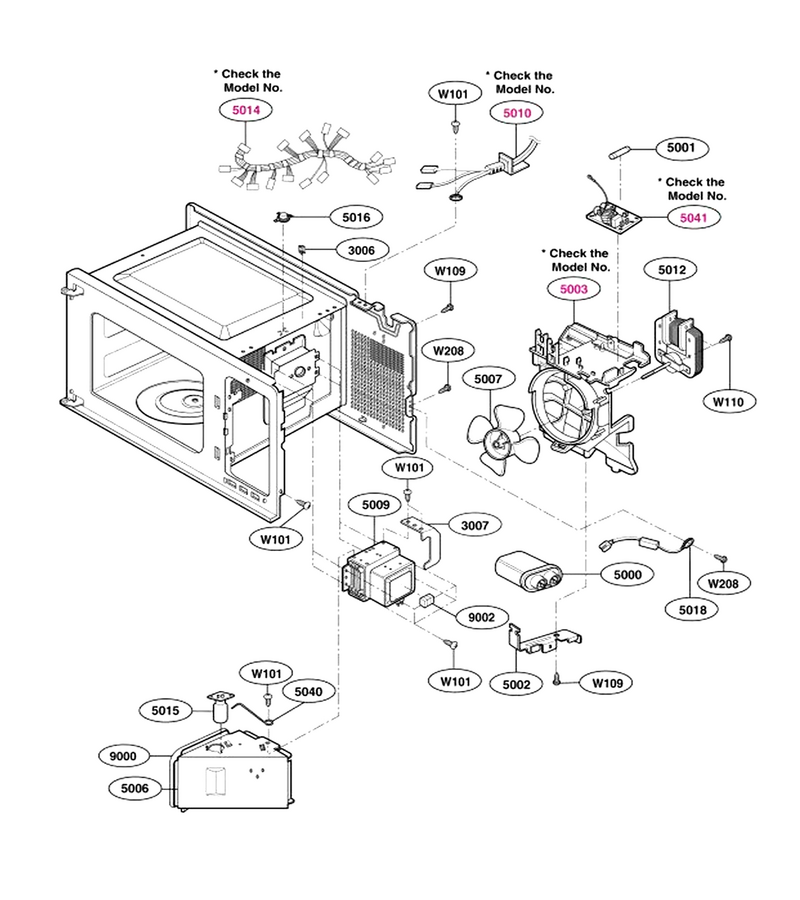

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W208
Screw L-G-1EBF0402494
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020C
...
5000
Capacitor,high Voltage L-G-0CZZW1H001P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5006
Fan Bracket L-G-5262W2A037C
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Ac Power Cord Assembly L-G-6411W1A031A
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness L-G-6877W1A359B
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5016
Microwave Thermostat L-G-6930WRT002F
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5040
Supporter L-G-4980W3A038A
...
9000
Cushion L-G-3B72244T
...
9002
Cushion L-G-3B72244C

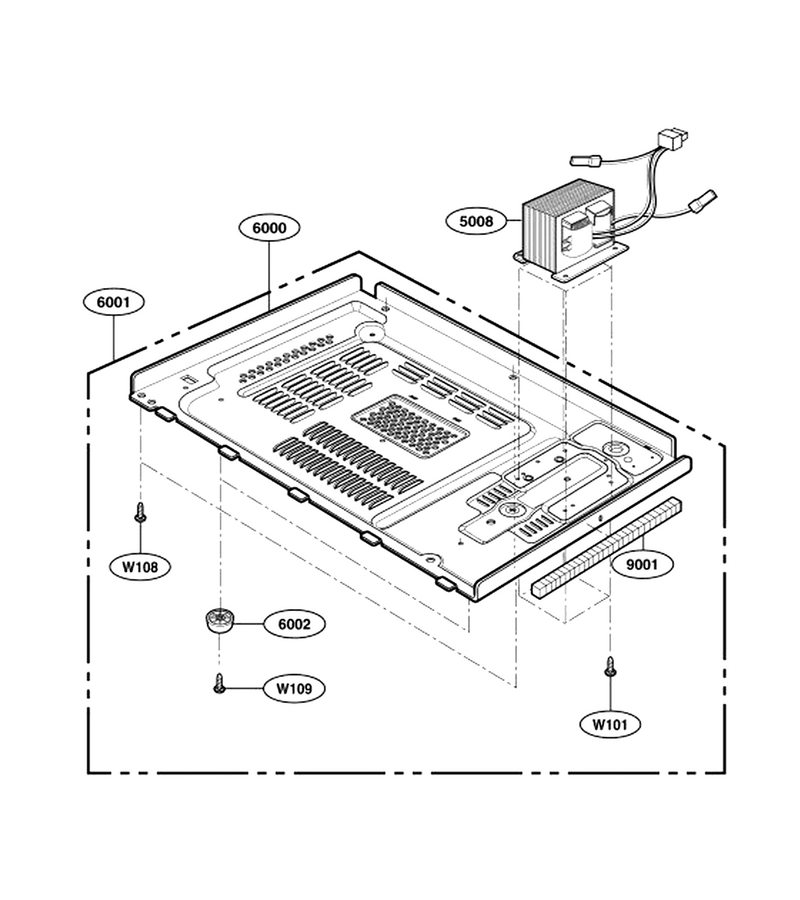

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
5008
Transformer L-G-6170W1D023L
...
6000
Single Lge L-G-3302W0A025A
...
6001
Base Plate L-G-3303W0A013B
...
6002
Leg L-G-4778W3A002A
...
9001
Cushion L-G-3B72244G

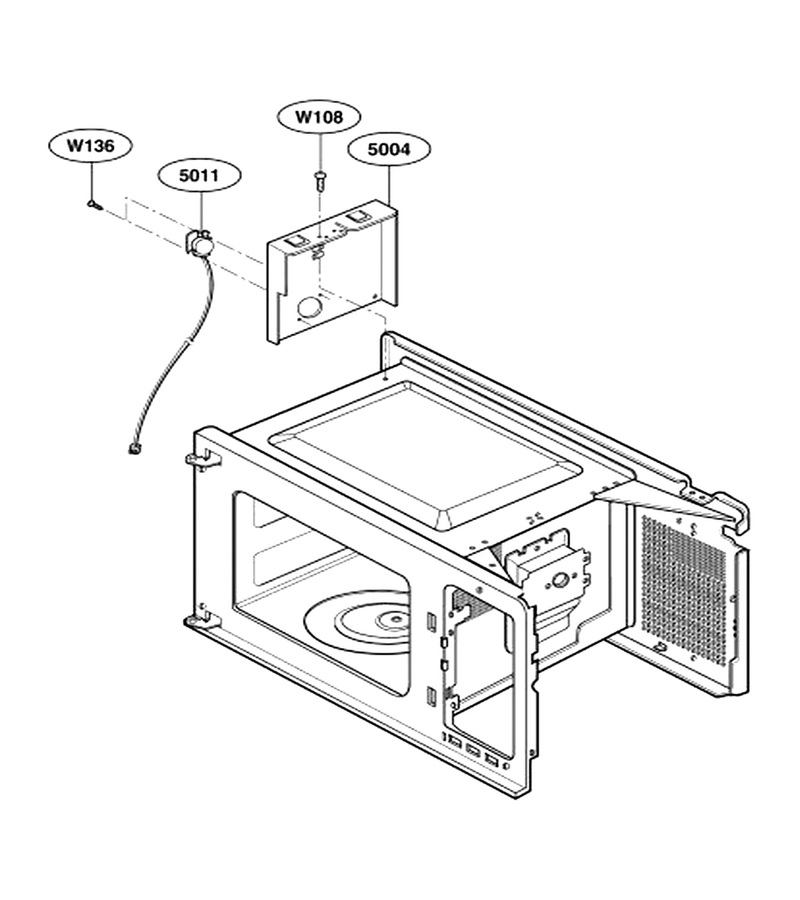

Sensor Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
5004
Duct L-G-5208W1A012B
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
