LG 63109.CBKESEA

Model: 63109.CBKESEA

Save Part Not Listed?
product name

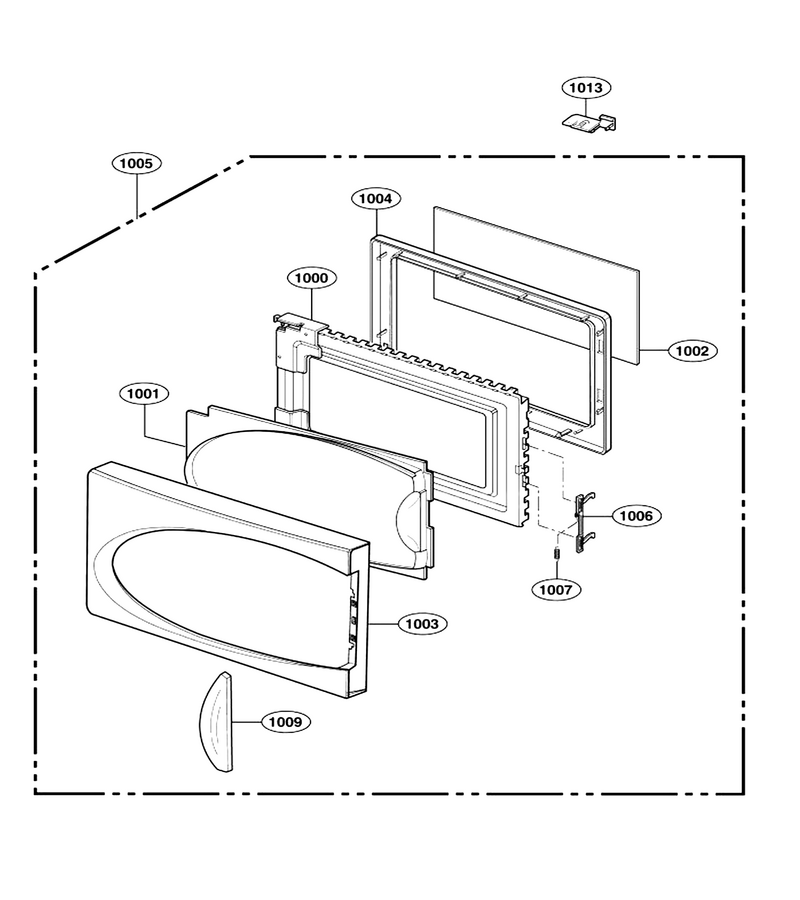

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W1A033N
...
1001
Window,screen L-G-3352W1A146A
...
1002
Tape,sealing L-G-3536W3A011N
...
1003
Panel,door L-G-3720W0D327B
...
1004
Cover,choke L-G-3552W1A048A
...
1005
Door Assembly L-G-3581W1A399B
...
1006
Locker L-G-4026W2A024A
...
1007
Spring L-G-4970WRA001B
...
1009
Handle,door L-G-3650W1A117A
...
1013
Transformer L-G-5006W3A012A

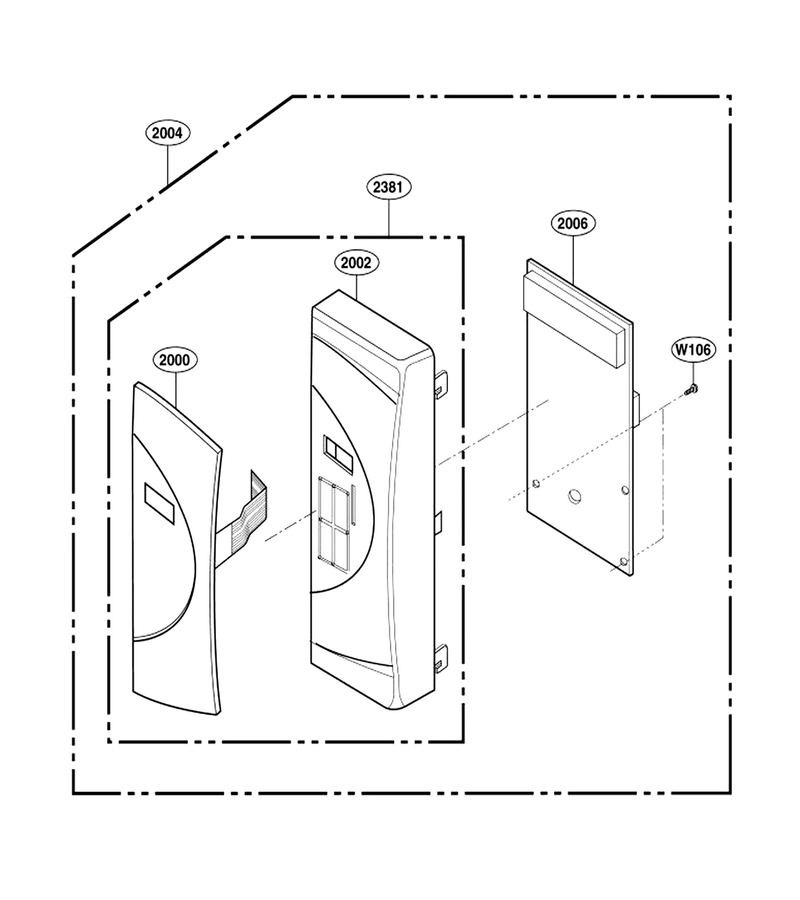

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A501B
...
2002
Panel,control L-G-3720W0C166B
...
2004
Controller Assembly,keypad L-G-4781W1M347B
...
2006
Pcb Assembly,sub L-G-6871W1S254A

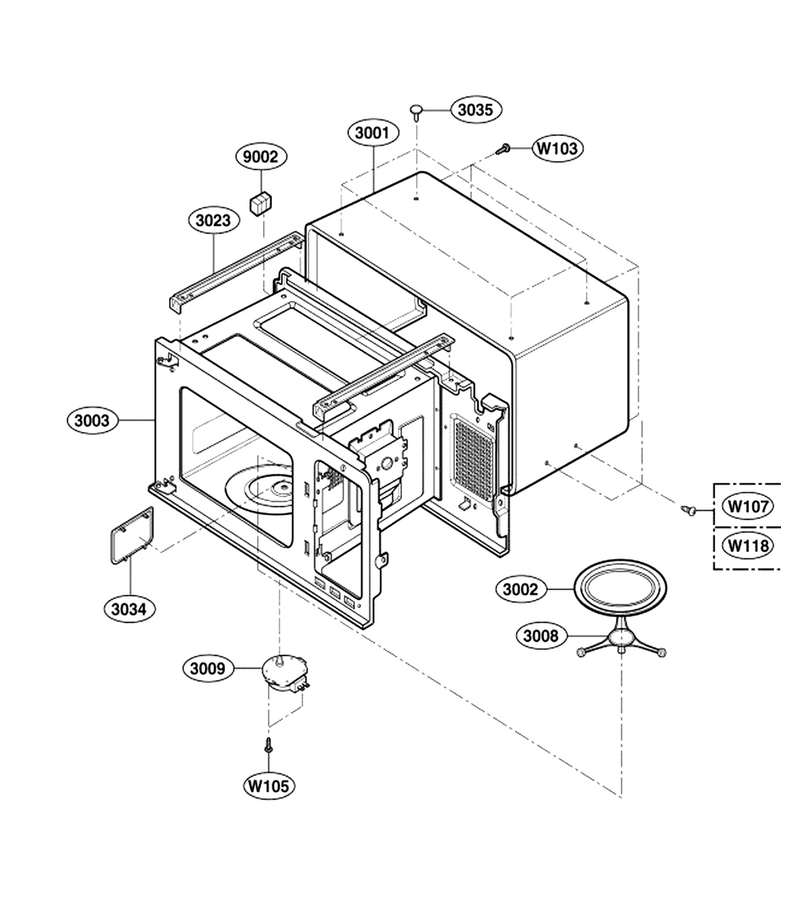

Oven Cavity Parts

...
...
W107
Screw L-G-1TTL0402416
...
W105
Microwave Screw L-G-1TPL0402418
...
W103
Screw L-G-1SZZW2A002A
...
3001
Case,u Bending L-G-3112W1U032B
...
3002
Tray,glass L-G-3390W1A015B
...
3003
Cavity Assembly,coating L-G-3461W1A067D
...
3008
Turntable Assembly L-G-5889W2A013A
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3023
Bracket,idle L-G-4810W2G045B
...
3034
Canopy L-G-3052W2A021A
...
3035
Cap,under Cabinet L-G-4B74749F
...
9002
Cushion L-G-4850W1A001K

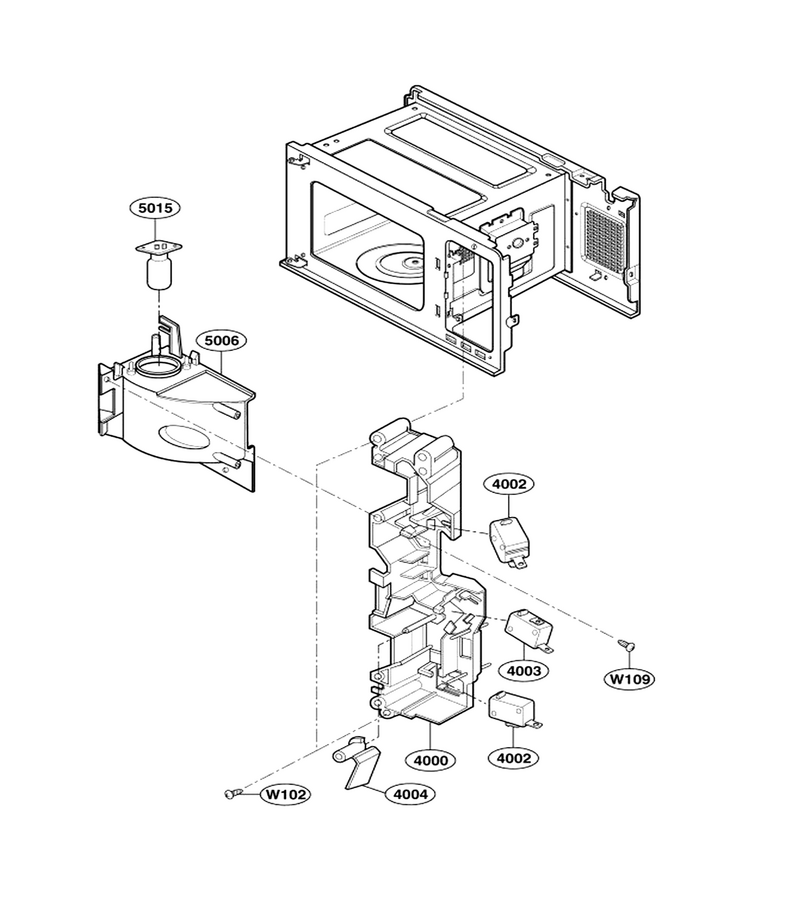

Latch Board Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A011A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012A
...
5006
Duct L-G-5262W2A044A
...
5015
Microwave Light Bulb L-G-6912W3B002L

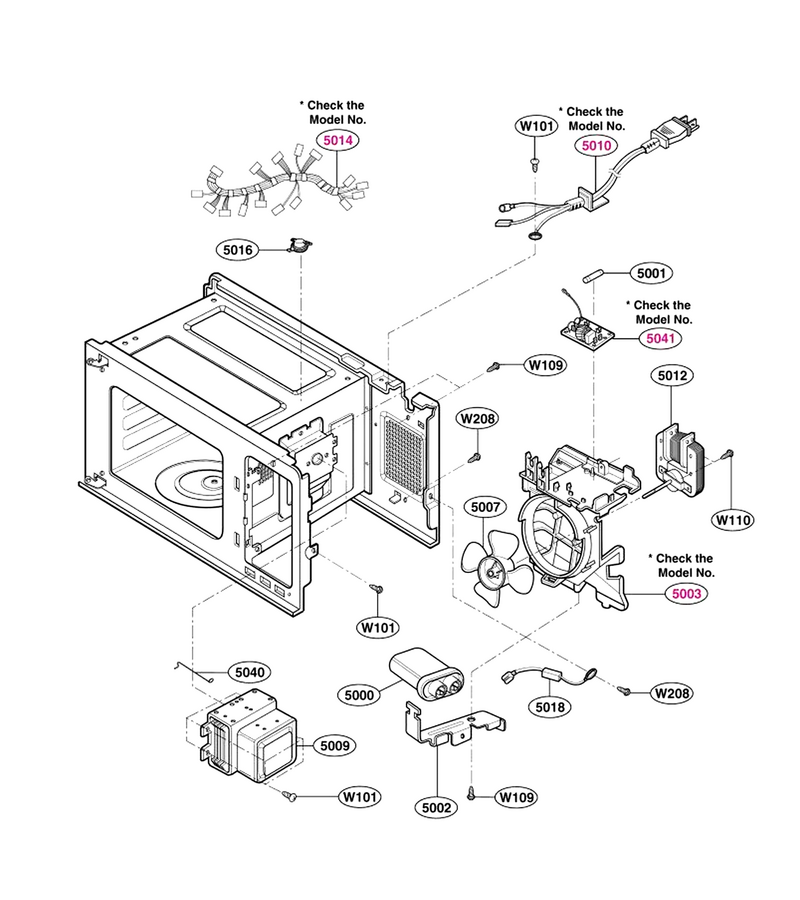

Interior Parts (i)

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
5001
Fuse,time Delay L-G-3B74133P
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-2B71732G
...
5010
Power Cord Assembly L-G-6411W1A010Y
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A227K
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5040
Supporter L-G-4980W3A038A

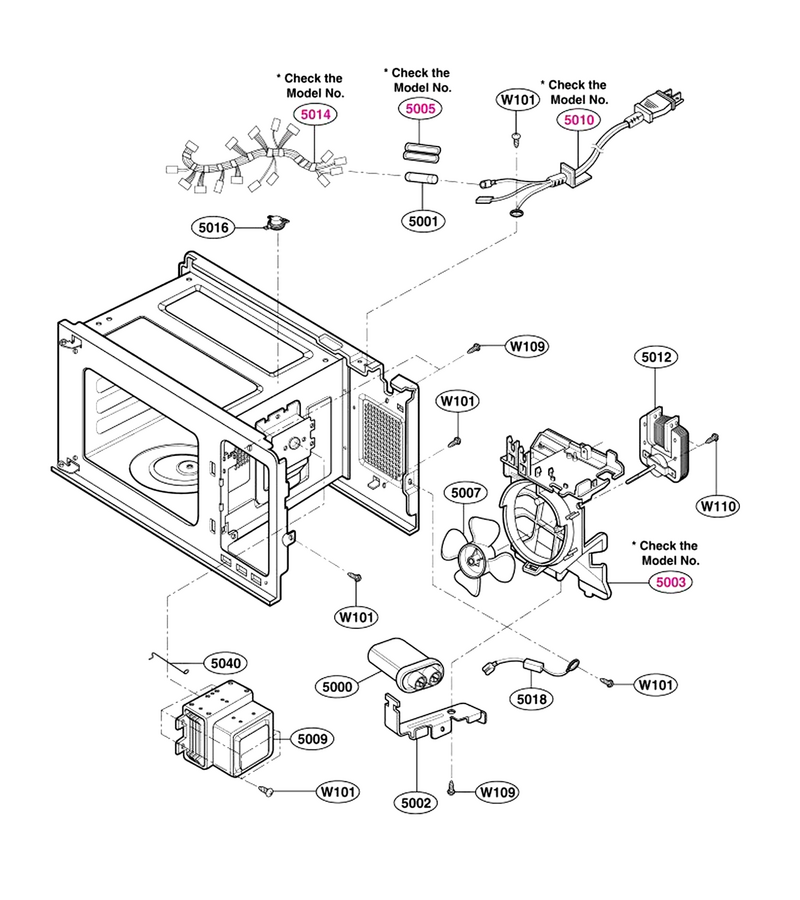

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
5001
Fuse,time Delay L-G-3B74133P
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-2B71732G
...
5010
Power Cord Assembly L-G-6411W1A010Y
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A227K
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5040
Supporter L-G-4980W3A038A

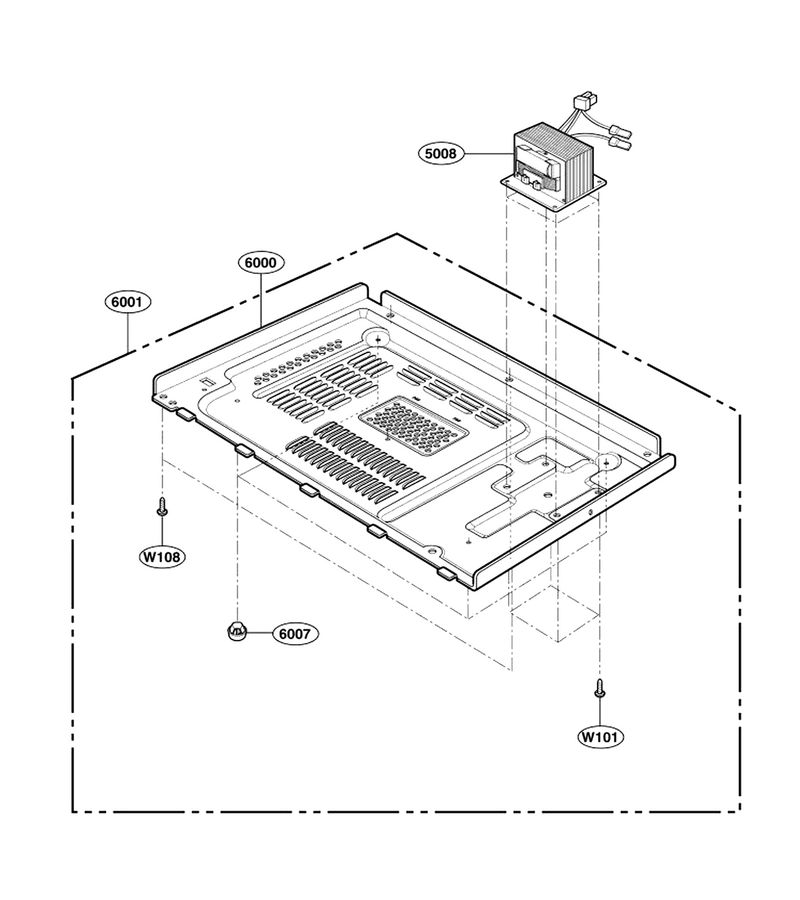

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer,high Voltage L-G-6170W1D071A
...
6000
Plate,base L-G-3302W0A019F
...
6001
Plate Assembly,base L-G-3303W1A044F
...
6007
Microwave Foot (white) L-G-5006W3A019A
