LG 62644.ABSESEA

Model: 62644.ABSESEA

Save Part Not Listed?
product name

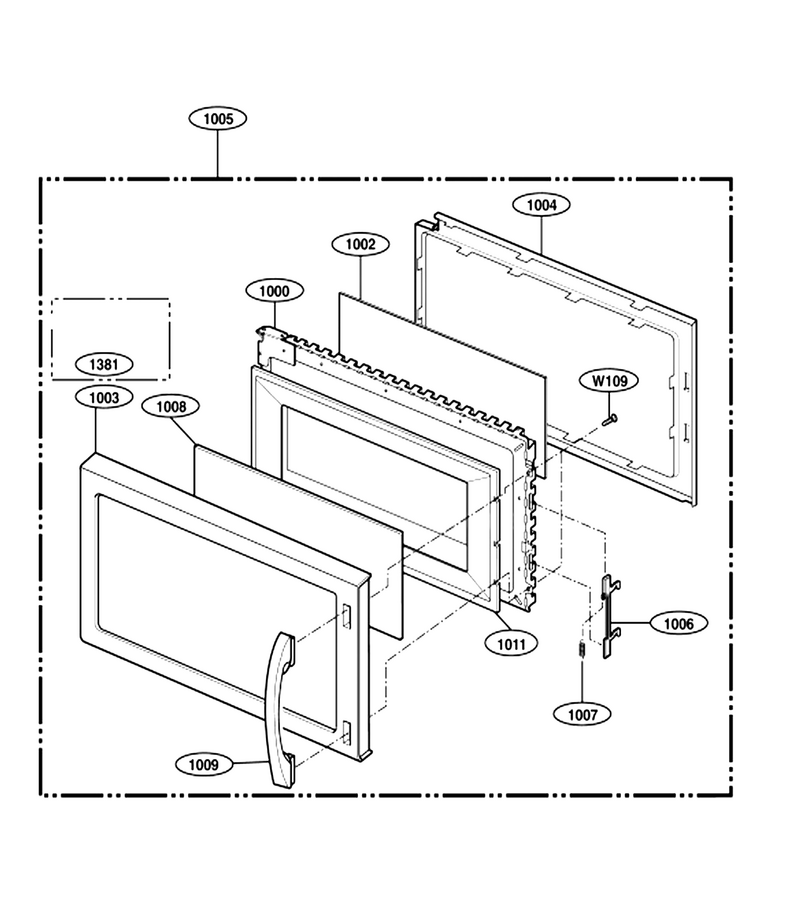

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Frame Assembly,door L-G-3213W1A035L
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D259C
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A352C
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W1A021X
...
1009
Handle,door L-G-3650W1A075C
...
1011
Baffle L-G-4760W0A002C

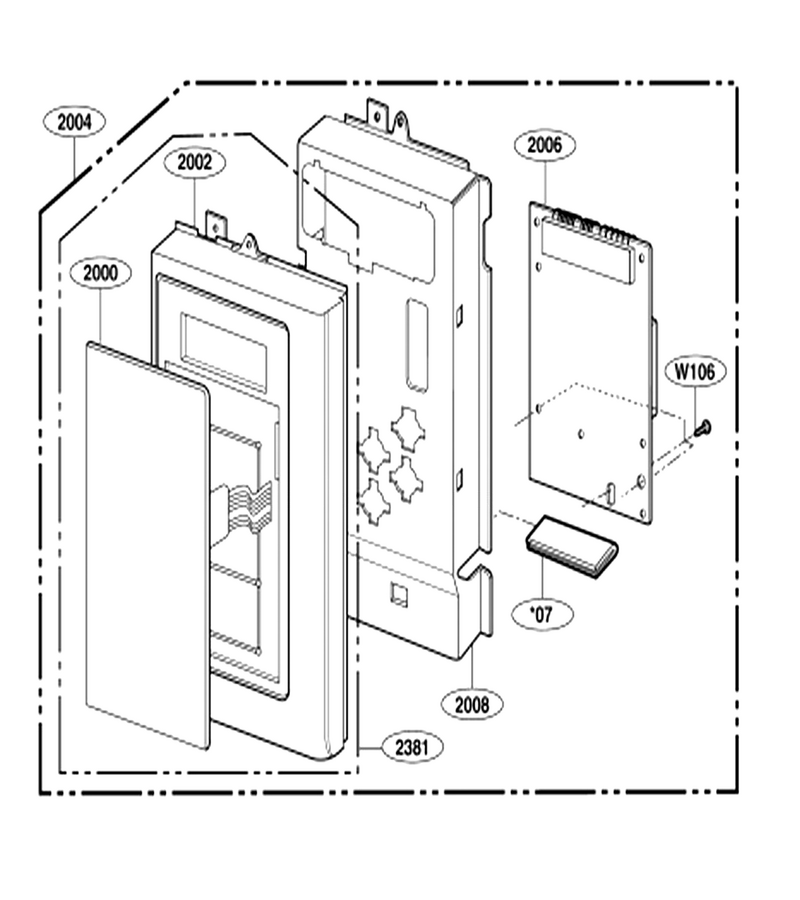

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A278C
...
2002
Panel,control L-G-3720W0C058C
...
2004
Controller Assembly,keypad L-G-4781W1M307F
...
2006
Pcb Assembly,sub L-G-6871W1S128A
...
2008
Bracket,control Panel L-G-4810W1G061B
...
2381
Parts Assembly L-G-383EW5A231F

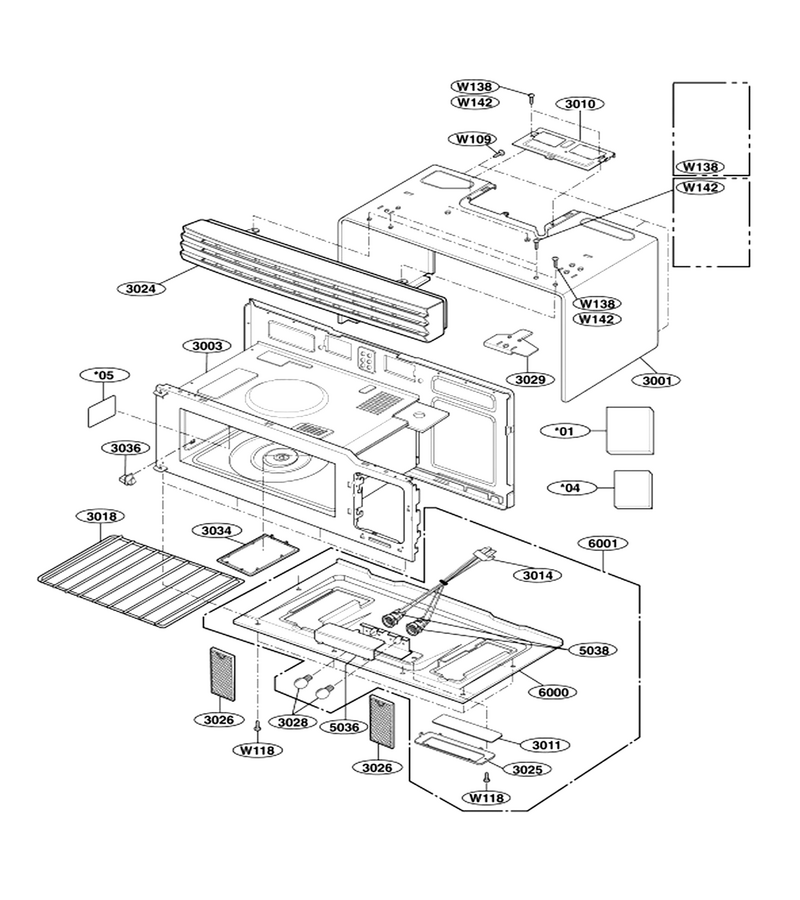

Oven Cavity Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Case,flat L-G-3112W1F042Q
...
3003
Cavity Assembly,coating L-G-3461W0A048B
...
3010
Microwave Vent Duct Cover L-G-4960W1A004A
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Harness,single L-G-6877W1A340B
...
3018
Microwave Metal Rack L-G-5026W1A048C
...
3024
Grille,vent L-G-3530W0A030C
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-6912W3Q001A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3034
Canopy Resistor L-G-3052WRA002A
...
3036
Holder L-G-4930W1A026A
...
5036
Cover L-G-3550W3A095A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
6000
Plate,base L-G-3302W0A013L
...
6001
Plate Assembly,base L-G-3303W1A041R

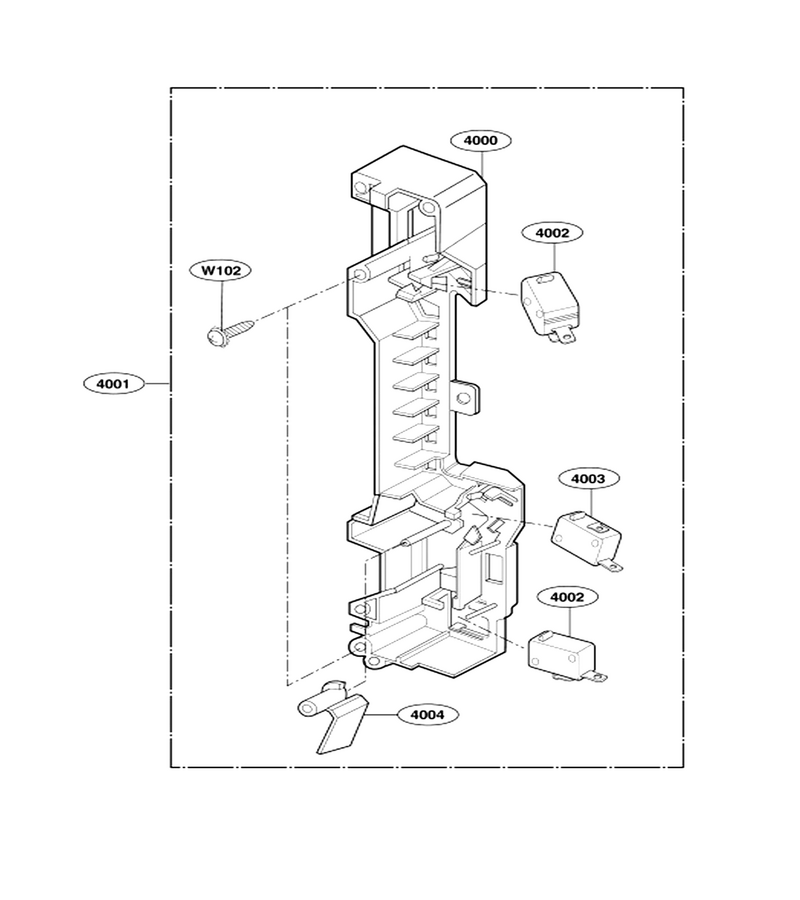

Latch Board Parts

...
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

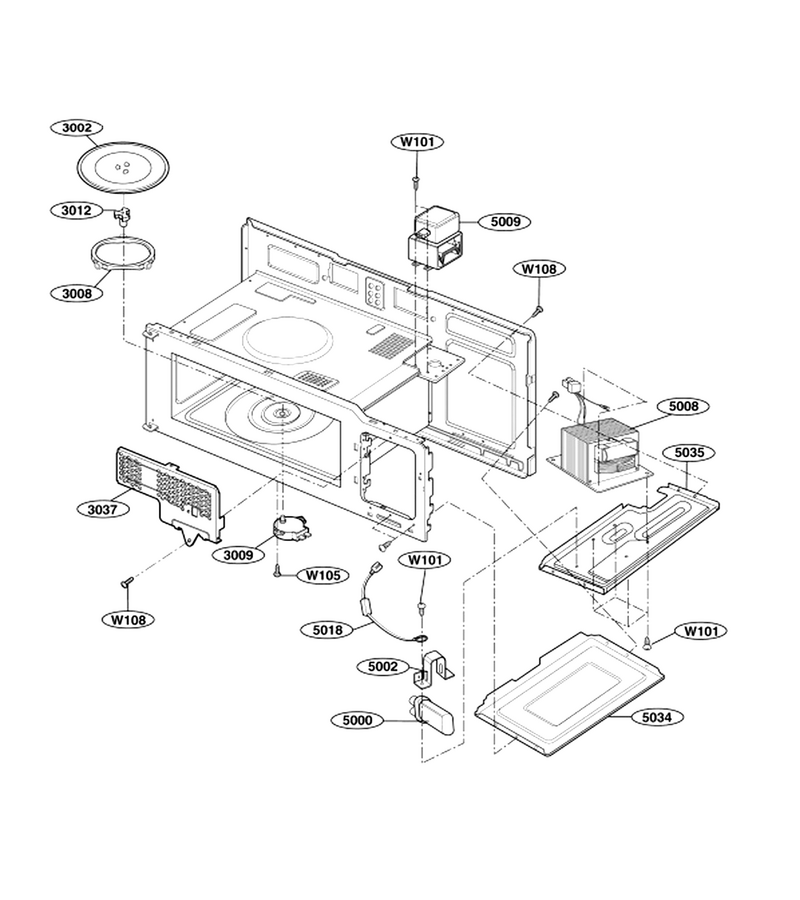

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3008
Microwave Turntable Tray Support L-G-5889W2A012D
...
3009
Motor L-G-6549W1S015C
...
3012
Microwave Turntable Motor Coupler L-G-3B72373A
...
3037
Supporter L-G-3740W1A005B
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C002A
...
5008
Transformer,high Voltage L-G-6170W1D060C
...
5009
Microwave Magnetron L-G-2B71165L
...
5018
Microwave High-Voltage Diode L-G-6021W3B001A
...
5034
Plate L-G-3300W1A003A
...
5035
Plate L-G-3300W1A052A

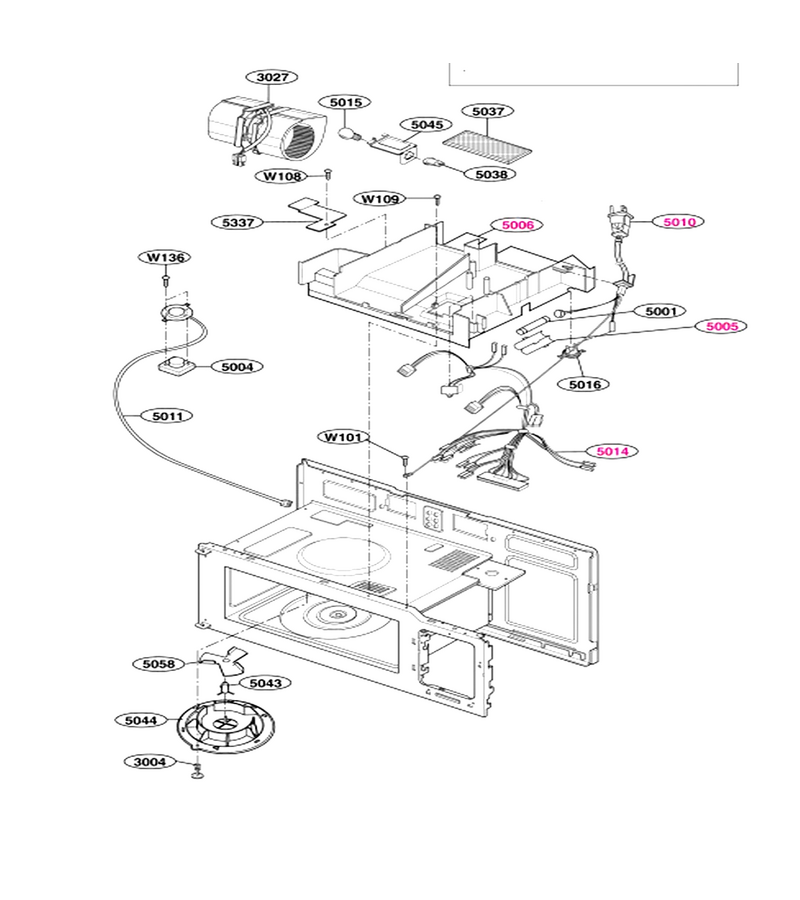

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor L-G-6549W1V008A
...
5001
Fuse[all] L-G-3B74133K
...
5004
Bracket,se L-G-4810W1A065A
...
5005
Fuse Cap L-G-5006WRA002A
...
5006
Microwave Vent Duct Cover L-G-5208W0A006A
...
5010
Ac Power Cord Assembly L-G-6411W1A010U
...
5011
Humidity Sensor L-G-6501W1A004A
...
5014
Harness,single L-G-6877W1A401C
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A002A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126A
...
5045
Oven Cover L-G-3550W3A082A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5337
Supporter L-G-3740W1A011A

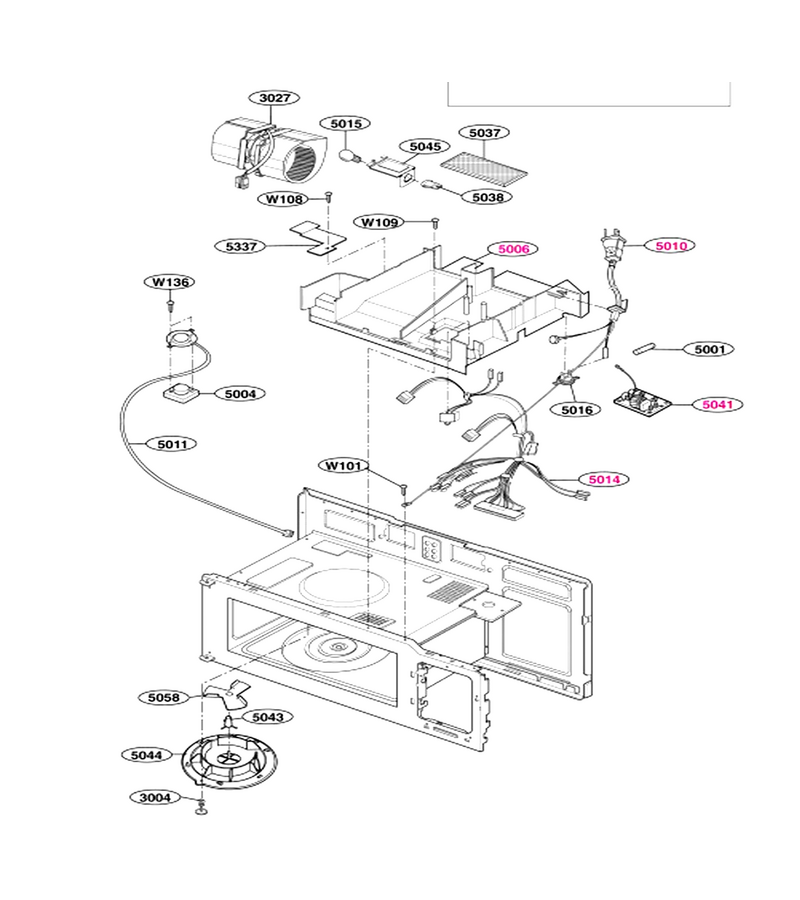

Interior Parts 3

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor L-G-6549W1V008A
...
5001
Fuse[all] L-G-3B74133K
...
5004
Bracket,se L-G-4810W1A065A
...
5006
Microwave Vent Duct Cover L-G-5208W0A006A
...
5010
Ac Power Cord Assembly L-G-6411W1A010U
...
5011
Humidity Sensor L-G-6501W1A004A
...
5014
Harness,single L-G-6877W1A401C
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A002A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126A
...
5045
Oven Cover L-G-3550W3A082A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5337
Supporter L-G-3740W1A011A

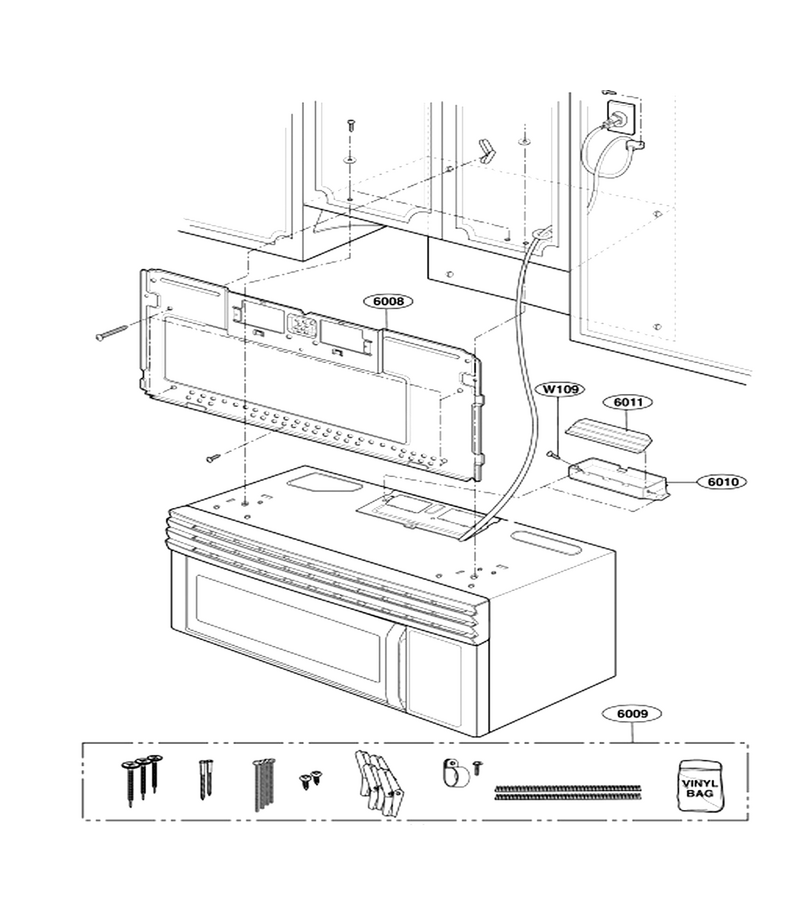

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771G
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
