LG 62464.ABSESEA

Model: 62464.ABSESEA

Save Part Not Listed?
product name

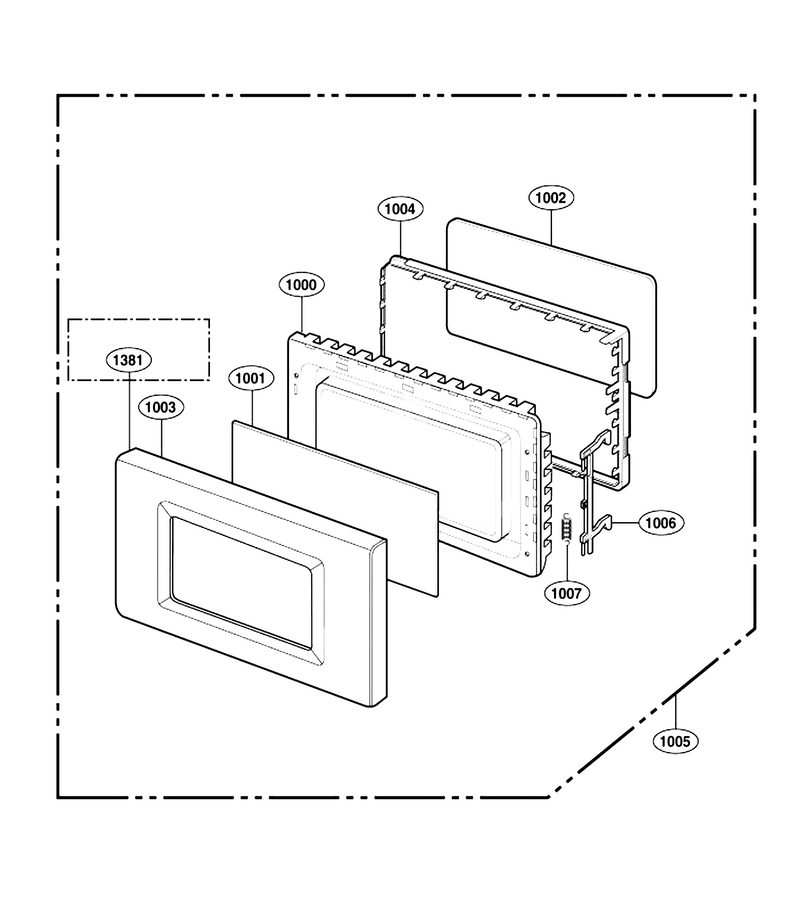

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W0A001H
...
1001
Screen L-G-3352W1A092A
...
1002
Seal Tape L-G-3536WRA001Q
...
1003
Panel,door L-G-3720W0D251C
...
1004
Microwave Choke Cover L-G-3552W1A035A
...
1005
Door Assembly L-G-3581W1A340C
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Spring L-G-4970WRA001B

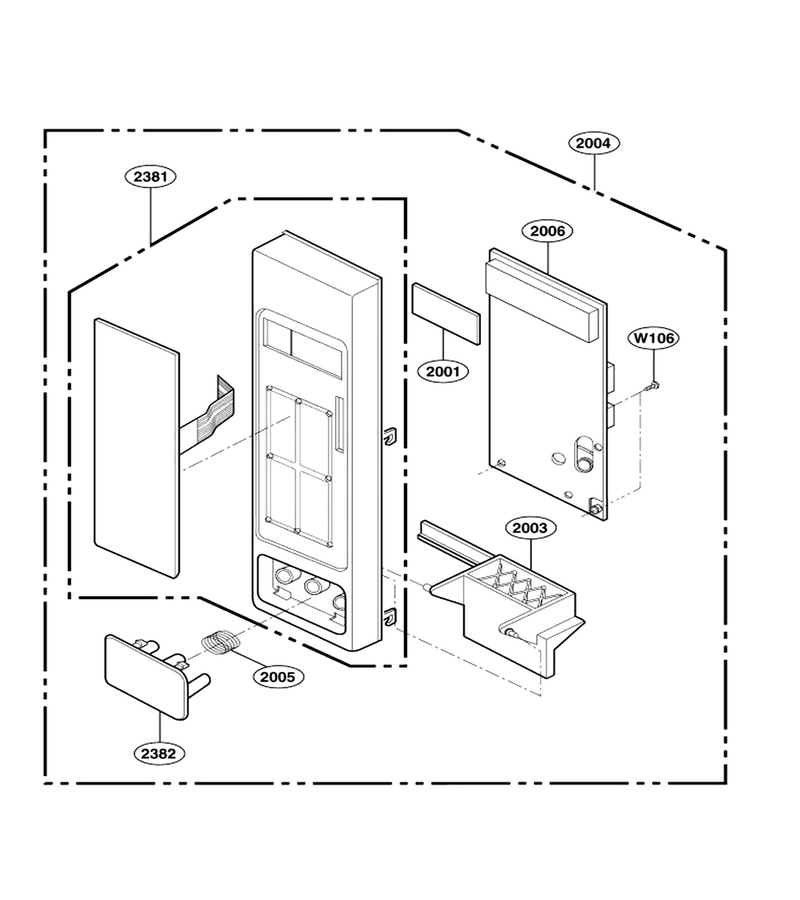

Controller Parts 1

...
...
W106
Screw L-G-1TPL0402818
...
2001
Microwave Cover L-G-3550W4A029B
...
2004
Controller Assembly,keypad L-G-4781W1M297C
...
2006
Pcb Assembly,sub L-G-6871W1S115A

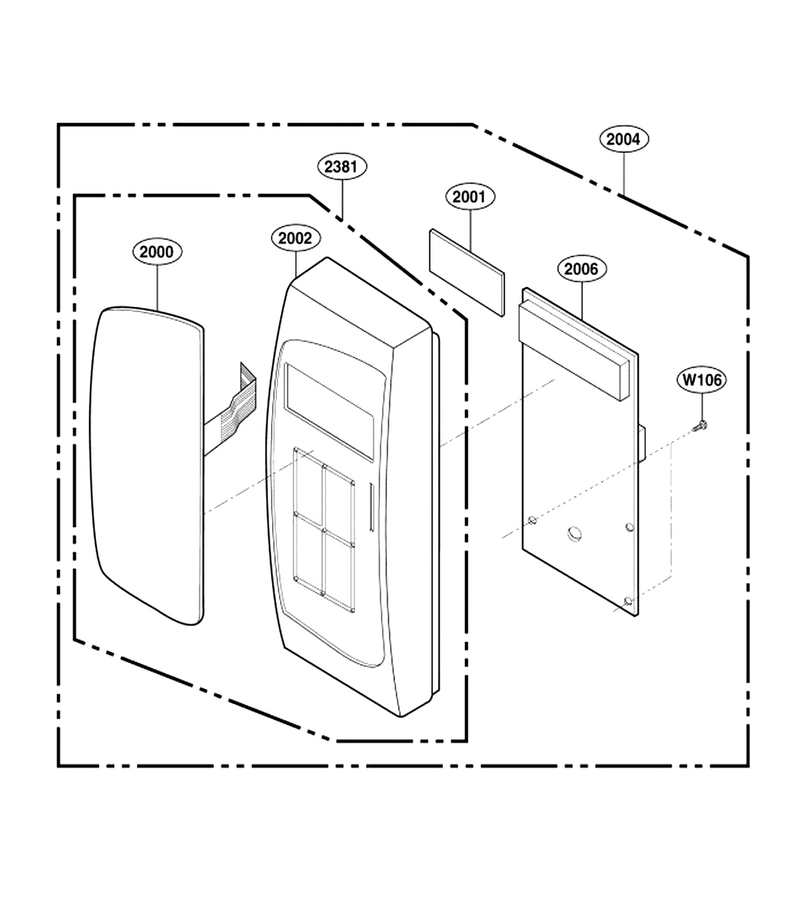

Controller Parts 2

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A225C
...
2001
Microwave Cover L-G-3550W4A029B
...
2002
Panel,control L-G-3720W0C040C
...
2004
Controller Assembly,keypad L-G-4781W1M297C
...
2006
Pcb Assembly,sub L-G-6871W1S115A

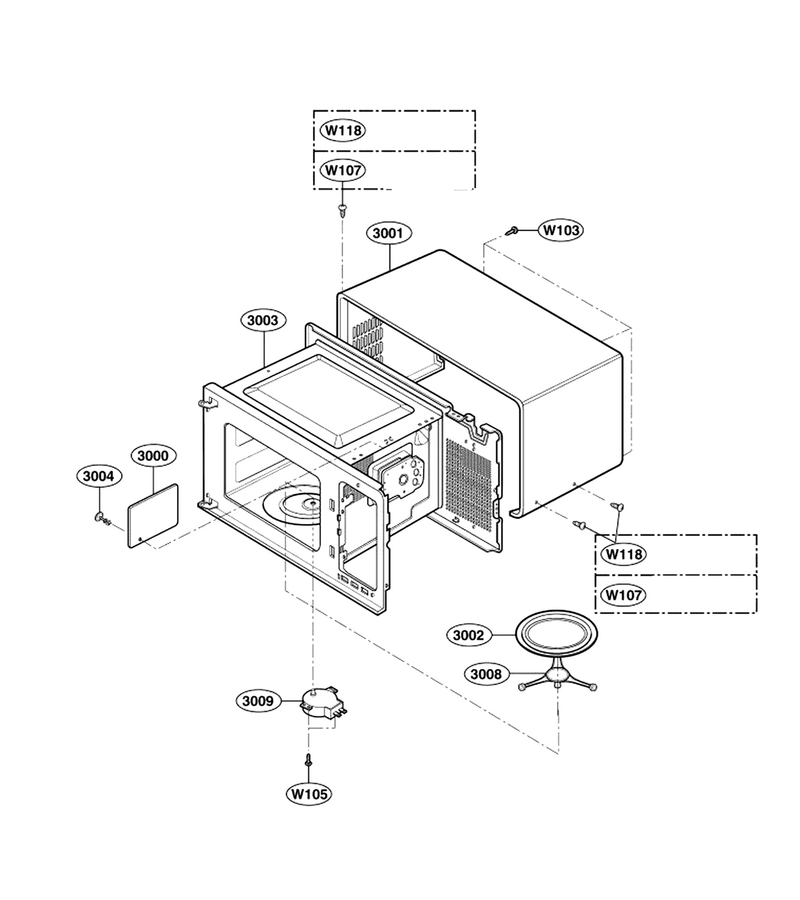

Oven Cavity Parts

...
...
W118
Microwave Screw L-G-1TTG0402422
...
W105
Screw L-G-1SZZW2A002A
...
W103
Screw L-G-1SZZW2A002A
...
3000
Canopy L-G-3052W3M011F
...
3001
Case,flat L-G-3112W1F020P
...
3002
Microwave Glass Turntable Tray L-G-3390W1G009C
...
3003
Cavity Assembly,coating L-G-3461W1A052C
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Microwave Turntable Tray Support L-G-5889W2A011B
...
3009
Microwave Turntable Motor L-G-6549W1S011A

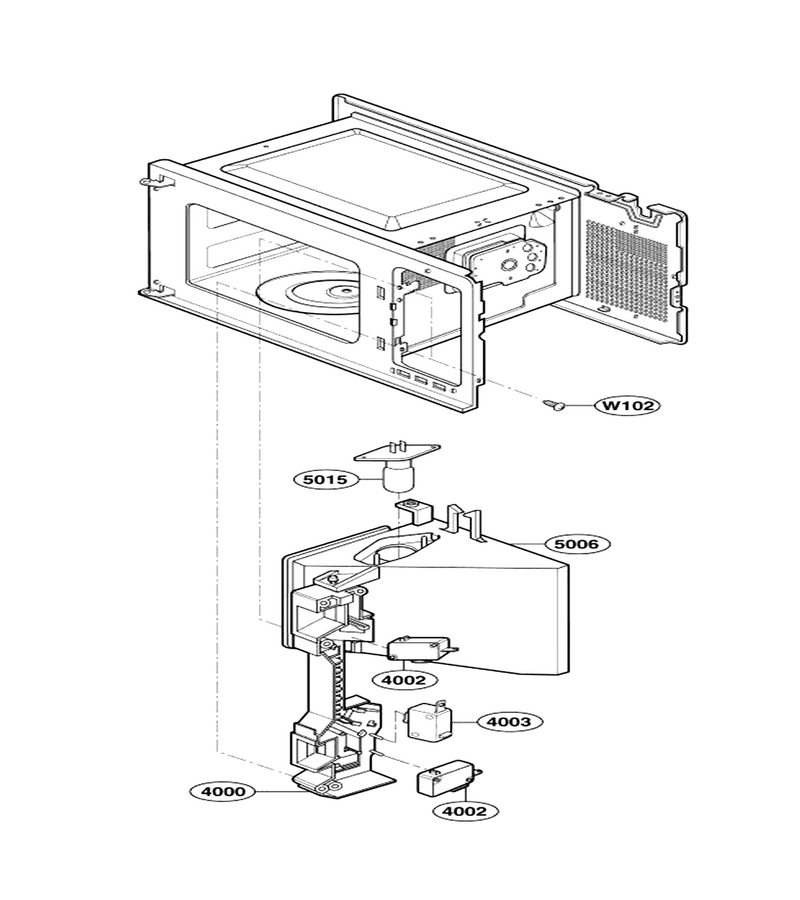

Latch Board Parts 1

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
5006
Duct L-G-5262W2A043B
...
5015
Lamp L-G-6912W3B002Q

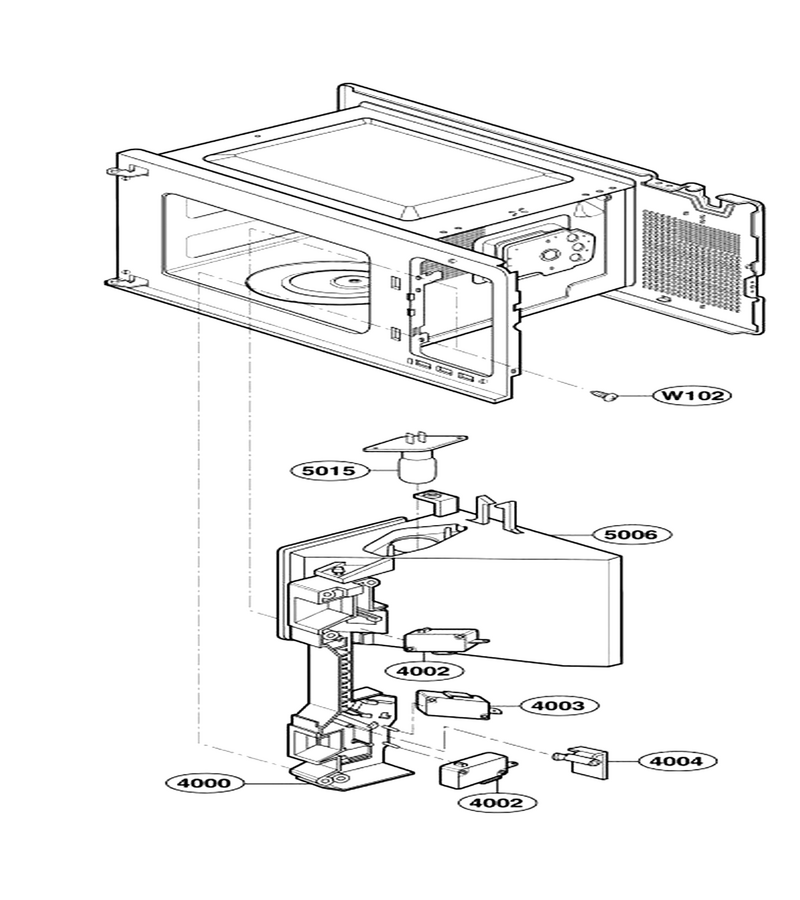

Latch Board Parts 2

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A
...
5006
Duct L-G-5262W2A043B
...
5015
Lamp L-G-6912W3B002Q

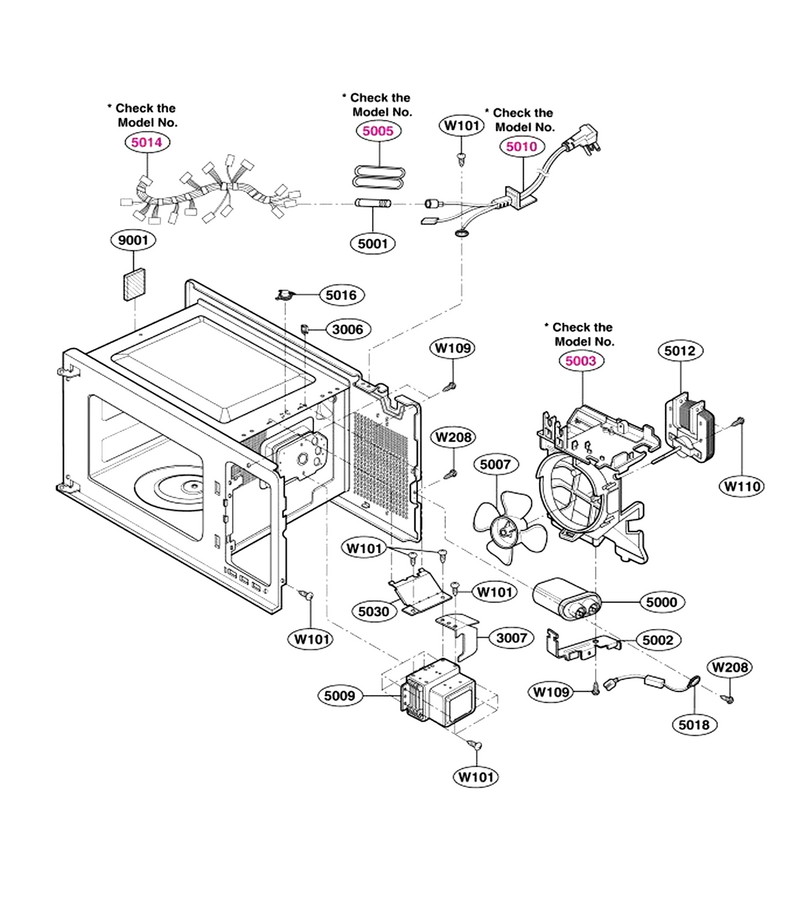

Interior Parts 1

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Screw L-G-1TTL0403418
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S010A
...
5005
Cap Cover L-G-5006WRA002E
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5010
(56411a) Power Cord Assembly L-G-6411W1A018G
...
5012
Fan Motor L-G-6549W1F008B
...
5014
Harness,single L-G-6877W1A187N
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5030
Bracket L-G-4810W2G052A
...
9001
Cushion L-G-3B72244C

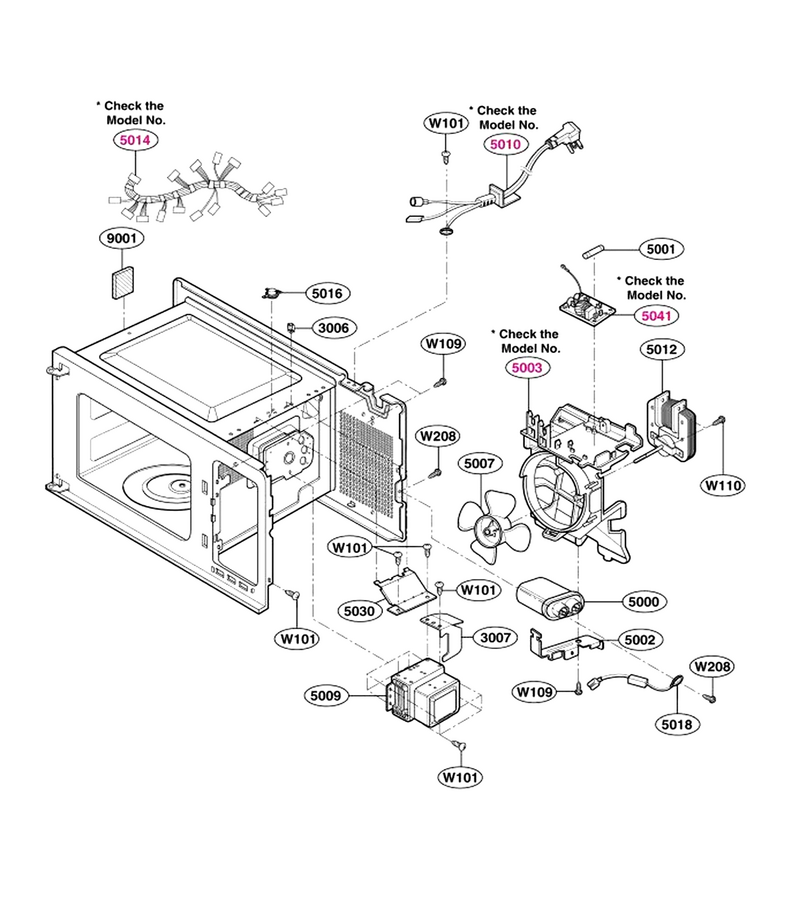

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Screw L-G-1TTL0403418
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S010A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5010
(56411a) Power Cord Assembly L-G-6411W1A018G
...
5012
Fan Motor L-G-6549W1F008B
...
5014
Harness,single L-G-6877W1A187N
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5030
Bracket L-G-4810W2G052A
...
9001
Cushion L-G-3B72244C

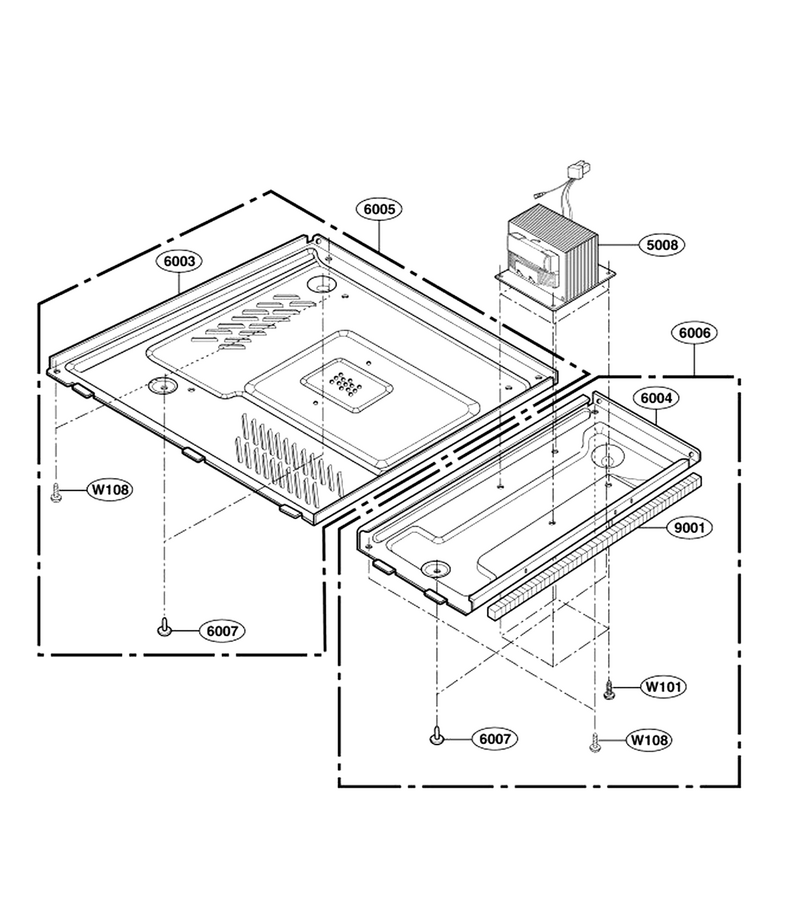

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer,high Voltage L-G-6170W1D050E
...
6003
Plate L-G-3302W0A014A
...
6004
Plate,base L-G-3302W1A046C
...
6005
Plate Assembly L-G-3303W0A010A
...
6006
Plate Assembly,base L-G-3303W1A040C
...
6007
Cap L-G-5006W3A016B
...
9001
Cushion L-G-3B72244C

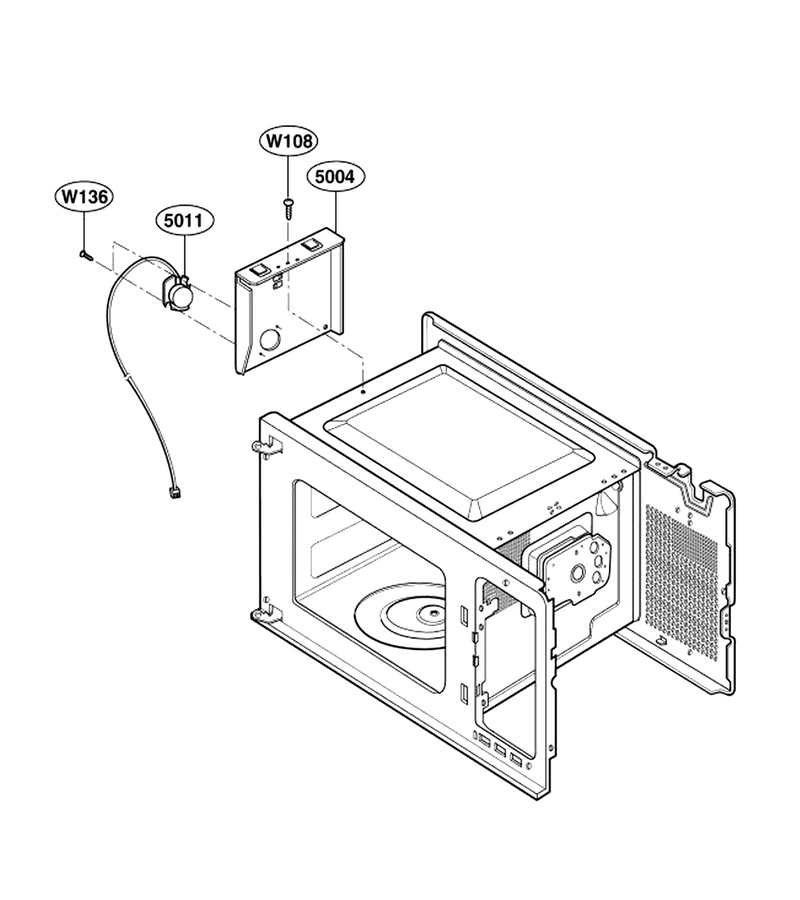

Sensor Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
5004
Duct L-G-5208W1A004A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
