LG 62463.CS1ESEA

Model: 62463.CS1ESEA

Save Part Not Listed?
product name

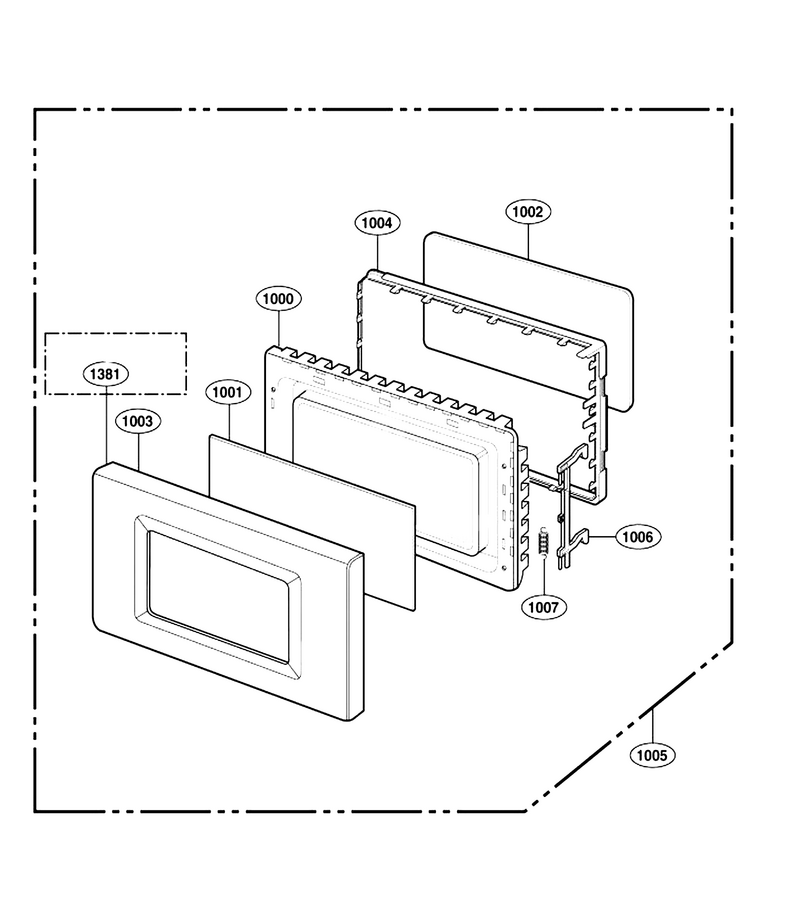

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A001L
...
1001
Window,screen L-G-3352W1A151G
...
1002
Seal Tape L-G-3536W1A009A
...
1004
Microwave Choke Cover L-G-3552W1A035B
...
1005
Door Assembly L-G-3581W1A436B
...
1006
Latch L-G-4026W2A016A
...
1007
Spring L-G-4970WRA001B
...
1381
Parts Assembly L-G-383EW5A191A

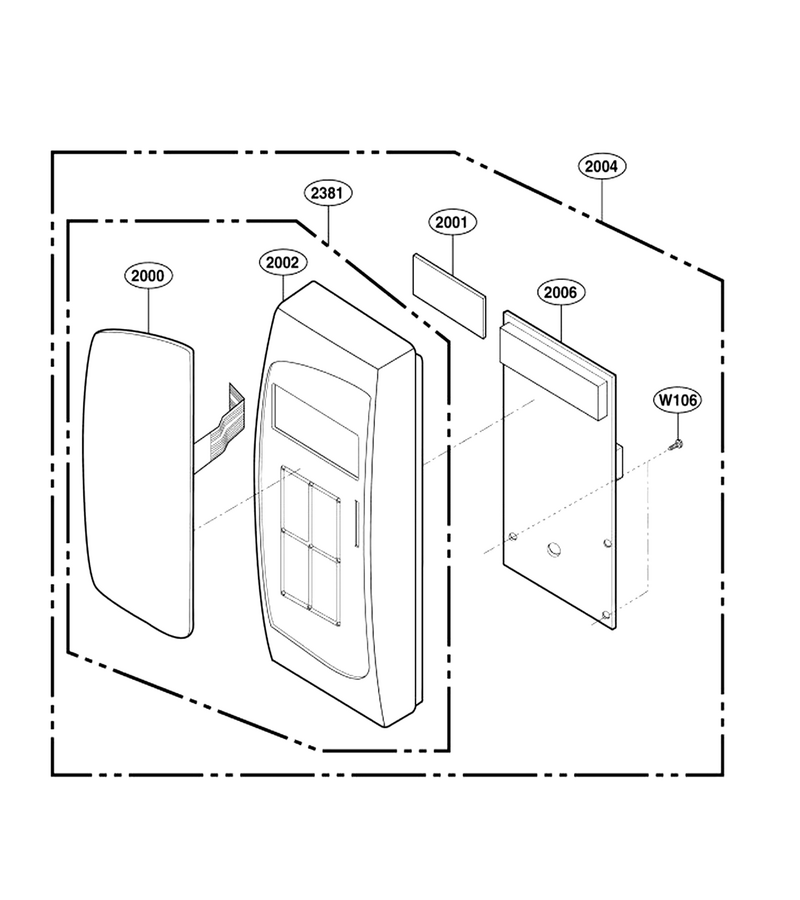

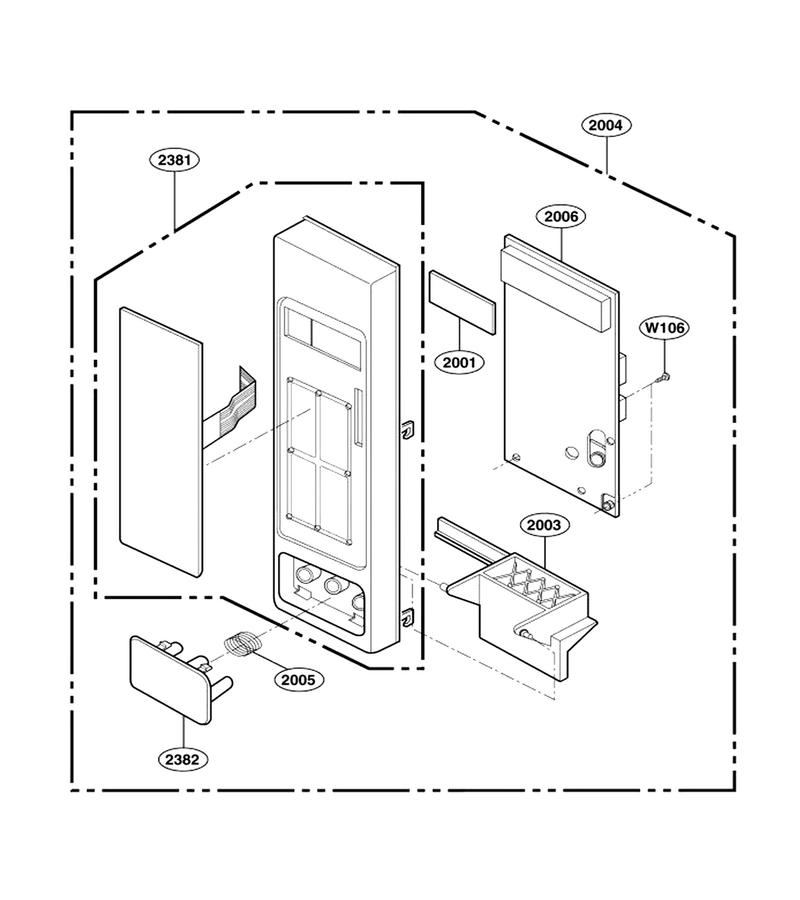

Controller Parts 1

...
...
W106
Screw L-G-1TPL0402818
...
2001
Cover L-G-3550W4A029L
...
2003
Lever L-G-4510W3L003A
...
2004
Controller Assembly,keypad L-G-4781W1M364D
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly,sub L-G-6871W1S115Q
...
2381
Service Parts L-G-383EW5A303A
...
2382
Parts Assembly L-G-383EW5A193A

Controller Parts 2

...
...
W106
Screw L-G-1TPL0402818
...
2001
Cover L-G-3550W4A029L
...
2004
Controller Assembly,keypad L-G-4781W1M364D
...
2006
Pcb Assembly,sub L-G-6871W1S115Q
...
2381
Service Parts L-G-383EW5A303A

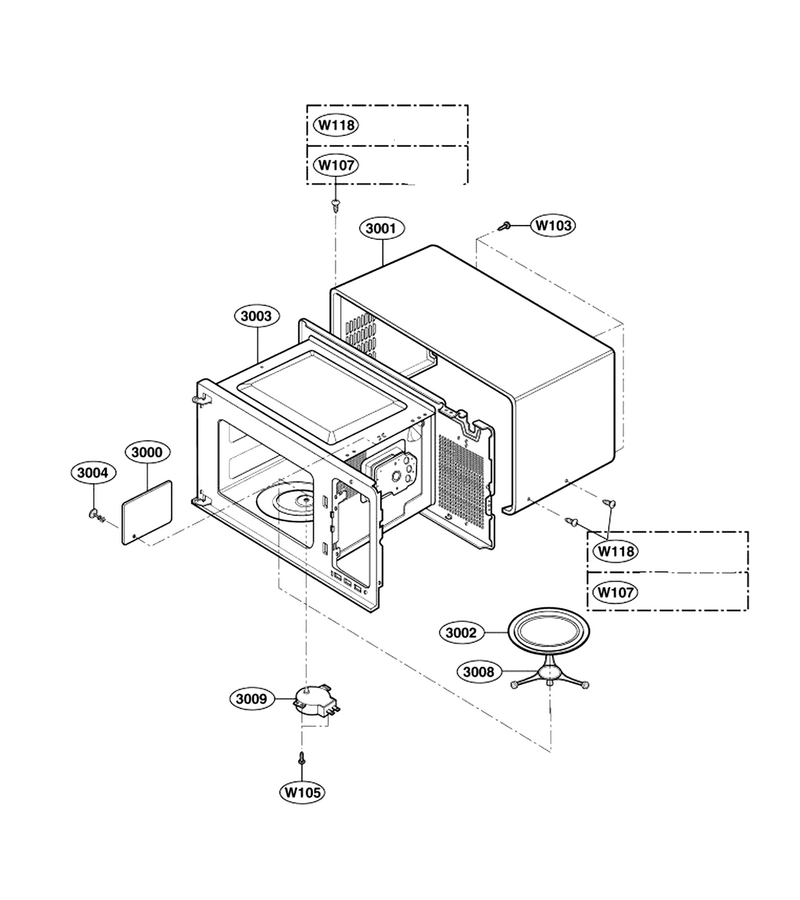

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W107
Screw L-G-1TTL0402416
...
W118
Microwave Screw L-G-1TTG0402422
...
3000
Canopy L-G-3052W3M011F
...
3001
Case,u Bending L-G-3112W0U072E
...
3002
Tray,glass L-G-3390W1G009D
...
3003
Cavity Assembly,coating L-G-3461W1A052E
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Turntable Assembly L-G-5889W2A014A
...
3009
Microwave Turntable Motor L-G-6549W1S011B

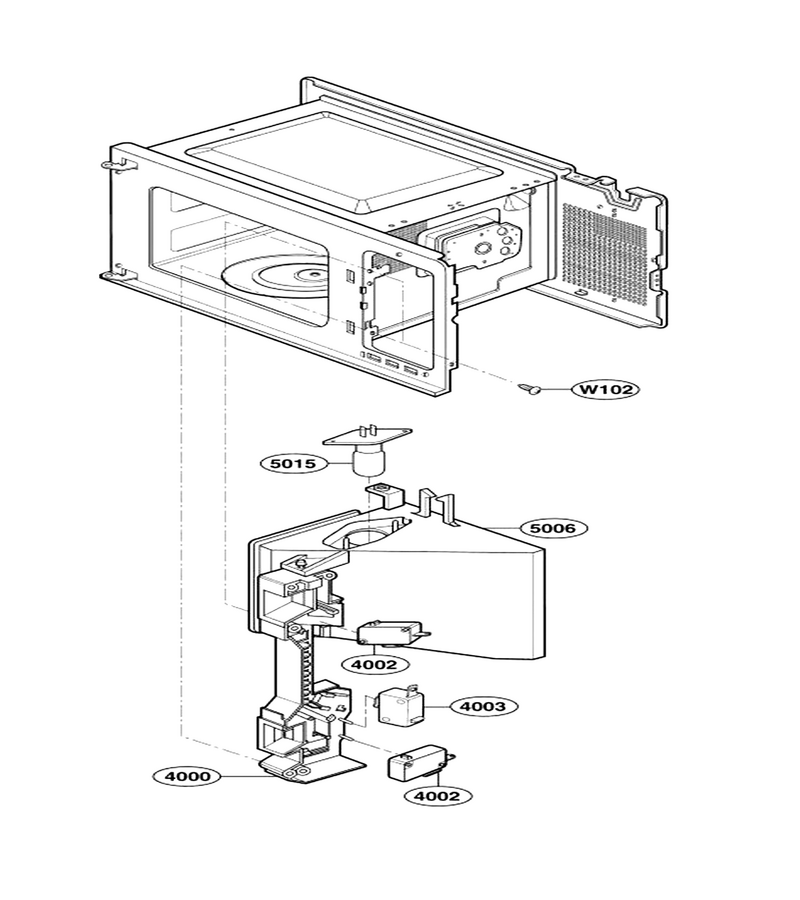

Latch Board Parts 1

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Board L-G-3500W1A018A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
5006
Duct L-G-5208W1A034B
...
5015
Microwave Light Bulb L-G-6912W3B002L

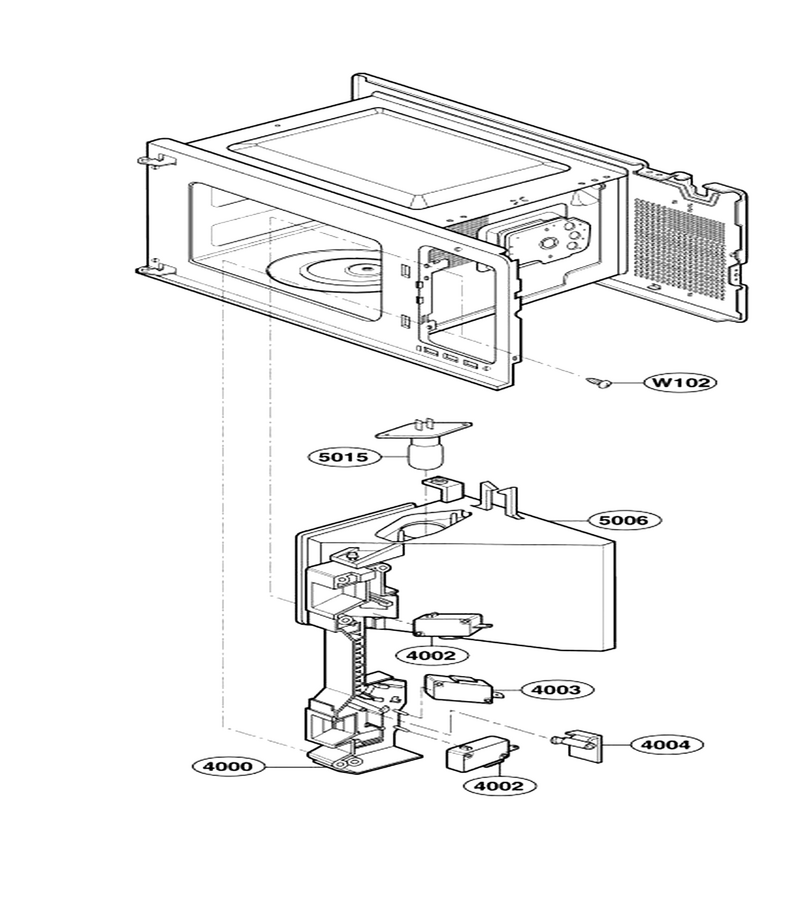

Latch Board Parts 2

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Board L-G-3500W1A018A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
5006
Duct L-G-5208W1A034B
...
5015
Microwave Light Bulb L-G-6912W3B002L

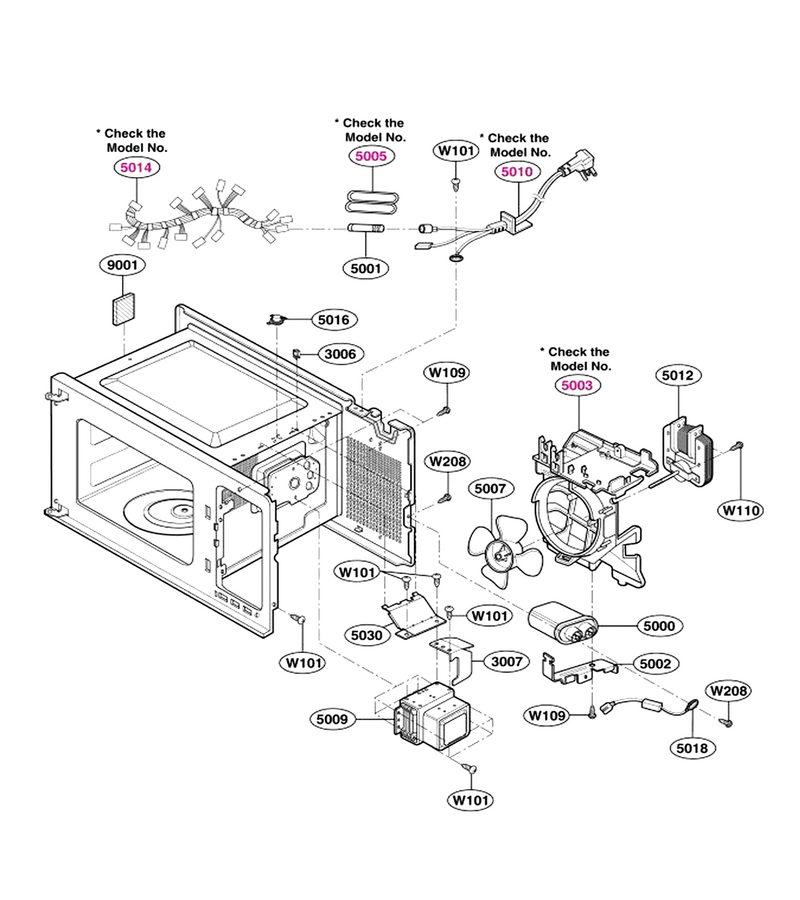

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Screw L-G-1TTL0403418
...
W208
Screw L-G-1EBF0402494
...
3006
Holder L-G-4B72944B
...
3007
Insulator L-G-5012W3A020C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5005
Fuse Cap L-G-5006WRA002A
...
5007
Fan,propeller L-G-5900W1A025A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-6411W1A019V
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness,single L-G-6877W1A538F
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5030
Bracket,idle L-G-4810W2G052B
...
9001
Cushion L-G-3B72244C

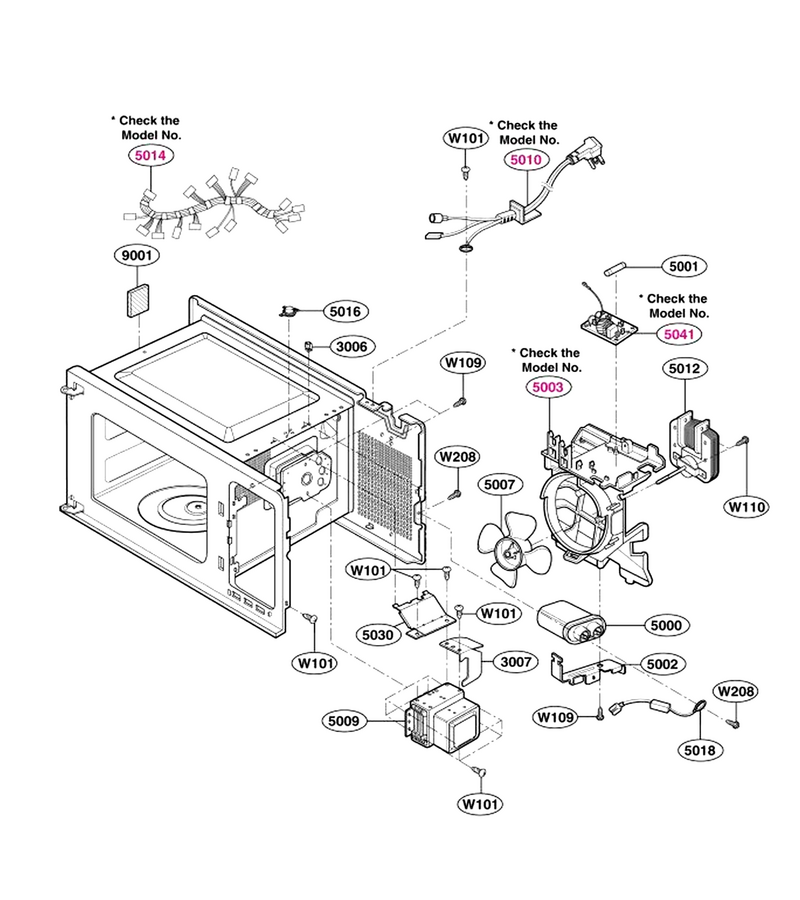

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Screw L-G-1TTL0403418
...
W208
Screw L-G-1EBF0402494
...
3006
Holder L-G-4B72944B
...
3007
Insulator L-G-5012W3A020C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5007
Fan,propeller L-G-5900W1A025A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-6411W1A019V
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness,single L-G-6877W1A538F
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5030
Bracket,idle L-G-4810W2G052B
...
5041
Filter Assembly,noise L-G-6201W1A014A
...
9001
Cushion L-G-3B72244C

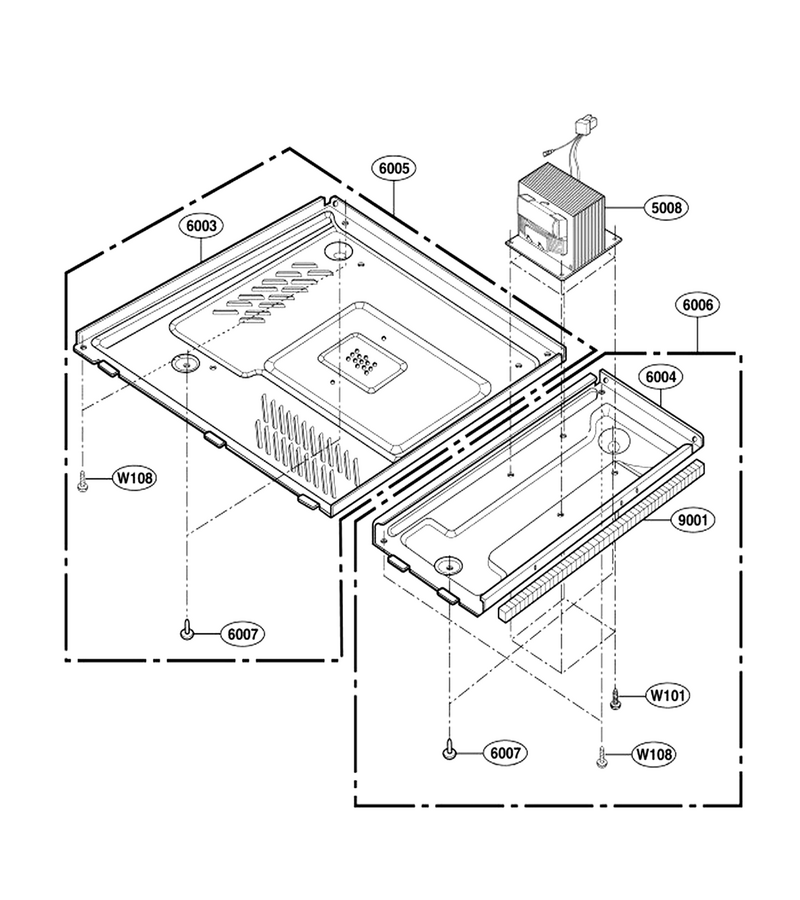

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer,high Voltage L-G-6170W1D023P
...
6003
Base Plate L-G-3302W0A014B
...
6004
Base Plate L-G-3302W1A046F
...
6005
Plate Assembly L-G-3303W0A010C
...
6006
Plate Assembly L-G-3303W1A040F
...
6007
Microwave Foot (white) L-G-5006W3A019A
...
9001
Cushion L-G-3B72244C

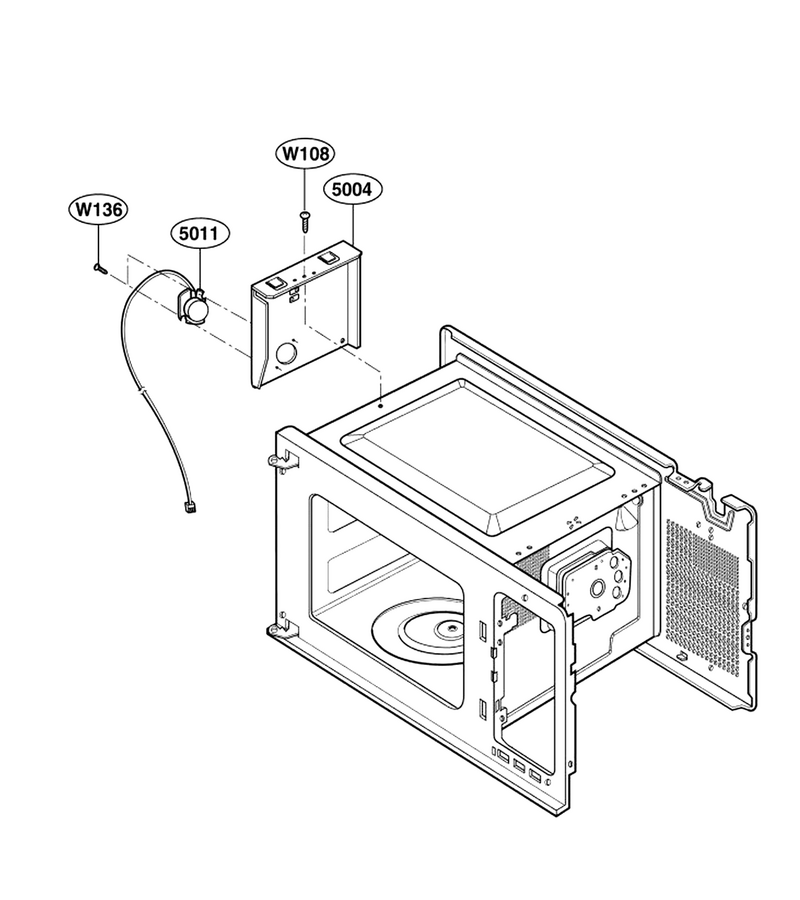

Sensor Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
5004
Bracket,sensor L-G-4810W1A254A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
