LG 62369.AB1ESEA

Model: 62369.AB1ESEA

Save Part Not Listed?
product name

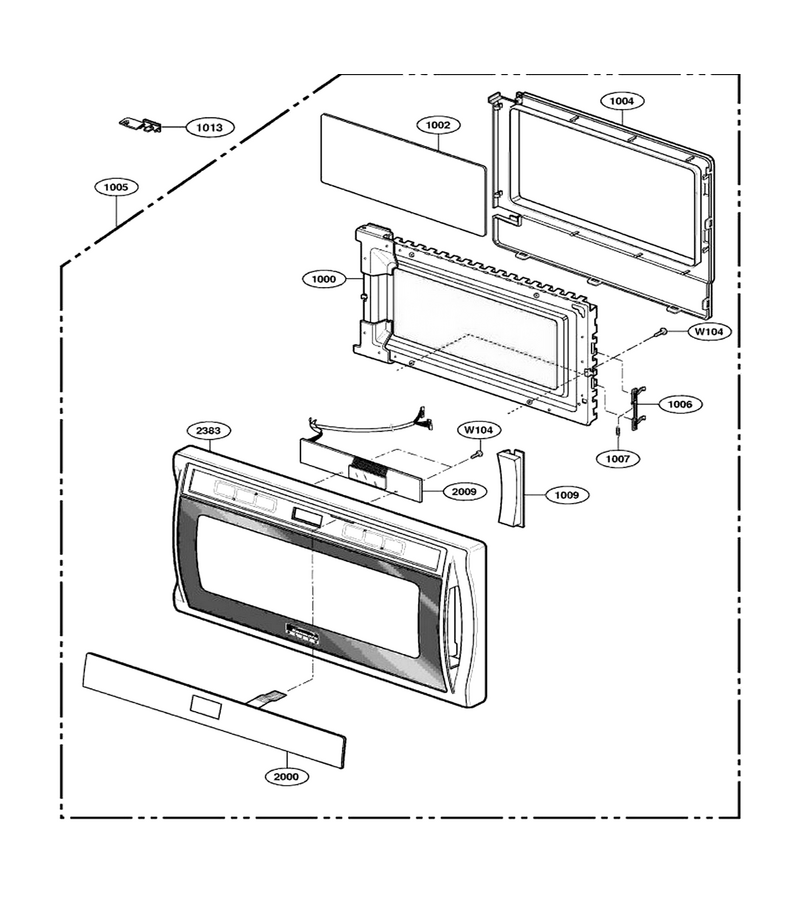

Door Parts

...
...
W104
Screw L-G-1TPL0302018
...
1000
Frame Assembly,door L-G-3213W0A008D
...
1002
Seal Tape L-G-3536W1A002A
...
1004
Choke Cover L-G-3552W0A009A
...
1005
Door Assembly L-G-3581W0A044C
...
1006
Microwave Door Latch Lever L-G-4026W1A025A
...
1007
Spring L-G-4970WRA001C
...
1009
Decor,handle L-G-3806W1A064C
...
1013
Choke Cap L-G-5006W1A005A
...
2000
Membrane L-G-3506W1A344C
...
2009
Pcb Assembly,sub L-G-6871W1S144A

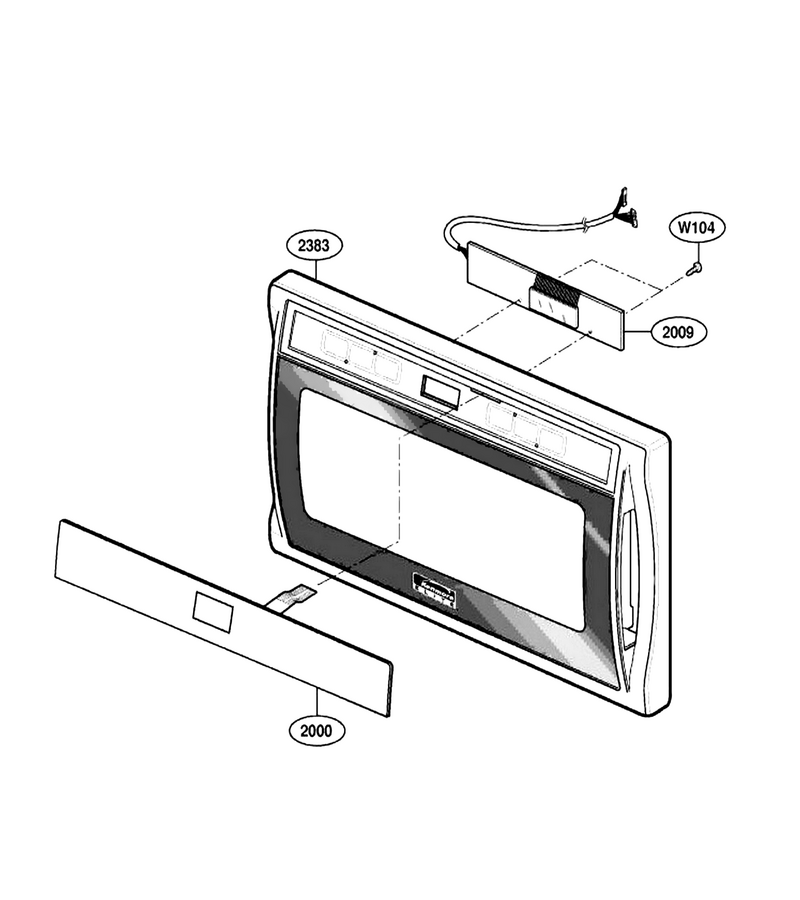

Controller Parts

...
...
W104
Screw L-G-1TPL0302018
...
2000
Membrane L-G-3506W1A344C
...
2009
Pcb Assembly,sub L-G-6871W1S144A
...
2383
Parts Assembly L-G-383EW5A142B

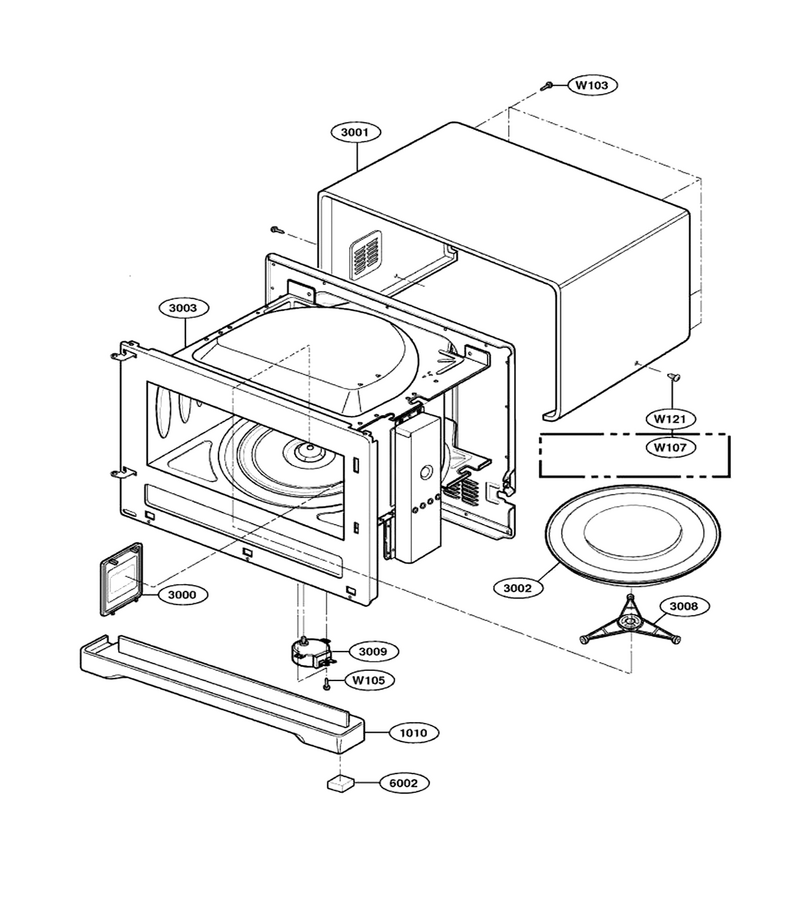

Oven Cavity Parts

...
...
W121
Microwave Screw L-G-1TTL0402422
...
W103
Screw L-G-1SZZW2A002A
...
W107
Screw L-G-1TTL0402416
...
W105
Microwave Screw L-G-1TPL0402418
...
1010
Decor,front L-G-3806W1A062C
...
3000
Canopy L-G-3052W3A015A
...
3001
Case,u Bending L-G-3112W0U048E
...
3002
Microwave Turntable Tray L-G-3390W1A017A
...
3003
Cavity Assembly,coating L-G-3461W0A051C
...
3008
Microwave Turntable Tray Support L-G-5889W1A003A
...
3009
Motor L-G-6549W1S015A
...
6002
Foot L-G-4778W1A002A

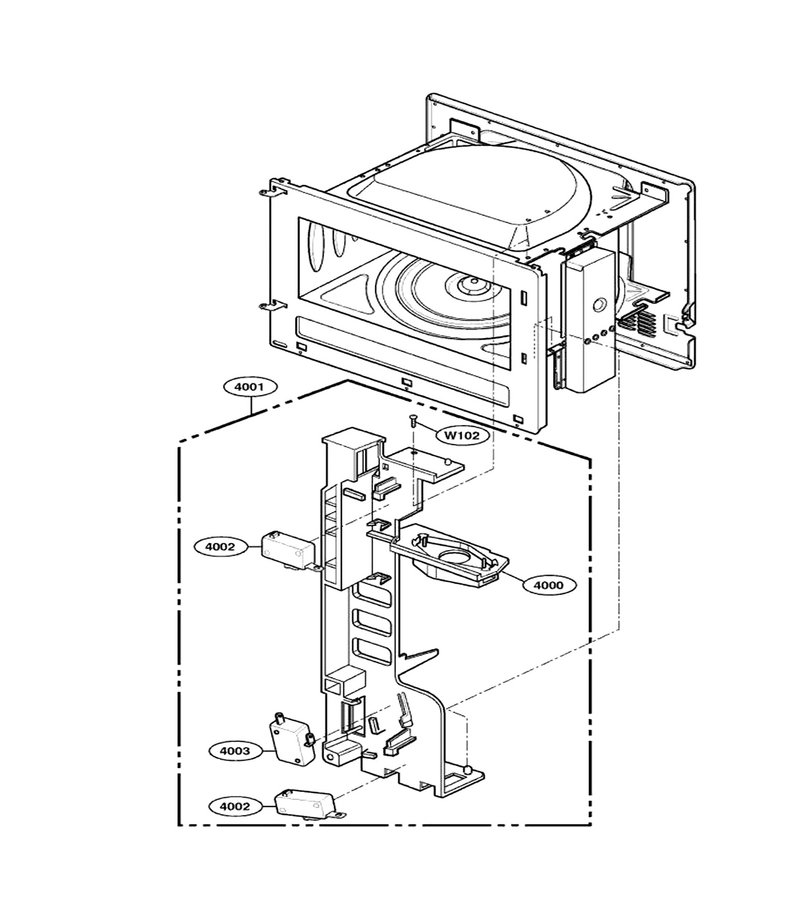

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W0A002A
...
4001
Board Assembly L-G-3501W1A030A
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B

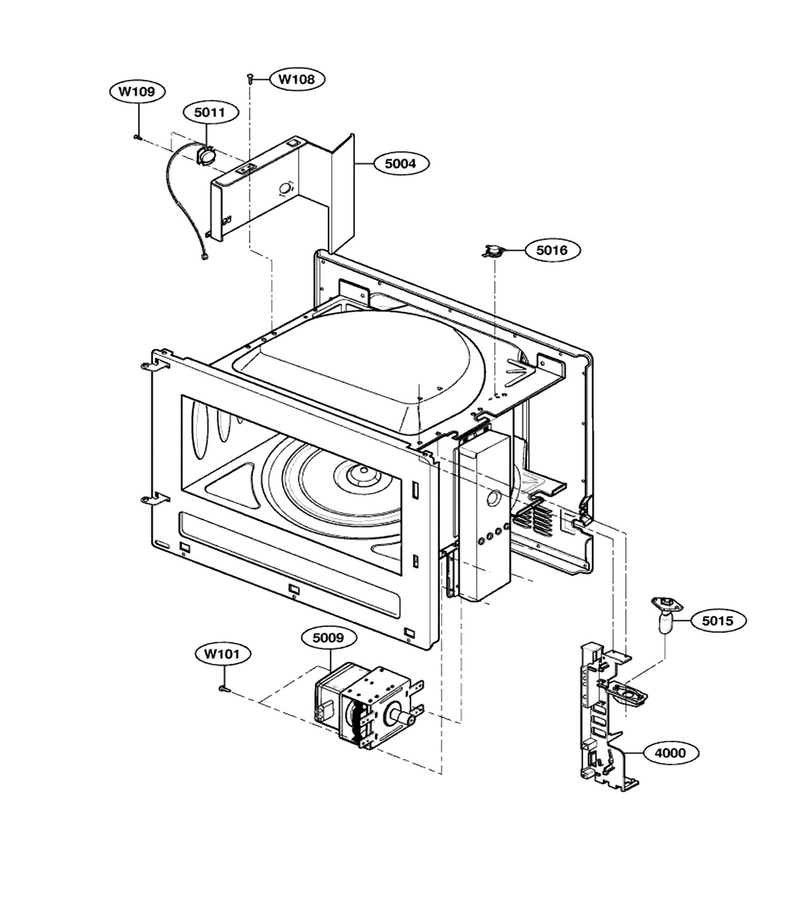

Oven Interior Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
4000
Latch Board L-G-3500W0A002A
...
5004
Bracket,se L-G-4810W1A079A
...
5009
Magnetron L-G-6324W1A002B
...
5011
Sensor Assembly L-G-6501W1A006E
...
5015
Lamp L-G-6912W3B002Q
...
5016
Microwave Thermostat L-G-6930W1A001J

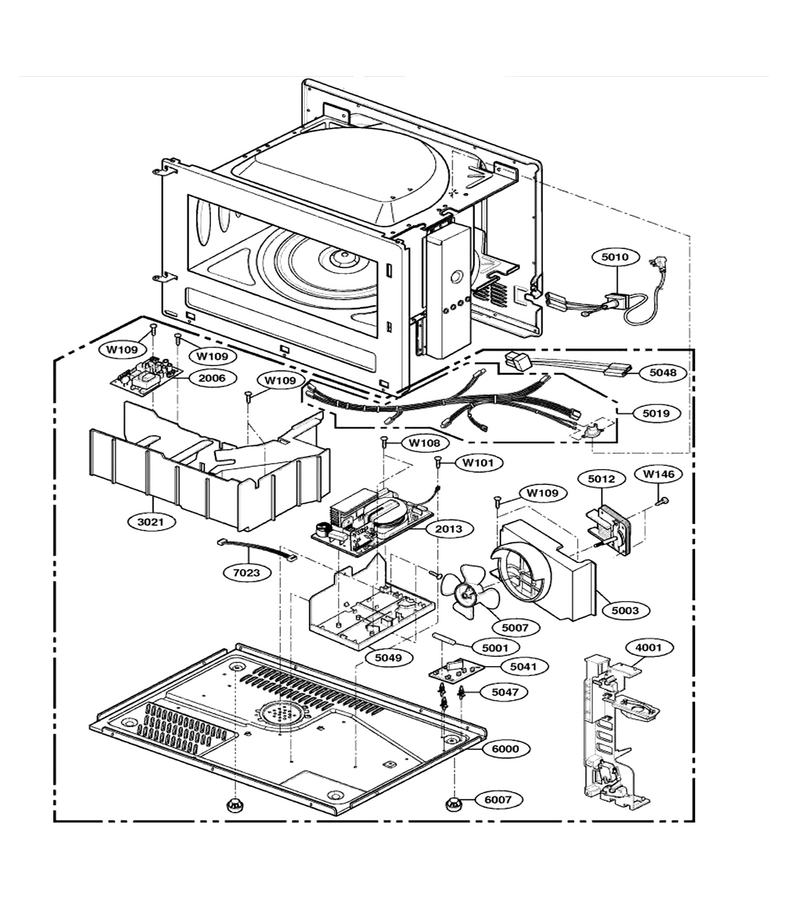

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W146
Screw L-G-1TTL0403418
...
2006
Part L-G-6871W1S145A
...
2013
Part L-G-6871W1S019A
...
3021
Air Guide L-G-4974W0A006A
...
4001
Board Assembly L-G-3501W1A030A
...
5001
Fuse[all] L-G-3B74133K
...
5003
Suction Guide L-G-4974W1A014A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Power Cord L-G-6411W1A027B
...
5012
Fan Motor L-G-6549W1F008B
...
5019
Microwave Wire Harness L-G-6877W1A434A
...
5041
Filter Assembly L-G-6201W1A008F
...
5047
Supporter L-G-4B73792B
...
5048
High Cable L-G-6850W1A001B
...
5049
Air Guide L-G-4974W1A013A
...
6000
Base Plate L-G-3302W0A041A
...
6007
Cap L-G-5006W3A016B
...
7023
Harness L-G-6631W3A003Q
