LG 62342.AWHESEA

Model: 62342.AWHESEA

Save Part Not Listed?
product name

Popular Parts

Popular Parts

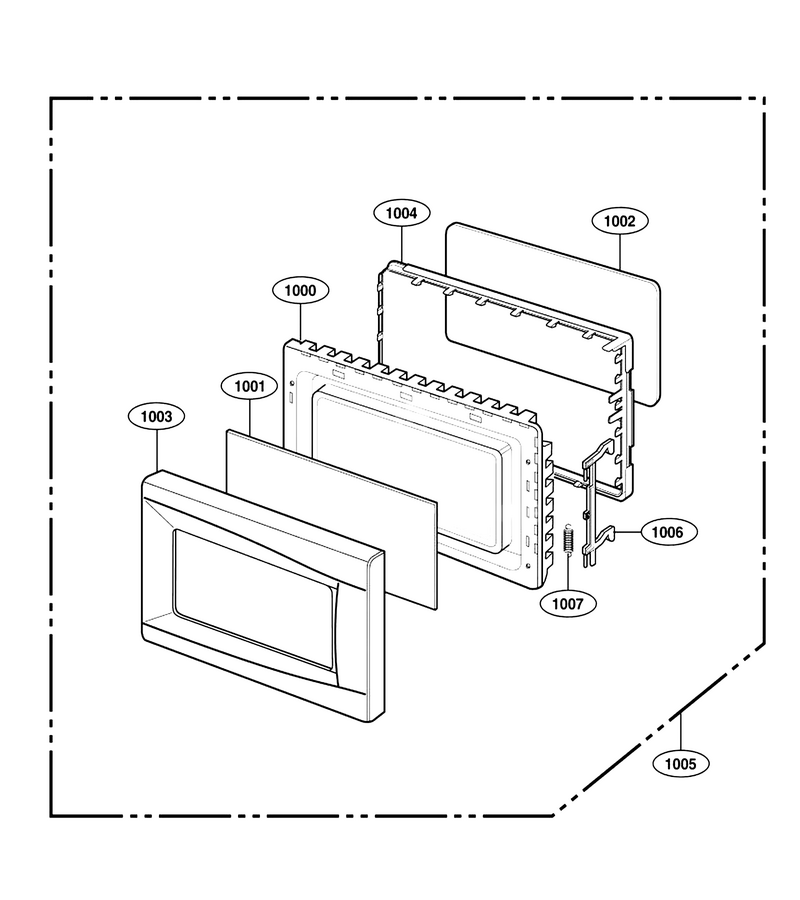

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W0A006B
...
1001
Window,screen L-G-3352W1A134A
...
1002
Tape,sealing L-G-3536W3A011Y
...
1003
Panel,door L-G-3720W0D241A
...
1004
Cover,choke L-G-3552W0A006A
...
1005
Door Assembly L-G-3581W0A031A
...
1006
Microwave Door Latch Lever L-G-4026W1A025A
...
1007
Spring L-G-4970WRA001C

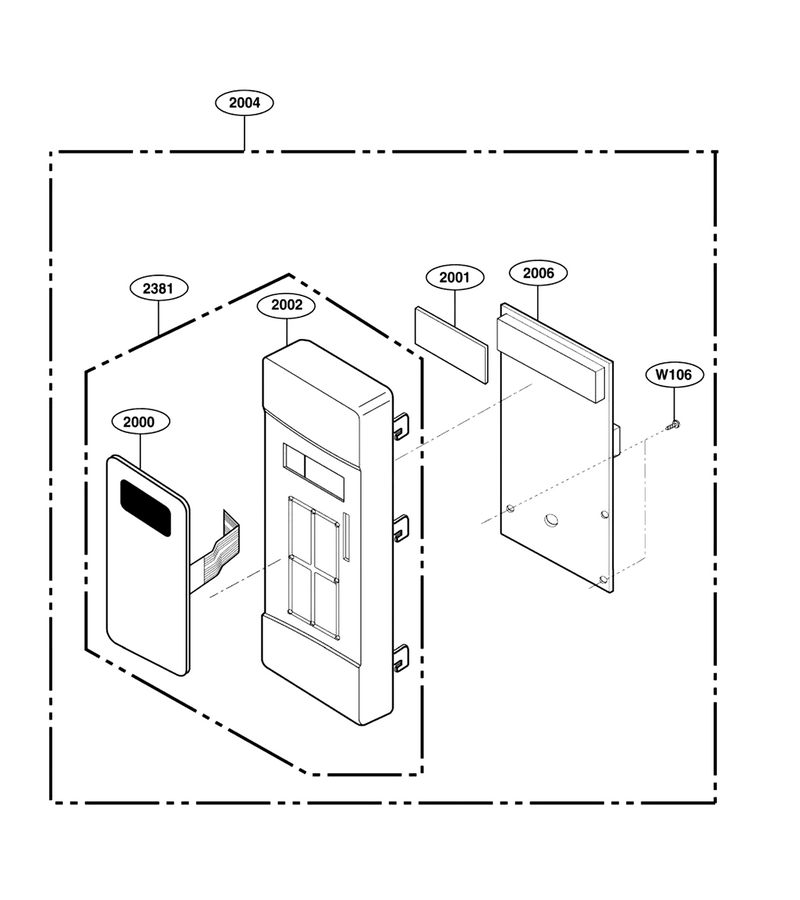

Control Panel Parts

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A232A
...
2001
Microwave Cover L-G-3550W4A029B
...
2002
Panel,control L-G-3720W0C027A
...
2004
Controller Assembly,keypad L-G-4781W0M025A
...
2006
Pcb Assembly,sub L-G-6871W1S115B

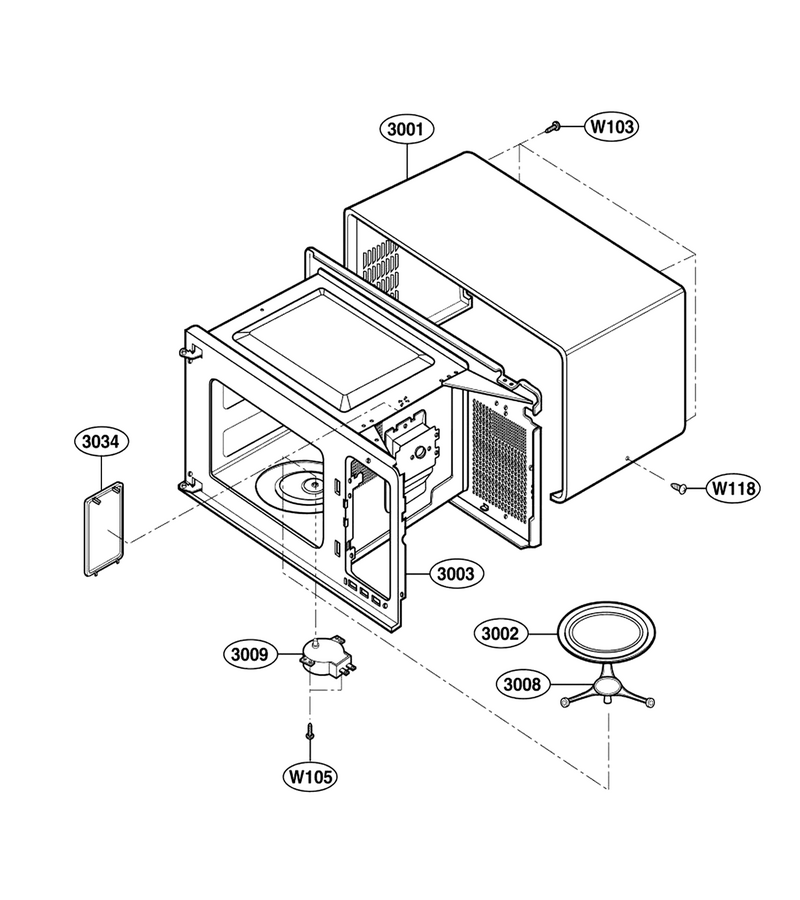

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W118
Microwave Screw L-G-1TTG0402422
...
3001
Case,flat L-G-3112W0F018D
...
3002
Microwave Glass Turntable Tray L-G-3390W1A012B
...
3003
Cavity Assembly,coating L-G-3461W0A043D
...
3008
Microwave Turntable Tray Support L-G-5889W1A003A
...
3009
Microwave Turntable Motor L-G-6549W1S011A
...
3034
Canopy L-G-3052W3A015A

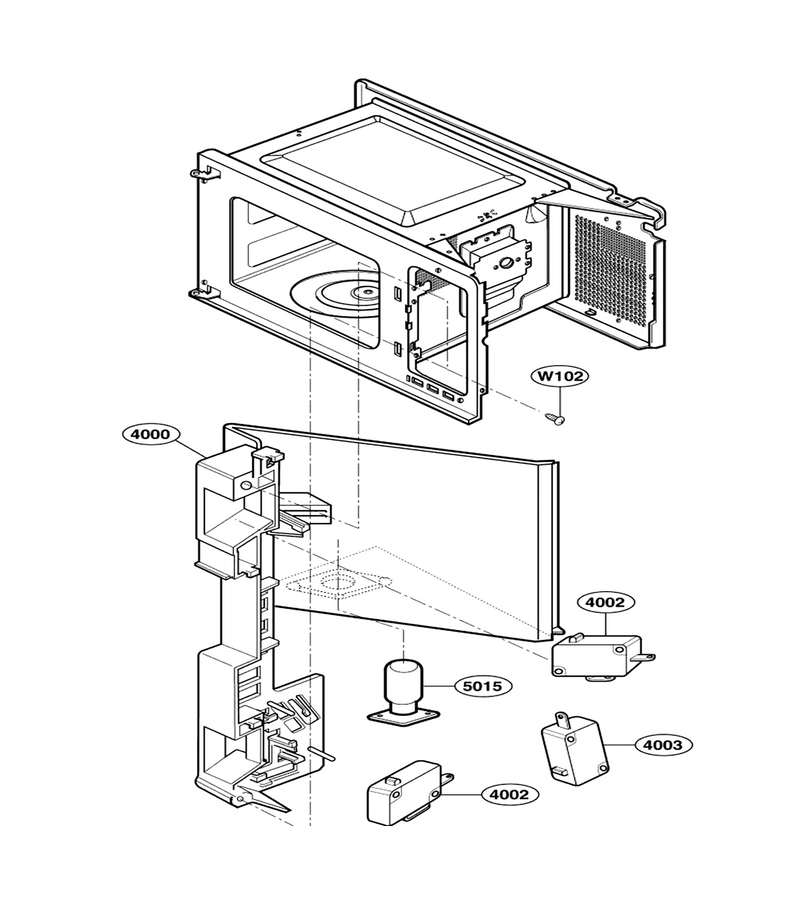

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W0A001A
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
5015
Microwave Light Bulb L-G-6912W3B002G

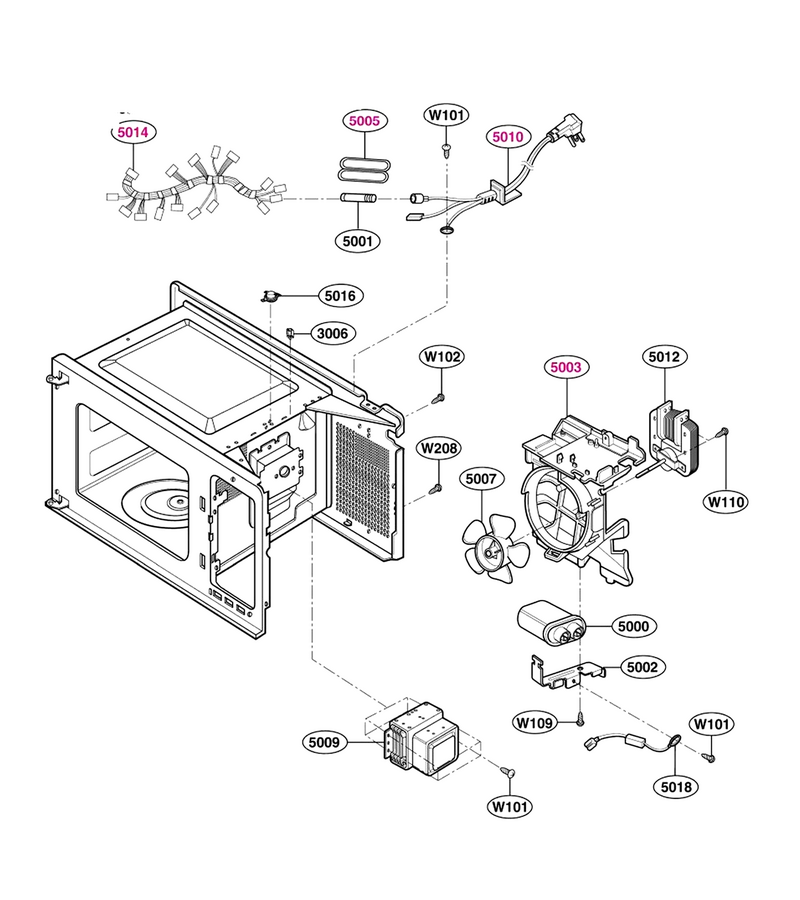

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3006
Holder L-G-4930W3B029A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5001
Fuse,time Delay L-G-3B74133P
...
5002
Bracket L-G-4810W3C002A
...
5003
Guide,suction L-G-4974W1A001B
...
5005
Cap Fuse L-G-5006WRA002D
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A004B
...
5010
Power Cord Assembly L-G-6411W1A012A
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A227F
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M

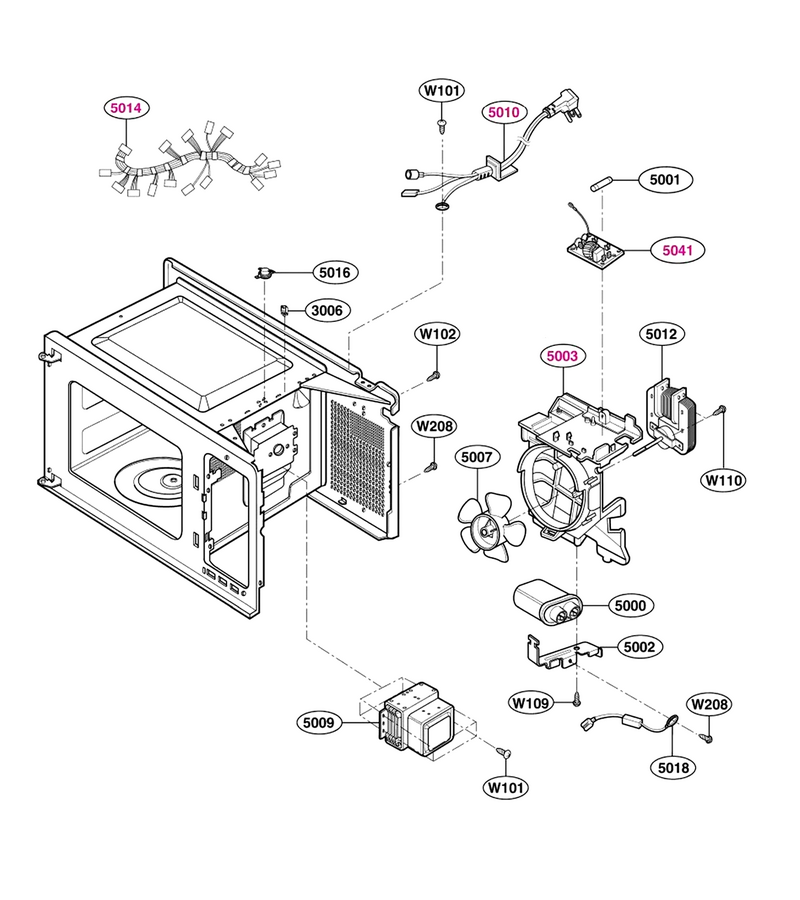

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W109
Microwave Screw L-G-1TTL0402818
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
3006
Holder L-G-4930W3B029A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5001
Fuse,time Delay L-G-3B74133P
...
5002
Bracket L-G-4810W3C002A
...
5003
Guide,suction L-G-4974W1A001B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A004B
...
5010
Power Cord Assembly L-G-6411W1A012A
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A227F
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M

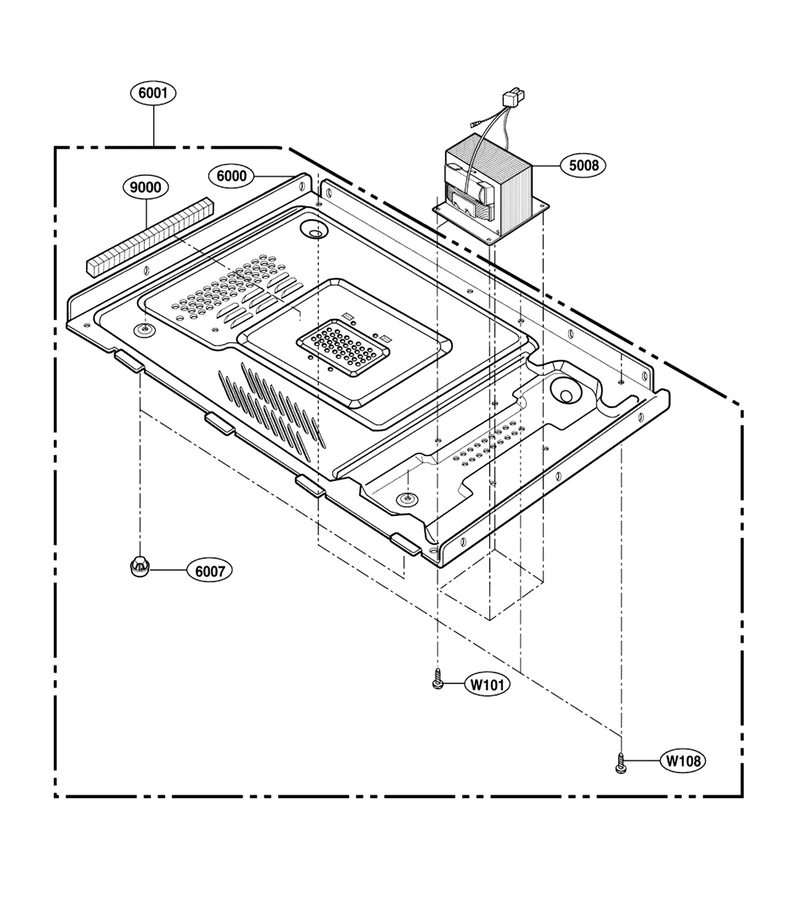

Base Plate Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Transformer,high Voltage L-G-6170W1D077A
...
6000
Plate,base L-G-3302W0A035A
...
6001
Plate Assembly,base L-G-3303W0A017B
...
6007
Cap L-G-5006W3A016B
...
9000
Damper L-G-3B72246J

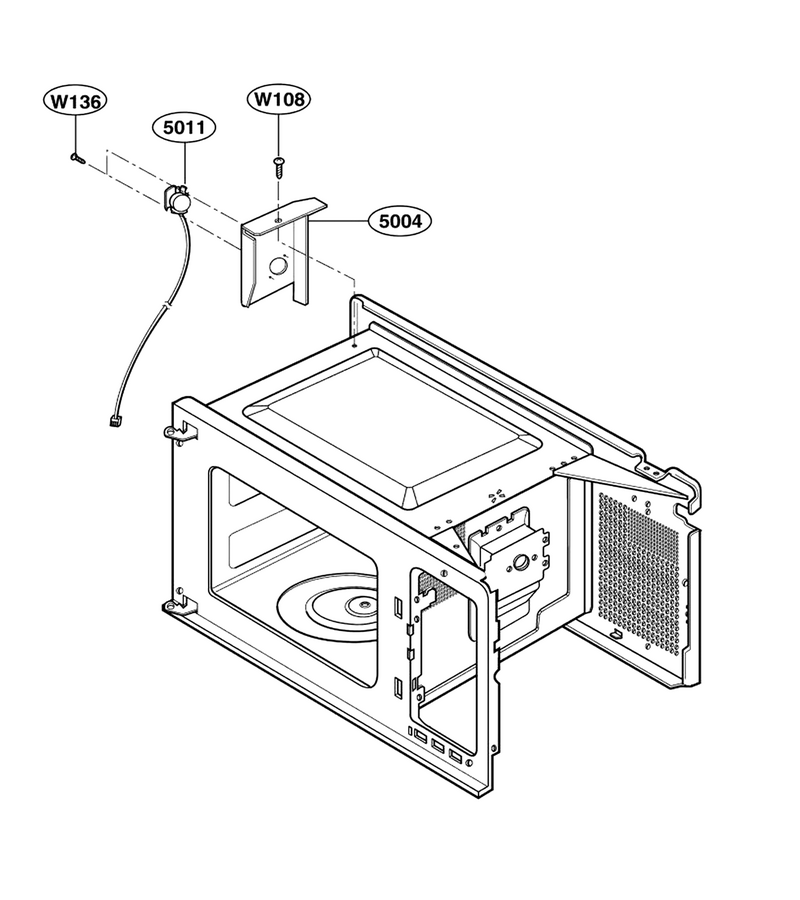

Sensor Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
5004
Bracket,sensor L-G-5208W1A014A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
