LG 62102 201.CW1ESEA

Model: 62102 201.CW1ESEA

Save Part Not Listed?
product name

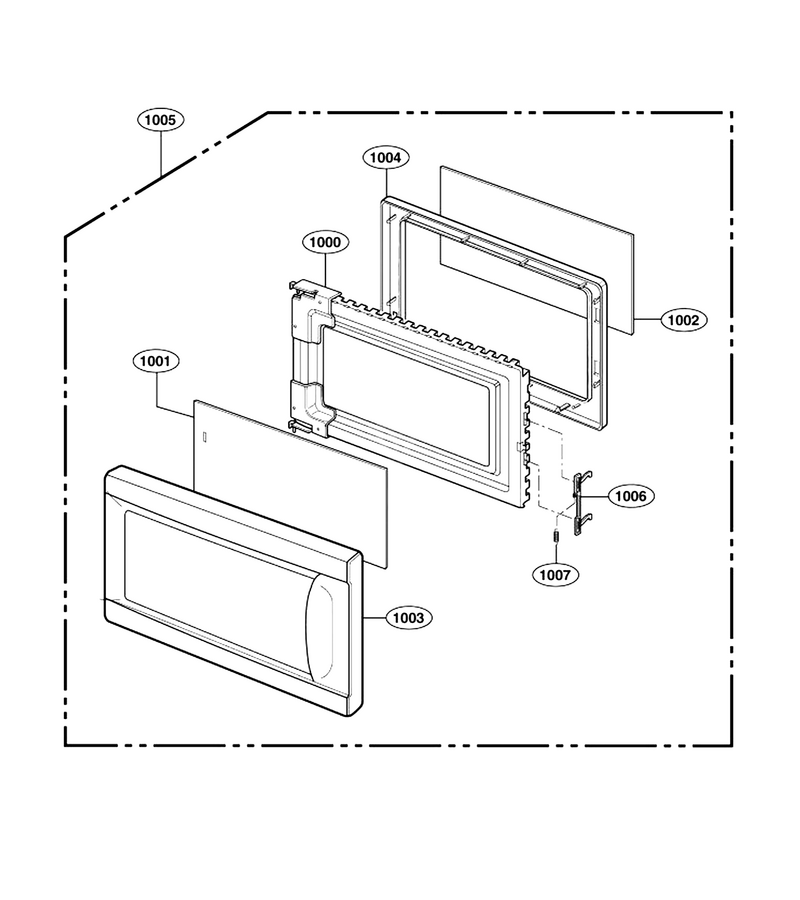

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W1A045E
...
1001
Window,screen L-G-3352W1A133C
...
1002
Tape,sealing L-G-3536W3A011Z
...
1003
Panel,door L-G-3720W0D246A
...
1004
Cover,choke L-G-3552W1A058A
...
1005
Door Assembly L-G-3581W1A346A
...
1006
Locker L-G-4026W2A024A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E

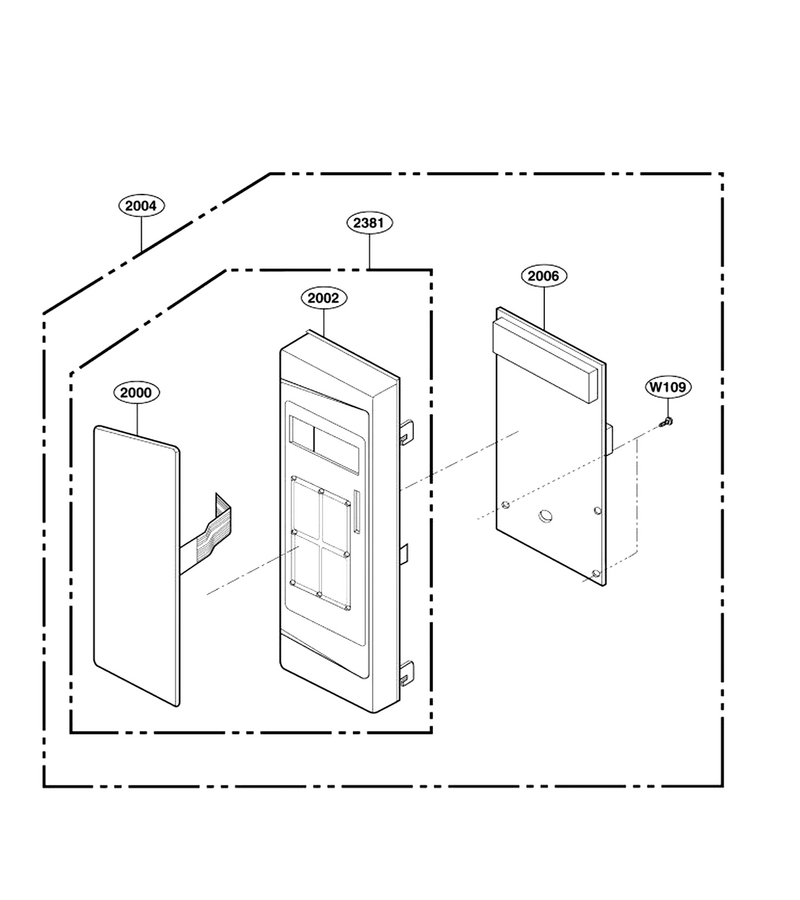

Controller Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
2000
Membrane L-G-3506W1A244A
...
2002
Panel,control L-G-3720W0C031A
...
2004
Controller Assembly,keypad L-G-4781W1M300A
...
2006
Pcb Assembly,sub L-G-6871W1S103A
...
2381
Service Parts L-G-383EW5A296A

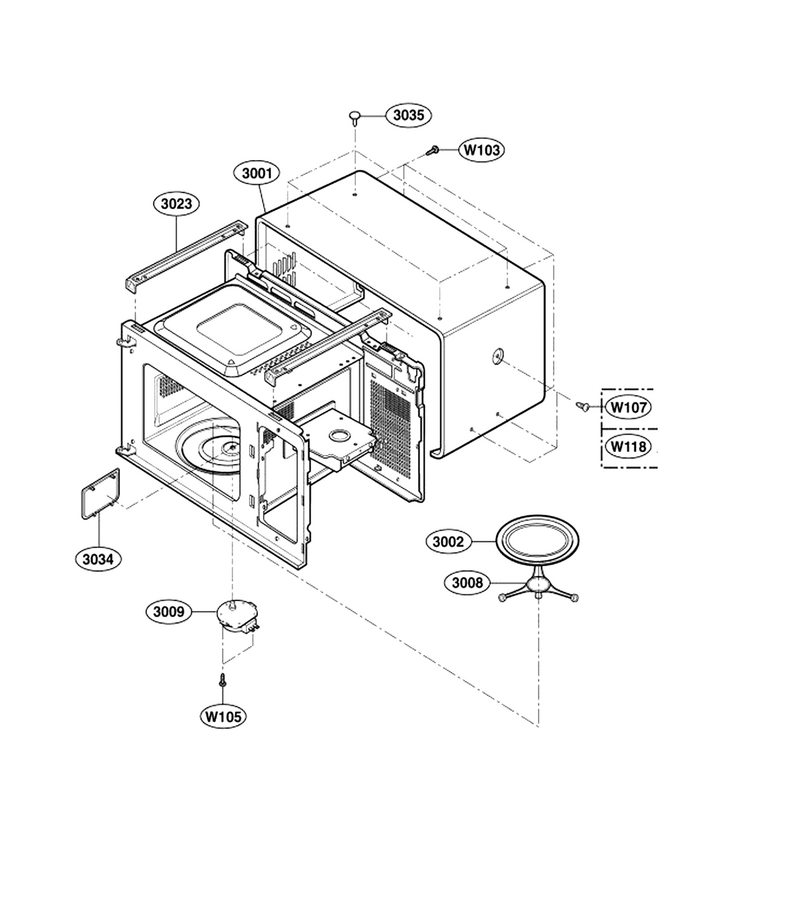

Oven Cavity Parts

...
...
W107
Screw L-G-1TTL0402416
...
W118
Microwave Screw L-G-1TTG0402422
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
3001
Case,u Bending L-G-3112W0U045N
...
3002
Tray,glass L-G-3390W1G005D
...
3008
Turntable Assembly L-G-5889W2A013E
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3023
Bracket,idle L-G-4810W1A010A
...
3034
Canopy Resistor L-G-3052W1A002A
...
3035
Cap,under Cabinet L-G-4B74749A

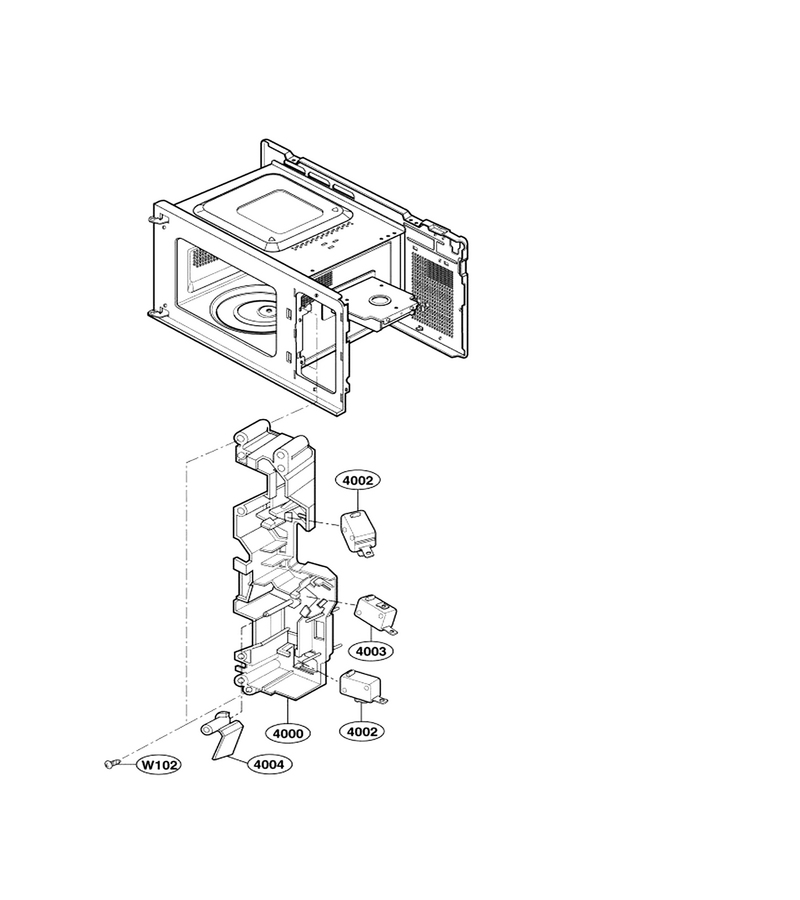

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A011A
...
4002
Switch,micro L-G-6600W1K003D
...
4003
Switch,micro L-G-6600W1K003C
...
4004
Lever L-G-4510W3A012A

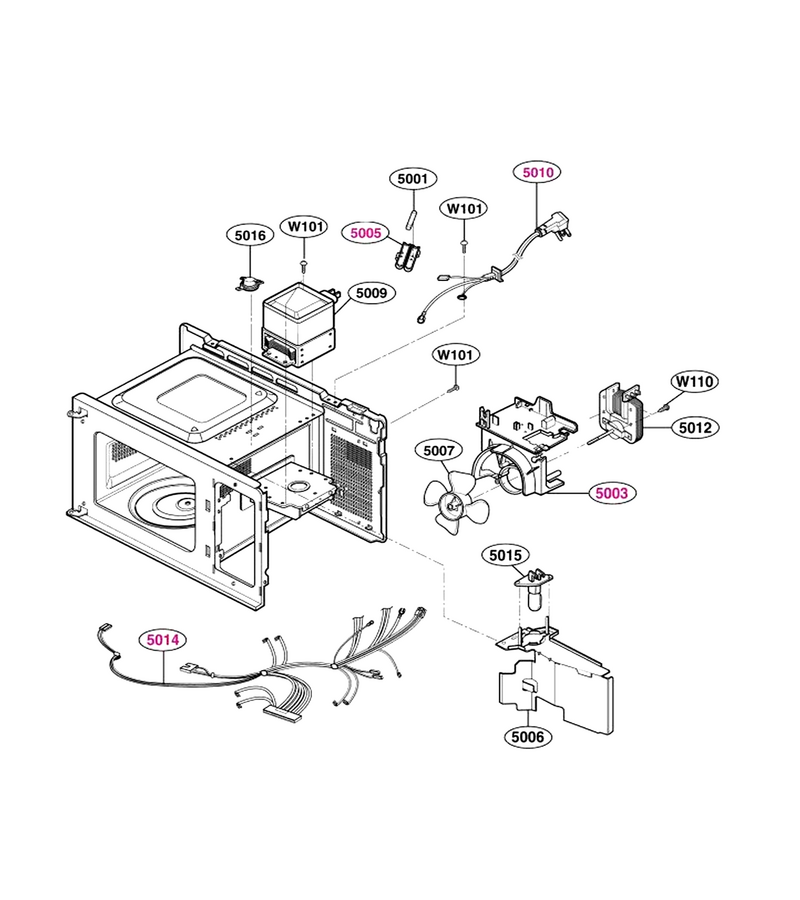

Interior Parts (i)

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5001
Fuse,time Delay L-G-3B74133P
...
5003
Guide,suction L-G-4974W1A001B
...
5006
Duct L-G-5208W1A013A
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A004B
...
5010
Power Cord Assembly L-G-6411W1A036N
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness,multi L-G-6877W1A227N
...
5015
Lamp,incandescent L-G-6912W3B002K
...
5016
Microwave Thermostat L-G-6930W1A003A

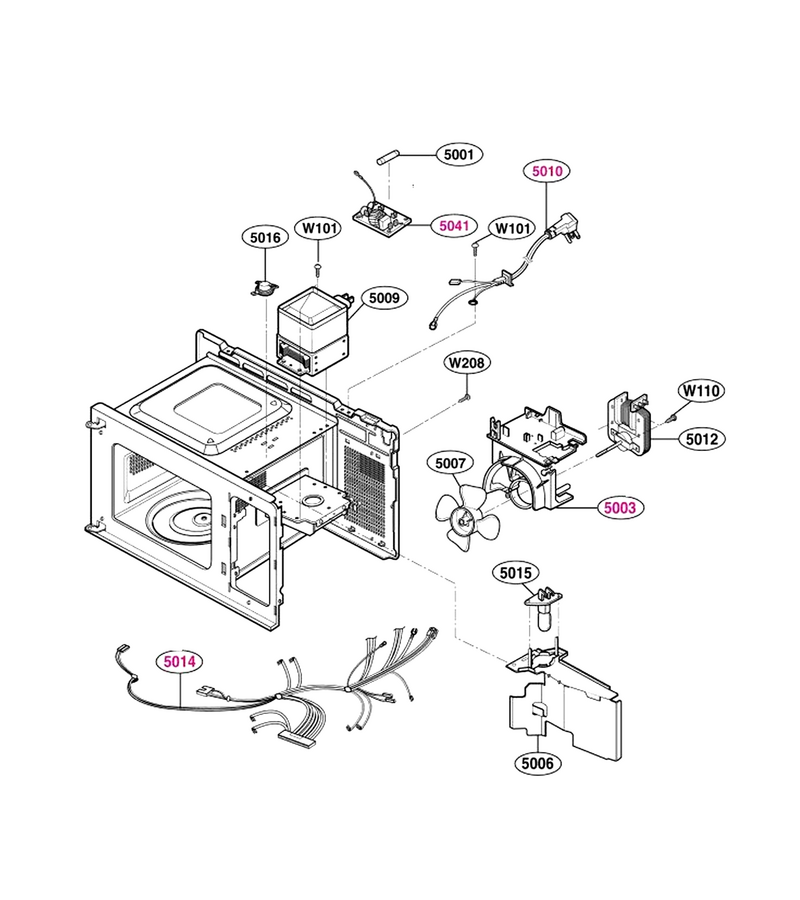

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
5001
Fuse,time Delay L-G-3B74133P
...
5003
Guide,suction L-G-4974W1A001B
...
5006
Duct L-G-5208W1A013A
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A004B
...
5010
Power Cord Assembly L-G-6411W1A012A
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness,multi L-G-6877W1A227N
...
5015
Lamp,incandescent L-G-6912W3B002K
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5041
Filter Assembly L-G-6201W1A014C

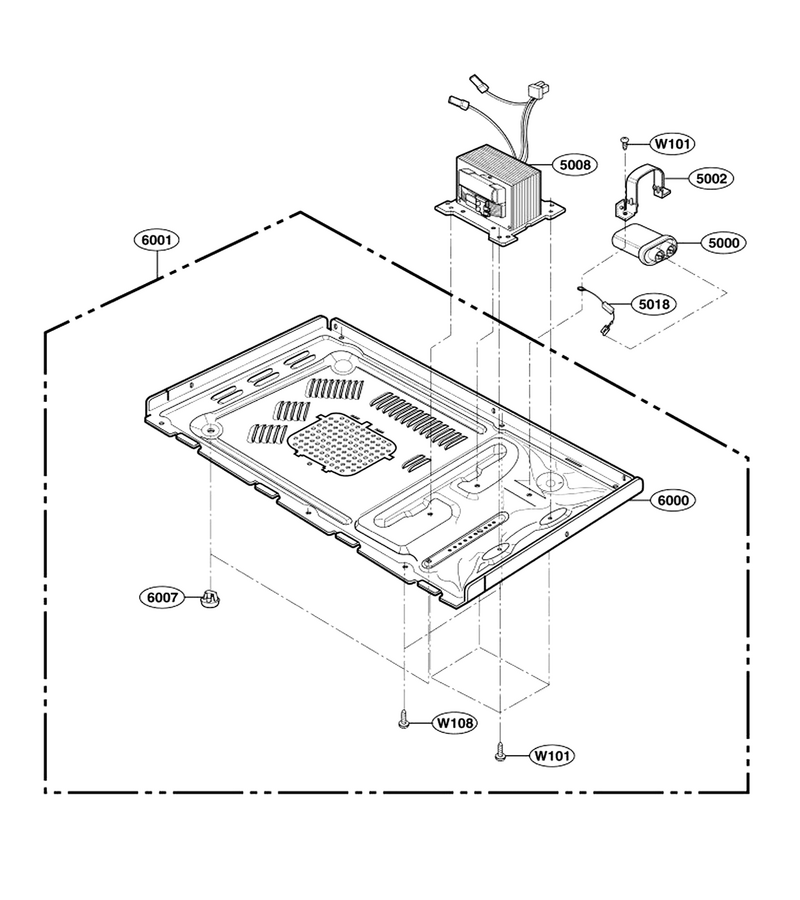

Installation Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5000
Capacitor,high Voltage L-G-0CZZW1H001L
...
5002
Bracket,capacitor L-G-4810W1A009B
...
5008
Transformer,high Voltage L-G-6170W1D067A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
6000
Plate,base L-G-3302W1A054E
...
6001
Plate Assembly,base L-G-3303W1A052D
...
6007
Microwave Foot (white) L-G-5006W3A019A
