LG 619530.FSTLLGA

Model: 619530.FSTLLGA

Save Part Not Listed?
product name

Popular Parts

Popular Parts

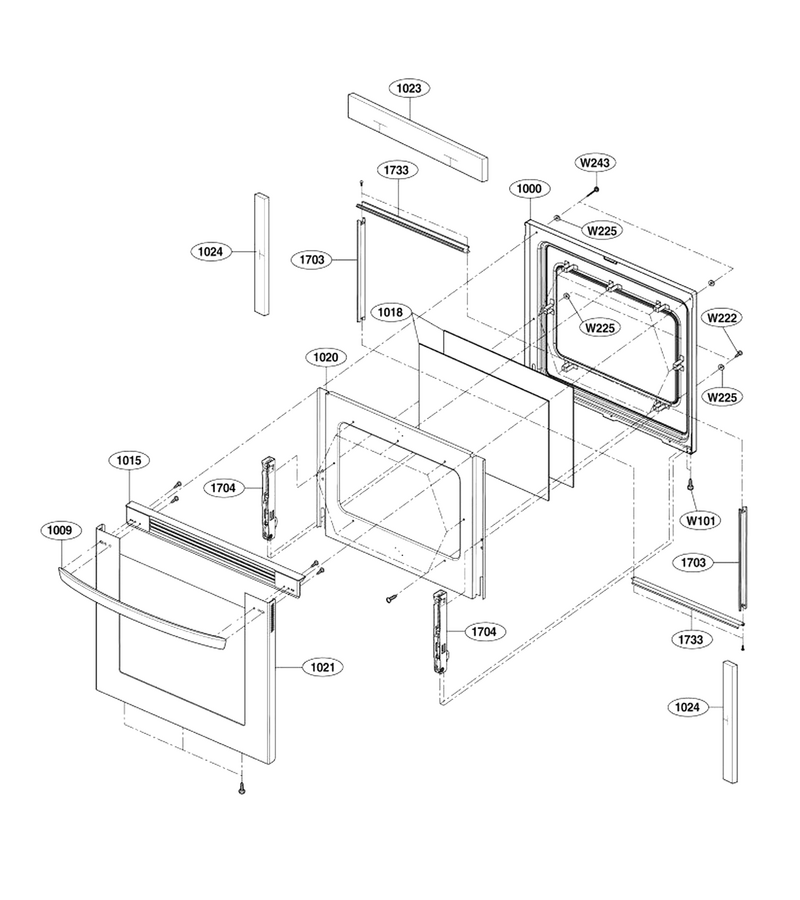

Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
1000
Frame Assembly,door L-G-ADV66482005
...
1009
Range Oven Door Handle L-G-MEB42058901
...
1015
Decorative Door L-G-MCR32112501
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1020
Cover L-G-3550W0N006B
...
1021
Cover Assembly L-G-ACQ70890701
...
1023
Insulator L-G-MEV64166604
...
1024
Insulator L-G-MEV64166605
...
1703
Mounting Bracket L-G-MAZ60113203
...
1704
Hinge Assembly L-G-4775W1N001D
...
1733
Mounting Bracket L-G-MAZ61672103

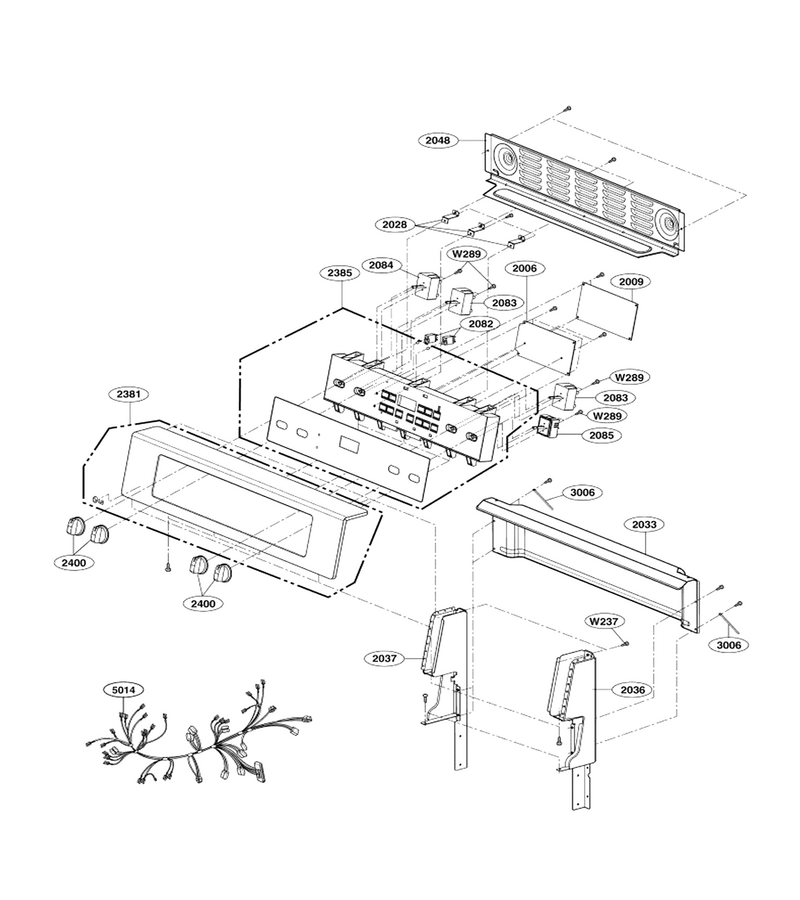

Controller Parts

...
...
W237
Binding Hd Tap Tite Screw + L-G-1SBF0402618
...
2006
Pcb Assembly,main L-G-EBR60969301
...
2009
Pcb Assembly,power L-G-EBR60969201
...
2028
Idler Bracket L-G-4810W1N042A
...
2033
Barrier L-G-MAL61842001
...
2036
Supporter L-G-MJH61854903
...
2037
Supporter L-G-MJH61854803
...
2048
Cover L-G-MCK62093501
...
2082
Lamp L-G-EAQ60658301
...
2083
Range Rotary Switch L-G-EBF60663201
...
2084
Range Rotary Switch L-G-EBF60669101
...
2085
Range Switch L-G-EBF60688001
...
2381
Parts Assembly L-G-AGM73551601
...
2385
Parts Assembly L-G-AGM72925401
...
2400
Knob L-G-MEY61844803
...
3006
Lug (circ) L-G-4B72510F
...
5014
Harness,single L-G-EAD60734201

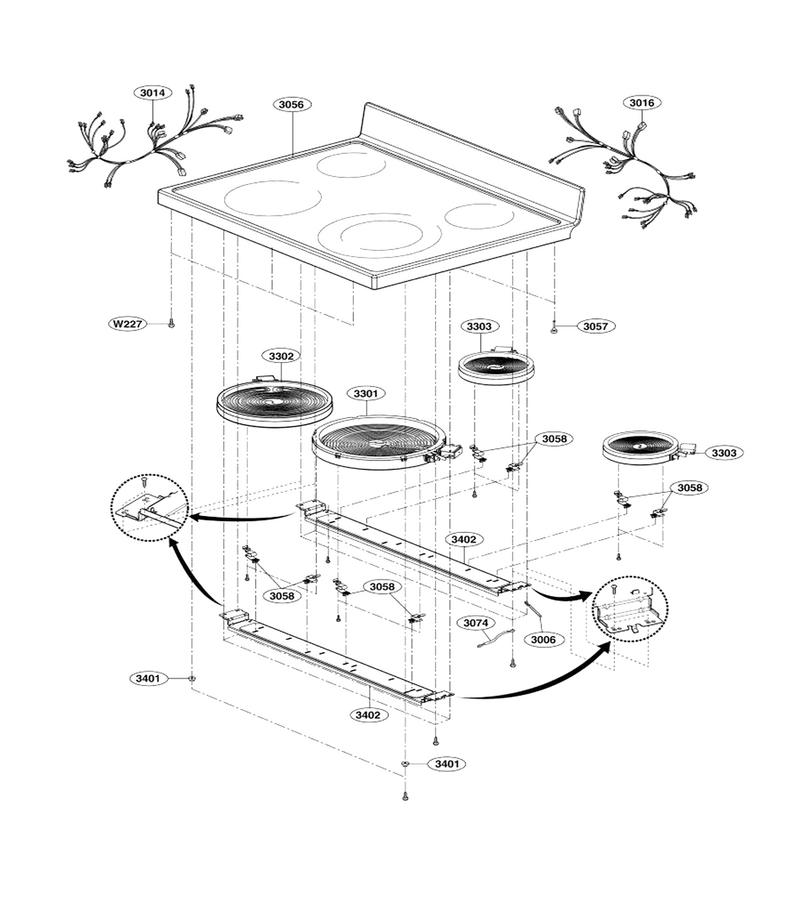

Cooktop Parts

...
...
W227
Screw L-G-1SZZW3Z001A
...
3006
Lug (circ) L-G-4B72510F
...
3014
Range Wire Harness L-G-EAD60734701
...
3016
Range Wire Harness L-G-EAD60734601
...
3056
Range Main Top Assembly L-G-AGU70894509
...
3057
Packing Gasket L-G-MFZ54382601
...
3058
Spring L-G-4970W1N004A
...
3074
Range Wire Harness L-G-6877W1N024C
...
3301
Cooktop Radiant Element L-G-MEE50408702
...
3302
Range Radiant Surface Element L-G-5300W1R005A
...
3303
Range Radiant Surface Element L-G-5300W1R004A
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-4980W0N002D

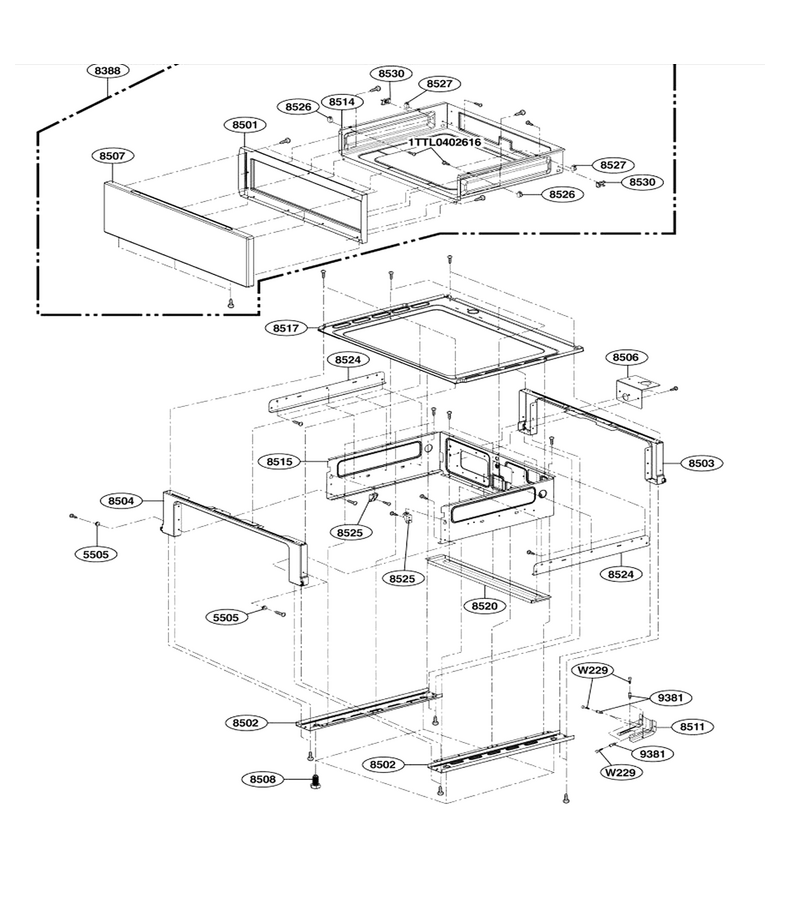

Drawer Parts

...
...
W229
Screw L-G-1SZZW1N003A
...
5505
Supporter L-G-4980W1N013A
...
8388
Parts Assembly L-G-AGM72925301
...
8501
Door Frame L-G-3212W0N001C
...
8502
Plate L-G-3302W1N001B
...
8503
Plate L-G-MGJ62087501
...
8504
Plate L-G-3446W0N001E
...
8506
Cover L-G-3550W1N004B
...
8507
Panel,drawer L-G-MGC32115512
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ34877102
...
8514
Drawer L-G-MCX61841010
...
8515
Drawer L-G-MCX61841102
...
8517
Insulator L-G-5012W0N001D
...
8520
Supporter L-G-MJH37701302
...
8524
Bracket,mount L-G-MAZ61951201
...
8525
Slide Stopper L-G-MJB61872001
...
8526
Slide Stopper L-G-MJB61872101
...
8527
Stopper L-G-MJB61872201
...
8530
Guide Rail L-G-MEA61857701
...
9381
Anchor L-G-FAK30249601

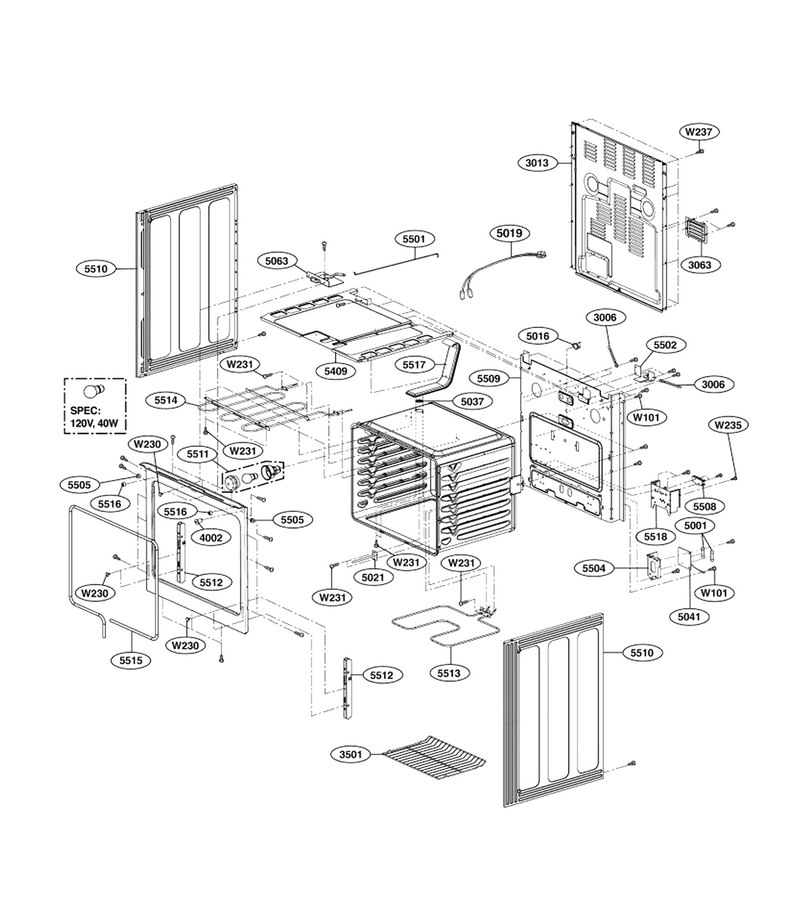

Cavity Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W235
Screw L-G-1ATF0502610
...
W237
Binding Hd Tap Tite Screw + L-G-1SBF0402618
...
3006
Lug (circ) L-G-4B72510F
...
3013
Cover L-G-MCK36350003
...
3063
Oven Cover L-G-MCK36350004
...
3501
Range Oven Rack L-G-MHL39256101
...
4002
Range Tact Switch L-G-EBF60663401
...
5001
Fuse[all] L-G-3B74133K
...
5016
Thermostat L-G-6930W1A003X
...
5019
Range Wire Harness L-G-6877W1N025B
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5037
Charcoal Filter L-G-5230W1N001B
...
5041
Oven Filter L-G-EAM60740401
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5409
Insulator L-G-5012W0N002B
...
5501
Bar L-G-4270W1N001B
...
5502
Range Oven Door Lock Assembly L-G-6549W1S025B
...
5504
Supporter L-G-4980W1A111B
...
5505
Supporter L-G-4980W1N013A
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Panel L-G-3720W0E011B
...
5510
Range Panel L-G-MGC62644005
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-MAZ61885801
...
5513
Sheath Heater L-G-MEE61843501
...
5514
Sheath Heatr L-G-MEE61843401
...
5515
Package Gasket L-G-3920W0N001B
...
5516
Packing Seal L-G-3920W1N013A
...
5517
Vent Assembly L-G-AJV31005901
...
5518
Bracket L-G-4810W1N056B
