LG 61289.ABKESEA

Model: 61289.ABKESEA

Save Part Not Listed?
product name

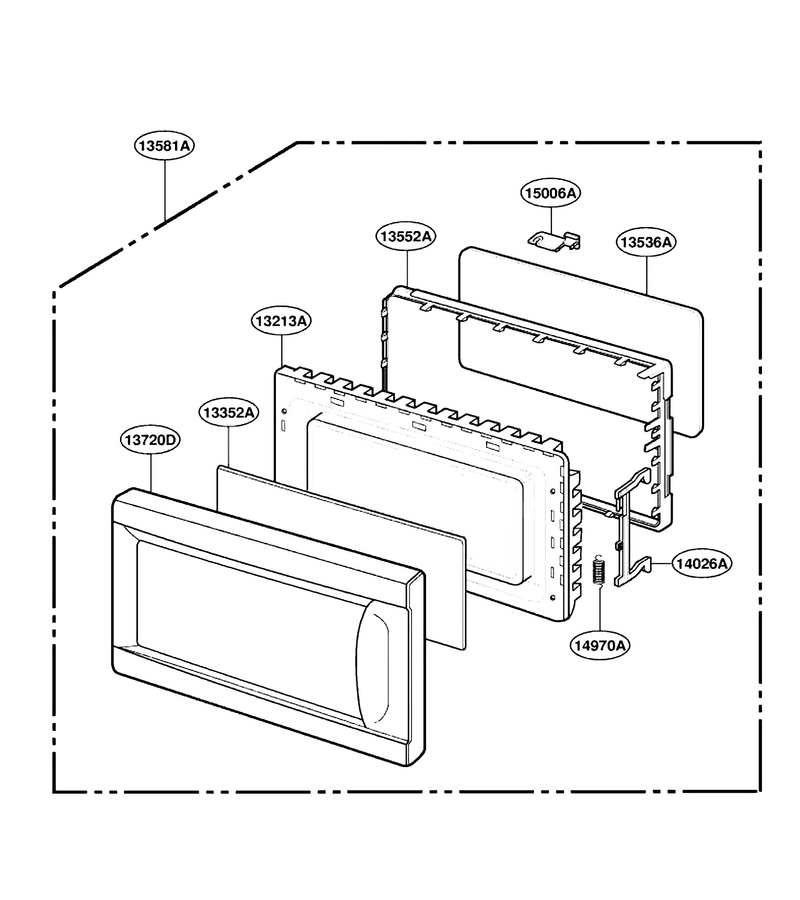

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A028K
...
13352A
Window,screen L-G-3352W2A049A
...
13536A
Tape,sealing L-G-3536WRA001L
...
13552A
Cover,choke L-G-3552W1A045A
...
13581A
Door Assembly L-G-3581W1A274B
...
13720D
Panel,door L-G-3720W0D187B
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A017A

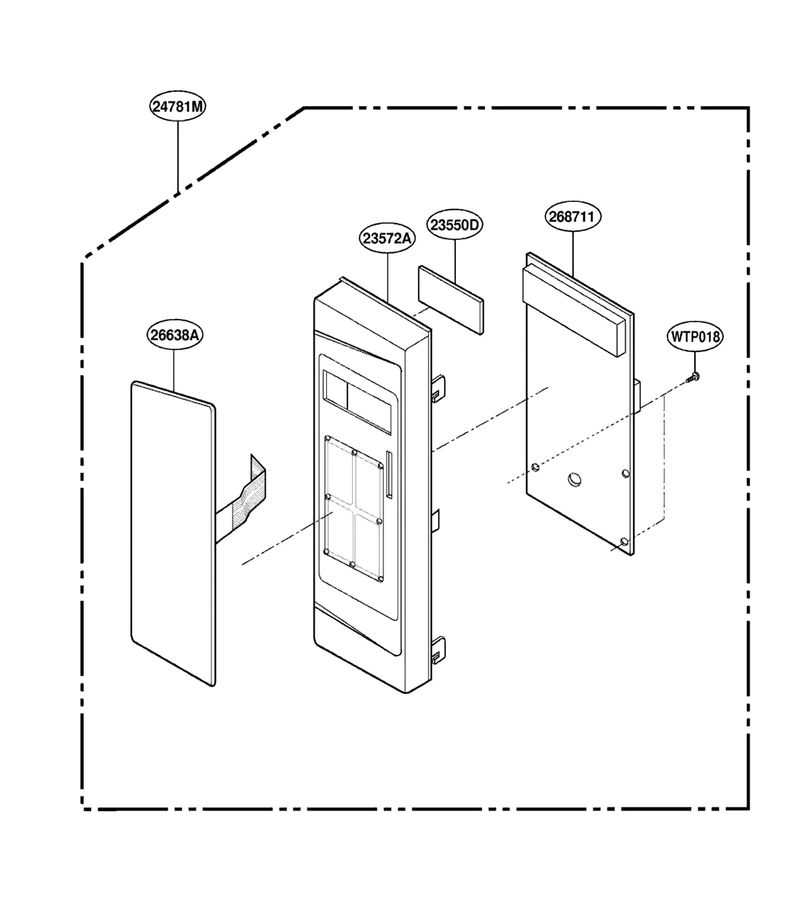

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A230B
...
24781M
Controller Assembly,keypad L-G-4781W1M264B
...
26638A
Membrane L-G-6638W1A035B
...
268711
Pcb Assembly,sub L-G-6871W2S156A

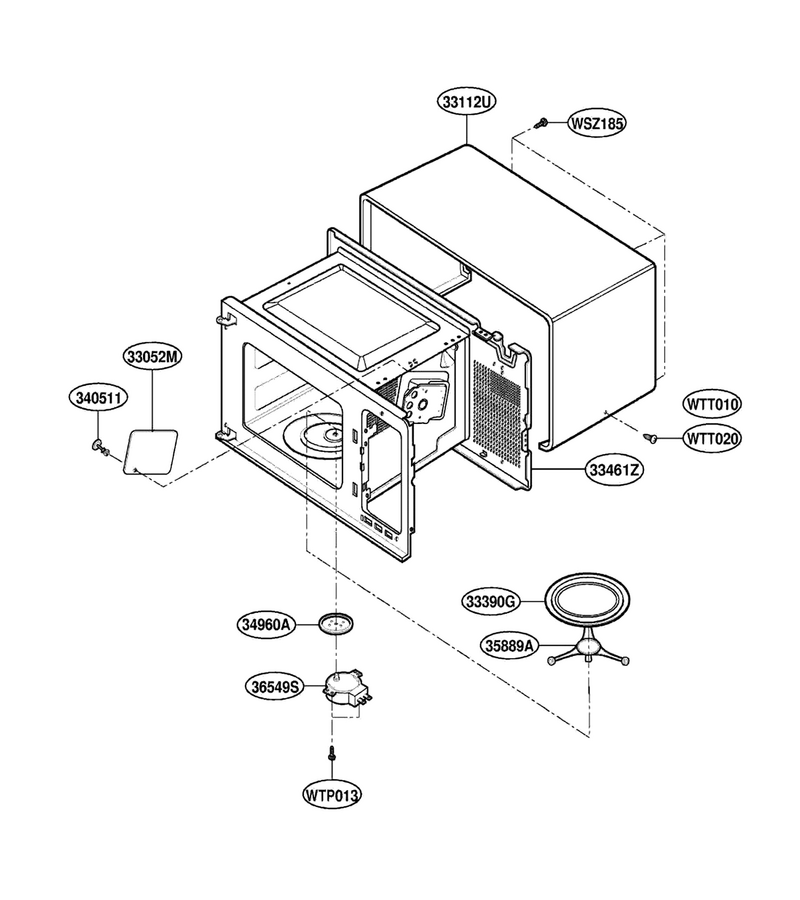

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052M
Cover,insulator L-G-3052W3M011C
...
33112U
Case,u Bending L-G-3112W1U019P
...
33390G
Tray,glass L-G-3390W1G003A
...
33461Z
Cavity Assembly,coating L-G-3461W0A024E
...
34960A
Plate L-G-4960W3G026A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011B
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

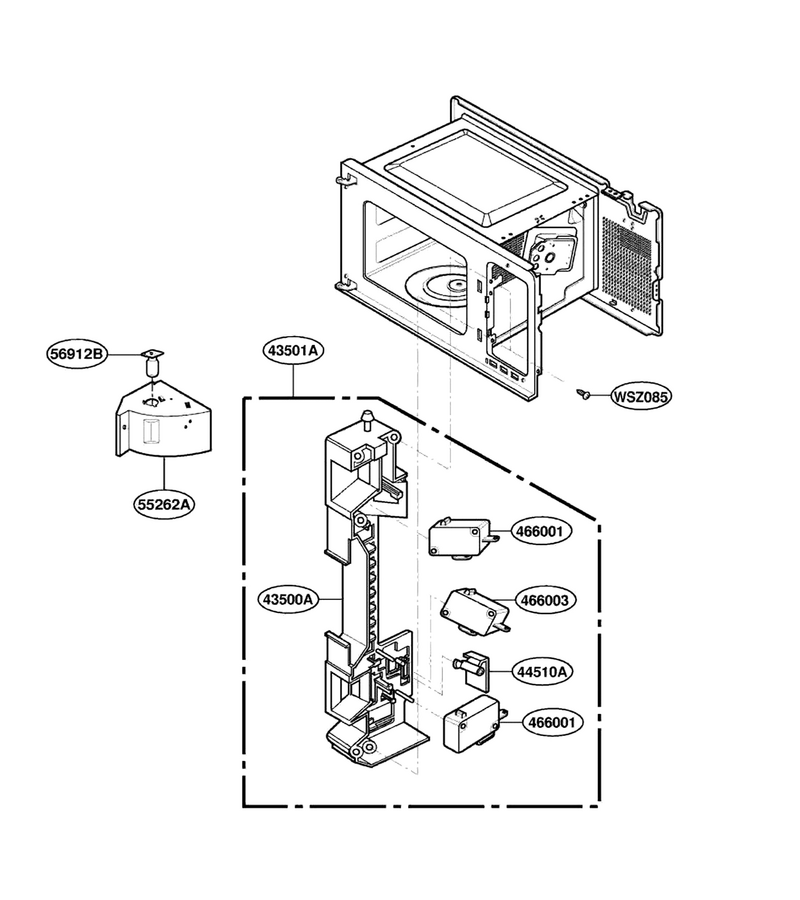

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016K
...
44510A
Lever L-G-4510W4A005A
...
55262A
Duct L-G-5262W2A041C
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

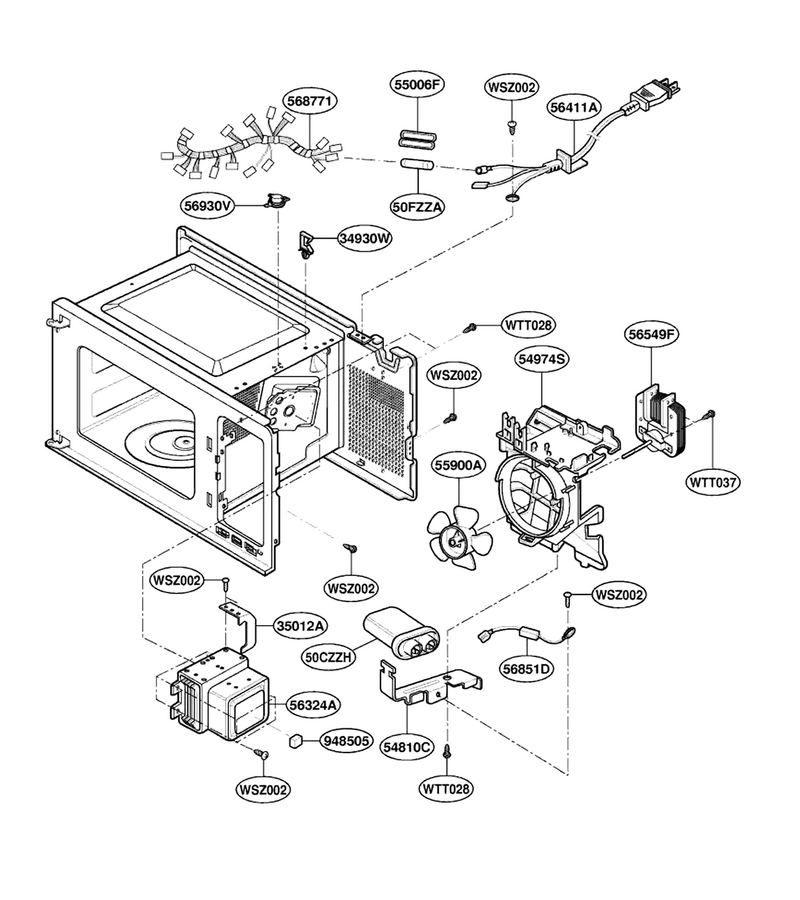

Oven Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4B72944B
...
35012A
Insulator L-G-5012W3A012A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55900A
Duct L-G-5262W2A041C
...
56324A
Fan L-G-5900W1A003A
...
56411A
Power Cord L-G-2B72325H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Thermostat L-G-6930WRT002C
...
568771
Single Harness L-G-6877W1A182E
...
948505
Damper L-G-4B73438A

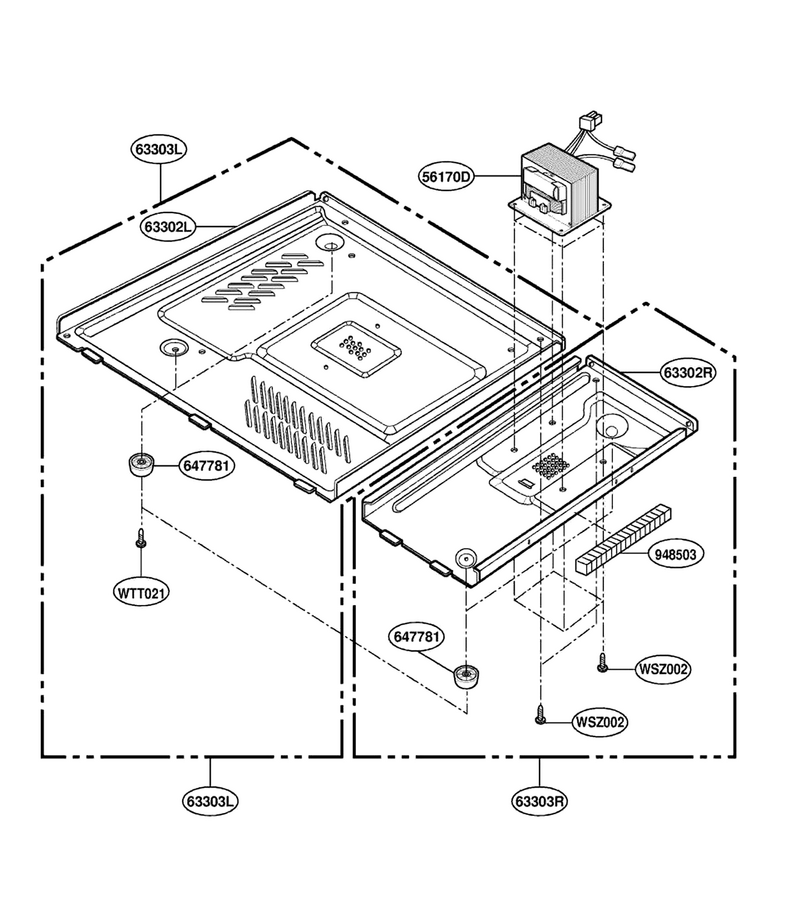

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D050A
...
63302L
Plate,base L-G-3302W1A036A
...
63302R
Plate,base L-G-3302W1A035G
...
63303L
Plate Assembly,base L-G-3303W1A028A
...
63303R
Plate Assembly,base L-G-3303W2A004E
...
647781
Foot L-G-4B73900A

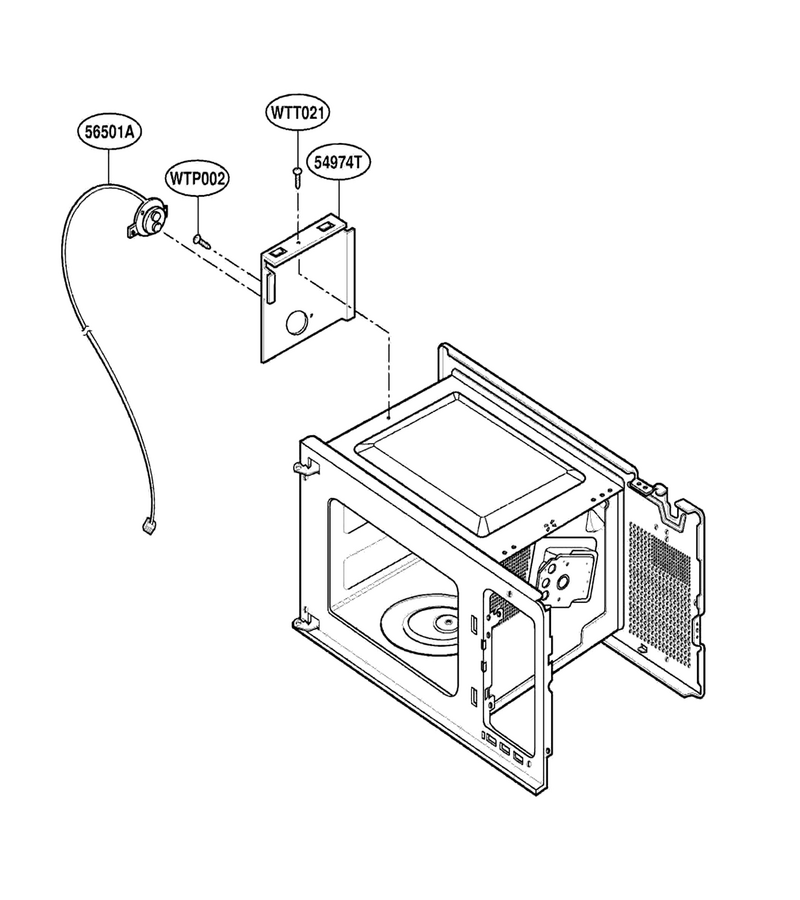

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Guide,sensor L-G-5208W1A001C
...
56501A
Humidity Sensor L-G-6501W1A004A
